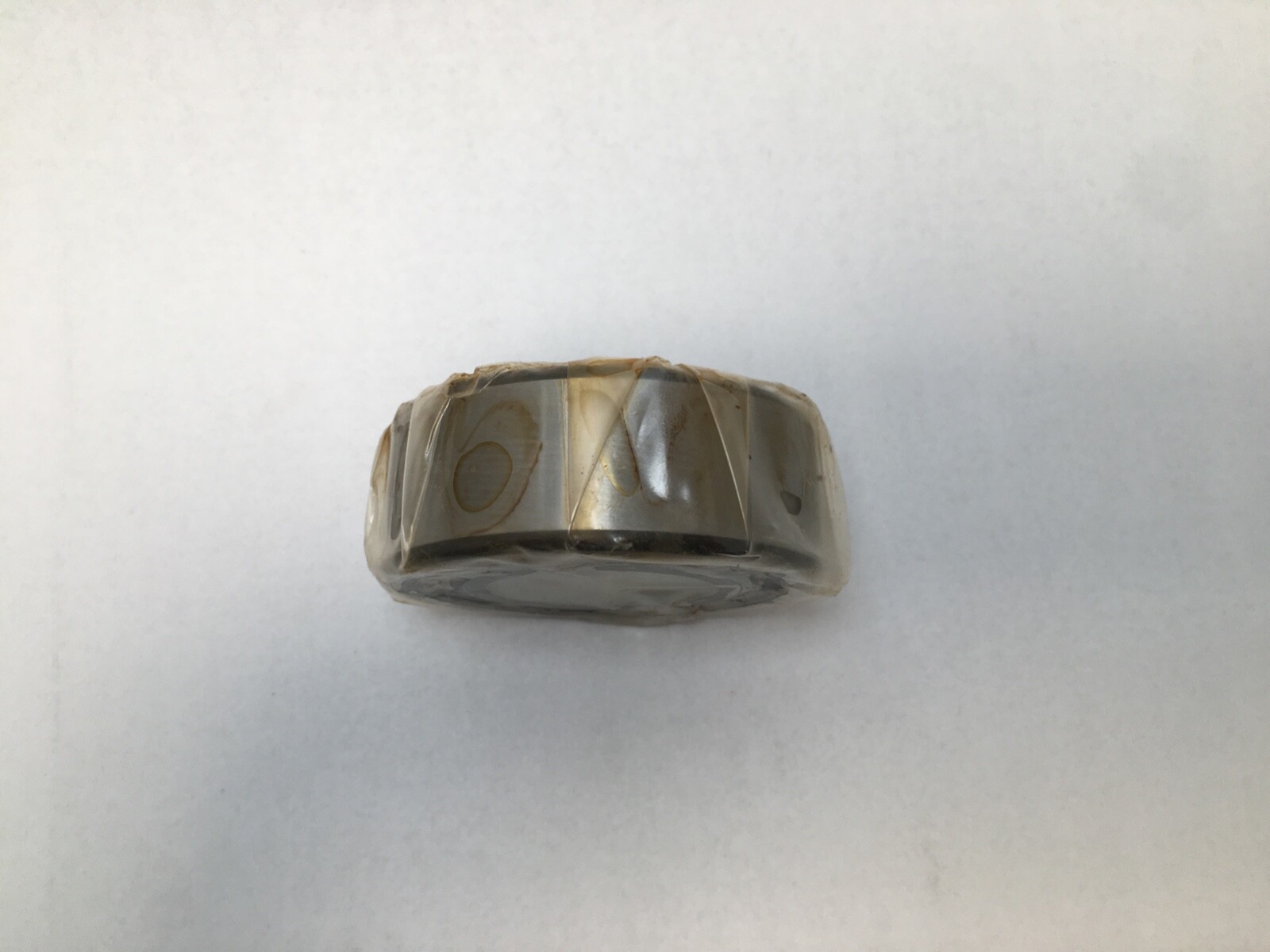

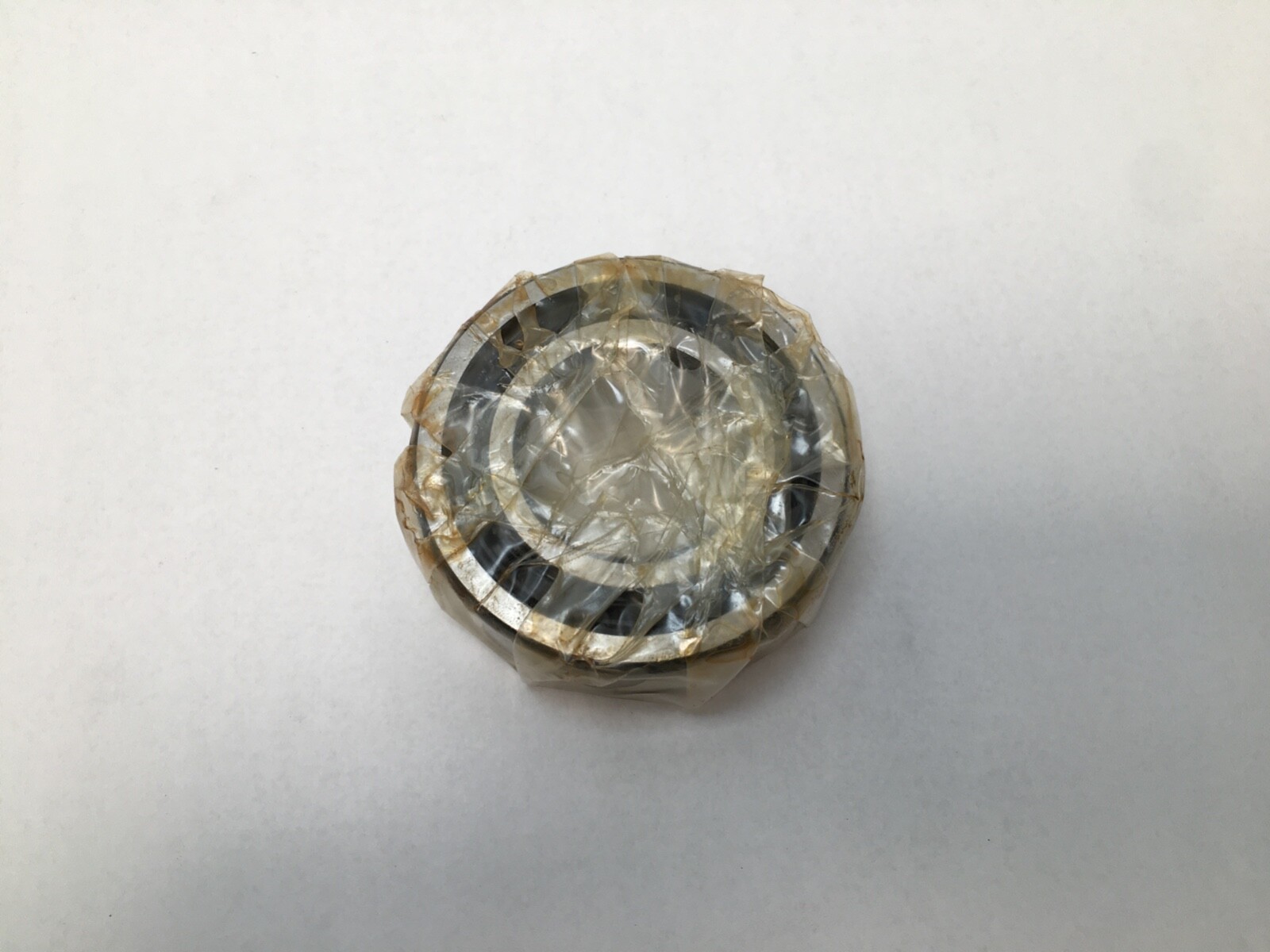

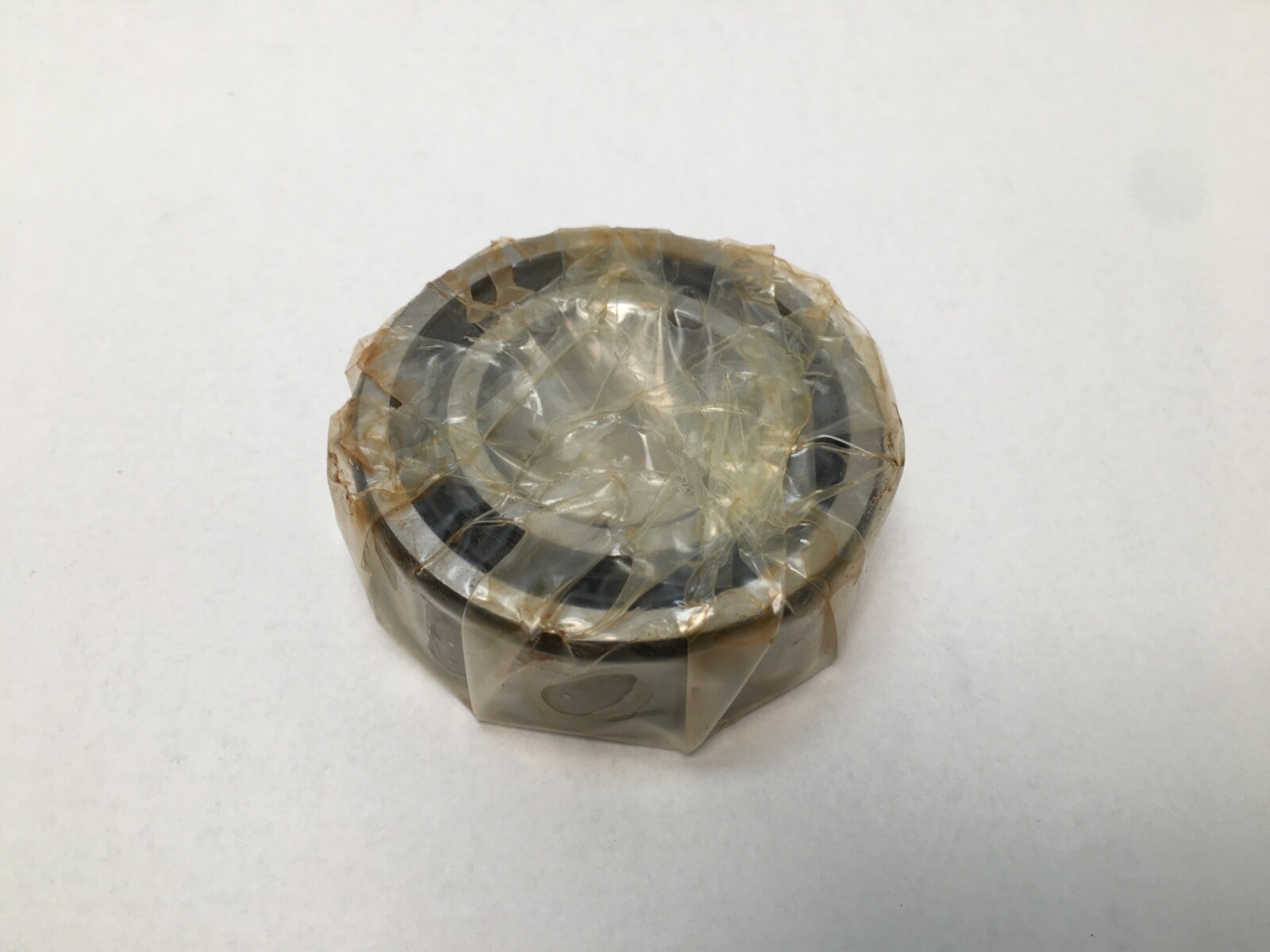

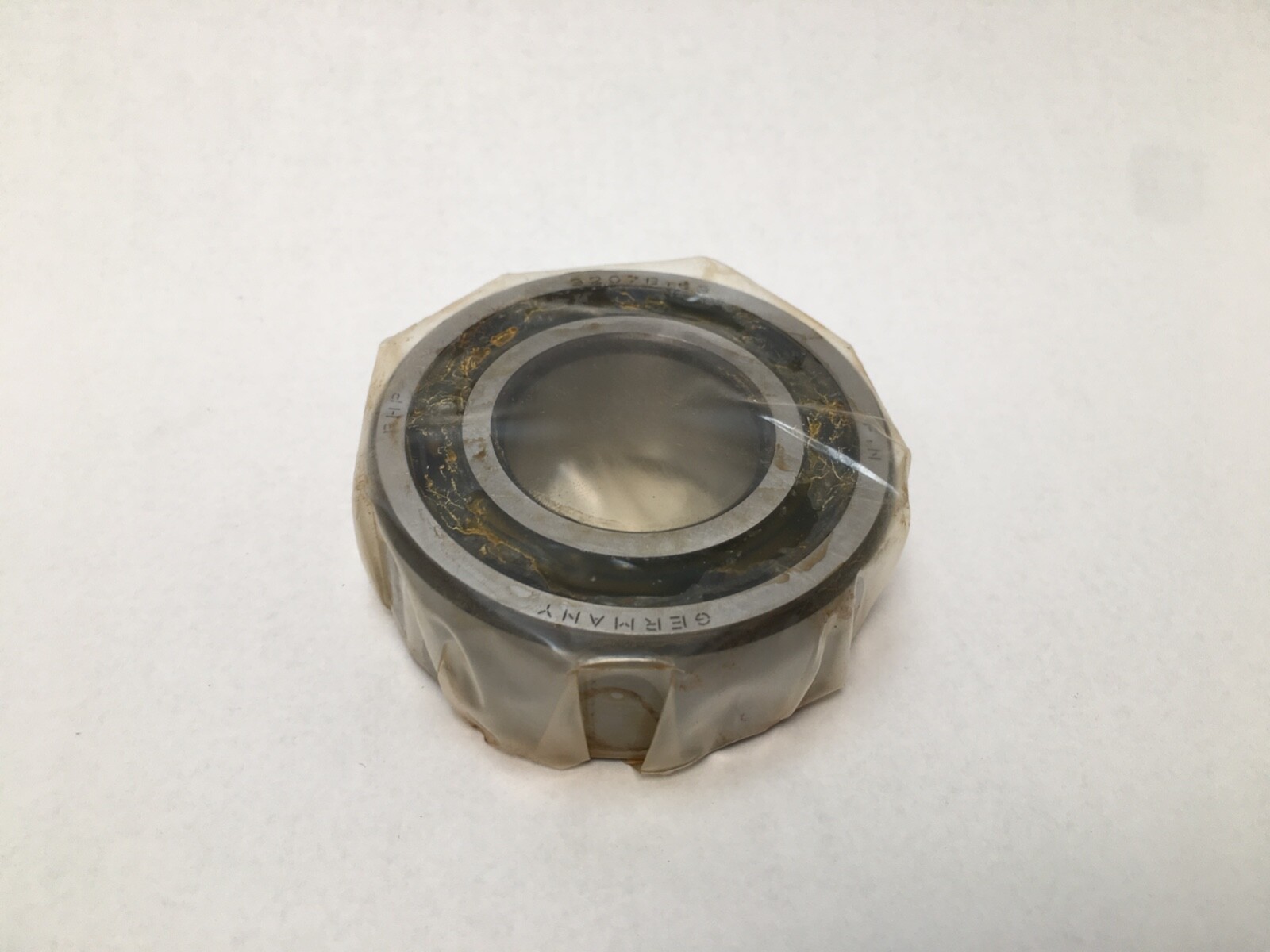

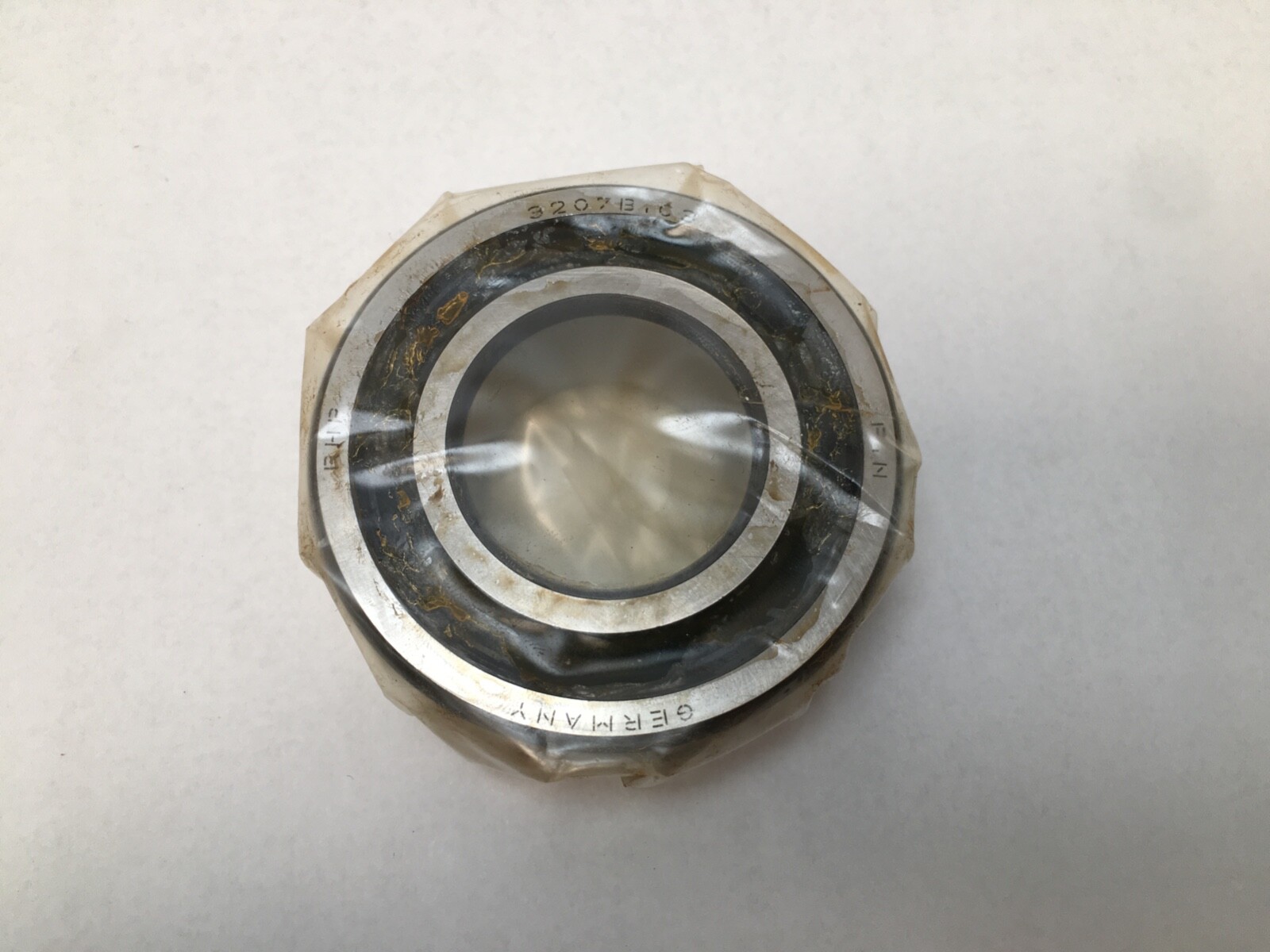

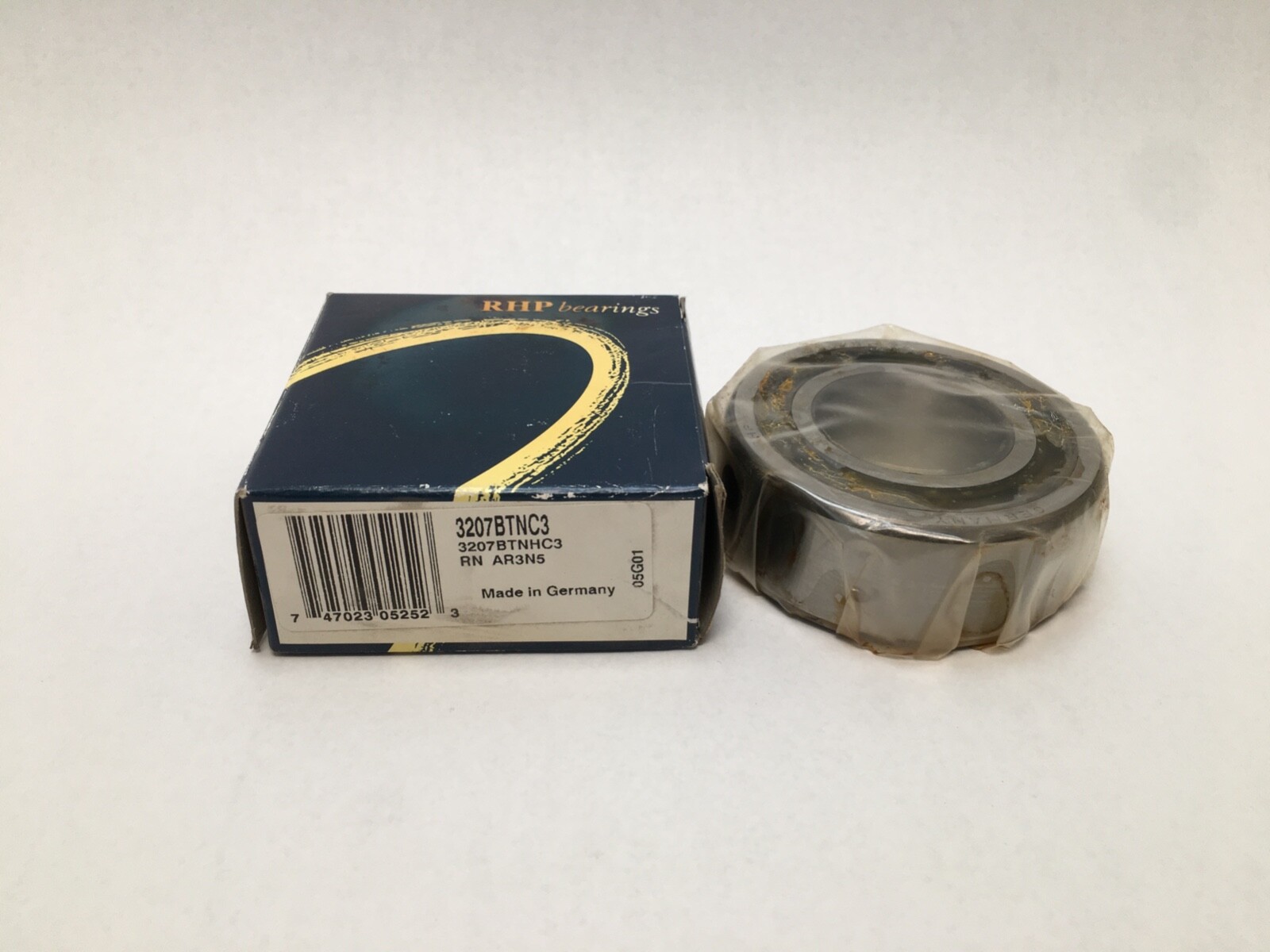

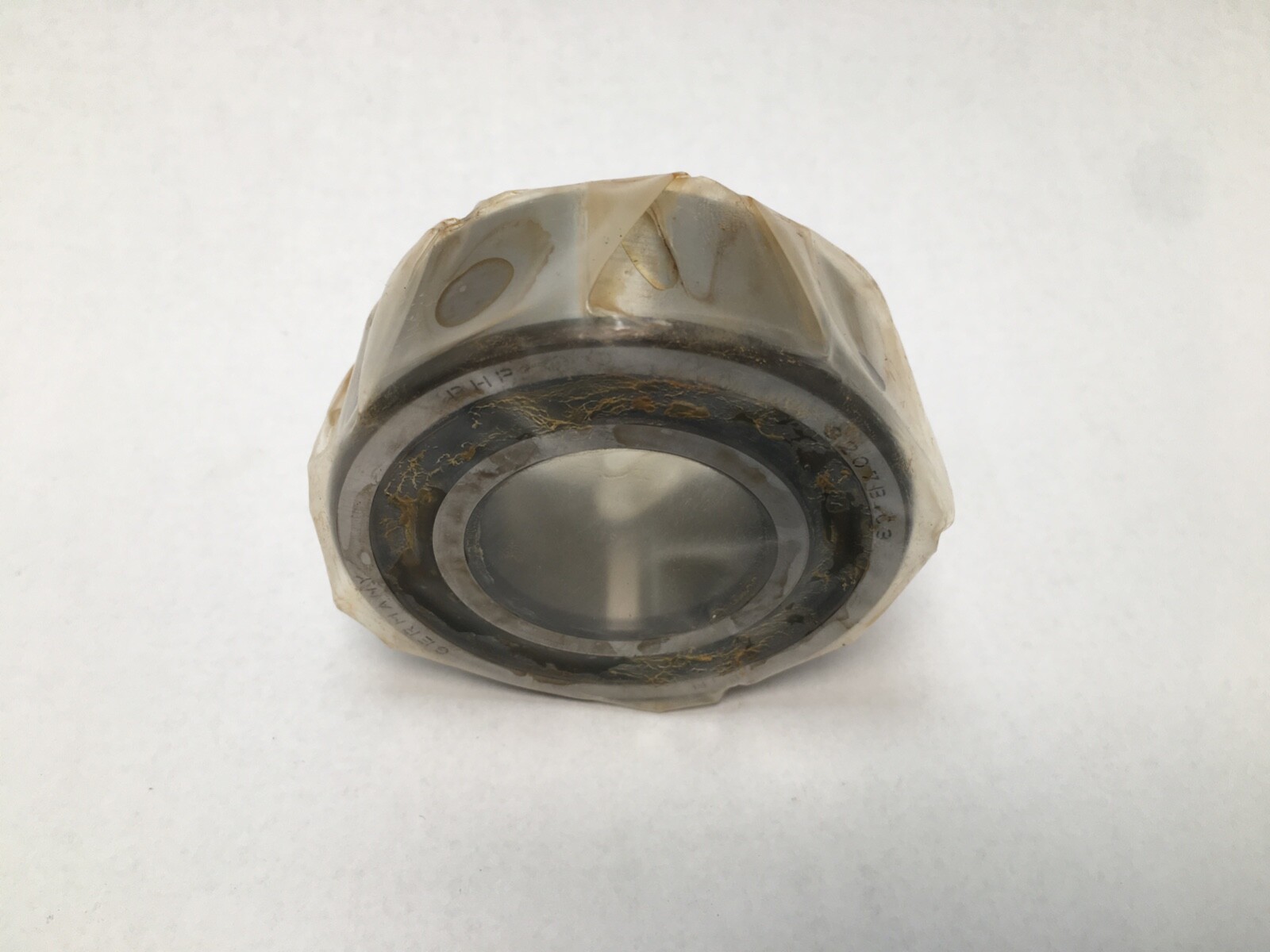

RHP 3207BTNC3 double row angular contact ball bearing, 35 x 72 x 27 mm, C3 internal clearance, open, straight bore. Older designation 5207 B C3.
List Price
$36.39
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 3207BTNC3 |
| Model | 3207B C3 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 72 mm |
| Width | 27 mm |
| Material | Bearing Steel |
|---|---|
| Series | 3200 |
| Mpn Variants | 3207BTNC3, 3207 B TN H C3, 5207 B C3, 3207B C3 |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.10.50.68 |
| Bearing Material | Bearing steel |
| Industry Terms | Double row angular contact ball bearing; 5207 bearing; 3207 bearing; two-direction thrust bearing |
| Common Misspellings | RHP 3207 BTN C3; 3207BTN-C3; 3270BTNC3; 3207BNTC3 |
| Application Types | Pumps; gearboxes; shafts carrying radial and two-direction axial load |
| Closure Type | Open |
| Cross Reference 1 | FAG 3207-B-TVH-C3 - C3 clearance; cage code differs |
|---|
RHP 3207BTNC3 double row angular contact ball bearing in the ISO 3207 envelope. Two rows of balls in opposed contact, so one bearing carries radial load and axial load in both directions. Bore 35 mm, outside diameter 72 mm, width 27 mm, open, C3 internal clearance. Unit Quantity: 1 Pc.
3207 — double row angular contact series 32, bore code 07 = 35 mm. 5207 is the older designation for the same envelope.
C3 — internal clearance greater than normal.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 27 mm. Series: 3200. Number Of Rows: 2. Rolling Elements: Ball. Bearing Material: Bearing steel. Bore Type: Straight. Closure Type: Open. Internal Clearance: C3. Snap ring included: No. Country of Origin: Germany.
Envelope: 35 x 72 x 27 mm. Straight bore. Double row, axial load in both directions.
Cross-Reference 1: FAG 3207-B-TVH-C3 – C3 clearance; cage code differs. MPN Variants: 3207BTNC3, 3207 B TN H C3, 5207 B C3, 3207B C3.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 27 mm.
Internal Clearance: C3, greater than normal.
Double row angular contact ball bearing. Number Of Rows: 2.
