Availability:
Out of stock

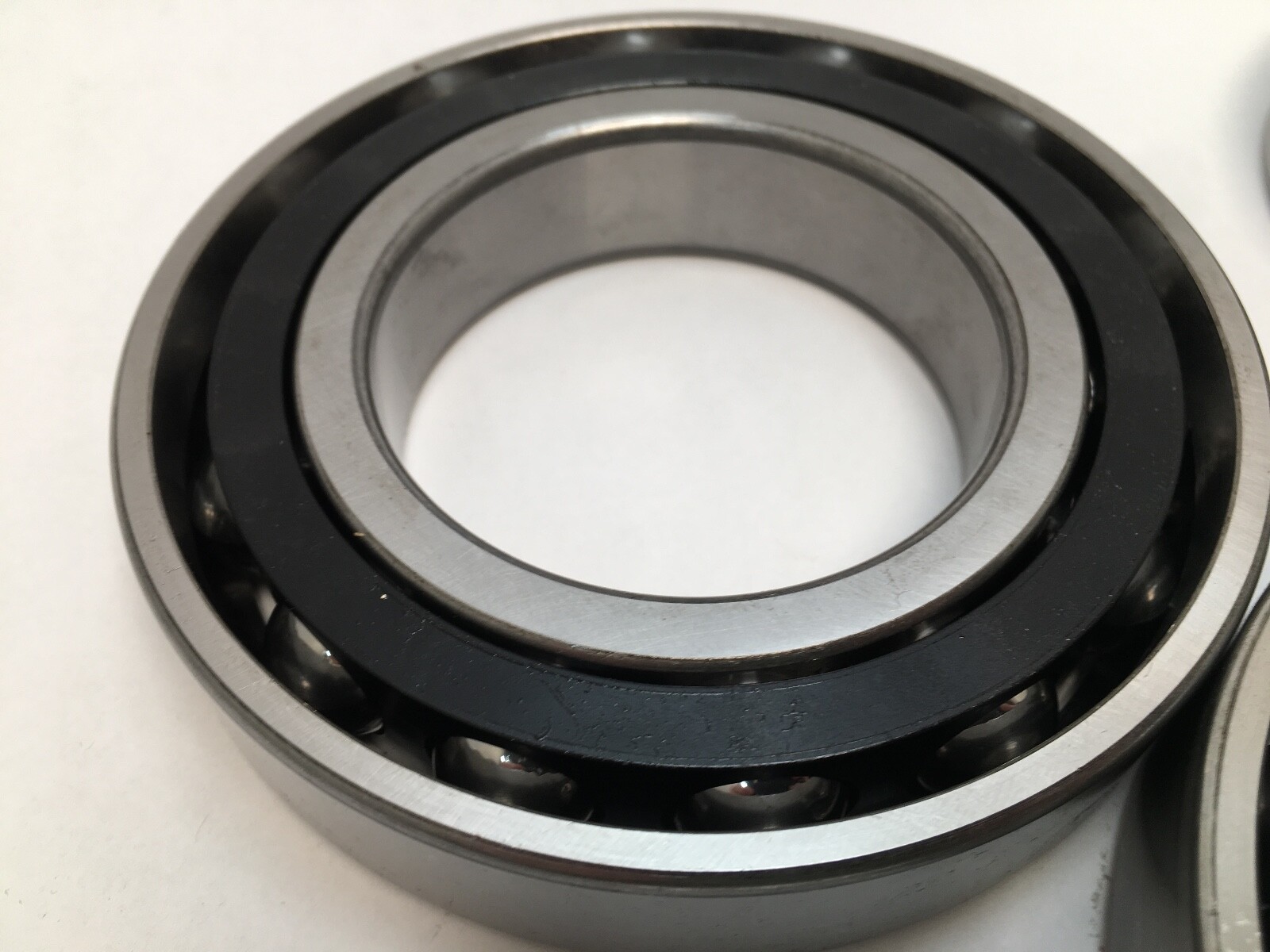

Angular contact ball bearing triplex set, 125 mm OD, 24 mm per bearing, 15° contact angle, DBT tandem-plus-opposed stack for asymmetric spindle thrust.
List Price
$419.92
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Double Row Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 39.67 mm Width, 30° Contact Angle, Open, Straight Bore$67.39
Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Medium Preload.$76.48
Single Row Angular Contact Ball Bearing, 70 x 125 x 24 mm, 40 Degree, Open, Polyamide Cage$78.74
Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Medium Preload.$84.13| MFR / Brand | NTN |
|---|---|
| Model | 7214C DBT 17PX5V |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil/Grease |
| Base Number | 7214 |
| Industry Terms | angular contact ball bearing; triplex set; DBT arrangement; matched set; three bearing set; 15 degree contact angle; spindle bearing; 7214 |
| Application Types | Drilling and boring spindles; machine-tool spindles with strongly asymmetric thrust loading; high-speed shafts needing heavy one-way thrust capacity |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 7214CDBT; 7214C DBT; 7214-C-DBT; 7214CDB; 7214C; 7214; 17PX5V; 1724C |
| Manufacturer Status | NTN 7214C remains an active designation |
| Arrangement Configuration | DBT triplex (tandem pair plus one opposing bearing) |
| Rolling Elements | Balls |
| Number Of Rows | 1 row per bearing; 3 bearings in the set |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | DBT triplex (tandem pair plus one opposing bearing) |
| Design Units | Metric |
| Part Number | 7214CDBT |
| Cross Reference 1 | NTN 7214C DB (related two-bearing pair in the same envelope) |
|---|

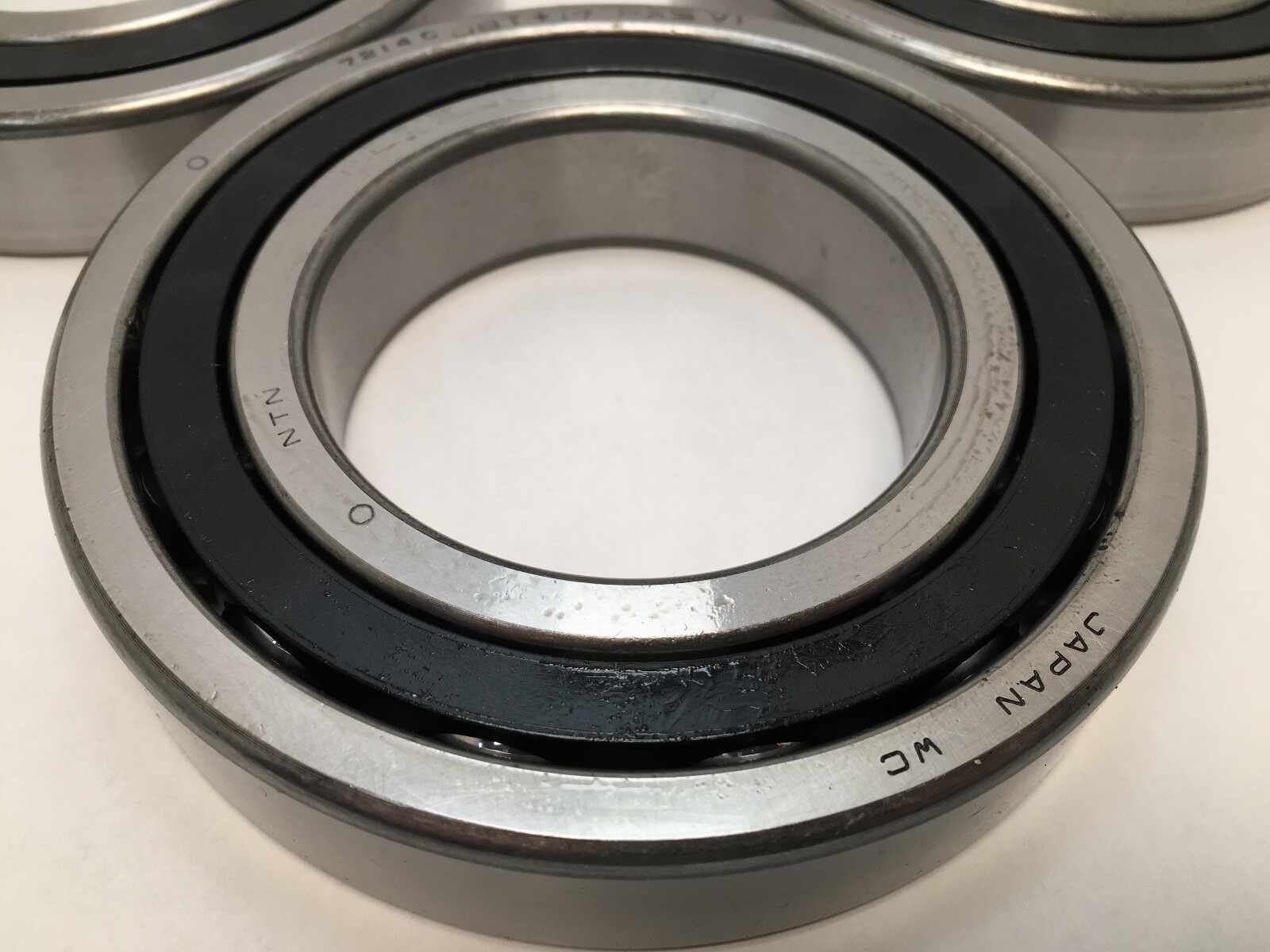

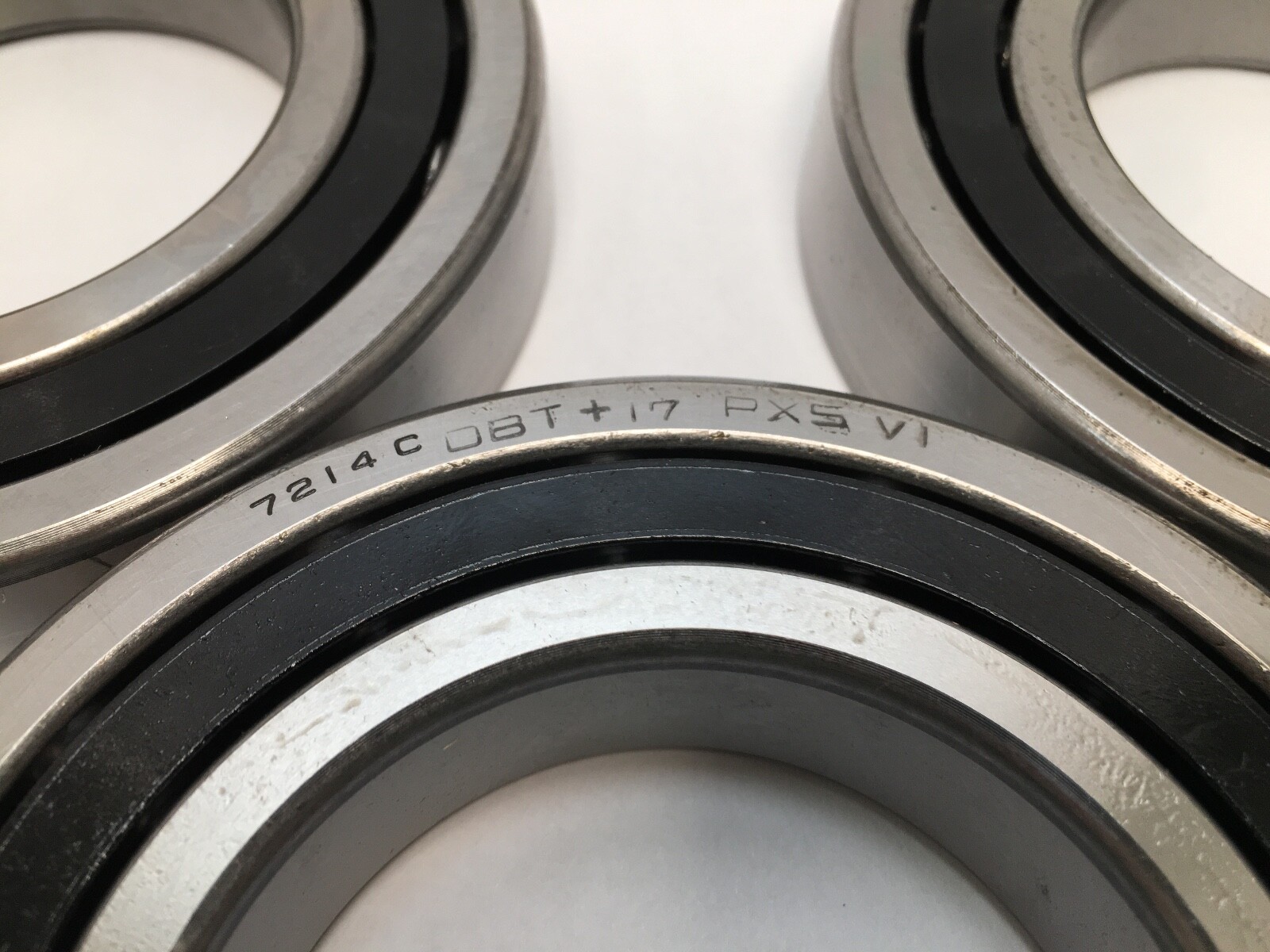

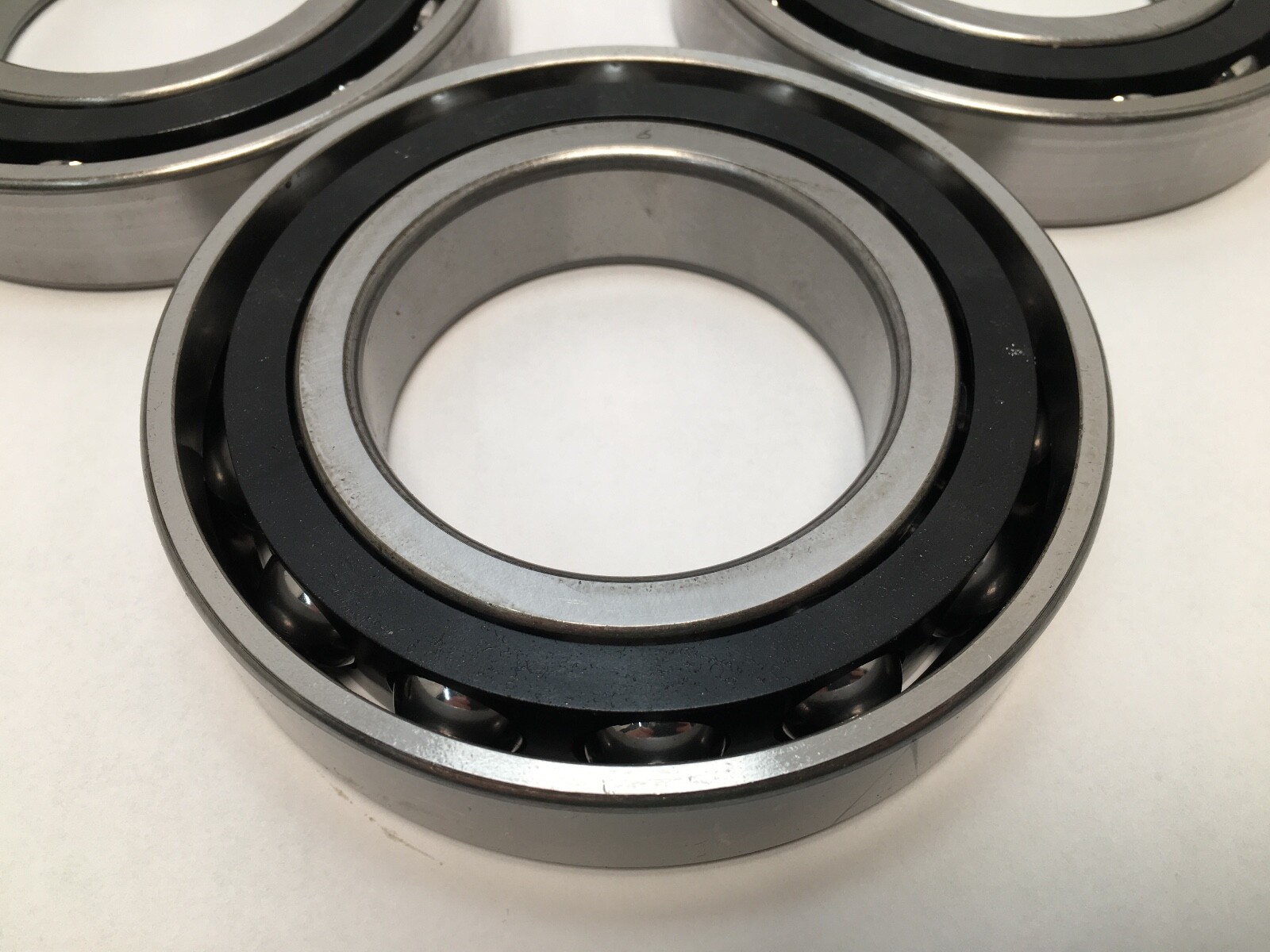

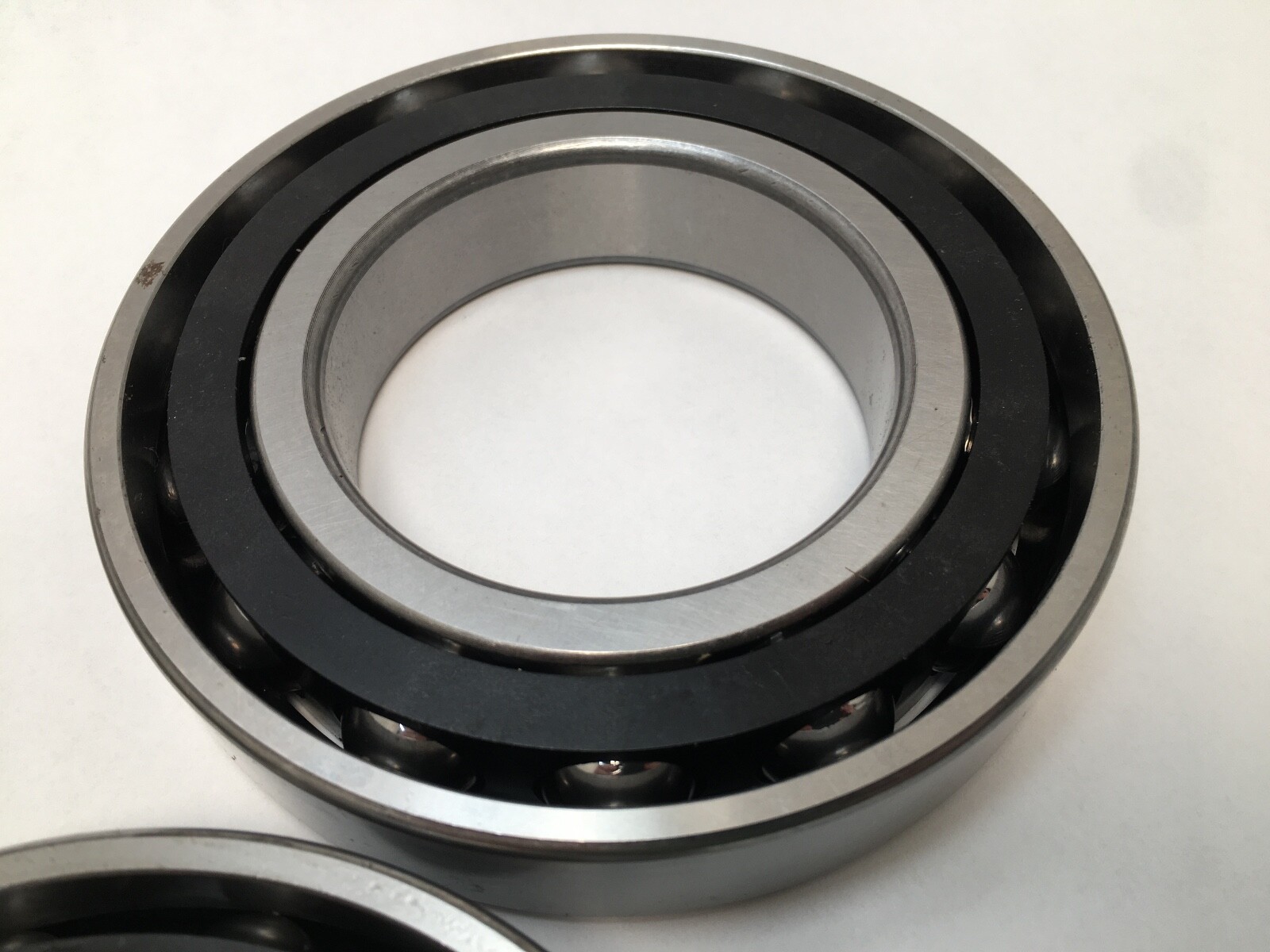

NTN angular contact ball bearings in the 7214 envelope, matched and ground as a DBT triplex set.
Brand: NTN
Part Number: 7214CDBT
Bearing Type: Angular contact ball bearing
Base Number: 7214
Series: ISO 72 dimension series
Design Units: Metric
Outside Diameter: 125 mm
Overall Width: 24 mm per bearing
Bore Type: Straight
Contact Angle: 15°
Arrangement / Configuration: DBT triplex
Mounting Arrangement: DBT triplex (tandem pair plus one opposing bearing)
Number Of Rows: 1 row per bearing; 3 bearings in the set
Seal Type: Open
Closure Type: Open
Rolling Elements: Balls
Material: Bearing steel
Lubricant: Oil or grease
Snap Ring Included: No
A 15° contact angle keeps the load path near the radial plane, cutting ball centrifugal and gyroscopic effects, so the set runs faster and cooler than a 25° or 40° equivalent. The triplex stack recovers thrust capacity: the tandem pair shares thrust in the heavily loaded direction, roughly doubling capacity that way, while the single opposing bearing takes the lighter reverse thrust and completes axial location of the shaft.
Drilling and boring spindles, machine-tool spindles with strongly asymmetric thrust loading, and high-speed shafts needing heavy one-way thrust capacity.

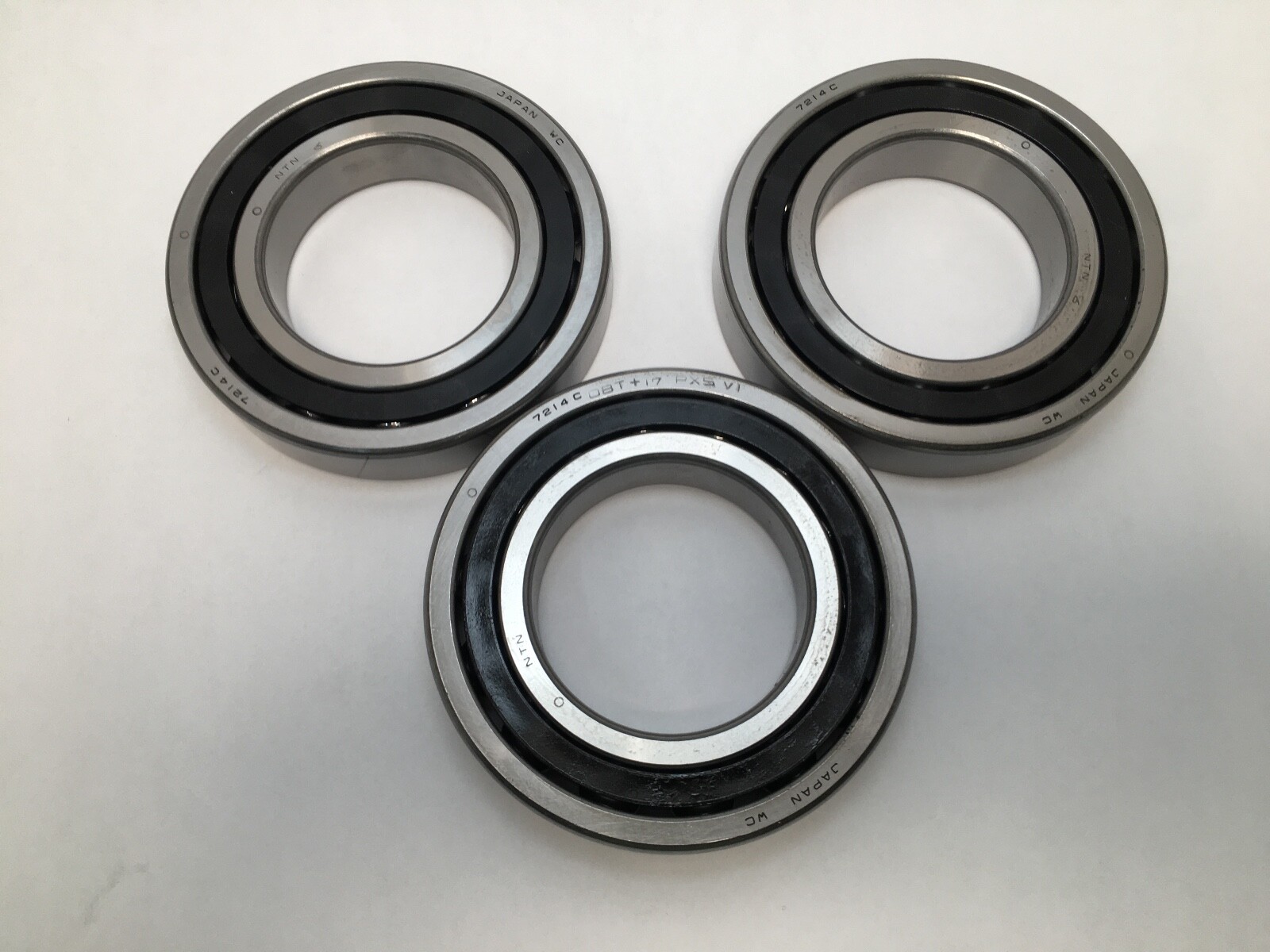

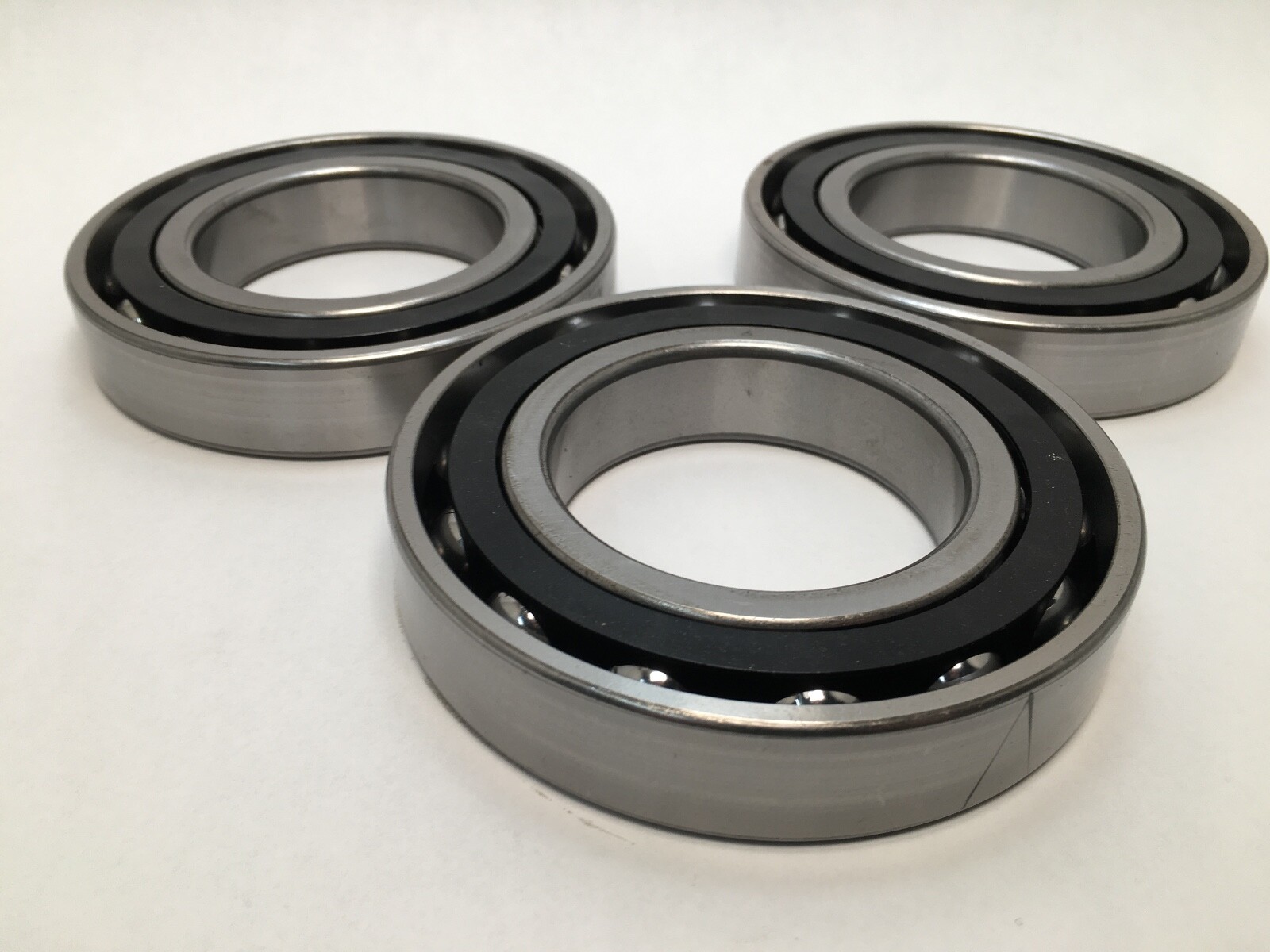

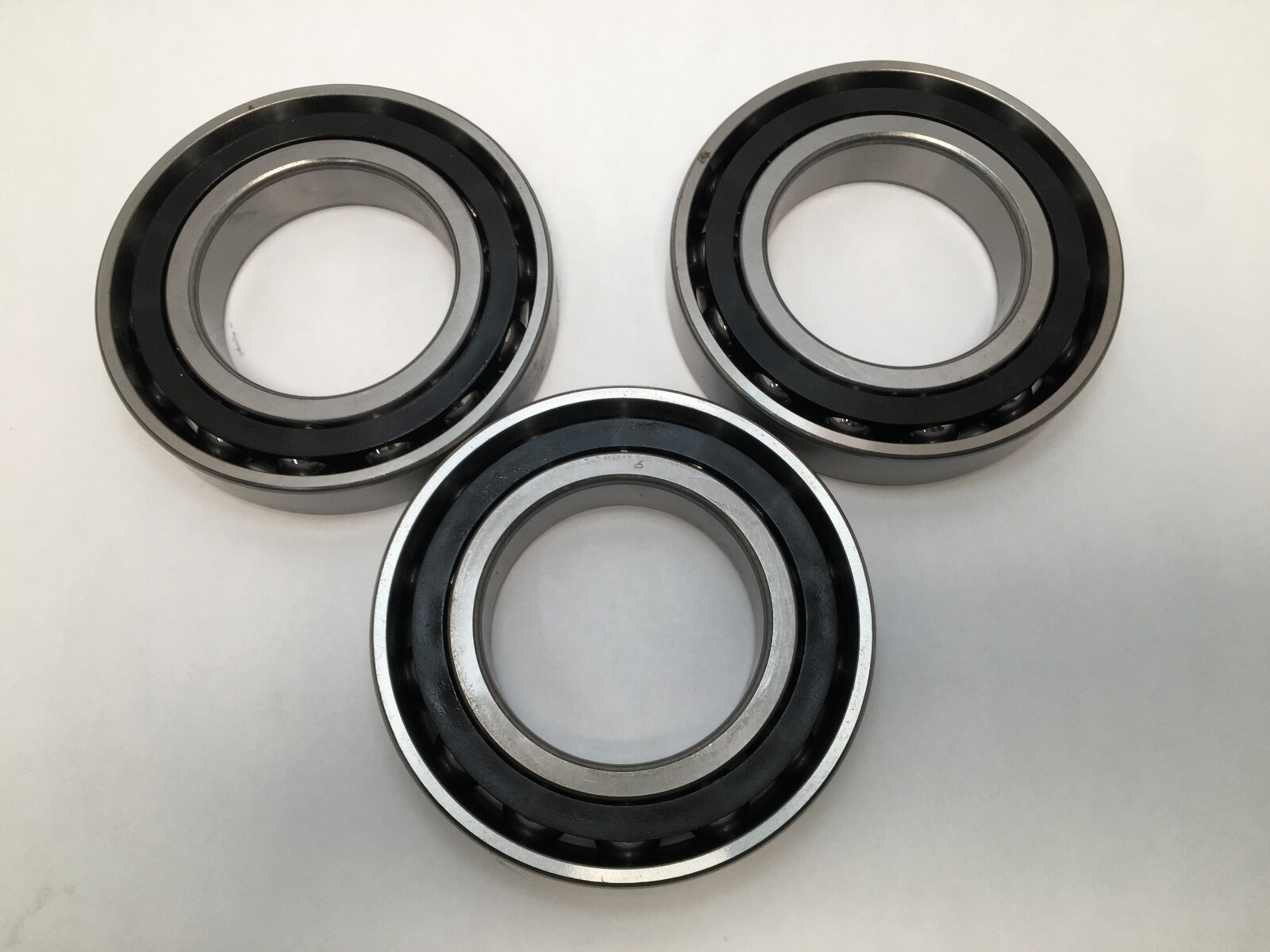

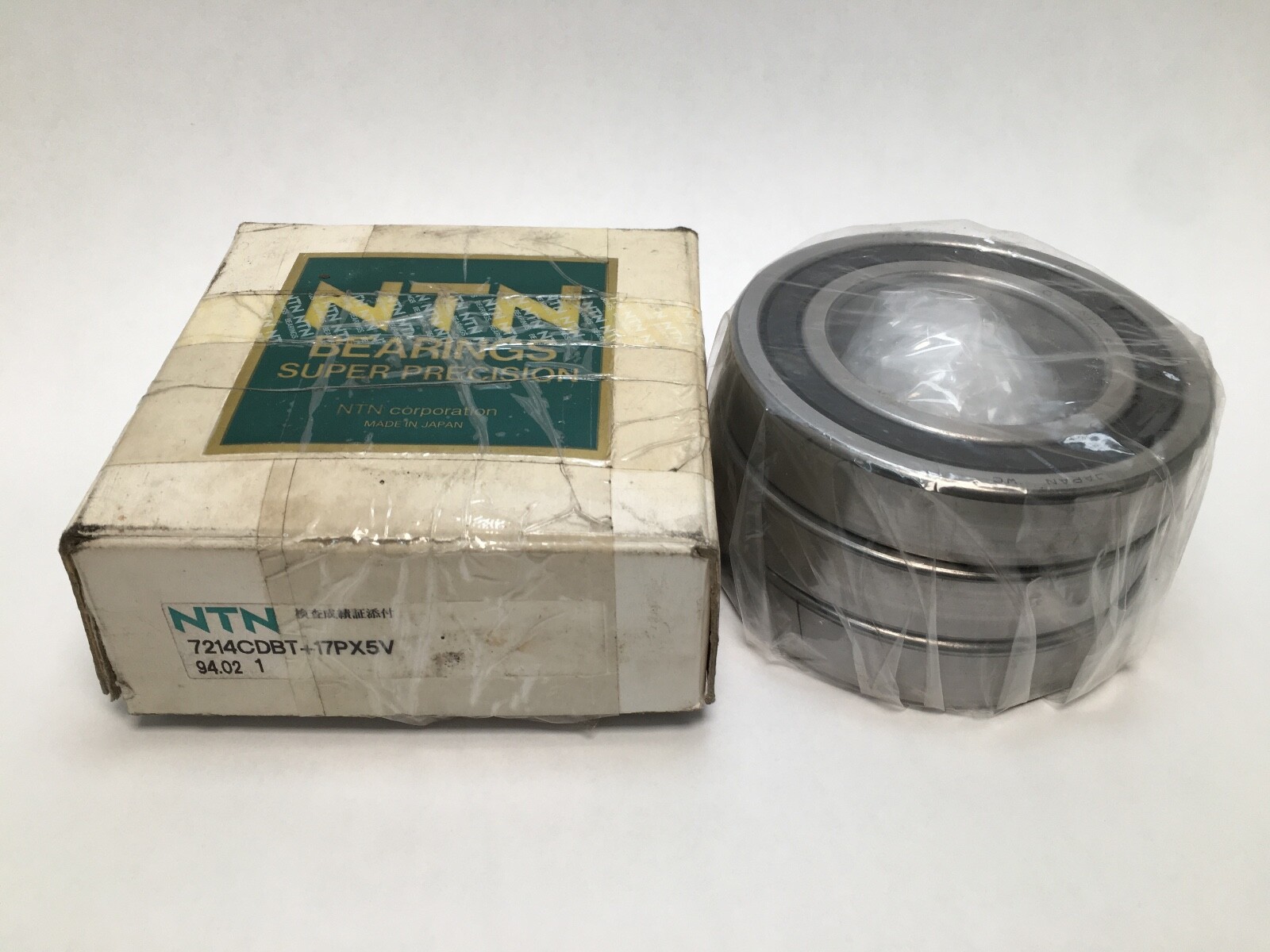

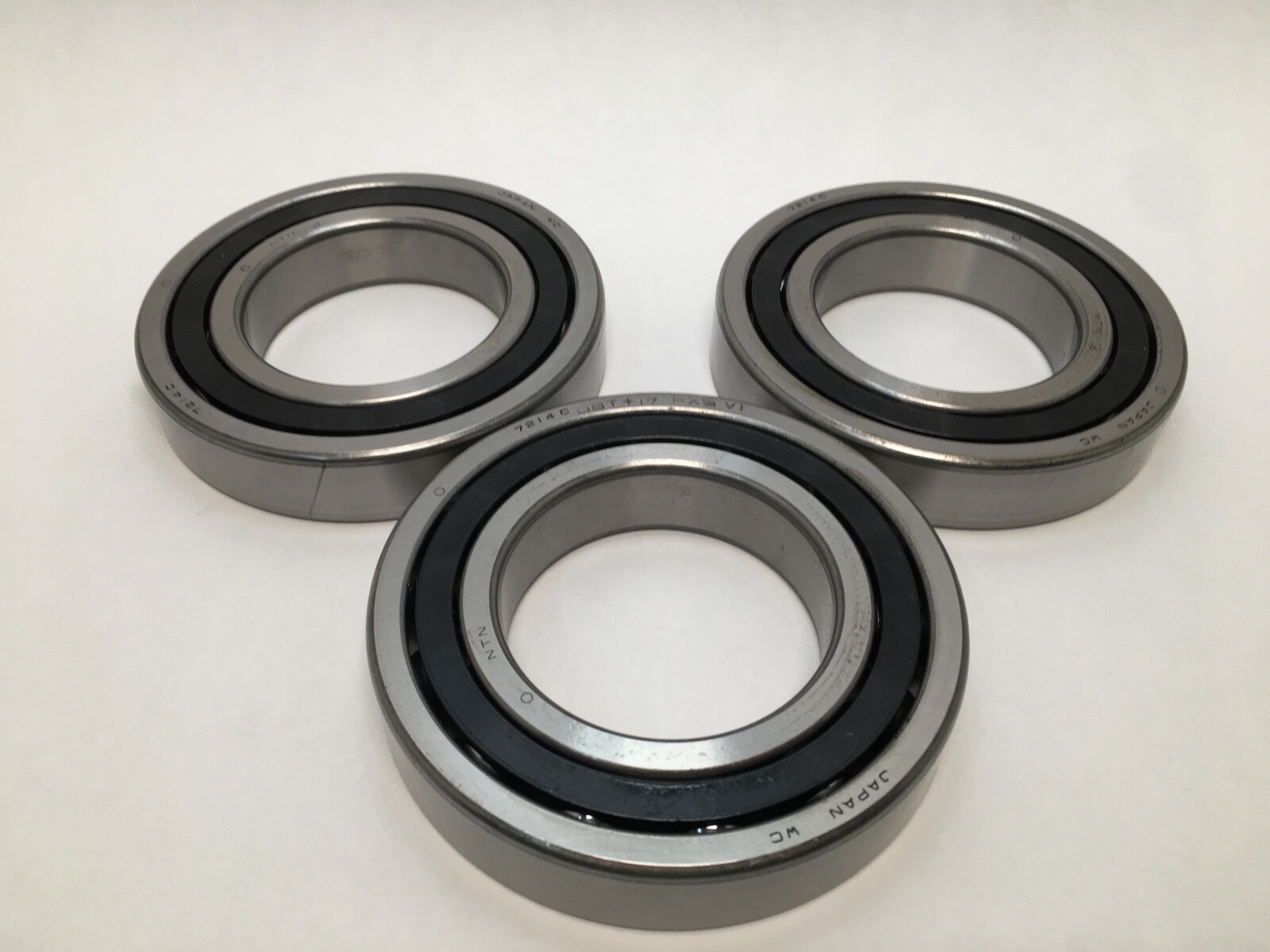

Unit Quantity: 1 set of 3 Pcs — matched DBT triplex stack. Two bearings mounted in tandem facing one direction and a third facing the other, giving a back-to-back relationship overall.
ISO base number 7214. Searchable forms: 7214CDBT, 7214C DBT, 7214-C-DBT, 7214CDB, 7214C, 7214, 17PX5V, 1724C.
Cross-Reference 1: NTN 7214C DB (related two-bearing pair in the same envelope)
Country of Origin: Japan
Harmonization Code: 8482.10.50.68
