Single-row angular contact ball bearing, 70 x 125 x 24 mm, 40° contact angle, open, glass-fibre reinforced polyamide cage, CN clearance, 5300 rpm limit.
List Price
$78.74
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7214B.TVP |
| Model | 7214B.TVP / 7214 BE G/AGY/CBY 7214BG / 3MM214 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil |
| Base Number | 7214B |
| Industry Terms | angular contact ball bearing; 40 degree thrust bearing; B series angular contact; polyamide cage bearing; thrust ball bearing |
| Common Misspellings | 7214 BTVP; 7214B TVP; 7214BTPV; FAG 7214-BTVP; 7214BTVH |
| Application Types | Worm gear drives; machine screws and lead screws; vertical pump shafts; fan and blower spindles; gearbox thrust positions |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 7214BTVP; 7214-B-TVP; 7214B.TVP; 7214 B TVP; 7214B; 7214BG; 7214BE |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Part Number | 7214B.TVP |
| Cross Reference 1 | SKF 7214 BEP |
|---|---|
| Cross Reference 2 | NSK 7214B |
| Cross Reference 3 | Fafnir 3MM214 |
| Cross Reference 6 | FAG 7214C (related size, 15 degree contact angle) |

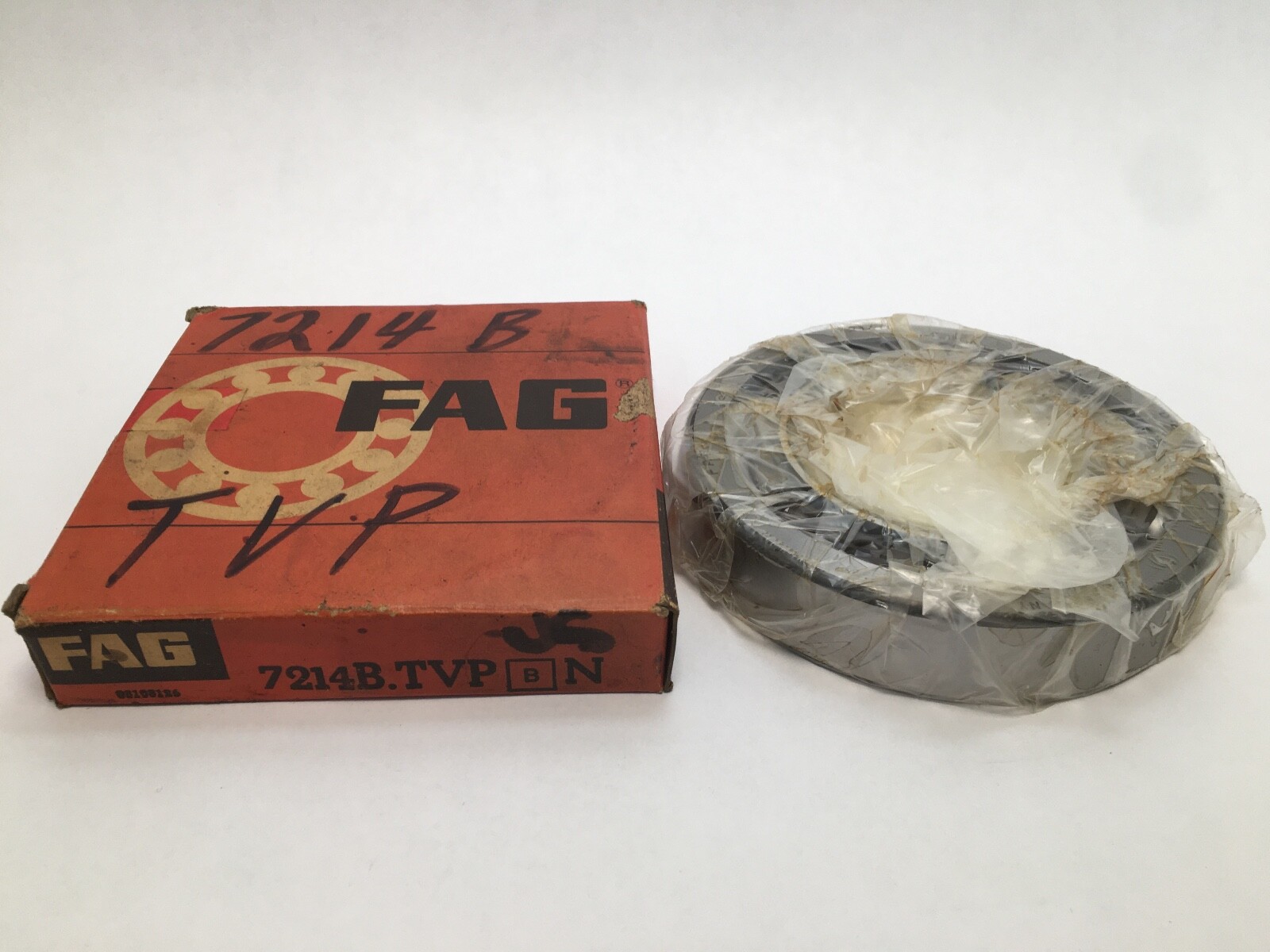

| Cross Reference 7 | 7214BG (carton marking) |

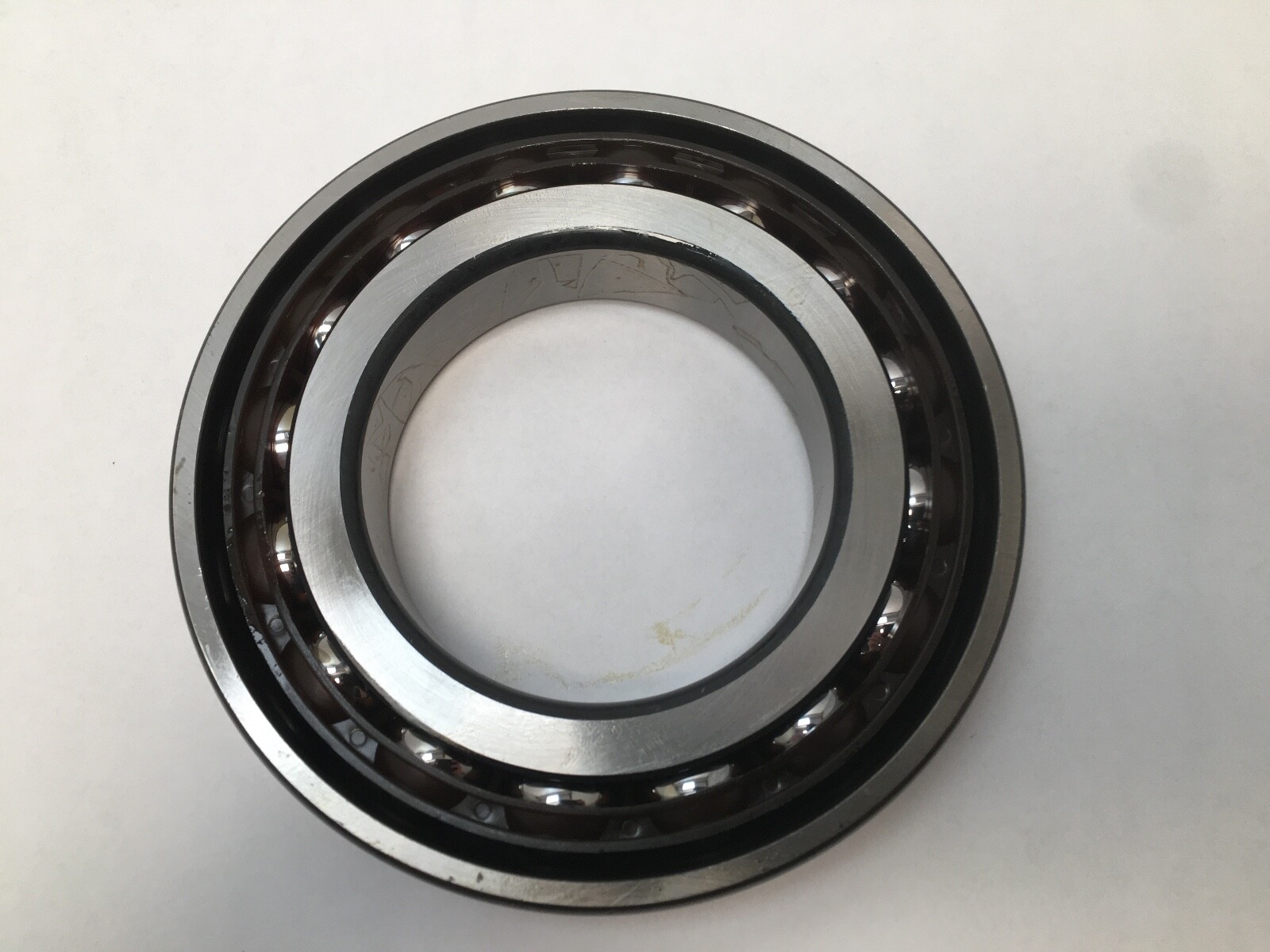

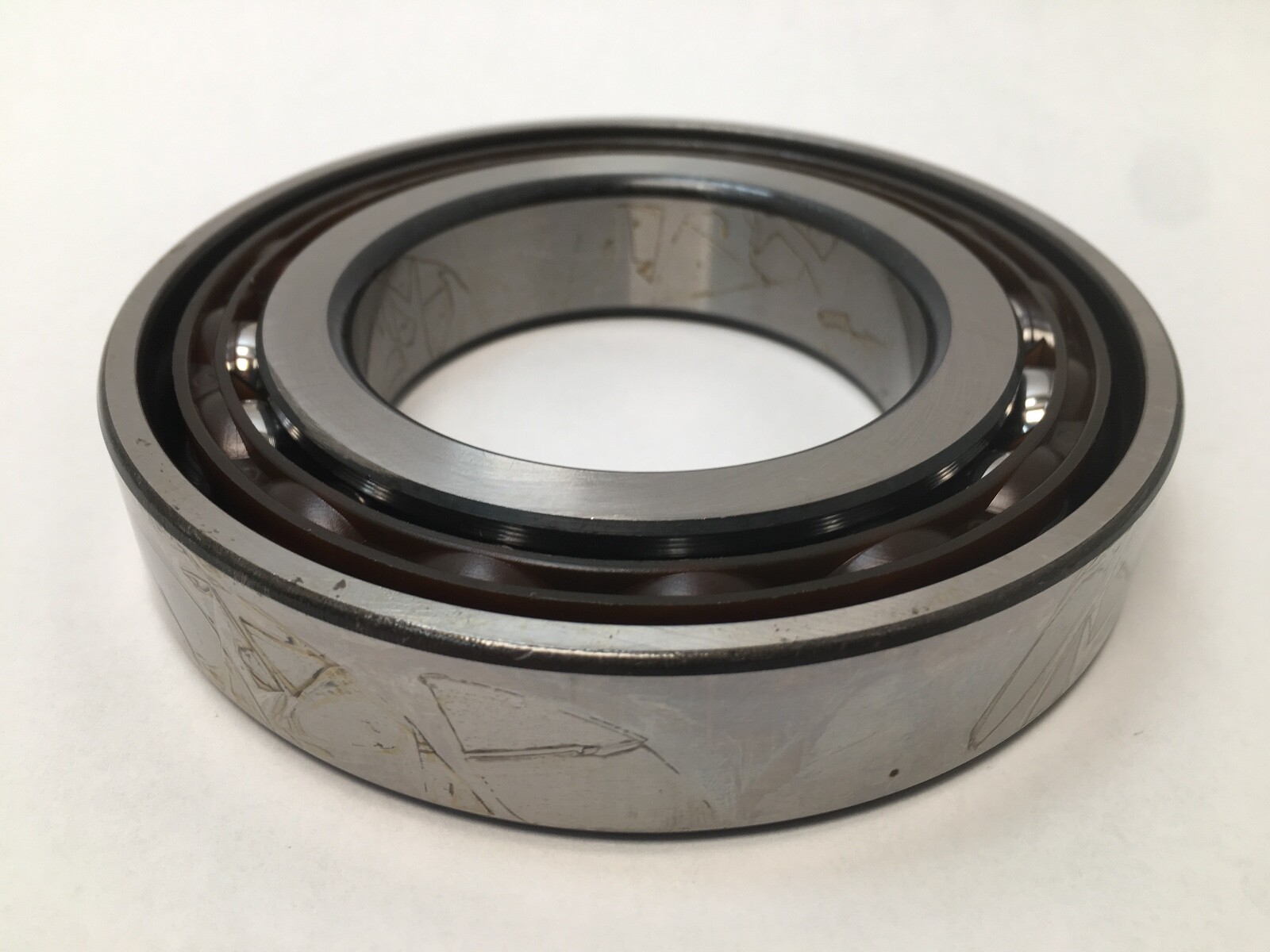

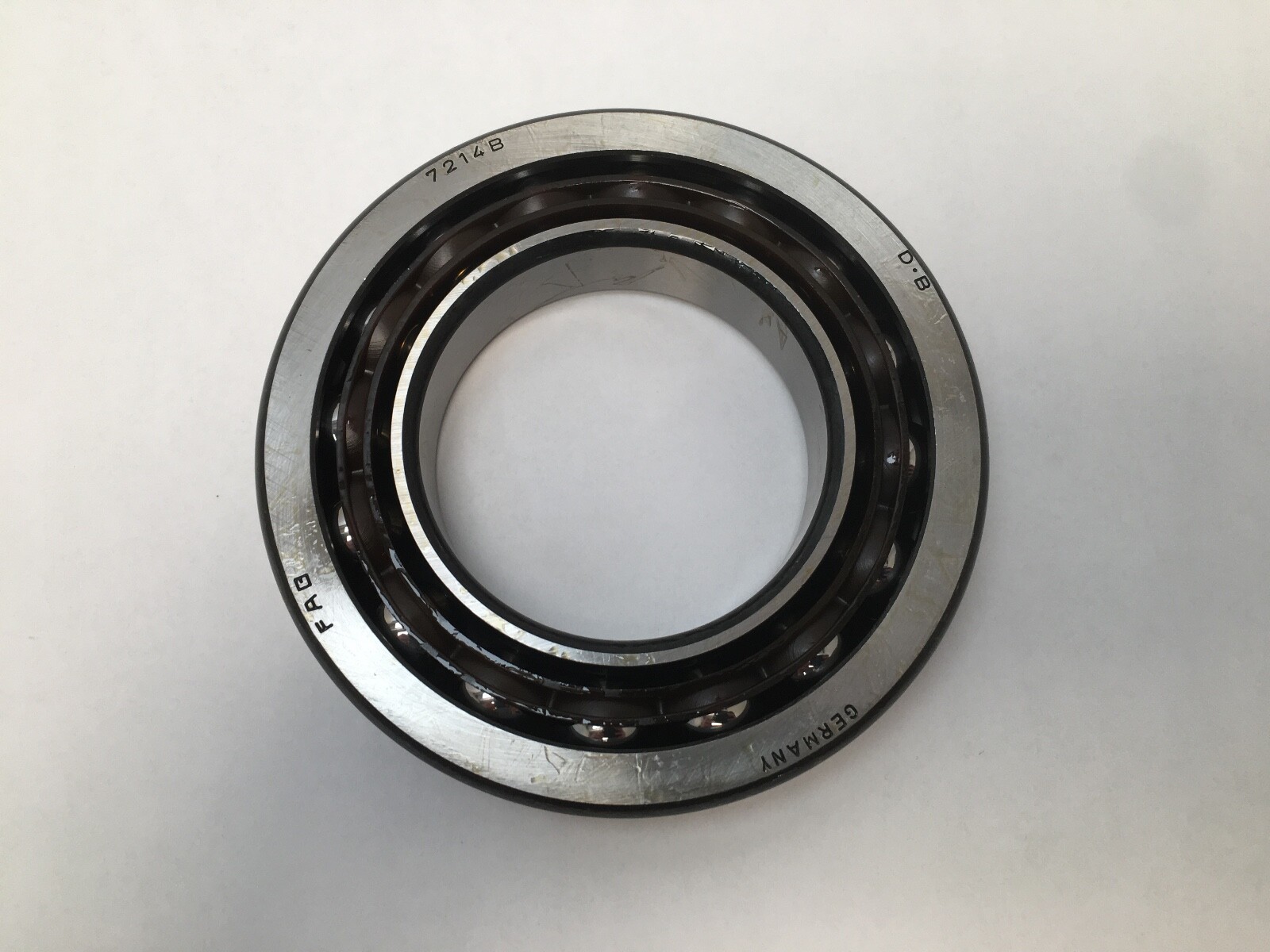

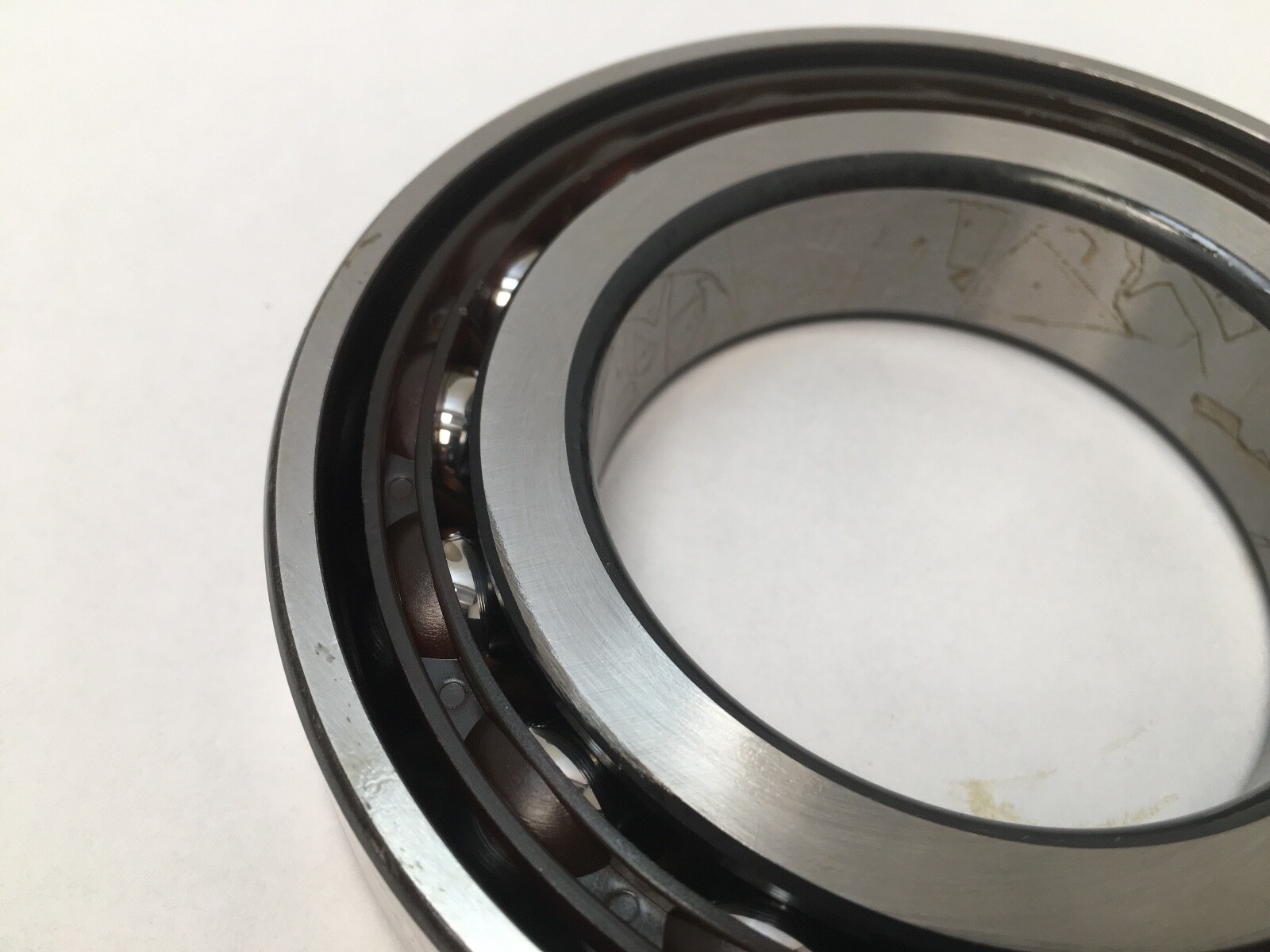

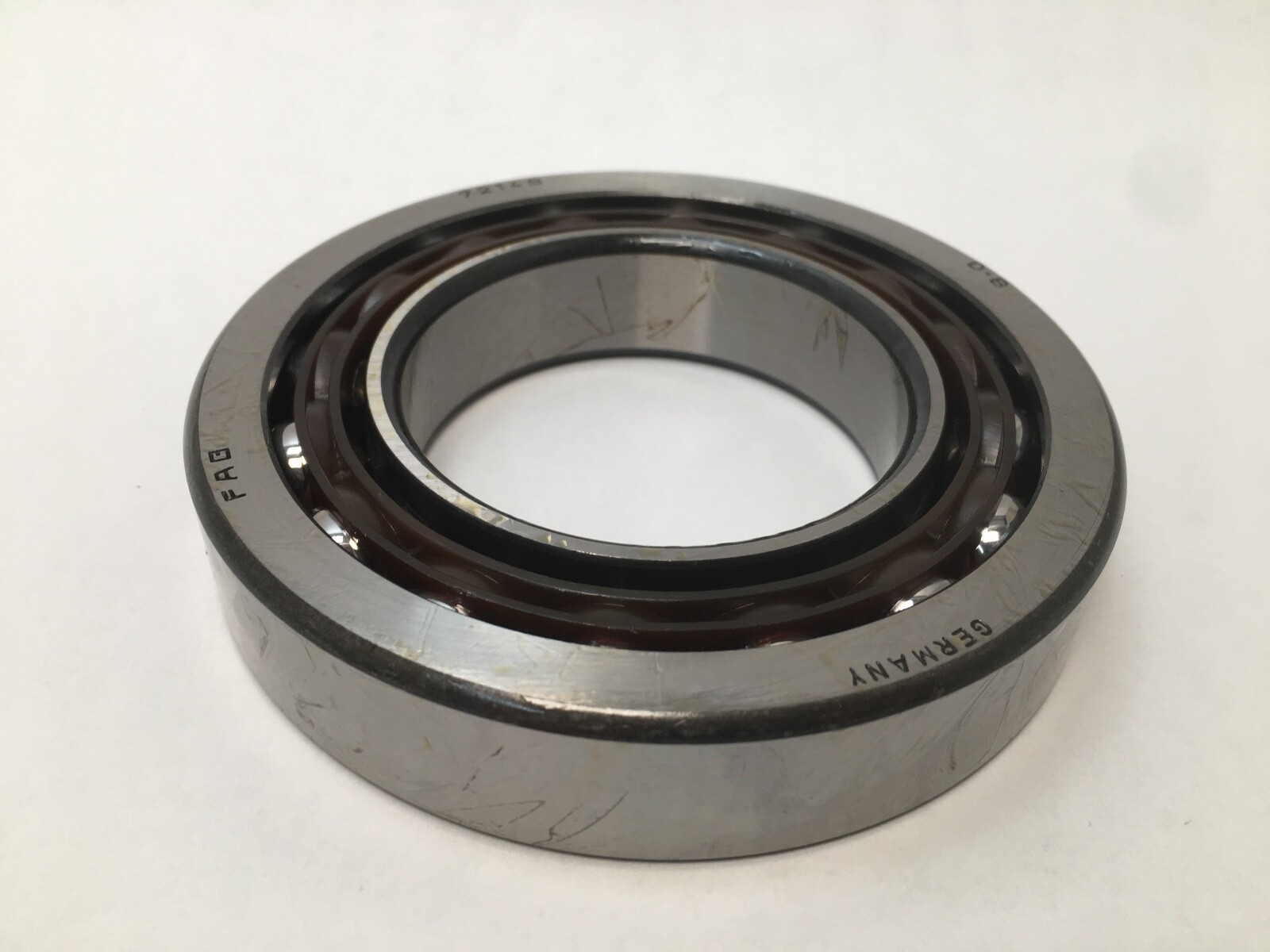

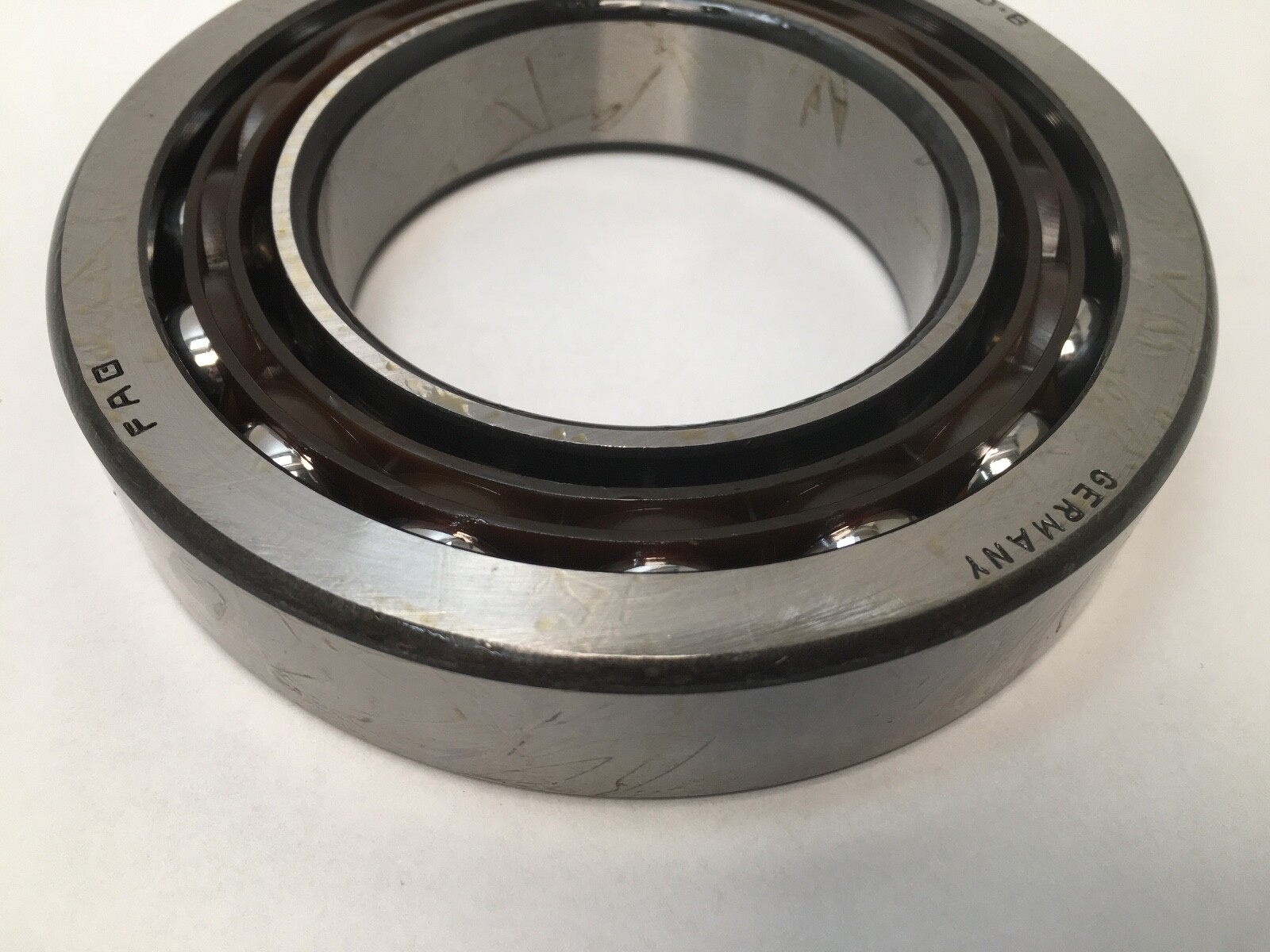

A FAG 7214B.TVP single-row angular contact ball bearing, 70 mm bore, 125 mm outside diameter, 24 mm width. Open both faces, 40° contact angle, one-piece glass-fibre reinforced polyamide cage, normal precision class, CN internal clearance.

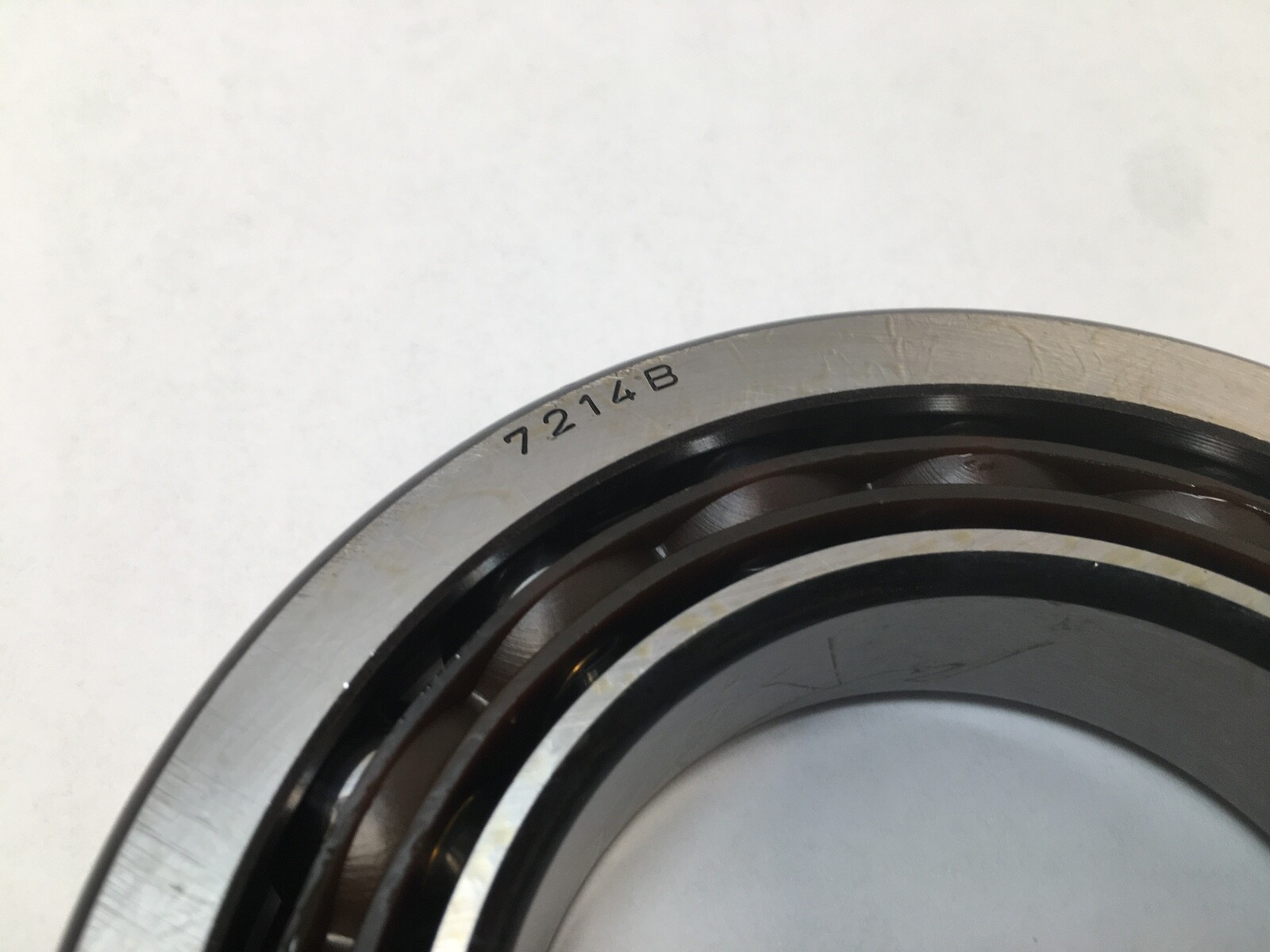

72 is the medium 02 dimension series and 14 is the bore code, giving a 70 mm bore. B is the FAG code for a 40° contact angle. TVP is the glass-fibre reinforced polyamide cage, ball-guided and one-piece; the FAG phenolic cage codes are TPA, T and TG and are a different construction. No clearance or class suffix follows, so clearance is CN and the class is normal.
A 40° contact angle is the highest thrust capacity in the standard angular contact range, carrying axial load in one direction and setting the ball path steeply into the raceway. That trades speed and radial capacity for stiffness under thrust, which is why B-series bearings are the usual choice for worm drives, machine screws and vertical pump shafts. The polyamide cage runs quieter and lighter than pressed steel and tolerates shock and momentary lubricant starvation, with an upper continuous temperature around 120 °C.
Unit Quantity: 1 Pc. Single bearing, open both faces, without snap ring.
SKF 7214 BEP, NSK 7214B and Timken Fafnir 3MM214 are same-spec 40° equivalents. FAG 7214B.MP is a related size with a machined brass cage; FAG 7214C is a related size on the same envelope at a 15° contact angle.
