A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock
Preloaded angular contact ball bearing set, 70 mm bore, 125 mm OD, 24 mm width, 15° contact angle, counterbored outer ring, open, ground for shaft location.
List Price
$435.25
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 214RDS |
| GTIN | 097741005371 |
| Model | 2MM214 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Steel |
|---|---|
| Base Number | 214R |
| Industry Terms | angular contact ball bearing; preloaded half pair; duplex set; precision spindle bearing; light series angular contact |
| Common Misspellings | 214DRS; 214RSD; 214 R DS; MRC 214RD; angualr contact bearing; anglular contact bearing |
| Application Types | machine tool spindles; pumps; gearboxes; motion control drives; industrial spindle assemblies |
| Overall Width | 24 mm |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 214RDS; 214 RDS; 214-RDS; 214R DS; 214R; MRC 214RDS; 2MM214WICRDUL; 2MM214 WI CR DUL; BKE#7; 7214 |
| Series | 200 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Part Number | 214RDS |

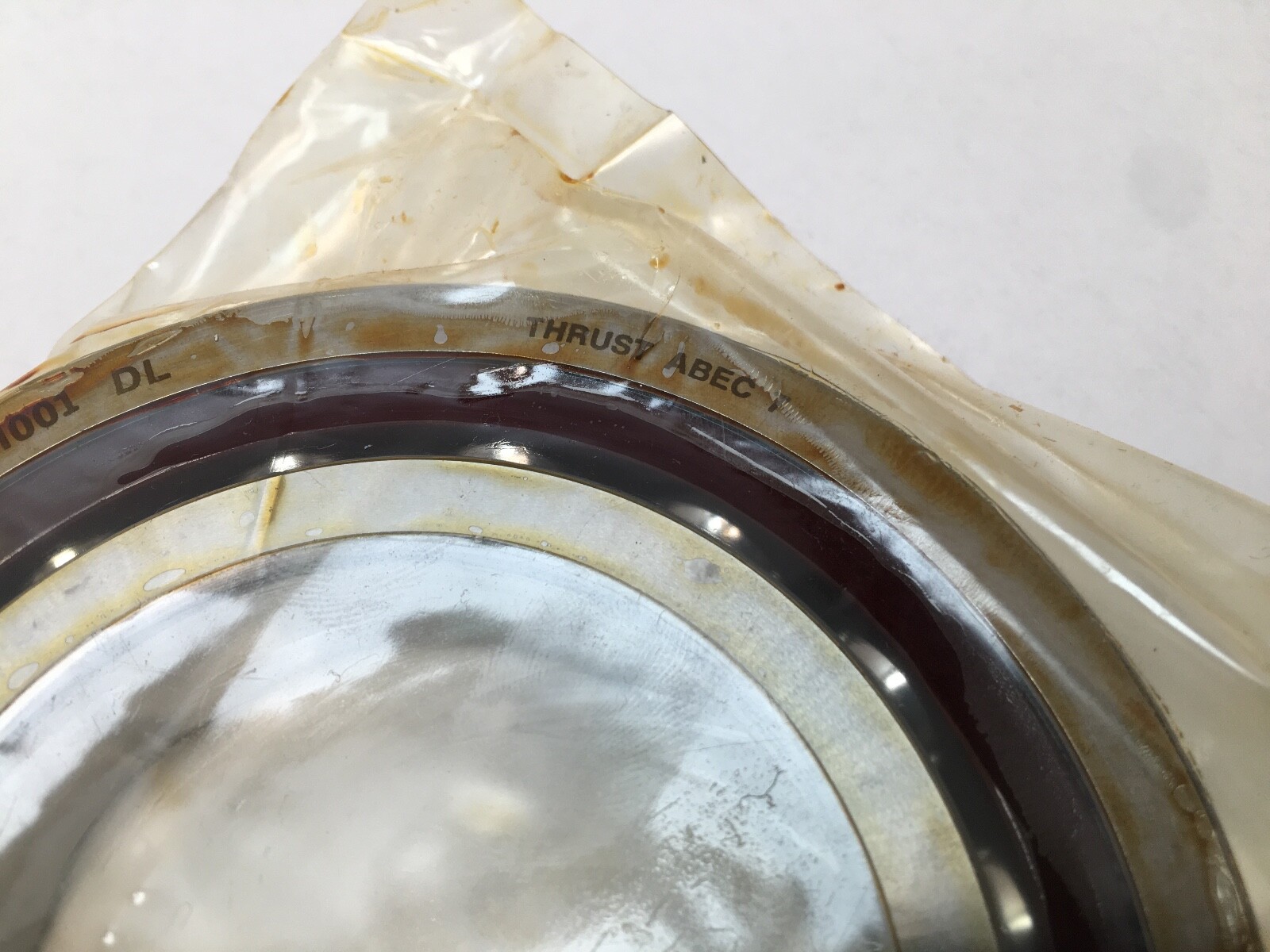

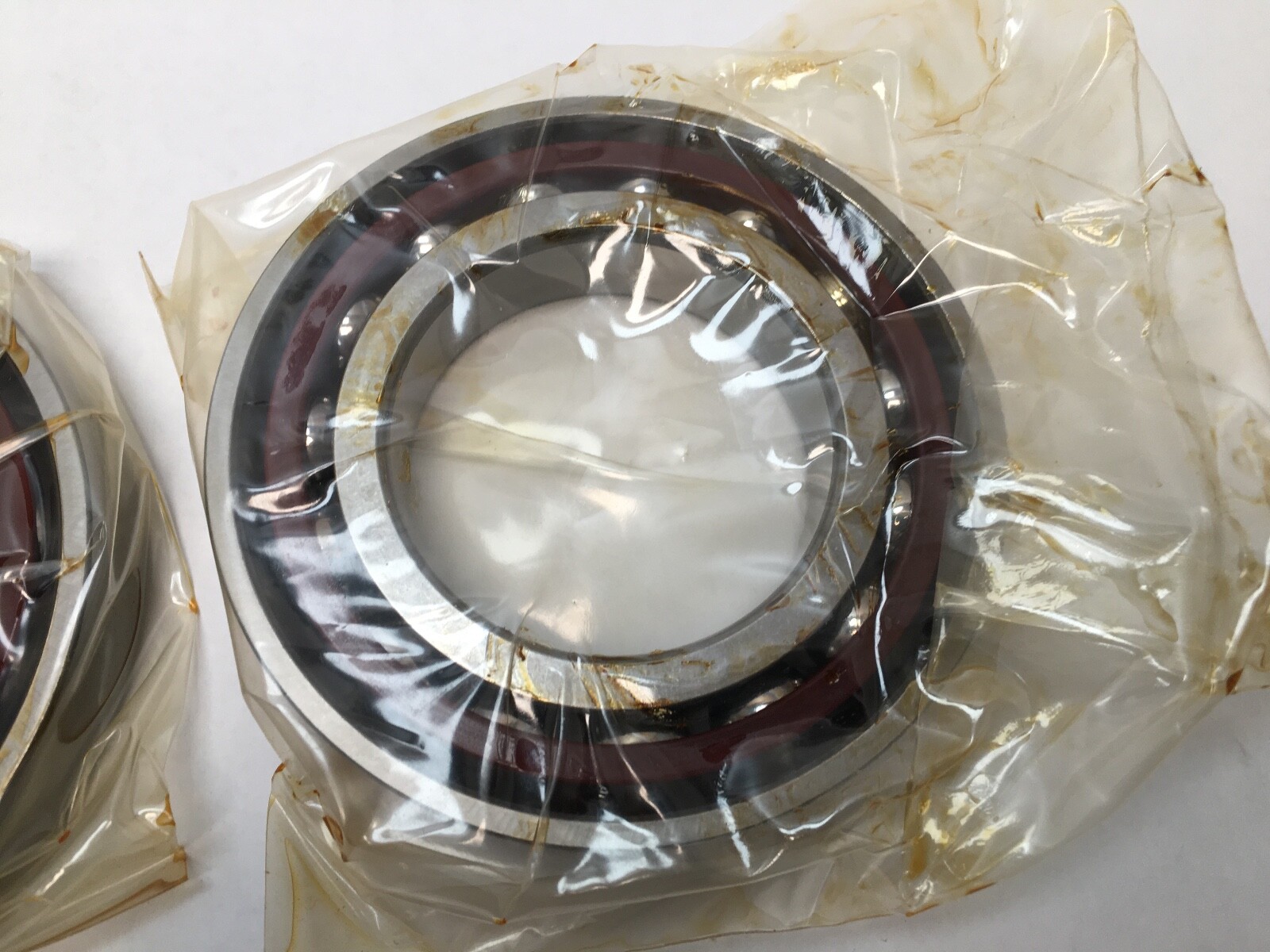

MRC 214RDS is a single-row angular contact ball bearing in the 200 light series. Bore is 70 mm, outside diameter is 125 mm, and section width is 24 mm. The bearing runs open with no seal or shield, and the rings are steel. Precision Class: ABEC 7 / P4.
Series: 200, light. Bore code 14 gives a 70 mm bore. Type letter R sets the contact angle at 15° with a counterbored outer ring. Execution code DS marks a half pair ground for preload.
A 15° contact angle carries less thrust and more speed than a 40° angle, which suits spindle and drive positions where shaft location governs. The 200 light section keeps outside diameter modest for a 70 mm bore. ABEC 7 grade buys tighter bore, outside diameter and running-accuracy tolerance, lower running vibration and closer, more repeatable shaft location than a standard grade. DS grinding sets a defined preload when the rings are drawn up, which removes axial play and raises system stiffness.

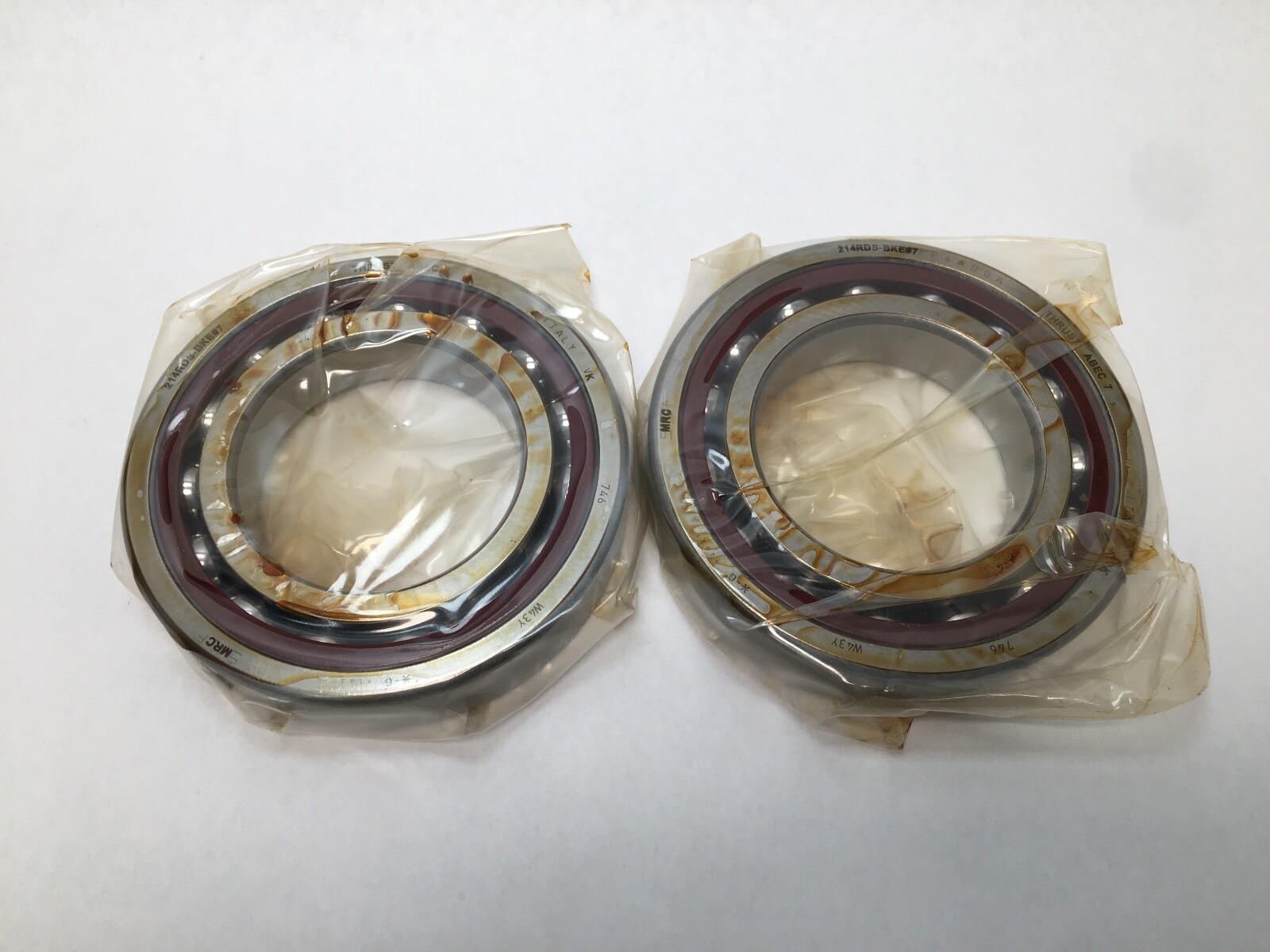

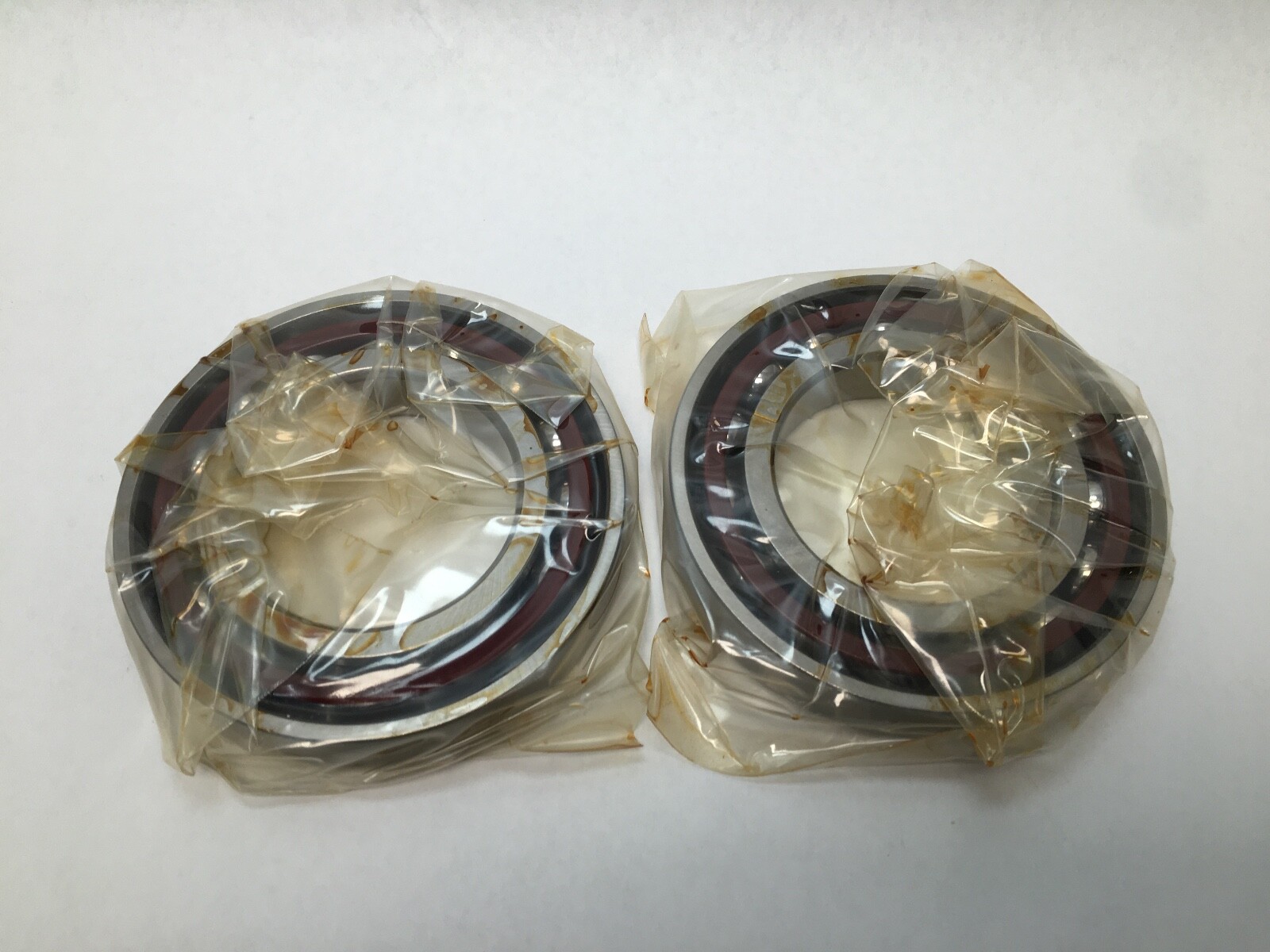

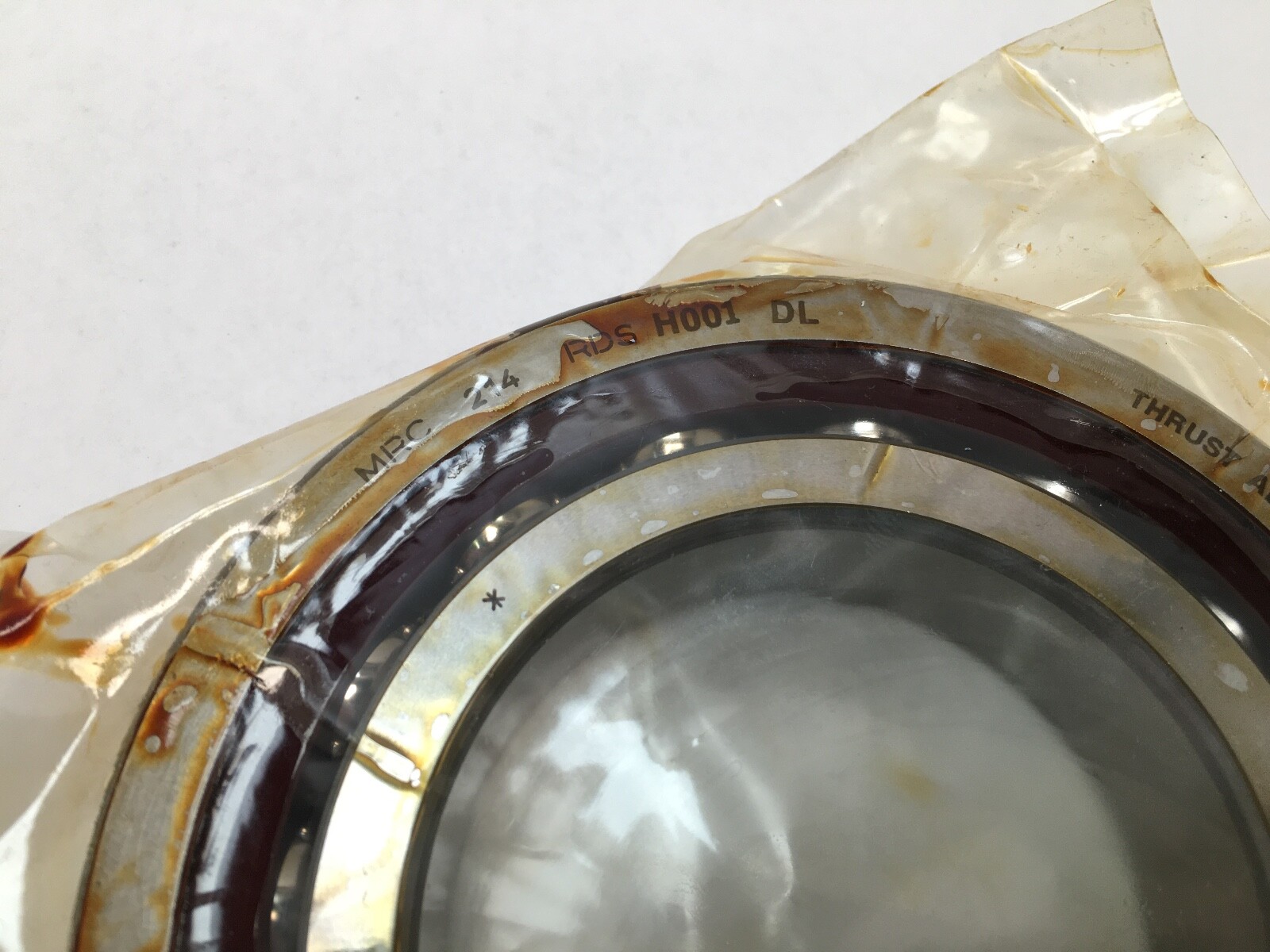

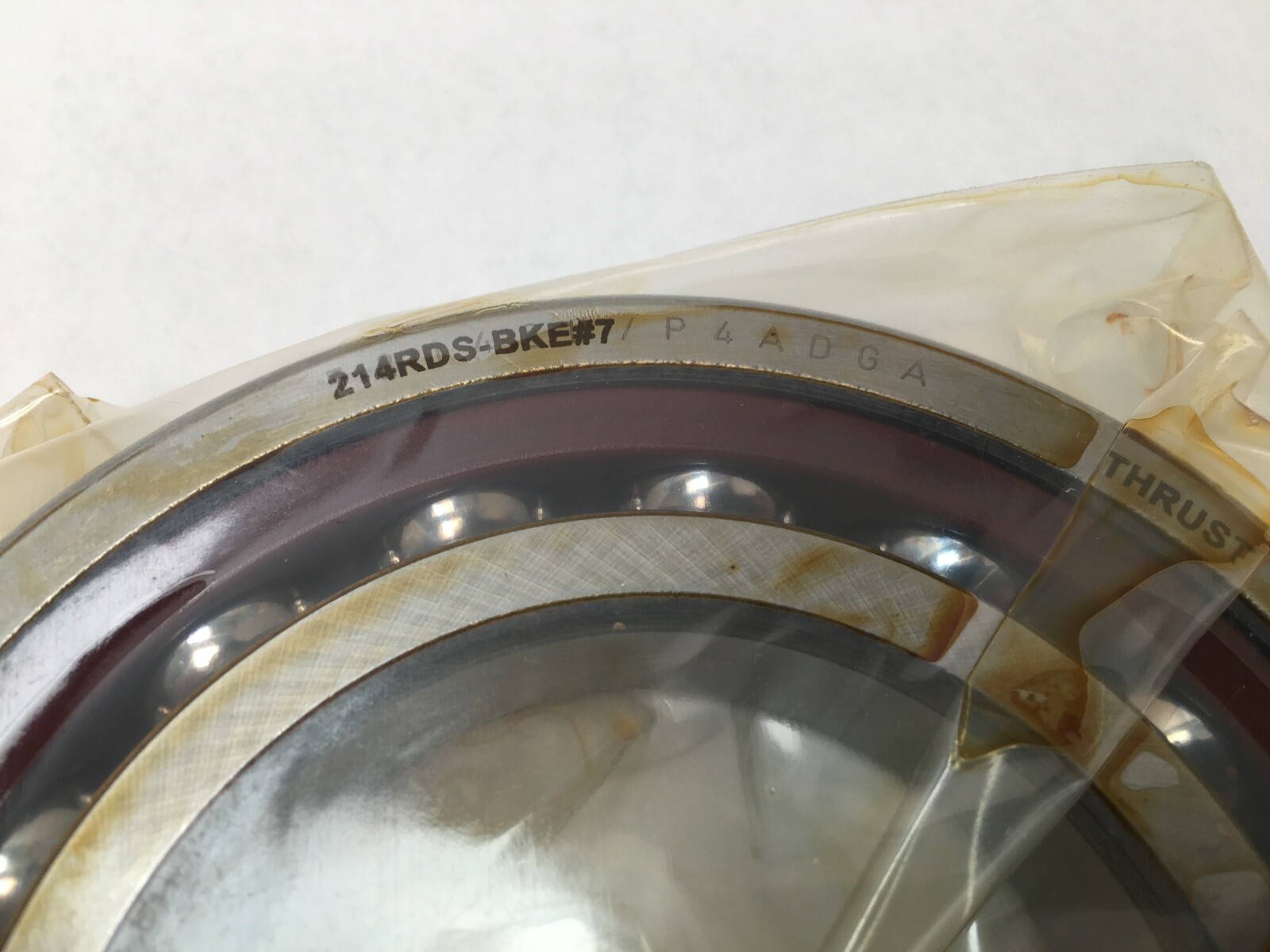

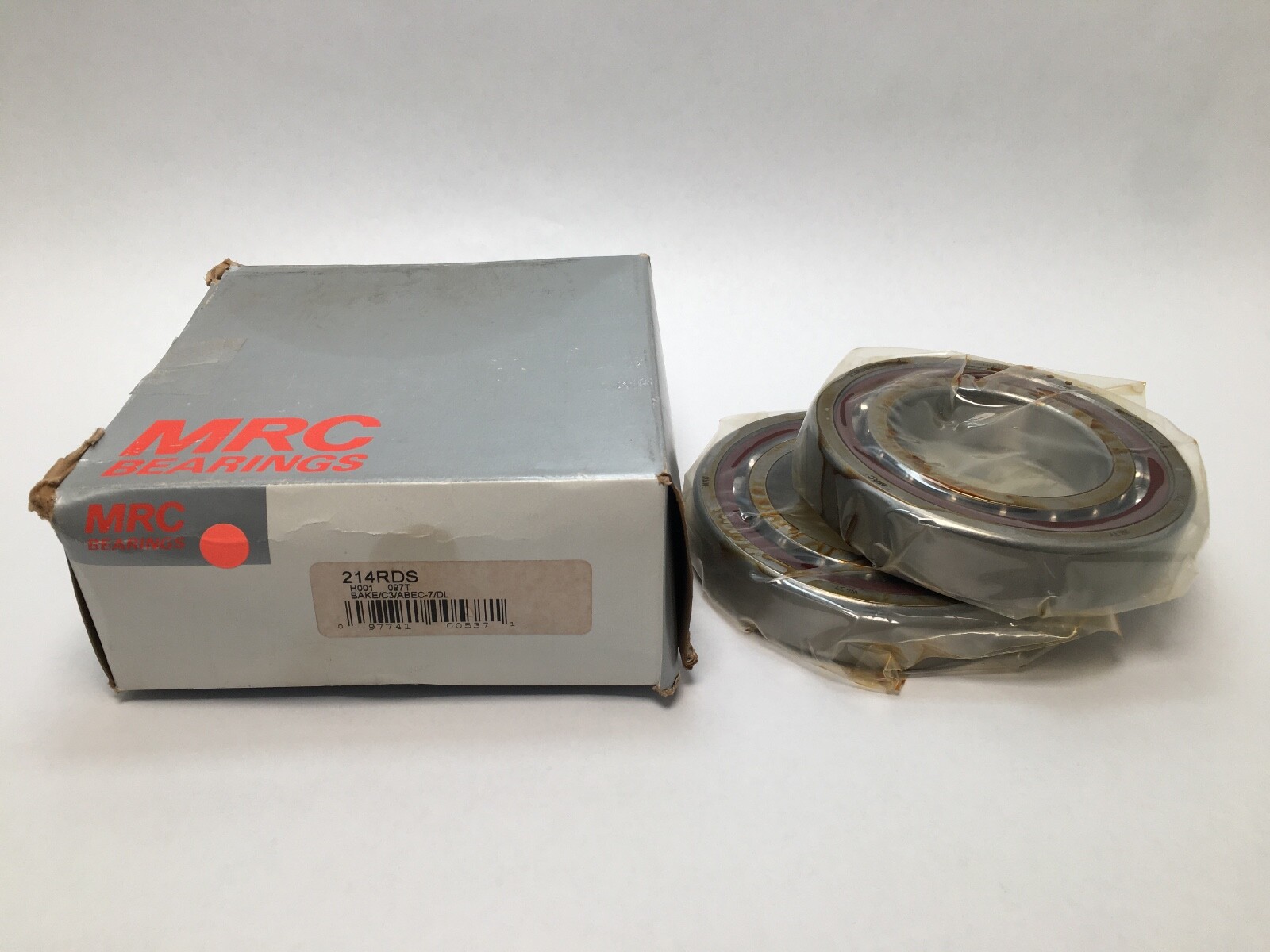

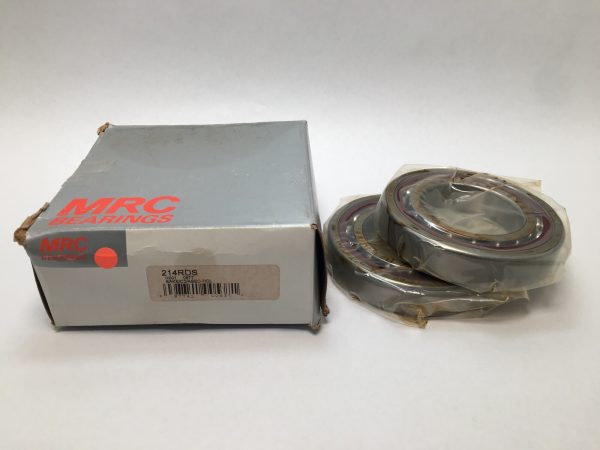

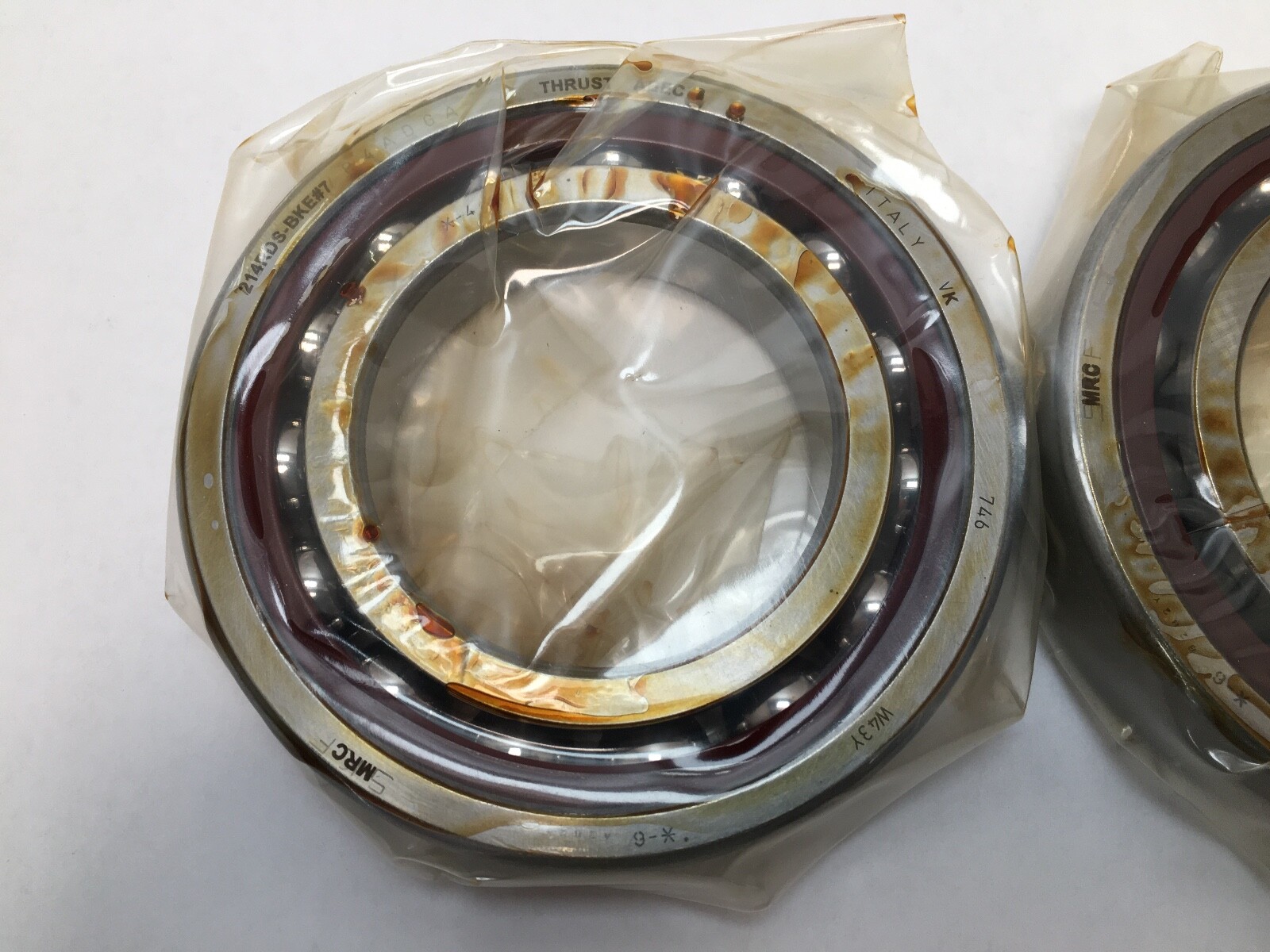

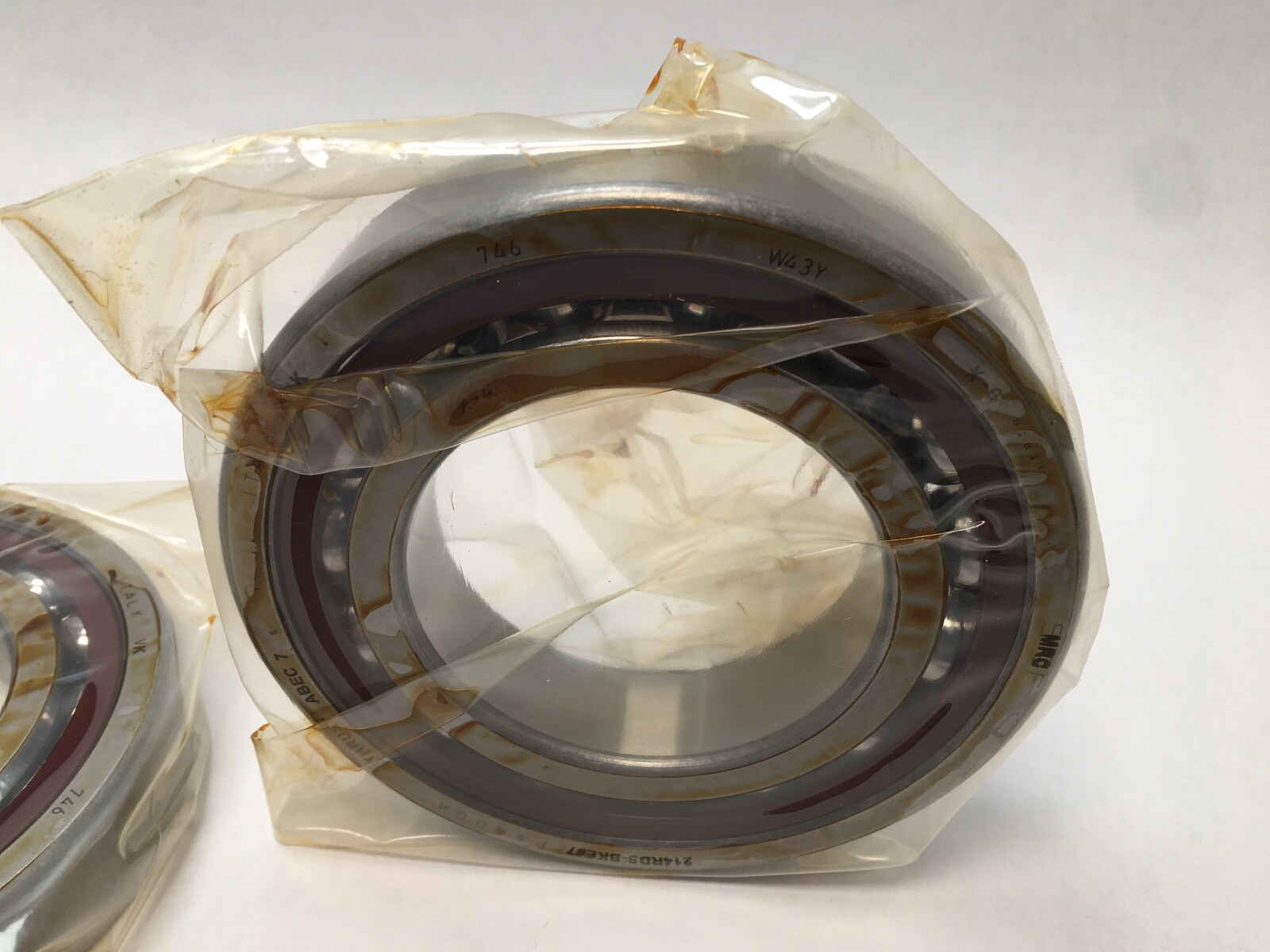

Two pieces ship, matching the 2 pcs count carried in the title. Mounted together the two DS halves form one preloaded duplex set. The carton and ring markings BKE#7 and 2MM214 WI CR DUL are carried in MPN Variants for search.
Internal clearance reads N/A because a DS-ground bearing takes its running clearance from the preload set at assembly rather than from a radial clearance class. Faces are ground so the halves seat solid against each other and against the shoulders. The counterbored outer ring carries the full ball complement on one shoulder, which is what gives the angular contact bearing its one-direction thrust capacity.
The 7214 designation is carried on this listing as a search term for the 70 x 125 x 24 mm angular contact envelope. Searchable variants include 214RDS, 214 RDS, 214-RDS, 214R DS, 214R, MRC 214RDS, 2MM214WICRDUL, 2MM214 WI CR DUL and BKE#7.

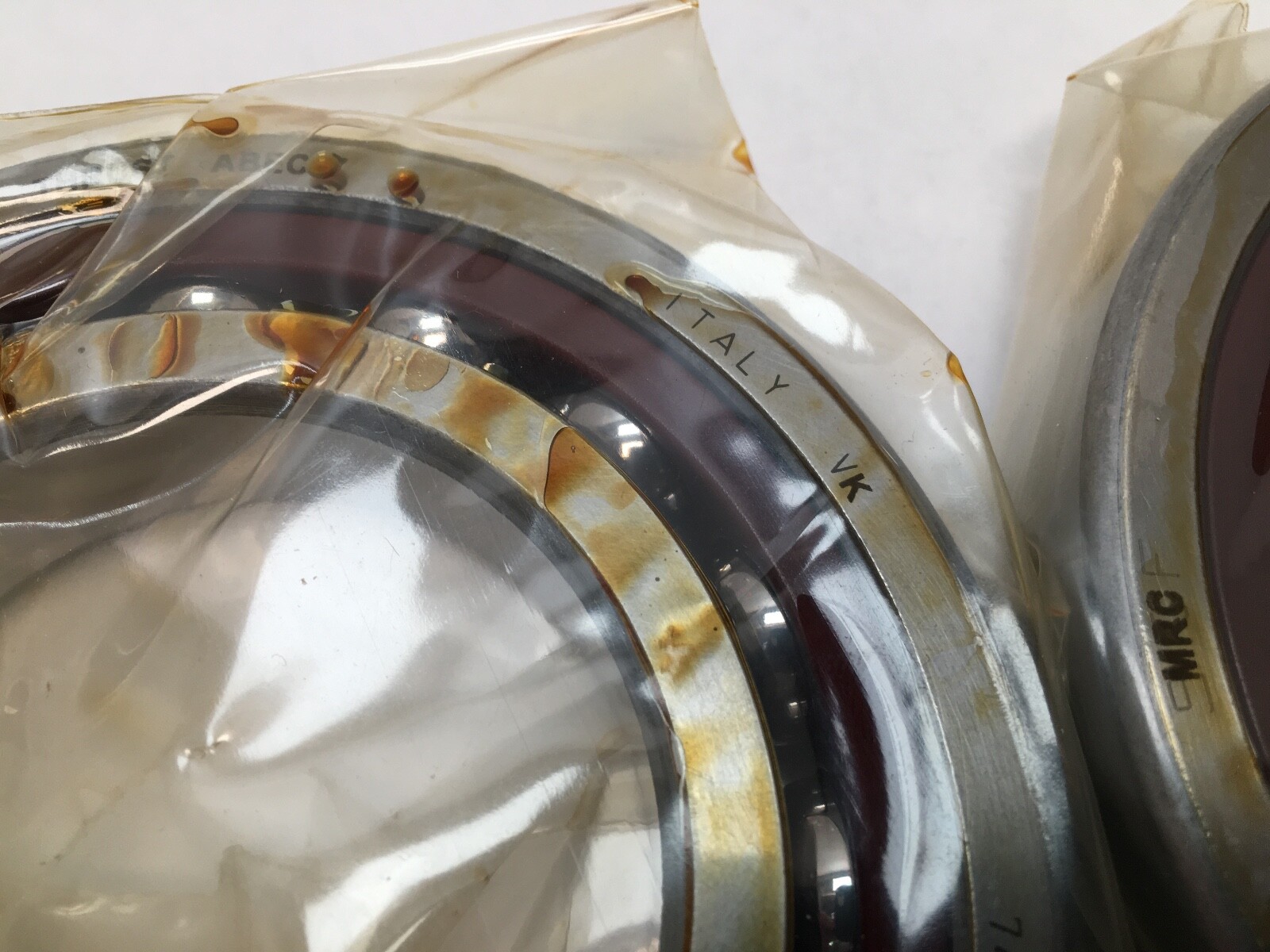

Country of origin on this record is Italy.
