Availability:
1 in stock

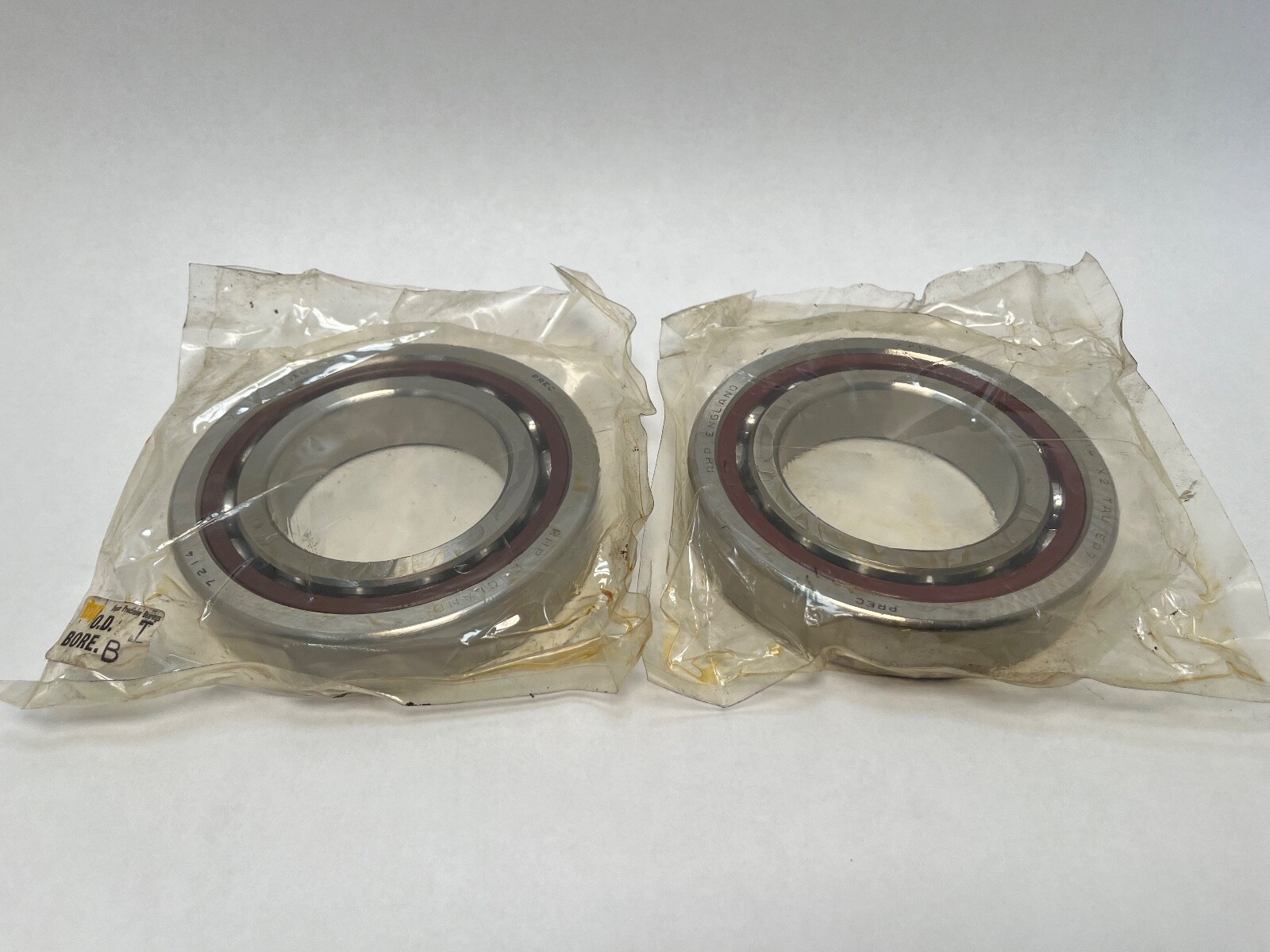

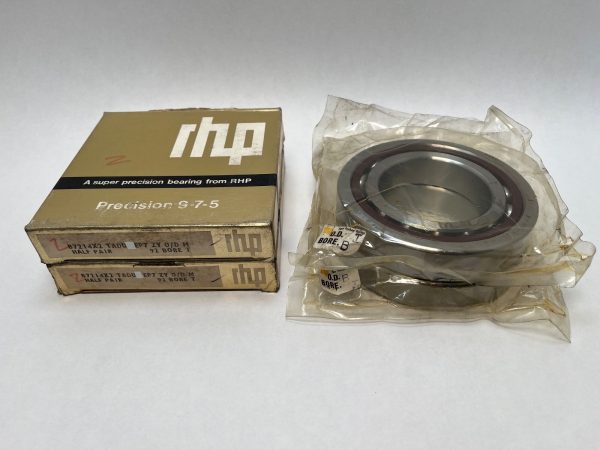

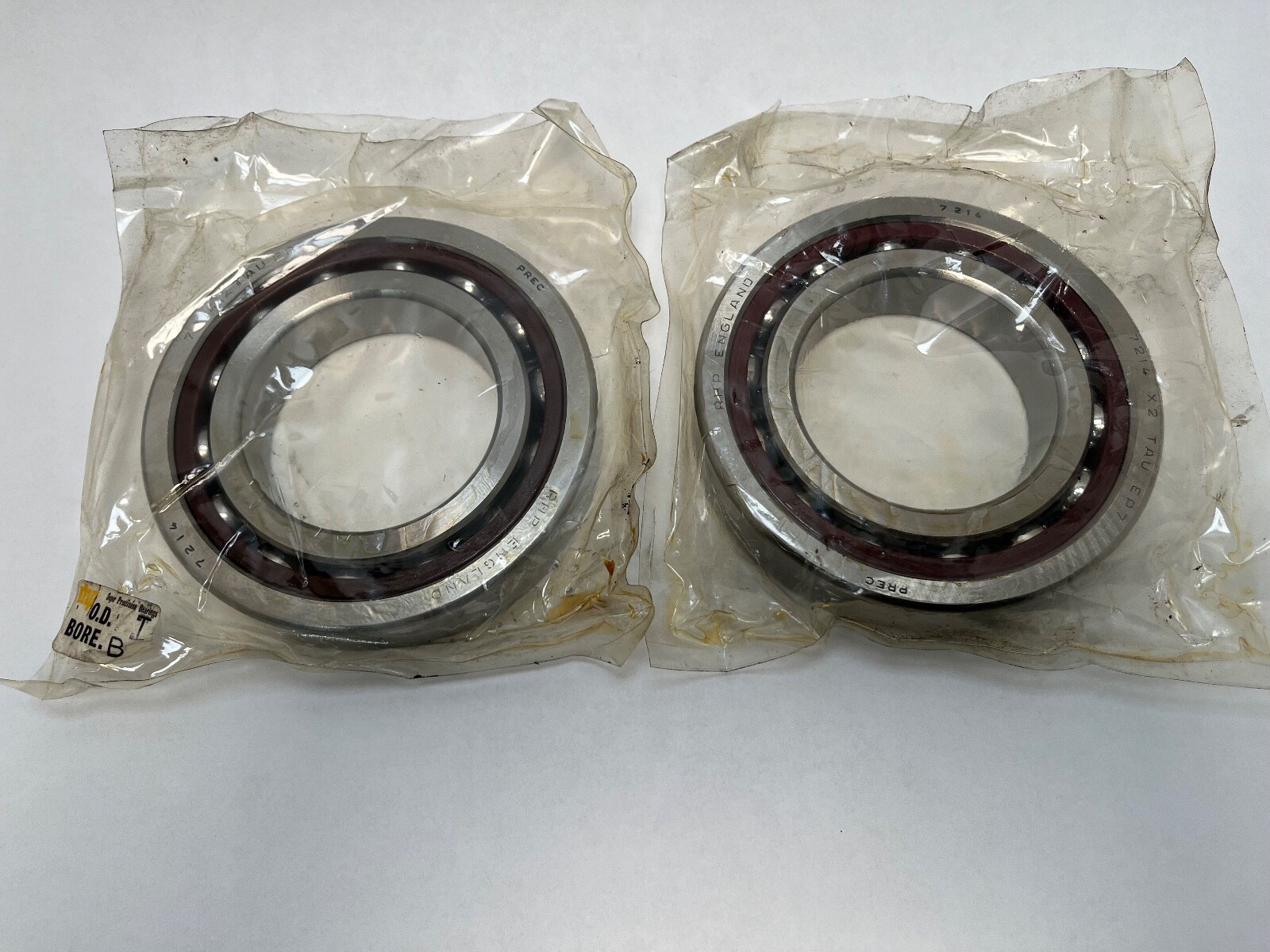

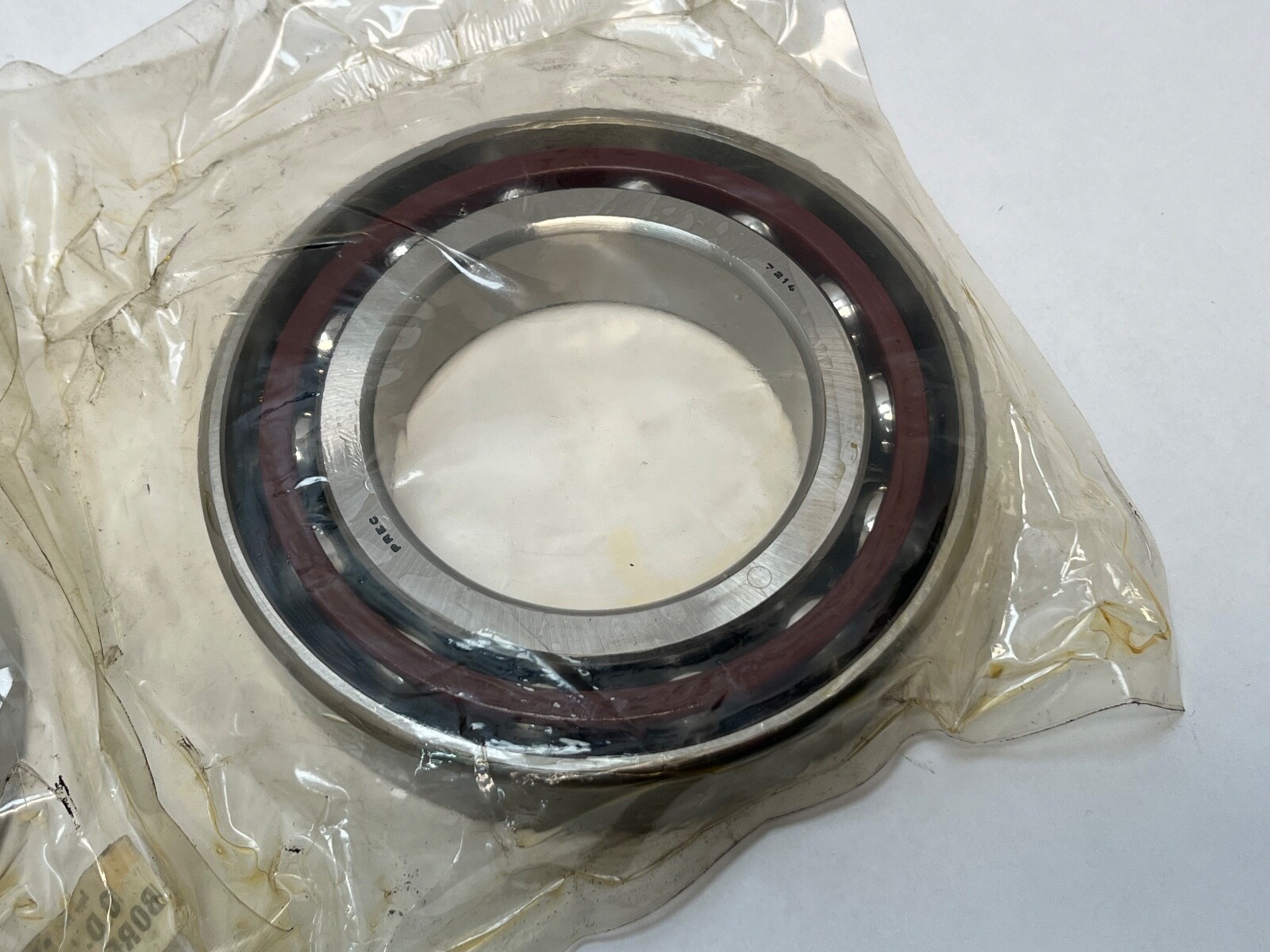

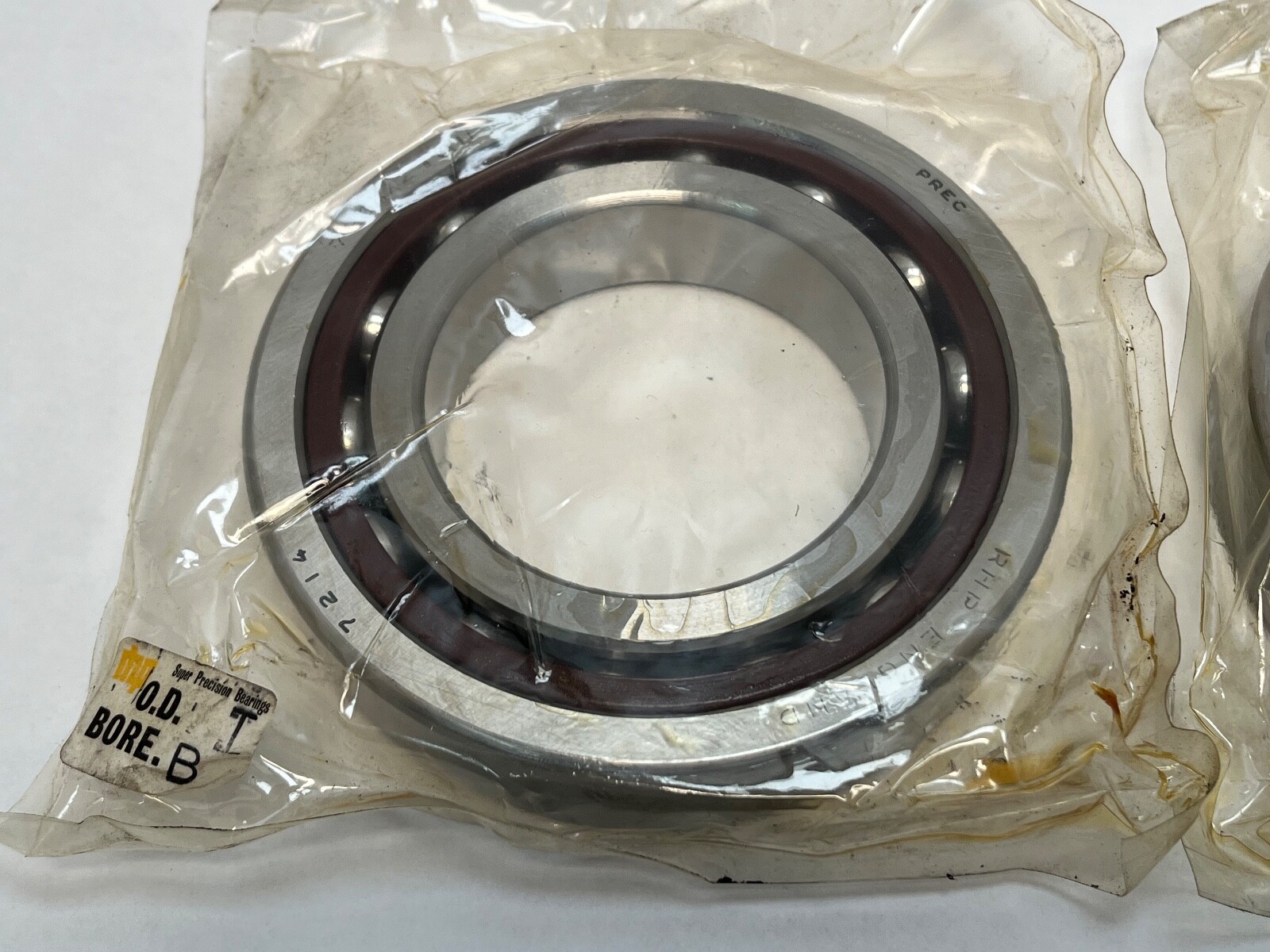

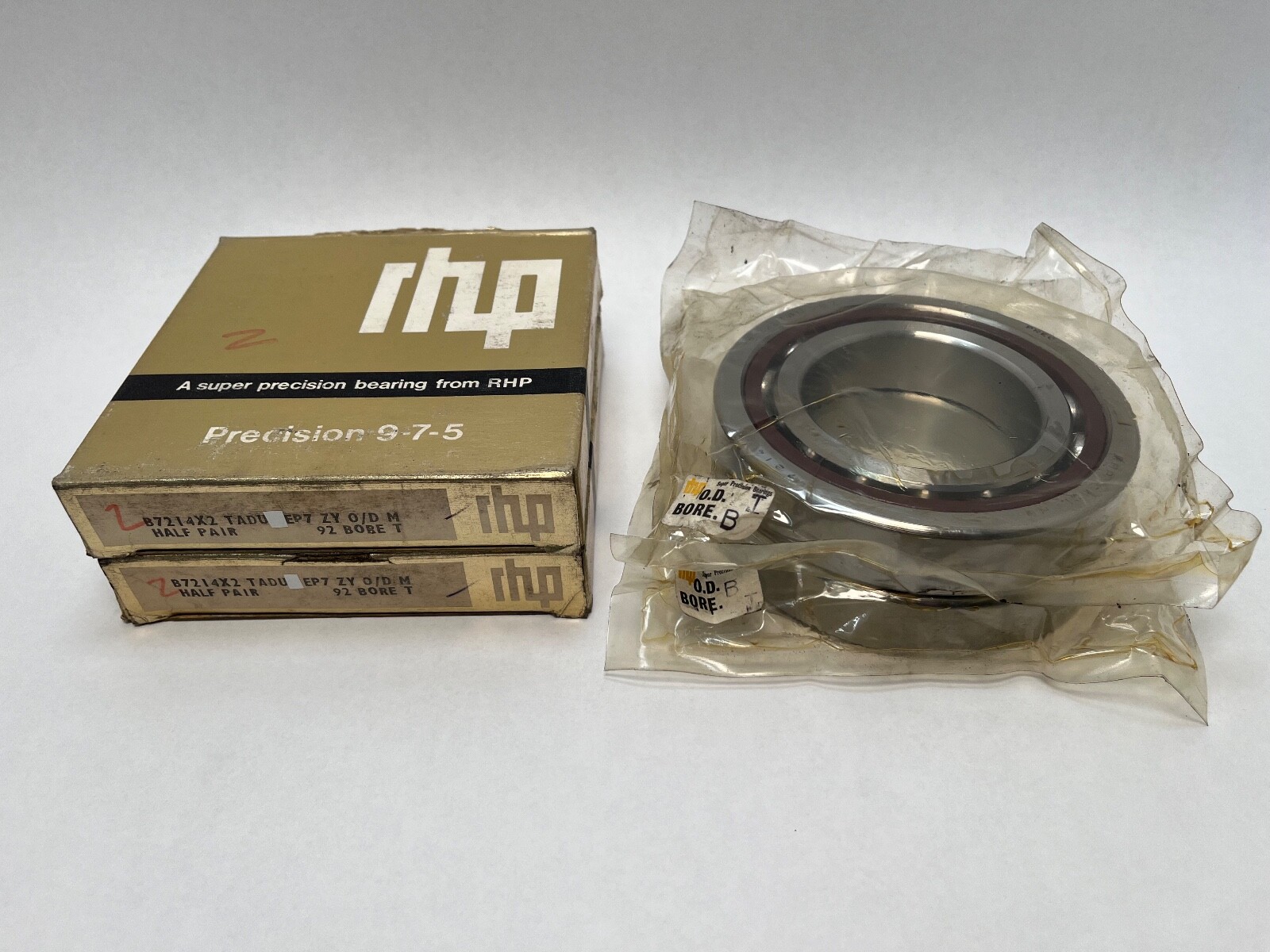

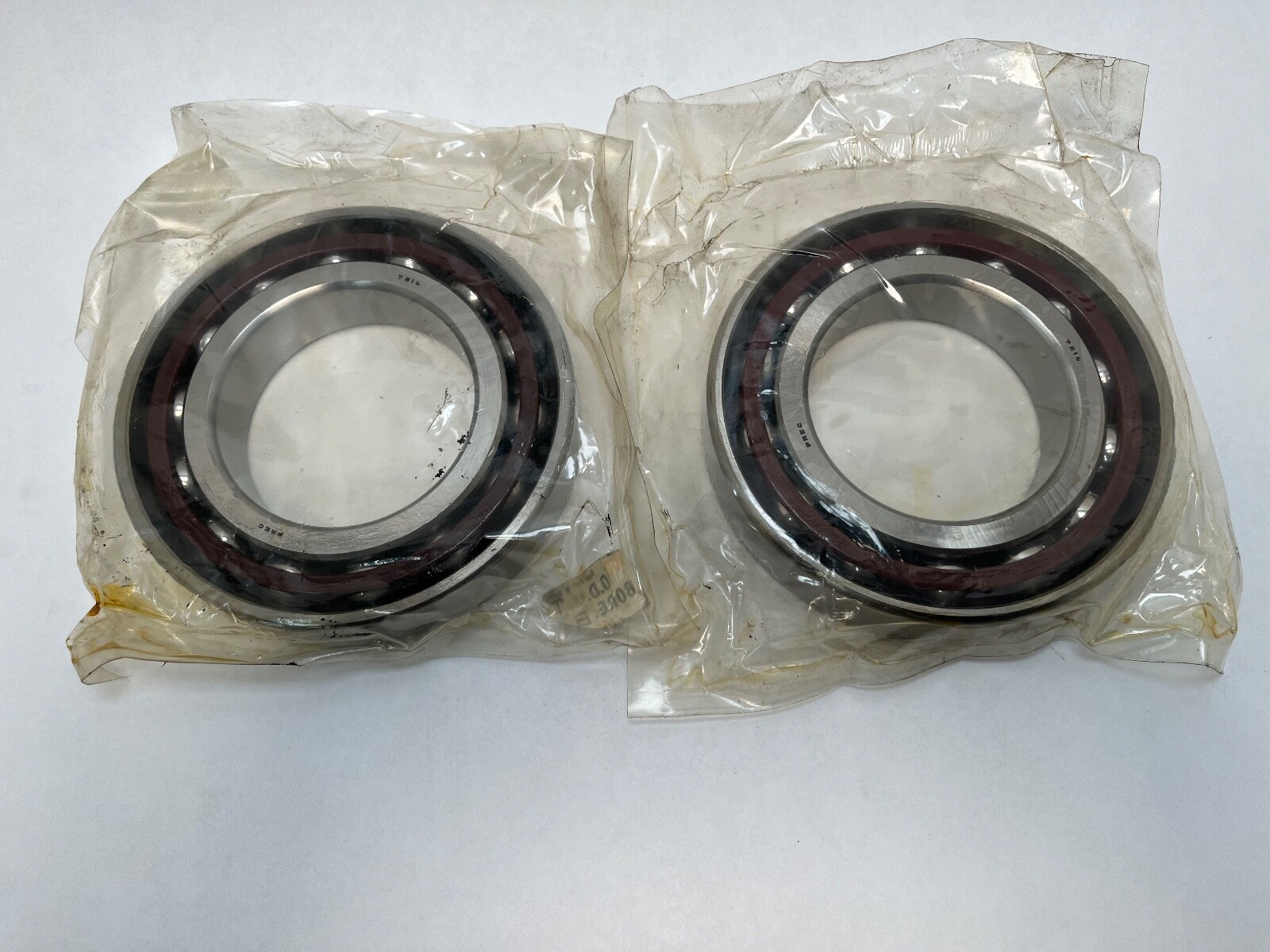

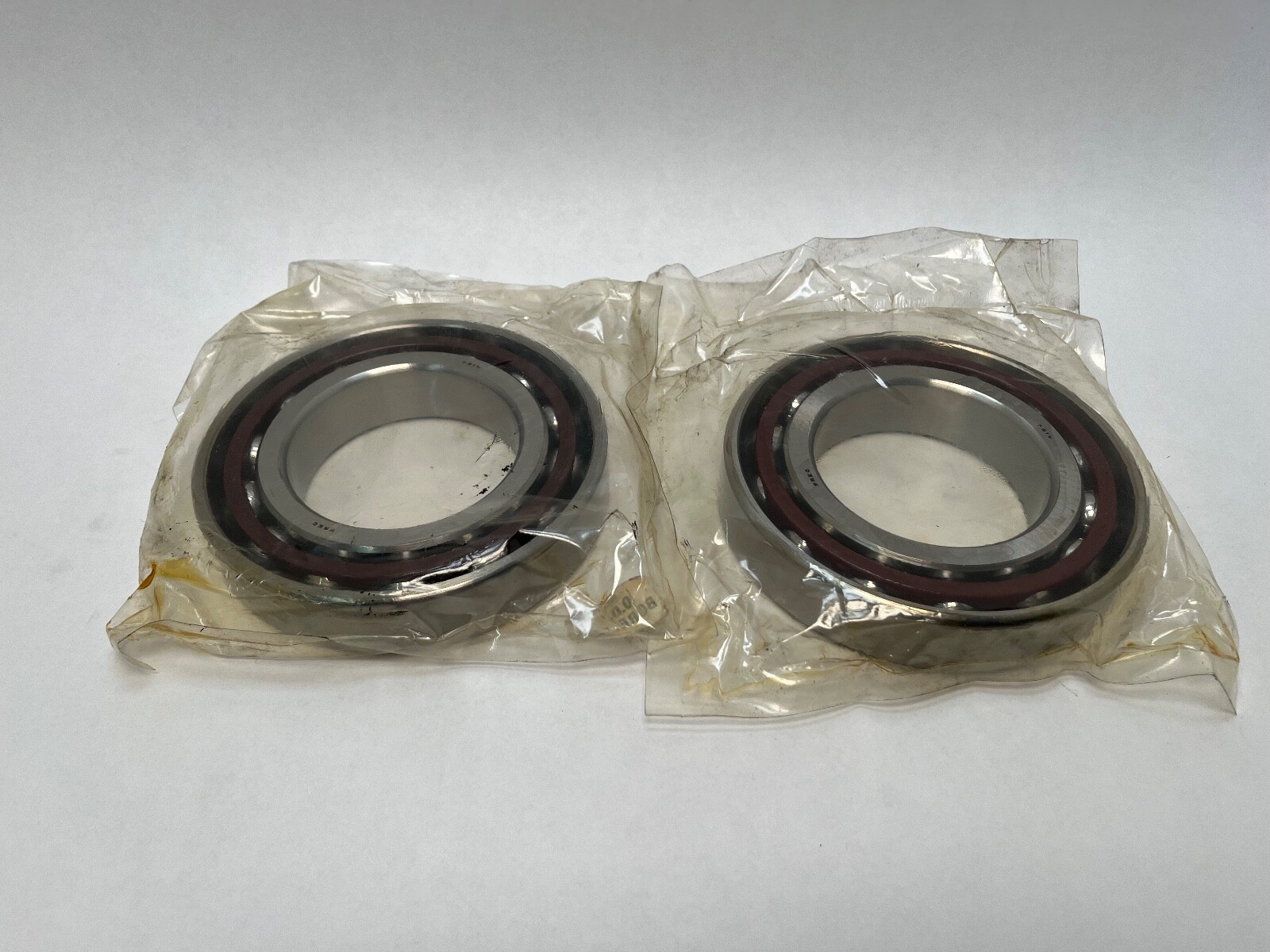

Super precision angular contact ball bearing pair, 70 x 125 x 24 mm, 15° contact angle, open, phenolic cage, light preload, ABEC 7 tolerance.
List Price
$380.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| GTIN | 747023069354 |
| Model | 7214CTDULP4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Chrome steel |
|---|---|
| Series | 72 (7200) |
| Lubricant | Oil/Grease |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Base Number | 7214 |
| Industry Terms | spindle bearing, super precision angular contact, matched pair, machine tool bearing |
| Common Misspellings | 7214 CTDULP4, 7214CTDUL P4, RPH 7214CTDULP4 |
| Bore Shaft Size | 70 mm (2.7559 in) |
| Mpn Variants | 7214CTDULP4, 7214-C-T-DUL-P4, 7214 C T DUL P4, 7214C, 214HDL, B7214CTPAP4UL |
| Part Number | 7214CTDULP4 |
| Cross Reference 1 | SKF 7214 CD/P4DGB (15 deg, light preload, universal) |
|---|---|
| Cross Reference 2 | FAG B7214C.T.P4S.UL (15 deg, light preload, universal) |
| Cross Reference 3 | NSK 7214CTRDULP4 (15 deg, light preload, phenolic cage) |
| Cross Reference 4 | Fafnir 2MM214WI-CR-DUL (15 deg, light preload, DUL pair) |
| Cross Reference 6 | 7214A5DUL (related size, 25° contact angle) |

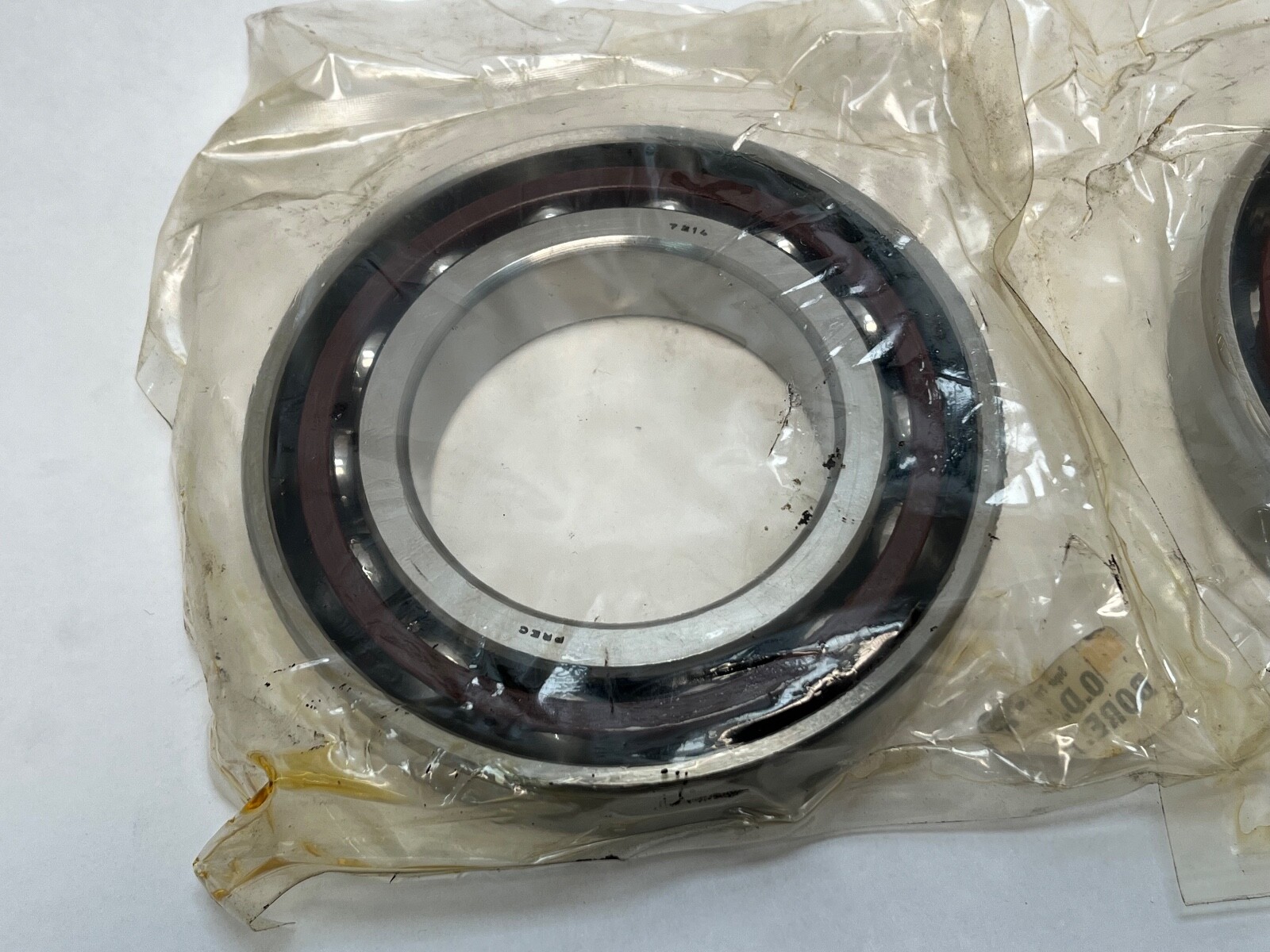

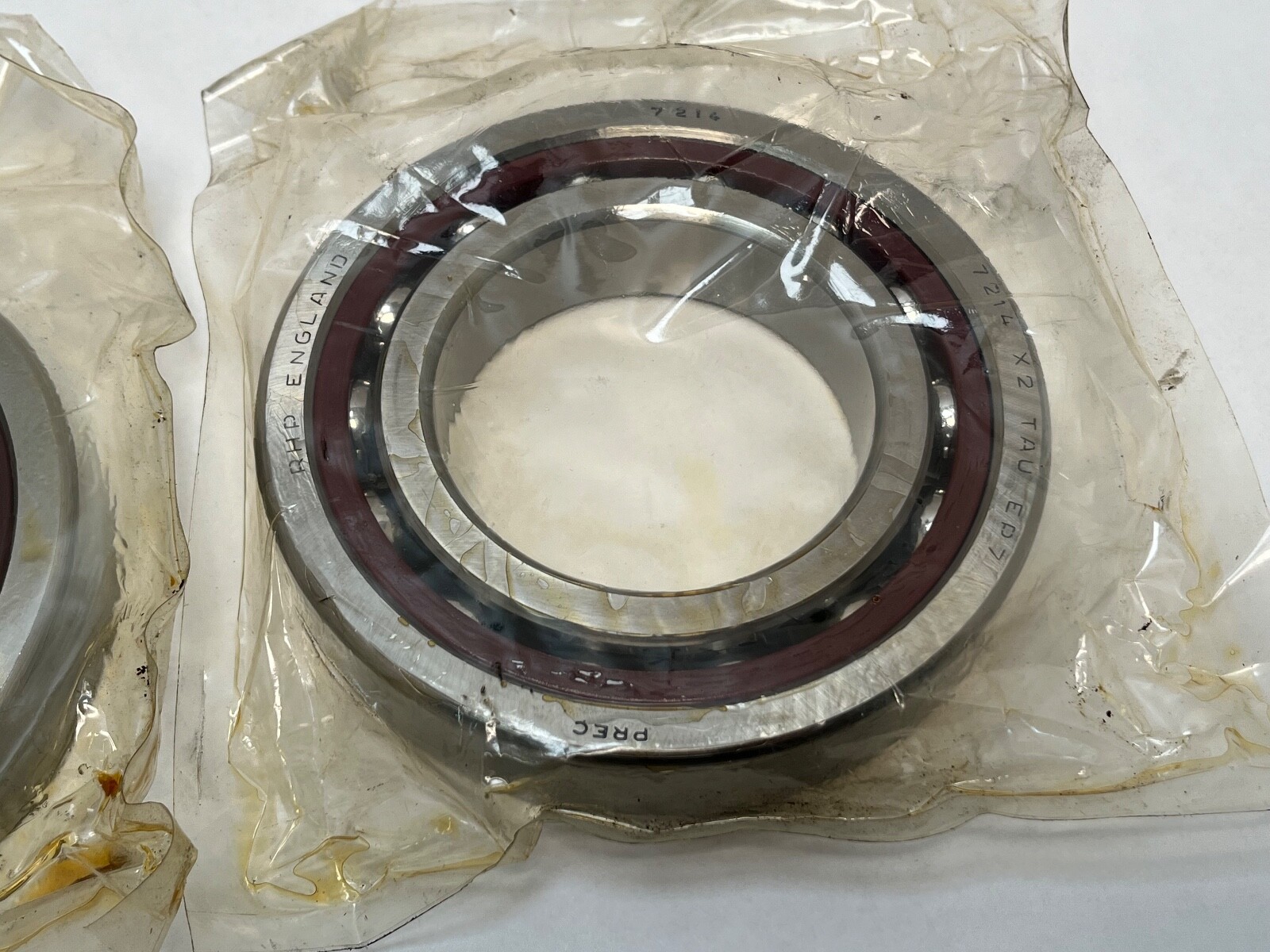

RHP 7214CTDULP4 super precision angular contact ball bearing. Bore: 70 mm. Outside Diameter: 125 mm. Width: 24 mm per bearing. Series: 72, medium section. Single row of balls per bearing, open on both faces. Rolling Elements: chrome steel balls.

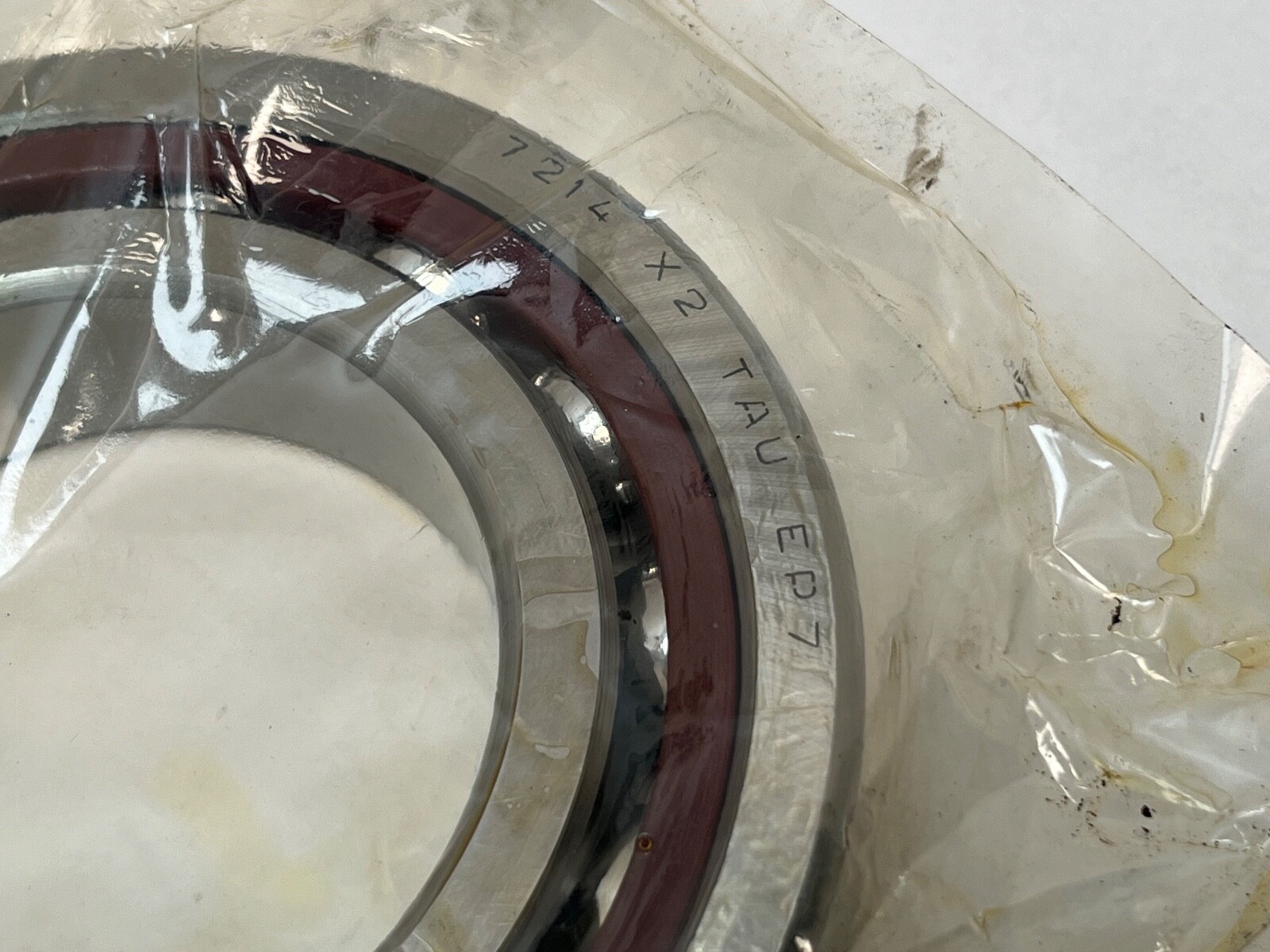

Contact Angle: 15°. Cage: machined laminated phenolic, outer-ring guided. Preload: light. Precision Class: P4, equal to ABEC 7 and to RHP class EP7. Configuration: duplex, universally ground. The same bearing is designated 7214-C-T-DUL-P4, 7214C and 214HDL.
A 15° contact angle favours speed and radial stiffness over thrust capacity. Dynamic Load Rating: 71.0 kN. Static Load Rating: 65.0 kN. Limiting Speed: 14,000 rpm. Light preload runs coolest and fastest of the three preload grades. P4 tolerance holds bore, outside diameter and running accuracy to super precision limits, giving lower runout at the spindle nose.
Unit Quantity: 2 Pcs. Universally ground faces allow the pair to be mounted back-to-back, face-to-face or in tandem, and the ground offsets set the preload when the rings are clamped. Total width of the pair: 48 mm.
Preloaded sets are supplied without internal clearance, so Internal Clearance is N/A. Clamping is against the ground faces of both rings. Phenolic cages are rated to 120 °C and suit oil or grease lubrication.
Same-spec equivalents at 15°, P4, light preload: SKF 7214 CD/P4DGB (DGB is the light preload code; DGA is extra light and DGC medium), Fafnir 2MM214WI-CR-DUL, NSK 7214CTRDULP4, FAG B7214C.T.P4S.UL. Related size: 7214A5 at 25°, same envelope, different thrust and speed capability.
