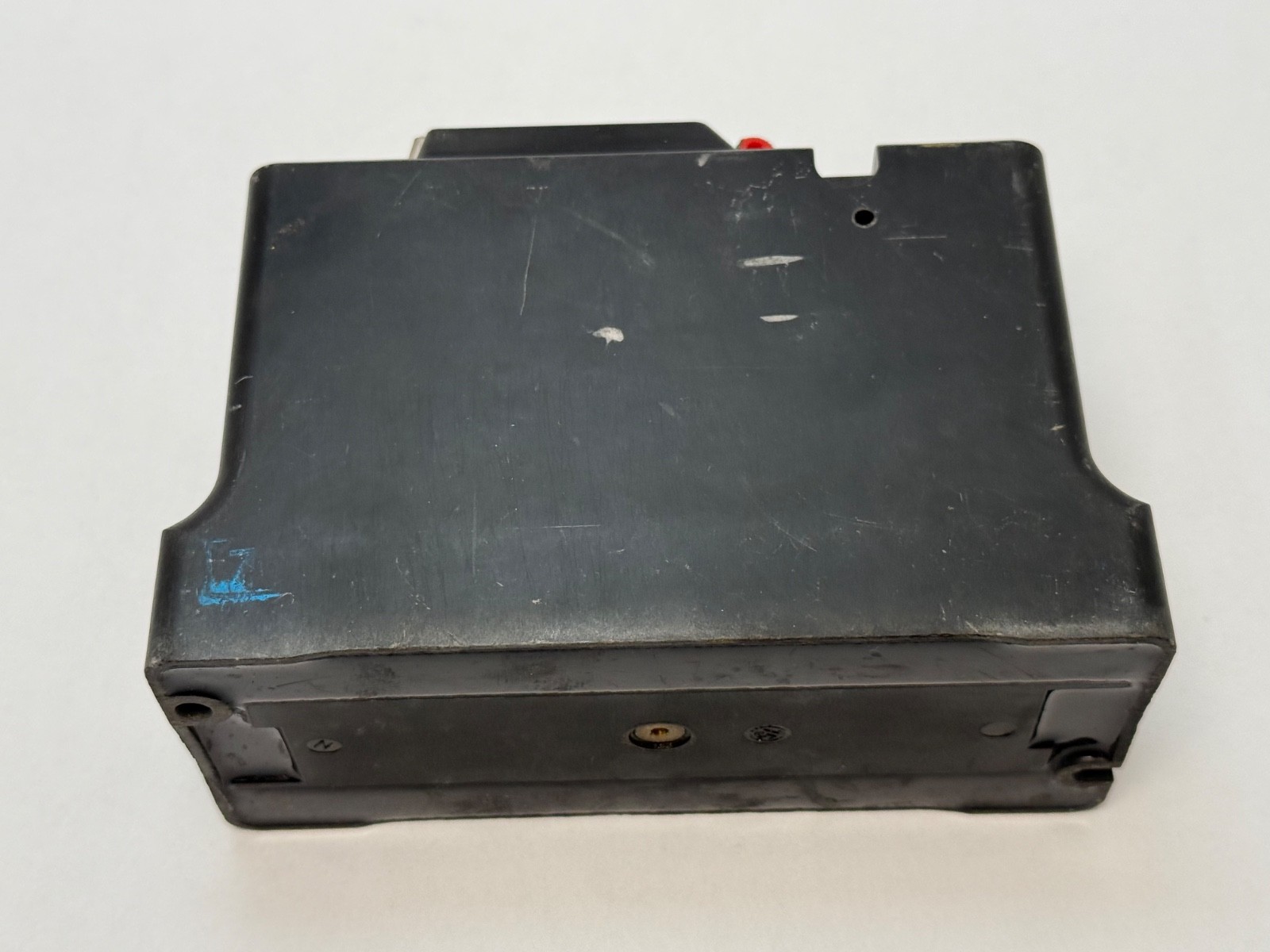

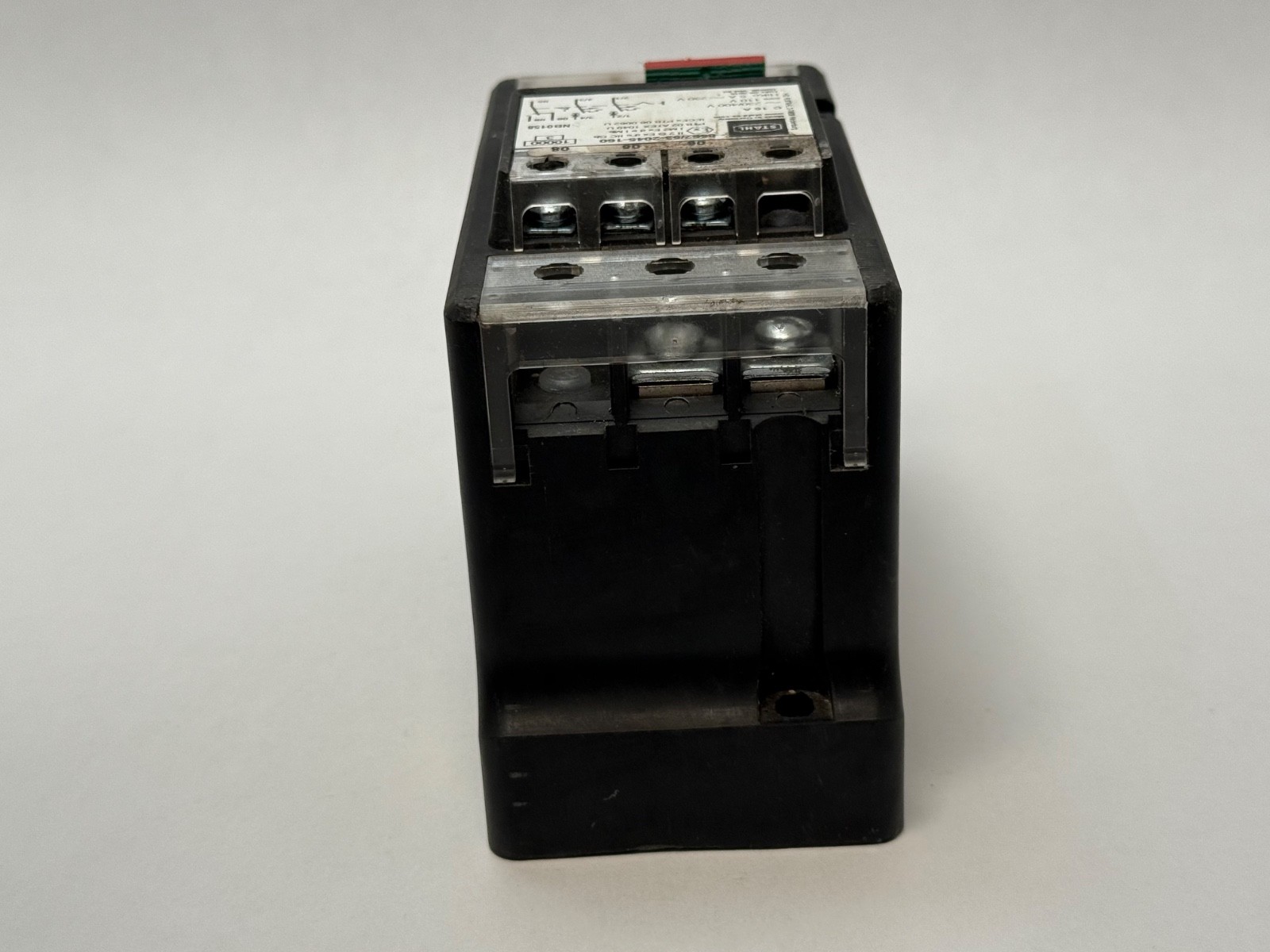

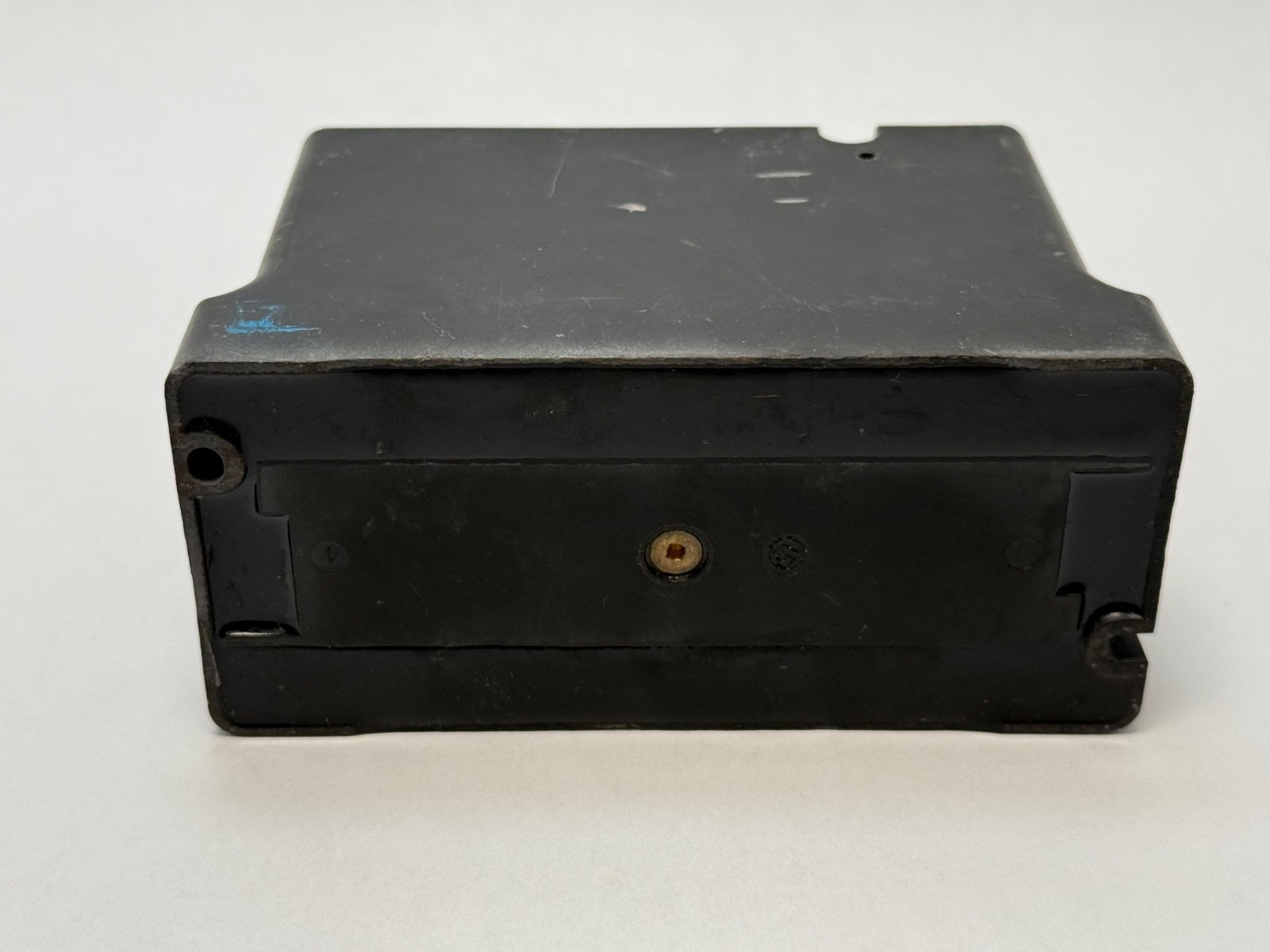

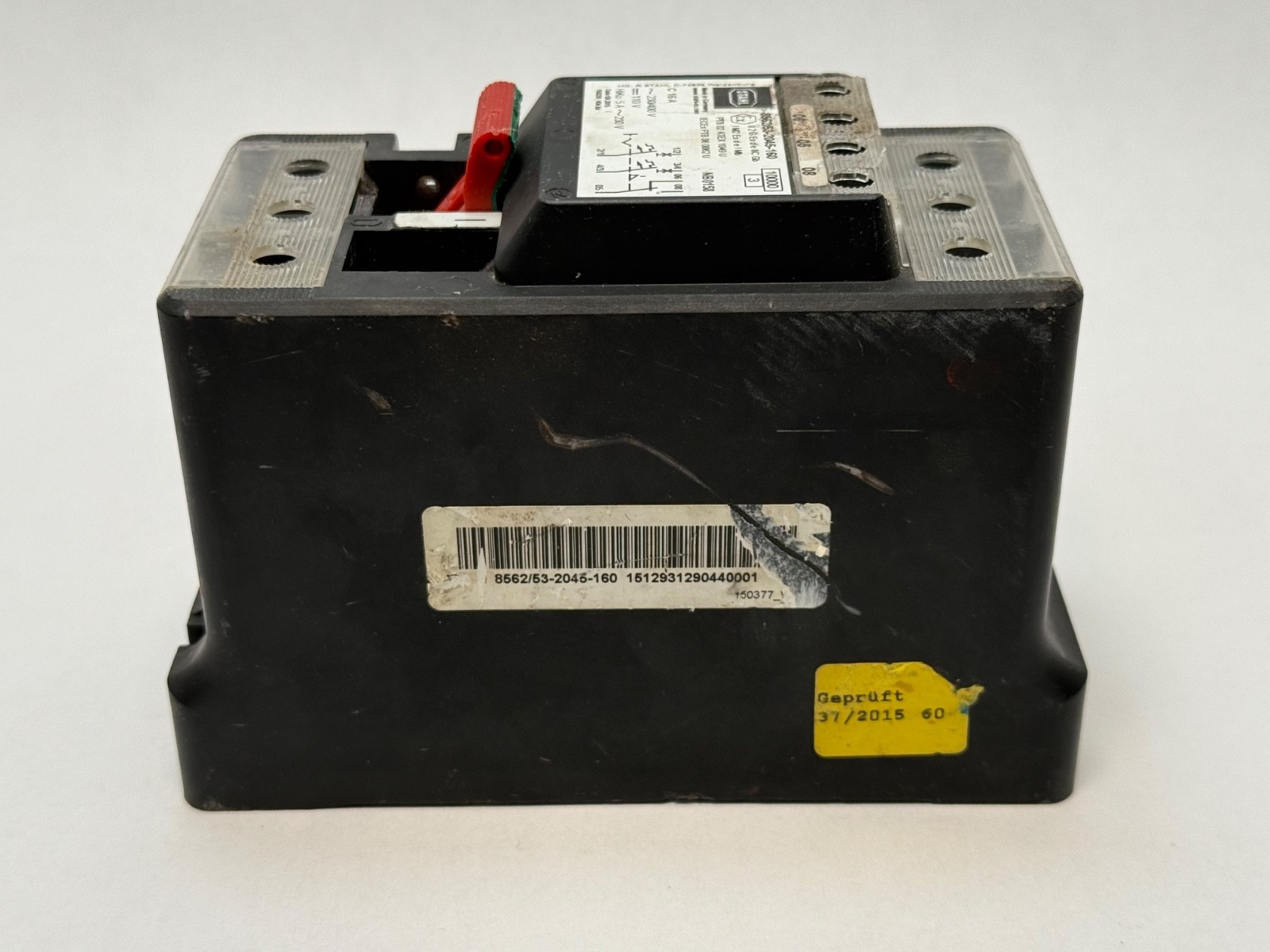

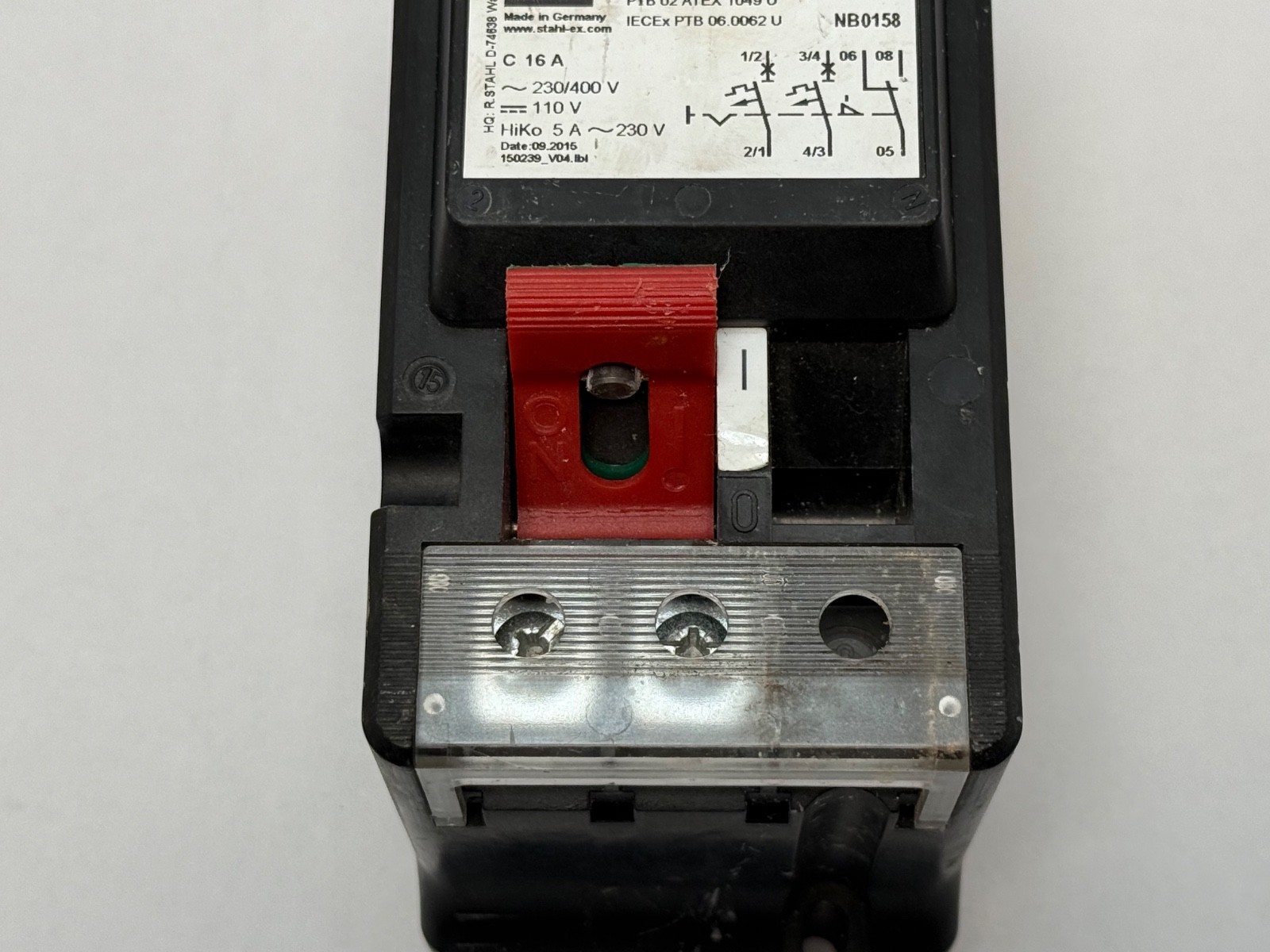

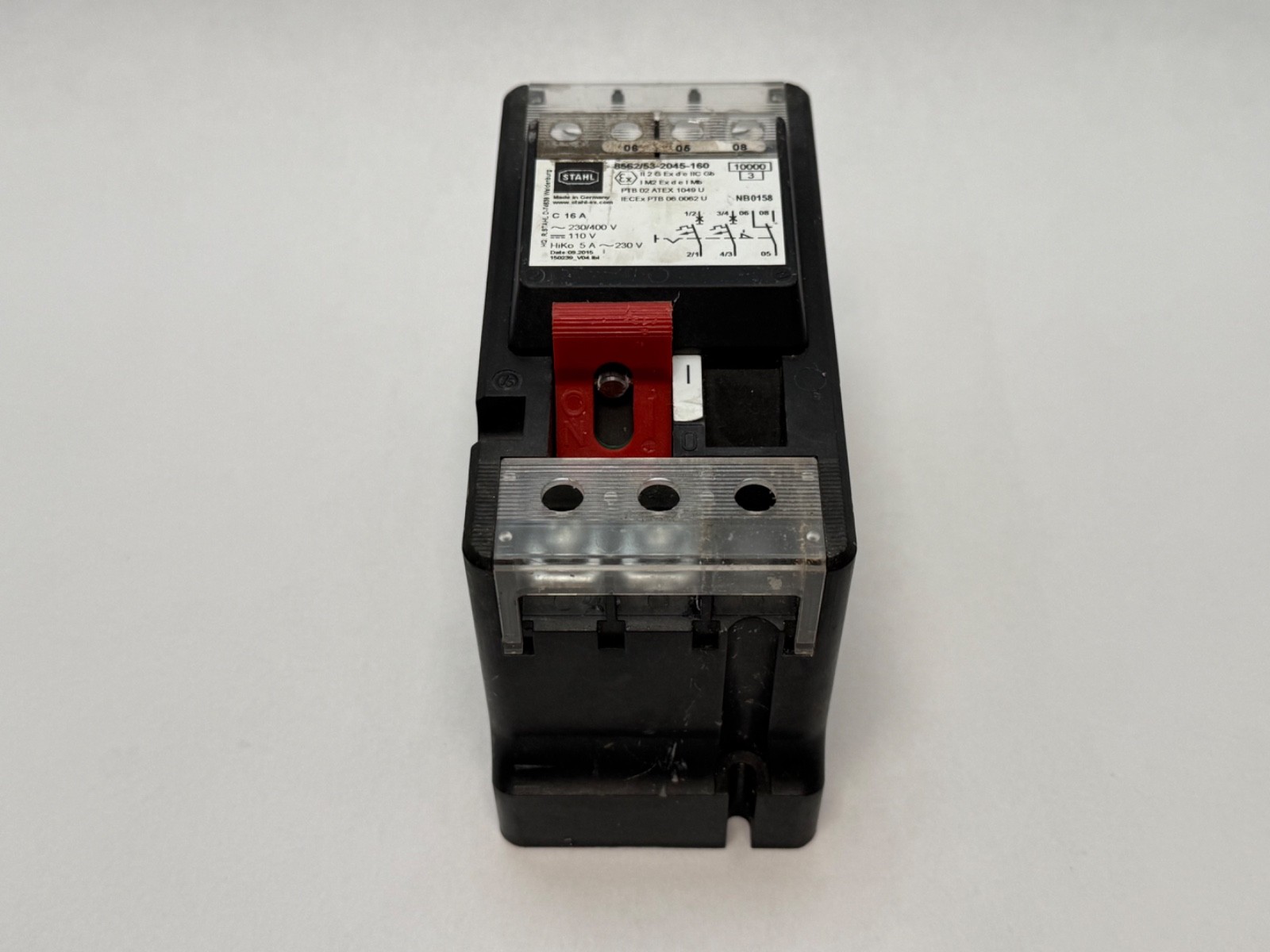

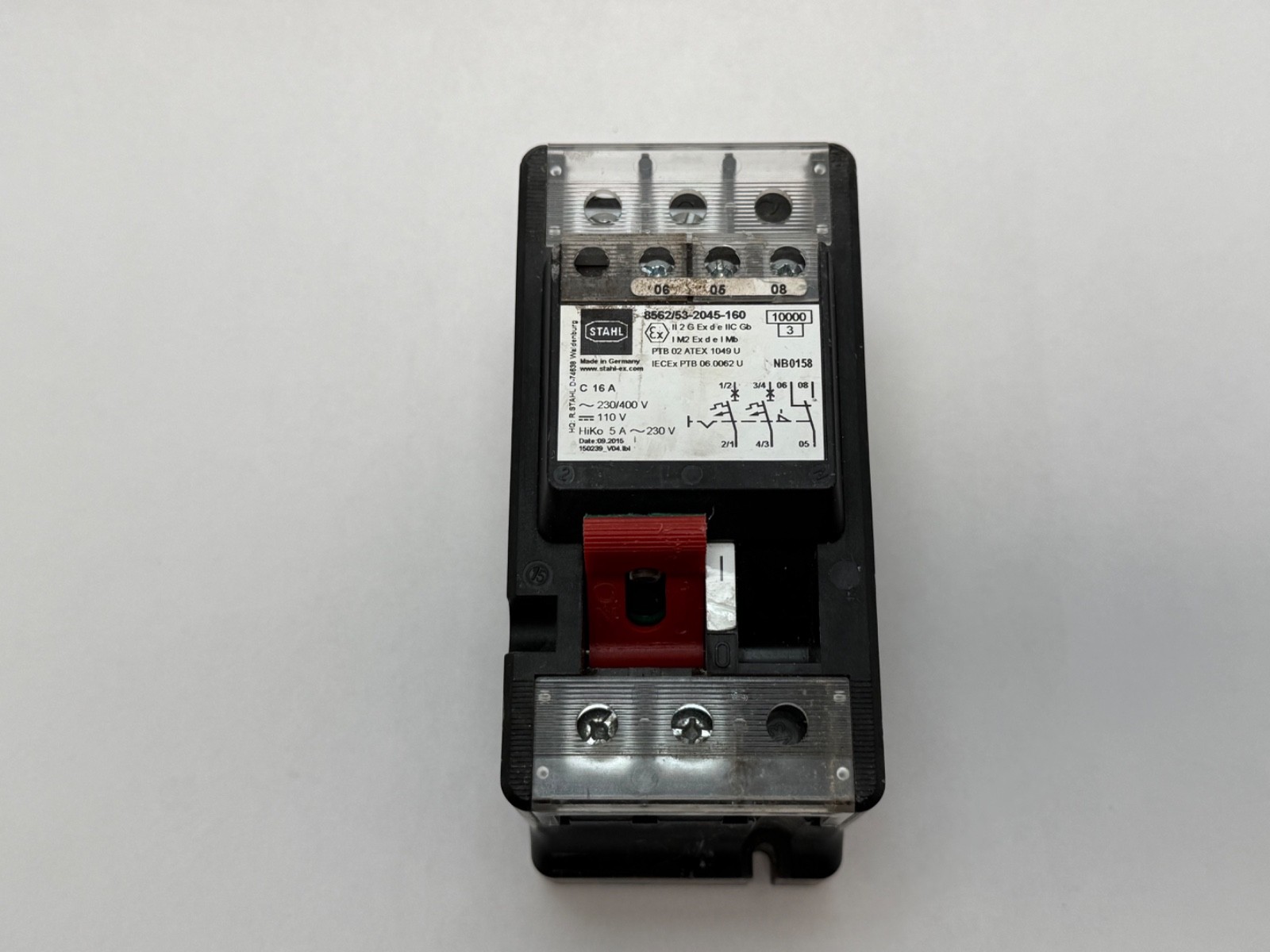

Stahl8562/53-2045-160Explosion-Protected Miniature Circuit Breaker — 2 Pole, 16 A, C Characteristic, 10 kA, 400 V AC, 1 Aux Change-Over, Ex de IIC T5

Condition: Used

Availability:

1 in stock

R. Stahl 8562/53-2045-160 explosion-protected miniature circuit breaker, 2 pole, 16 A, C characteristic, 10 kA, 400 V AC, 1 aux change-over, Ex de IIC T5.

Same day shipment

List Price

$112.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandStahl
MPN8562/53-2045-160
Model8562/53-2045-160

Technical Specifications

Operation MethodOn/Off
TypeCircuit Breaker
Additional AttributesArticle No.: 214947; Poles: 2; Rated current: 16 A; Characteristic: C; Switching capacity: 10 kA; AC 400 V / DC 110 V; Aux contacts: 1 change-over; Energy limiting class: 3; IP20; Width 72 mm, length 156 mm, depth 117 mm; Ambient -20 to +60 C; ATEX II 2 G Ex de IIC T5 Gb
Item Weight1.5 kg (3.31 lb)
Base Number8562
Industry TermsEx MCB; explosion-proof circuit breaker; hazardous area breaker; Ex de miniature circuit breaker; ATEX circuit breaker; line protection switch
Common MisspellingsStal 8562; R.Stahl 8562/53-2045-16; 8562/53-2054-160; miniture circuit breaker
Application TypesHazardous area distribution boards; Ex e control stations; oil and gas; chemical plant; mining; marine
Current Rating16 A
Number Of Poles2
Mpn Variants8562/53-2045-160; 8562532045160; 8562-53-2045-160; 214947
Series8562
Voltage Rating400 V AC / 110 V DC
Seller Part Number: AF5B2#JND6DE

Product Description

What this part is:

The R. Stahl 8562/53-2045-160 is a 2-pole explosion-protected miniature circuit breaker from Series 8562, rated 16 A with C tripping characteristic and one auxiliary change-over contact. Article Number: 214947. Unit Quantity: 1 Pc.

Specifications:

Poles: 2. Rated Operational Current: 16 A. Tripping Characteristic: C. Rated Switching Capacity: 10 kA. Auxiliary Contacts: 1 change-over. AC Rated Operational Voltage: 400 V. DC Rated Operational Voltage: 110 V. Releases: non-adjustable thermal and magnetic. Energy Limiting Class: 3. Isolating Function: per EN 60947-2. Degree of Protection: IP20. Enclosure Material: Epoxy resin. Ambient Temperature: -20 to +60 °C.

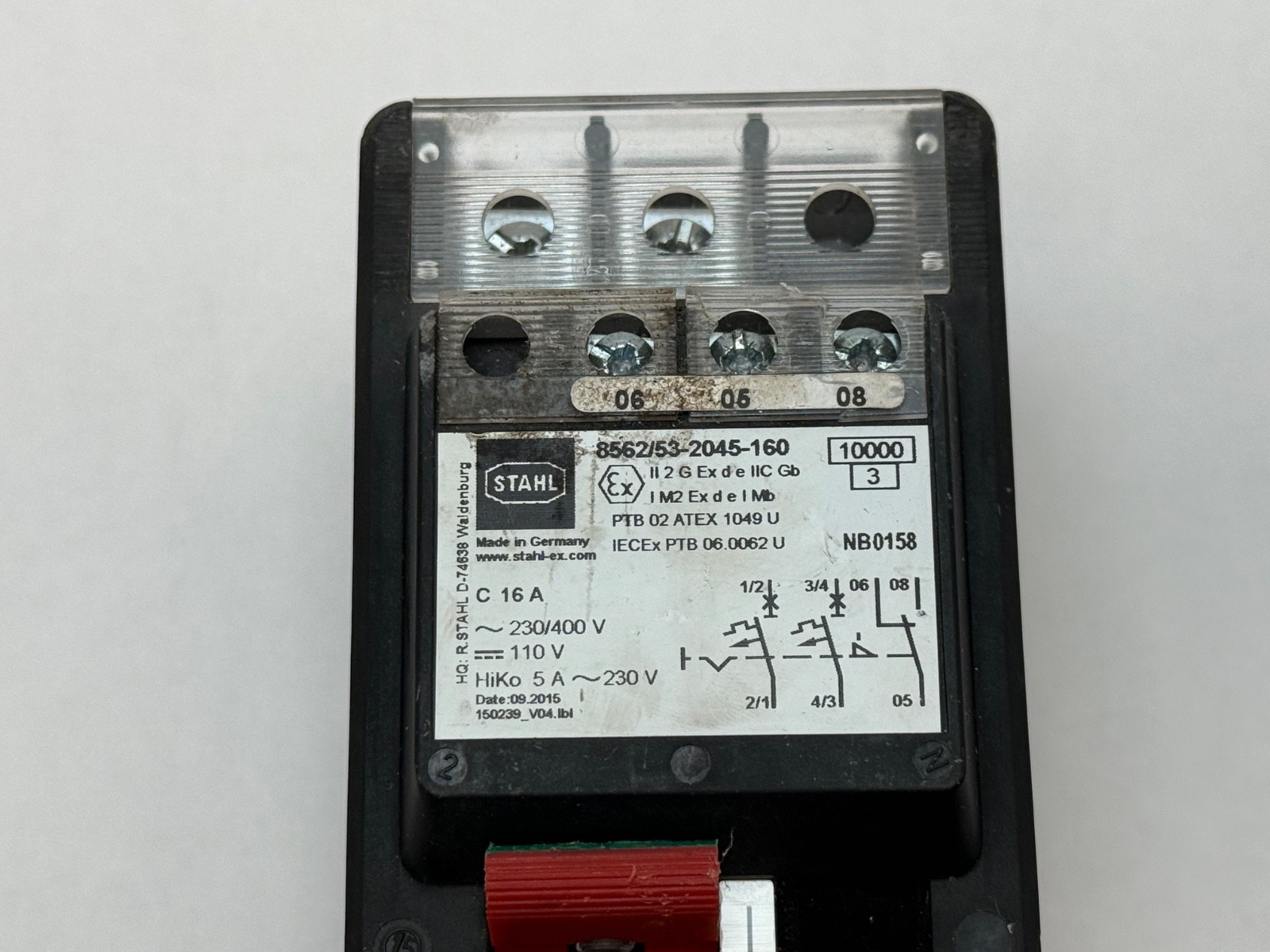

Explosion Protection: ATEX II 2 G Ex de IIC T5 Gb and I M2 Ex de I Mb (PTB 02 ATEX 1049 U); IECEx Ex de IIC T5 Gb (IECEx PTB 06.0062U). Application Range: Zones 1 and 2. Component certificate for installation inside increased-safety enclosures.

Dimensions and mounting:

Width: 72 mm (2.83 in). Length: 156 mm (6.14 in). Mounting Depth: 117 mm (4.61 in). Item Weight: 1.5 kg (3.31 lb).

Compatibility and replacement:

MPN Variants: 8562/53-2045-160, 8562532045160, 8562-53-2045-160, 214947.

Frequently asked questions:

What is the rating of the Stahl 8562/53-2045-160?

2 poles, 16 A, C tripping characteristic, 10 kA switching capacity, 400 V AC / 110 V DC.

What explosion protection does the Stahl 8562/53-2045-160 carry?

ATEX II 2 G Ex de IIC T5 Gb; IECEx Ex de IIC T5 Gb; zones 1 and 2.

What auxiliary contact does the Stahl 8562/53-2045-160 have?

One change-over contact.
