HeidenhainVRZ 735Two-Axis Bidirectional Counter Position Display — RS-232-C Output, 10–100 µm Encoder Grating Periods

Condition: New

Availability:

2 in stock

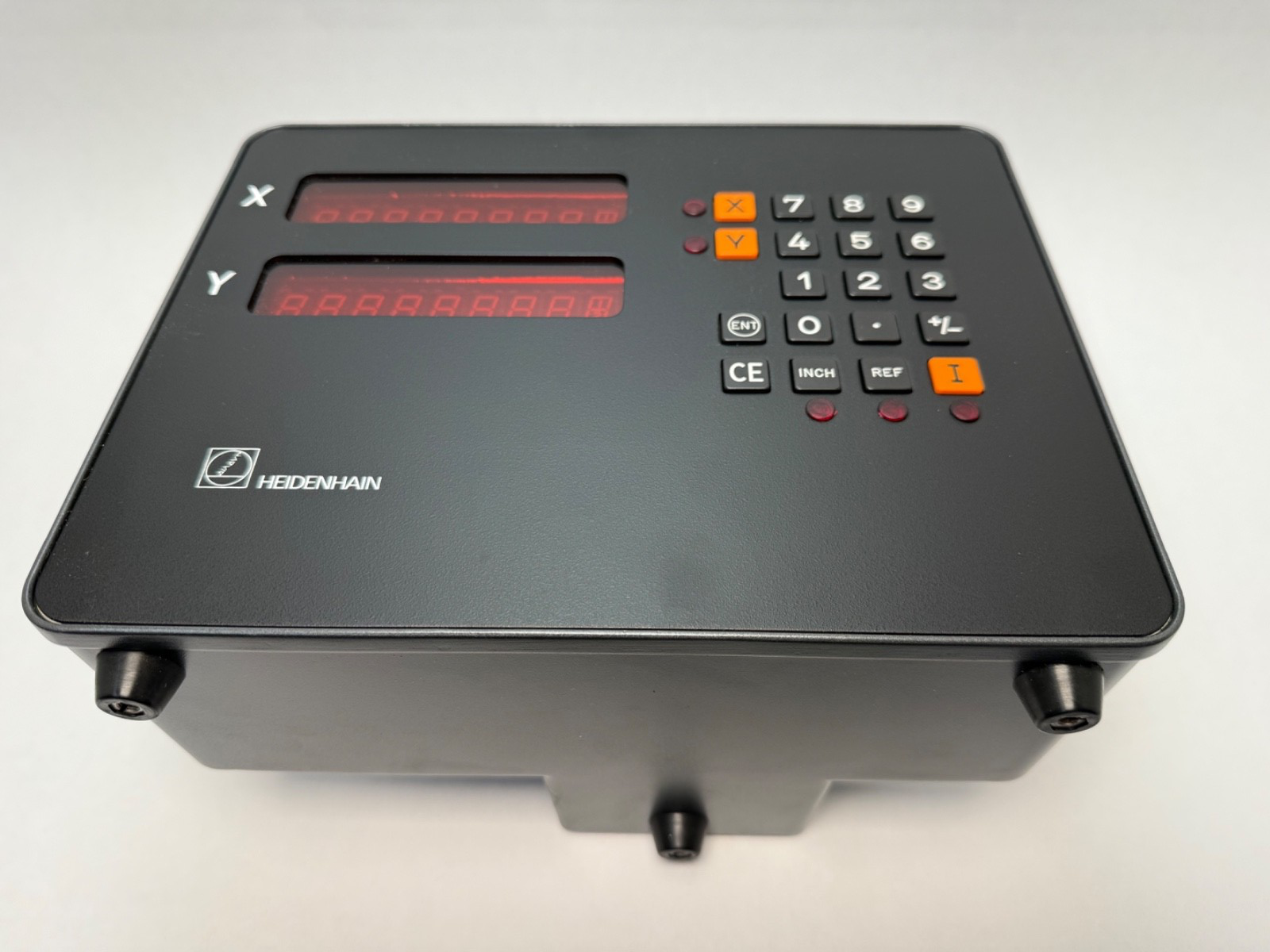

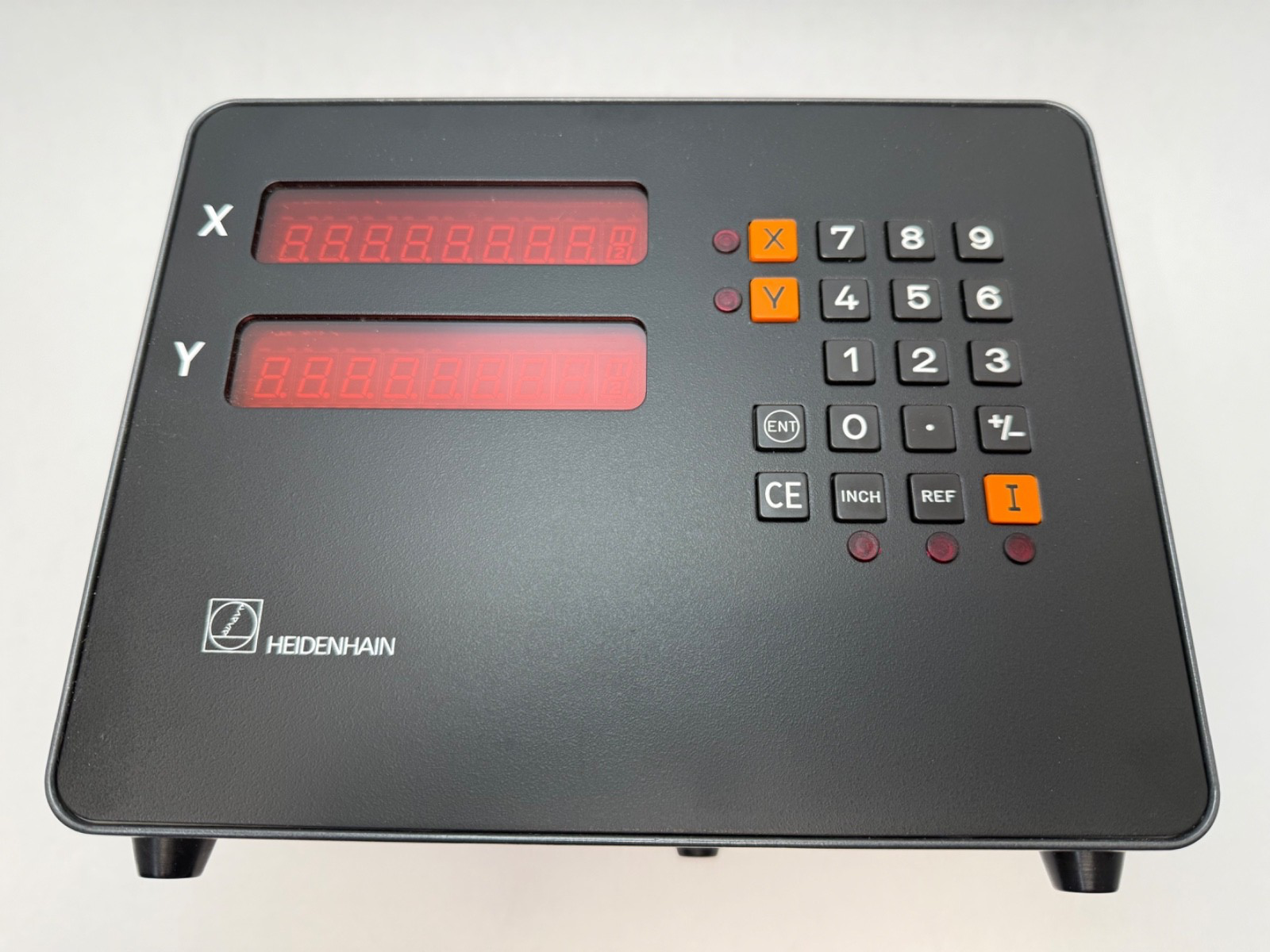

Heidenhain 228418-01 VRZ 735 two-axis bidirectional counter and position display for linear encoders with 10 to 100 µm grating periods, RS-232-C output.

List Price

$681.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandHeidenhain
MPNVRZ 735
ModelVRZ-735

Technical Specifications

TypeBidirectional Counter Position Display
Base NumberVRZ 735
Industry TermsBidirectional counter; Vor-Rueckwaertszaehler; digital readout; DRO; position display
Common MisspellingsHeidenhein; Heidenhan; Heidenheim VRZ735
Mpn Variants228418-01; 228 418 01; 228-418-01; VRZ 735; VRZ735; VRZ-735
Additional AttributesNumber of Axes: 2; Encoder Grating Periods: 10, 20, 40, 100 µm; Housing: cast housing; Included: mains coupling
ApplicationMachine tool axis position display with HEIDENHAIN linear encoders
Communication StandardRS-232-C / V.24
Seller Part Number: B-BAY4#ZH6VG4

Product Description

What this part is:

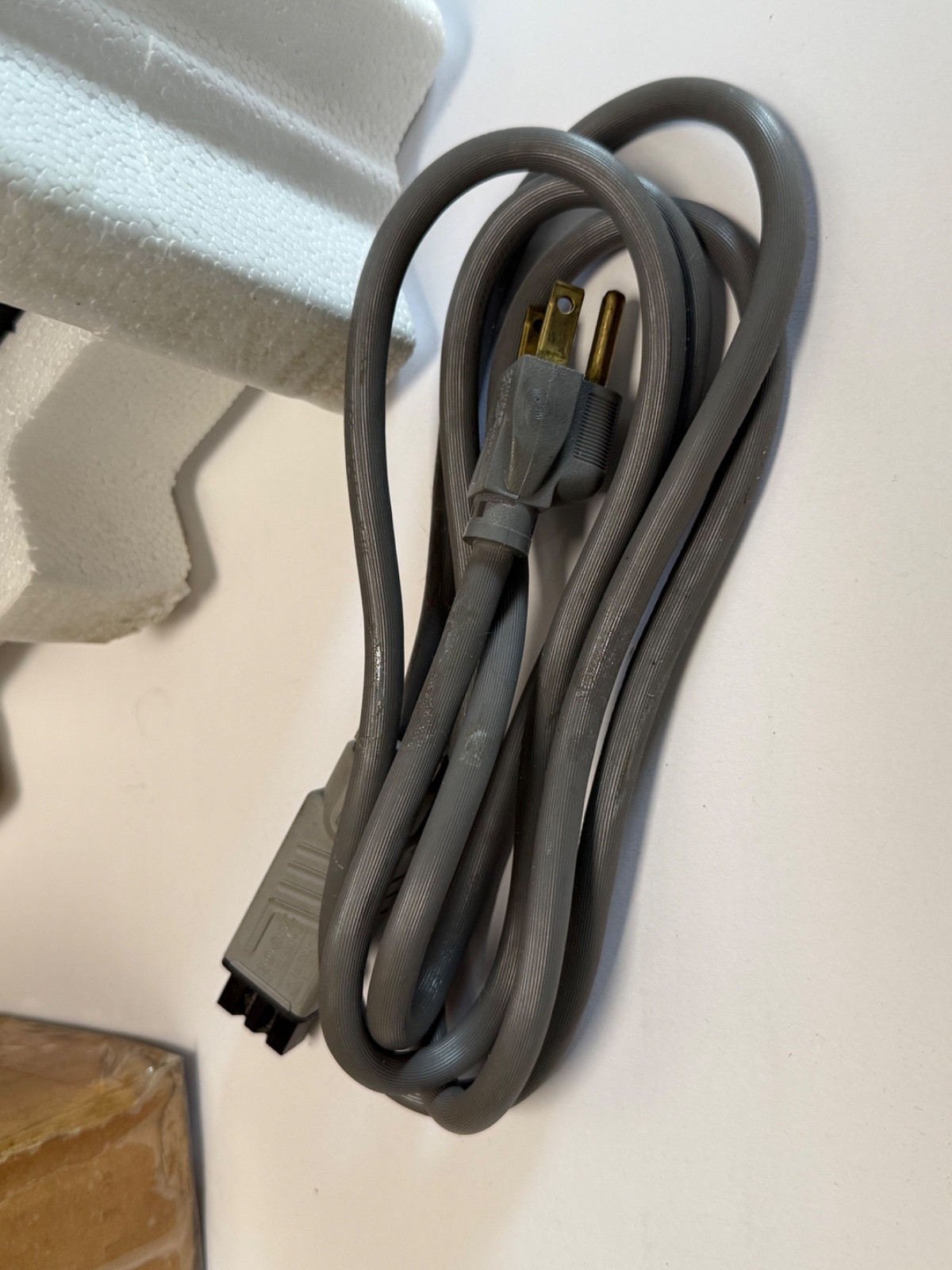

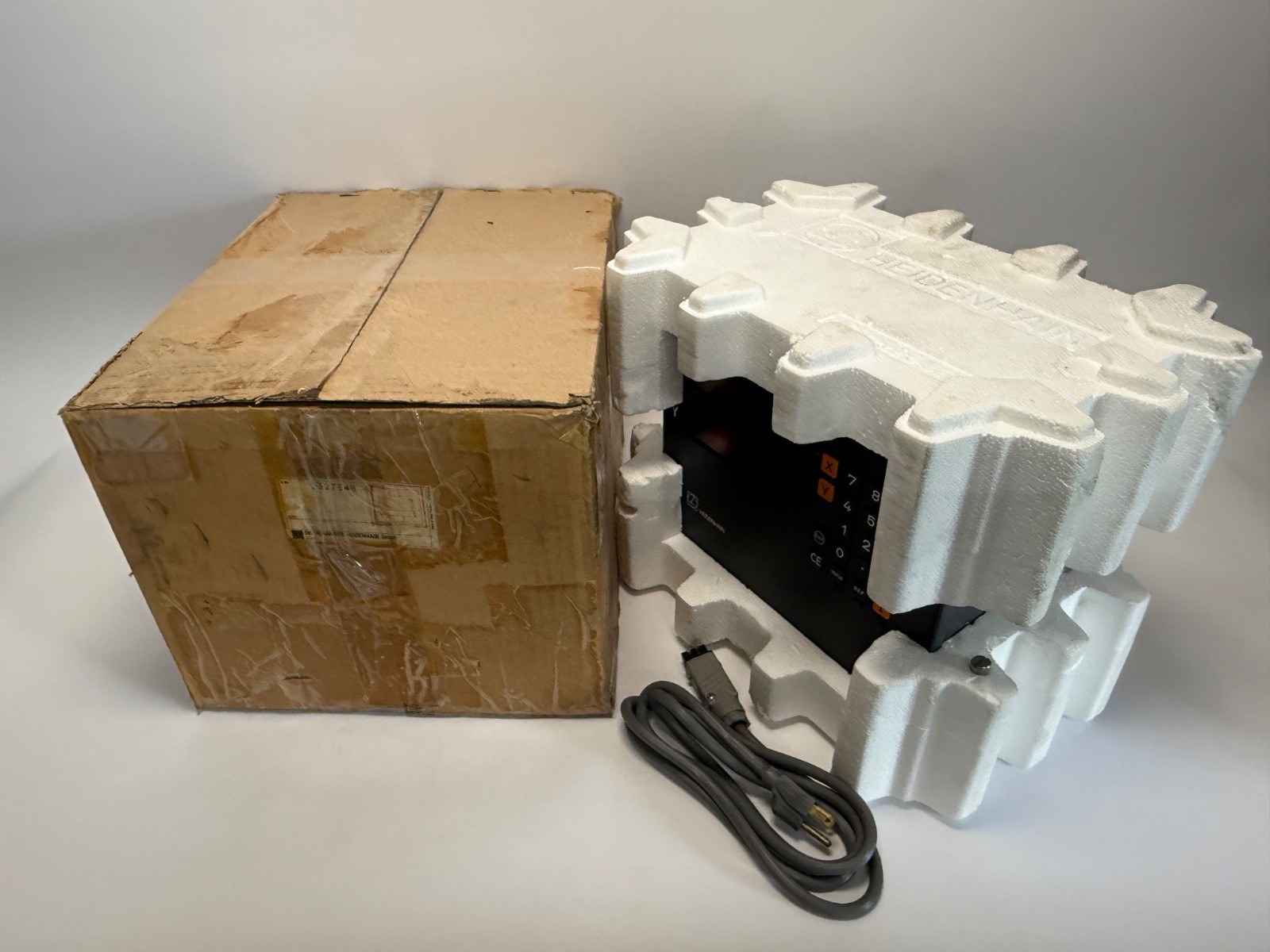

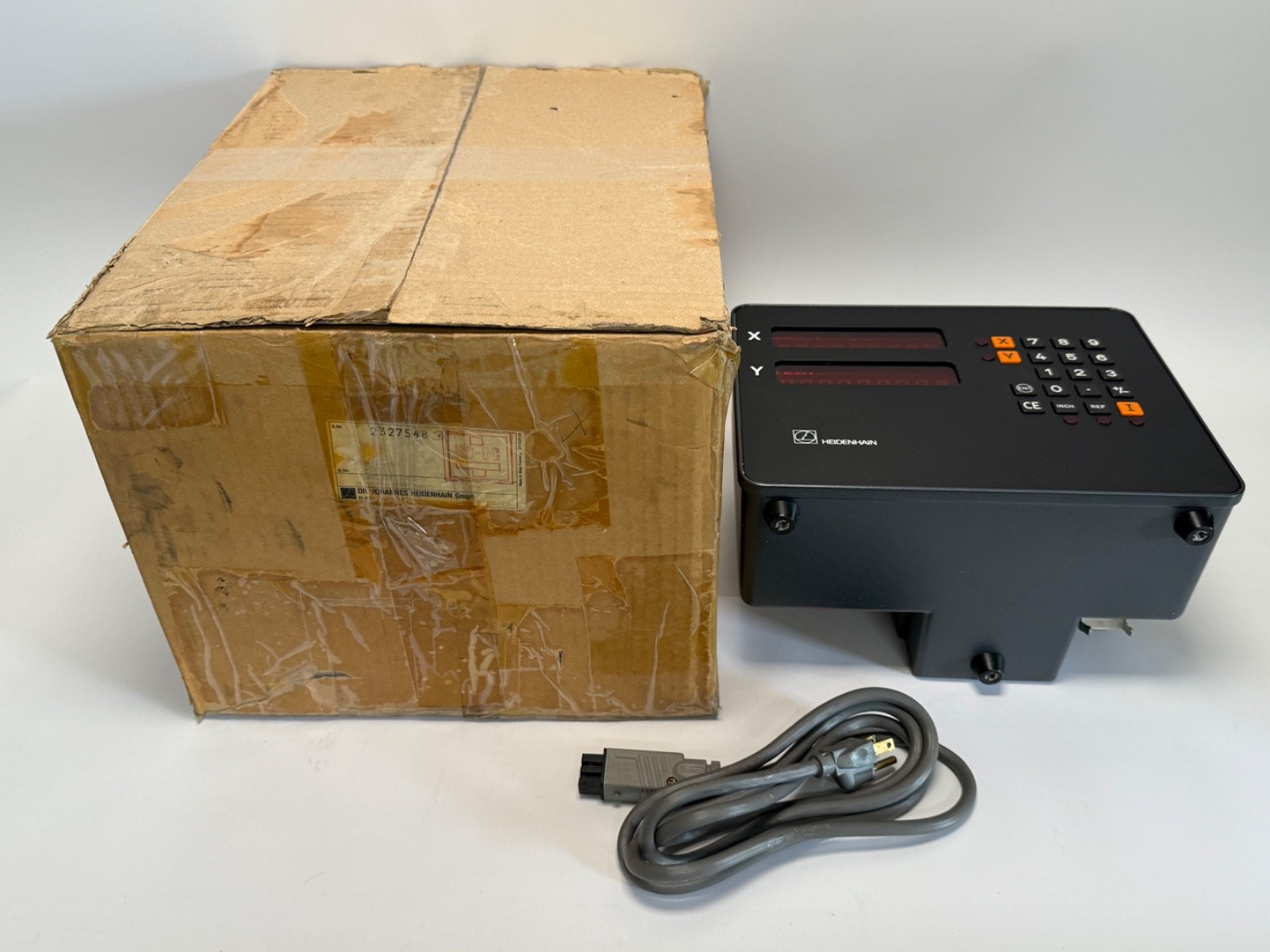

Heidenhain VRZ 735, ID 228418-01, is a two-axis bidirectional counter (Vor-Rückwärtszähler) that displays position values measured by HEIDENHAIN linear encoders. Supplied as 1 Pc with mains coupling included.

Decoding the designation:

VRZ 735 — Heidenhain model designation of the two-axis bidirectional counter in the VRZ 700 series.

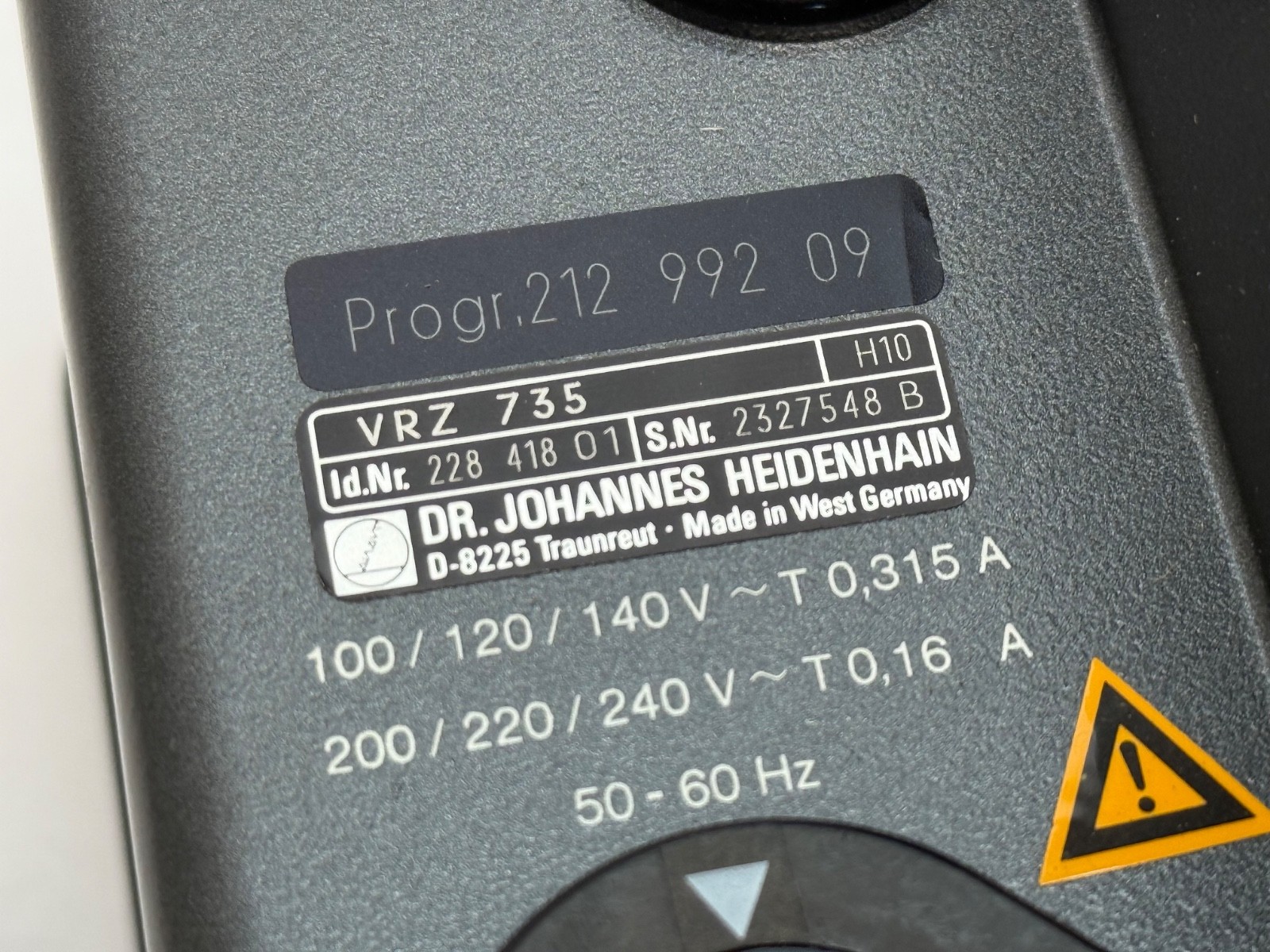

228418-01 — Heidenhain ID number of this exact counter.

Specifications:

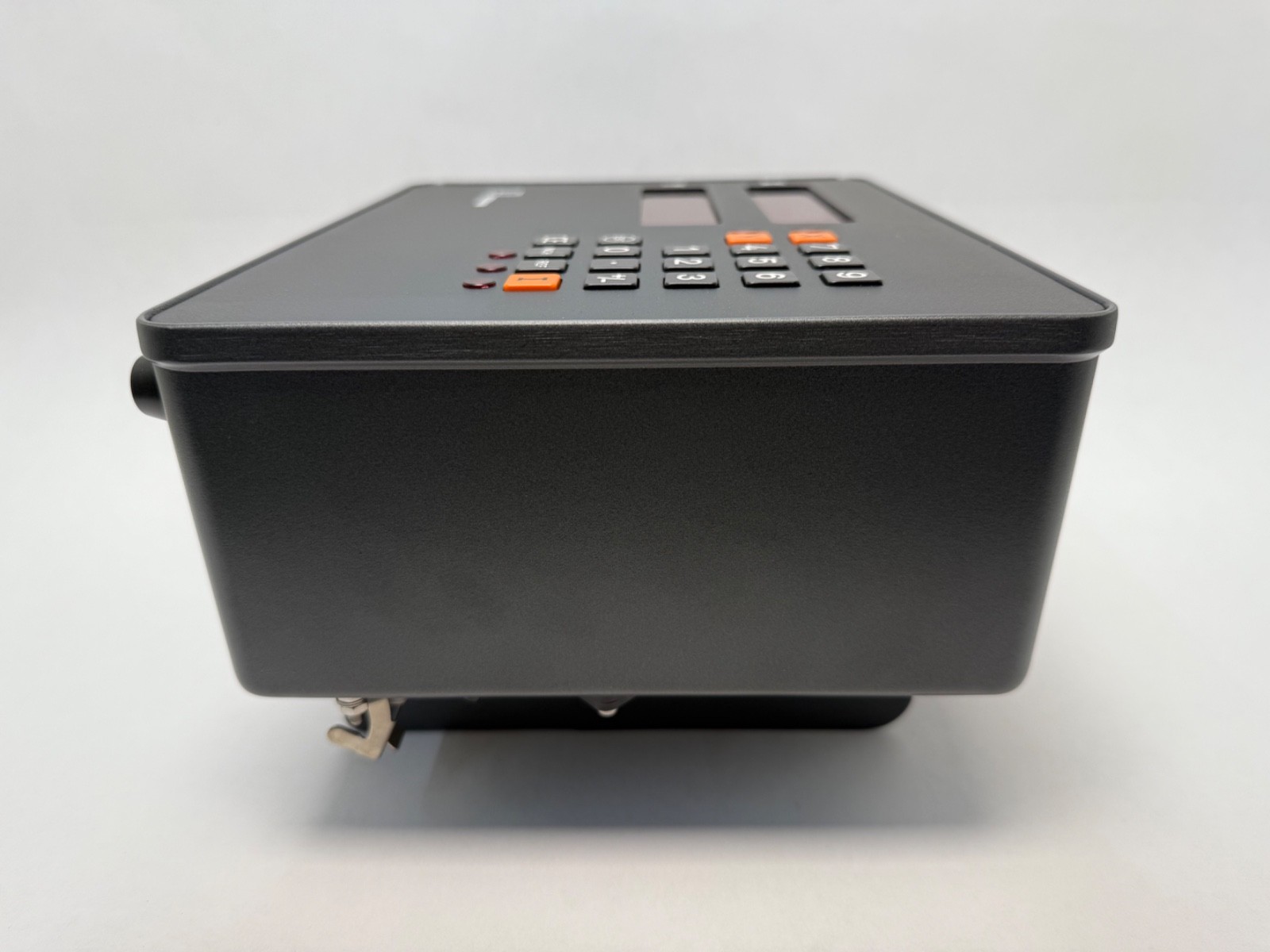

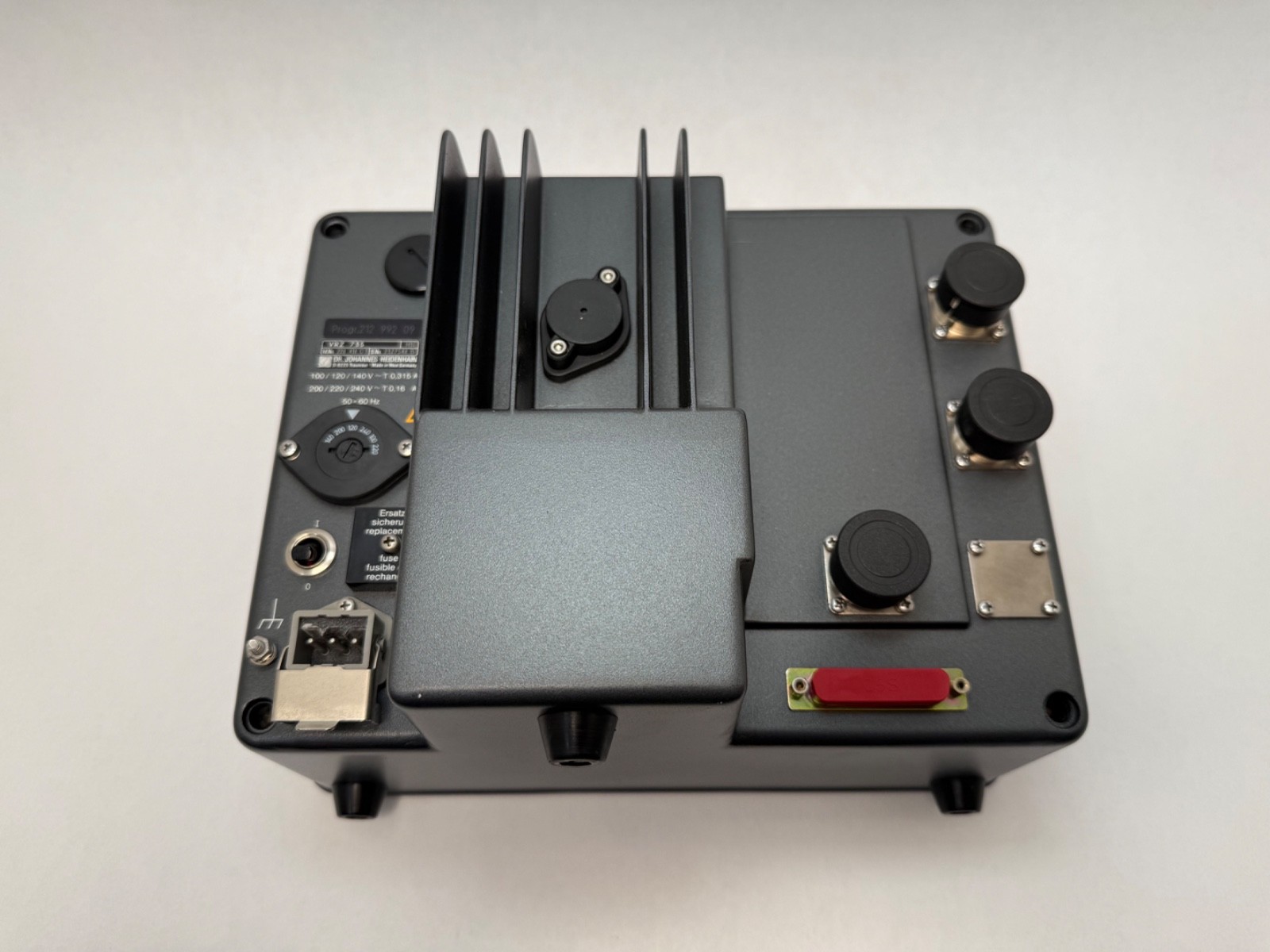

Type: Bidirectional Counter / Position Display. Number of Axes: 2. Encoder Grating Periods: 10, 20, 40 and 100 µm. Data Interface: RS-232-C/V.24 data output for transferring position values to a printer or computer. Housing: cast housing, bench or console standing unit. Mains Connection: mains coupling included with the unit. Series: VRZ 700. Unit Quantity: 1 Pc.

Compatibility and replacement:

Heidenhain ID 228418-01 identifies this exact counter. The VRZ 735 and the VRZ 775 share one set of Heidenhain operating instructions.

Frequently asked questions:

What is the Heidenhain VRZ 735 228418-01?

A two-axis bidirectional counter and position display for HEIDENHAIN linear encoders.

Which encoder grating periods does the VRZ 735 support?

Encoder grating periods of 10, 20, 40 and 100 µm.

What data interface does the VRZ 735 have?

An RS-232-C/V.24 data output for transferring position values to a printer or computer.
