ABBS203U-K6Miniature Circuit Breaker 3 Pole 6A K Curve UL 489 240V Box Of 3

Product Description

What this is:

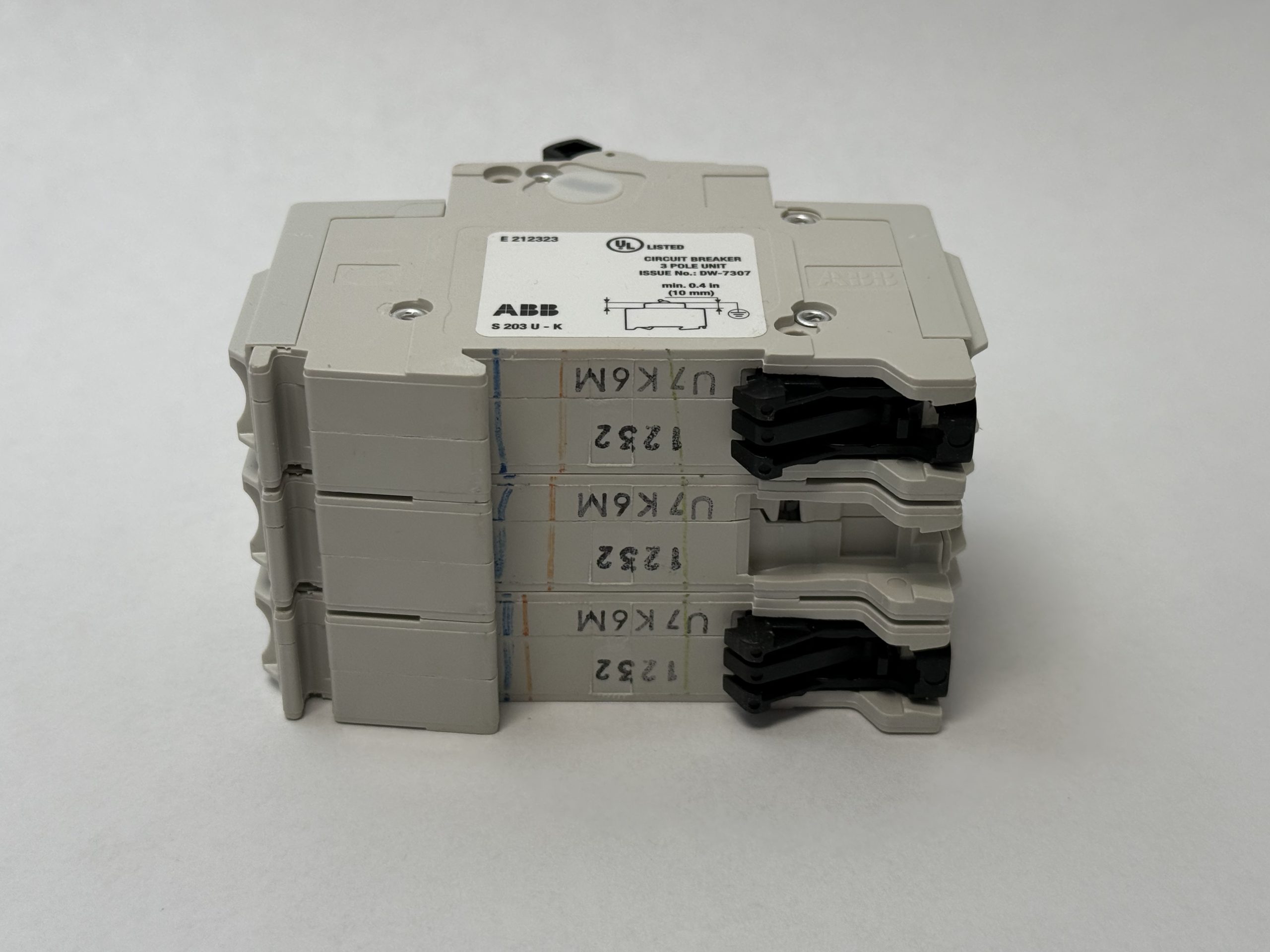

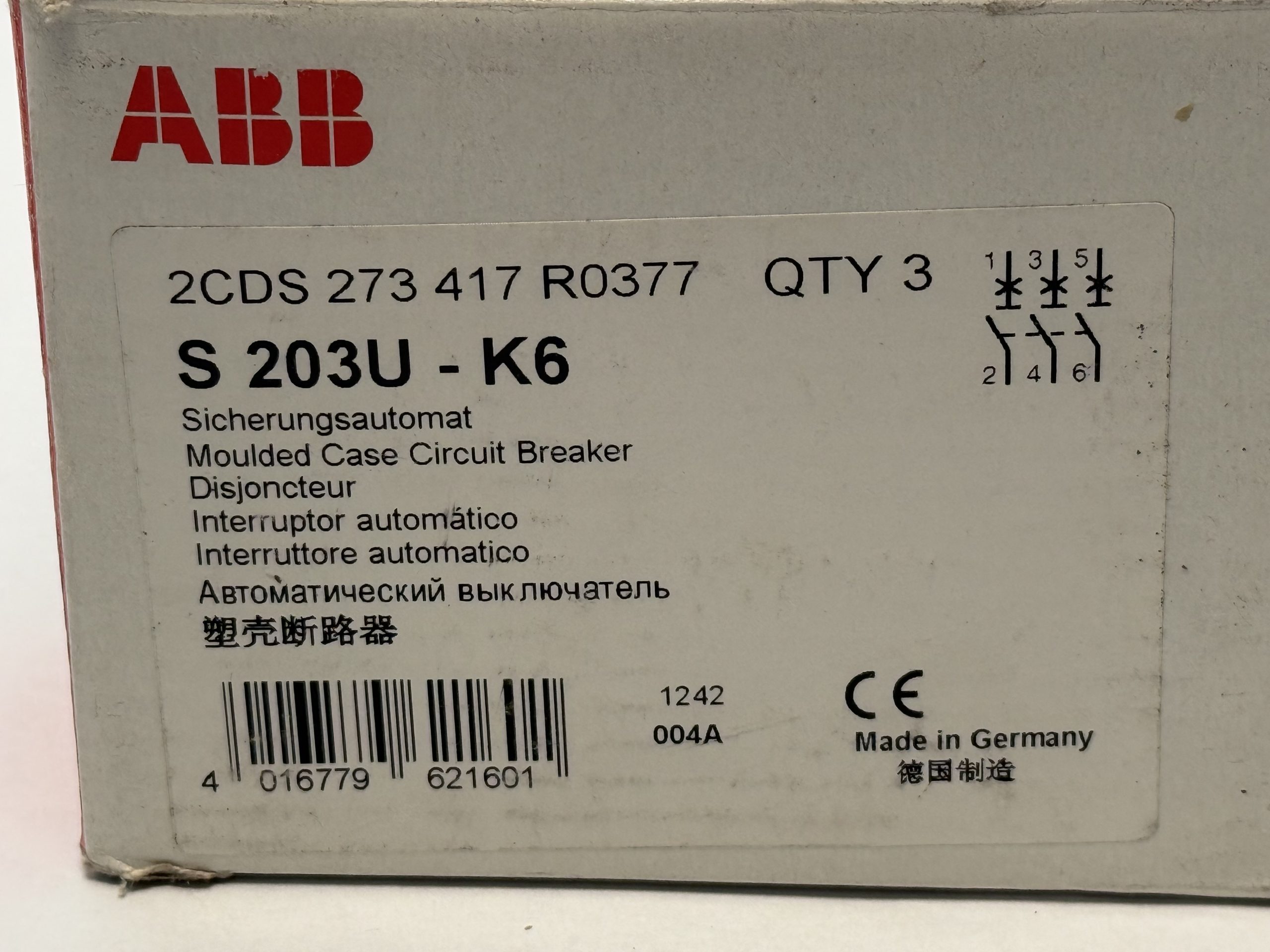

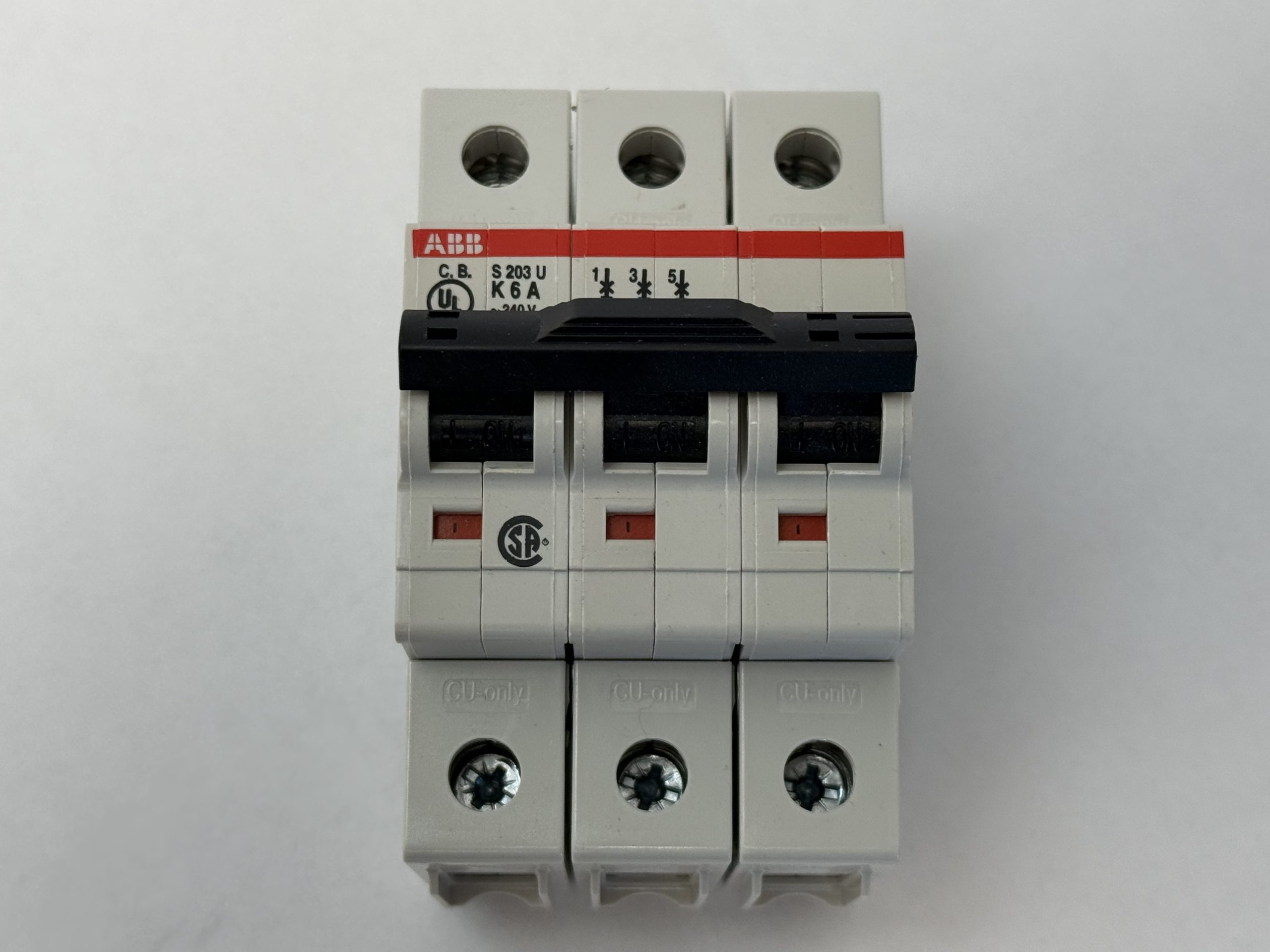

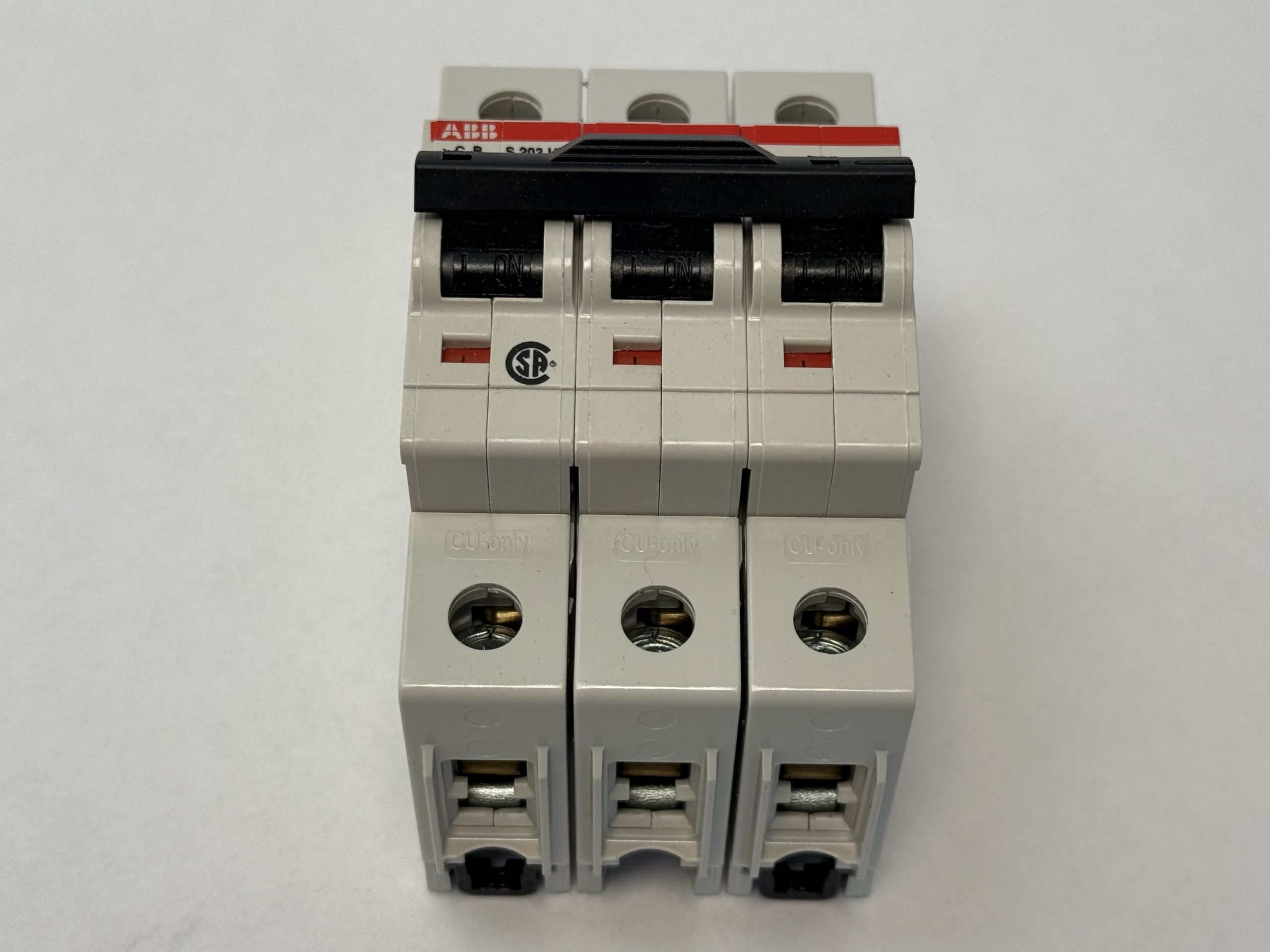

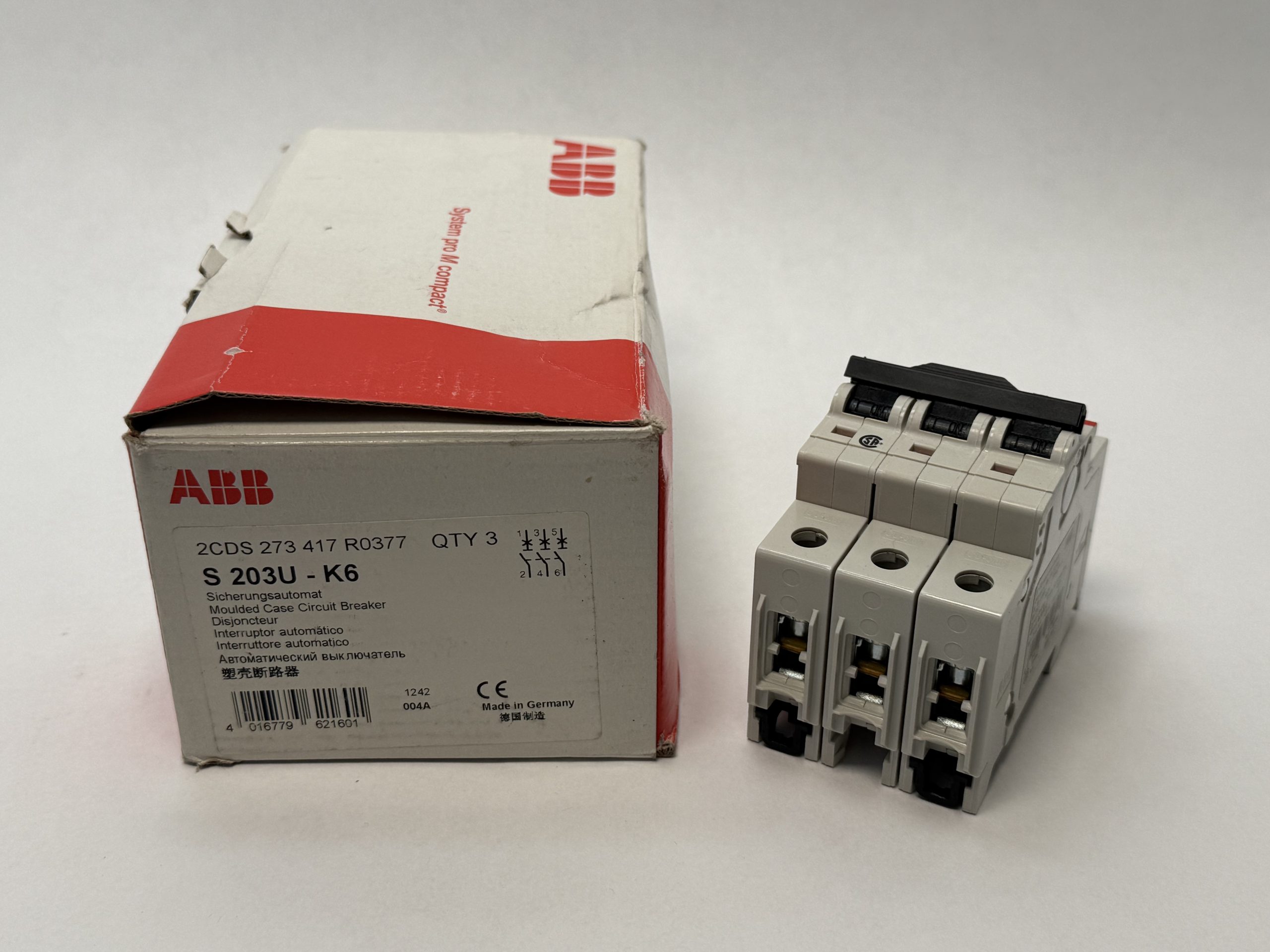

A full box of 3 ABB S203U-K6 miniature circuit breakers from the S200U line: 3 pole, 6 A, K tripping characteristic, UL 489 listed for 240 V AC. The box carries ABB pack order number 2CDS 273 417 R0377 (QTY 3). Made in Germany.

How the part number breaks down:

• S203: S200 series, 3 pole unit
• U: the UL 489 / CSA 22.2 No. 5 version rated 240 V AC, as printed on the unit label
• K: K tripping characteristic
• 6: 6 A rated current
• Also written as S 203U-K6, S203U-K6A, S203UK6

Item Specifications:

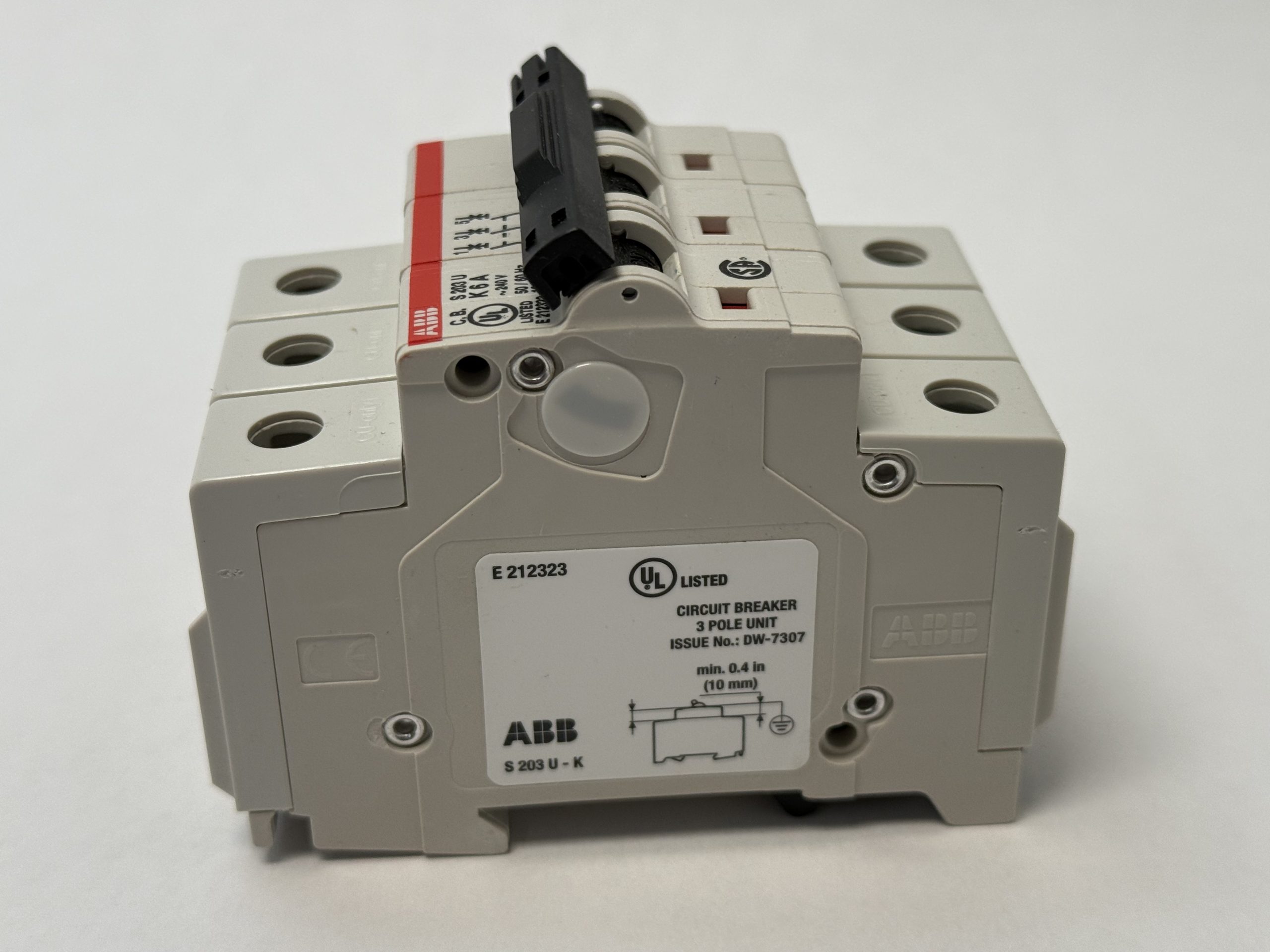

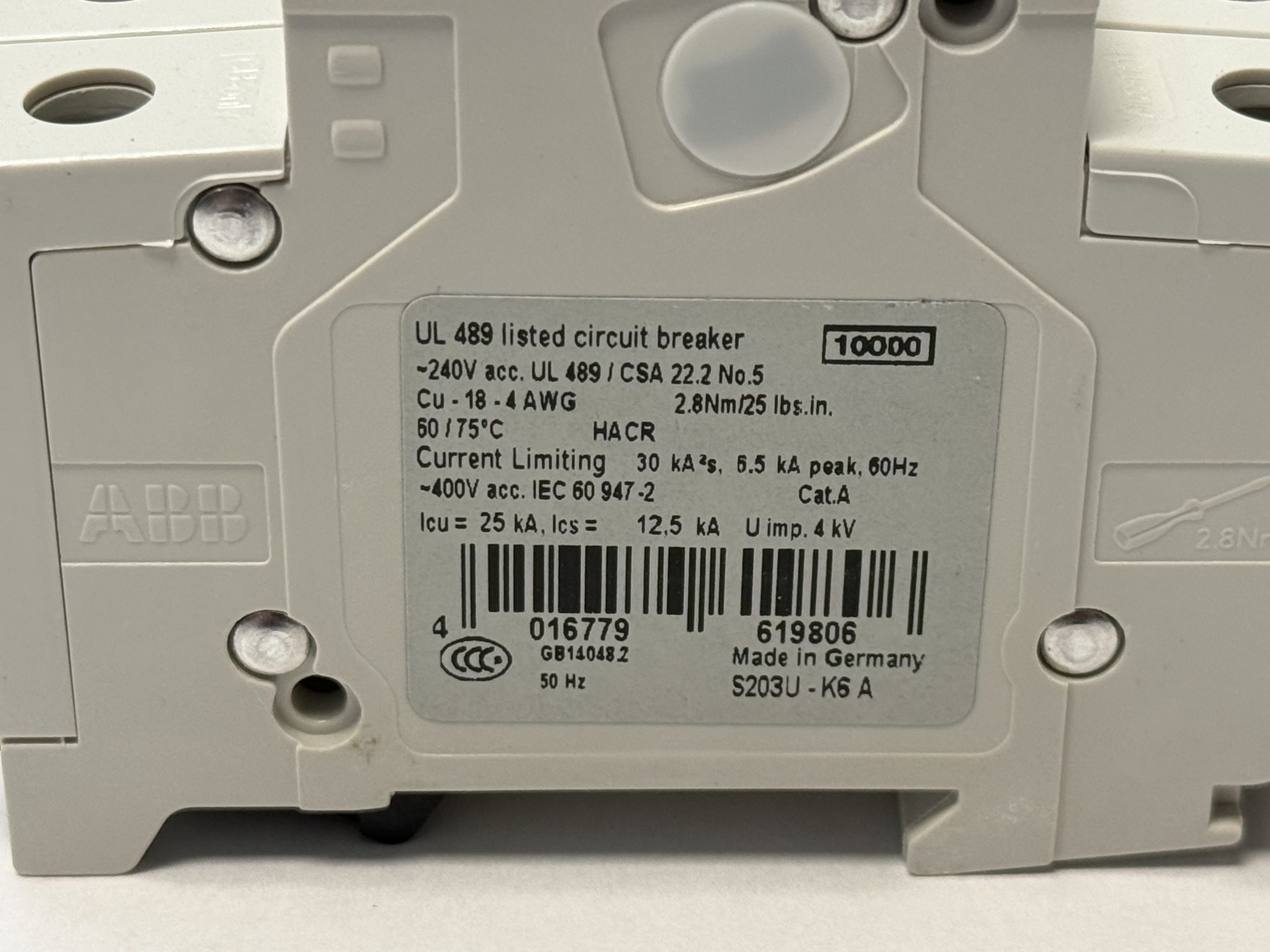

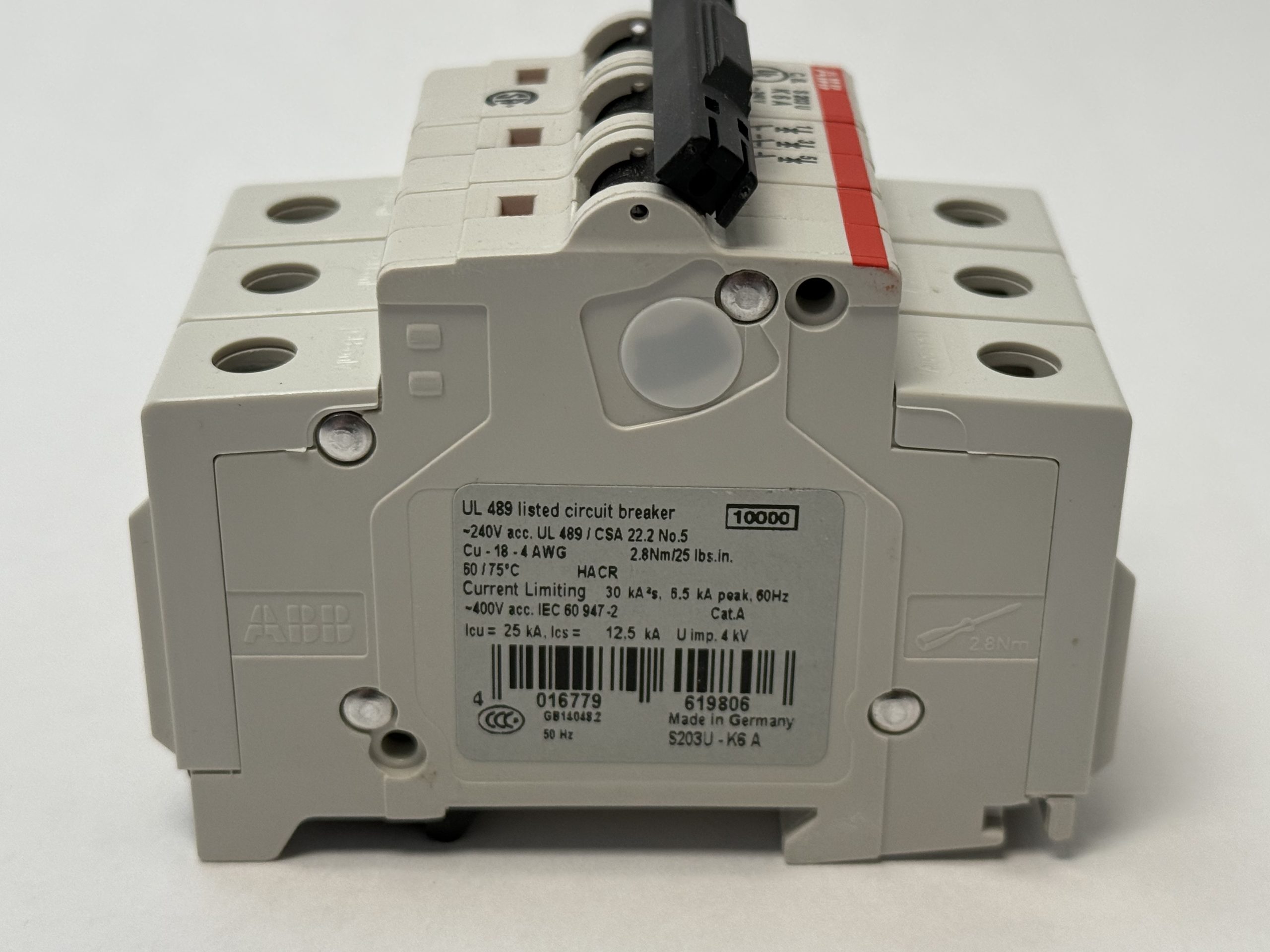

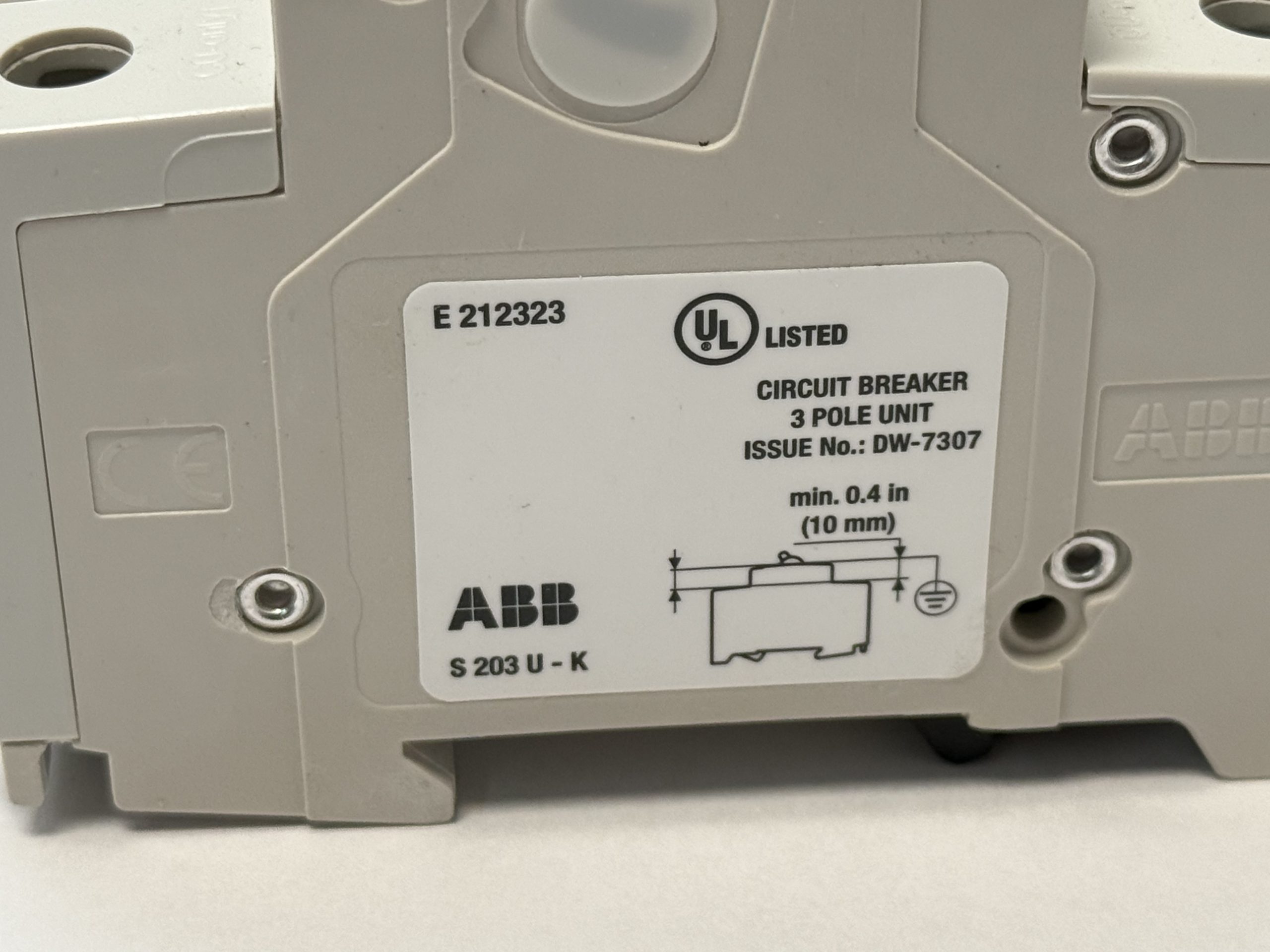

• Listing: UL 489 listed circuit breaker, CSA 22.2 No. 5, UL file E212323
• Voltage: 240 V AC (UL 489); 400 V AC (IEC 60947-2, Category A)
• Interrupting rating: 10,000 A (UL 489)
• IEC breaking capacity: Icu 25 kA, Ics 12.5 kA
• Current limiting: 30 kA²s, 6.5 kA peak at 60 Hz
• HACR rated

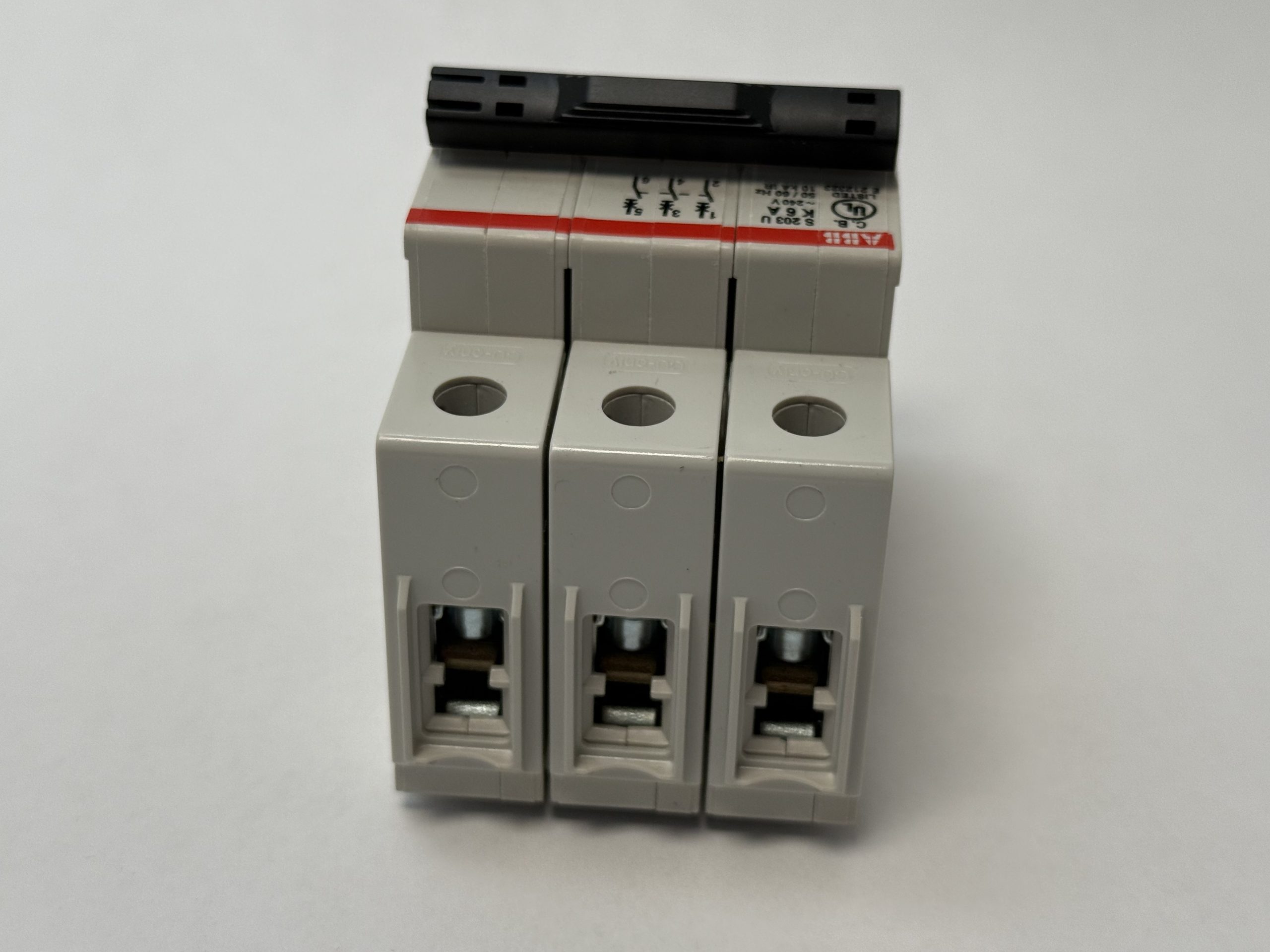

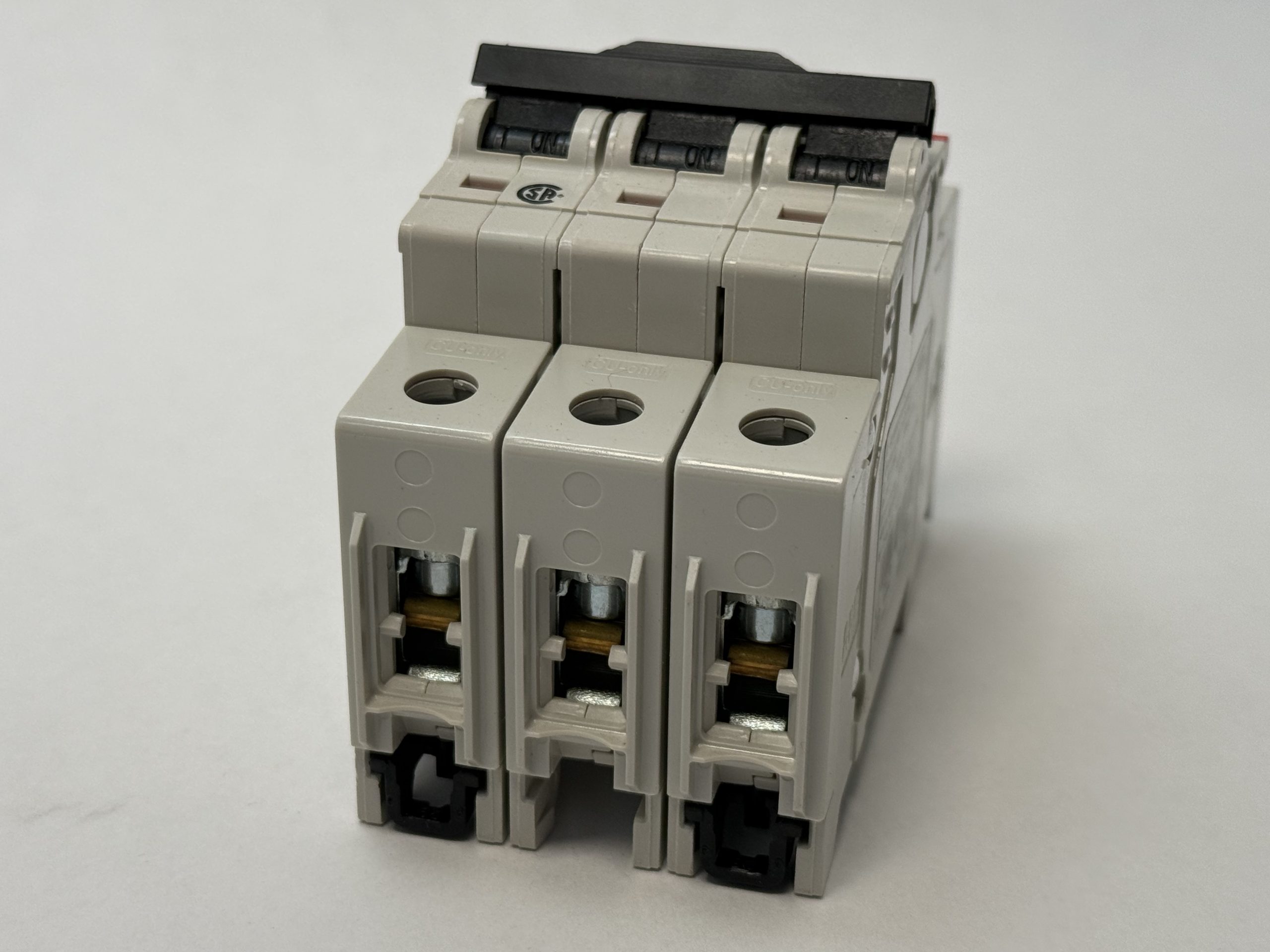

• Wire: Cu, 18 to 4 AWG, 60/75 °C
• Terminal torque: 2.8 Nm / 25 lb-in
• Rated impulse voltage: 4 kV
• Mounting: DIN rail

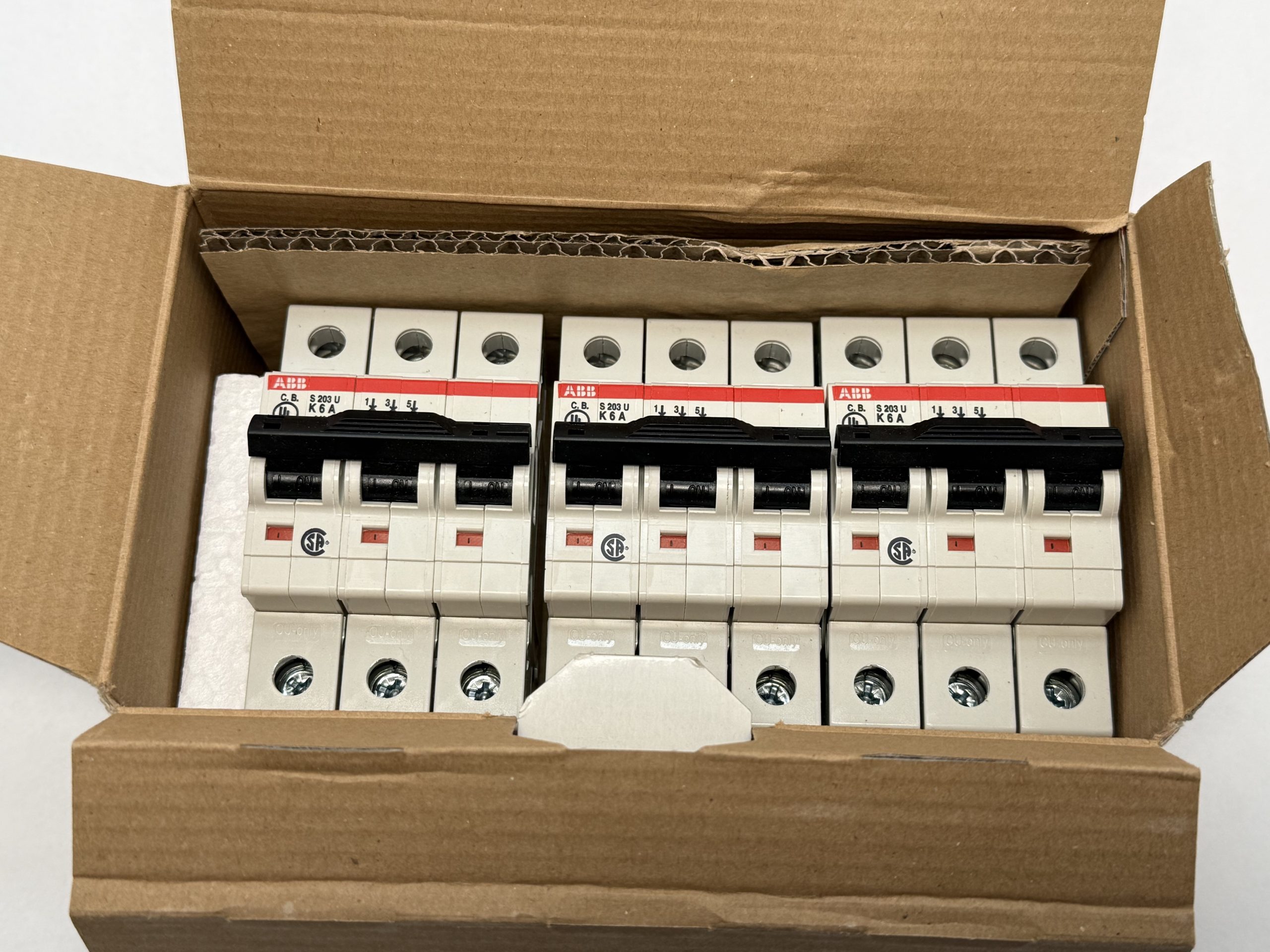

• Quantity: 3 breakers in the original ABB box
