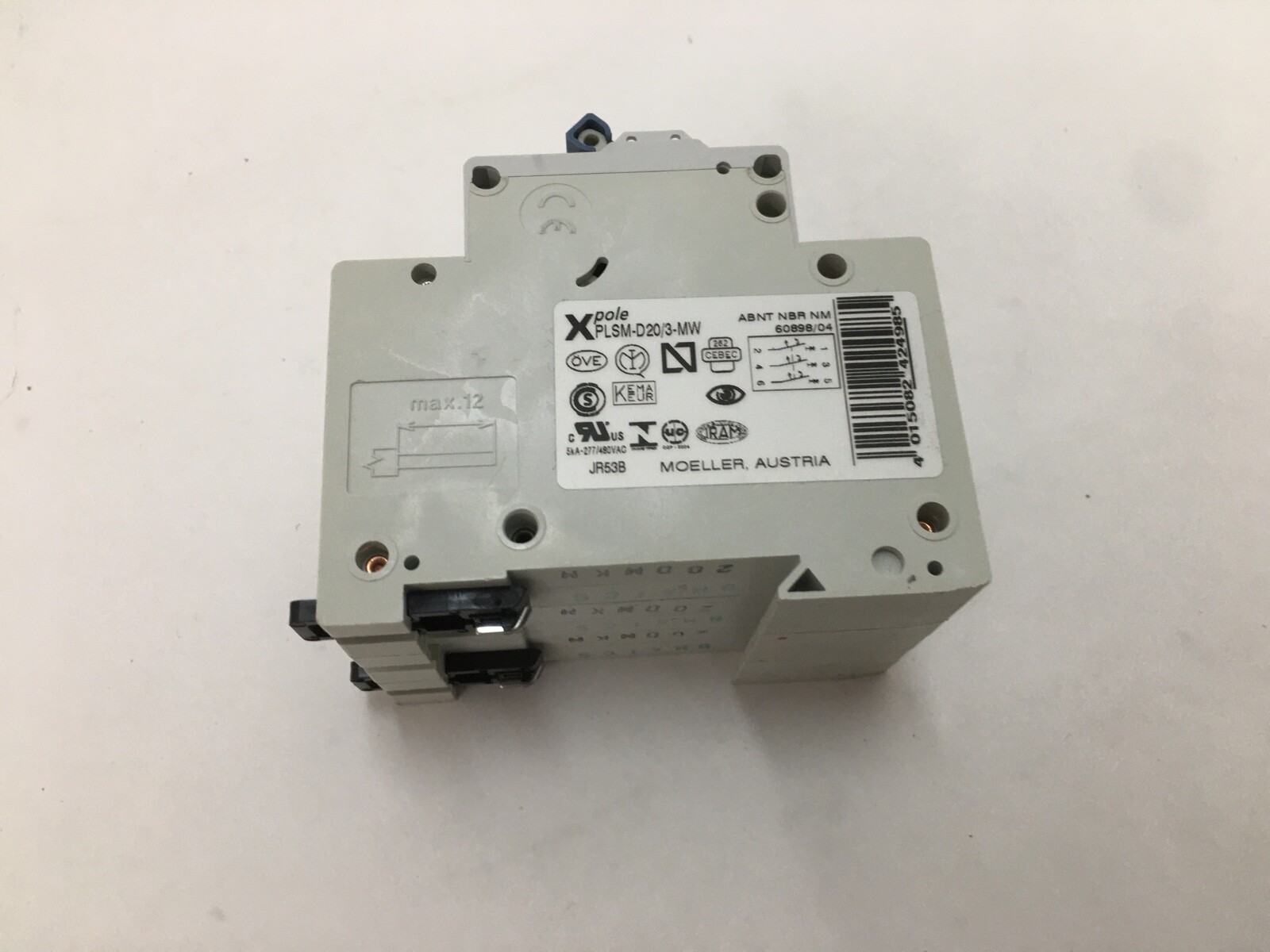

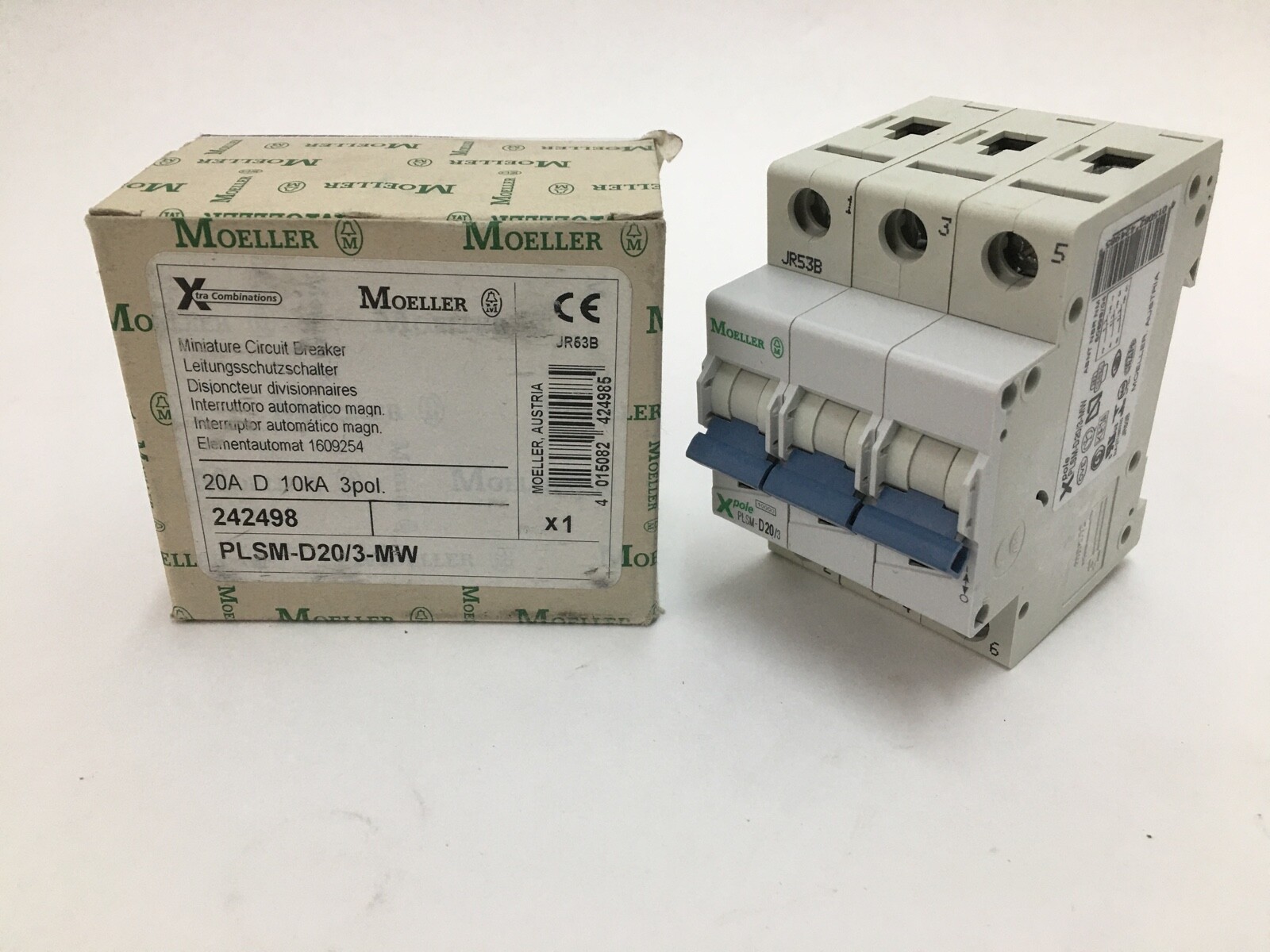

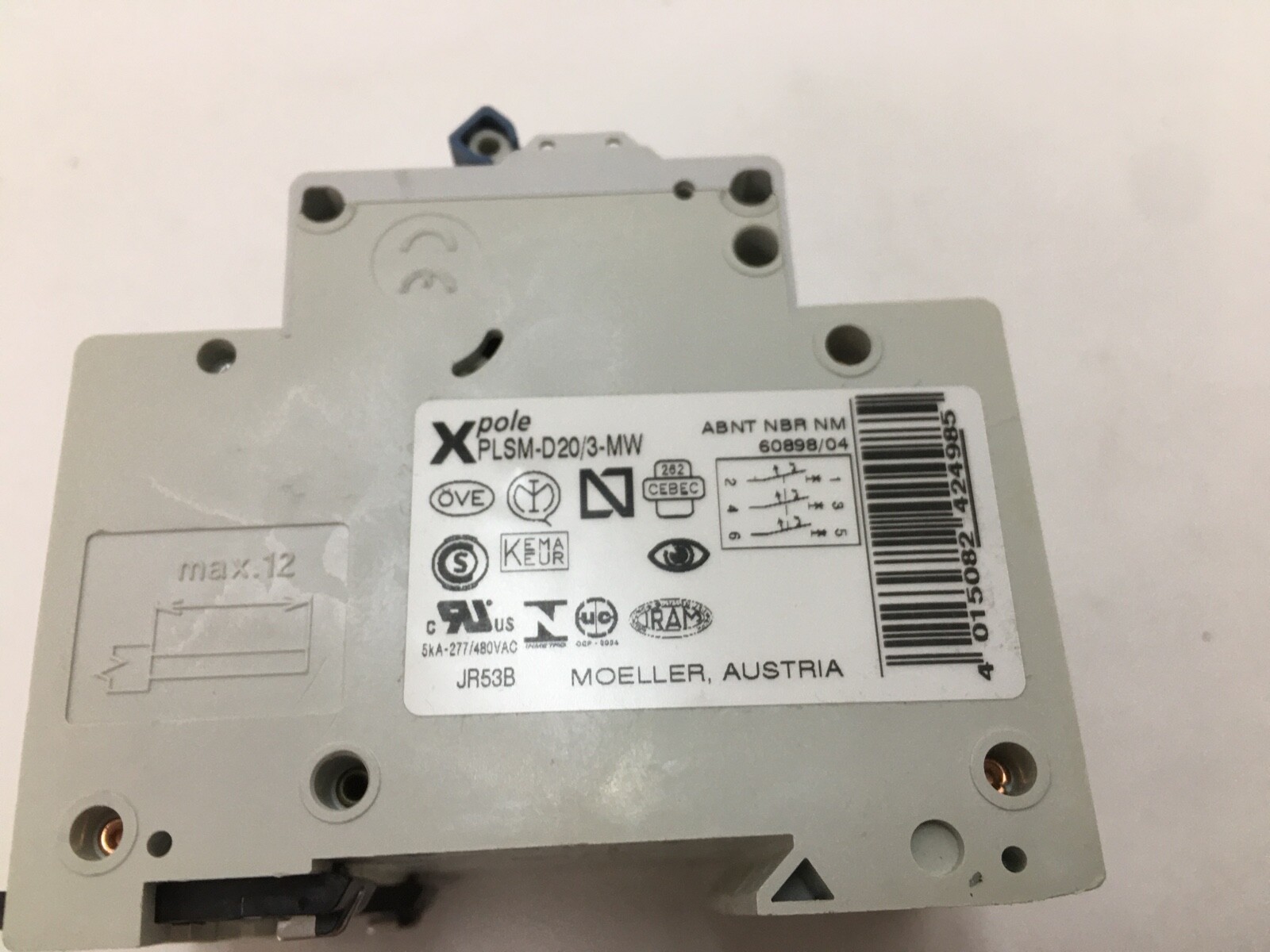

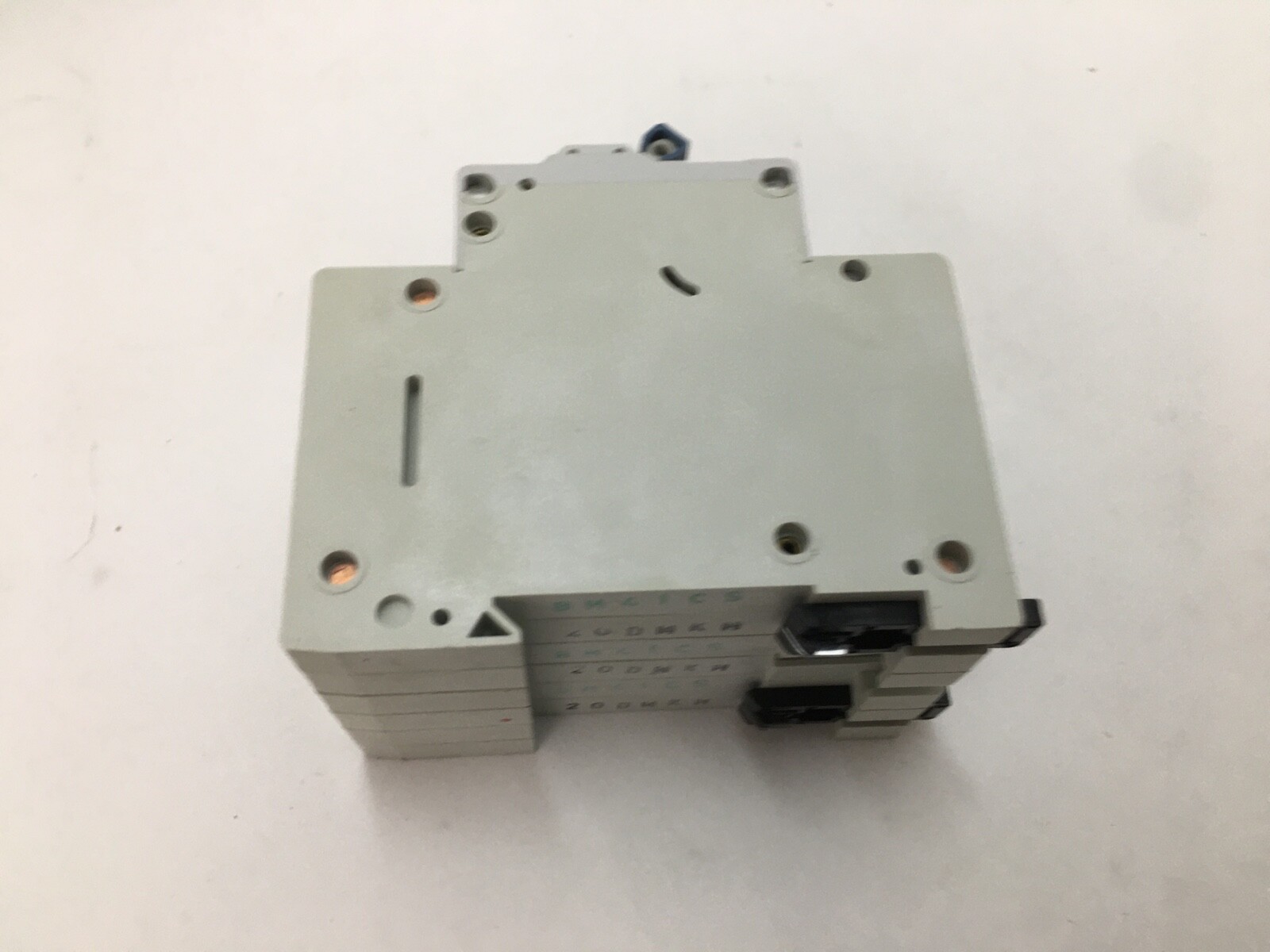

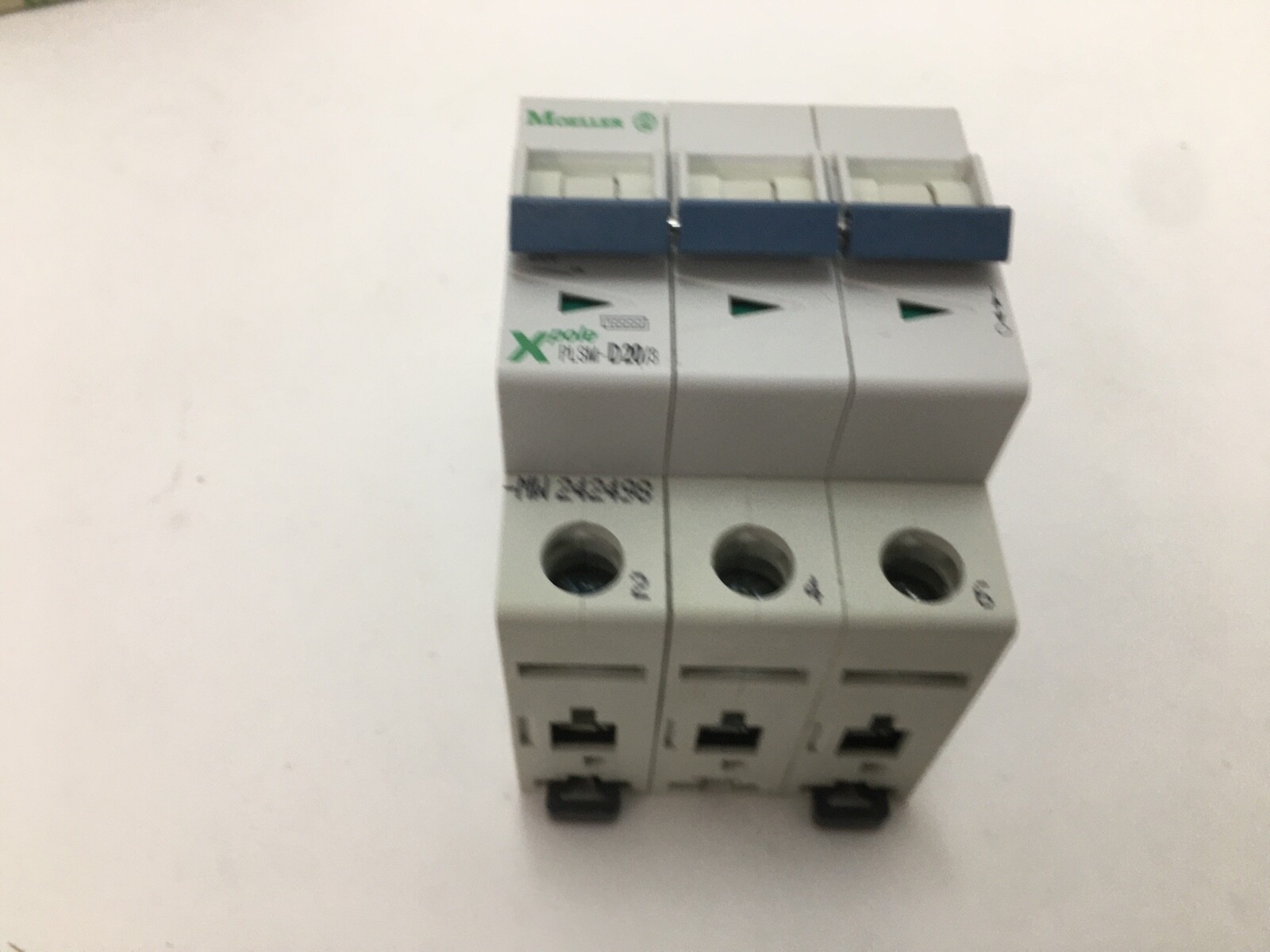

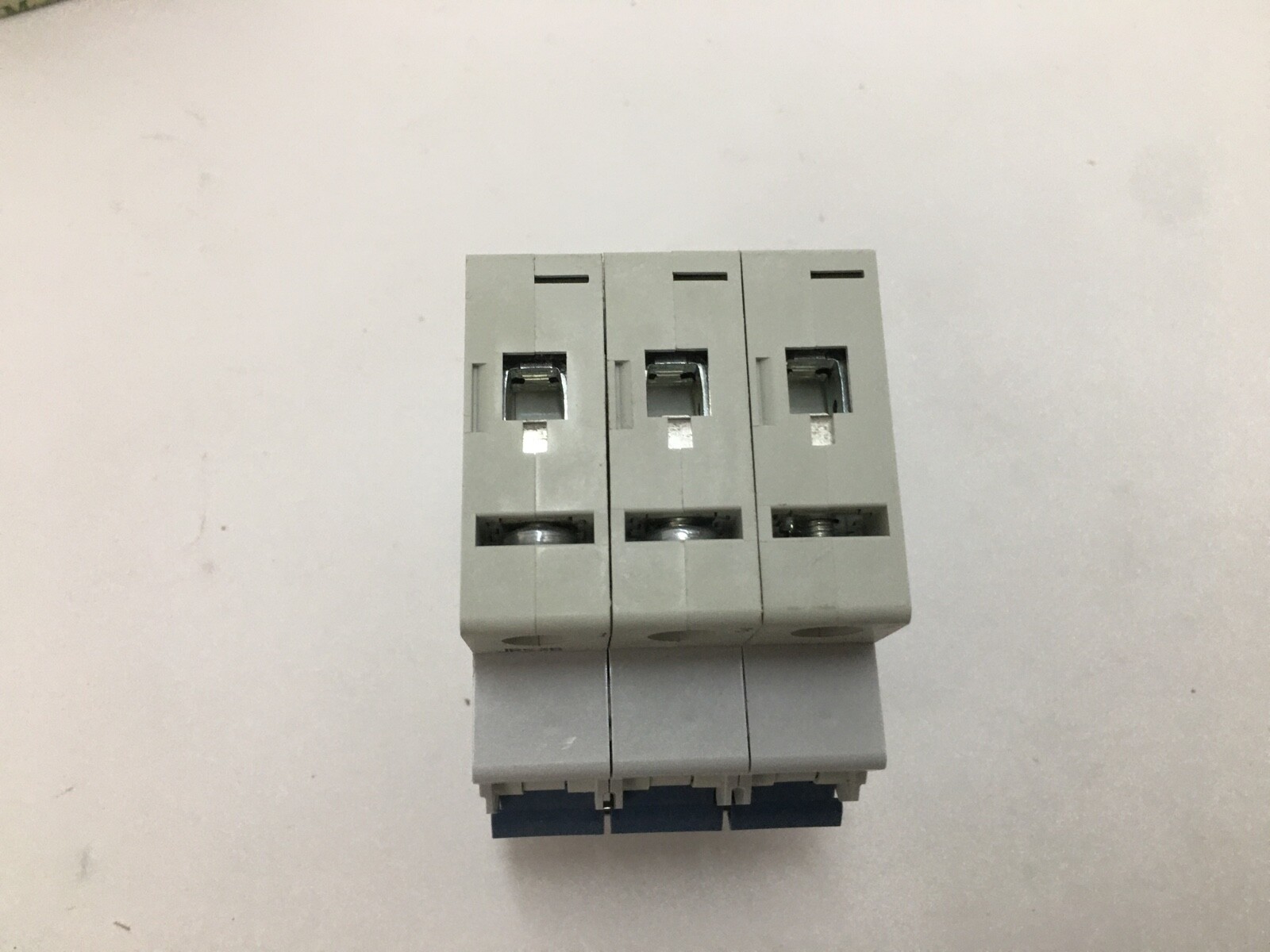

MoellerPLSM-D20/3-MWMiniature Circuit Breaker — 20 A, 3 Pole, D Curve, 10 kA, 400 V AC

Condition: New

Availability:

3 in stock

Eaton Moeller xPole PLSM-D20/3-MW 3-pole miniature circuit breaker, 20 A, D curve, 10 kA to IEC/EN 60898-1, 400 V AC, 3 modules wide. Catalog 242498, new.

Same day shipment

List Price

$38.22

3 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

3 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandMoeller
MPNPLSM-D20/3-MW
GTIN4015082424985
ModelPLSM-D20/3-MW

Technical Specifications

TypeMiniature Circuit Breaker
FeaturesPlug-On Neutral
Number Of Phases3
Maximum Amperage20 A
Suitable ForInterior
Industry TermsMCB, miniature circuit breaker, DIN rail breaker, D curve breaker, xPole
Common MisspellingsMoller, Möller, X Pole, PLSM D20 3 MW
Application TypesControl panels, motor and transformer circuit protection, machine building
Mpn VariantsPLSM-D20/3-MW, PLSMD203MW, PLSM-D20/3, 242498
Compatible With ReplacesEaton 242498
Additional AttributesRated Breaking Capacity: 10 kA; Tripping Characteristic: D; Rated Operational Voltage: 400 V AC; Rated Insulation Voltage: 440 V; Uimp: 4 kV; IP20; Width: 3 modules (52.5 mm); Power Loss: 6.9 W; Ambient: -25 to 75 C
Item Weight0.314 kg (0.69 lb)
Seller Part Number: AD3B2#OYMSQP

Product Description

What this part is:

Eaton Moeller xPole PLSM-D20/3-MW, catalog number 242498, is a 3-pole miniature circuit breaker with 20 A rated current, D tripping characteristic and 10 kA rated breaking capacity to IEC/EN 60898-1.

Decoding the designation:

PLSM — Eaton Moeller xPole PLS6/M miniature circuit breaker range, 10 kA.

D — D tripping characteristic, for high inrush loads such as transformers and motors.

20 — rated current 20 A.

/3 — three poles.

Specifications:

Rated Current: 20 A. Poles: 3. Tripping Characteristic: D. Rated Breaking Capacity: 10 kA (IEC/EN 60898-1, at 230 V and 400 V). Rated Operational Voltage: 400 V AC max. Rated Insulation Voltage: 440 V. Rated Impulse Withstand Voltage: 4 kV. Rated Frequency: 50/60 Hz. Energy Limiting Class: 3. Protection Rating: IP20. Power Loss: 6.9 W. Overvoltage Category: III. Pollution Degree: 2. Ambient Temperature: -25 °C to 75 °C. Conductor Cross Section: 1 to 25 mm², solid or stranded. Series: xPole PLSM.

Dimensions and mounting:

Width: 52.5 mm (3 modular spaces). Height: 75 mm. Depth: 80 mm. Mounting Depth: 70.5 mm. Weight: 0.314 kg (0.69 lb).

Compatibility and replacement:

Eaton Catalog Number: 242498. Model Code: PLSM-D20/3-MW. GTIN: 4015082424985. Designation variants: PLSM-D20/3-MW, PLSMD203MW, PLSM-D20/3, 242498.

Frequently asked questions:

What are the ratings of the Moeller PLSM-D20/3-MW?

Rated Current: 20 A. Poles: 3. Tripping Characteristic: D. Rated Breaking Capacity: 10 kA.

What is the Eaton catalog number?

Eaton Catalog Number: 242498.

What is the width of the breaker?

Width: 52.5 mm (3 modular spaces).
