MoellerPKZM0-0,243-Pole Motor-Protective Circuit-Breaker / Manual Motor Starter, 0.16-0.24 A Adjustable, 690 V, DIN Rail

Product Description

What this part is:

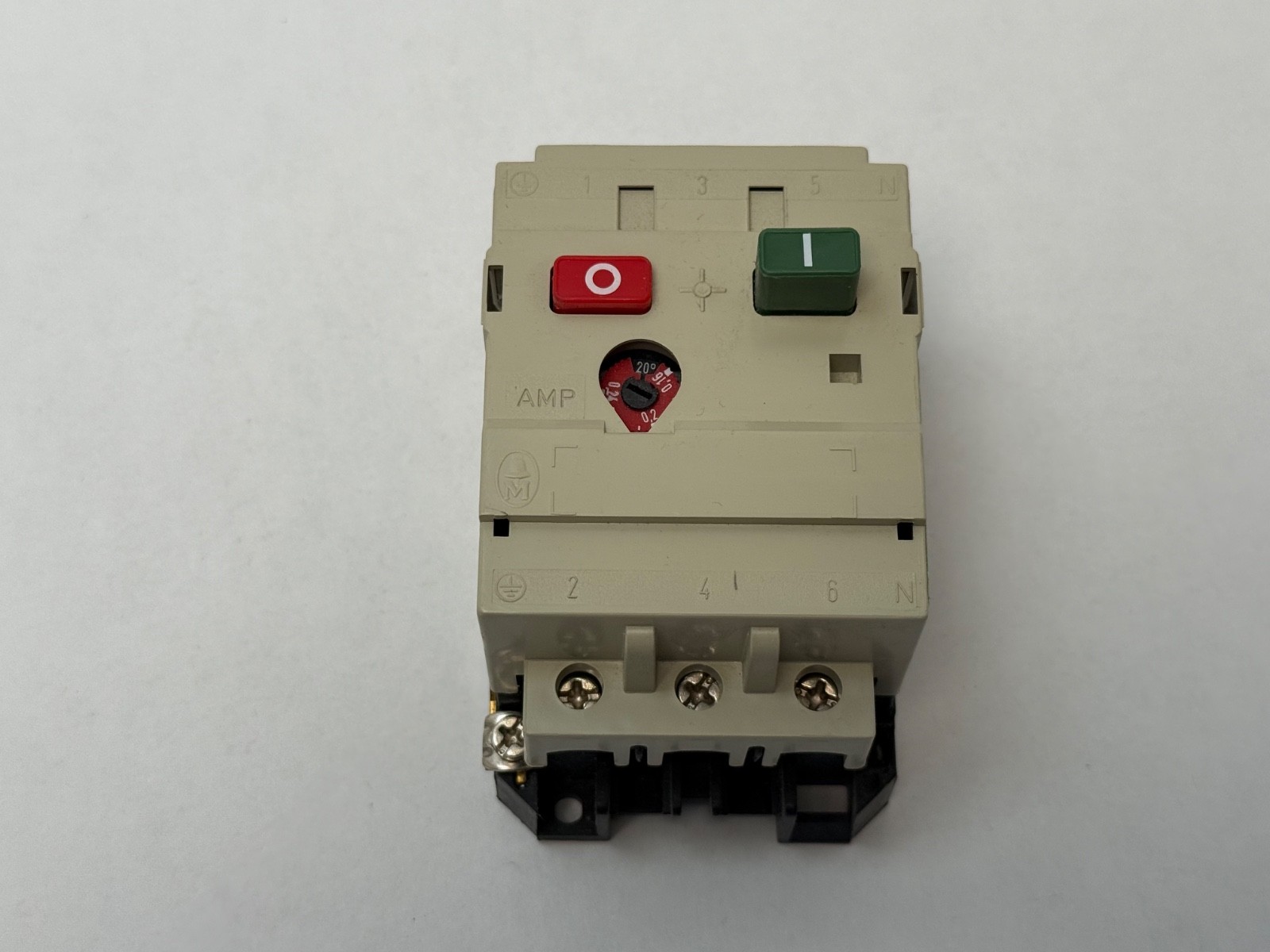

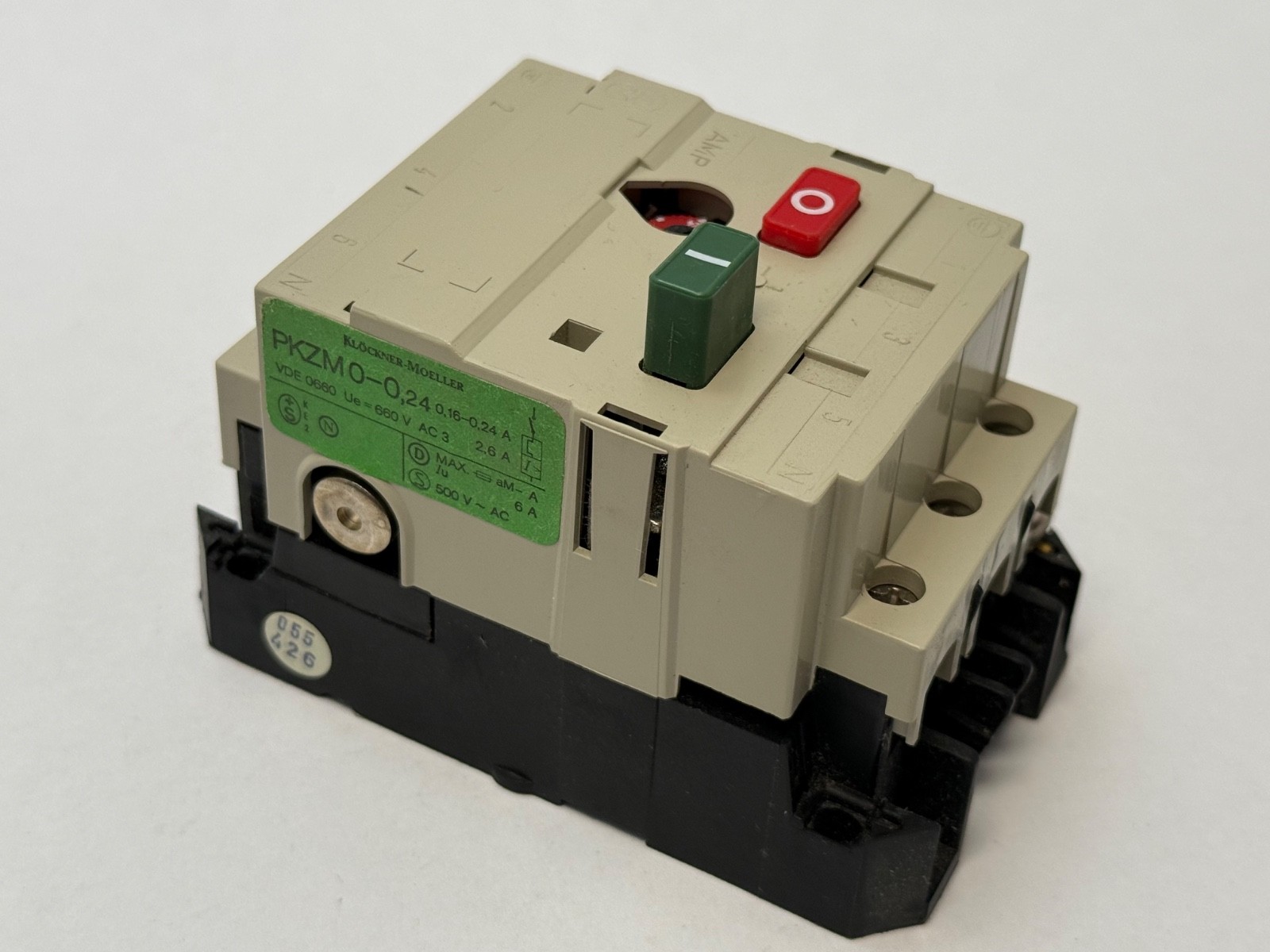

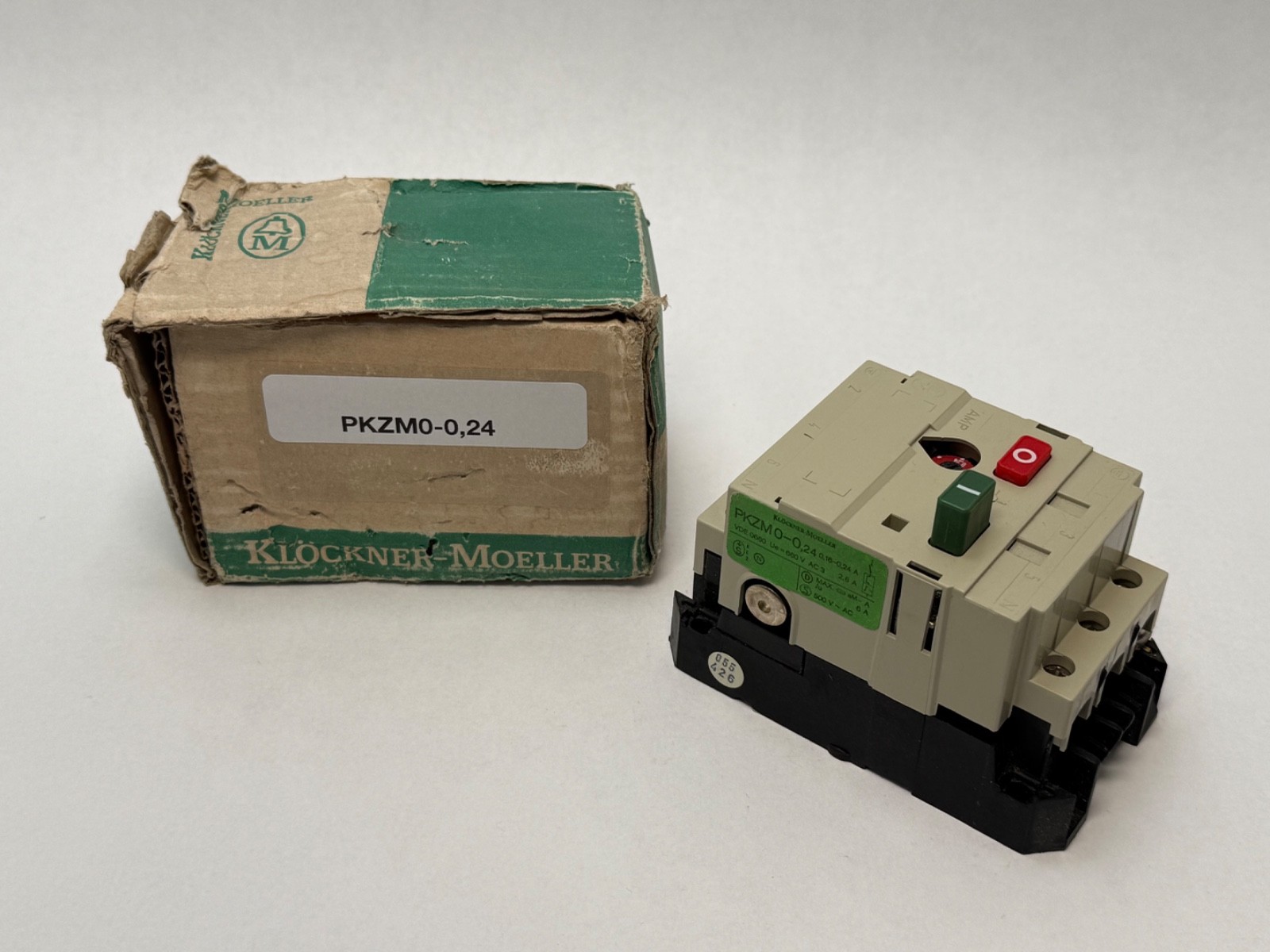

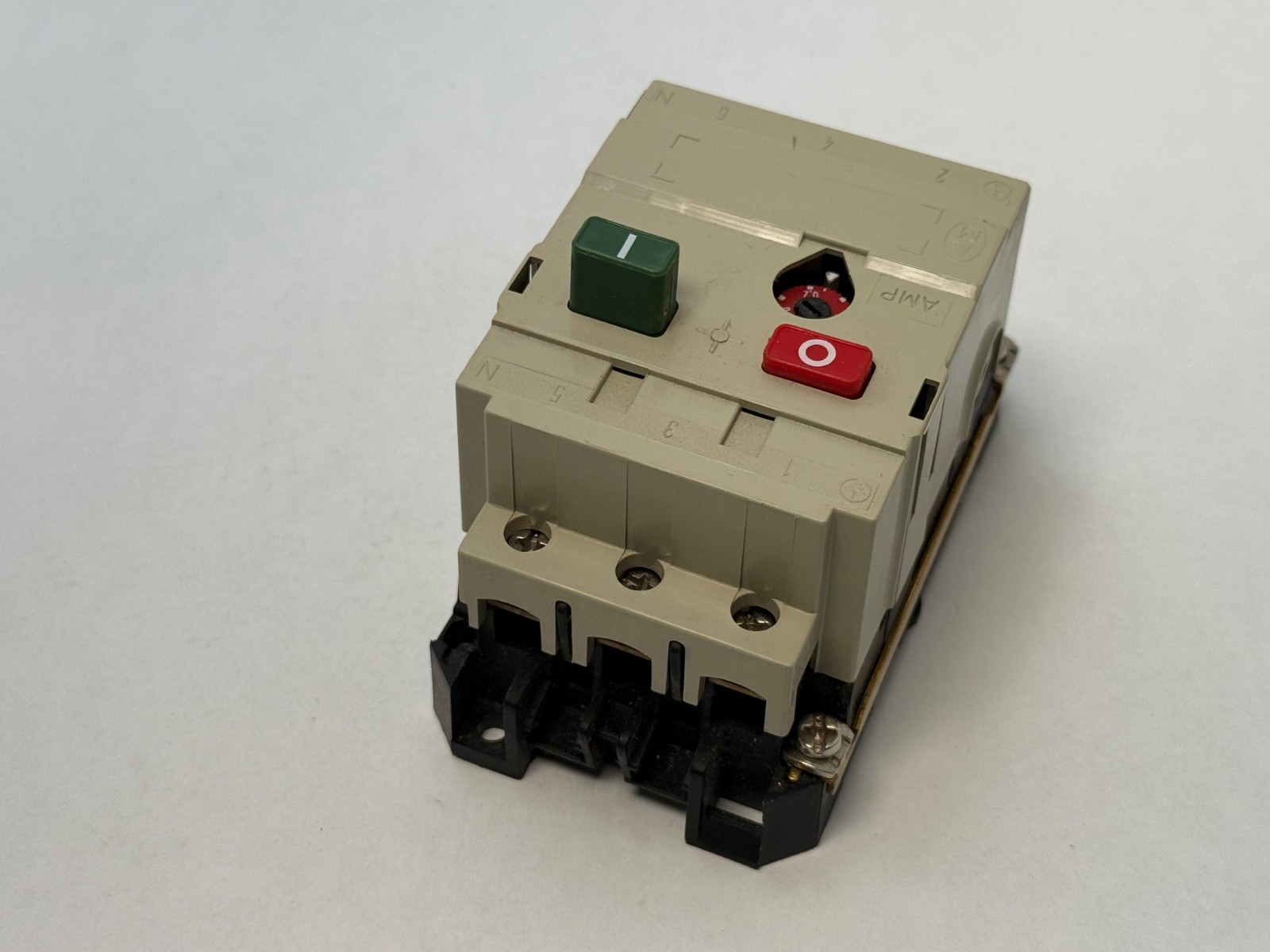

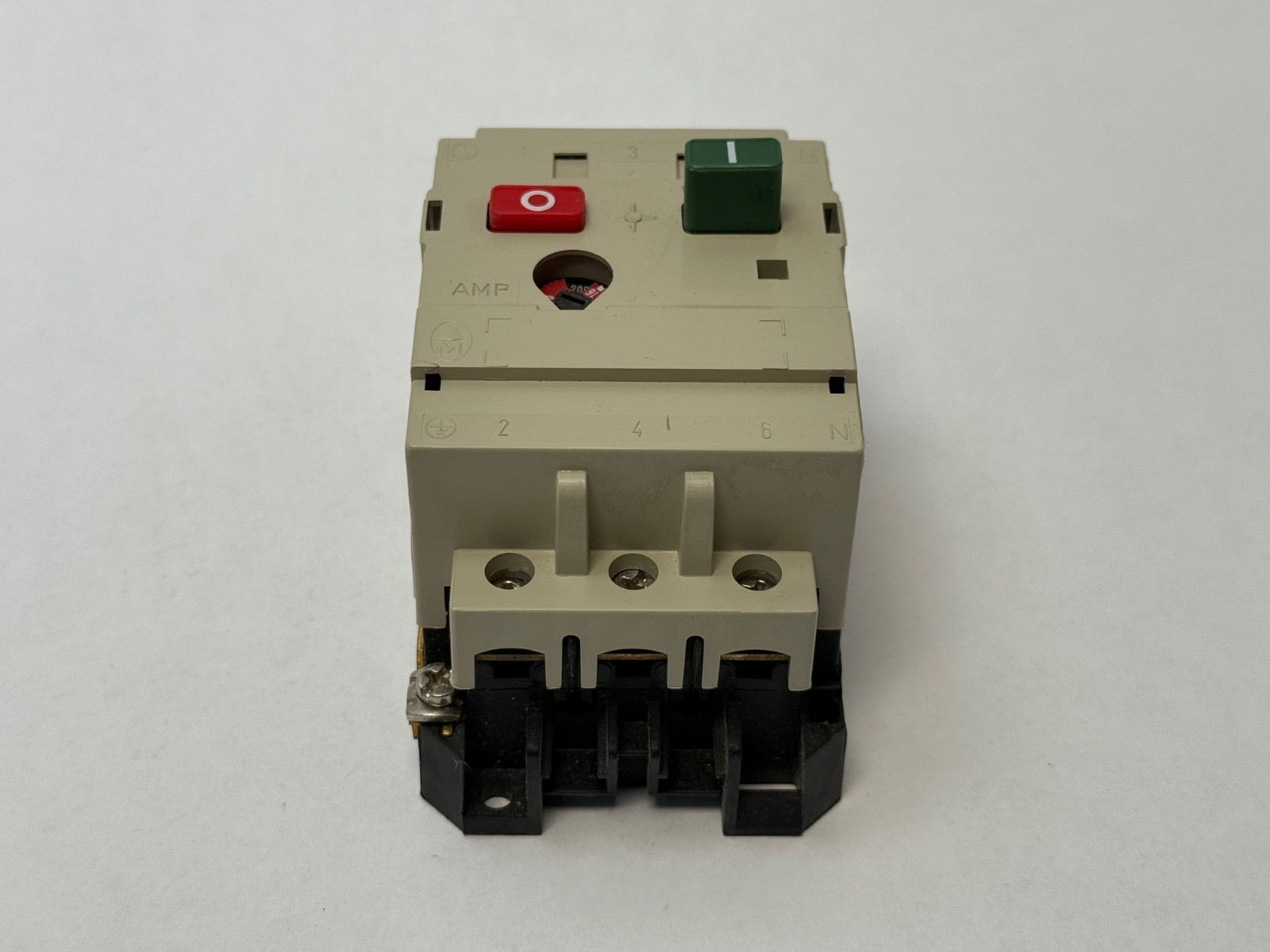

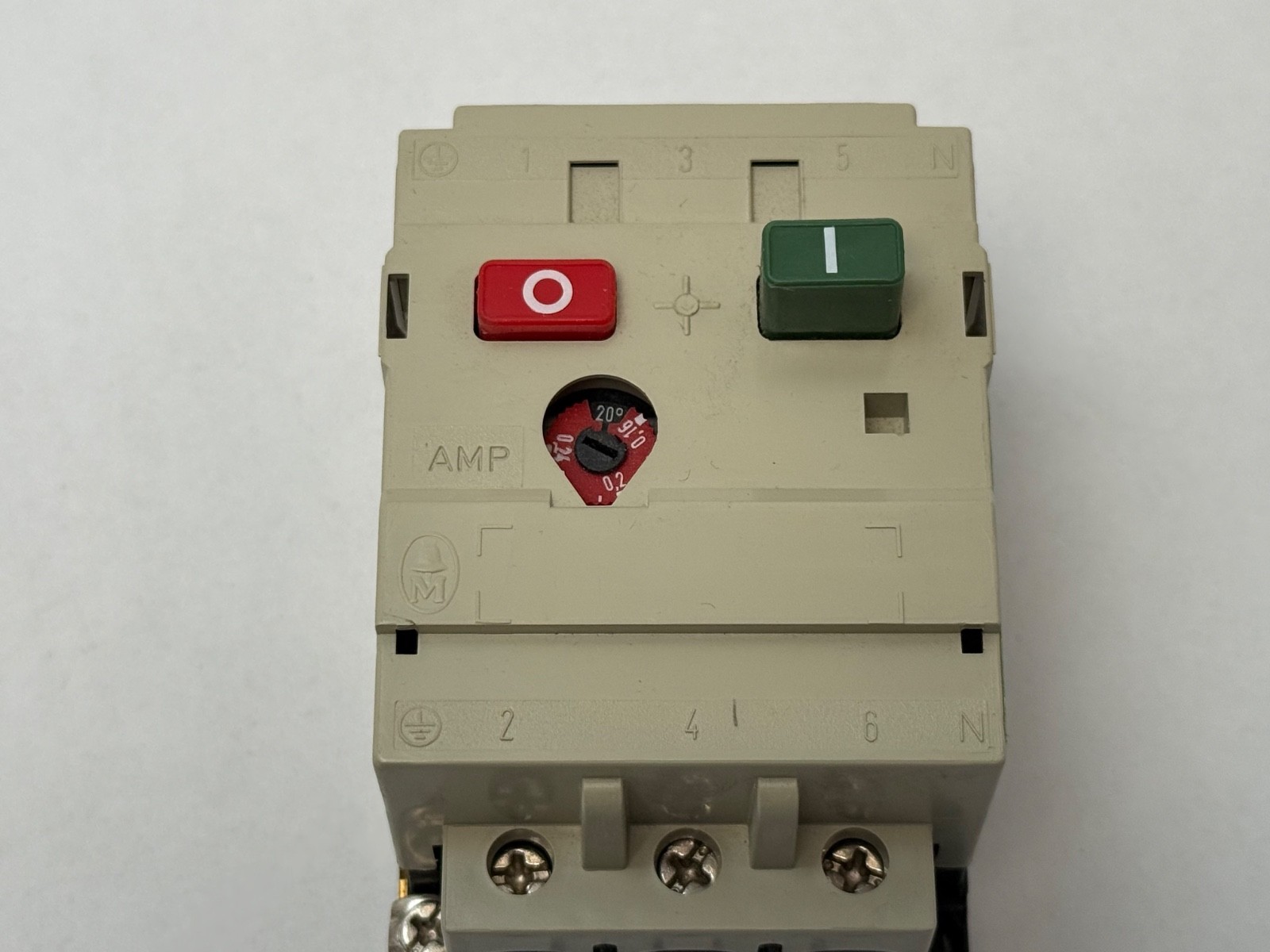

A Moeller PKZM0-0,24 motor-protective circuit-breaker, the device North American practice calls a manual motor starter or manual motor protector. It combines an adjustable thermal (bimetal) overload element with a fixed instantaneous magnetic release in one 45 mm three-pole housing, and switches the motor by hand with a turn button. This is the smallest setting band in the family: 0.16 to 0.24 A. The breaker only. Unit Quantity: 1 Pc.

Decoding the designation:

PKZM — Moeller motor-protective circuit-breaker.

0 — frame size 0, covering 0.16 A to 32 A across the family.

0,24 — top of the overload setting range in amps, using the European decimal comma; written PKZM0-0.24 in North America.

Specifications:

Overload Release Setting Range: 0.16 to 0.24 A, adjustable. Number Of Poles: 3. Tripping Characteristic: overload trip class 10 A. Short-Circuit Release: fixed, non-adjustable, 15.5 x Iu ±20% on PKZM0 basic devices. Rated Operational Voltage (Ue): 690 V AC. Rated Frequency: 50 to 60 Hz. Actuator: turn button.

Rated Short-Circuit Breaking Capacity Icu at 400 V AC: 150 kA (PKZM0 up to 12 A). Short-Circuit Current, DC: 60 kA up to 250 V DC, main conducting paths. Rated Impulse Withstand Voltage (Uimp): 6000 V AC. Degree of Protection: IP20, terminals IP00. Overvoltage Category: III. Pollution Degree: 3. Ambient Operating Temperature: −25 to +55 °C open, −25 to +40 °C enclosed. Mechanical Life: 100,000 operations. Electrical Life: 100,000 operations at 400 V AC-3. Operating Frequency: 40 operations/h. Shock Resistance: 25 g, half-sinusoidal 10 ms per IEC/EN 60068-2-27. Standards and Approvals: IEC/EN 60947-4-1, UL 508, UL 60947-4-1, CSA C22.2 No. 14 and No. 60947-4-1, VDE 0660, CE. Features: phase-failure sensitive per IEC/EN 60947-4-1, VDE 0660 part 102; temperature compensated −25 to +55 °C. Suitable for motors of efficiency class IE3.

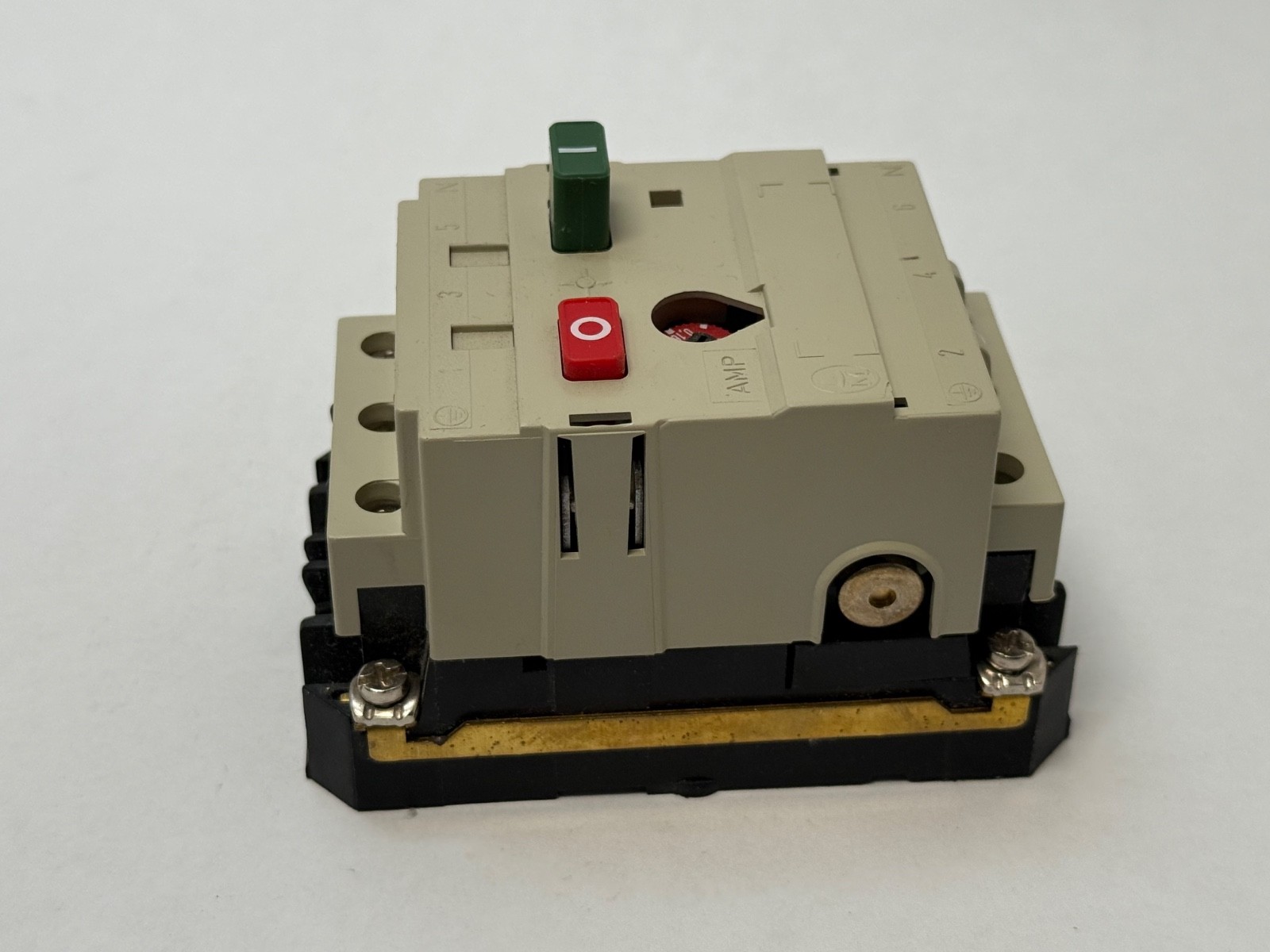

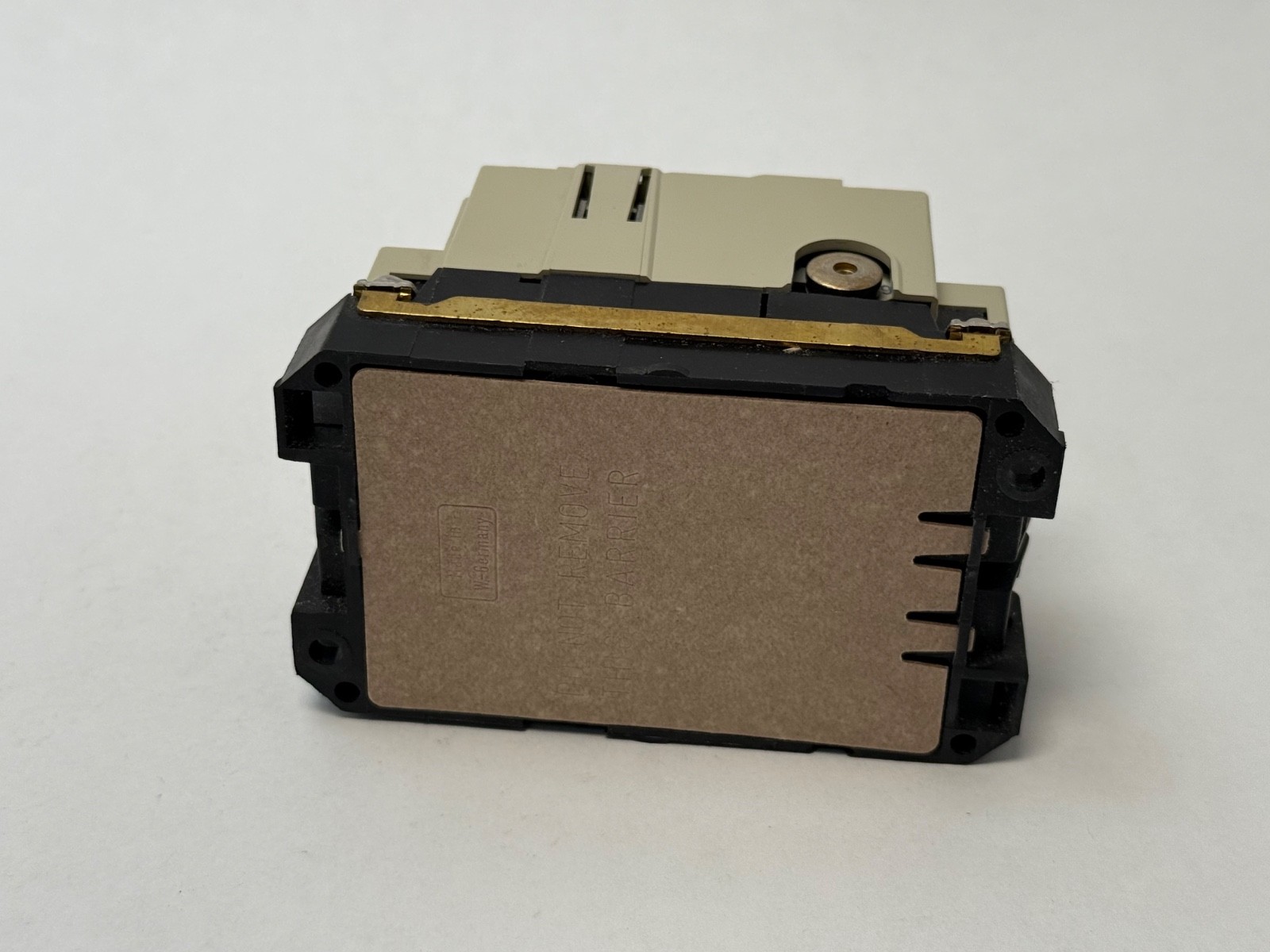

Dimensions and mounting:

Dimensions: approx. 45 mm wide x 93 mm high x 76 mm deep, frame size 0. Mounting: IEC/EN 60715 top-hat rail, 7.5 or 15 mm height. Terminal Capacity: 1 or 2 x 1 to 6 mm² flexible with ferrule, screw terminals; 18 to 14 AWG; 1.7 Nm main, 1 Nm control.

Compatibility and replacement:

Related Eaton PKZM0-0,25 covers the 0.16 to 0.25 A band. PKZM0-0,16 and PKZM0-0,4 are adjacent setting bands. A -SC suffix means spring-cage output terminals instead of screw; a -T suffix marks the transformer-protective variant with a different magnetic release multiple. PKZM01 and PKZM4 are different frames. Accessories such as auxiliary contact blocks, trip-indicating contacts, undervoltage and shunt releases, enclosures, rotary handles, busbar links and the BK25/3-PKZ0-E terminal kit are separate PKZ0 items. MPN Variants: PKZM0-0,24, PKZM0-0.24, PKZM0,24, PKZM0 0.24, PKZM0-024.

Frequently asked questions:

What current range does the Moeller PKZM0-0,24 cover?

Overload Release Setting Range: 0.16 to 0.24 A, adjustable.

What is the rated voltage?

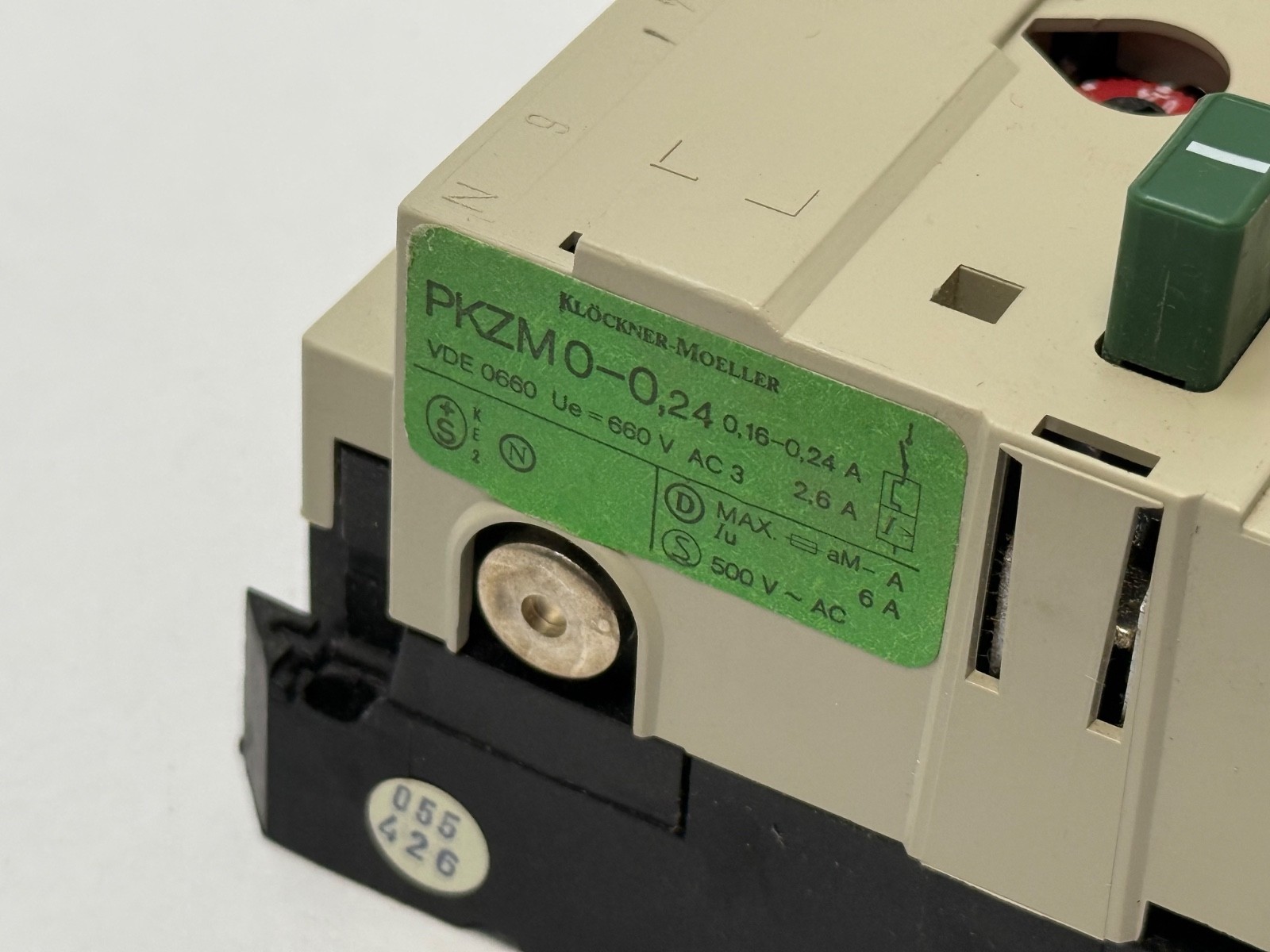

Rated Operational Voltage (Ue): 690 V AC, 50 to 60 Hz. Older cartons are marked 660 V.

How is it mounted?

Mounting: IEC/EN 60715 top-hat rail, 7.5 or 15 mm height. Width: 45 mm.
