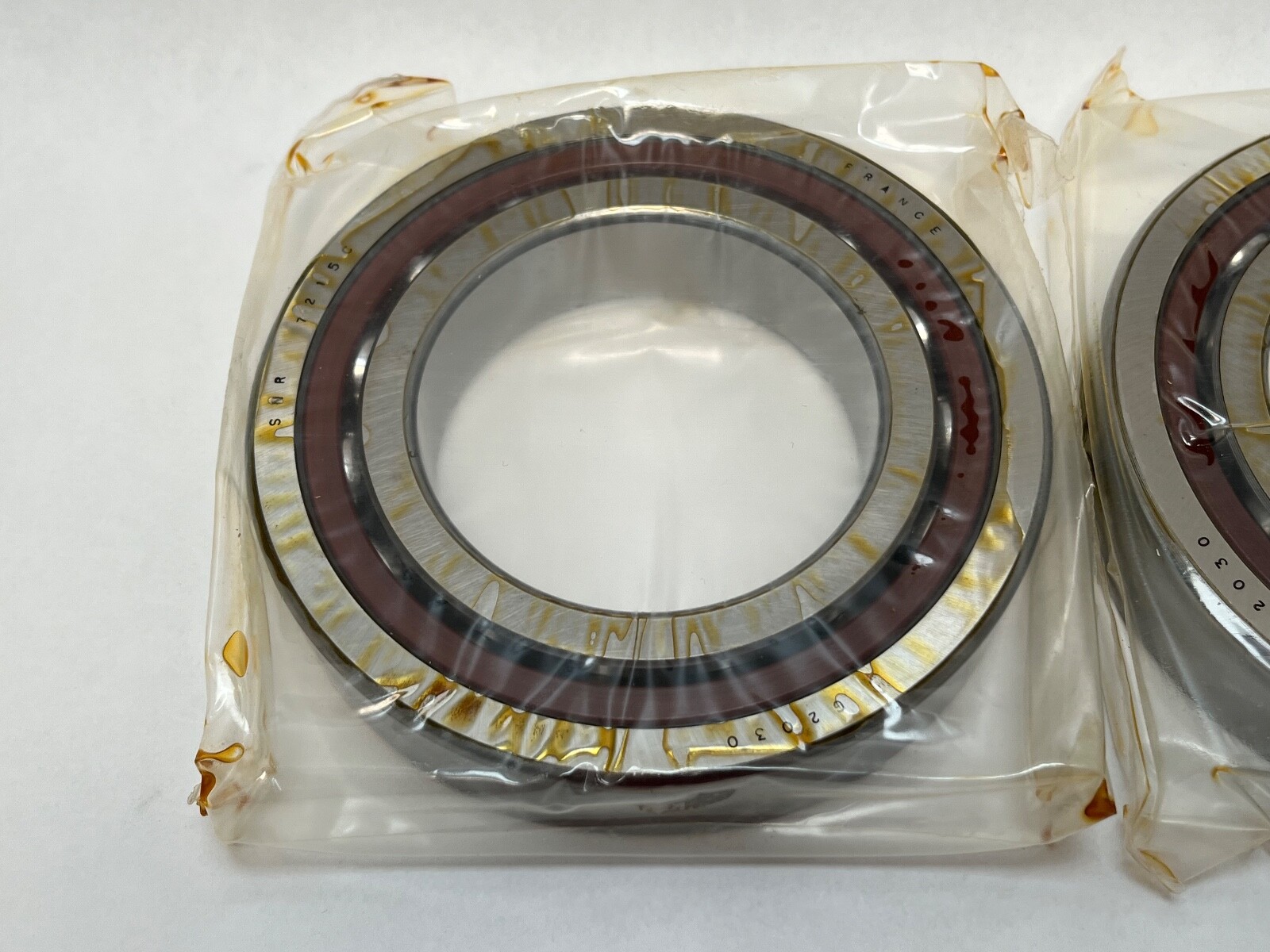

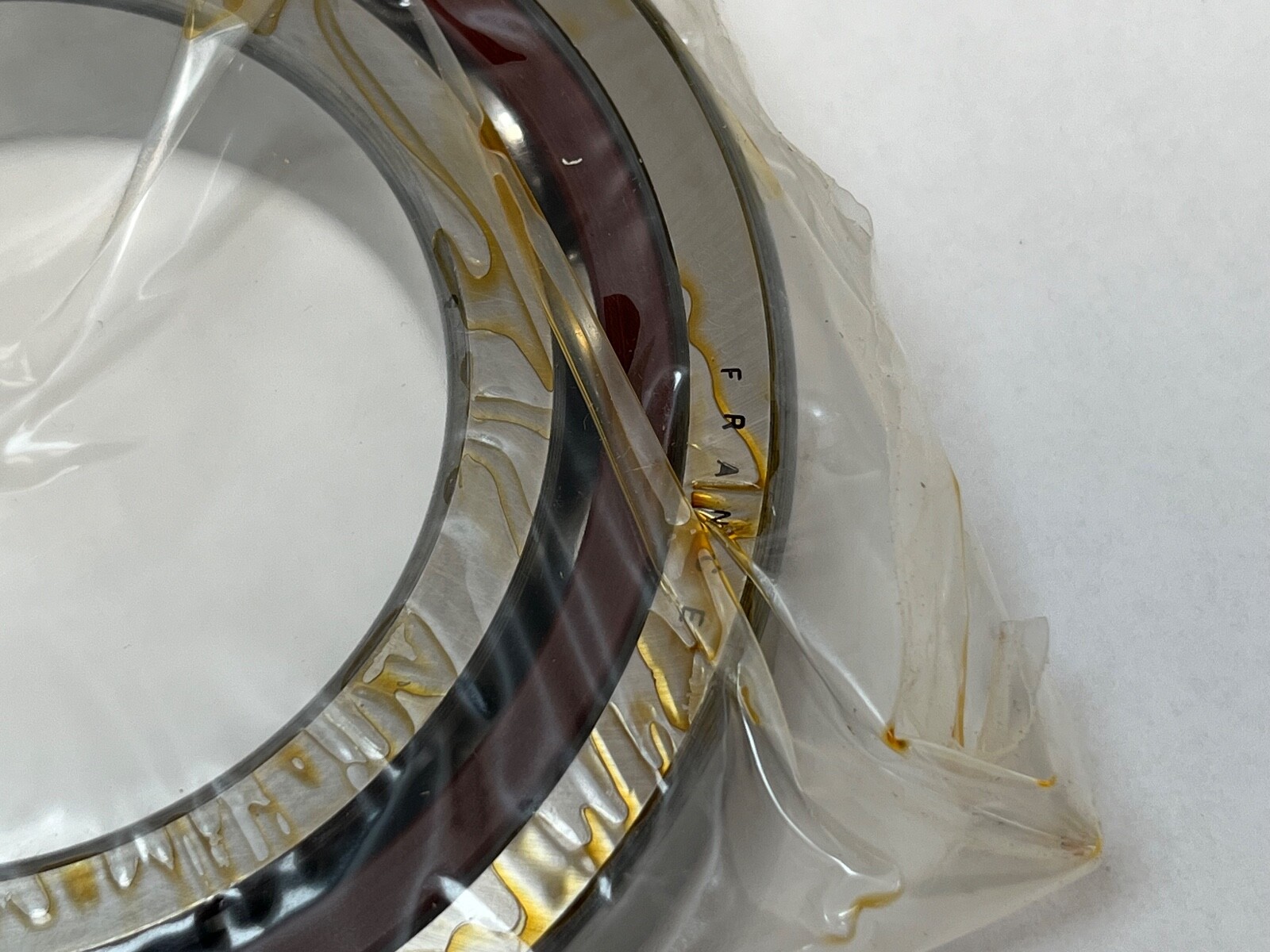

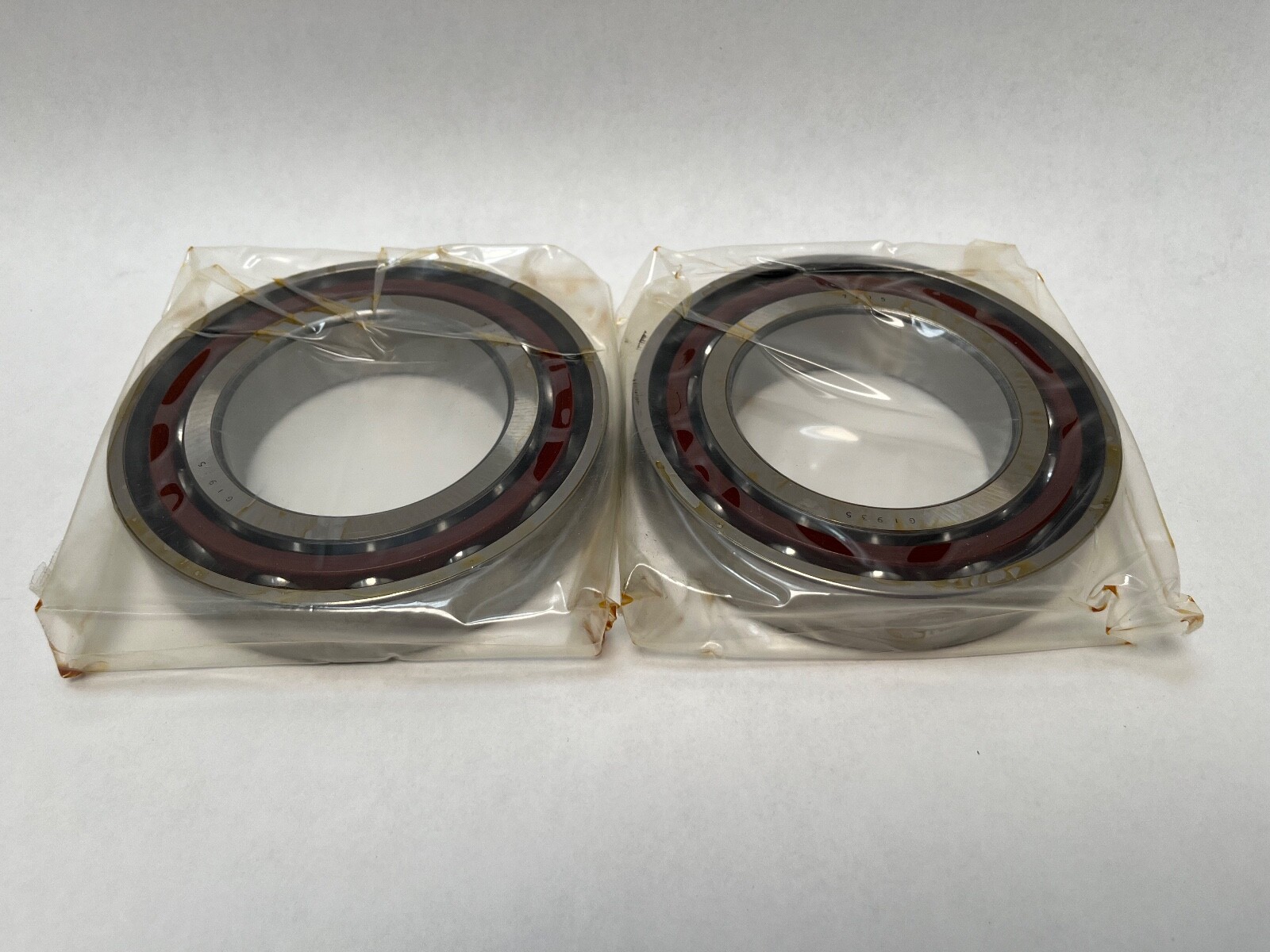

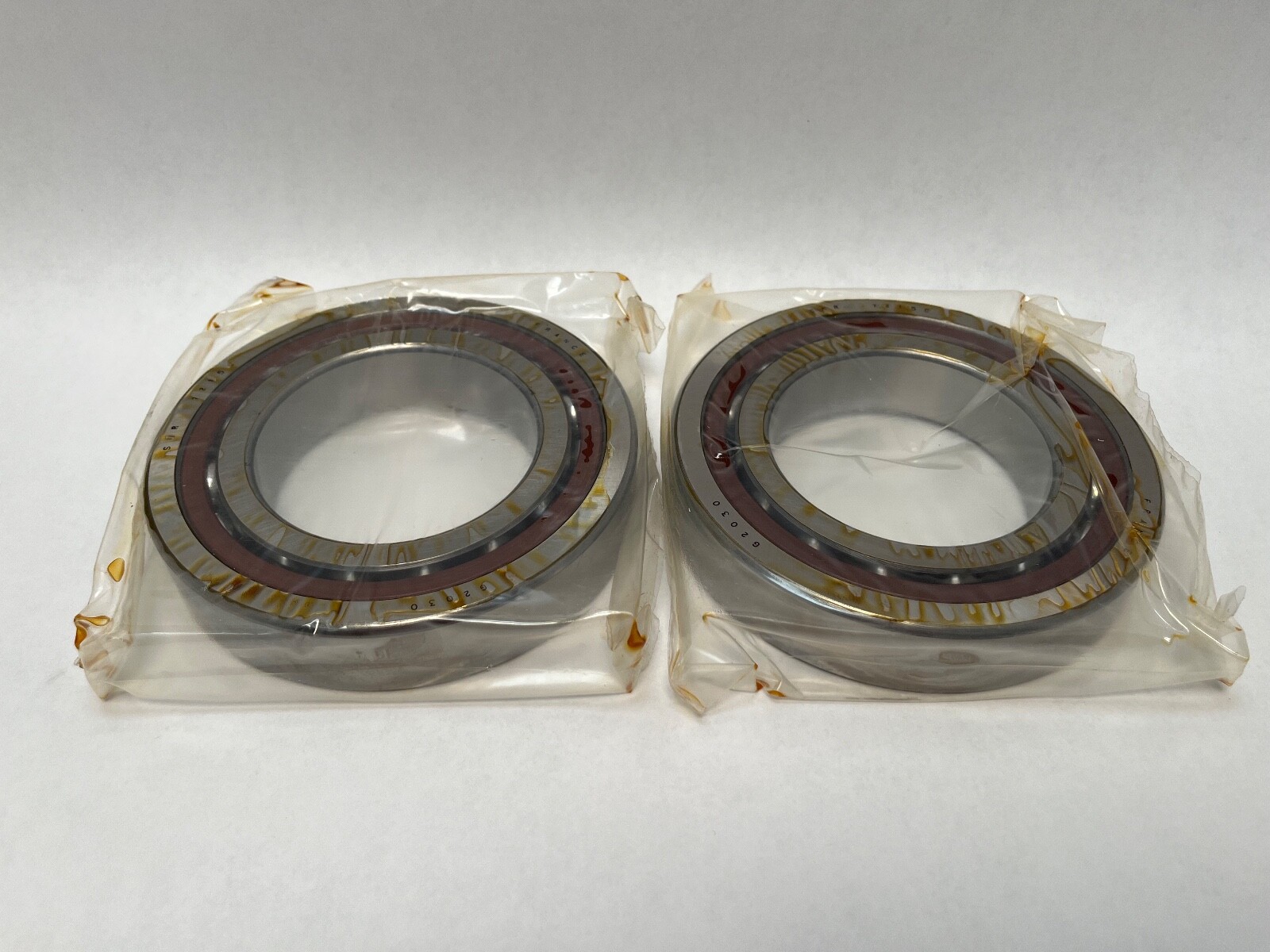

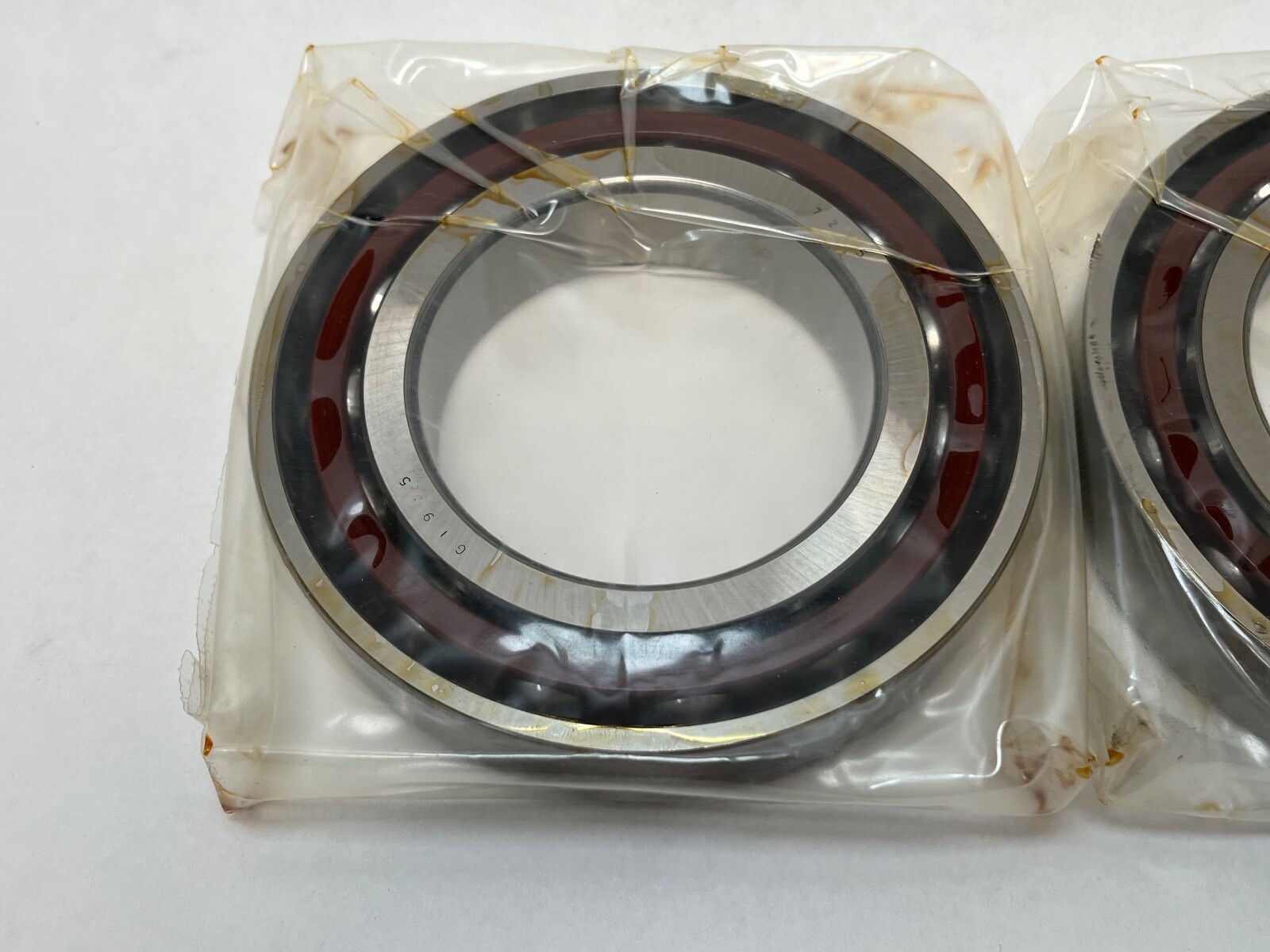

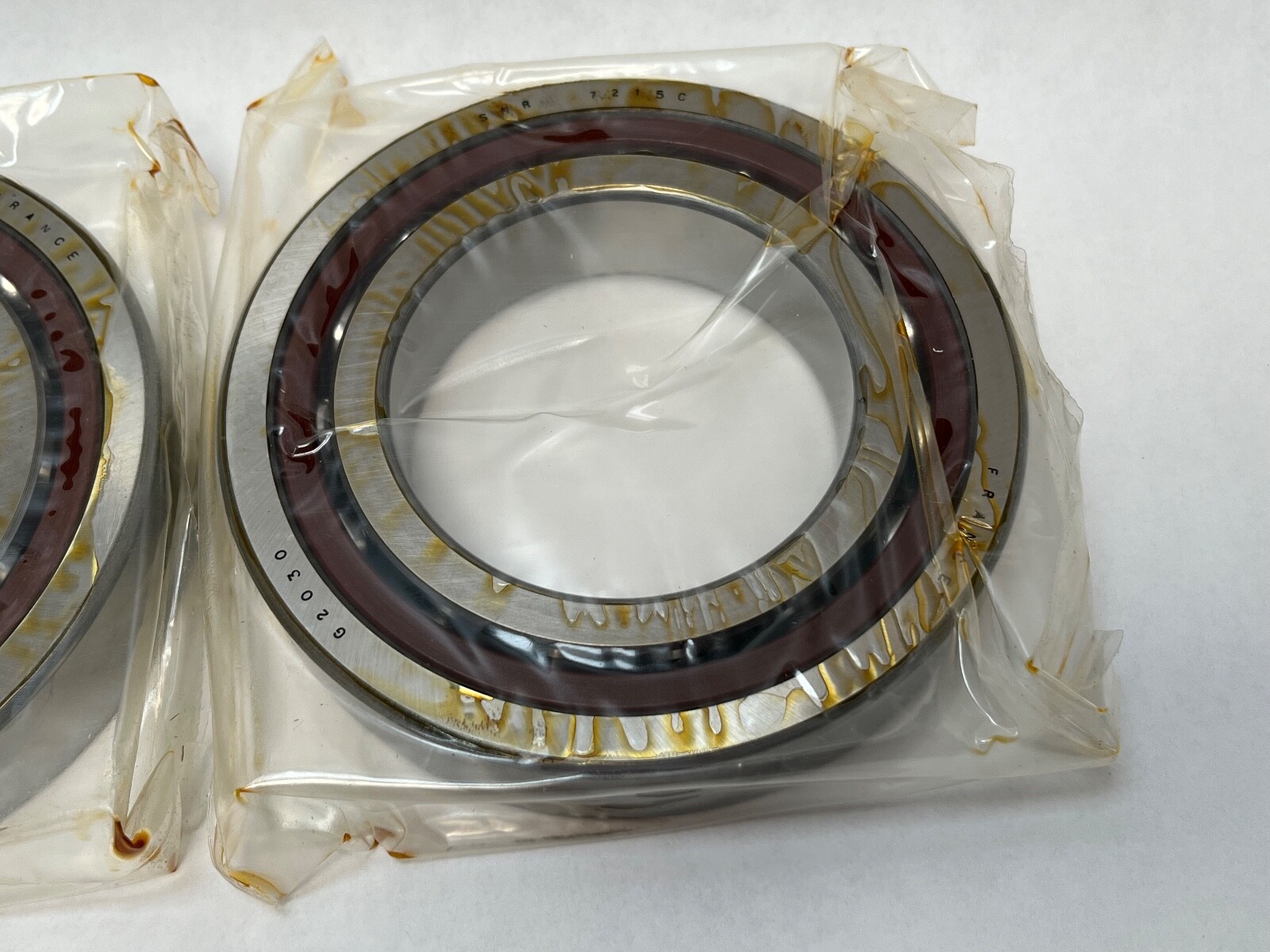

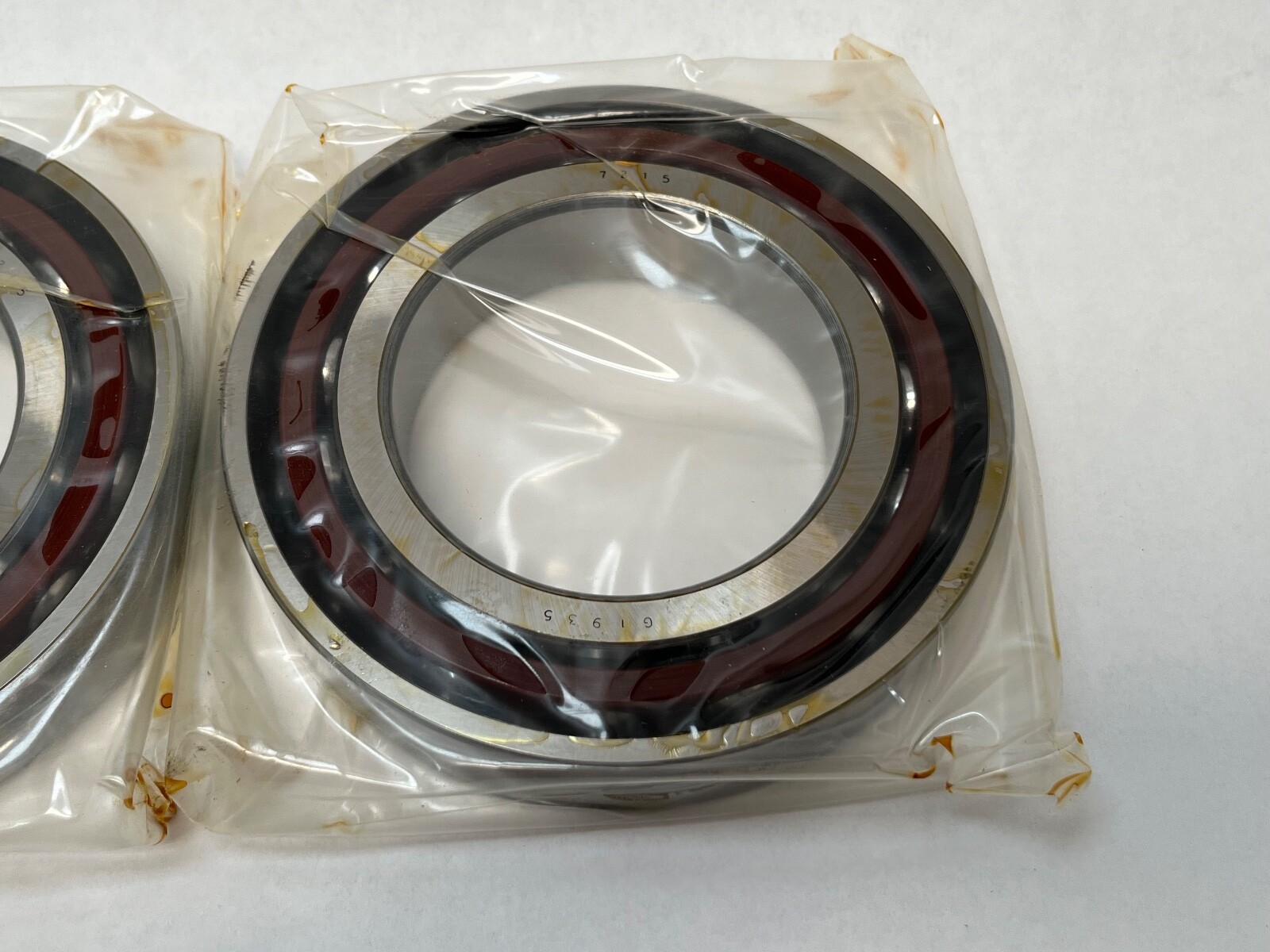

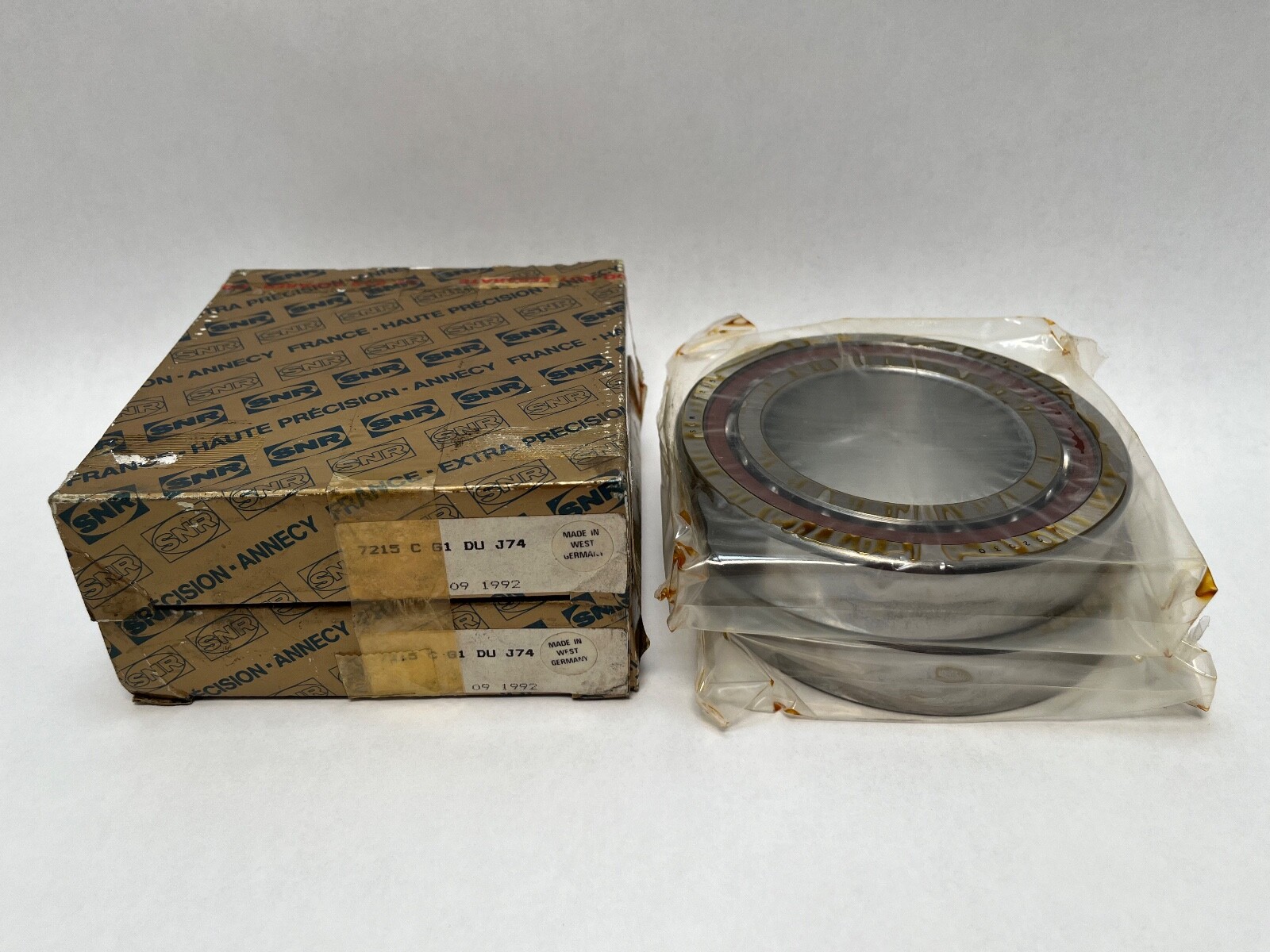

Super precision angular contact ball bearing, 70 x 125 x 24 mm, 15 degree contact angle, light preload, ABEC 7, machined phenolic cage.
List Price
$357.20
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7214CG1DUJ74 |
| Model | 7214 C T DUL P4 / 2MM214WI CR DUL / 7214 C G1 DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | High carbon chrome steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil or grease |
| Base Number | 7214 |
| Industry Terms | spindle bearing, super precision bearing, machine tool bearing, 15 degree angular contact |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 7214CG1DUJ74, 7214.C.G1.DU.J74, 7214-C-G1-DU-J74, 7214 C G1 DU J74 |
| Rolling Elements | Steel balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7214CG1DUJ74 |
| Cross Reference 1 | FAG B7214-C-T-P4S-DUL – 15°, P4S, light preload, universal |
|---|---|
| Cross Reference 2 | SKF 7214 CD/P4ADGA – 15°, P4A; SKF extra light preload |
SNR 7214CG1DUJ74 is a super precision single-row angular contact ball bearing. Series: 7200. Bore: 70 mm. Outside Diameter: 125 mm. Width: 24 mm. Contact Angle: 15°. Precision: ISO Class 4, ABEC 7. Cage: machined laminated phenolic, guided on the outer ring. Closure: open. Searchable forms of the designation are 7214CG1DUJ74, 7214.C.G1.DU.J74, 7214-C-G1-DU-J74 and 7214 C G1 DU J74.
Contact Angle: 15°. Cage: laminated phenolic, outer-ring guided. Matching: universally matchable, so two or more bearings pair back-to-back, face-to-face or in tandem. Preload: light. Precision Class: ISO 4, ABEC 7.
A 15° contact angle favours speed and radial capacity over thrust capacity. Light preload gives defined ball contact with low heat generation for high-speed spindle service. ISO Class 4 accuracy lowers runout and vibration in a spindle. An outer-ring-guided phenolic cage runs quietly and carries oil well at speed.
Dynamic Load Rating: 76.0 kN. Static Load Rating: 60.0 kN. Limiting Speed: 9,000 rpm on grease, 11,700 rpm on oil. Load centre: 25.1 mm from the bearing face. Operating temperature range: -40 °C to 120 °C. Weight: 1.04 kg.
Unit Quantity: 1 Pc. Single bearing, universally matchable. Two bearings mounted together measure 48 mm total width; three measure 72 mm; four measure 96 mm.
Shaft shoulder diameter: 78.5 mm minimum. Housing shoulder diameter: 116.5 mm maximum. Maximum fillet radius at the shaft: 1.5 mm. Bore form: straight. Preload is set at manufacture, so no clearance adjustment applies at assembly.
FAG B7214-C-T-P4S-DUL is a 15° light-preload universally matchable bearing with a phenolic cage. SKF 7214 CD/P4ADGA is a near part: 15° and universally matchable, with SKF’s extra light preload. Country of Origin: France.
