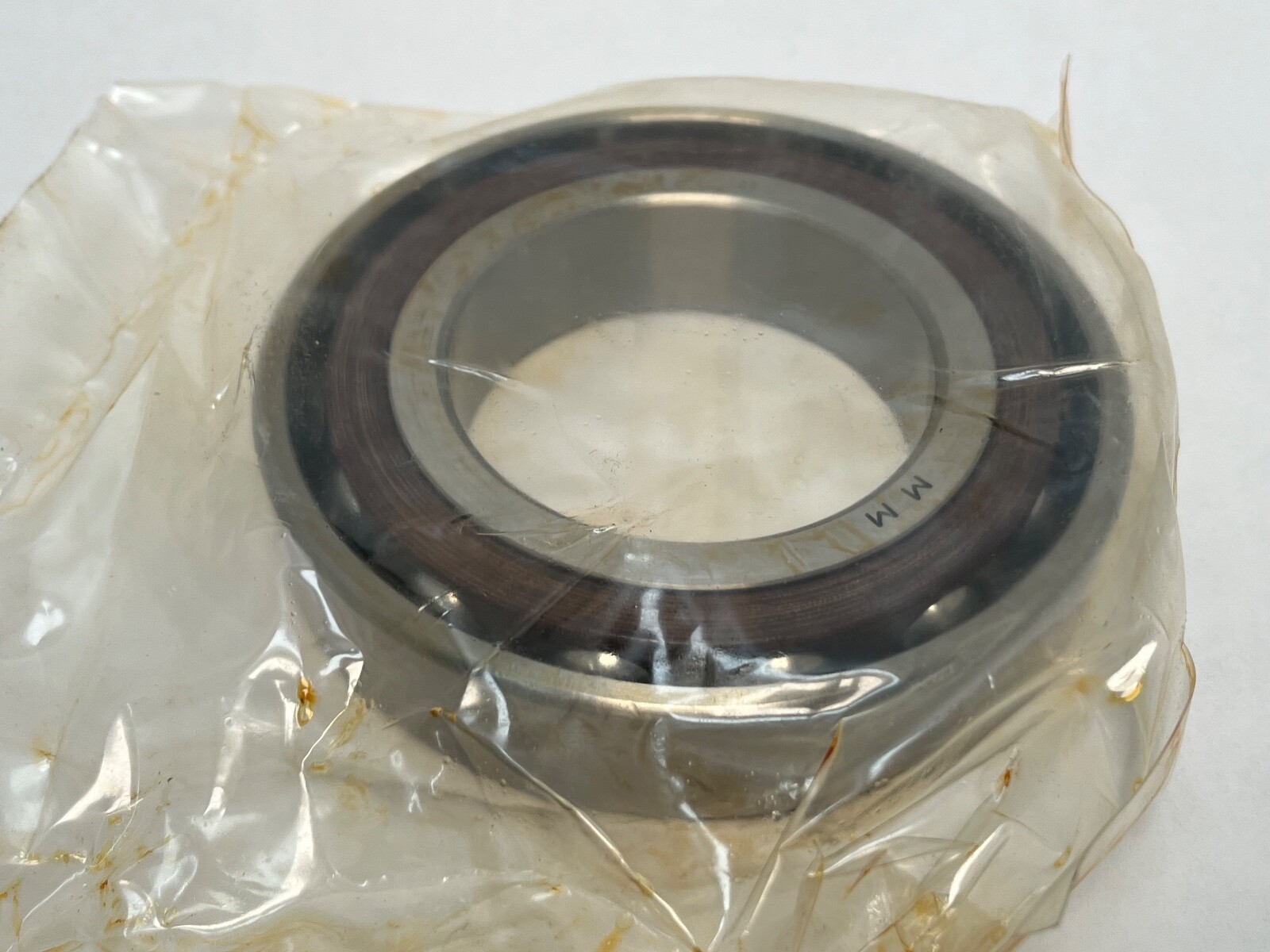

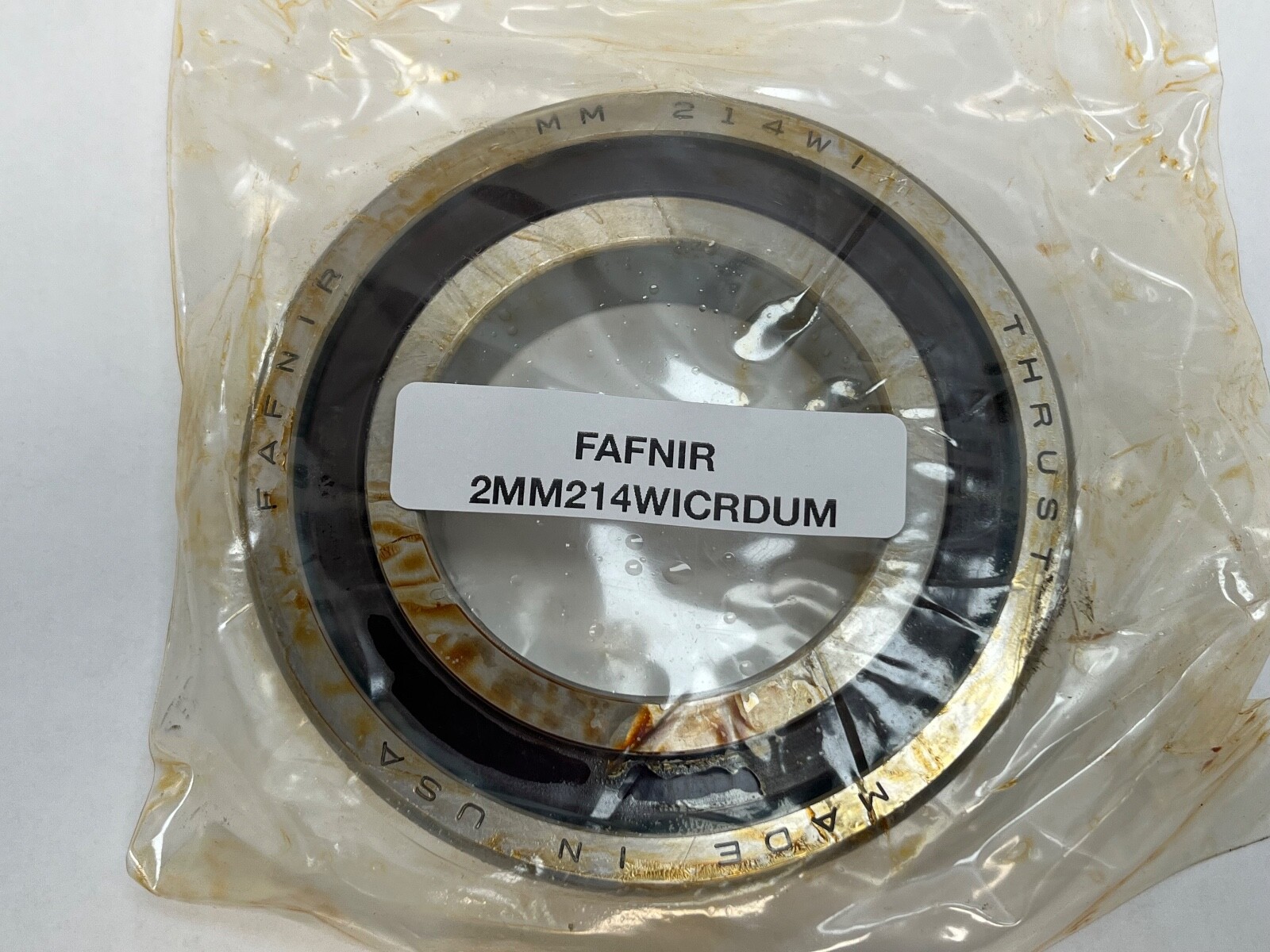

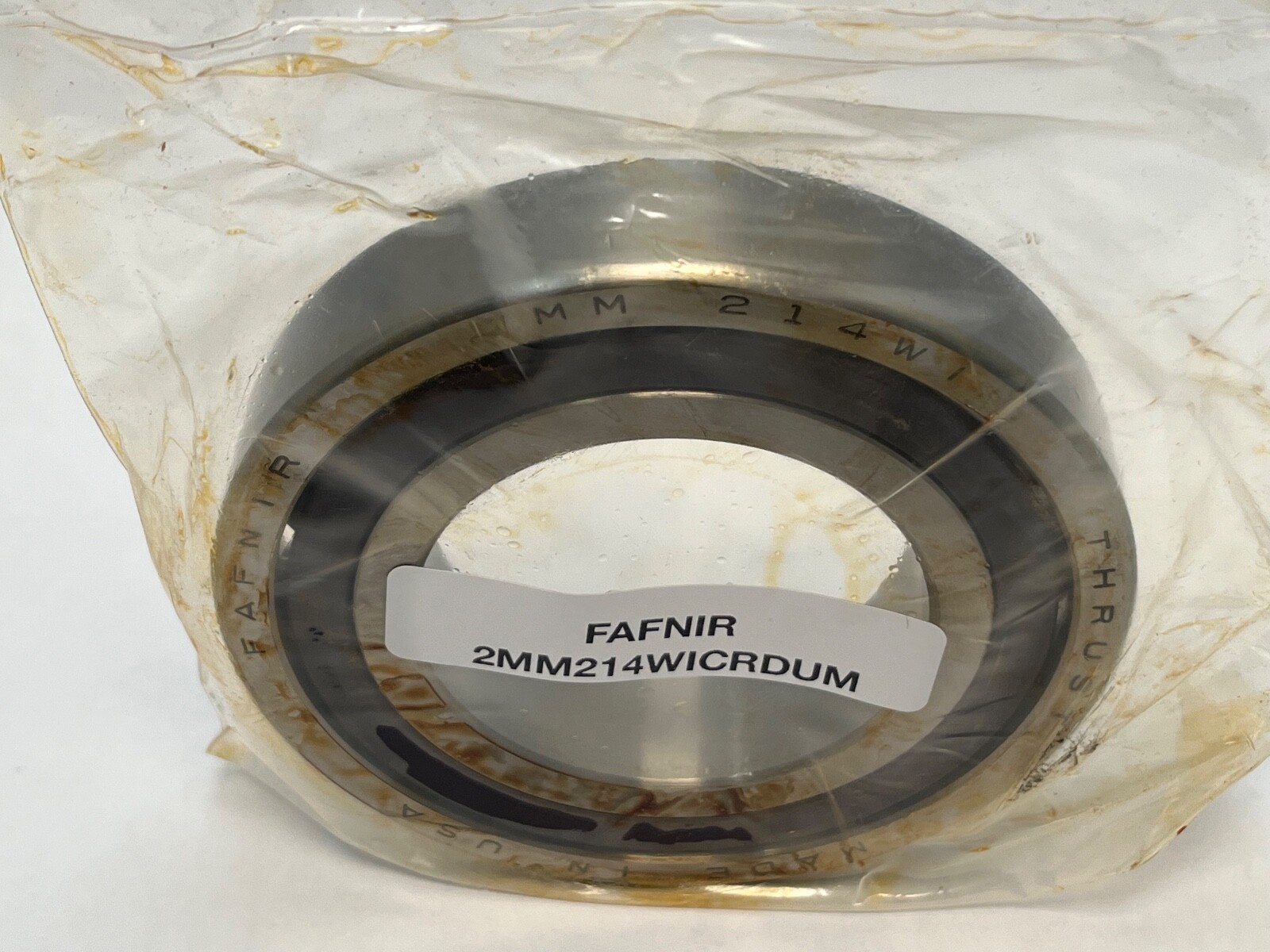

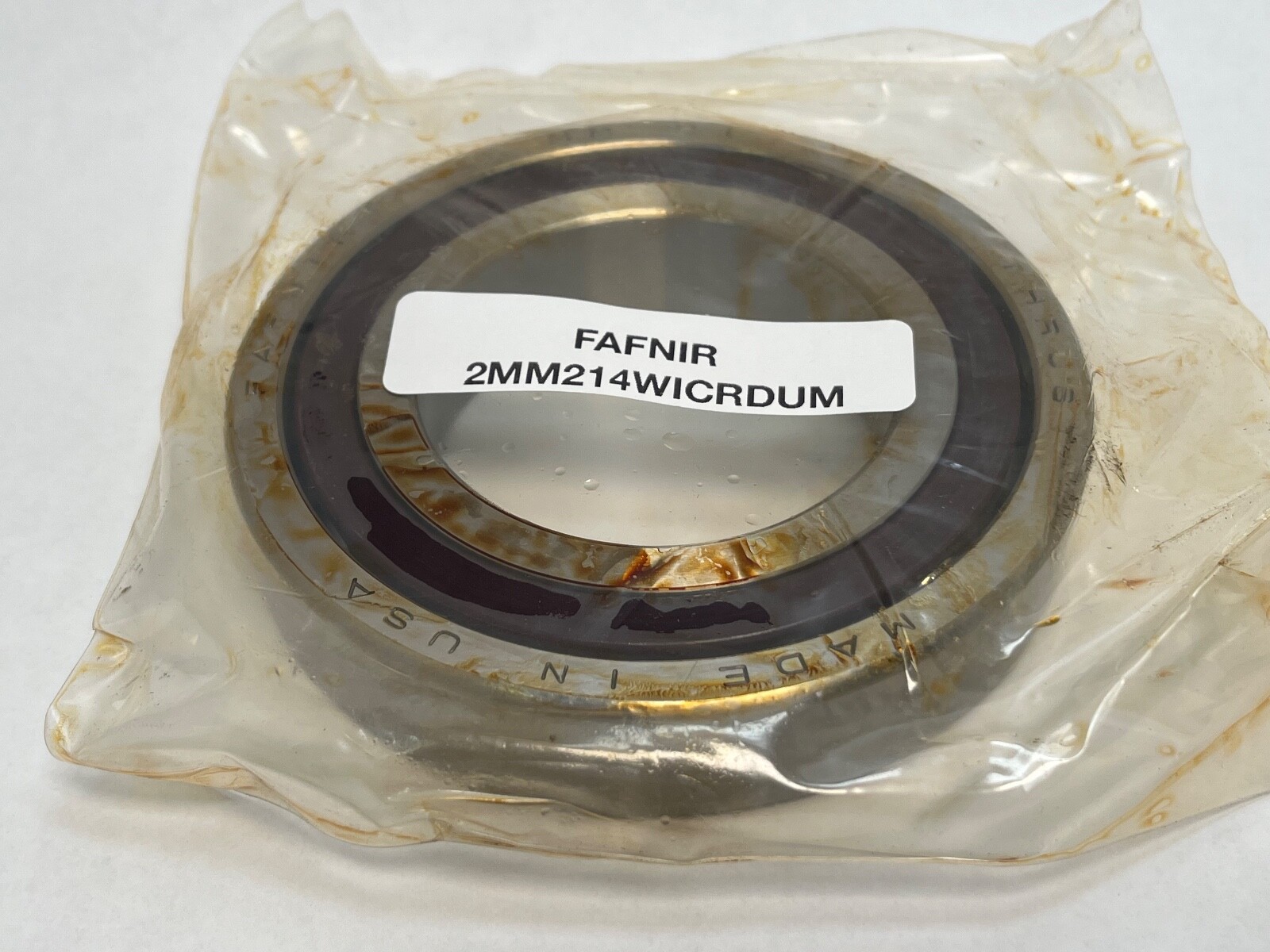

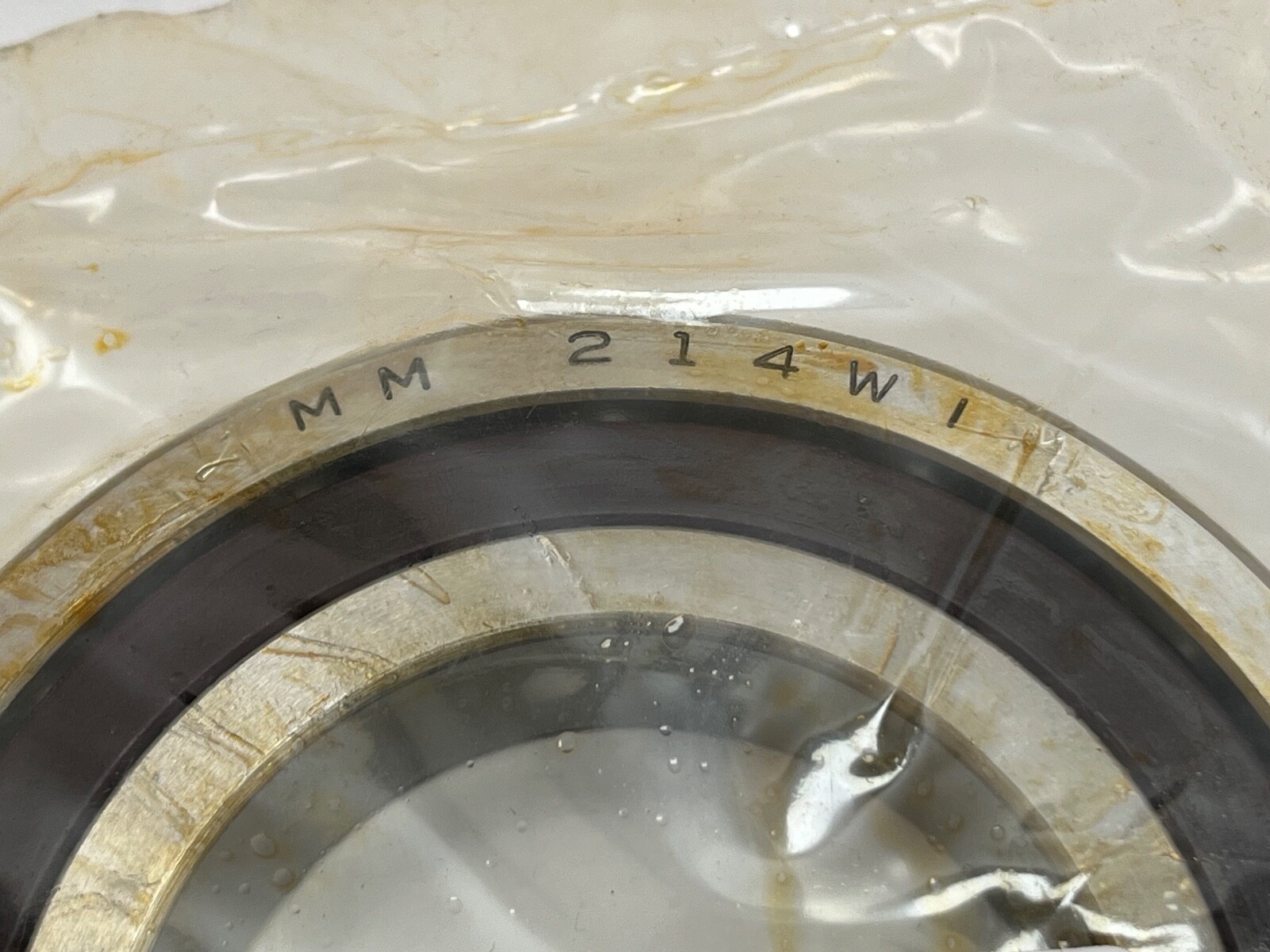

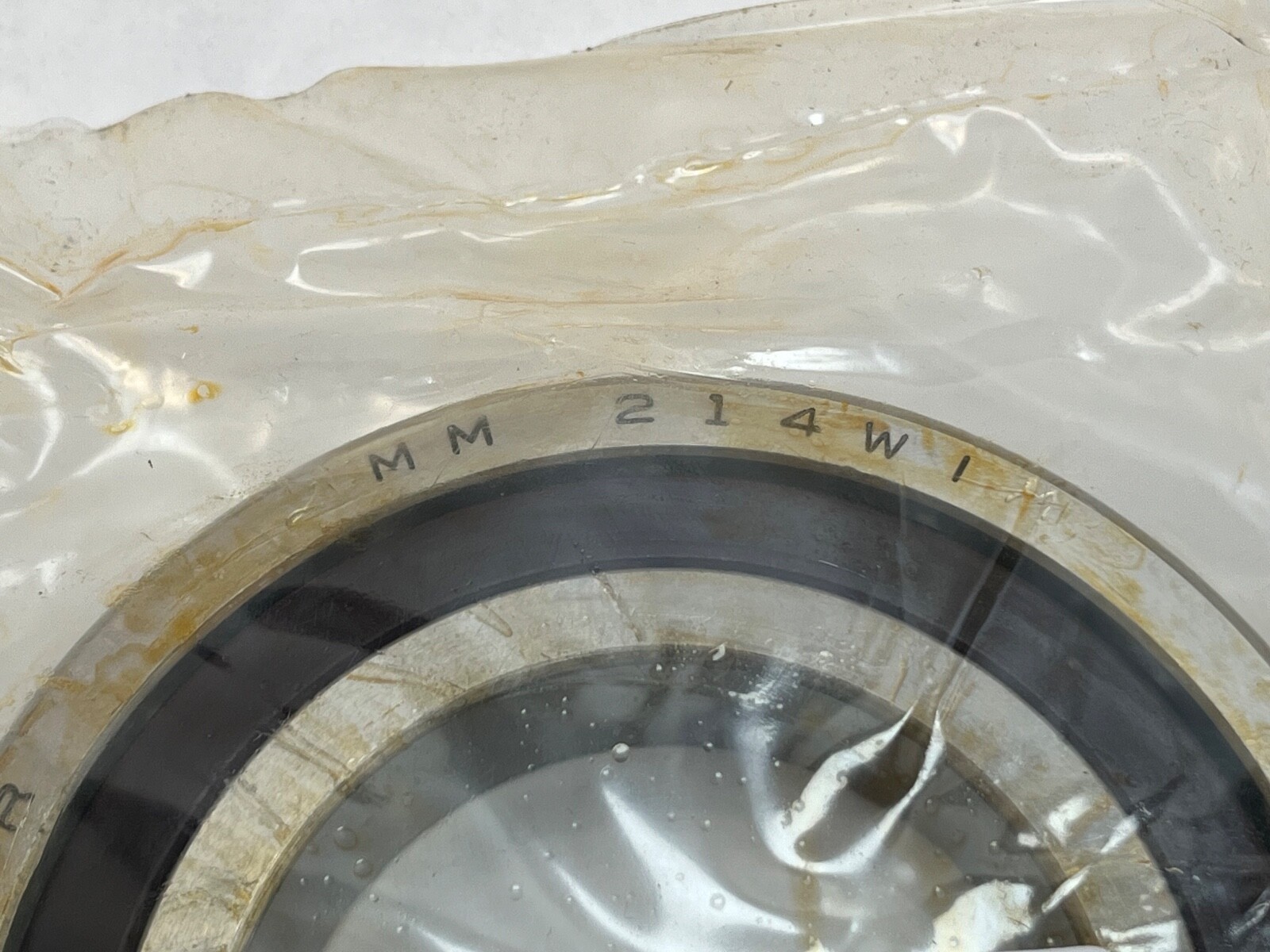

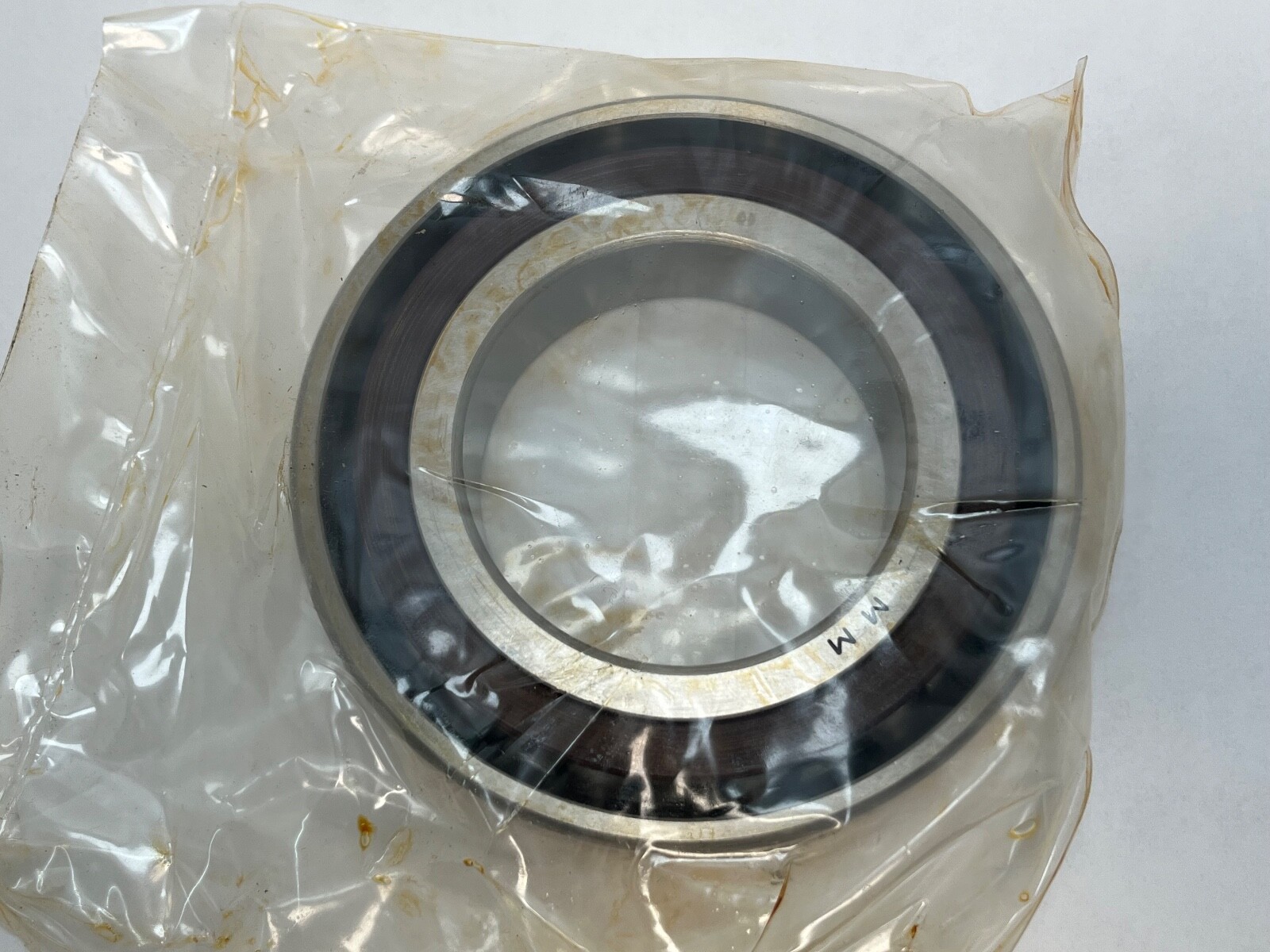

Fafnir 2MM214WICR-SUM angular contact ball bearing, 70mm bore, 125mm OD, 24mm width. 15° contact angle, ABEC 7/P4 precision, medium preload, single-ground.
List Price
$84.13
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM214WICR SUM |
| Model | 2 MM 214 WI CR DUM / 7214 C T DUM P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Preload | Medium |
|---|---|
| Material | Bearing Steel |
| Precision Class | ABEC 7 / P4 |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable |
| Bearing Material | Bearing Steel |
| Closure Type | Open |
Fafnir 2MM214WICR-SUM is a single-row angular contact ball bearing, 70 mm bore, 125 mm outside diameter, 24 mm width, universally ground for face-to-face or back-to-back pairing. Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Closure Type: Open. Preload: Medium. Unit Quantity: 1 Pc.
2MM — Fafnir 15° contact angle series, ABEC 7 / ISO P4 precision.
214 — Fafnir’s size code for the 70 x 125 x 24 mm envelope, cross-referenced on the carton as 7214C.
WI — low-shoulder form, ground for pairing.
CR — phenolic cage.
SUM — single, universally ground, medium preload.
Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Medium. Mounting Arrangement: Universally matchable. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Bearing Material: Bearing Steel.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm. Bore Type: Straight.
Searchable forms: 2MM214WICRSUM, 2MM214WICR-SUM, 2-MM-214-WI-CR-DUM, 7214C.
Contact Angle: 15°, from the 2MM series.
A single, universally ground bearing with medium preload.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm.
