Angular contact ball bearing pair, 70 mm bore, 110 mm OD, 20 mm wide each, 15° contact angle, ABEC 5 / P5. Back-to-back DB matched set for spindle duty.
List Price
$259.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 7014CDBP5 |
| Model | 7014 C DB P5 2MM9114 WI CR DB |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 110 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil/Grease |
| Base Number | 7014 |
| Total Width | 40 mm (DB pair) |
| Mpn Variants | 7014CDBP5, 7014C DB P5, 7014-C-DB-P5, 7014CDB/P5, 2MM9114 WI CR DB (carton marking) |
| Precision Class | ABEC 5 / P5 |
| Closure Type | Open |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Back-to-back (DB) |
| Cross Reference 1 | NSK 7014C – 15°, DB, P5 |
|---|---|
| Cross Reference 2 | SKF 7014 CD – 15°, DB, P5 |
| Cross Reference 3 | Fafnir 2MM9114WI CR DB – ABEC 7 / P4, not P5 |

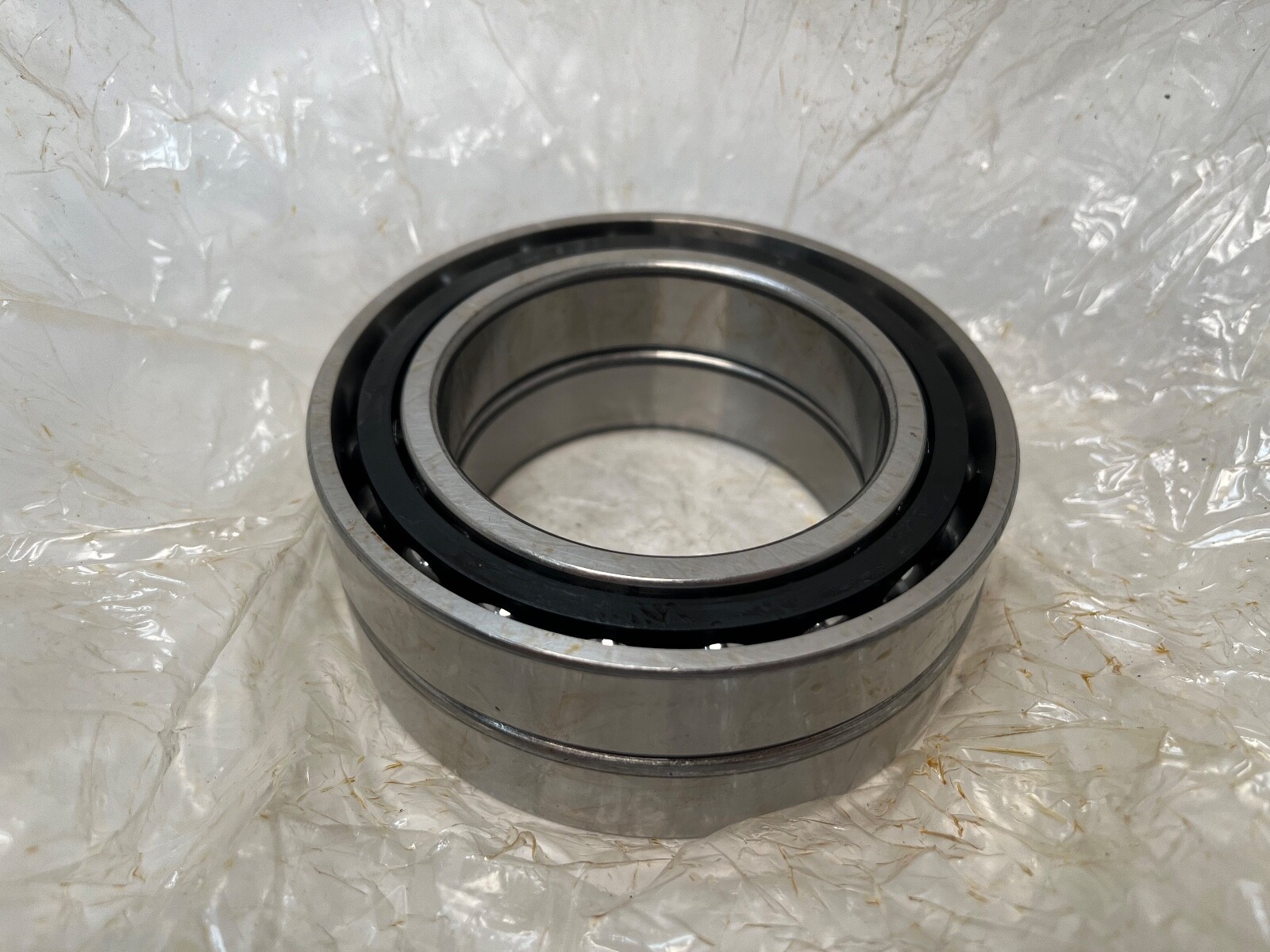

NTN 7014CDBP5 is a matched pair of single-row angular contact ball bearings in the ISO 7014 size, ground for back-to-back mounting. Bore Diameter: 70 mm. Outside Diameter: 110 mm. Width: 20 mm per bearing. Total Width: 40 mm as a DB pair. Contact Angle: 15°. Precision Class: ABEC 5 / P5. Number Of Rows: 1 per bearing.
7014 — NTN single-row angular contact ball bearing, 70 series, 70 mm bore.
C — 15° contact angle.
DB — back-to-back matched pair. Two single-row bearings ground as a set. Not a double-row bearing.
P5 — ISO tolerance class 5, equivalent to ABEC 5.
The 15° angle favours radial stiffness and high speed. Back-to-back mounting takes axial load in both directions with high tilting stiffness, the standard arrangement for machine-tool spindles.
Fillet Radius r min: 1.1 mm. Fillet Radius r1 min: 0.6 mm. Effective Load Centre a: 22 mm per bearing. Shaft Abutment da min: 77 mm. Housing Abutment Da max: 103 mm.

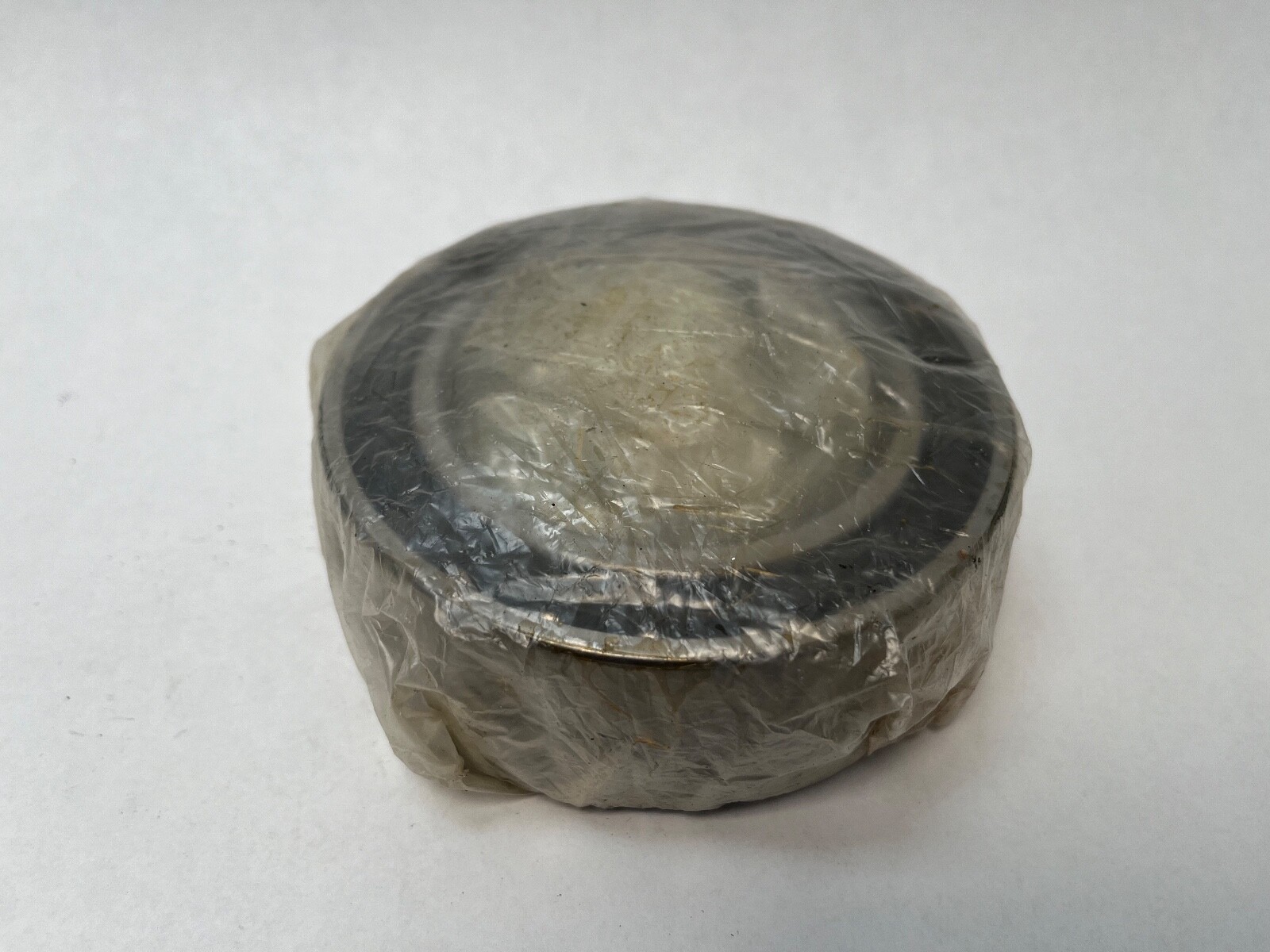

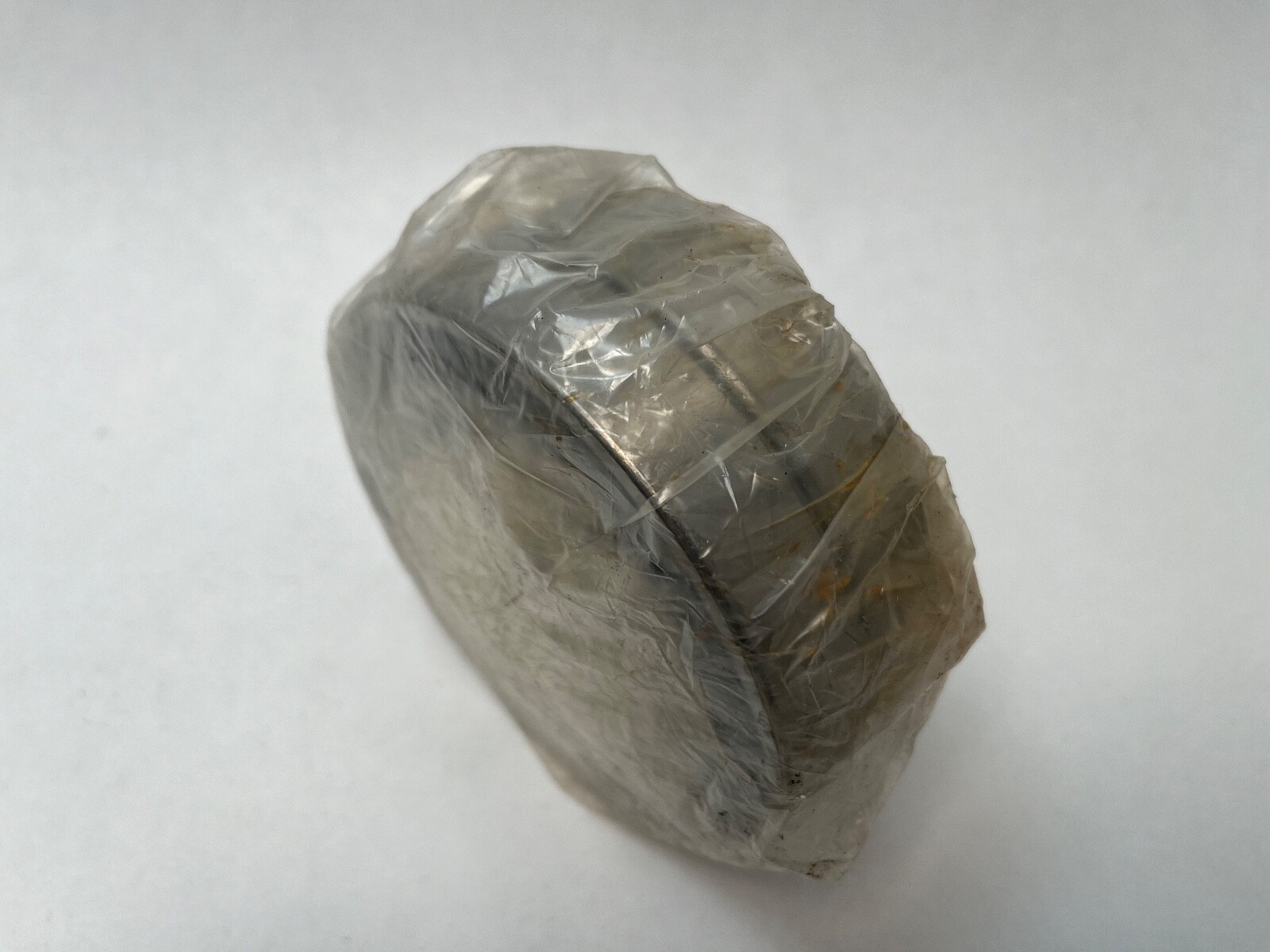

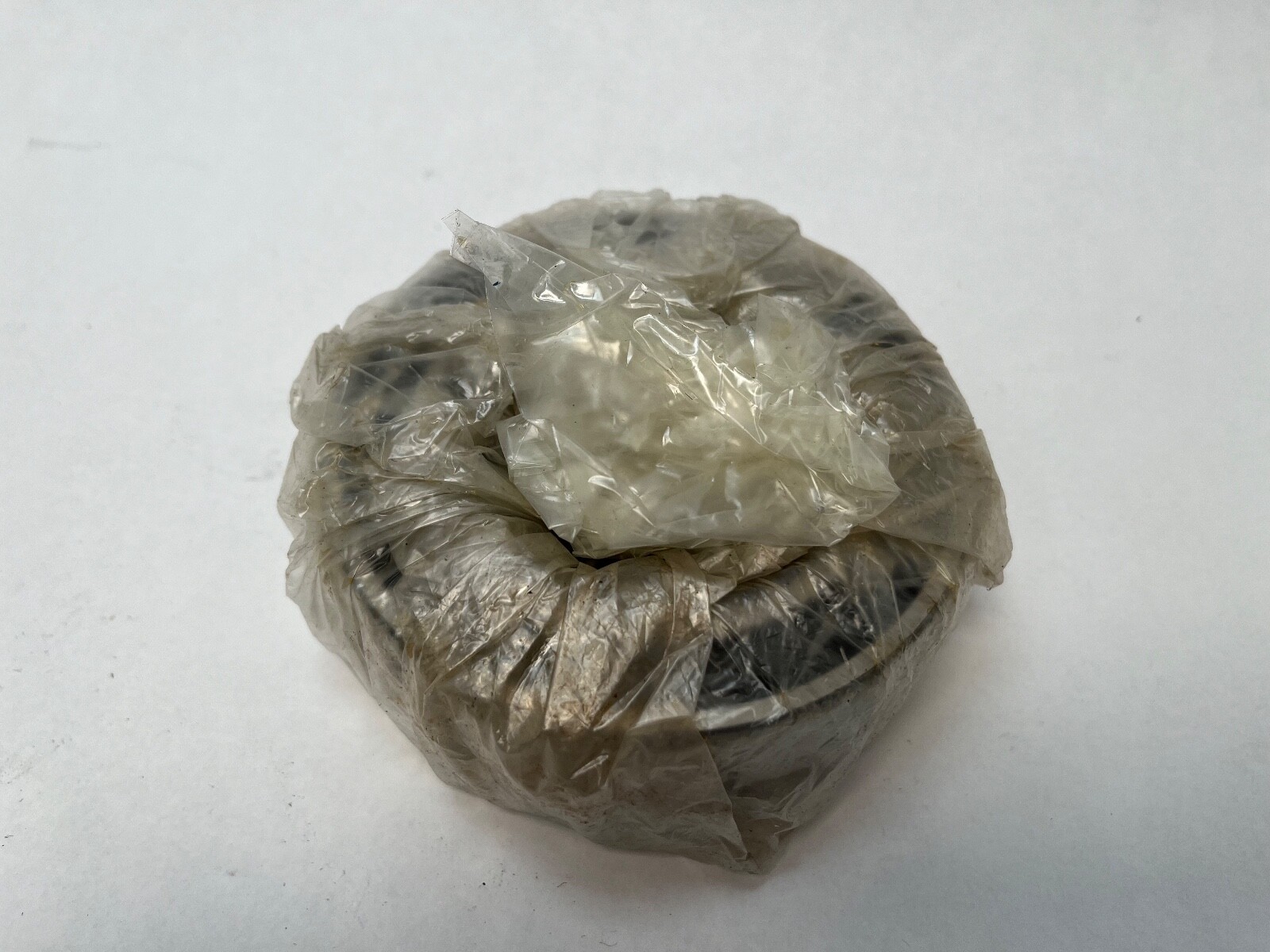

Unit Quantity: 2 Pcs. One DB matched pair. Mounting Arrangement: Back-to-back (DB). Carton marking: 2MM9114 WI CR DB.
Cross-references: NSK 7014C and SKF 7014 CD, both 15° in a back-to-back pair at ABEC 5 / P5 class, and Fafnir 2MM9114WI CR DB, which is ABEC 7 / P4 class rather than P5.
