Availability:
3 in stock

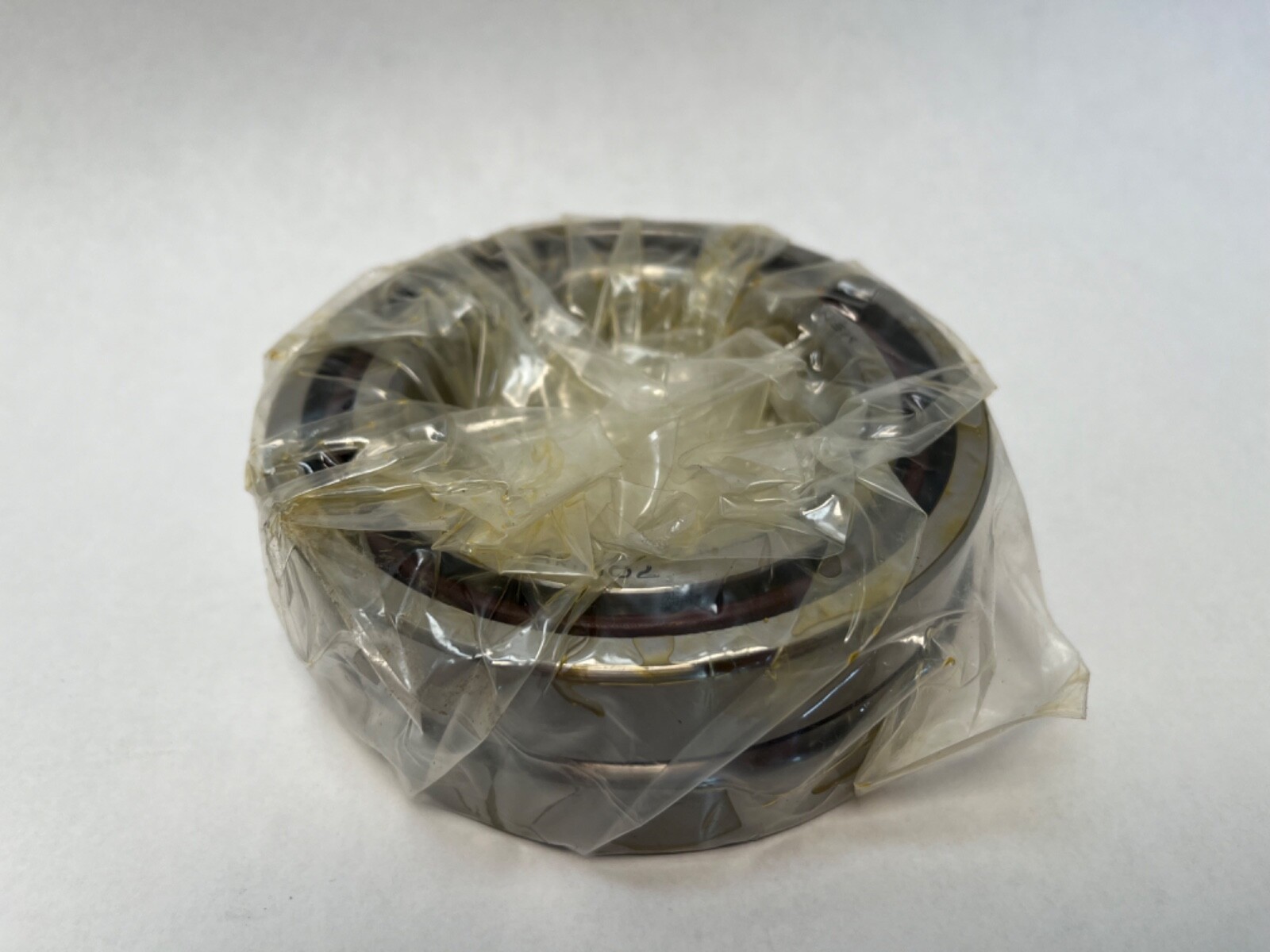

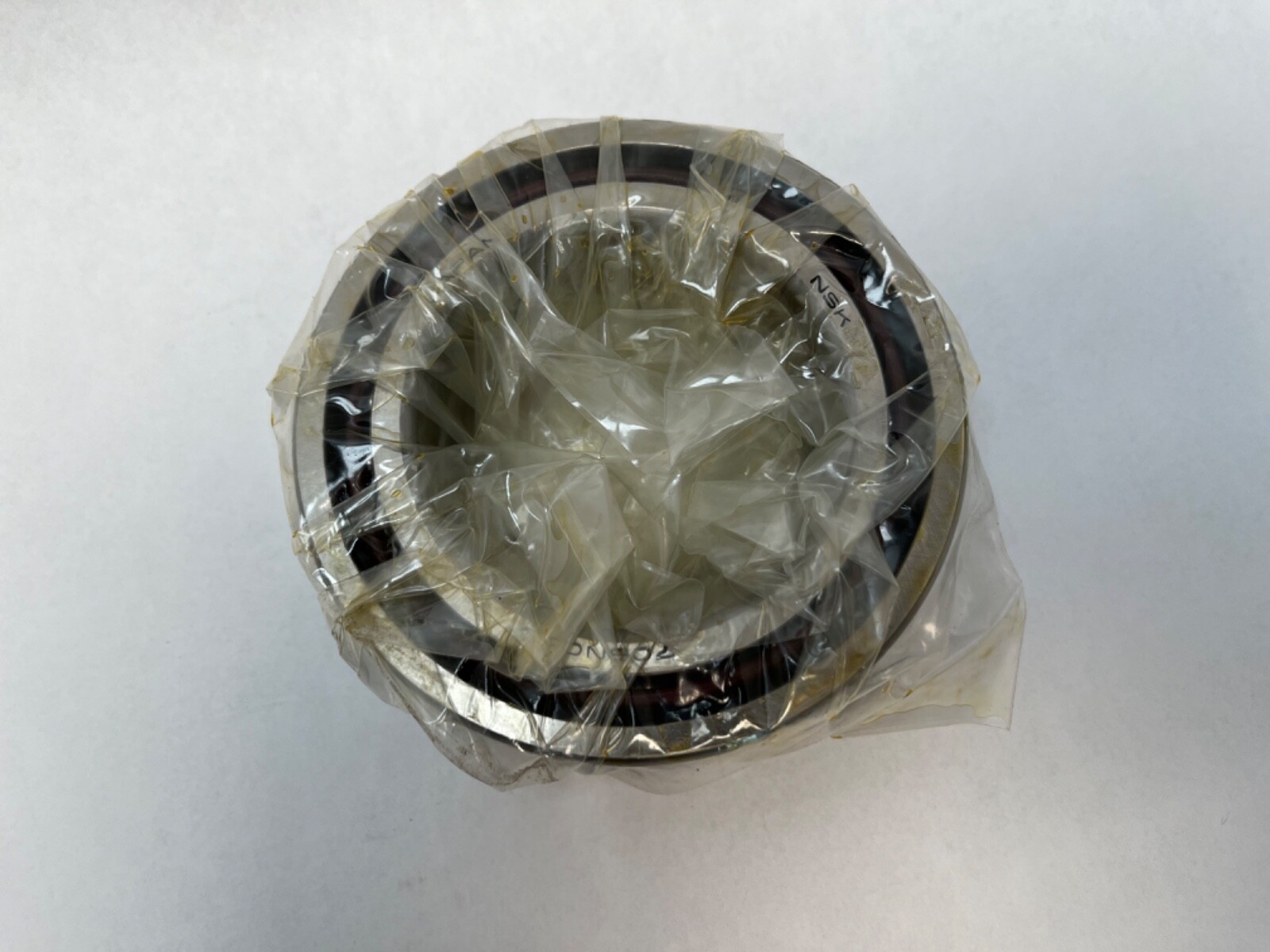

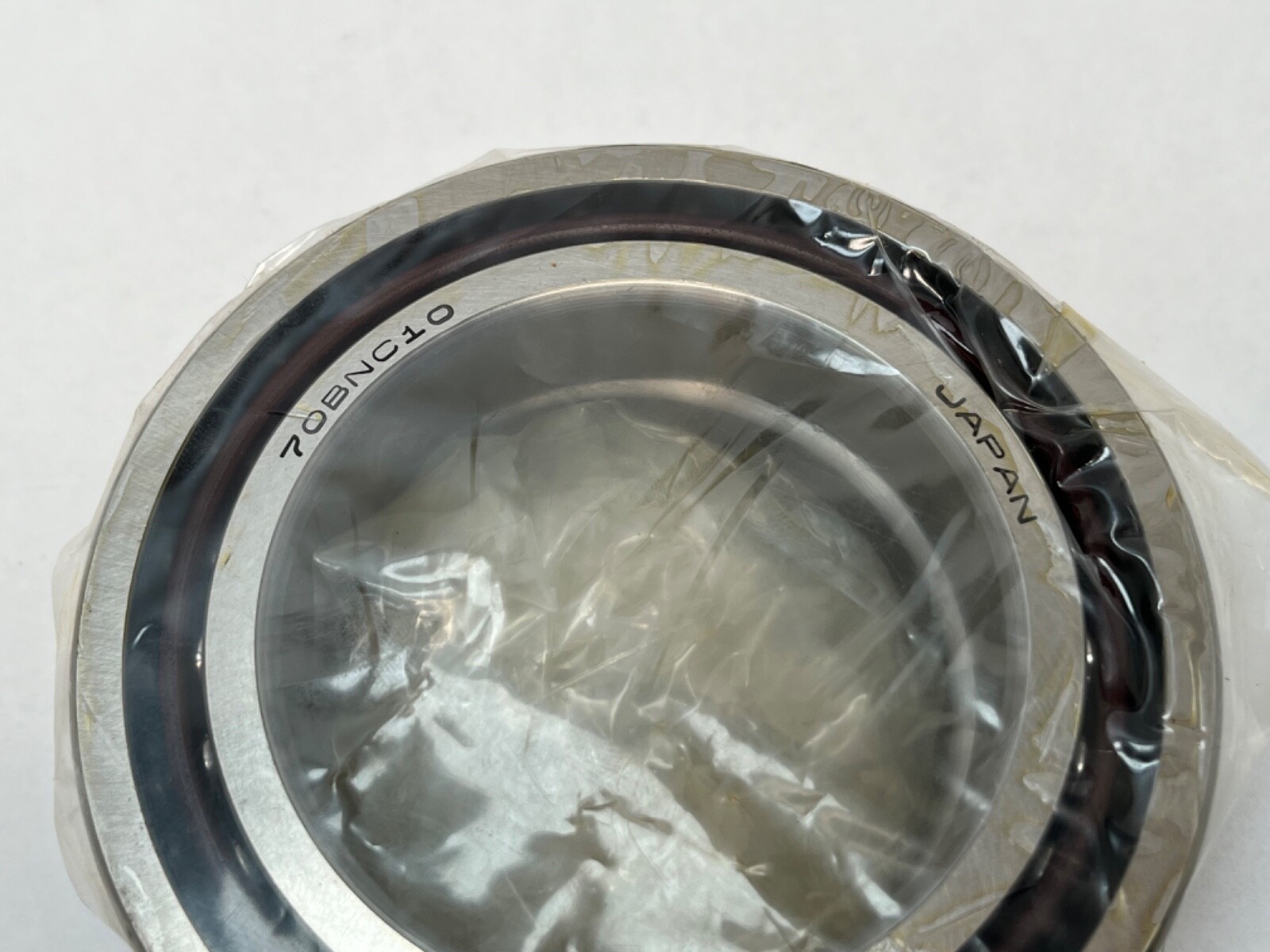

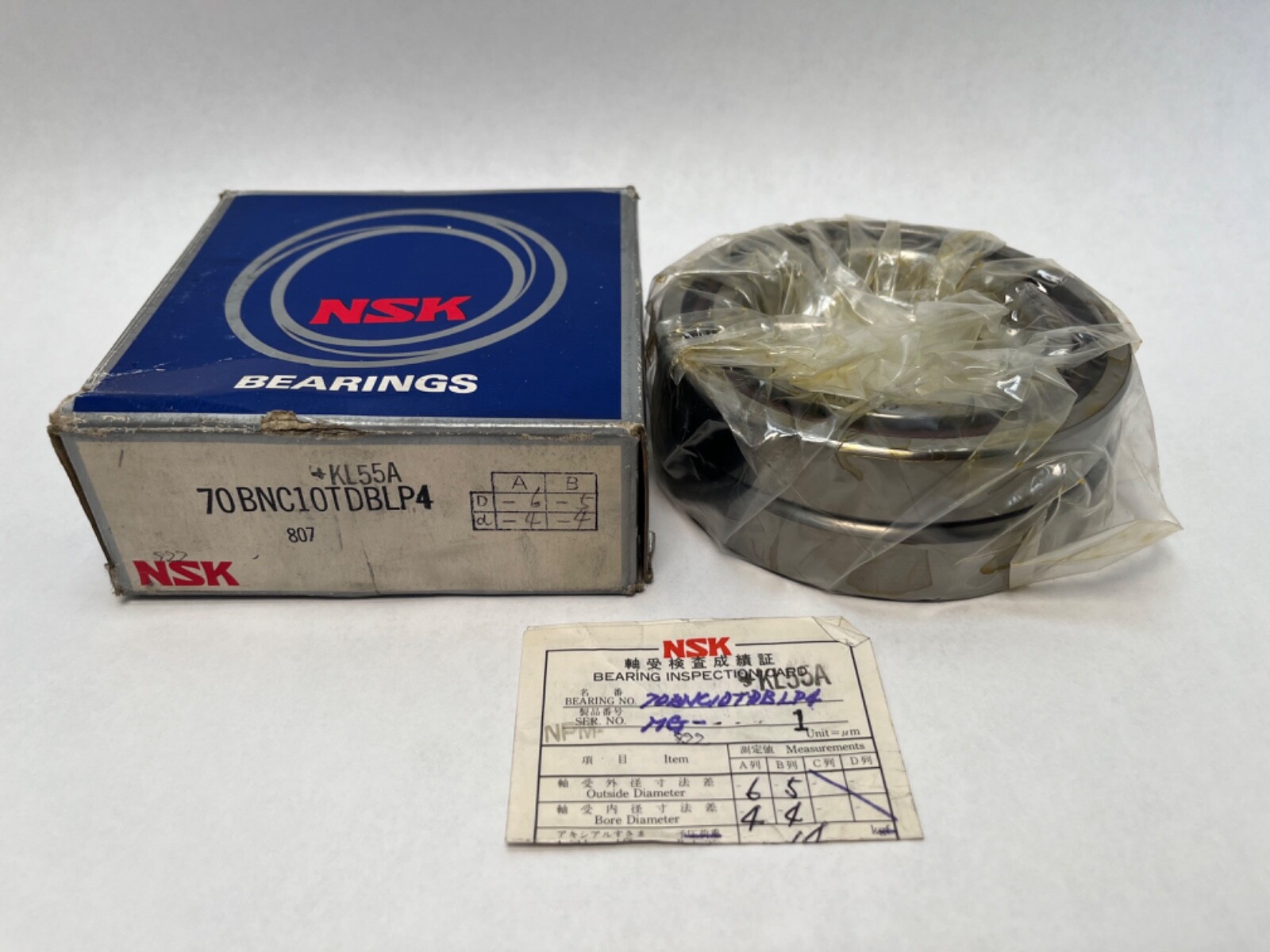

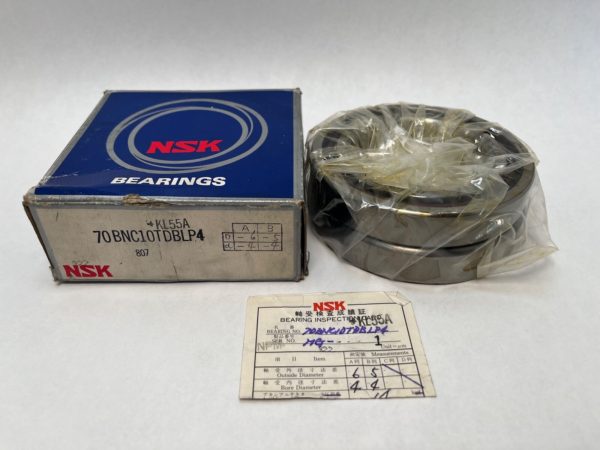

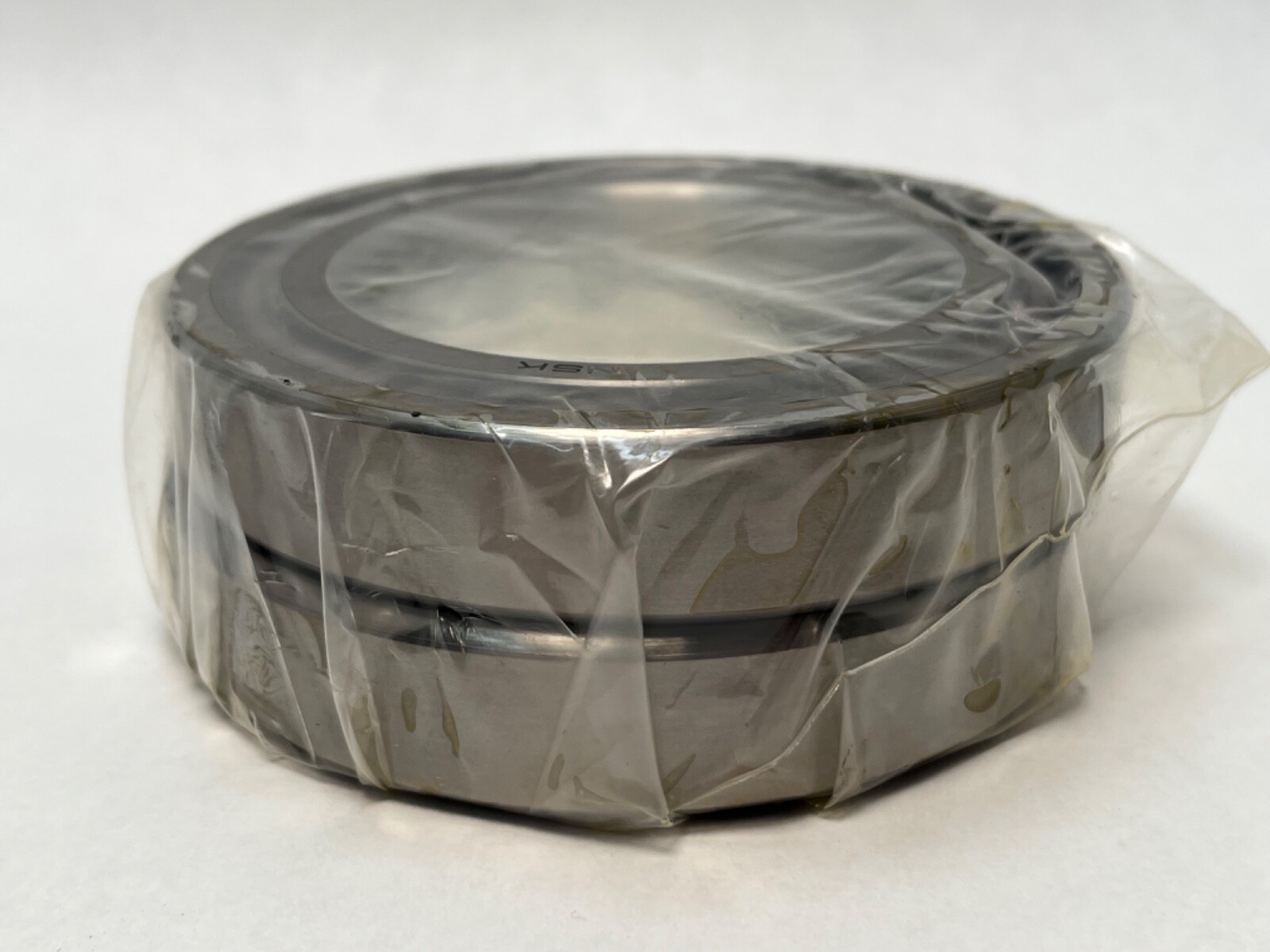

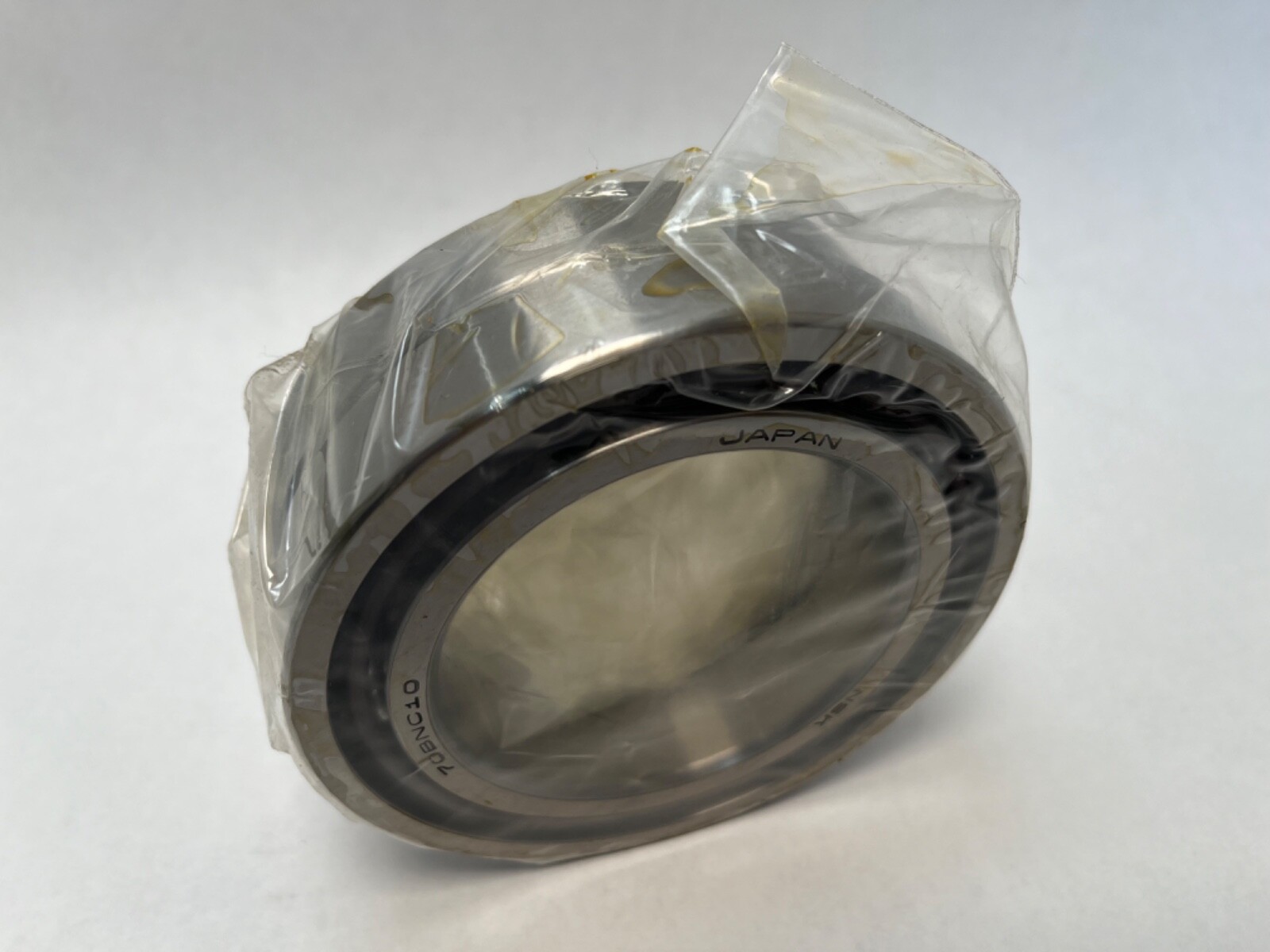

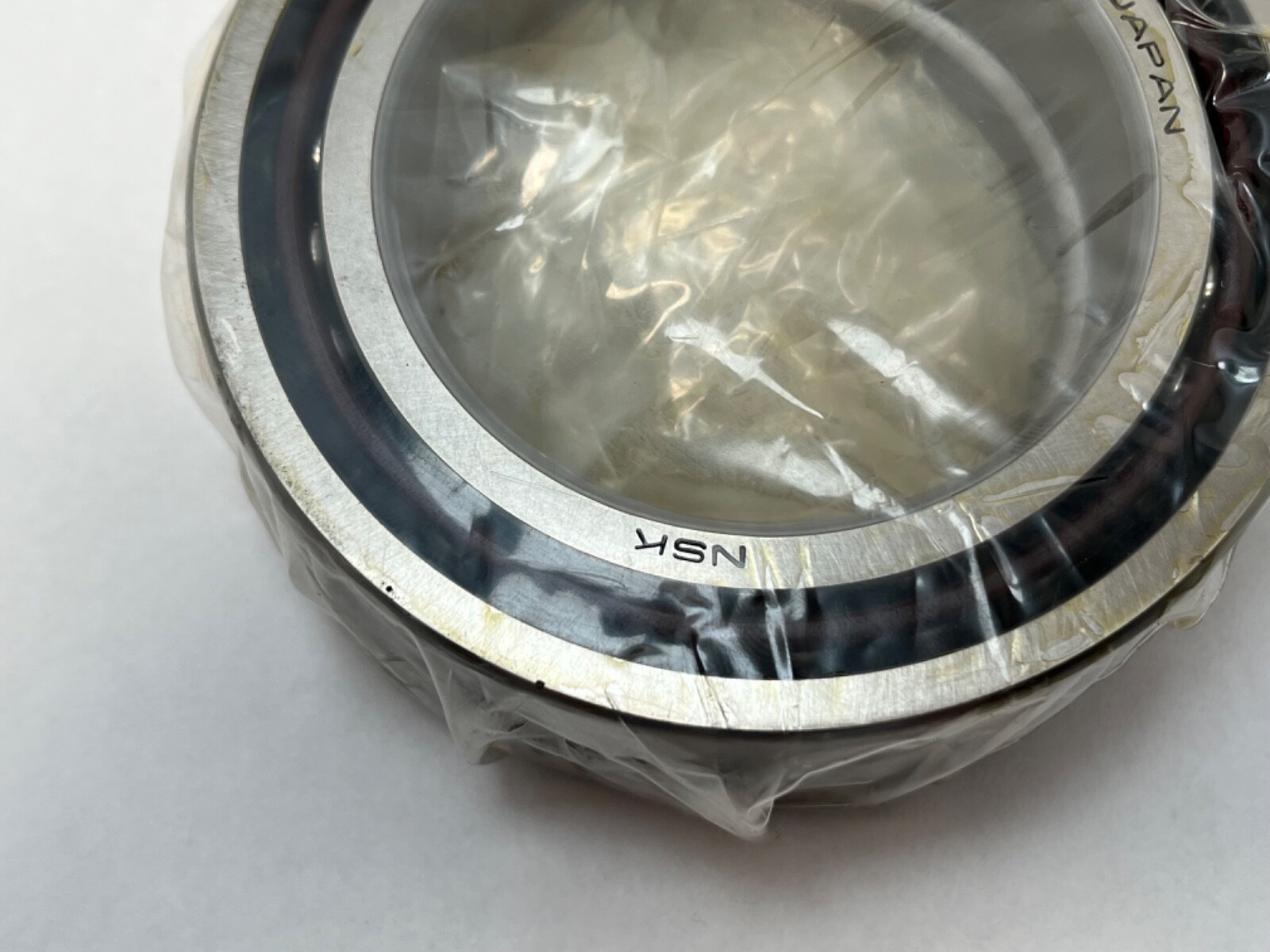

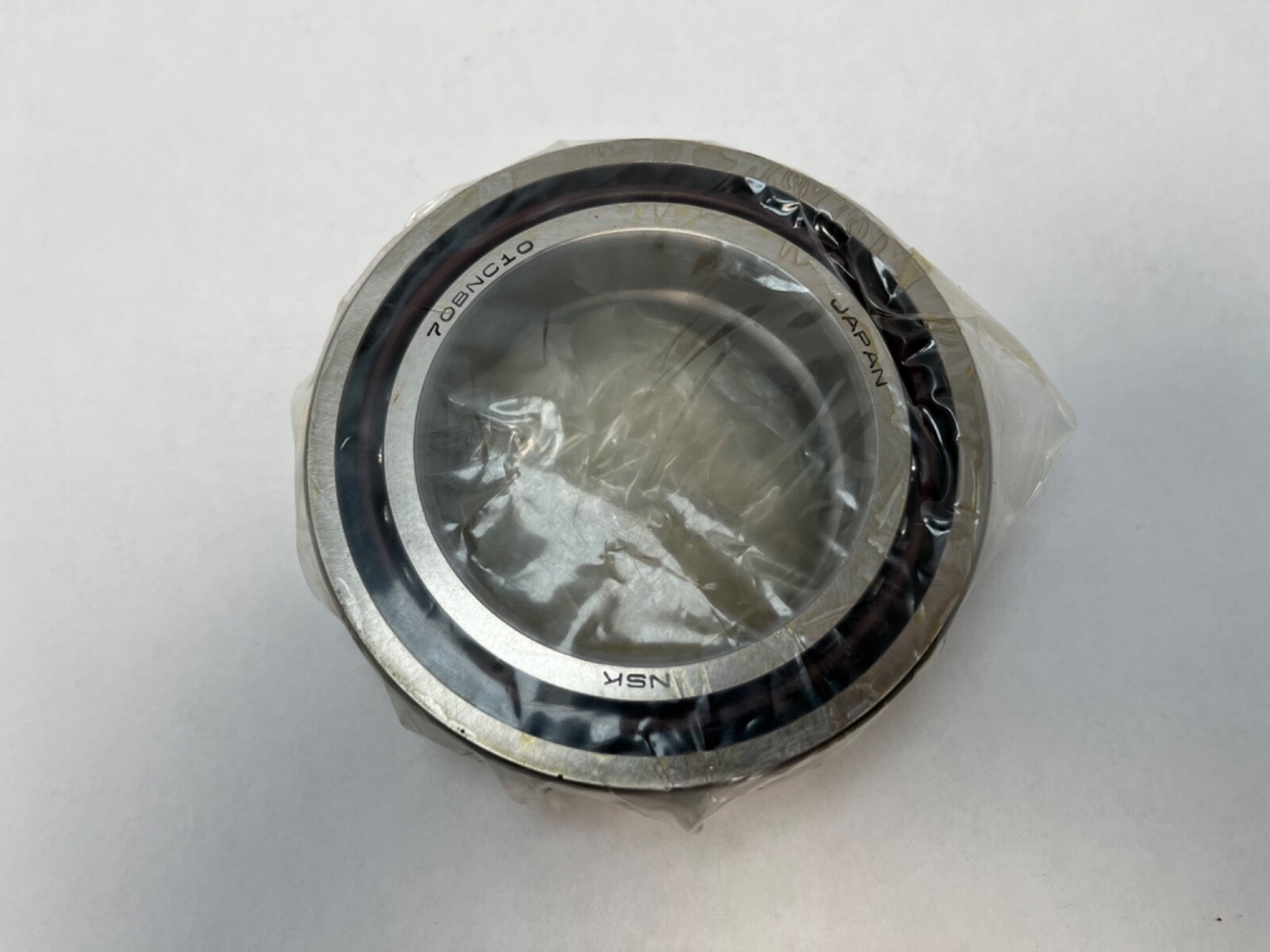

Super precision angular contact ball bearing pair, 70x110x20 mm, ABEC 7 / P4, phenolic outer-ring guided cage, light preload, mounted back-to-back.
List Price
$500.65
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 70BNC10TDBLP4 |
| Model | 70BNC10 T DBL P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 110 mm |
| Width | 20 mm |
| Material | Steel |
|---|---|
| Base Number | 70BNC10 |
| Industry Terms | Super precision angular contact bearing; machine tool spindle bearing; duplex matched pair |
| Common Misspellings | 70BCN10TDBLP4; 70BNC1OTDBLP4; 70 BNC 10 T DBL P4; 70BNC10TDLBP4 |
| Application Types | Machine tool spindles; grinding spindles; high-speed rotating equipment |
| Overall Width | 20 mm |
| Mpn Variants | 70BNC10TDBLP4; 70BNC10-T-DBL-P4; 70BNC10 T DBL P4; 70BNC10TDBP4 |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, outer-ring guided |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Preload | Light |
| Mounting Arrangement | Back-to-back (DB) matched pair |
| Bearing Material | Bearing steel |
| Cross Reference 1 | NSK 7014 (same 70 x 110 x 20 envelope, standard angular contact series; not an equivalent) |
|---|
NSK super precision angular contact ball bearings from the 70BNC10 spindle range, supplied as a matched back-to-back pair. Bore Diameter: 70 mm. Outside Diameter: 110 mm. Overall Width: 20 mm per bearing. Precision Class: ABEC 7 / P4. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel.
70 — bore diameter in millimetres.
T — phenolic cage, outer-ring guided.
DB — duplex back-to-back. Two single-row bearings ground as a matched set with their load lines diverging outward.
L — light preload.
P4 — ISO class 4, ABEC 7.
Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Phenolic runs cooler and lighter than brass at spindle speeds and holds lubricant in the fabric base.
Preload: Light. Lubricant: grease or oil. Precision Class: ABEC 7 / P4 covers both dimensional and running accuracy.
A back-to-back pair carries axial load in both directions and resists moment load across the wide effective spread between the two load lines.
Unit Quantity: 2 Pcs. Mounting Arrangement: back-to-back (DB) matched pair.
The 70 x 110 x 20 mm envelope is shared with the standard-series NSK 7014, which is a different bearing series rather than an equivalent.
