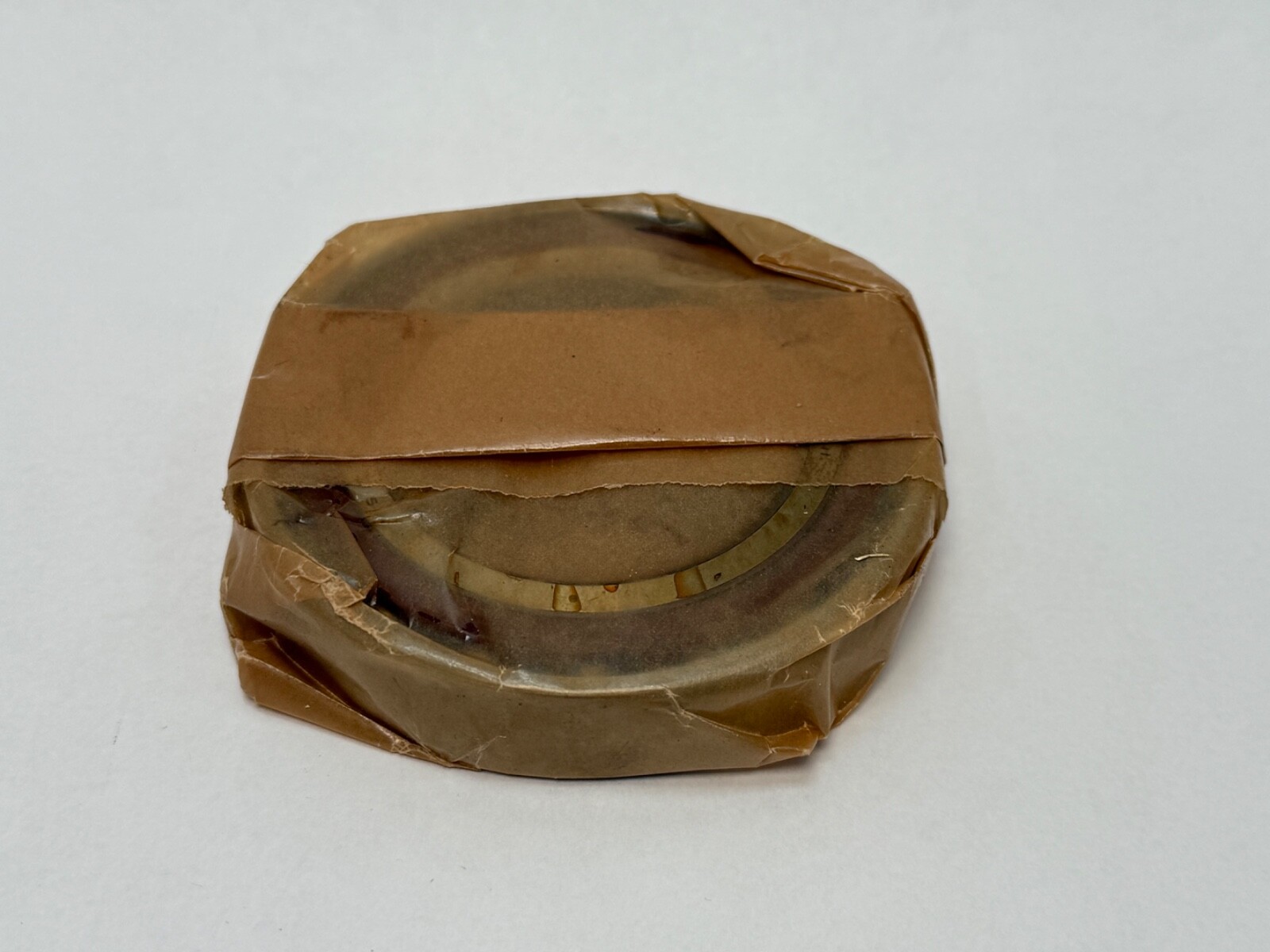

Angular contact ball bearing, 55 x 90 x 18 mm, ISO 7011 size, non-metallic separator, duplex tandem matched set. New Departure Hyatt, new old stock, open box.
List Price
$55.22
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | QOL11DT |
| Model | Q-0L11-DT |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 55 mm |
| OD | 90 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 0L00 |
| Rolling Elements | Ball |
| Cage Material | Non-metallic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.68 |
| Base Number | 0L11 |
| Mpn Variants | QOL11DT, Q0L11DT, Q-OL11-DT, Q-0L11-DT, Q-OL11-DT-X7393A |
| Mounting Arrangement | Tandem (DT) |
| Closure Type | Open |
| Industry Terms | angular contact ball bearing; duplex tandem bearing; DT matched set; universal flush ground bearing; 55 mm bore bearing; New Departure Hyatt bearing; NOS bearing |
| Common Misspellings | NHD QOL11DT; QOL 11 DT; Q0L11DT; New Departure Hyat 7011 |
| Application Types | Machine tool spindles; gearboxes; pumps; shafts requiring combined radial and axial load |

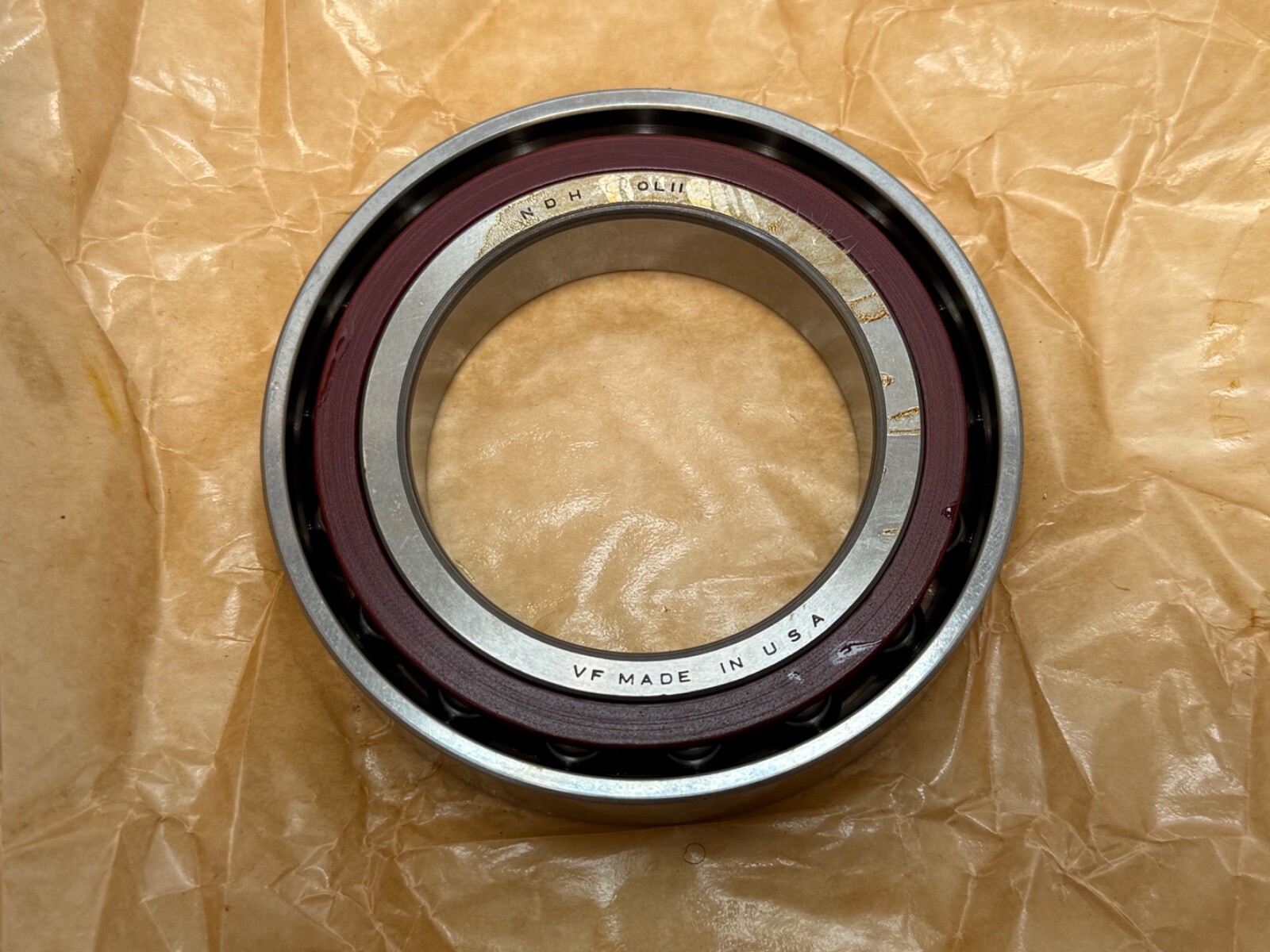

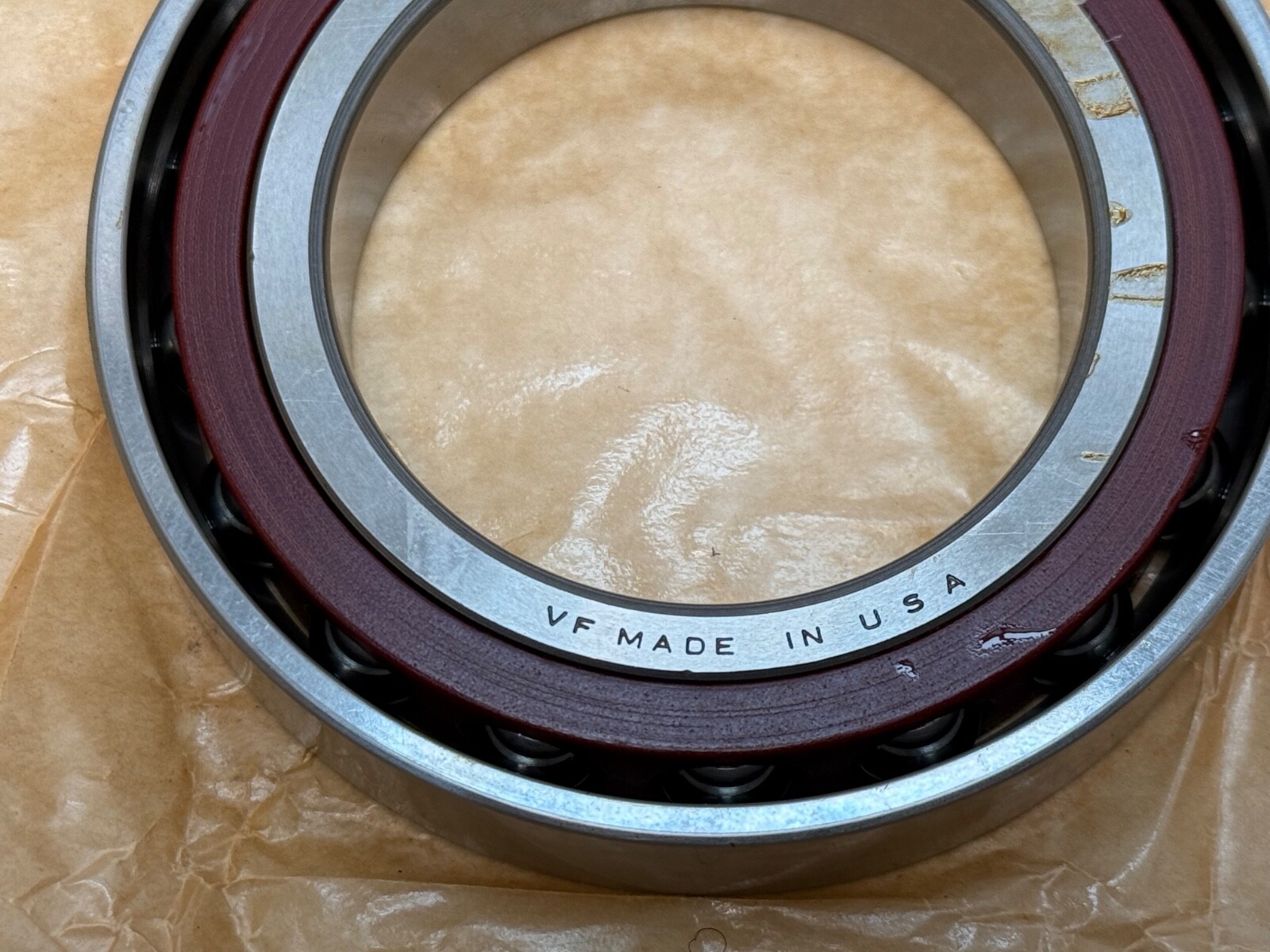

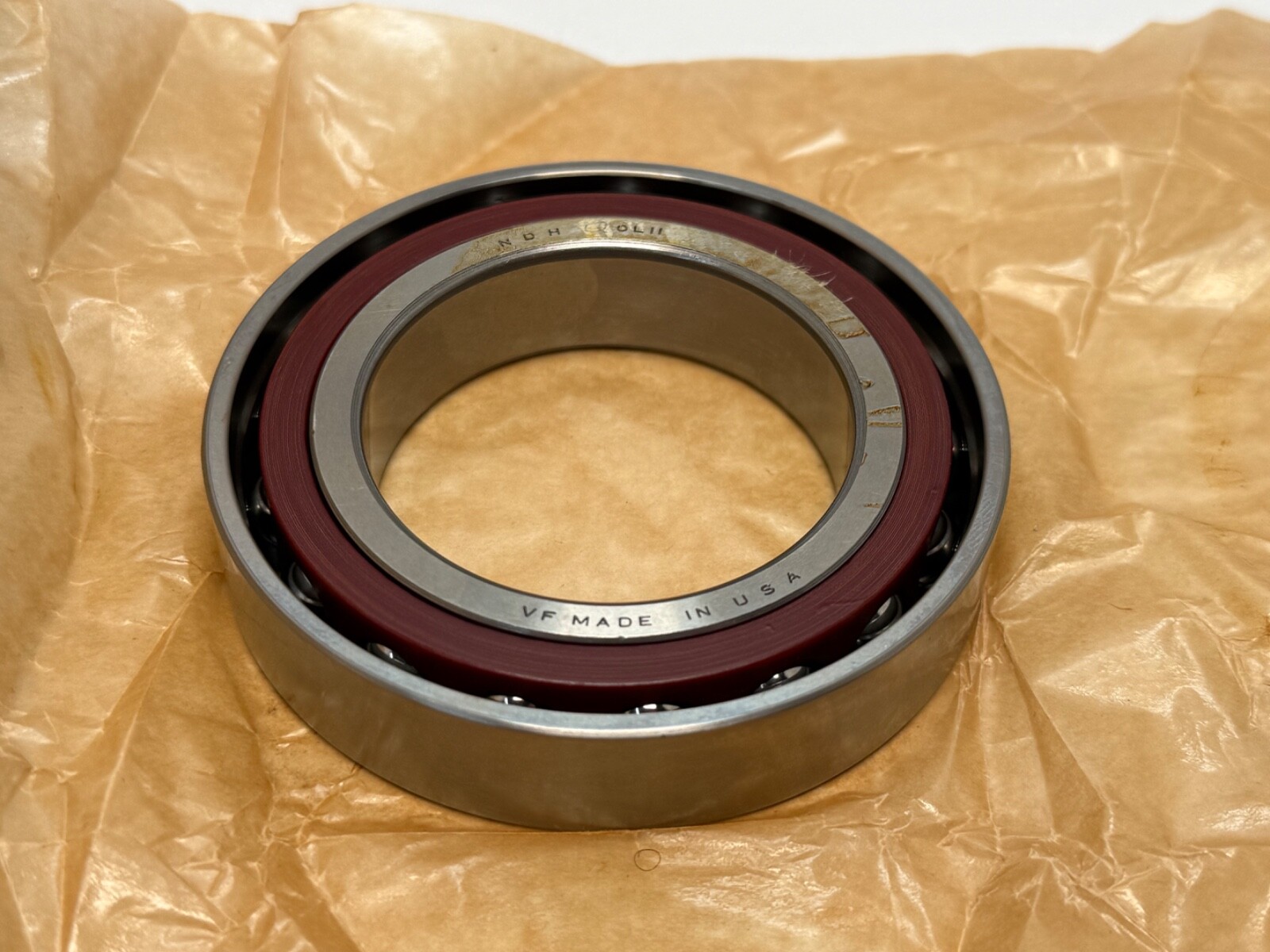

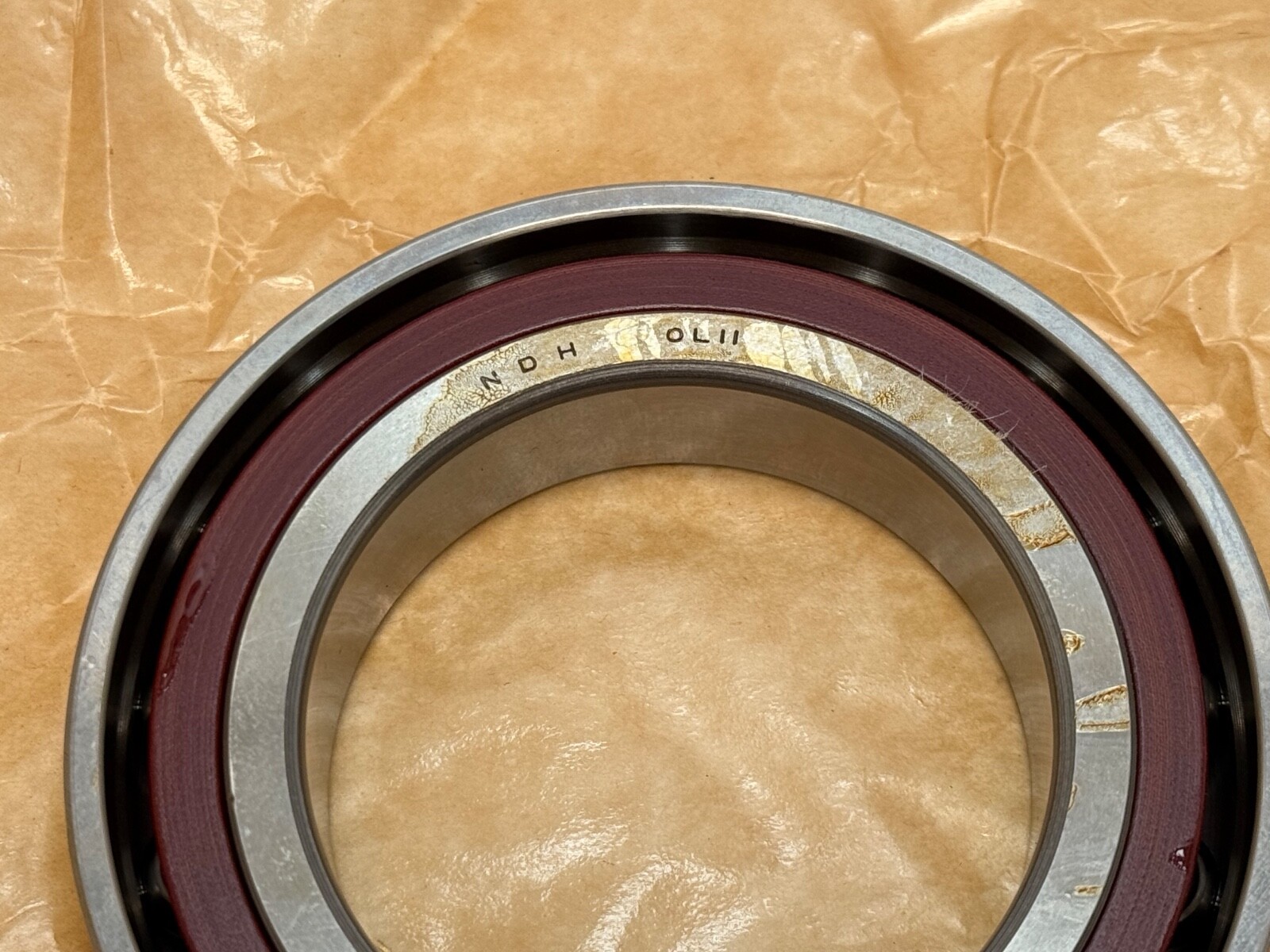

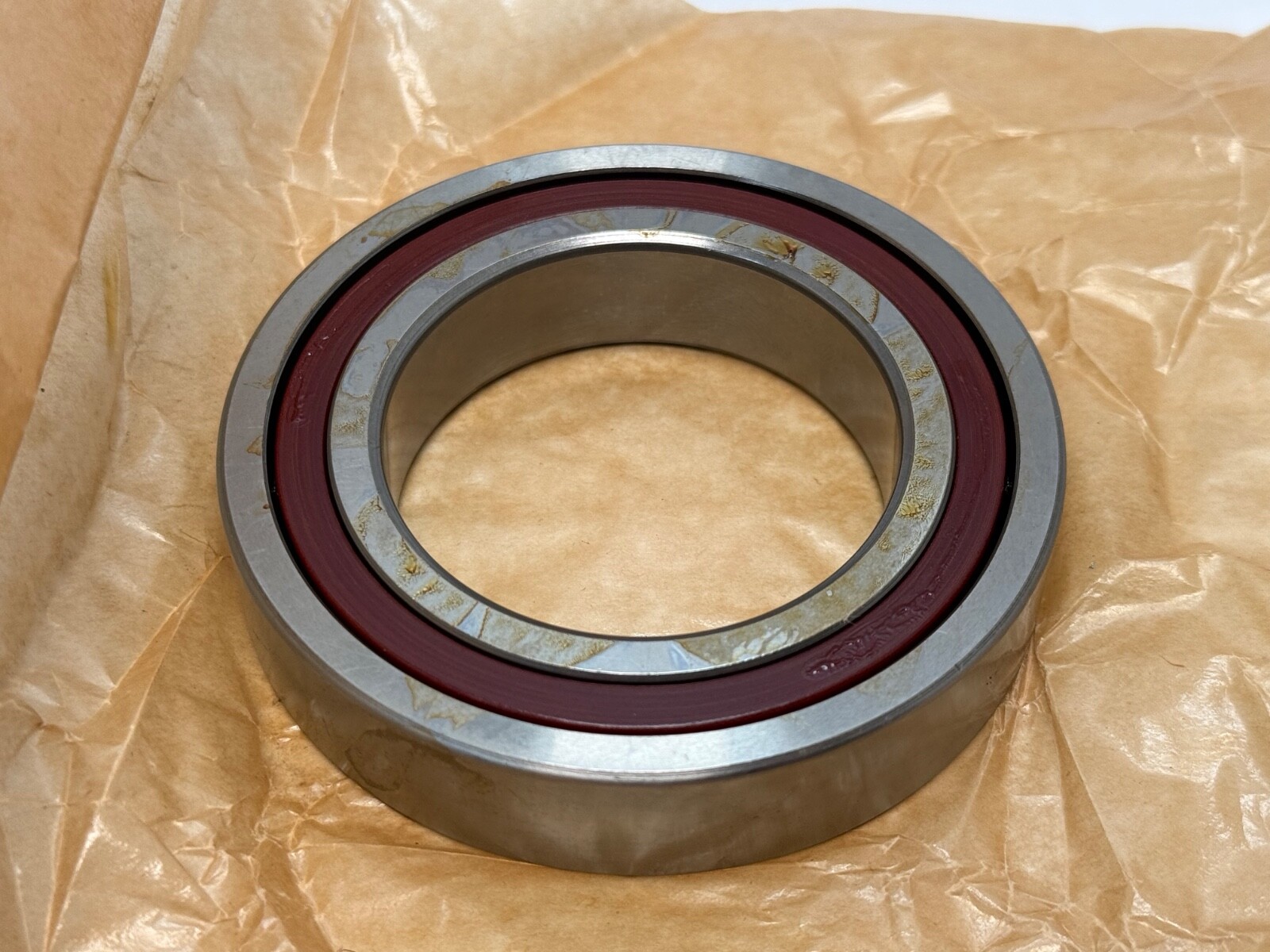

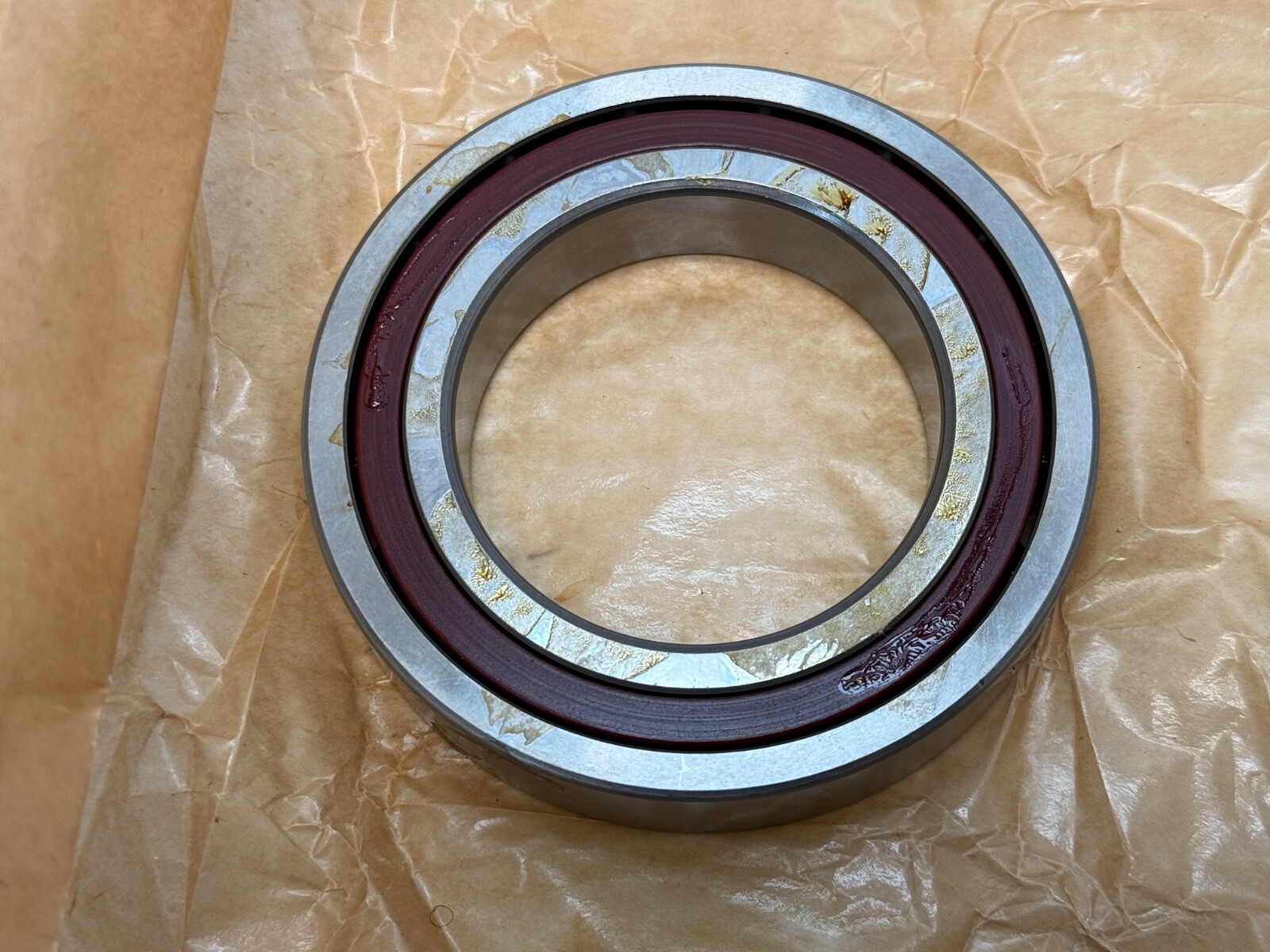

NDH QOL11DT is a New Departure Hyatt single-row angular contact ball bearing in the ISO 7011 envelope, with a non-metallic separator, flush ground for duplex tandem mounting. Bore Diameter: 55 mm. Outside Diameter: 90 mm. Width: 18 mm. Cage Material: Non-metallic.
Q — non-metallic separator (retainer).
0L11 — NDH 0L00 angular contact series, 55 x 90 x 18 mm, the ISO 7011 envelope.
DT — duplex tandem. A matched set of angular contact bearings with all faces flush ground for universal mounting in tandem, back-to-back or face-to-face.
Bearing Type: Angular contact ball bearing. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Cage Material: Non-metallic. Mounting Arrangement: Tandem (DT), universally flush ground. Closure Type: Open. Bore Type: Straight.
Bore Diameter: 55 mm. Outside Diameter: 90 mm. Width: 18 mm per bearing.

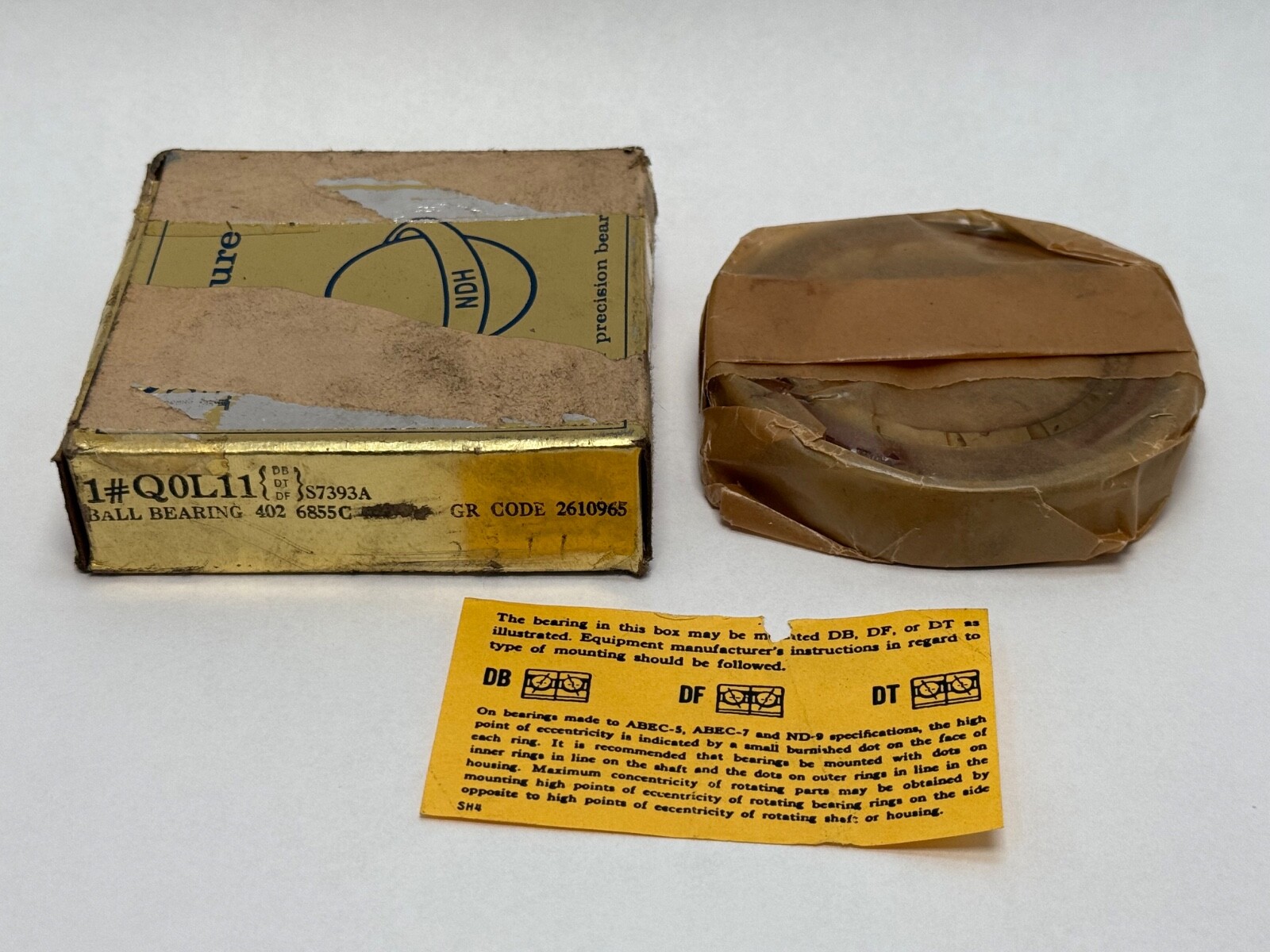

Same 55 x 90 x 18 mm envelope as ISO 7011 angular contact bearings. The carton cross-reference reads 2MM9111WI CR and 7011-C. MPN variants: QOL11DT, Q0L11DT, Q-OL11-DT, Q-0L11-DT, Q-OL11-DT-X7393A.
55 mm bore, 90 mm outside diameter, 18 mm wide, the ISO 7011 envelope.
Duplex tandem: a matched set flush ground for universal duplex mounting.
A non-metallic separator (retainer).
