Availability:
2 in stock

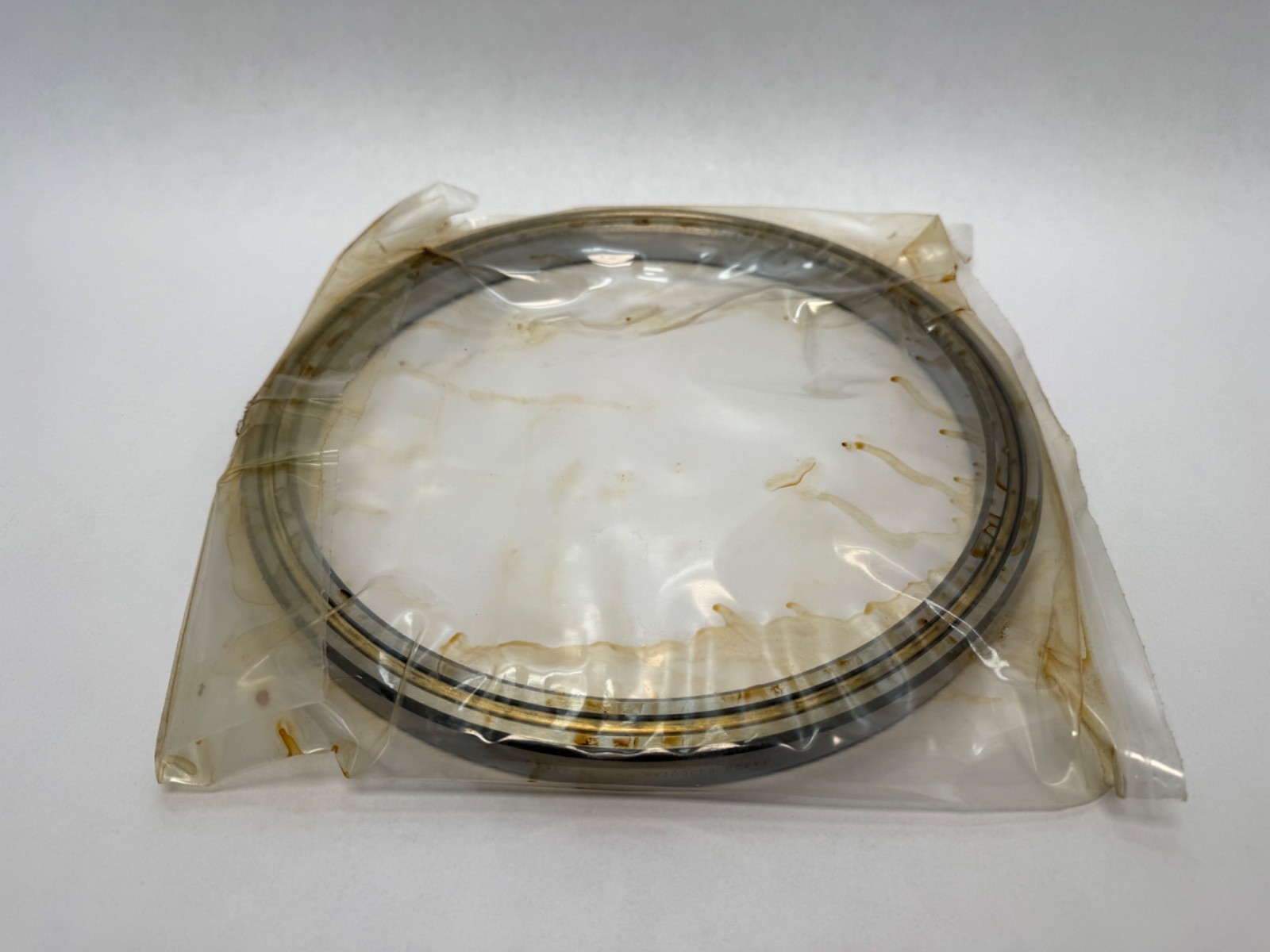

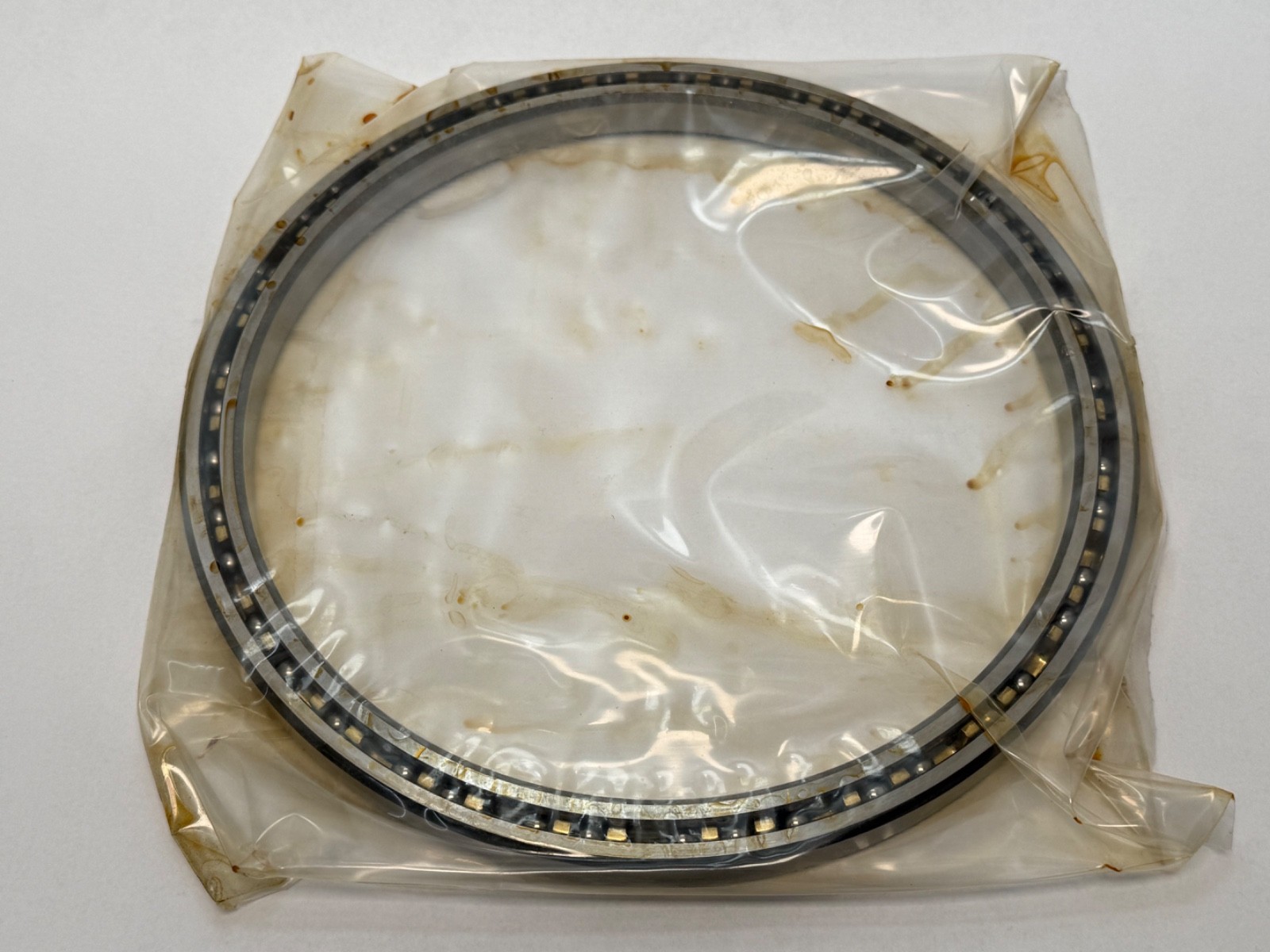

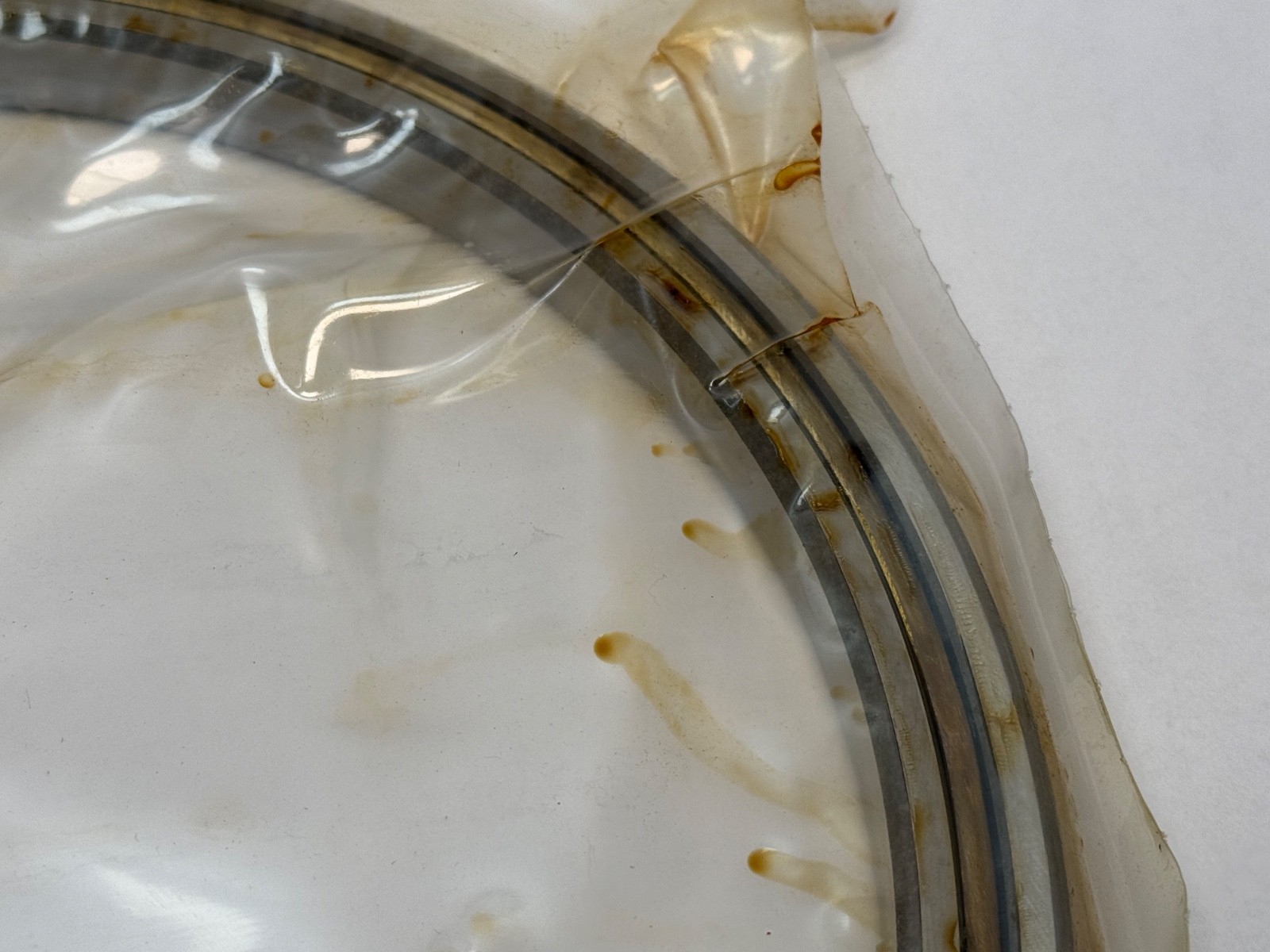

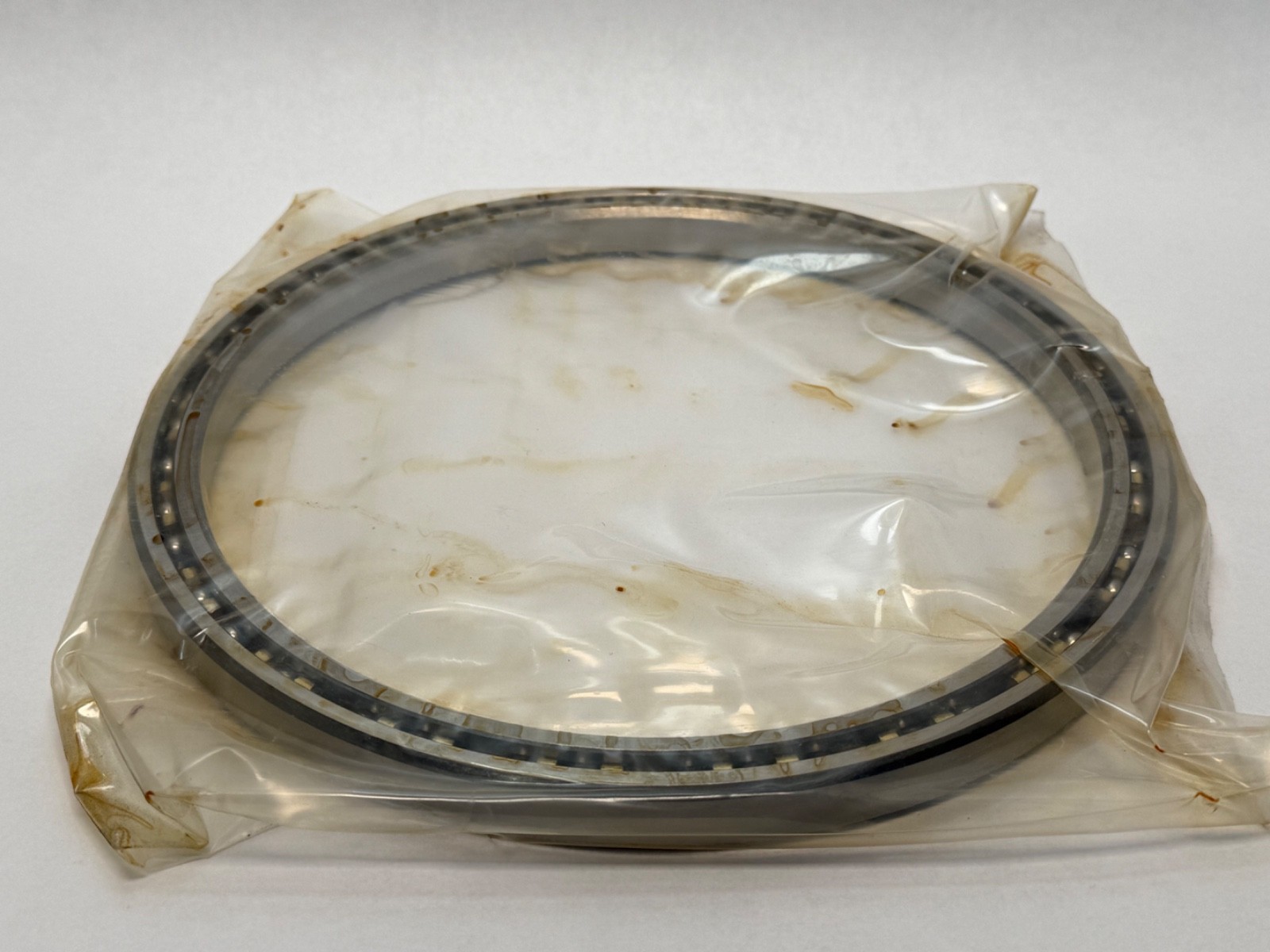

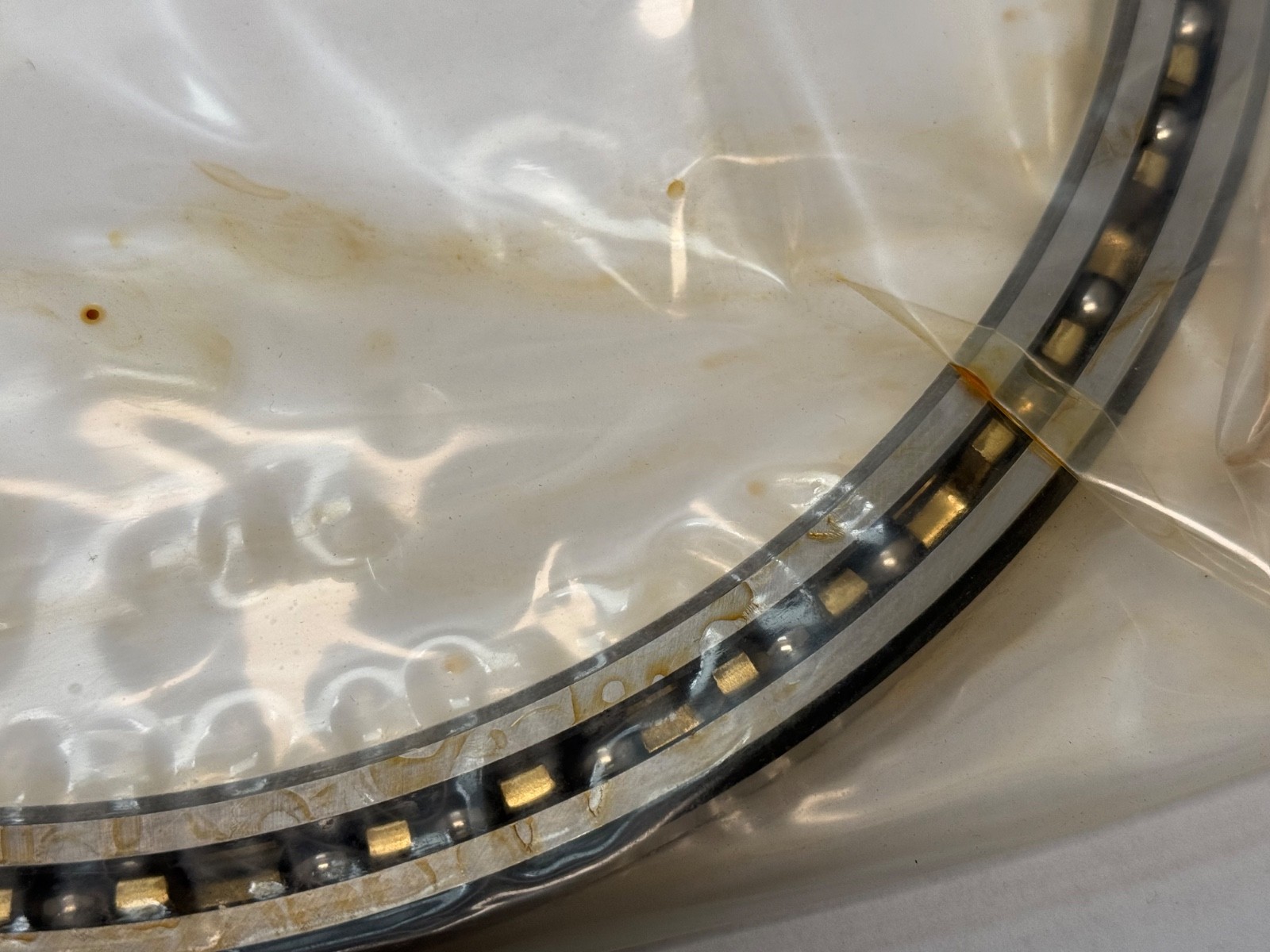

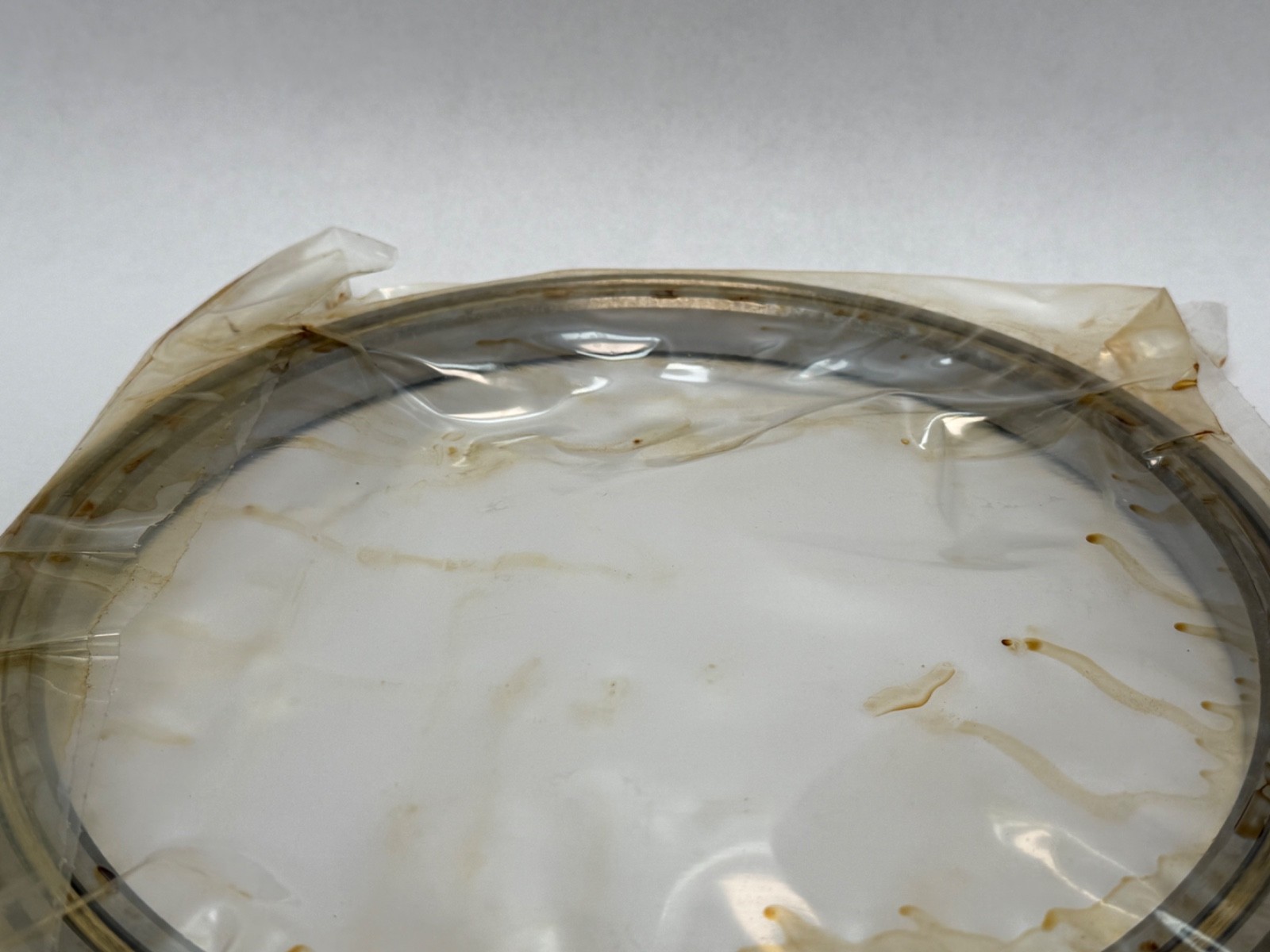

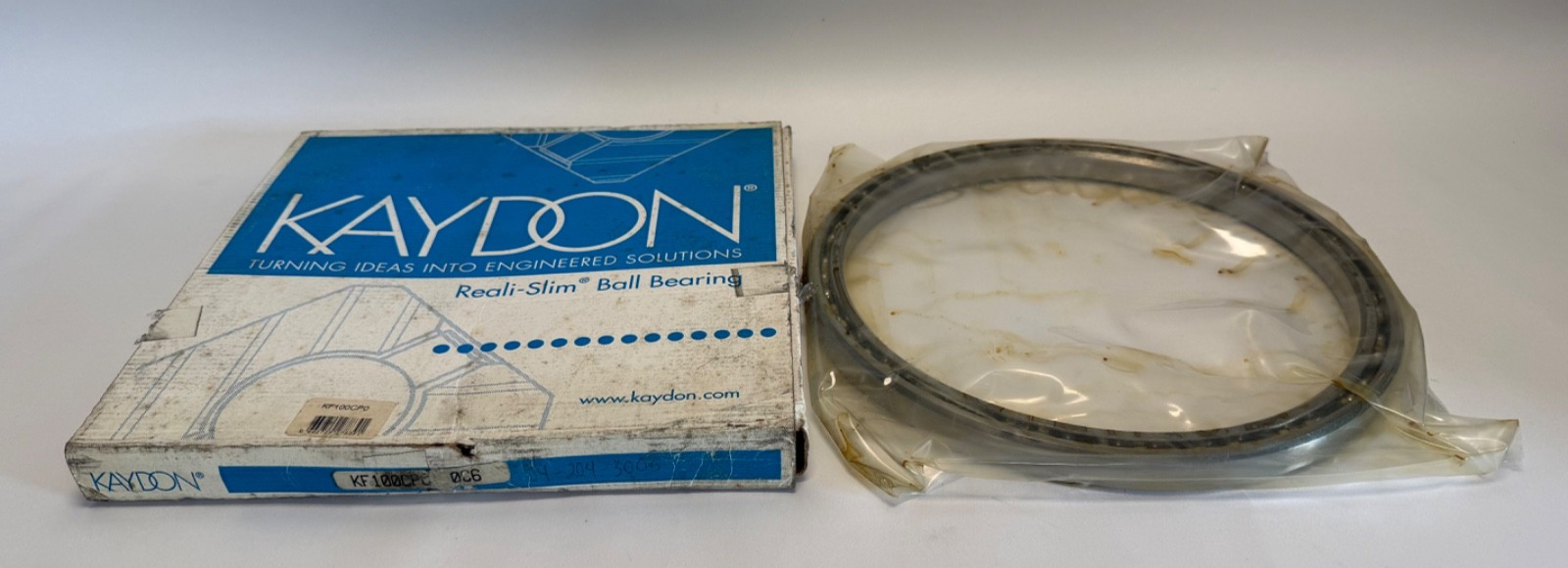

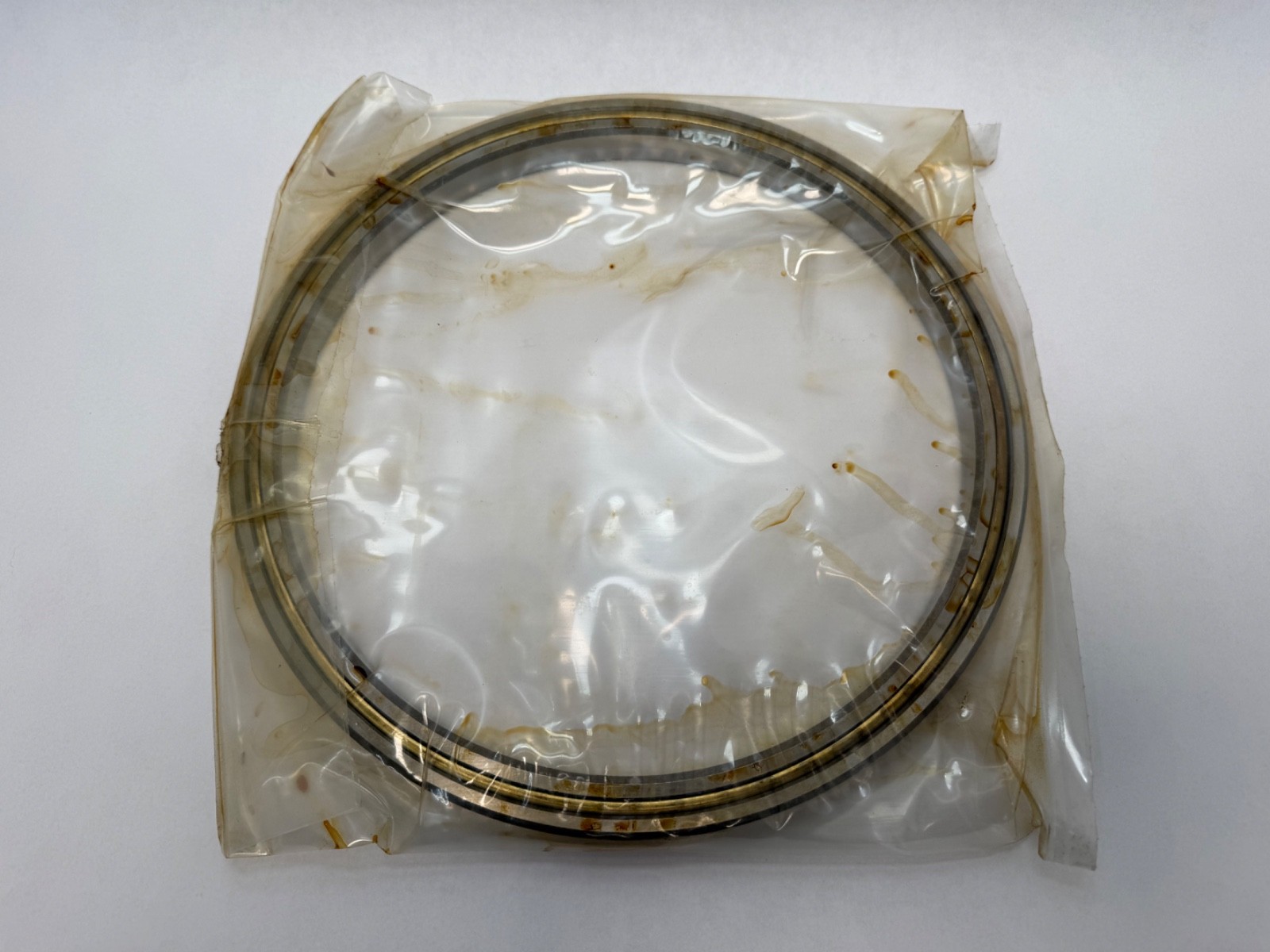

Thin section radial contact ball bearing, 10 x 11-1/2 x 3/4 in (254 x 292.1 x 19.05 mm), KF series, open, ABEC 1F. Kaydon Reali-Slim, 3/8 in balls.
List Price
$509.11
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Kaydon |
|---|---|
| MPN | KF100CP0 |
| Model | KF 100 CP0 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 10.0000 in (254.000 mm) |
| OD | 11.5000 in (292.100 mm) |
| Width | 0.7500 in (19.050 mm) |
| Mpn Variants | KF100CP0, KF-100-CP0, KF 100 CP0, KF100-CP0 |
|---|---|
| Precision Class | ABEC 1F (Kaydon Class 1) |
| Material | AISI 52100 steel |
| Cage Type | Formed ring, snap-over |
| Dynamic Load Rating | 24,690 N (5,550 lbf) |
| Static Load Rating | 53,960 N (12,130 lbf) |
| Series | Reali-Slim KF (0.750 in section) |
| Rolling Elements | Ball |
| Item Weight | 1.95 kg (4.30 lb) |
| Bearing Material | AISI 52100 steel |
| Cross Reference 1 | RBC KF100CP0 |
|---|

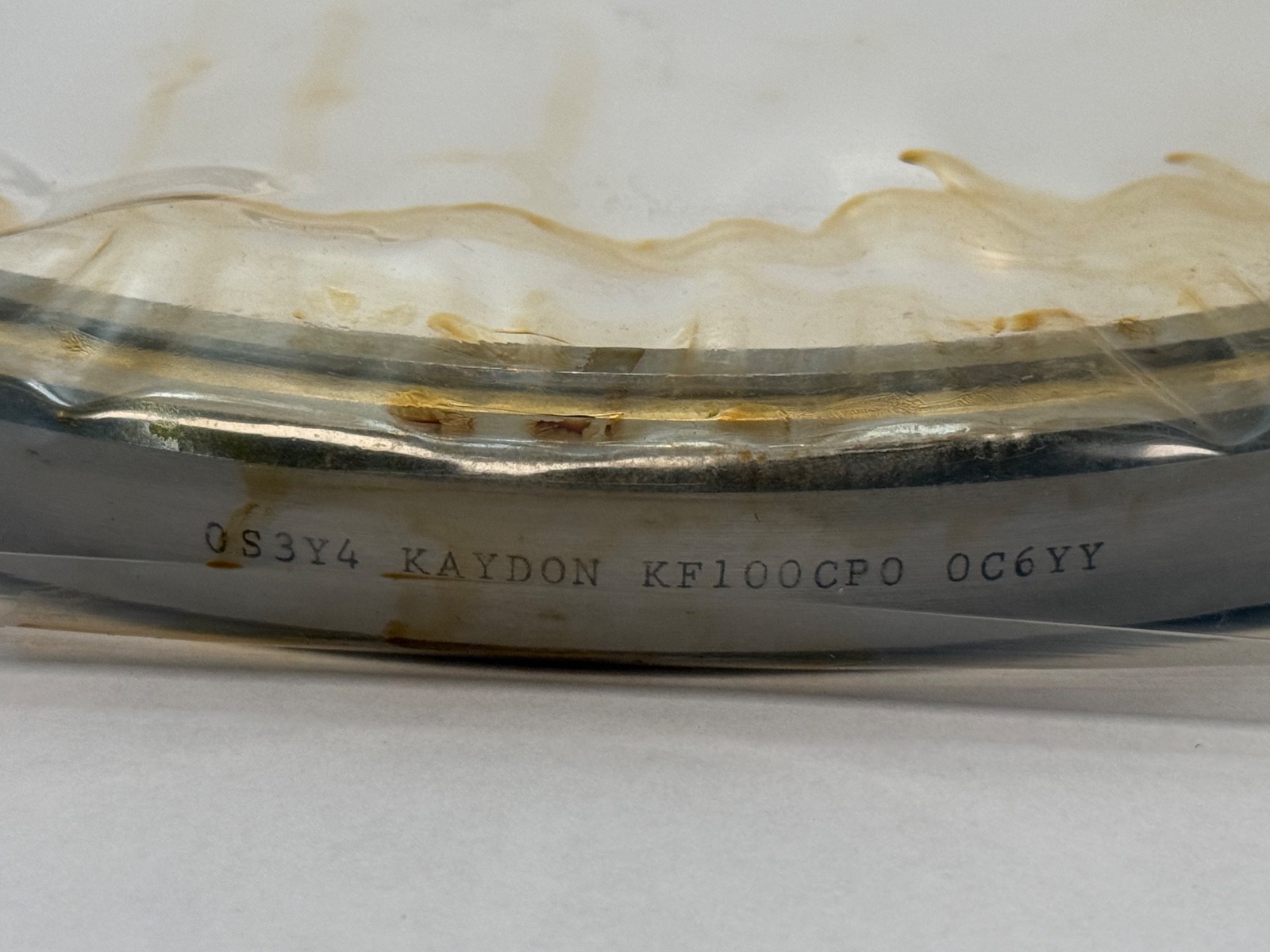

Kaydon KF100CP0 is a Reali-Slim thin section radial contact ball bearing, KF series, open. Bore Diameter: 10.000 in (254.00 mm). Outside Diameter: 11.500 in (292.10 mm). Width: 0.750 in (19.05 mm). Radial Section: 0.750 in. The square 3/4 in cross-section stays constant across the KF series, so large bores fit into shallow envelopes.
K — AISI 52100 bearing steel rings and balls, no seals or shields.
F — 0.750 x 0.750 in cross-section series.
100 — 10.0 in nominal bore.
C — radial contact (Conrad) type, for radial load with some thrust in either direction.
P — standard formed-ring snap-over separator.
0 — Kaydon precision class 1, per ABEC 1F.
Dynamic Load Rating: 24,690 N (5,550 lbf, Kaydon rating). ISO 281 Radial Dynamic Rating: 38,860 N (8,737 lbf). Static Load Rating: 53,960 N (12,130 lbf) radial. Rolling Elements: 3/8 in balls. Radial contact geometry suits rotary tables, robot joints, indexers and radar pedestals where a large through-bore is needed.
Inner Land Diameter: 10.555 in. Outer Land Diameter: 10.945 in. Maximum Shaft or Housing Fillet Radius: 0.080 in. Item Weight: 1.95 kg (4.30 lb). Closure Type: Open.
Unit Quantity: 1 Pc.
Kaydon Reali-Slim is an SKF Group brand. RBC thin section bearings use the same numbering for the equivalent 10 x 11-1/2 x 3/4 in radial contact bearing: RBC KF100CP0.
