Availability:
9 in stock

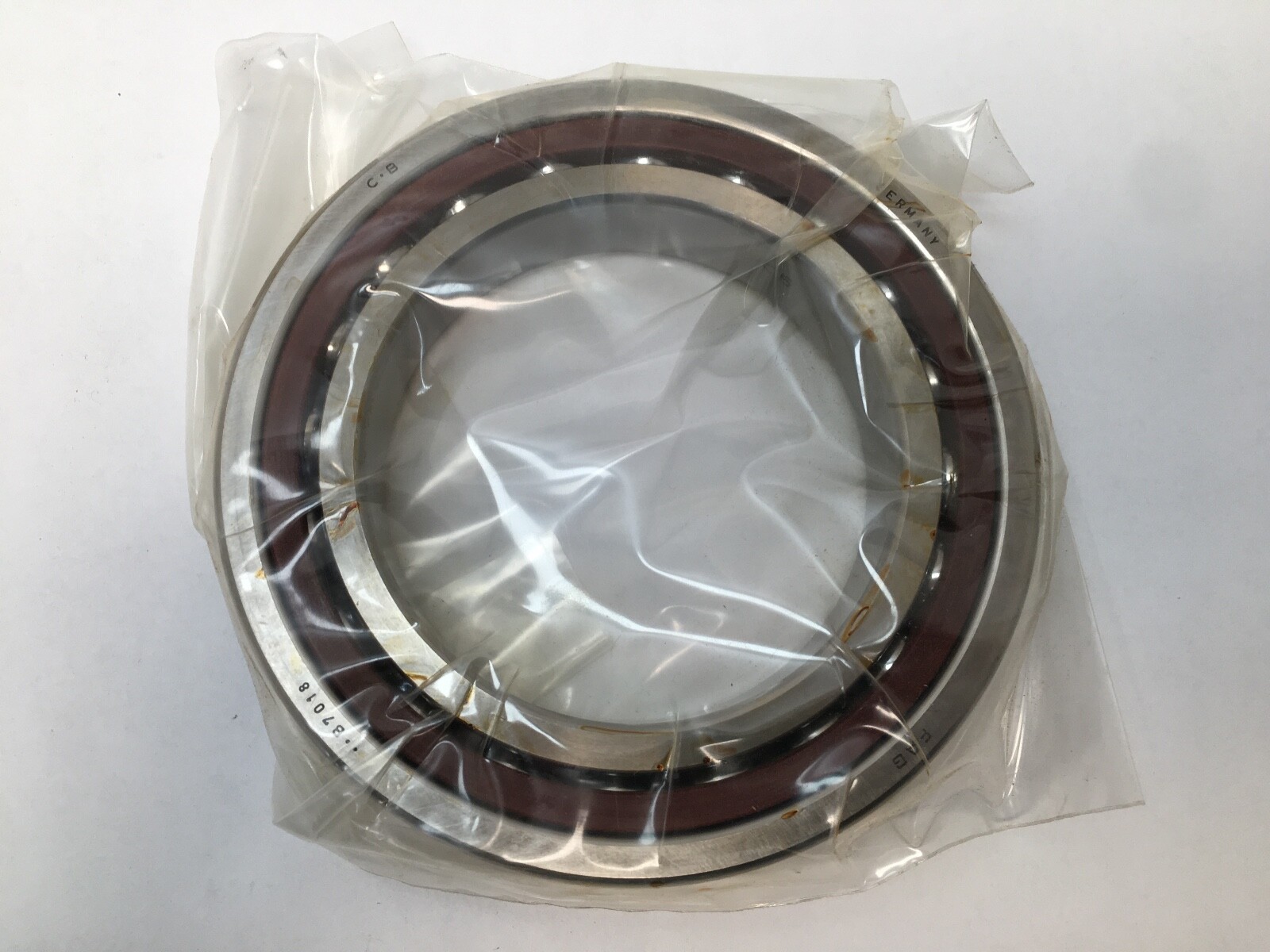

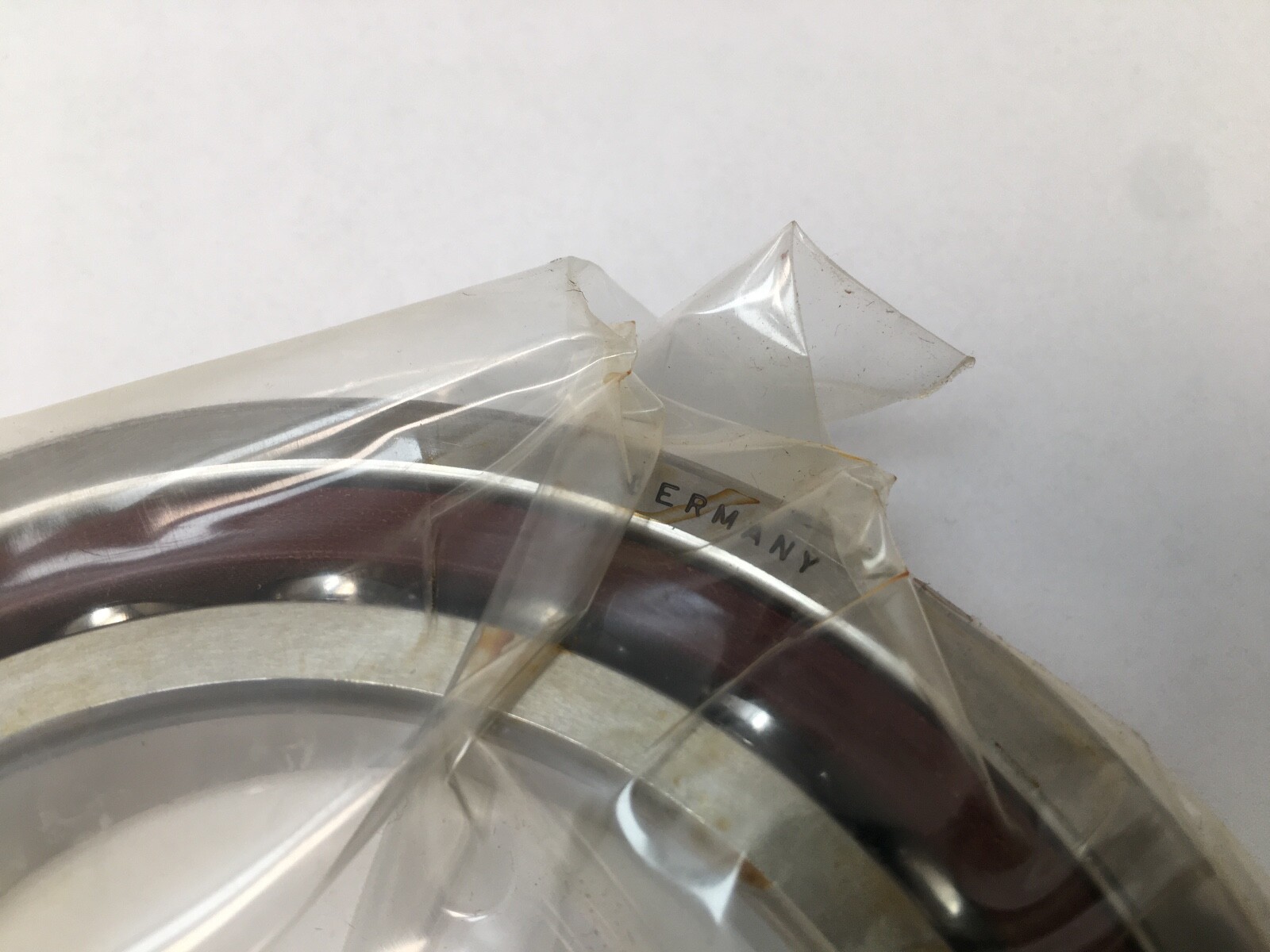

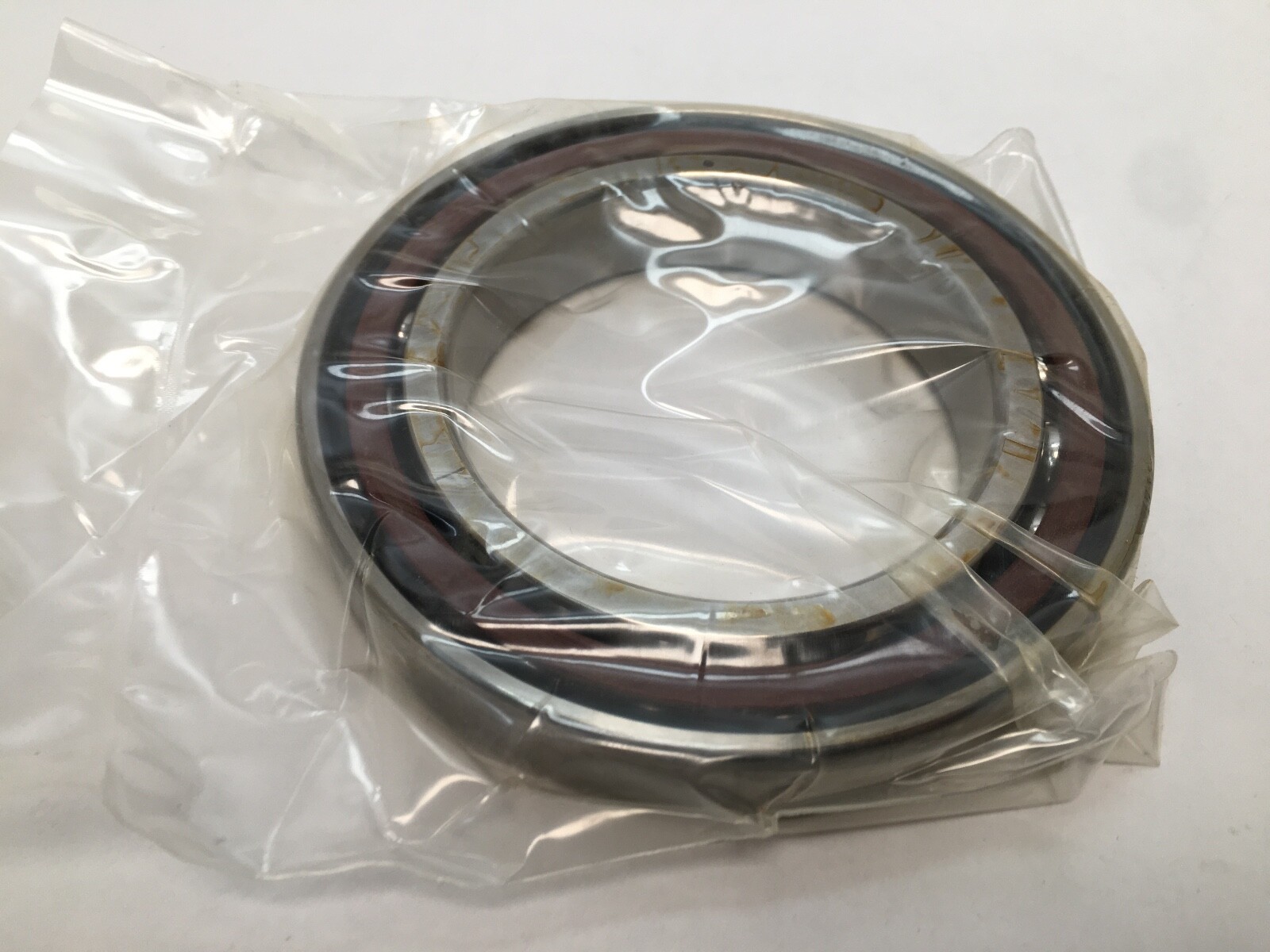

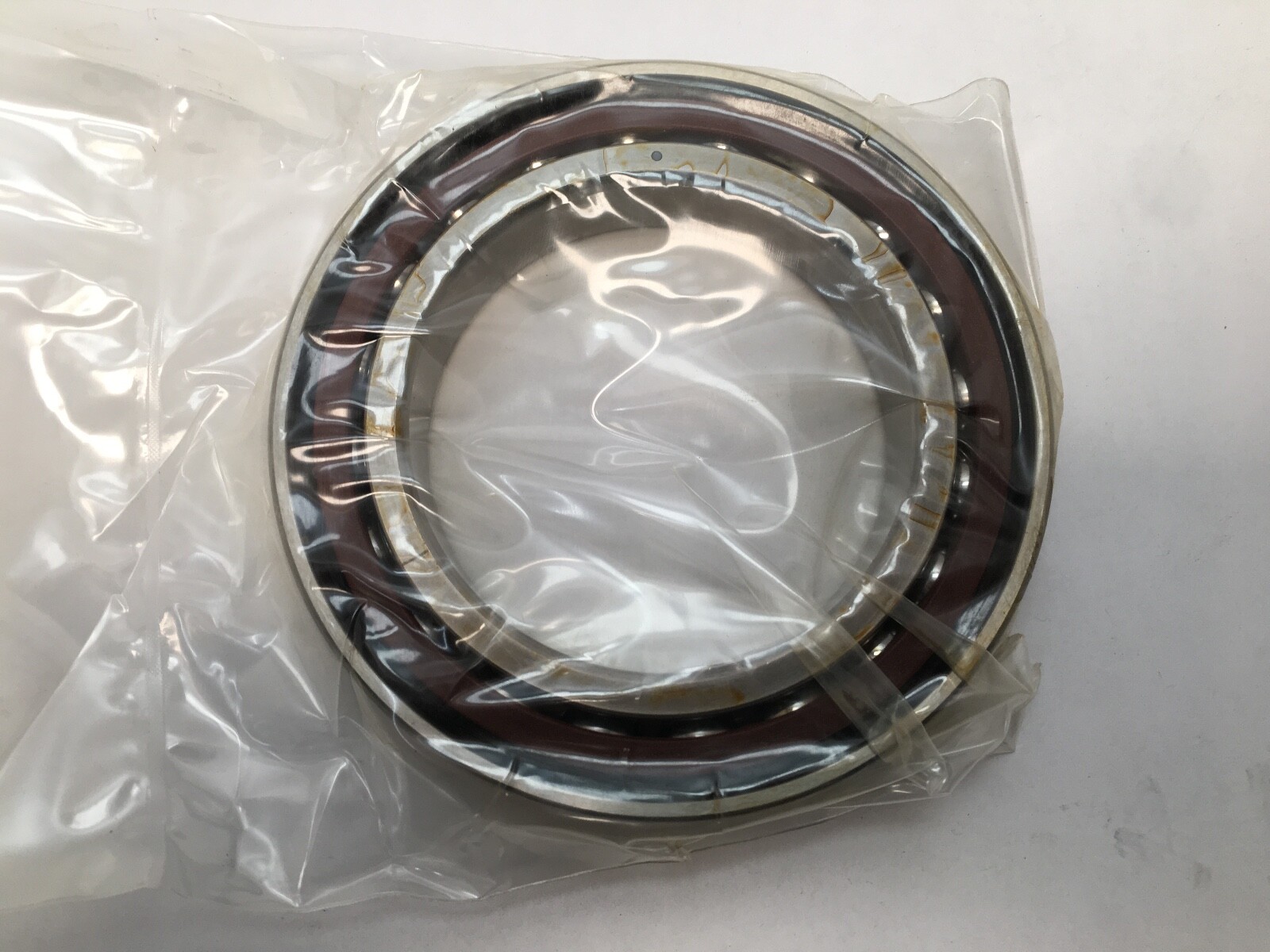

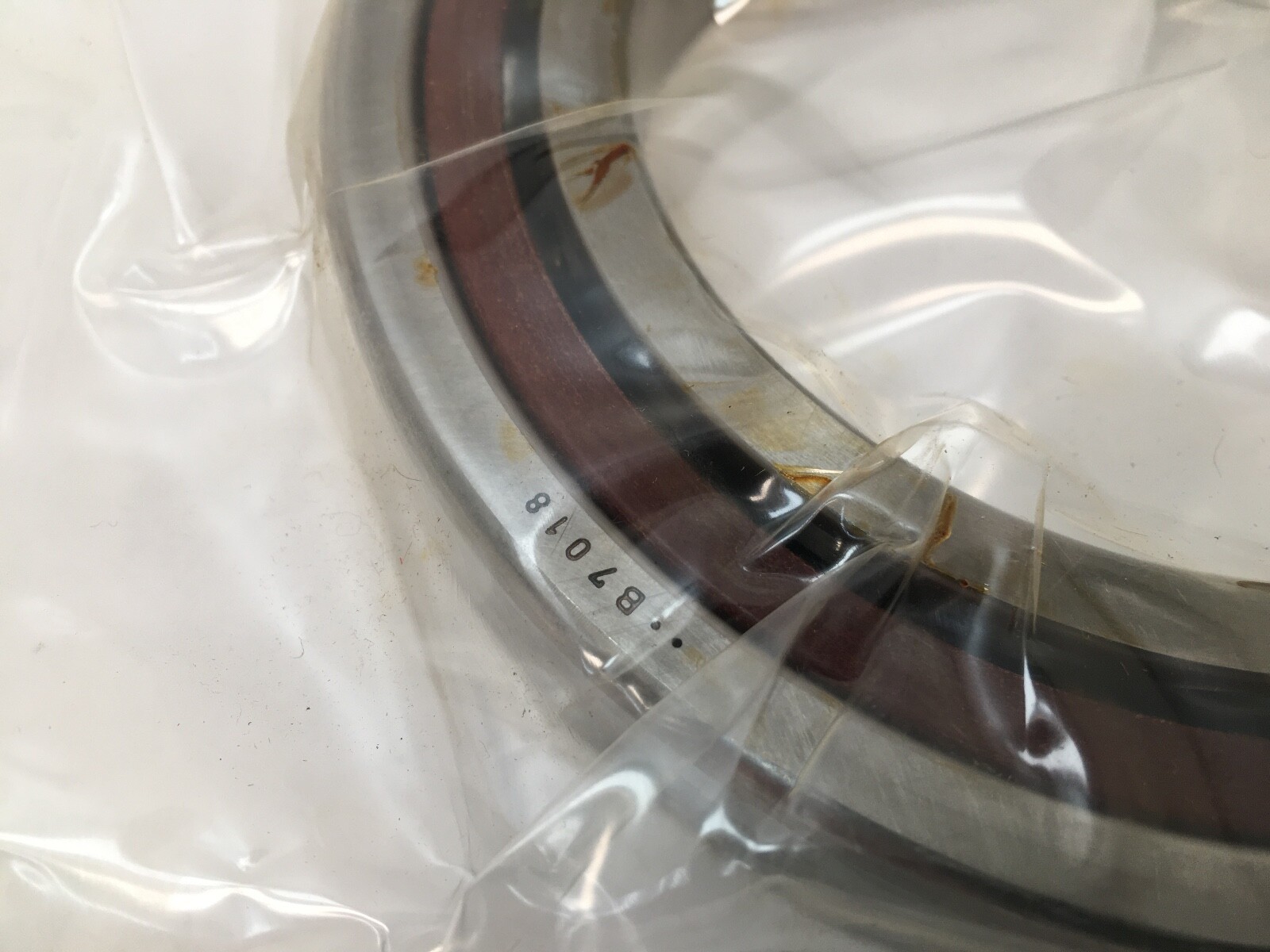

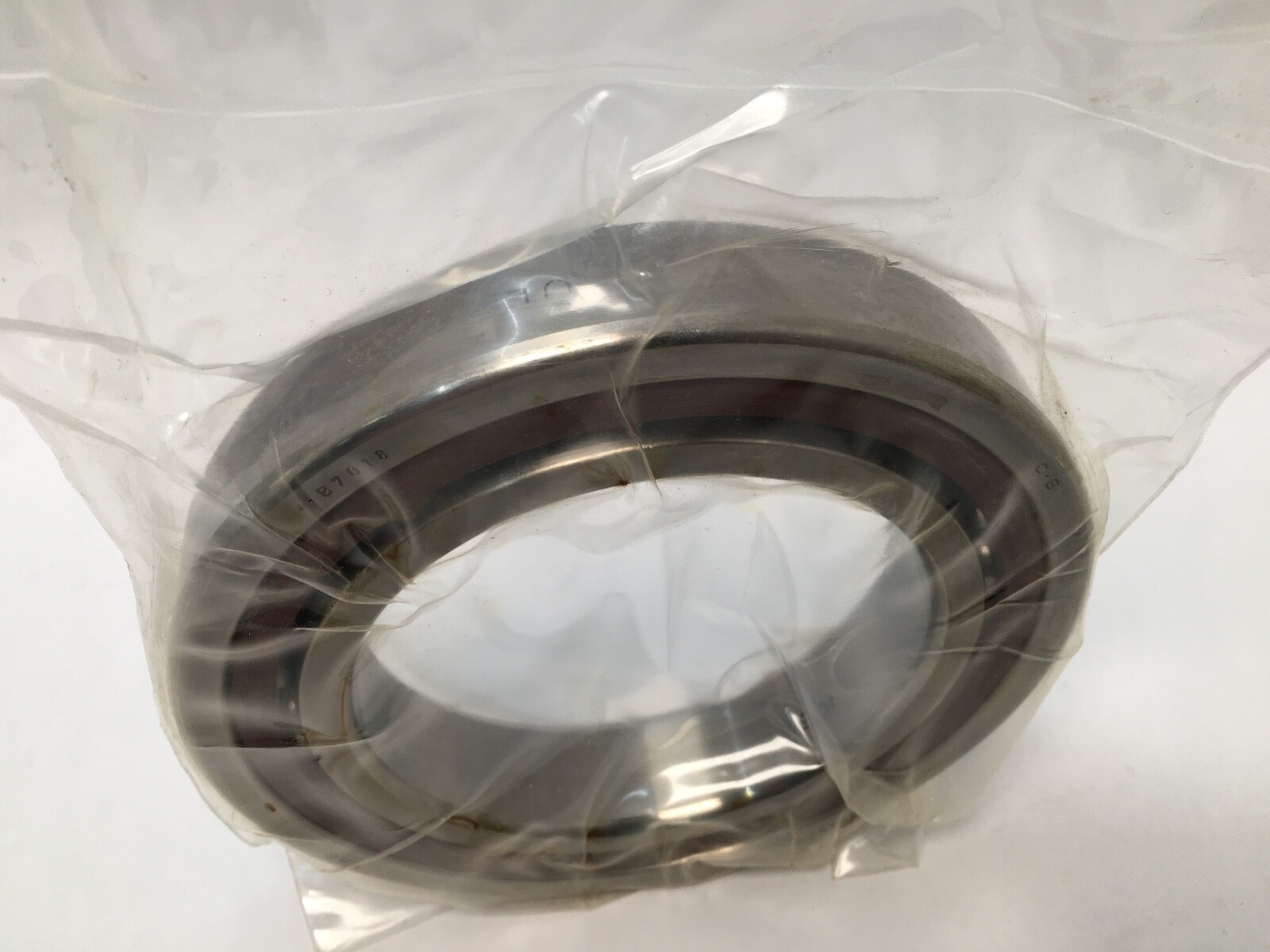

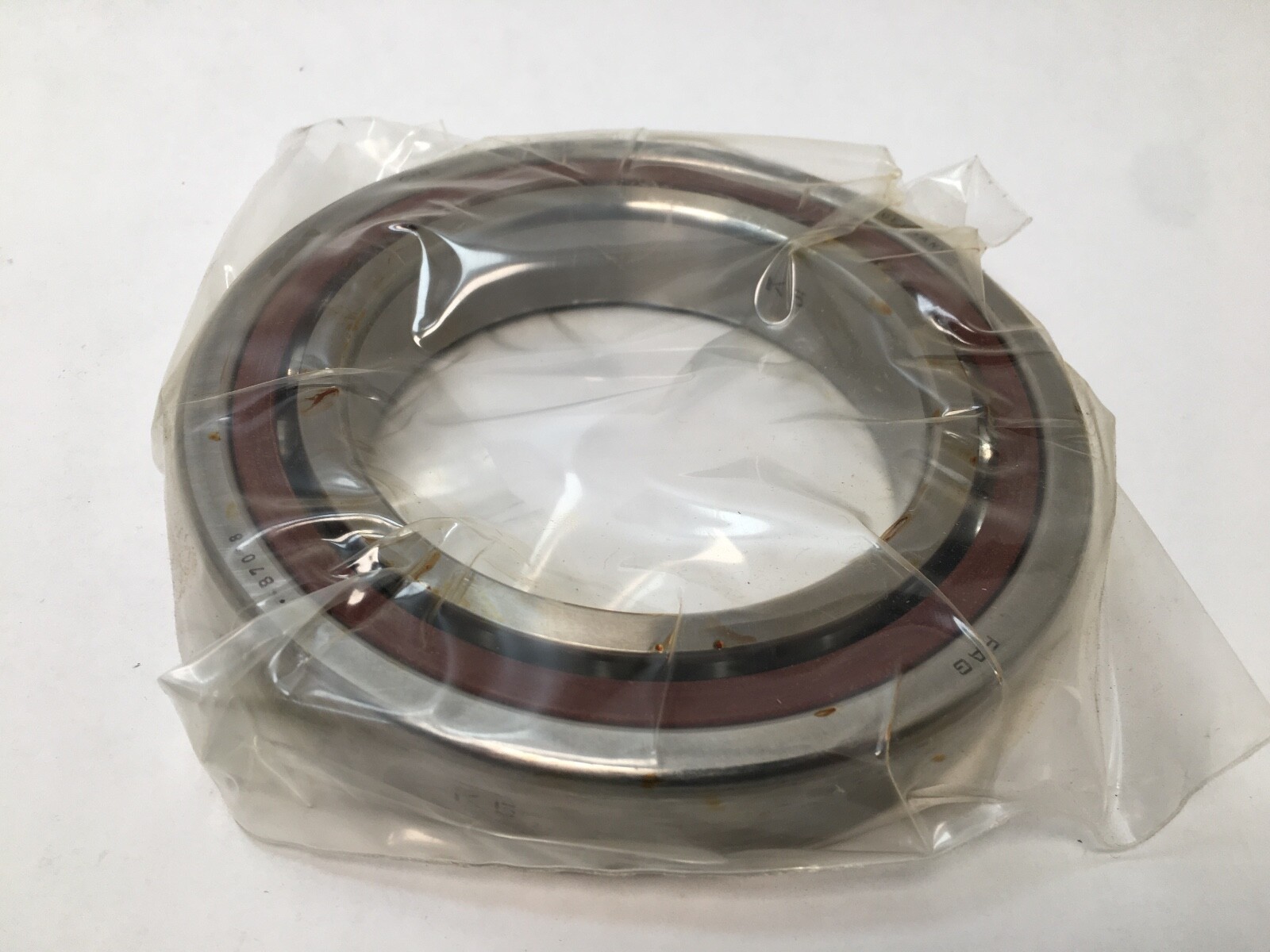

Angular contact spindle bearing, 90 x 140 x 24 mm, 15° contact angle, Light preload 437 N. FAG B7018-C-T-P4S-UL, phenolic cage, P4S, 10,000 rpm grease.
List Price
$298.33
9 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7018CTPAP4K5UL |
| Model | B7018C.TPA.P4S.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 140 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | B70 |
| Lubricant | grease or oil |
| Preload | Light (437 N) |
| Industry Terms | super precision spindle bearing, angular contact ball bearing, machine tool spindle bearing, universal matched bearing |
| Mpn Variants | B7018-C-T-P4S-UL, B7018C.TPA.P4S.UL, B7018CTPAP4K5UL, B-7018-C-TPA-P4-K5-UL, B7018C.TPA.P4.UL, B7018C |
| Precision Class | ABEC 7 / P4S |
| Additional Attributes | Fatigue load limit 5,000 N; shaft shoulder 100 mm; housing shoulder 131 mm; pressure cone apex distance 27.4 mm |
| Min Temp | -30 °C |
| Dynamic Load Rating | 78,000 N |
| Static Load Rating | 51,000 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 1.14 kg (2.51 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 10,000 rpm grease; 15,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (U) |
| Cross Reference 1 | SKF 7018 CD/P4A |
|---|---|
| Cross Reference 2 | NSK 7018C |
| Cross Reference 3 | Fafnir 2MM9118WI |
| Cross Reference 4 | Barden 118H |

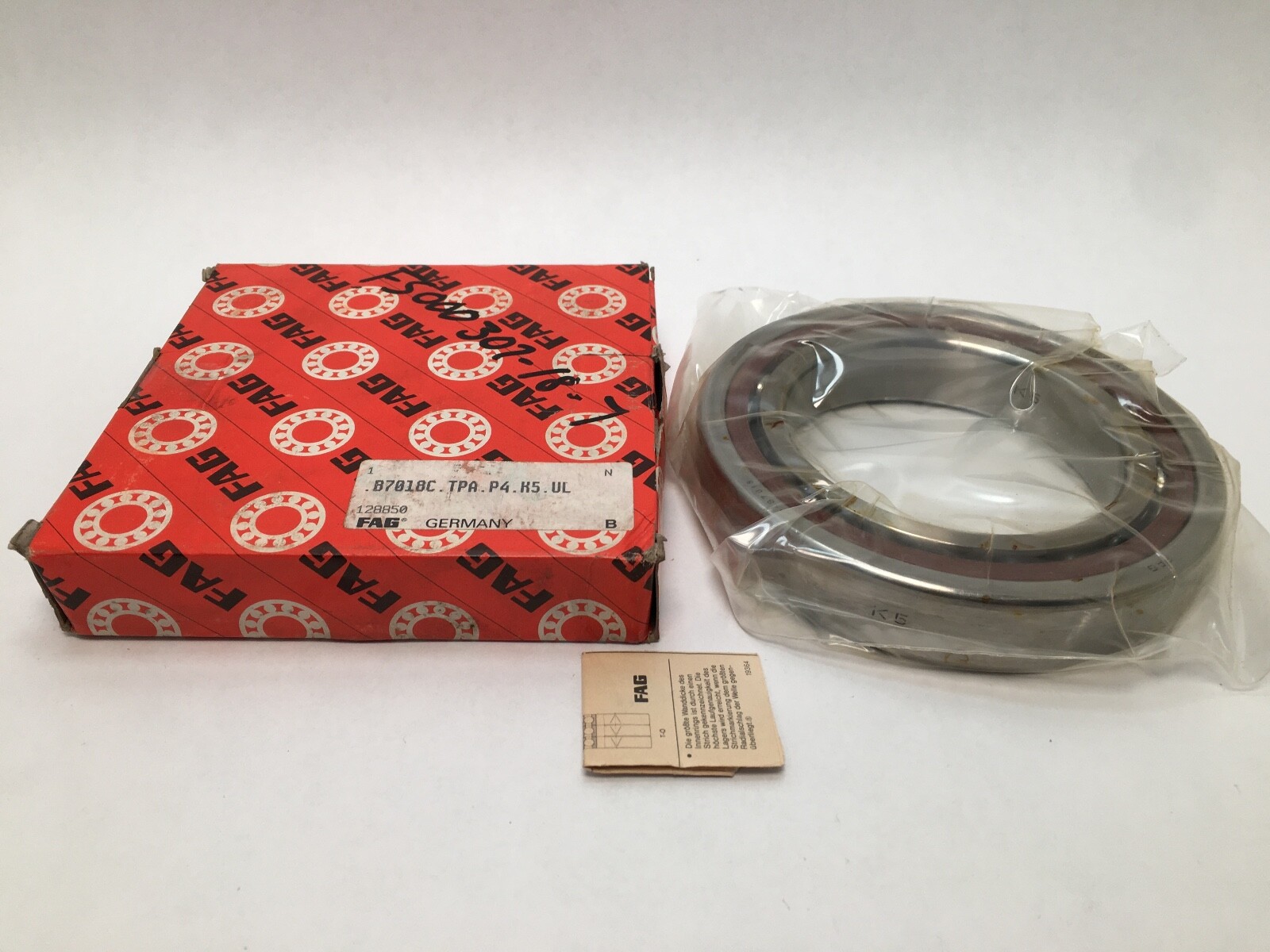

FAG B7018-C-T-P4S-UL super-precision spindle bearing, legacy designation B7018C.TPA.P4S.UL (carton marking B-7018-C-TPA-P4-K5-UL). Single-row angular contact ball bearing, universally ground, Light preload. Bore Diameter: 90 mm. Outside Diameter: 140 mm. Width: 24 mm. Contact Angle: 15°. Preload: Light (437 N).
B70 — FAG spindle bearing, ISO dimension series 10 (70xx).
18 — bore code, 18 x 5 = 90 mm.
C — 15° contact angle, for high speed with moderate axial rigidity.
T / TPA — laminated fabric (phenolic) cage. TPA is the legacy code; the current Schaeffler designation uses T.
P4S — FAG tolerance class, tighter than ISO P4.
U — universal design. The bearing can be paired back-to-back, face-to-face or in tandem with any other U bearing of the same size.
L — Light preload.
Dynamic Load Rating: 78,000 N. Static Load Rating: 51,000 N. Fatigue Load Limit: 5,000 N. Limiting Speed: 10,000 rpm grease; 15,000 rpm oil. Cage Material: Phenolic. Precision Class: ABEC 7 / P4S. Operating Temperature: -30 °C to 100 °C. Item Weight: 1.14 kg (2.51 lb). Lubricant: grease or oil.
Preload: Light, 437 N for a universal pair in back-to-back or face-to-face arrangement. The same size is also built with Medium (1,395 N) and Heavy (2,785 N) preload. Light preload gives the highest speed capability of the three.
Shaft shoulder diameter: 100 mm. Housing shoulder diameter: 131 mm. Distance between pressure cone apexes: 27.4 mm. Minimum chamfer dimension: 1.5 mm.
Unit Quantity: 1 Pc. Single universal bearing. Closure Type: Open. Number Of Rows: 1.
Same 90 x 140 x 24 mm envelope and 15° contact angle: SKF 7018 CD/P4A, NSK 7018C, Fafnir 2MM9118WI, Barden 118H. Schaeffler lists B7018-C-T-P4S-UL as the current designation replacing B7018C.TPA.P4.UL and B7018C.T.P4S.UL.
