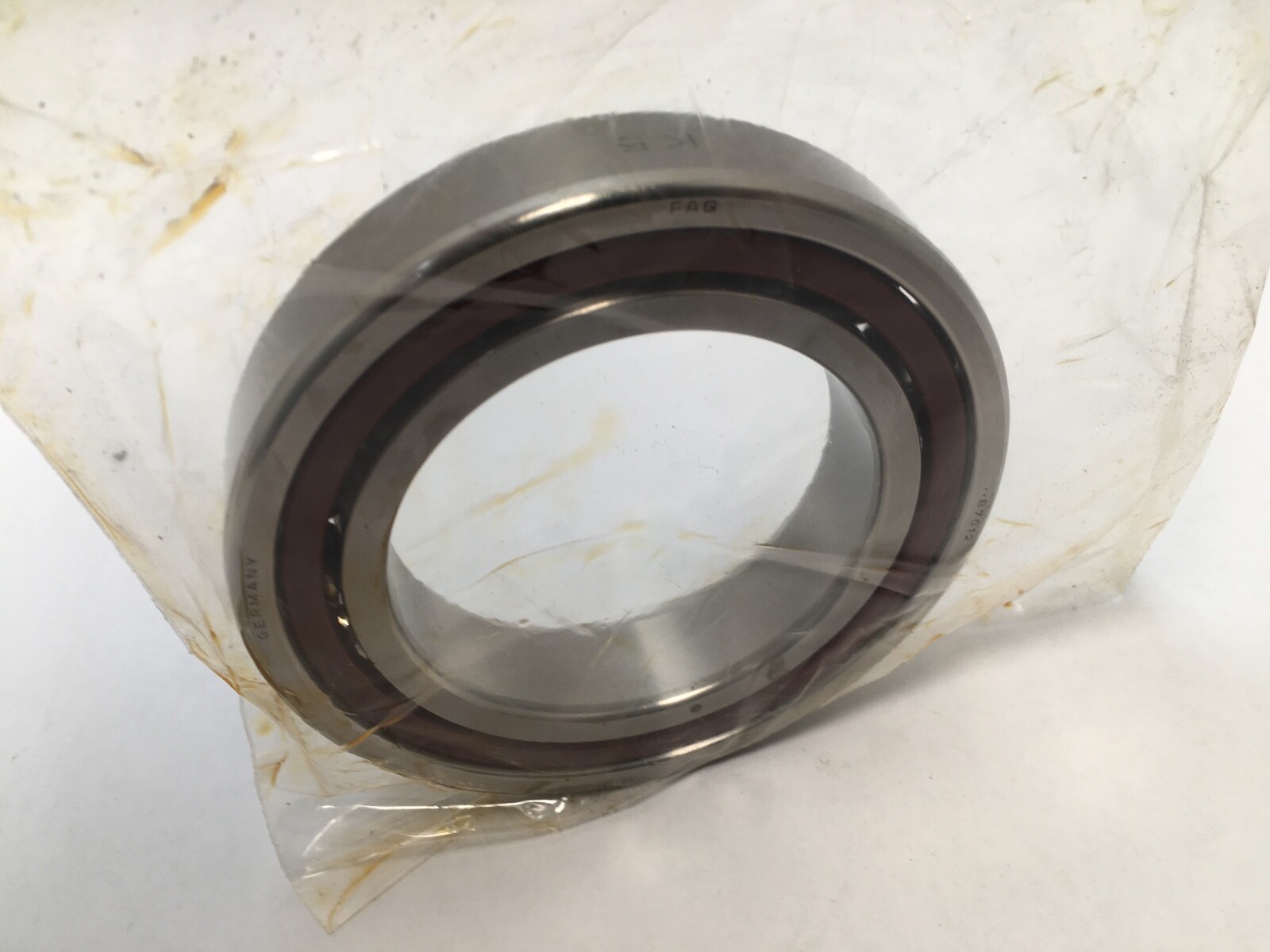

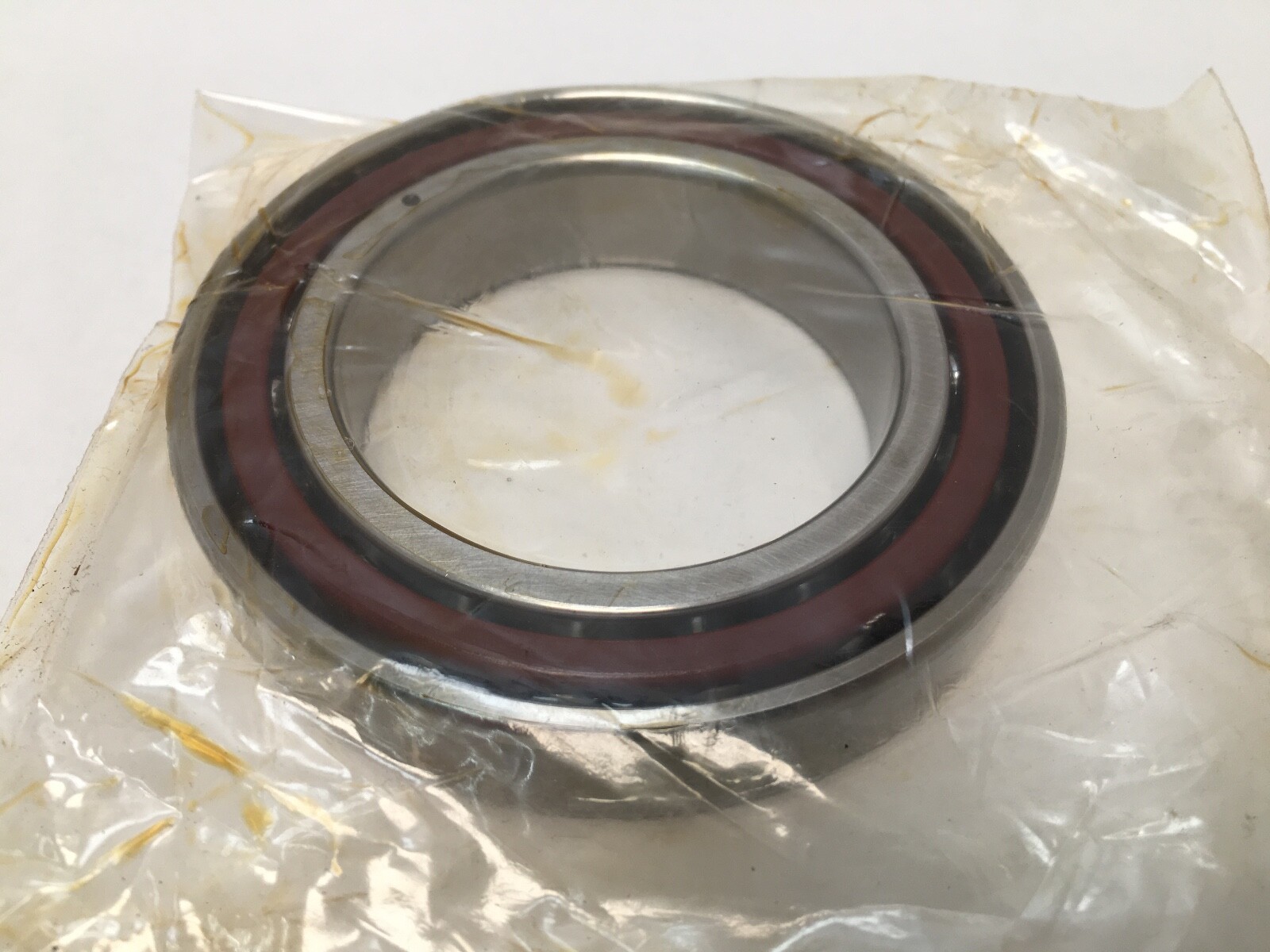

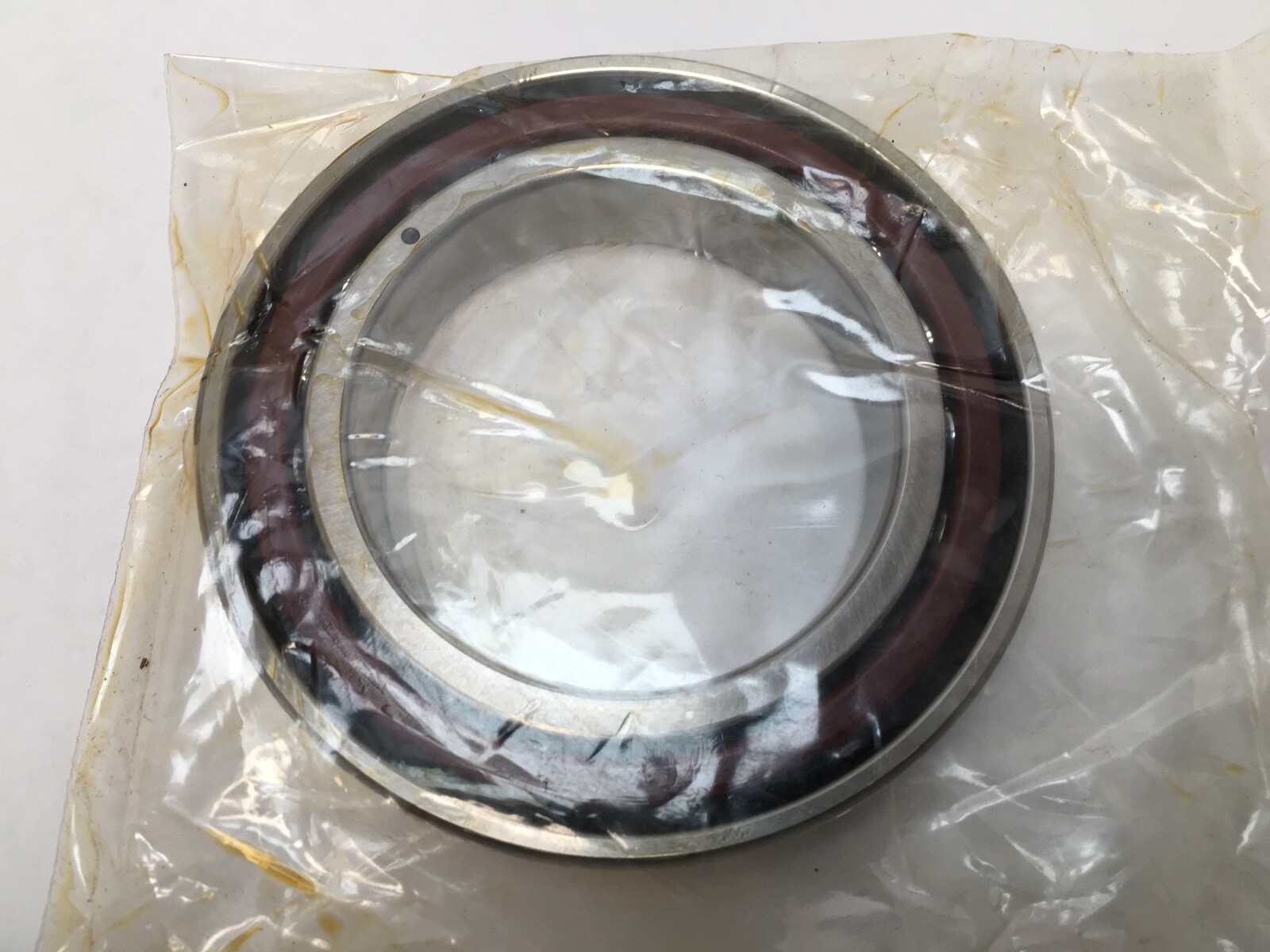

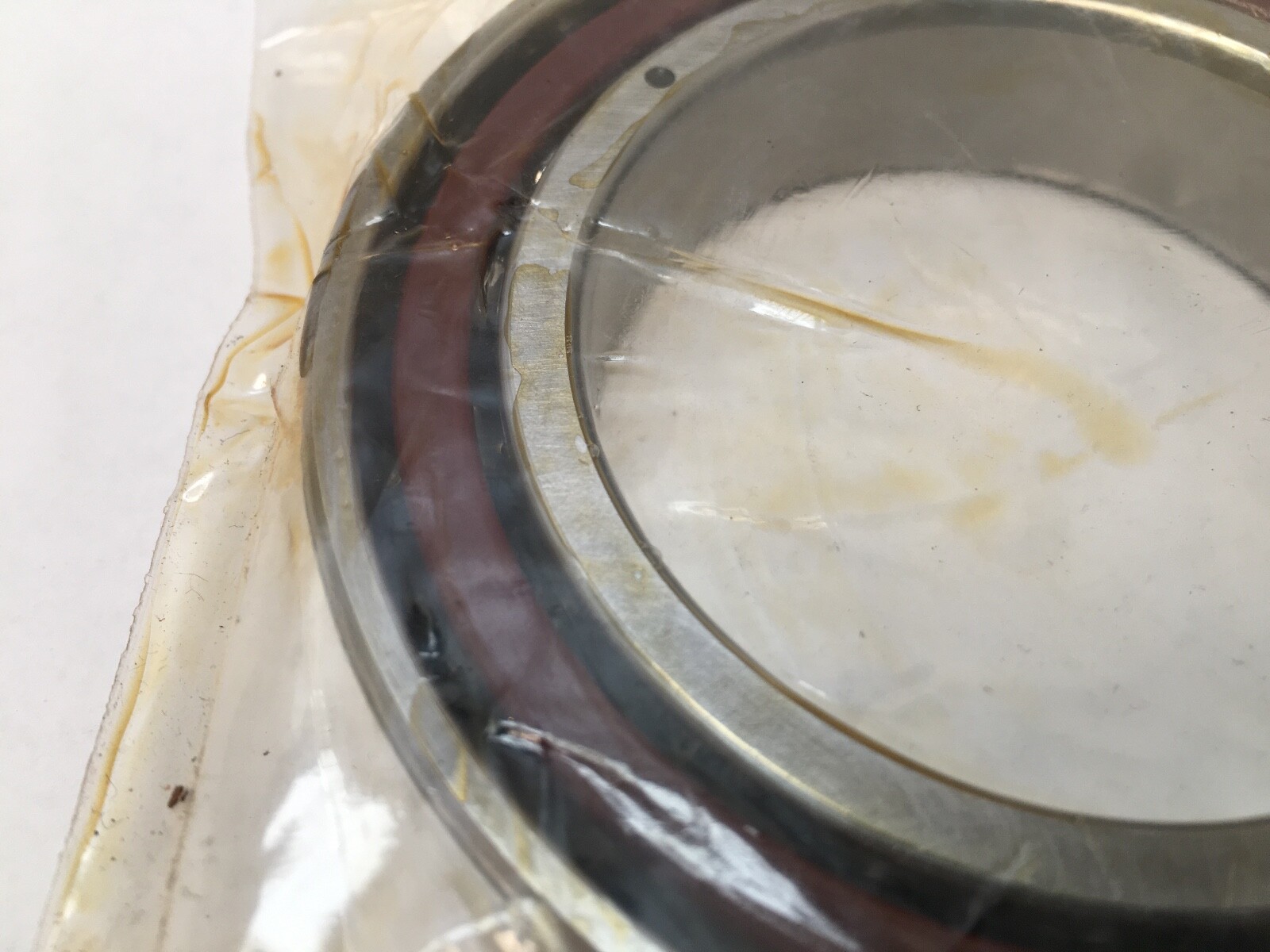

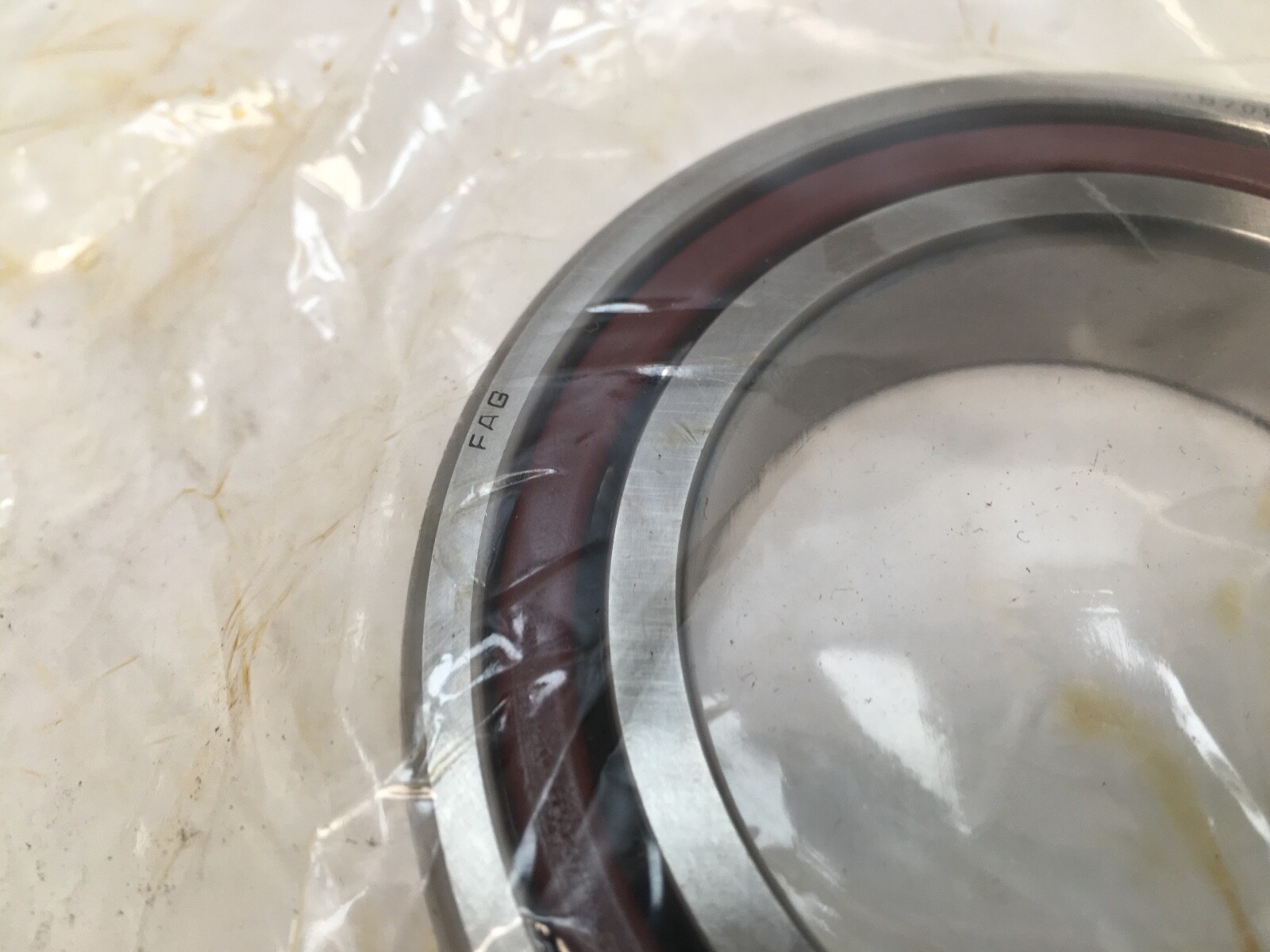

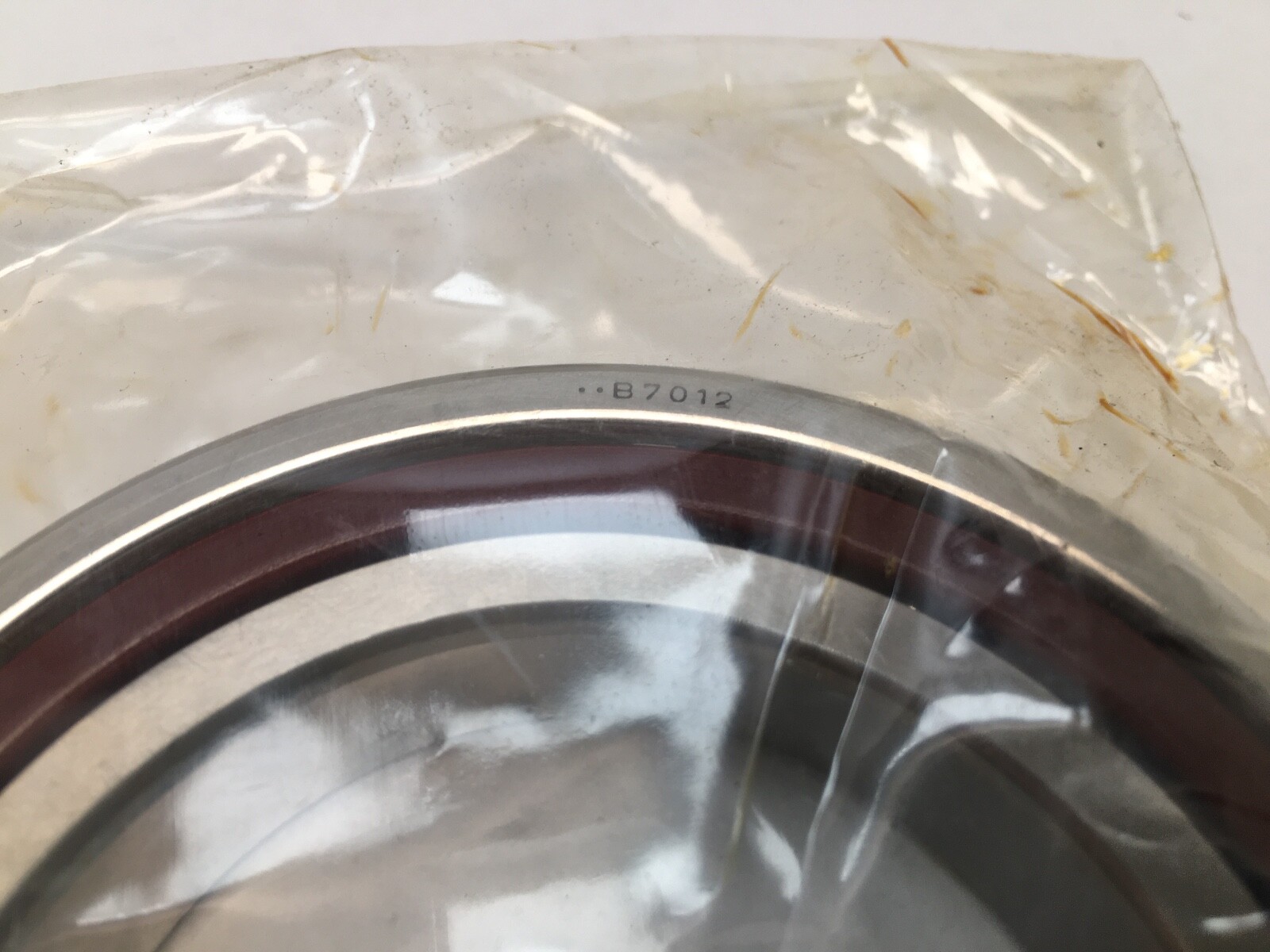

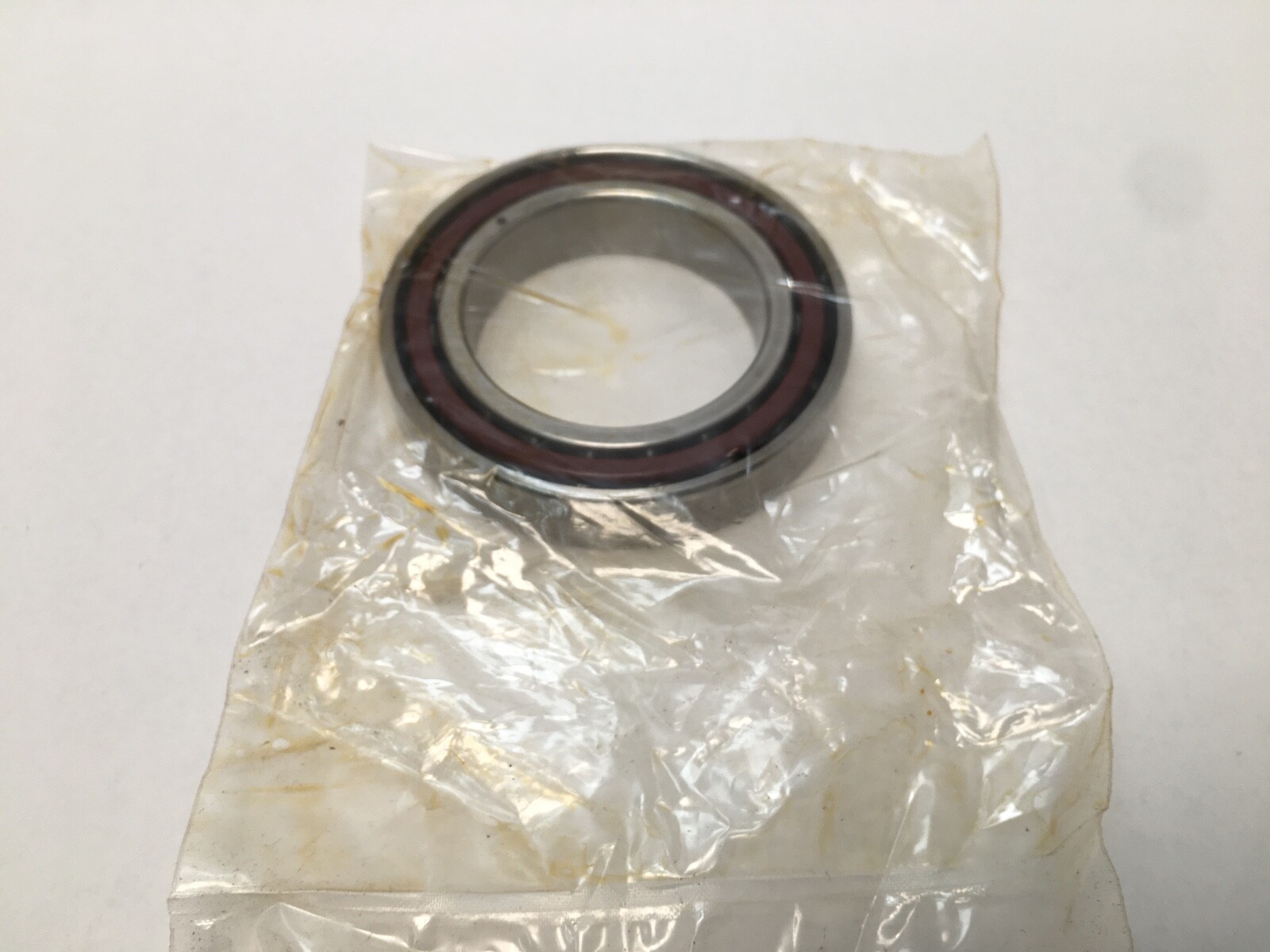

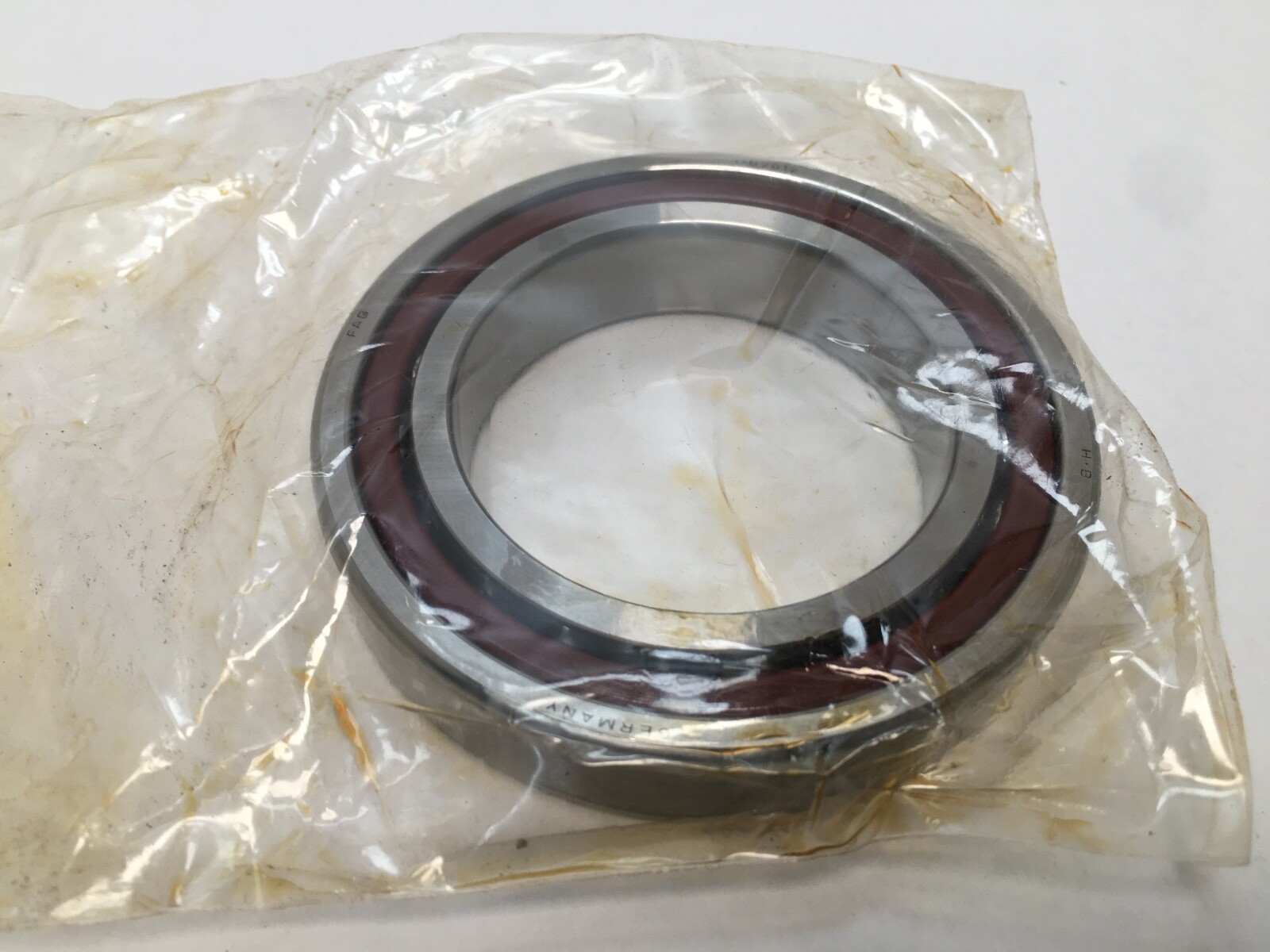

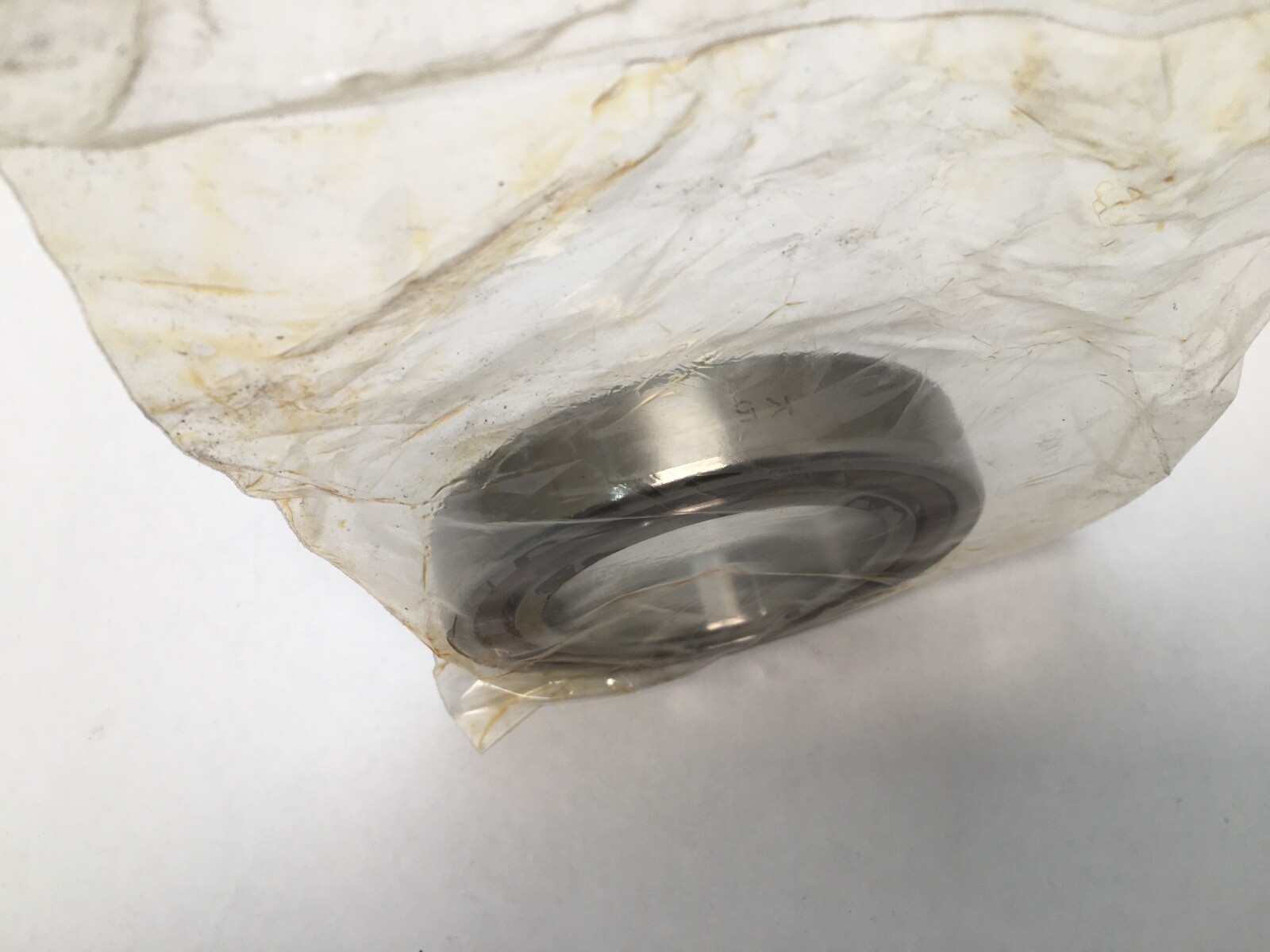

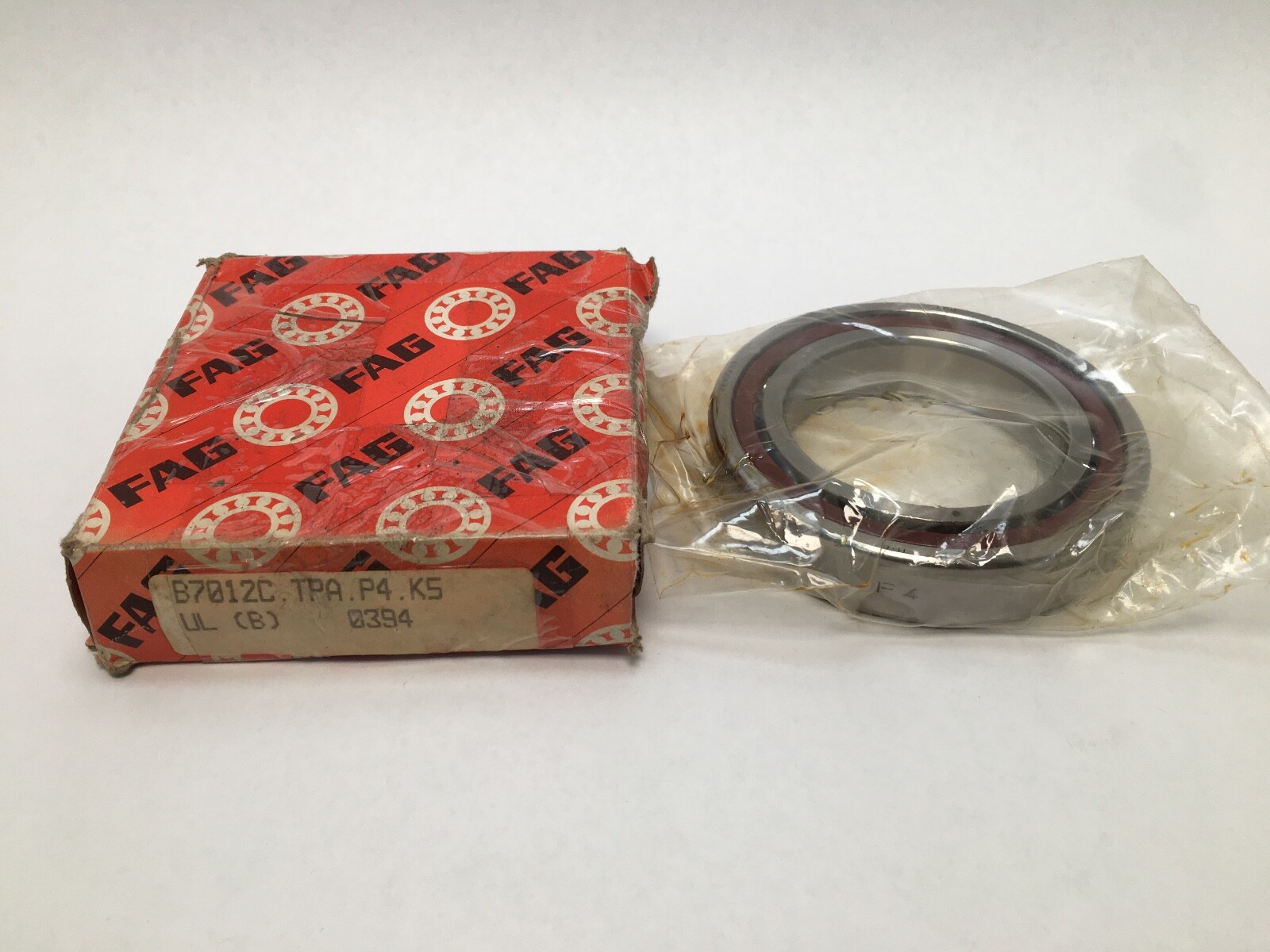

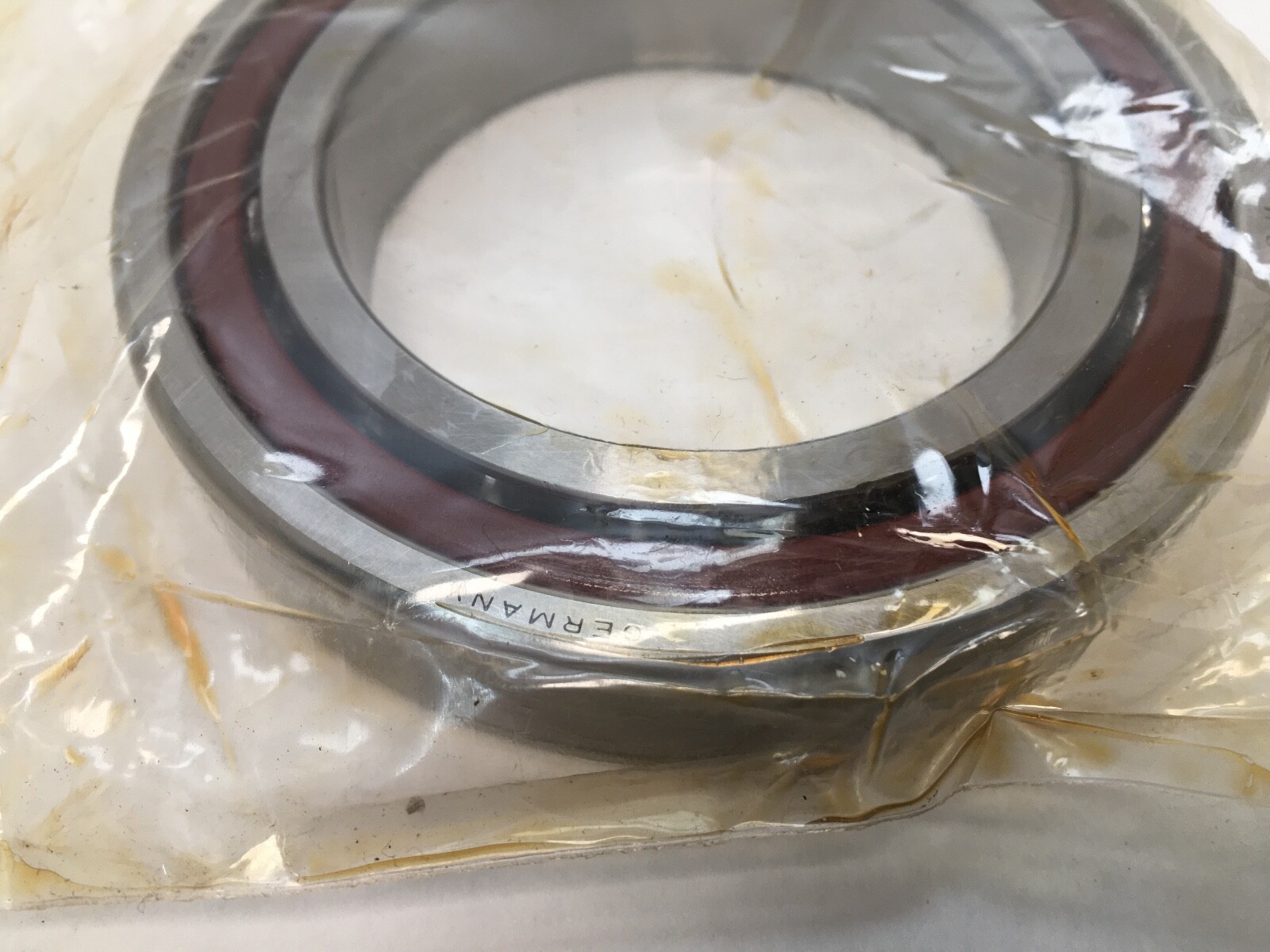

FAG B7012C.TPA.P4S super-precision spindle angular contact ball bearing, 60 x 95 x 18 mm, 15° contact angle, open, machined phenolic cage, 18,000 rpm.
List Price
$84.13
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing — 60 mm ID, 95 mm OD, 18 mm Width, 15°, Inner-Ring-Guided Phenolic Cage, GMN HG Precision, Universal Light Preload$129.50
Angular Contact Ball Bearing Matched Duplex Pair 60 x 95 x 18 mm, 36 mm Total Width, 15° Contact Angle, ISO Class 4 ABEC 7, Open$152.20
Angular Contact Ball Bearing - Straight Bore, 60 mm ID, 95 mm OD, 18 mm Width, Open, 15° Contact Angle, ABEC 7 / P4$189.02
Super-Precision Spindle Bearing, 60x95x18 mm, 15° Contact Angle, Medium Preload, P4S, Phenolic Cage$227.30| MFR / Brand | FAG |
|---|---|
| MPN | B7012C.TPA.P4S |
| Model | B 7012 C TPA P4 K5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | B70 |
| Base Number | B7012 |
| Industry Terms | Spindle bearing, machine tool spindle bearing, super precision |
| Application Types | Machine tool main spindles, grinding spindles |
| Bore Shaft Size | 60 mm |
| Mpn Variants | B7012C.TPA.P4S, B7012-C-TPA-P4S, B7012CTPAP4K5, B7012C-TPA-P4-K5 |
| Cage Type | Machined |
| Dynamic Load Rating | 23.6 kN |
| Static Load Rating | 17.6 kN |
| Precision Rating | P4S |
| Rolling Elements | Balls |
| Cage Material | Fabric-base laminate phenolic |
| Limiting Speed | 18,000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | B7012C.TPA.P4S |
| Closure Type | Open |
| Cross Reference 1 | SKF 7012 CD/P4A |
|---|---|
| Cross Reference 2 | GMN S6012 C TA A7 |
| Cross Reference 3 | FAG B7012-C-T-P4S-UL (related, universal light preload) |
| Cross Reference 4 | FAG B7012-C-2RSD-T-P4S-UL (related, sealed) |
FAG B7012C.TPA.P4S is a single-row super-precision spindle angular contact ball bearing, open on both faces. Series: B70. Base Number: B7012. Bore Diameter: 60 mm. Outside Diameter: 95 mm. Overall Width: 18 mm. Contact Angle: 15°. Cage Type: Machined. Cage Material: Fabric-base laminate phenolic. Closure Type: Open. Country of origin: Germany. Unit Quantity: 1 Pc.
B70 — Schaeffler’s spindle bearing range.
C — 15° contact angle, the high-speed execution.
TPA — machined cage of fabric-base laminate phenolic.
P4S — dimensional accuracy to P4 with running accuracy to P2, the class used for machine tool main spindles.
Dynamic Load Rating: 23.6 kN. Static Load Rating: 17.6 kN. Limiting Speed: 18,000 rpm. Contact Angle: 15°. Cage Type: Machined. Cage Material: Fabric-base laminate phenolic. Precision Class: P4S. Rolling Elements: Balls. Number Of Rows: 1. Closure Type: Open. Bearing Material: Bearing Steel. Harmonization Code: 8482.10.50.
Bore Diameter: 60 mm. Outside Diameter: 95 mm. Overall Width: 18 mm. Bore Type: Straight.
Same 60 x 95 x 18 mm envelope: SKF 7012 CD/P4A, GMN S6012 C TA A7. Related: FAG B7012-C-T-P4S-UL, a universal-light-preload execution, and FAG B7012-C-2RSD-T-P4S-UL, the sealed version. Searchable forms: B7012C.TPA.P4S, B7012-C-TPA-P4S, B7012CTPAP4K5, B7012C-TPA-P4-K5, B 7012 C TPA P4 K5.
Contact Angle: 15°, from the C in the designation.
A machined cage of fabric-base laminate phenolic (TPA).
Dynamic Load Rating: 23.6 kN. Static Load Rating: 17.6 kN.
