Availability:
2 in stock

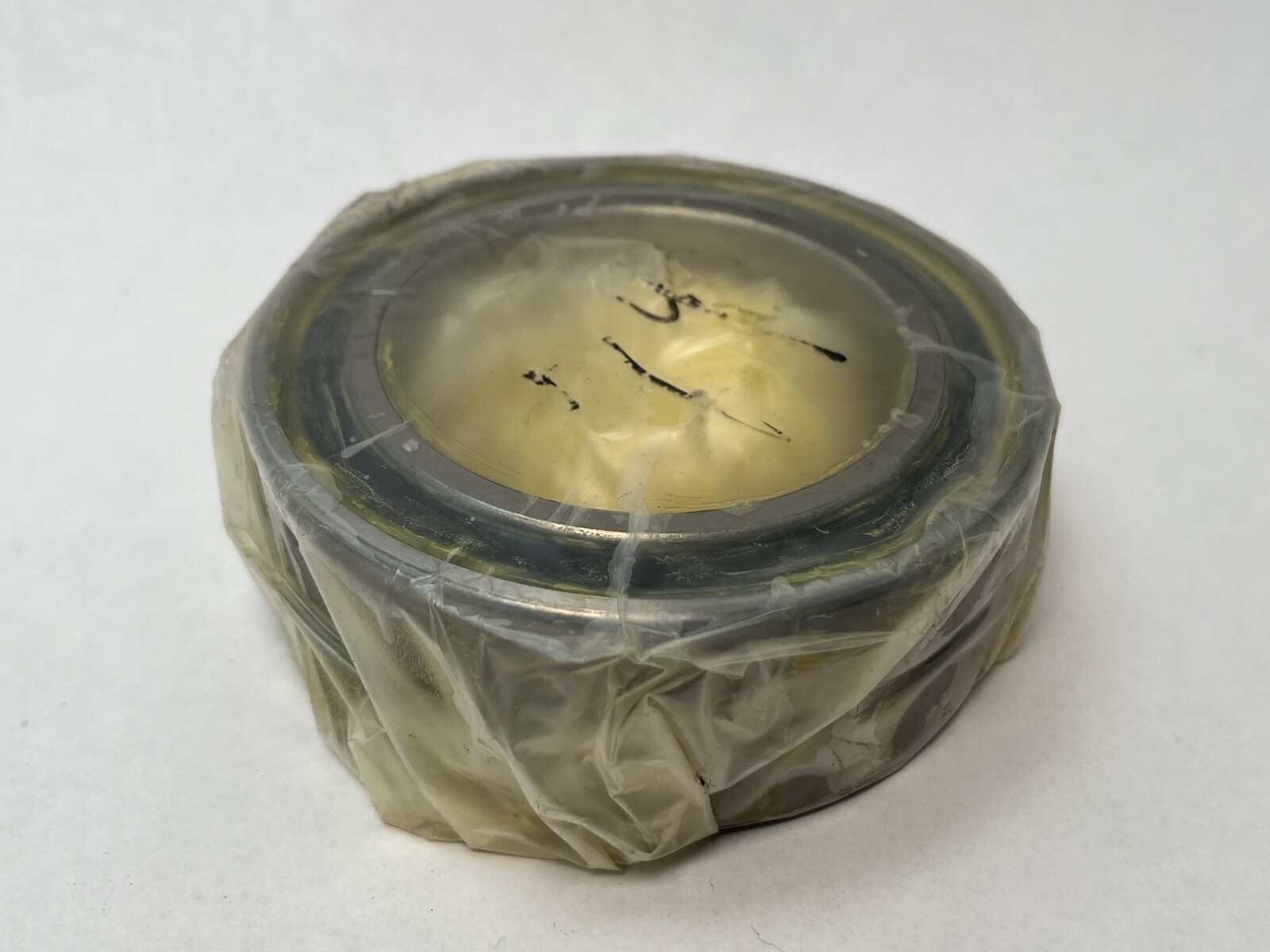

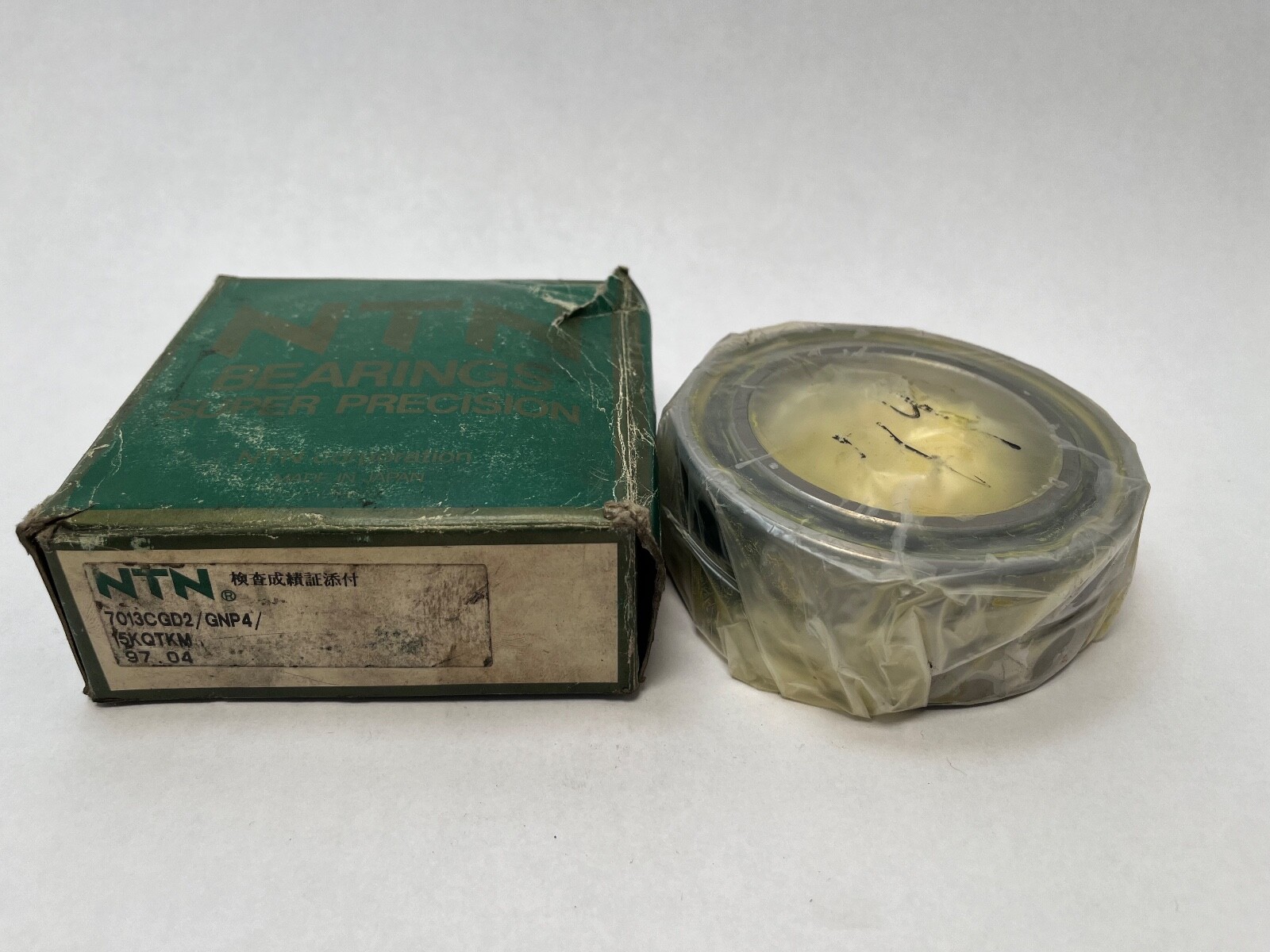

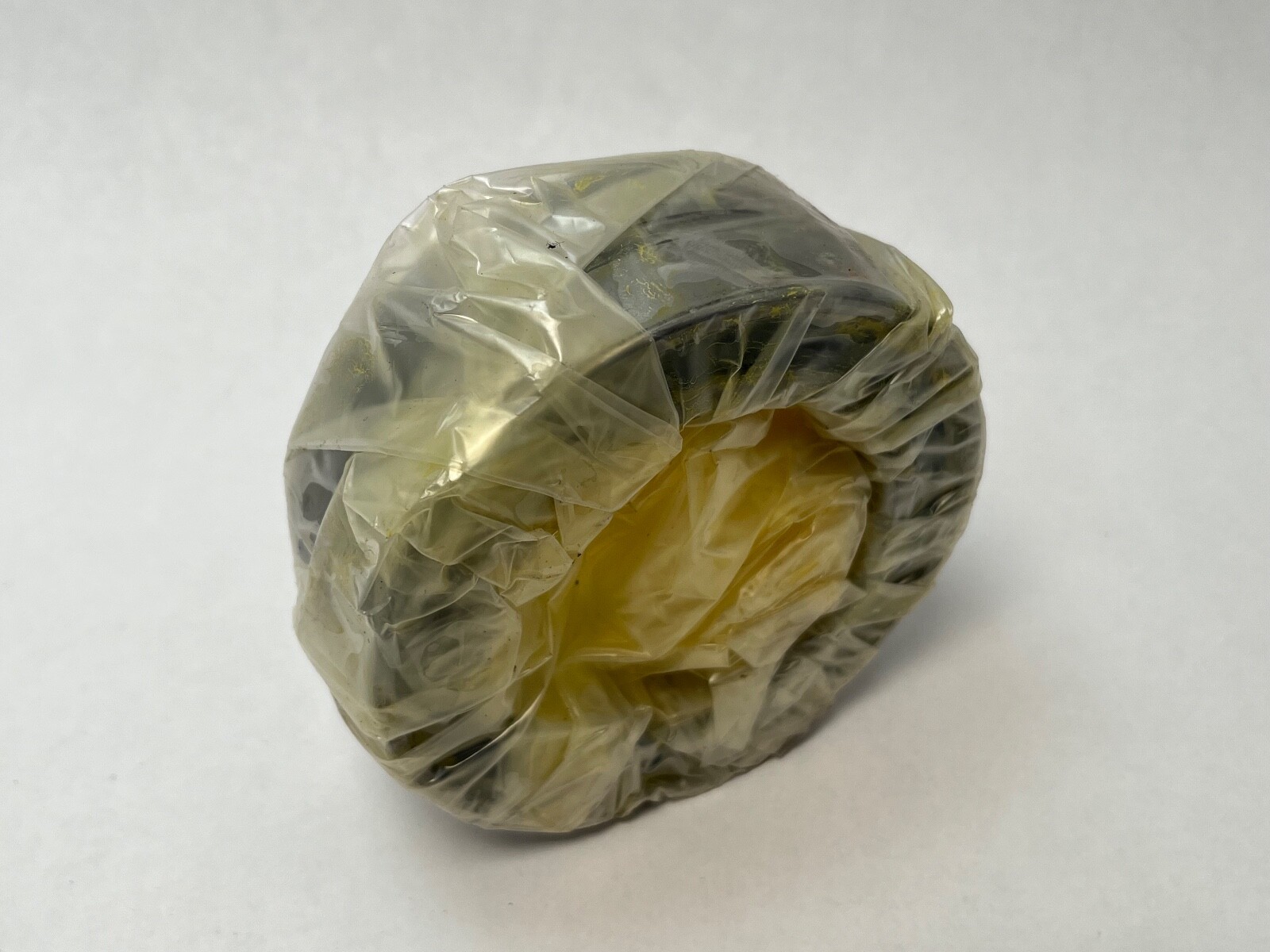

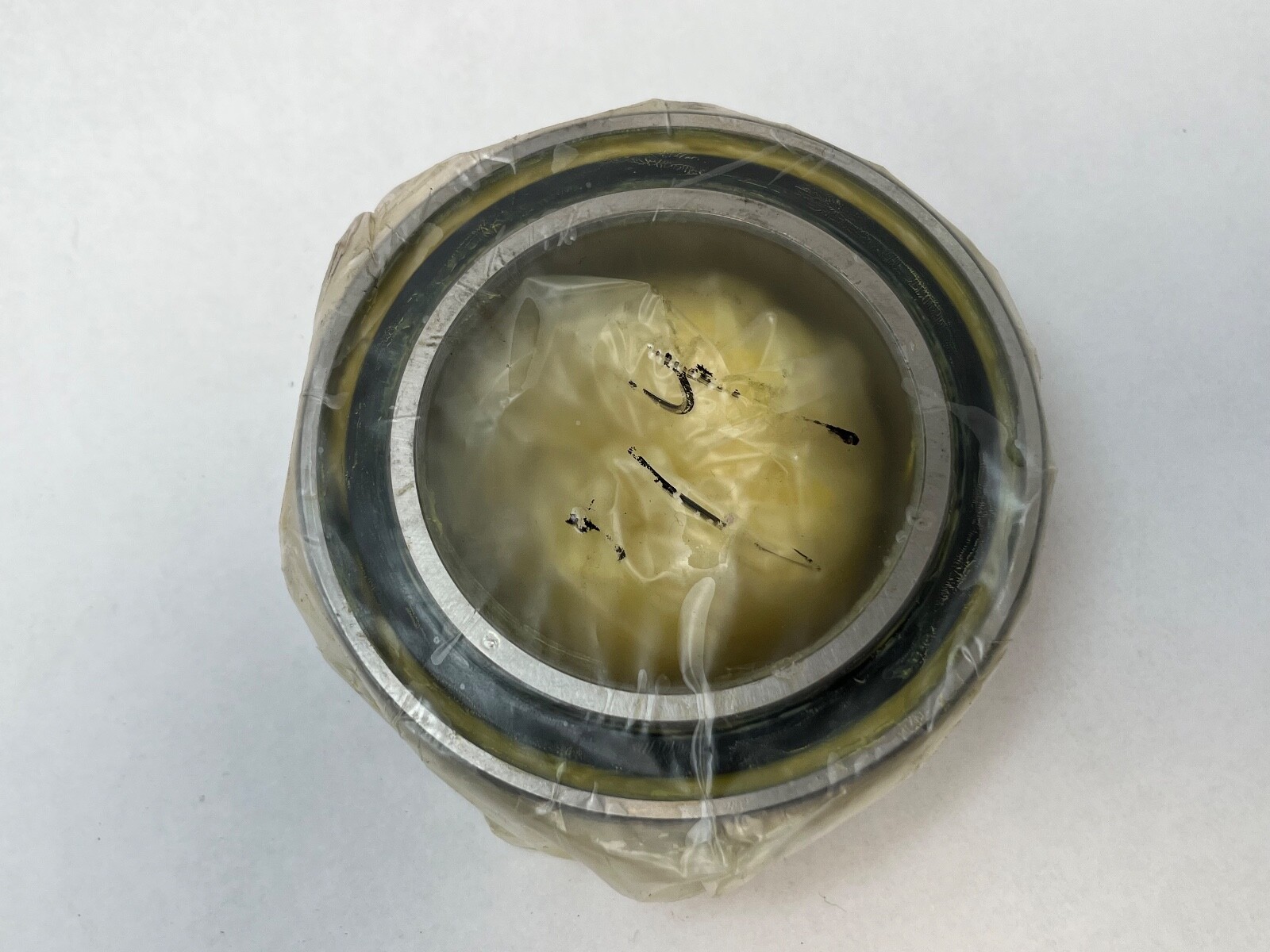

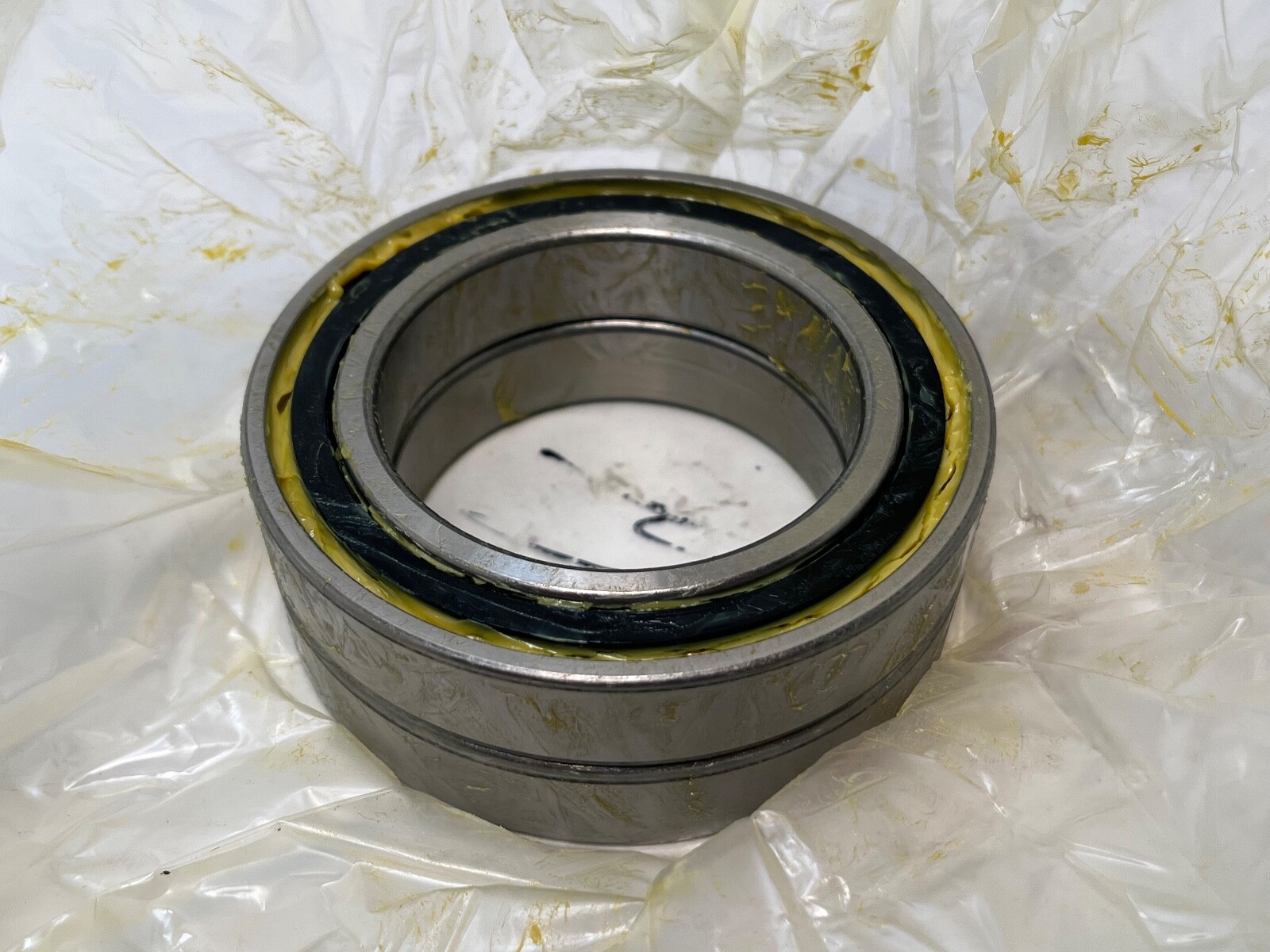

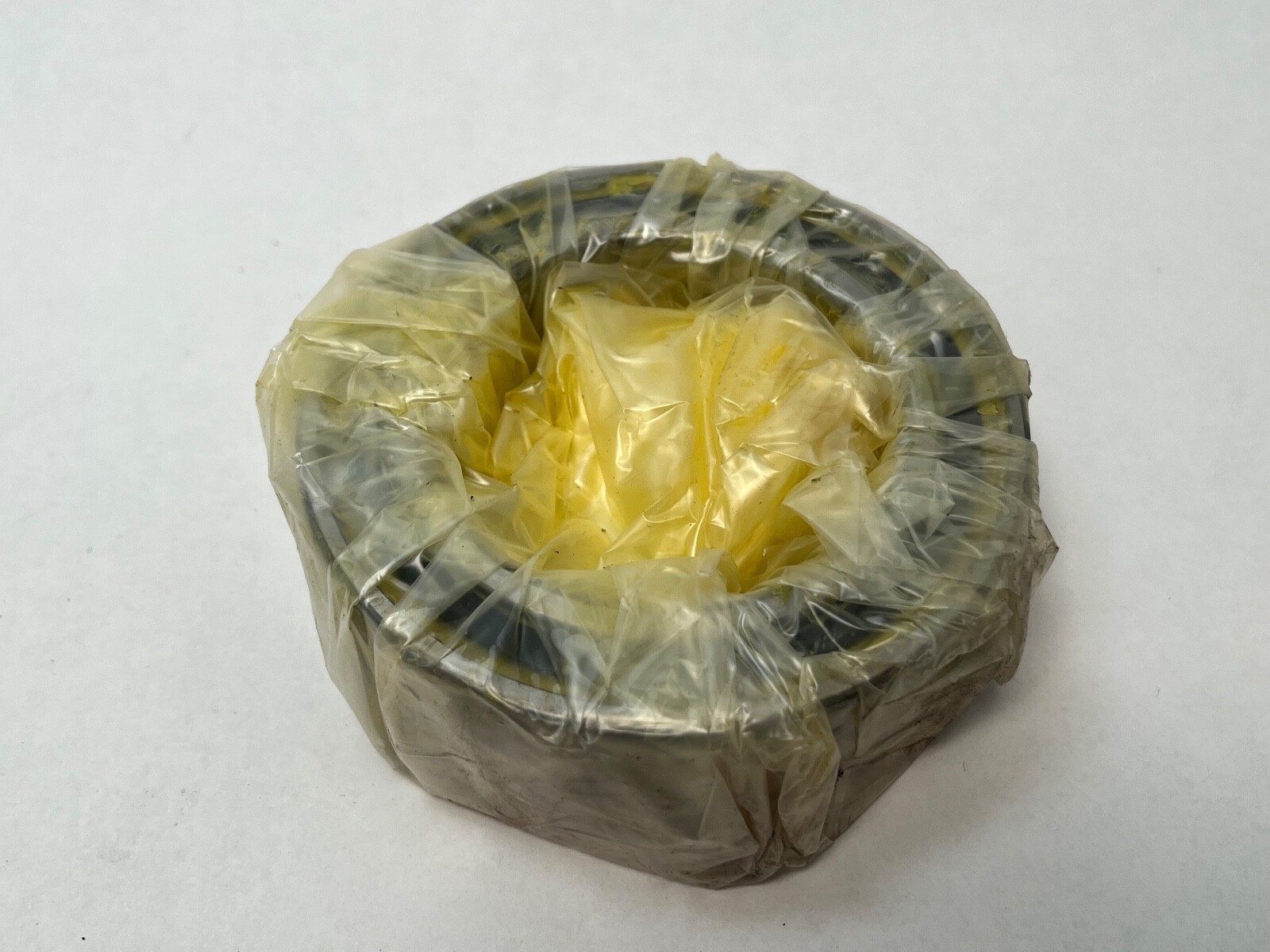

Matched duplex pair of angular contact ball bearings, 60 x 95 x 18 mm each, 15 degree contact angle, ISO Class 4 ABEC 7, 11,000 rpm grease rated.
List Price
$152.20
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| Model | 7012 C GD2 GN P4 15KQTKM 2MM9112 WI CR DU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7000 |
| Base Number | 7012 |
| Total Width | 36 mm |
| Overall Width | 18 mm |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 7012C; 7012 C GD2 GN P4; 15KQTKM; 2MM9112 WI CR DU |
| Arrangement Configuration | Matched duplex pair, universally ground |
| Precision Class | ISO Class 4 |
| Additional Attributes | r min 1.1 mm; r1 min 0.6 mm; da min 67.0 mm; Da max 88.0 mm; Db max 90.5 mm; effective load centre a 19.5 mm; calculation factor 15.7 |
| Min Temp | -40 °C |
| Dynamic Load Rating | 35.00 kN (7,850 lbf) |
| Static Load Rating | 30.50 kN (6,850 lbf) |
| Precision Rating | ABEC 7 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Limiting Speed | 11000 |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Back-to-back, face-to-face or tandem |
| Design Units | Metric |
| Part Number | 7012CGD2GNP4 |
This is a matched duplex pair of NTN 7012CGD2GNP4 single-row angular contact ball bearings, each in the 60 x 95 x 18 mm envelope. Bore / Shaft Size: 60 mm. Outside Diameter: 95 mm. Overall Width: 18 mm each. Total Width: 36 mm for the pair. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Series: 7000. Base Number: 7012. Design Units: Metric. Material: High carbon chrome bearing steel.
7012 — the ISO 7012 size, 60 x 95 x 18 mm.
C — a 15° contact angle.
GD2 — universally ground for duplex mounting, so the pair sets back-to-back, face-to-face or in tandem.
P4 — ISO Class 4, ABEC 7.
The 15° contact angle suits high-speed spindle duty, and the ratings run Dynamic load rating: 35.00 kN (7,850 lbf) against Static load rating: 30.50 kN (6,850 lbf) per bearing. Limiting Speed: 11,000 rpm grease / 14,000 rpm oil. Precision Class: ISO Class 4. Precision rating: ABEC 7. Lubricant: Grease or oil. Max temp: 120 °C. Min temp: -40 °C. Calculation factor: 15.7.
Chamfer dimension r min: 1.1 mm, and r1 min: 0.6 mm. Shaft abutment da min: 67.0 mm. Housing abutment Da max: 88.0 mm, and Db max: 90.5 mm. Effective load centre a: 19.5 mm, measured from the bearing face along the axis.
Unit Quantity: 2 Pcs, supplied as a matched duplex pair of open bearings. Arrangement / Configuration: Matched duplex pair, universally ground. Mounting Arrangement: Back-to-back, face-to-face or tandem. Stacked face to face the pair occupies Total Width: 36 mm.
Part Number: 7012CGD2GNP4. MPN Variants: 7012C, 7012 C GD2 GN P4, 15KQTKM, 2MM9112 WI CR DU. Match the size, the 15° contact angle, the Class 4 tolerance and the duplex universal grinding together when comparing designations across manufacturers.
