Availability:
1 in stock

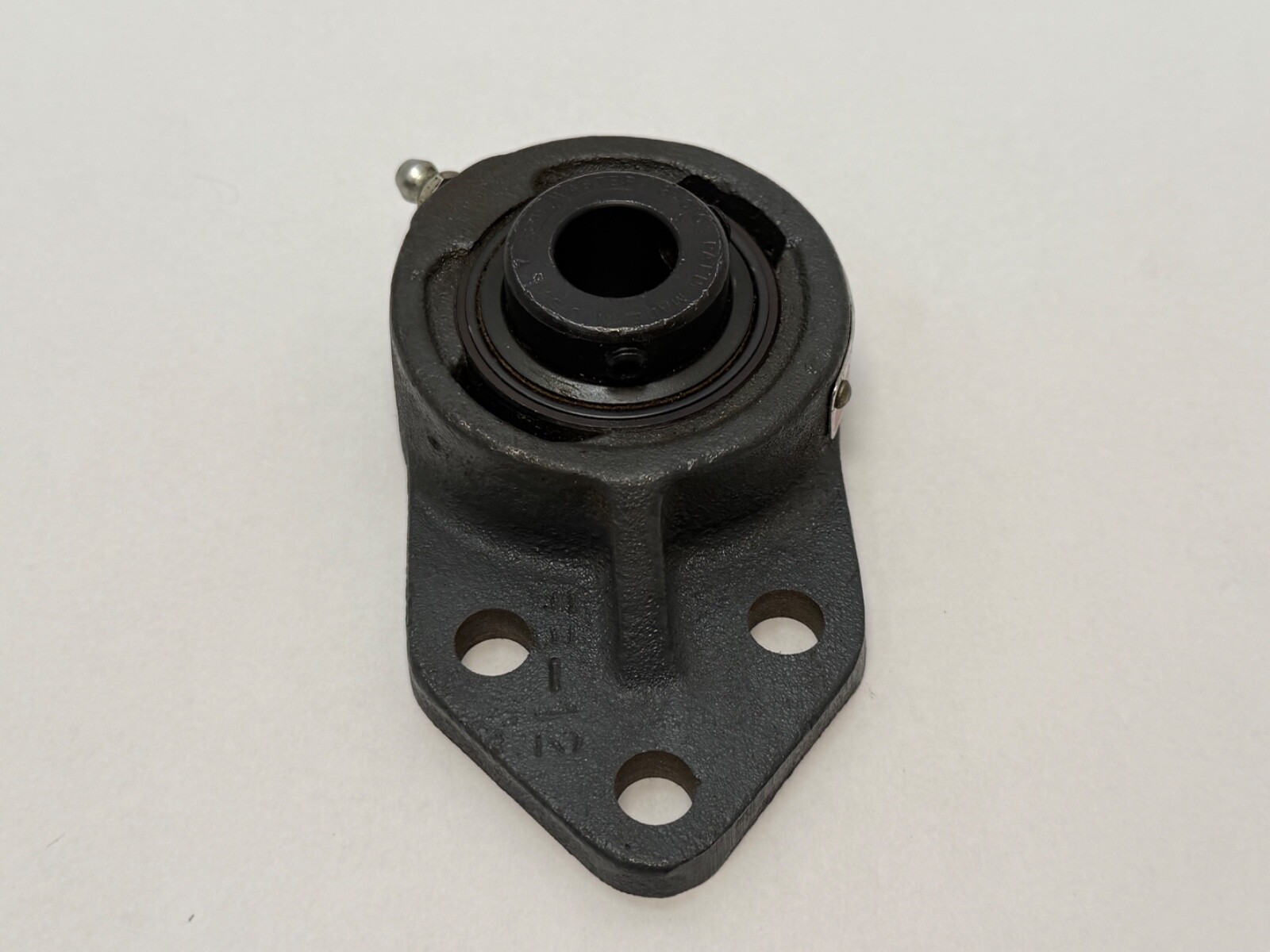

Three-bolt flange bracket bearing unit, 5/8 in bore, cast iron housing, setscrew locking, felt labyrinth seal, non-expansion, 1-1/2 in bolt spacing.
List Price
$44.34
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SealMaster |
|---|---|
| MPN | FB-10 |
| Model | FB 10 |
| ID | 0.6250 in |
| Series | FB |
|---|---|
| Type | Flanged Mount Bearing |
| Lubricant | Lithium complex NLGI 2 grease |
| Material | Cast Iron |
| Base Number | FB-10 |
| Industry Terms | 3-bolt flange bracket, flange bracket bearing, three bolt flange unit, mounted unit, bracket bearing |
| Common Misspellings | Sealmaster FB 10, FB-1O, Seal Master FB10, SealMaster FB-010, flangette |
| Application Types | Conveyors, fans, light industrial drives, packaging machinery, material handling |
| Bolt Center To Center | 1.50 in |
| Number Of Bolt Holes | 3 |
| Number Of Bolt Holes For Fasteners | 3 |
| Bore Shaft Size | 5/8 in (0.625 in), straight bore |
| Housing Style | Three-bolt flange bracket, cast iron |
| Locking Method | Set screw |
| Replacement Insert | SealMaster 2-010 |
| Mpn Variants | FB-10, FB10, FB 10, 701231, FB-10 701231 |
| Dynamic Load Rating | 2,611 lbf |
| Static Load Rating | 1,444 lbf |
| Rolling Elements | Ball |
| Max Temp | 220 °F |
| Bearing Type | Mounted ball bearing unit |
| Number Of Rows | 1 |
| Duty Type | Standard Duty |
| Locking Device | Set Screw |
| Harmonization Code | 8483.20.4040 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion |
| Part Number | 701231 |
| Limiting Speed | 7,300 rpm |
| Relubrication Feature | Relubricatable |
| Cross Reference 1 | Dodge FB-SC-010 |
|---|

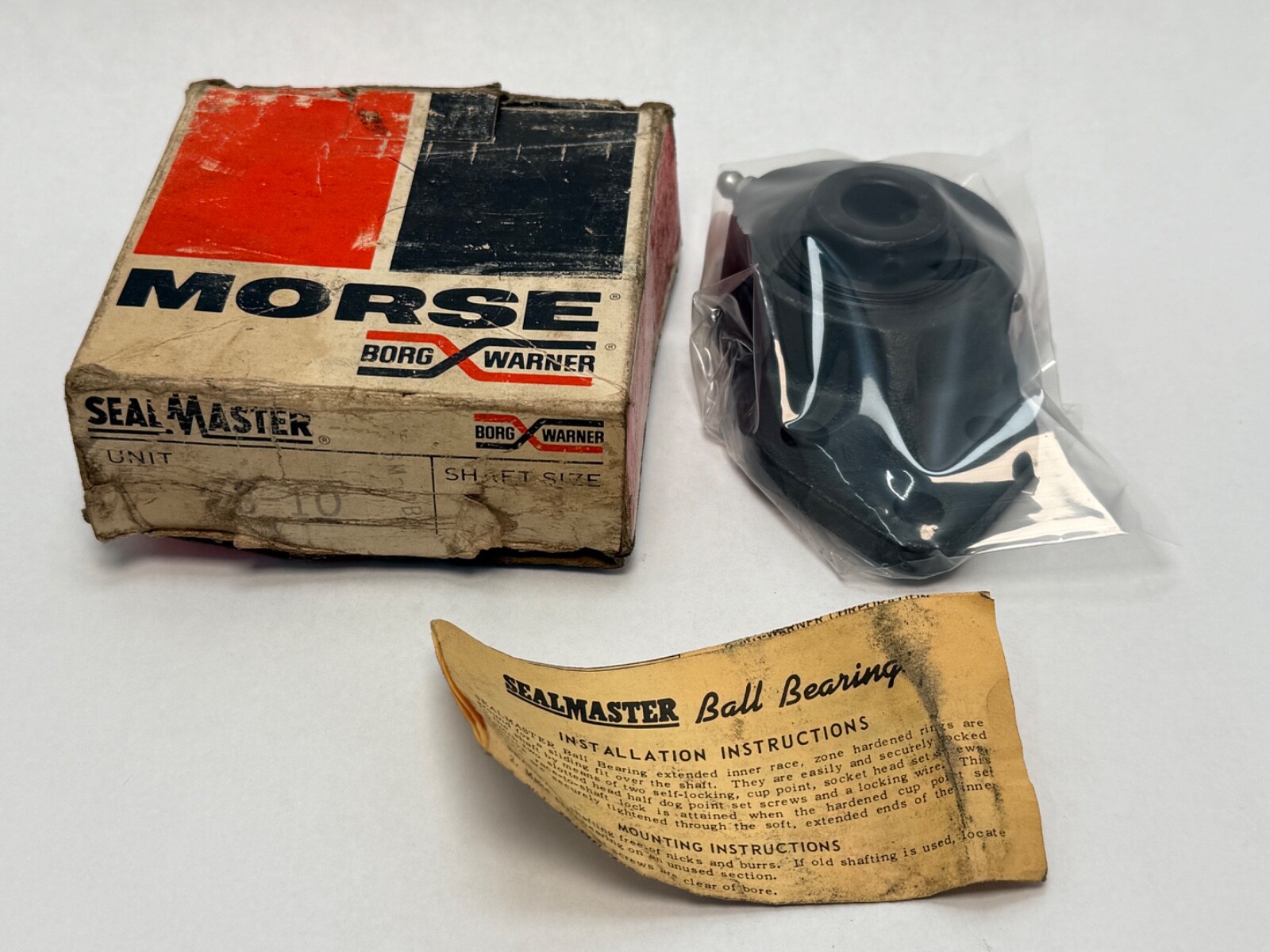

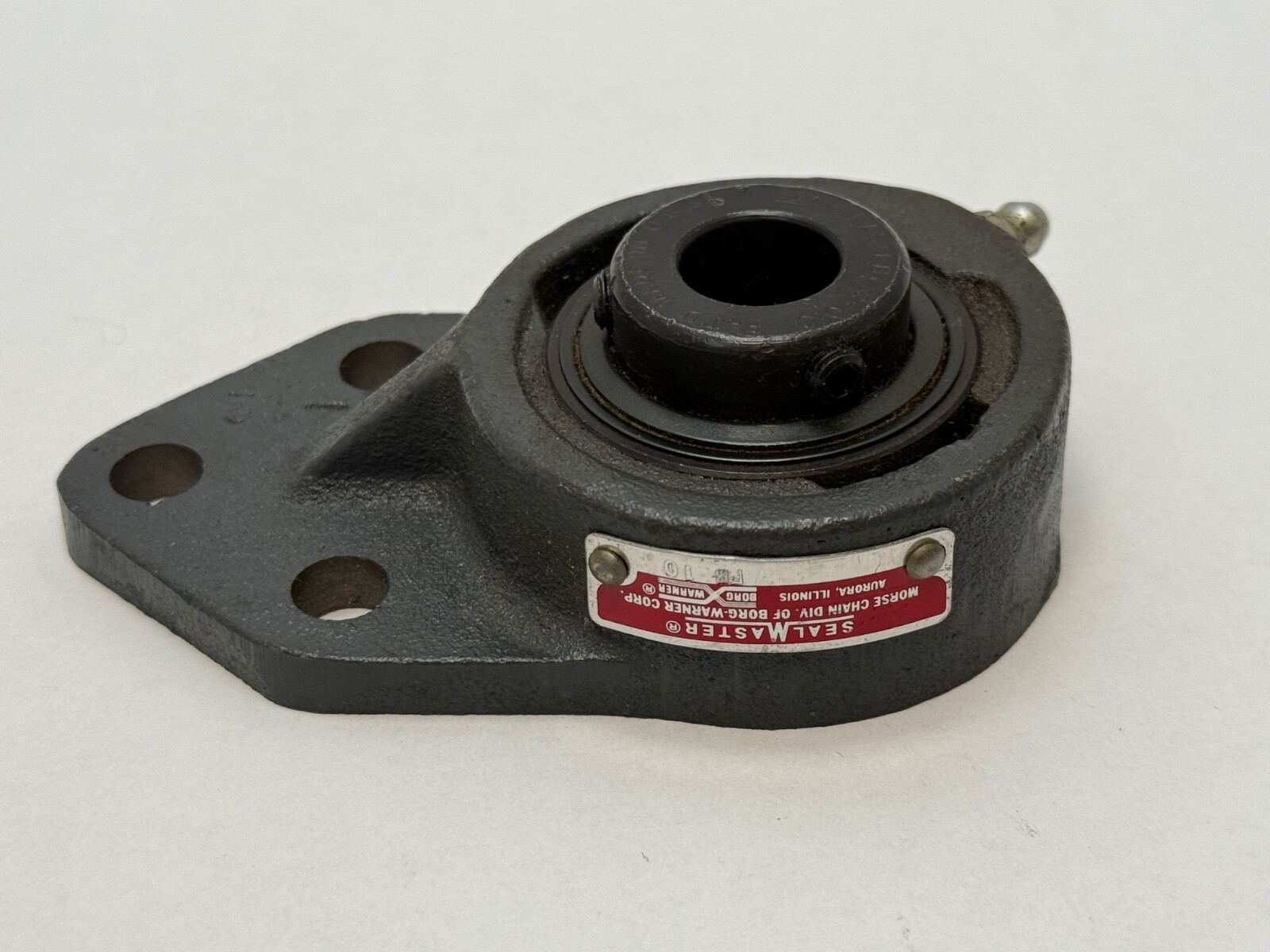

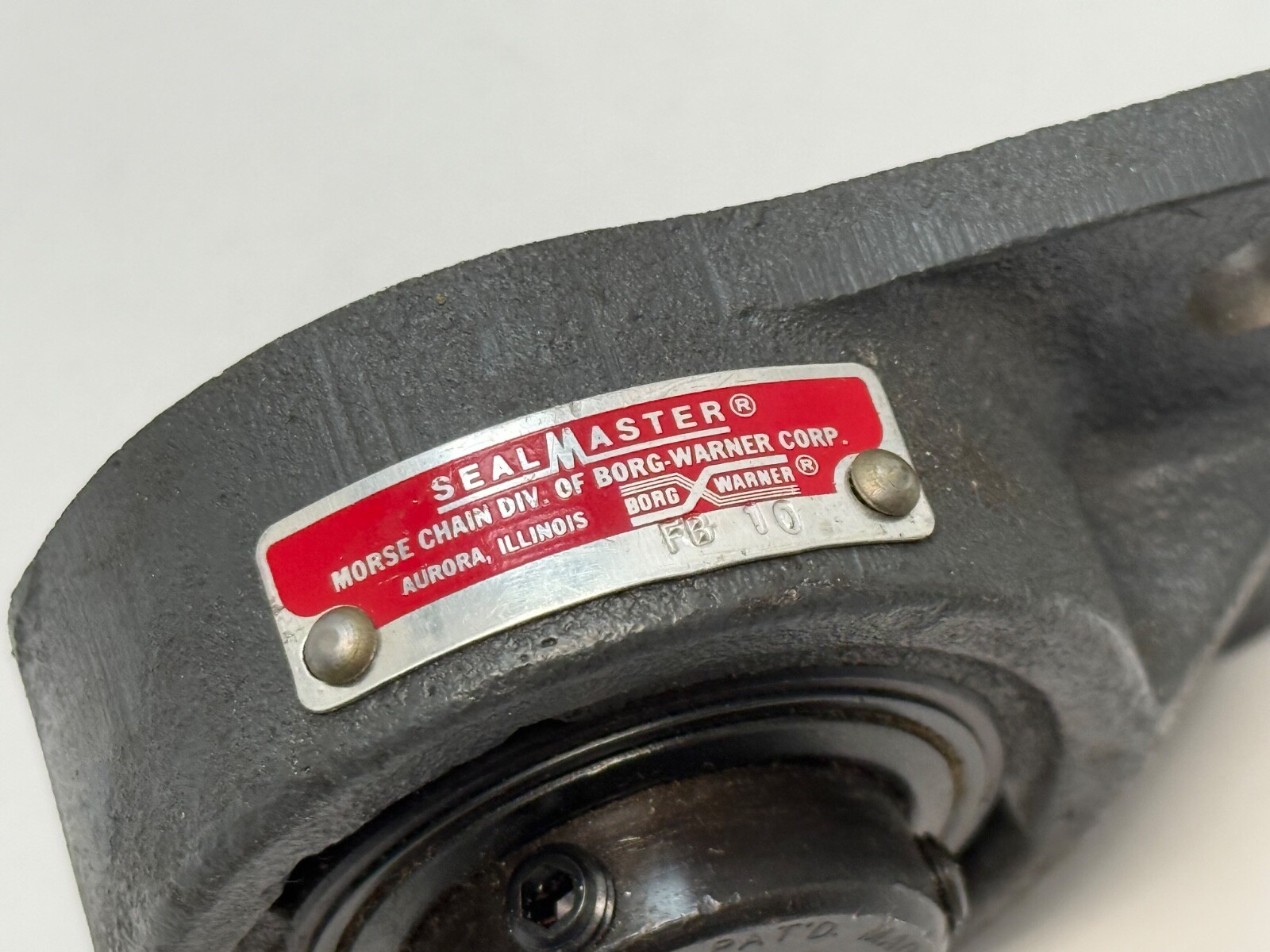

SealMaster FB-10 (part number 701231) is a mounted ball bearing unit: a three-bolt flange bracket in cast iron for a 5/8 in shaft. The insert is a 2-010 setscrew-locking ball bearing with a felt labyrinth seal and flinger. Gold Line standard duty. Unit Quantity: 1 Pc, one complete unit with insert and setscrews fitted.
FB — three-bolt flange bracket, setscrew locking.
10 — 5/8 in bore in the SealMaster size code.
701231 — SealMaster part number for the FB-10.
2-010 — the insert bearing fitted in this housing.
Bore Diameter: 5/8 in (0.625 in), straight bore. Housing Style: Three-bolt flange bracket. Housing Material: Cast iron, one piece, powder coated black. Locking Method: Set screws. Expansion Type: Non-expansion (fixed).
Dynamic Load Rating: 2,611 lbf. Static Load Rating: 1,444 lbf. Limiting Speed: 7,300 rpm. Maximum Operating Temperature: 220 °F.

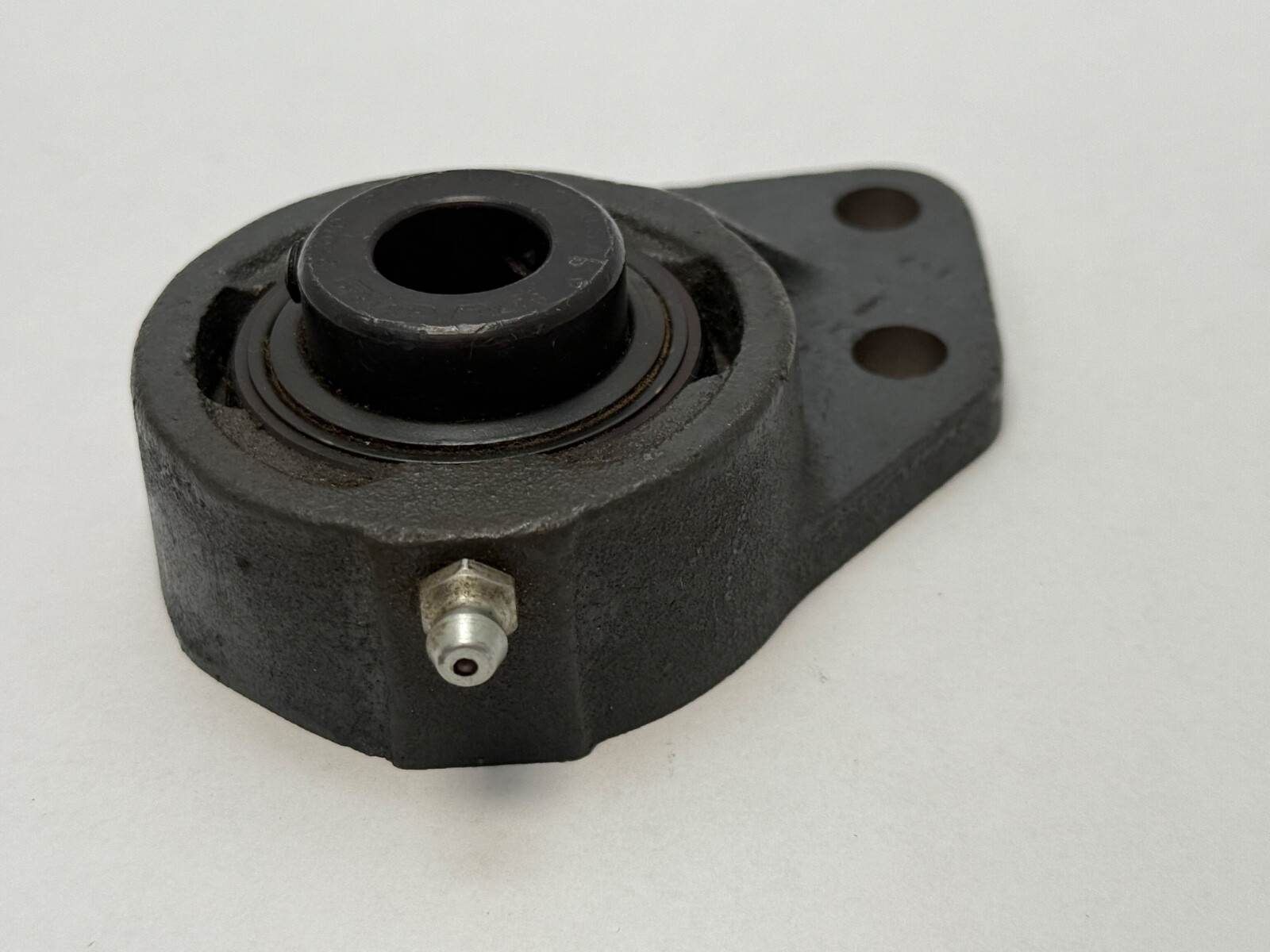

Seal Type: Felt labyrinth seal with flinger. Lubricant: Lithium complex NLGI 2 grease. Grease Fitting: 1/4-28. Relubricatable: Yes. Misalignment Capability: ±2°, static only.

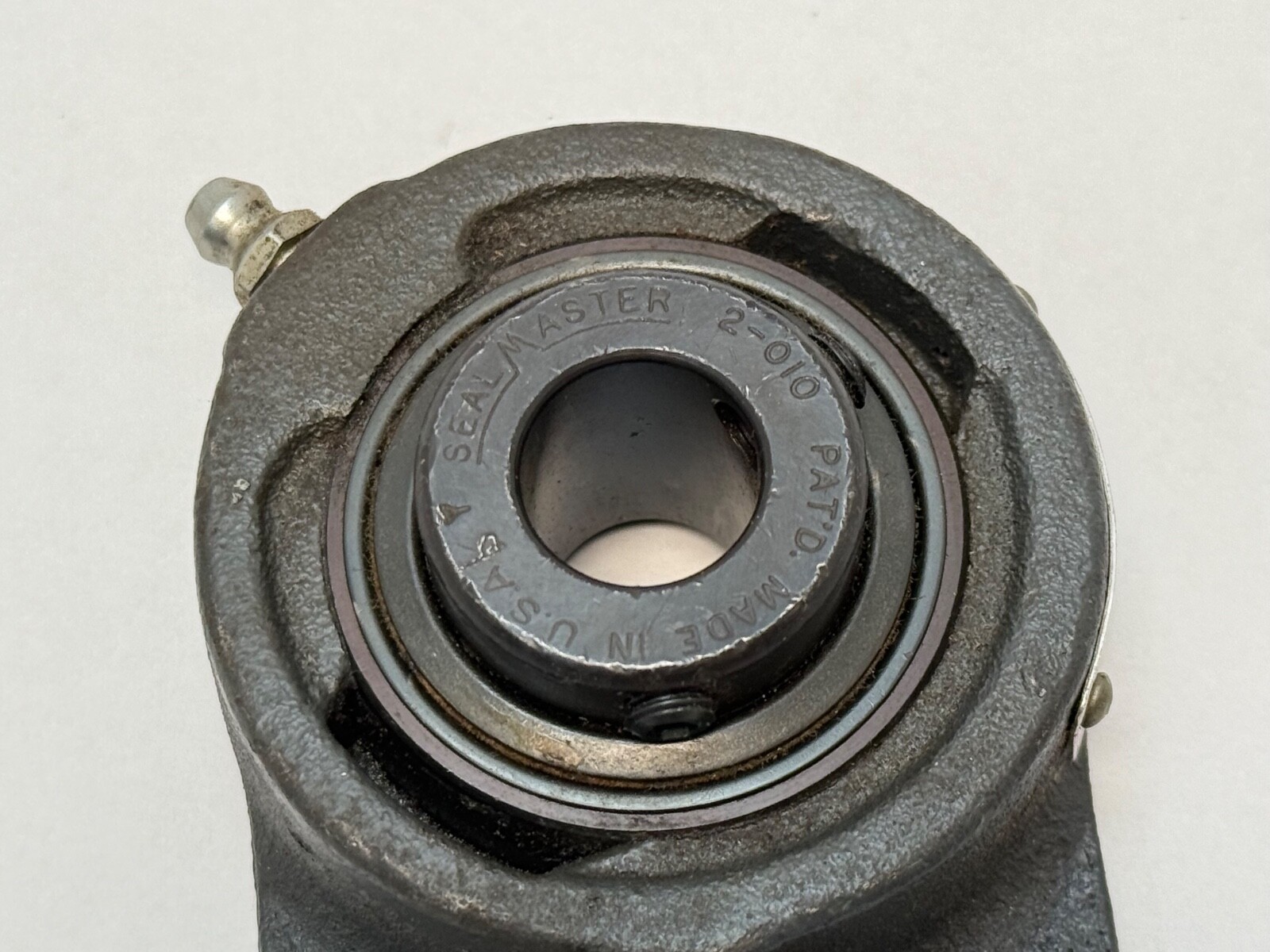

Insert: 2-010, 52100 bearing steel, black oxide, zone-hardened inner race. Retainer: land-riding polyphenylene sulfide. Harmonization Code: 8483.20.4040.

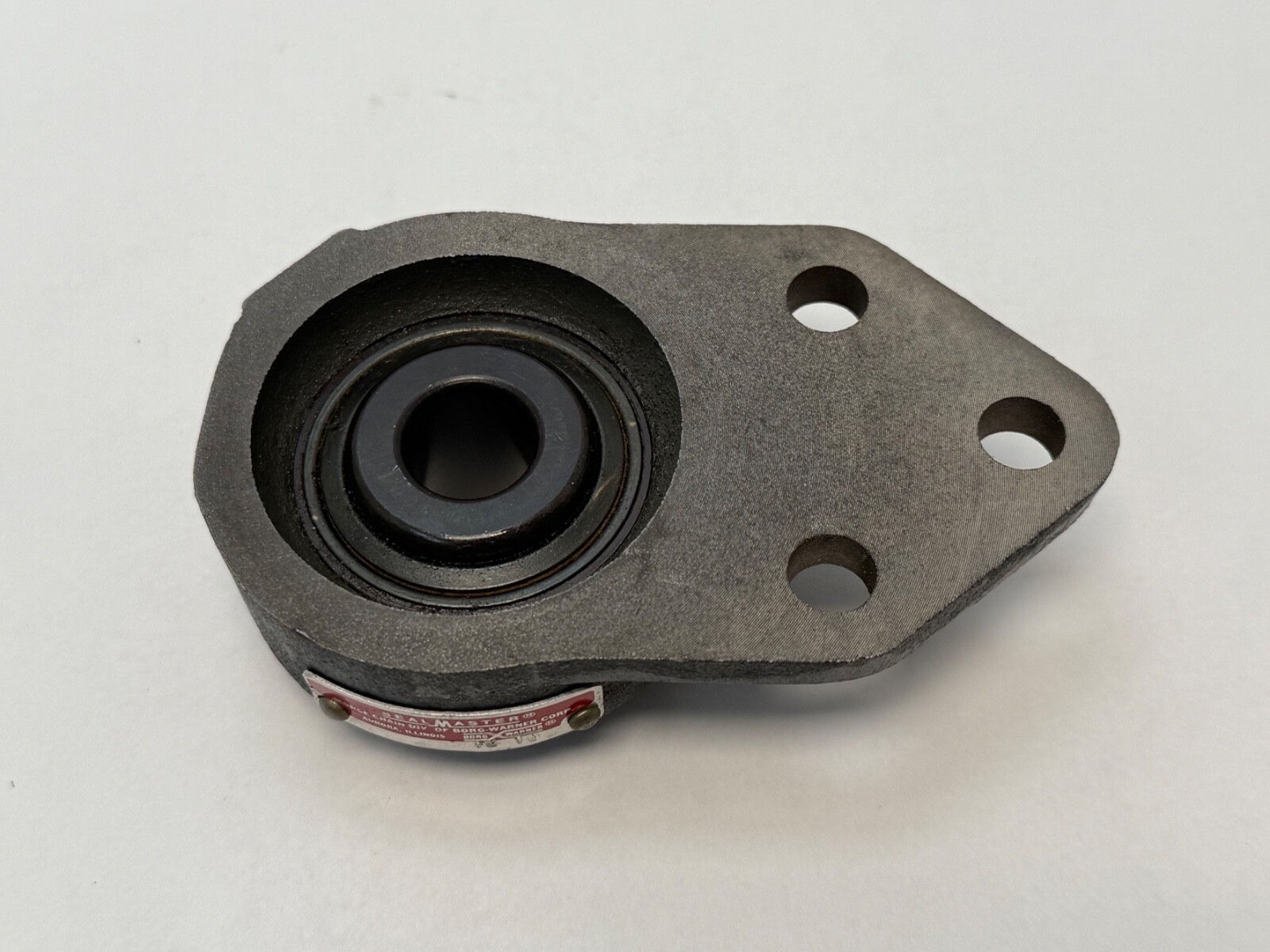

Bolt Spacing: 1-1/2 in. Bolt Spacing, Height Direction: 7/8 in. Bolt Size: 3/8 in. Base to Shaft Centre Height: 3 in. Bearing Centreline to Bolt Hole Centre: 1-11/16 in.
Overall Length: 4-3/16 in. Overall Width: 2-3/8 in. Overall Height: 1.34 in. Foot Height: 0.31 in. Insert Inner Ring OD: 1.192 in. Length Through Bore: 1.219 in.
Cross-reference: Dodge FB-SC-010. Replacement insert: SealMaster 2-010. Related SealMaster units in the 5/8 in bore: SFT-10 and FT-10 (two-bolt flange), SF-10 (four-bolt flange), NP-10 (two-bolt pillow block with the same 2-010 insert).
Three bolts, with 1-1/2 in bolt spacing and 3/8 in bolt size.
Dynamic 2,611 lbf, static 1,444 lbf and a maximum speed of 7,300 rpm.
SealMaster 2-010, a setscrew-locking ball bearing insert.
