Availability:
1 in stock

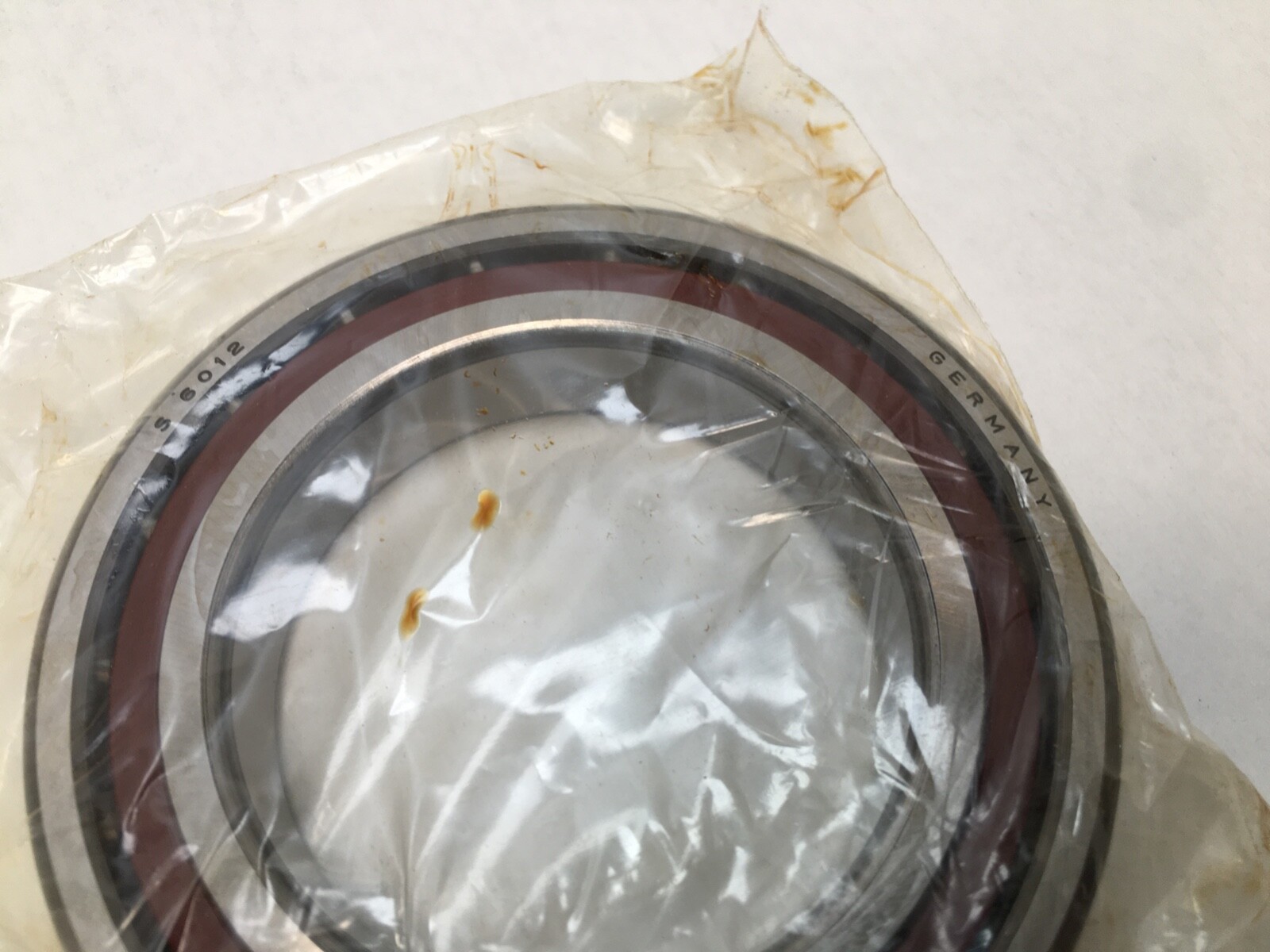

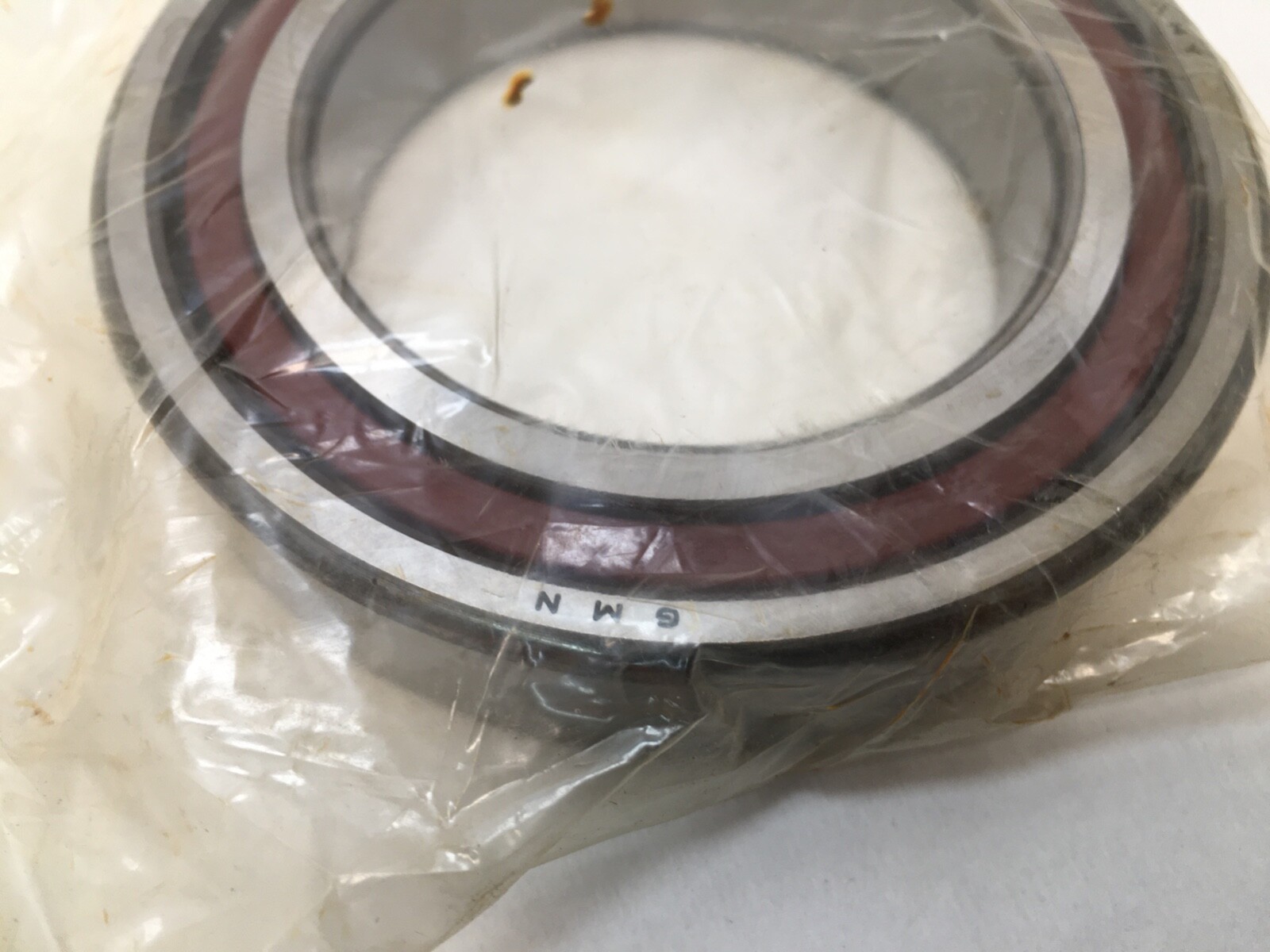

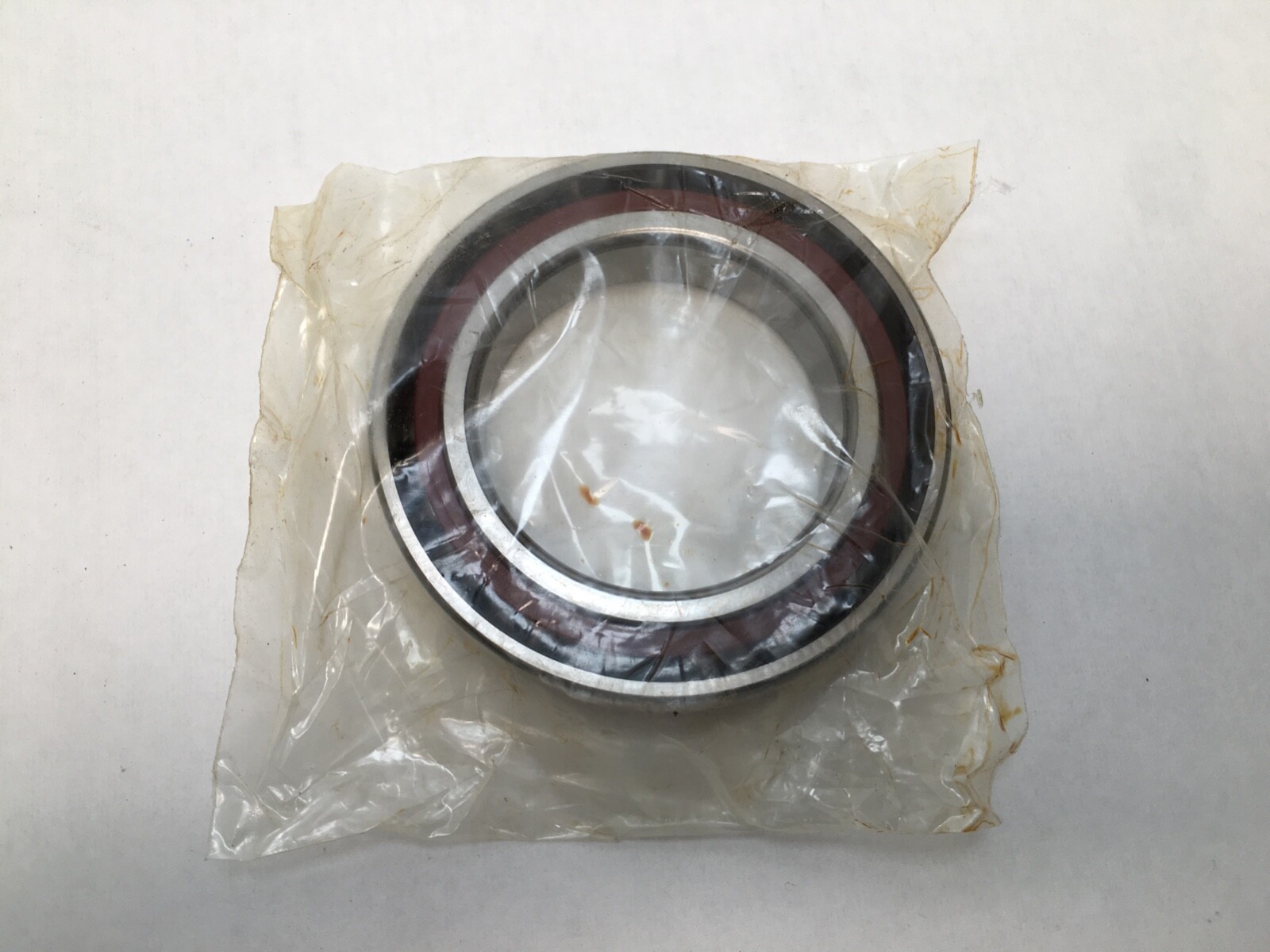

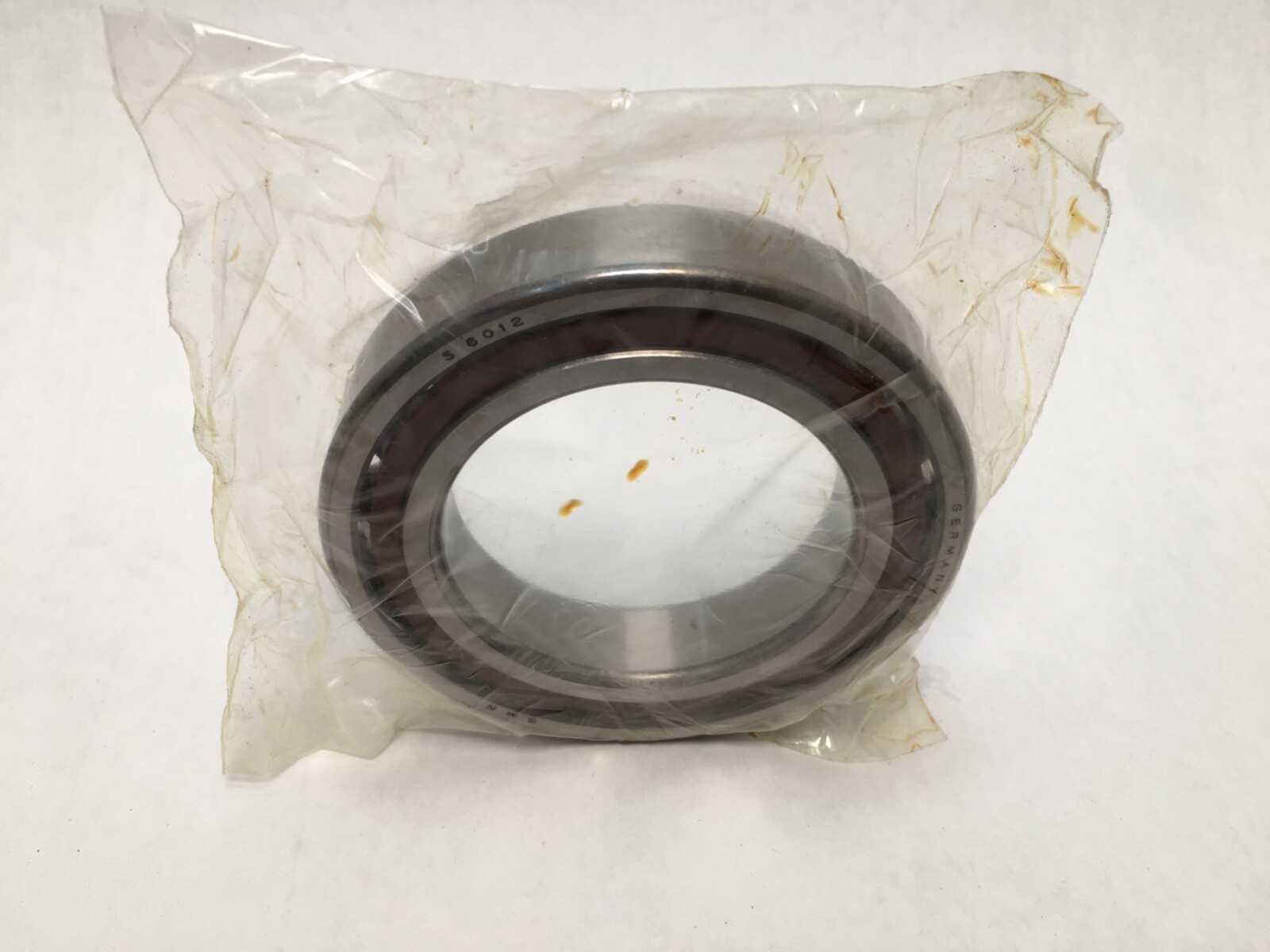

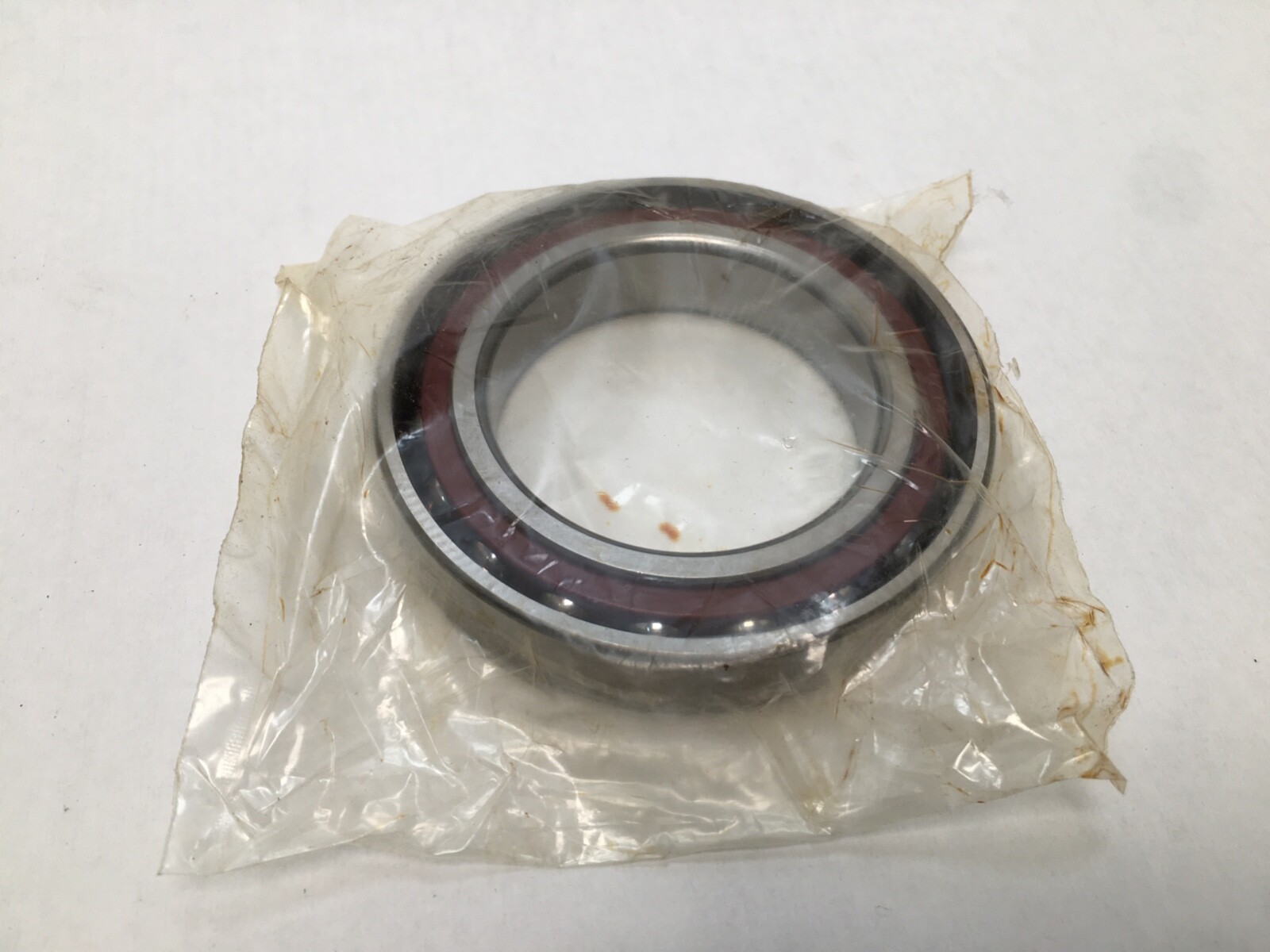

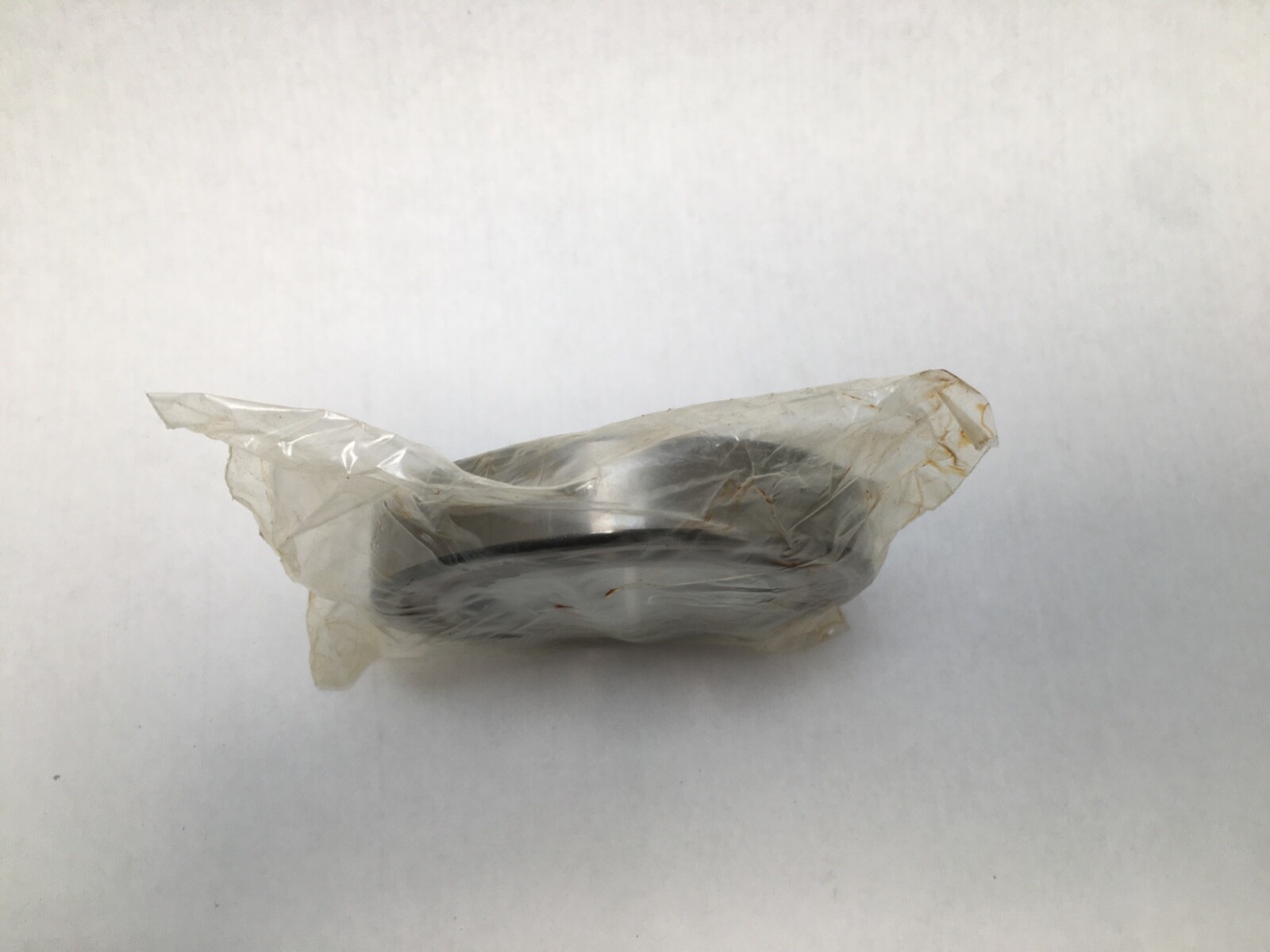

Angular contact spindle bearing, 60 mm bore x 95 mm OD x 18 mm, 15°, inner-ring-guided phenolic TB cage, GMN HG precision, universal light preload. GMN S 6012 C TB HG DUL, 1 Pc.
List Price
$129.50
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S6012CTBHGDUL |
| Model | S6012CTBHGDUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | S 60 |
| Preload | L (light) |
| Cage Type | TB, machined, inner-ring guided |
| Rolling Elements | Ball |
| Cage Material | Laminated phenolic resin |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Overall Width | 18 mm |
| Mpn Variants | S6012CTBHG, S6012CTBHGDUL, S 6012 C TB HG DUL, S6012CTBHGDUL150N, 7012 |
| Arrangement Configuration | DUL — universally ground, one bearing of a pair |
| Precision Class | HG (GMN high precision) |
| Additional Attributes | Bearing design: S, two lands on inner ring, non-separable; Cage max operating temperature: 120 °C |
| Cross Reference 1 | Fafnir 2MM9112WI |
|---|---|
| Cross Reference 2 | FAG B7012-C-T |
| Cross Reference 3 | SKF 7012 CD |
| Cross Reference 4 | RHP 7012 X2TA |
| Cross Reference 5 | Barden 112H |
| Cross Reference 6 | SNFA EX 60 CE1 |
GMN S 6012 C TB HG DUL super-precision angular contact spindle bearing, one bearing universally ground for light preload. Bore Diameter: 60 mm. Outside Diameter: 95 mm. Overall Width: 18 mm. Contact Angle: 15°. Cage Material: Laminated phenolic resin. Cage Type: Inner-ring guided. Precision Class: HG (GMN high precision). Preload: L (light). Rolling Elements: Ball.
S — GMN standard spindle bearing, two lands on the inner ring, non-separable.
6012 — dimension series 10, bore code 12: 60 x 95 x 18 mm, the ISO 7012 size.
C — 15° nominal contact angle.
TB — laminated phenolic resin cage guided on the inner ring, rated to 120 °C.
HG — GMN high precision, toleranced to GMN’s own specification.
DUL — universal matching, light preload, factory set of two.
The 15° angle favours speed and radial stiffness in machine tool, grinding and high-speed motor spindles. The inner-ring-guided TB cage is GMN’s alternative where cage vibration is a concern. Universal grinding lets this bearing pair with any other universally ground bearing of the same designation. Closure Type: Open. Snap Ring: No.

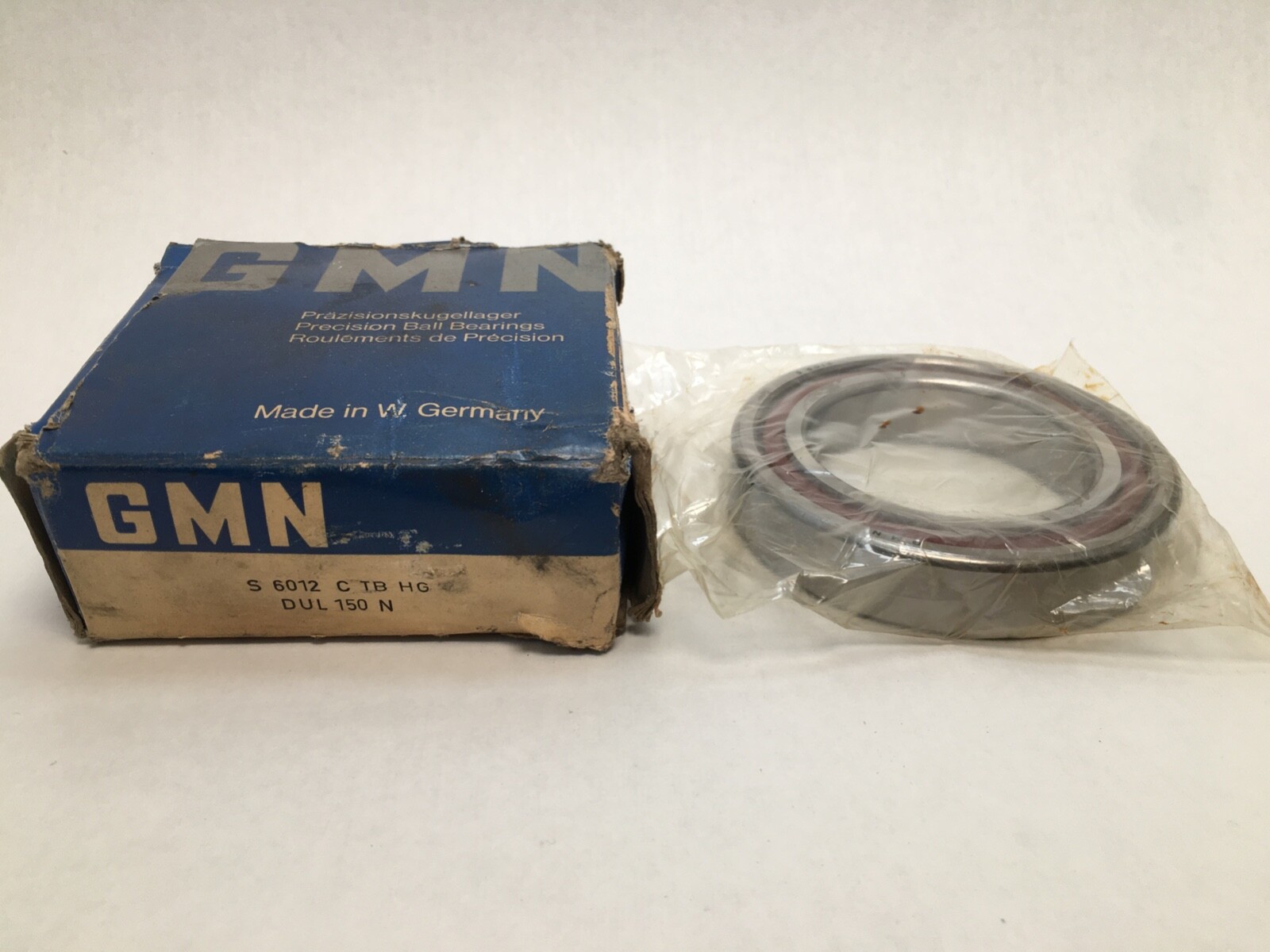

Unit Quantity: 1 Pc. One bearing from a factory DUL pair, new in box.
Same 60 x 95 x 18 mm envelope and 15° angle: Fafnir 2MM9112WI, FAG B7012-C-T, SKF 7012 CD, RHP 7012 X2TA, Barden 112H, SNFA EX 60 CE1. These carry outer-ring-guided cages; the GMN TB execution is inner-ring guided.
