FAGB7008-E-B-T-P4S-DULAngular Contact Spindle Bearing Pair – 40 mm ID, 68 mm OD, 15 mm Width, 25° Contact Angle, ABEC 7 / P4S, Phenolic Cage, Light Preload

Product Description

What this part is:

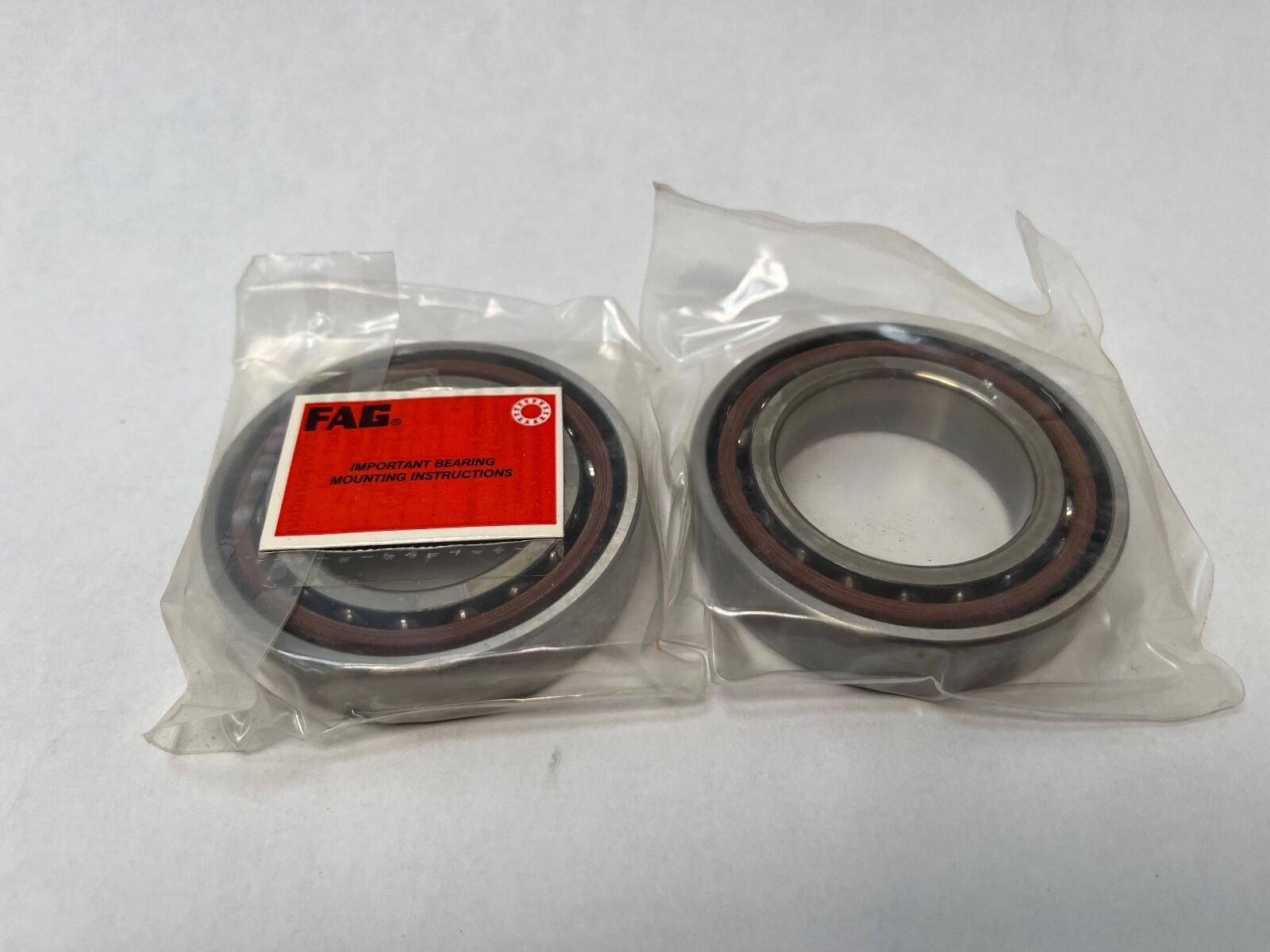

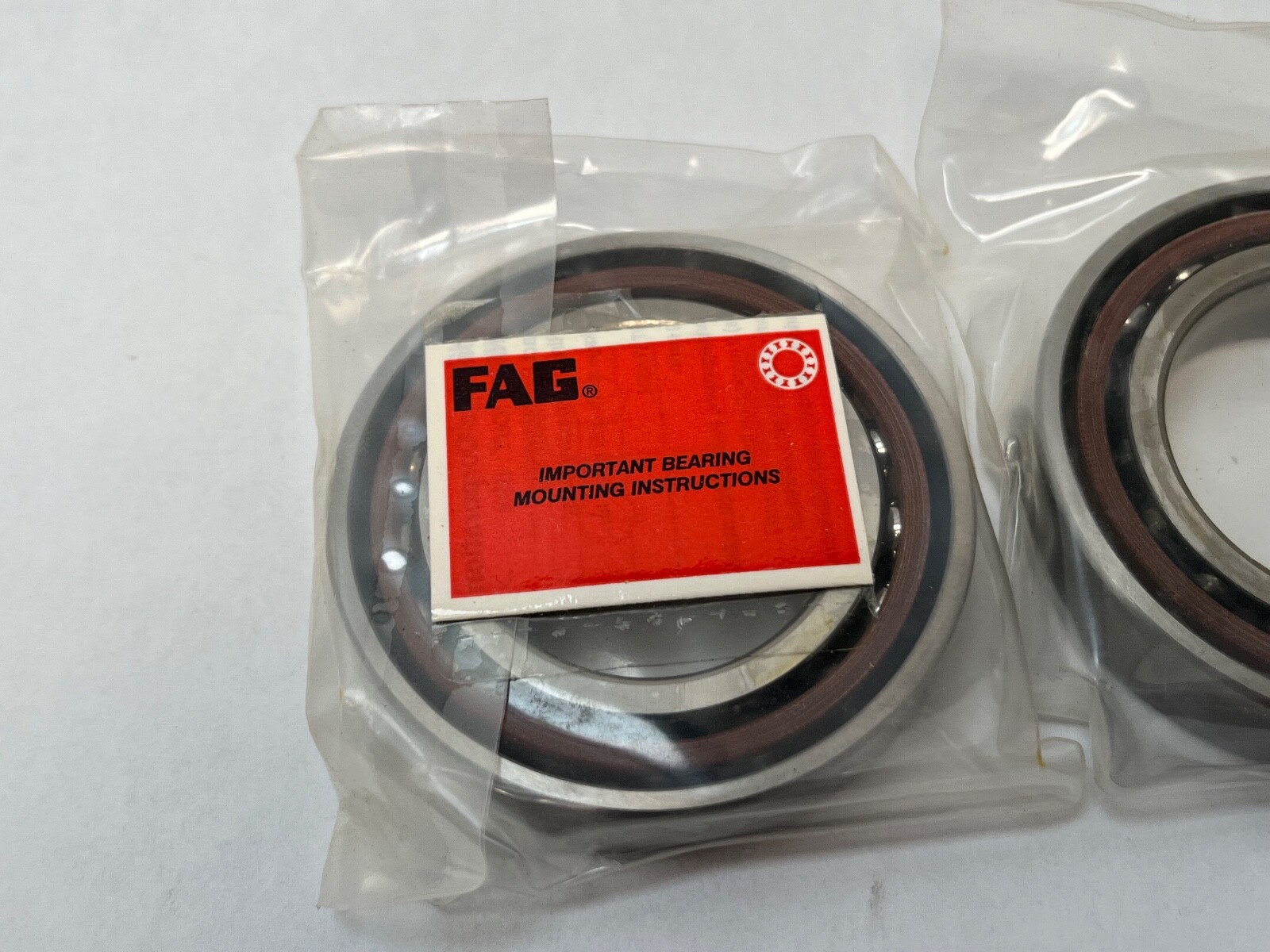

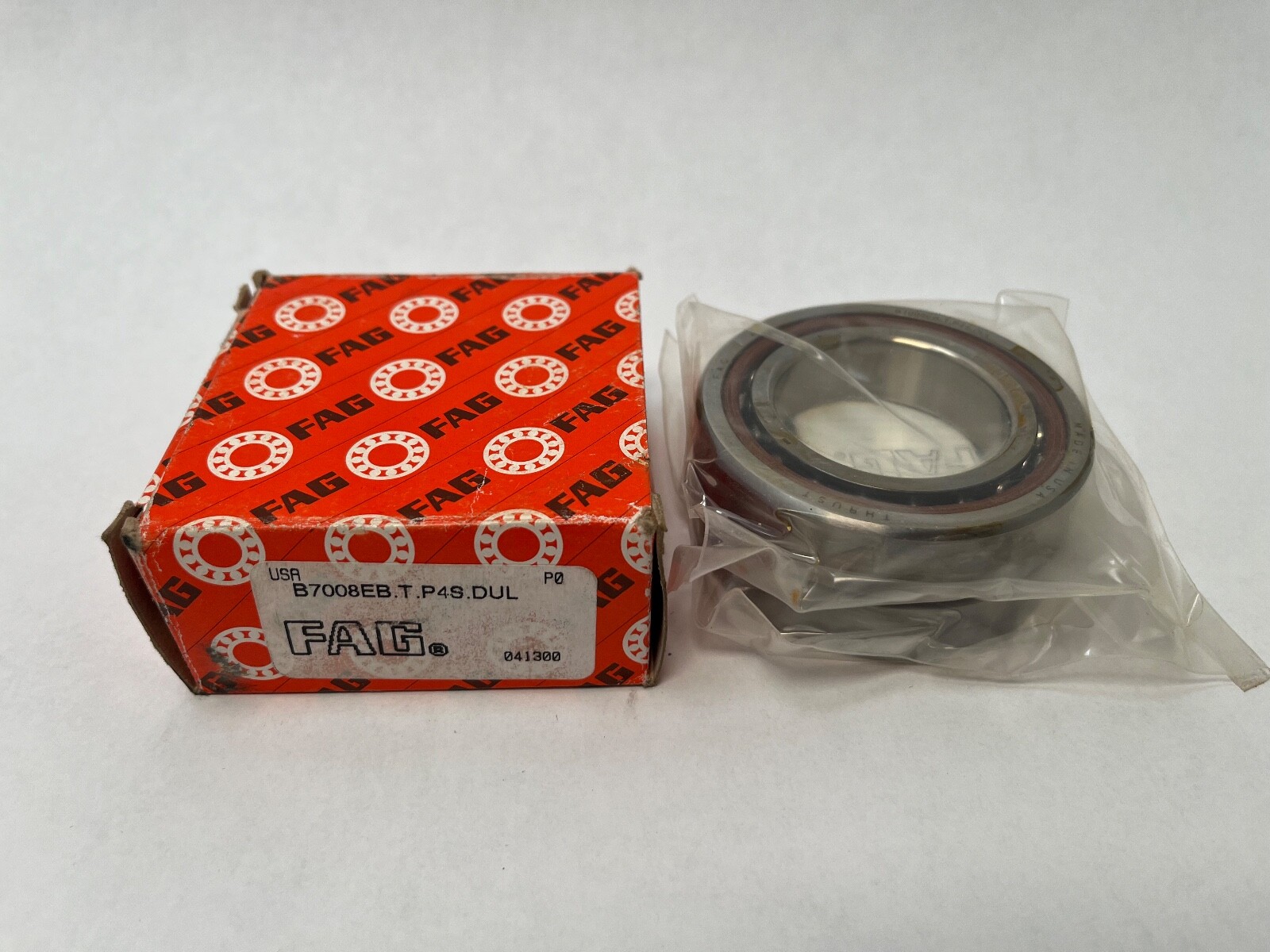

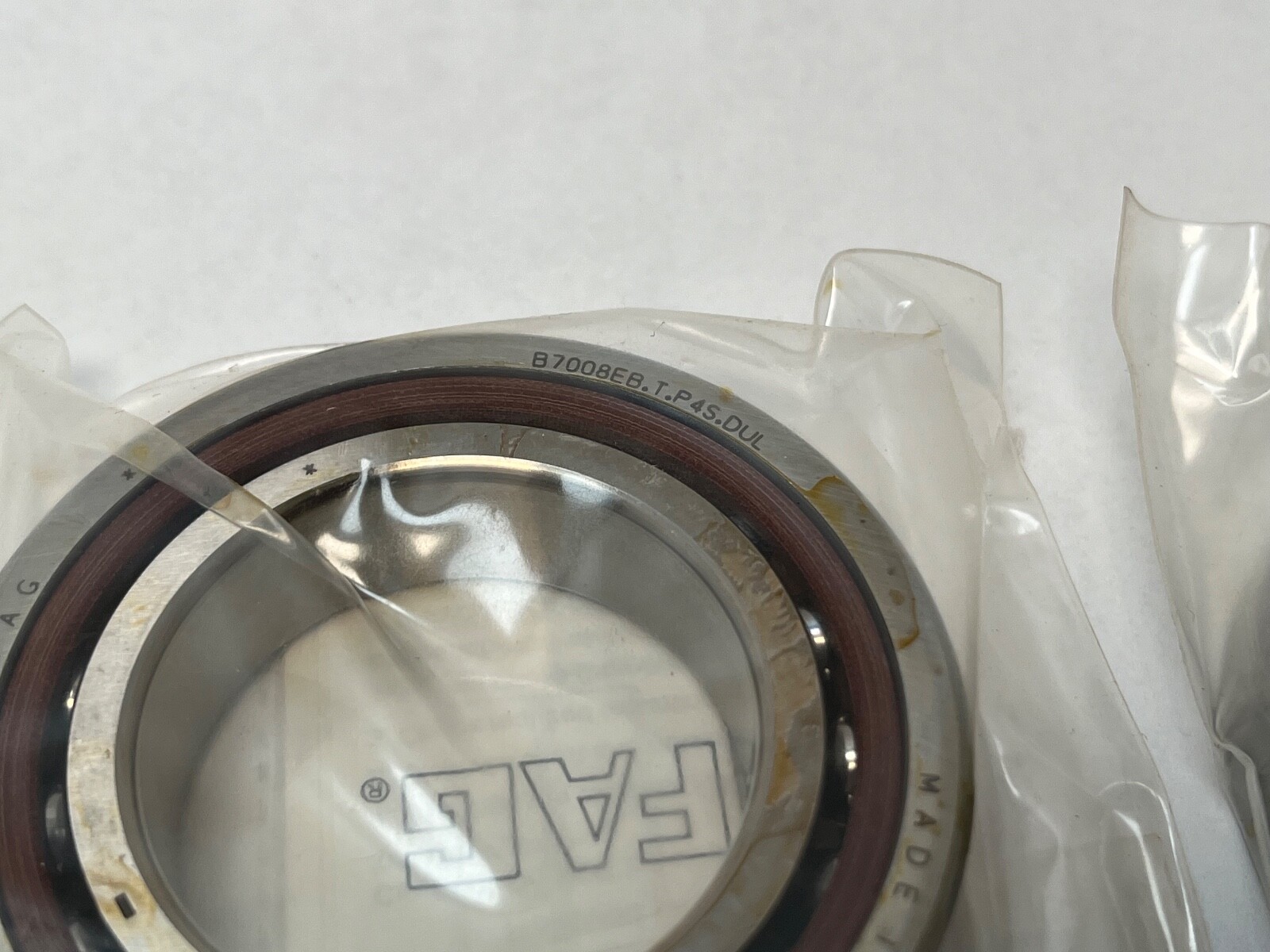

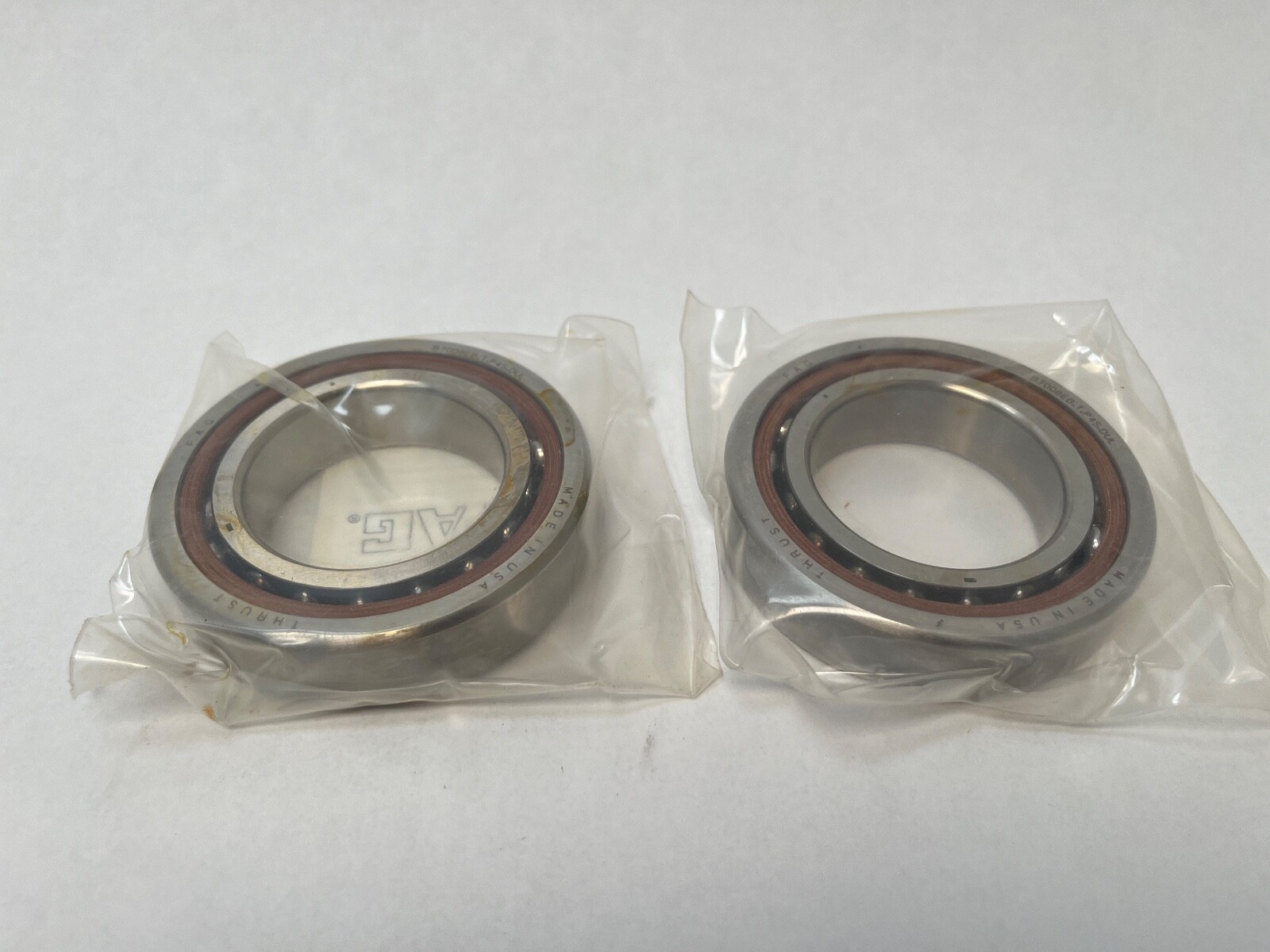

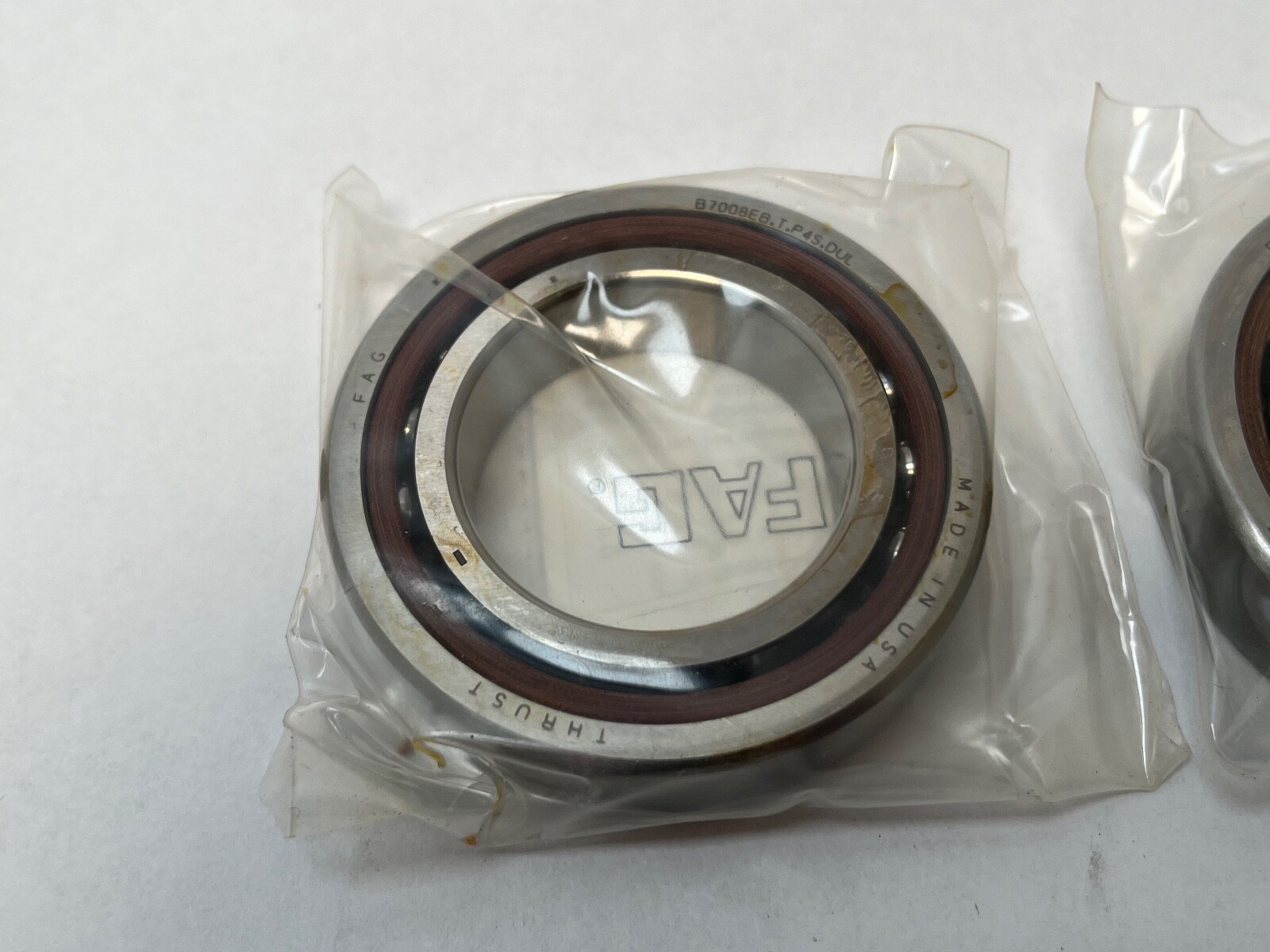

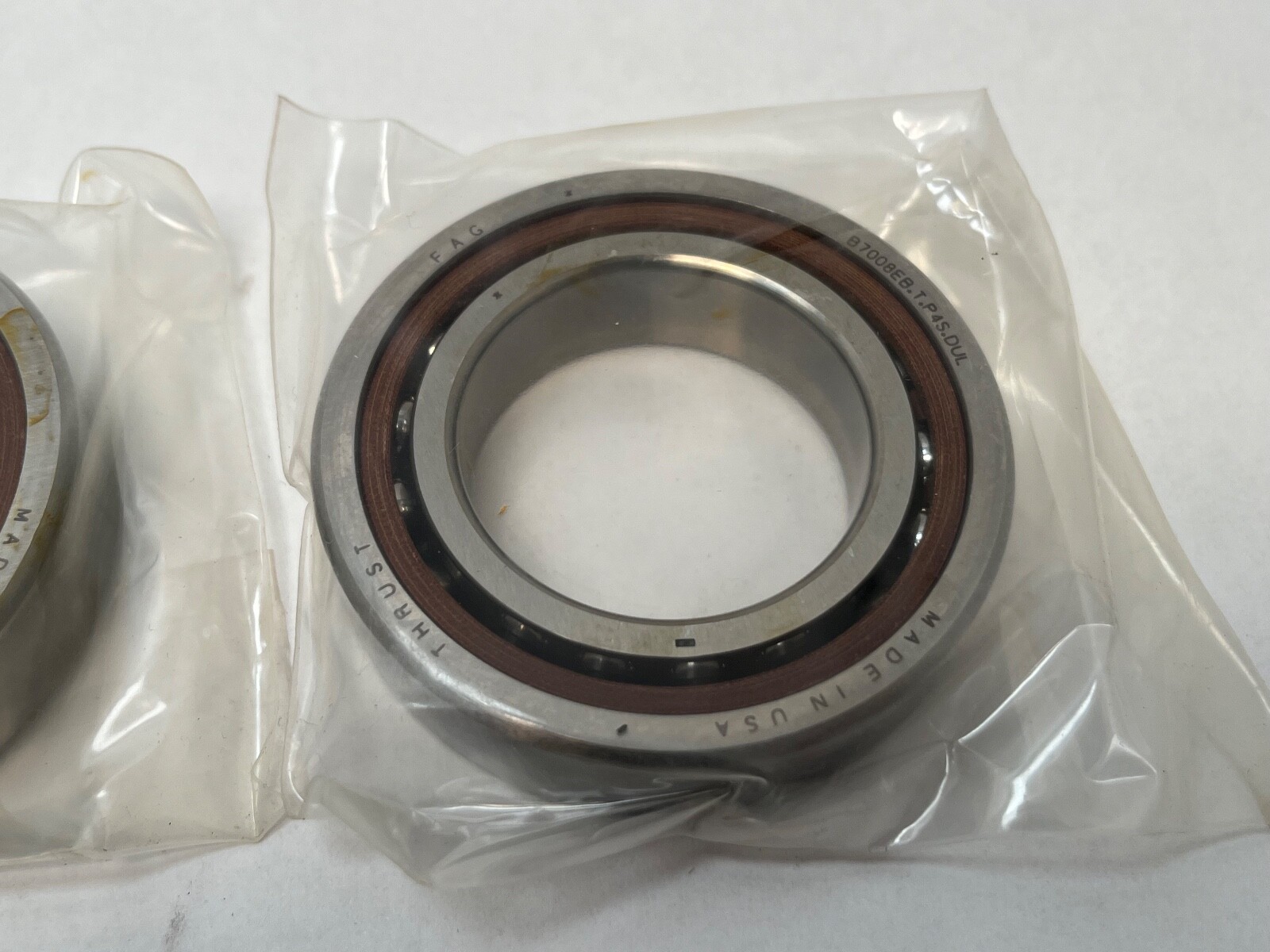

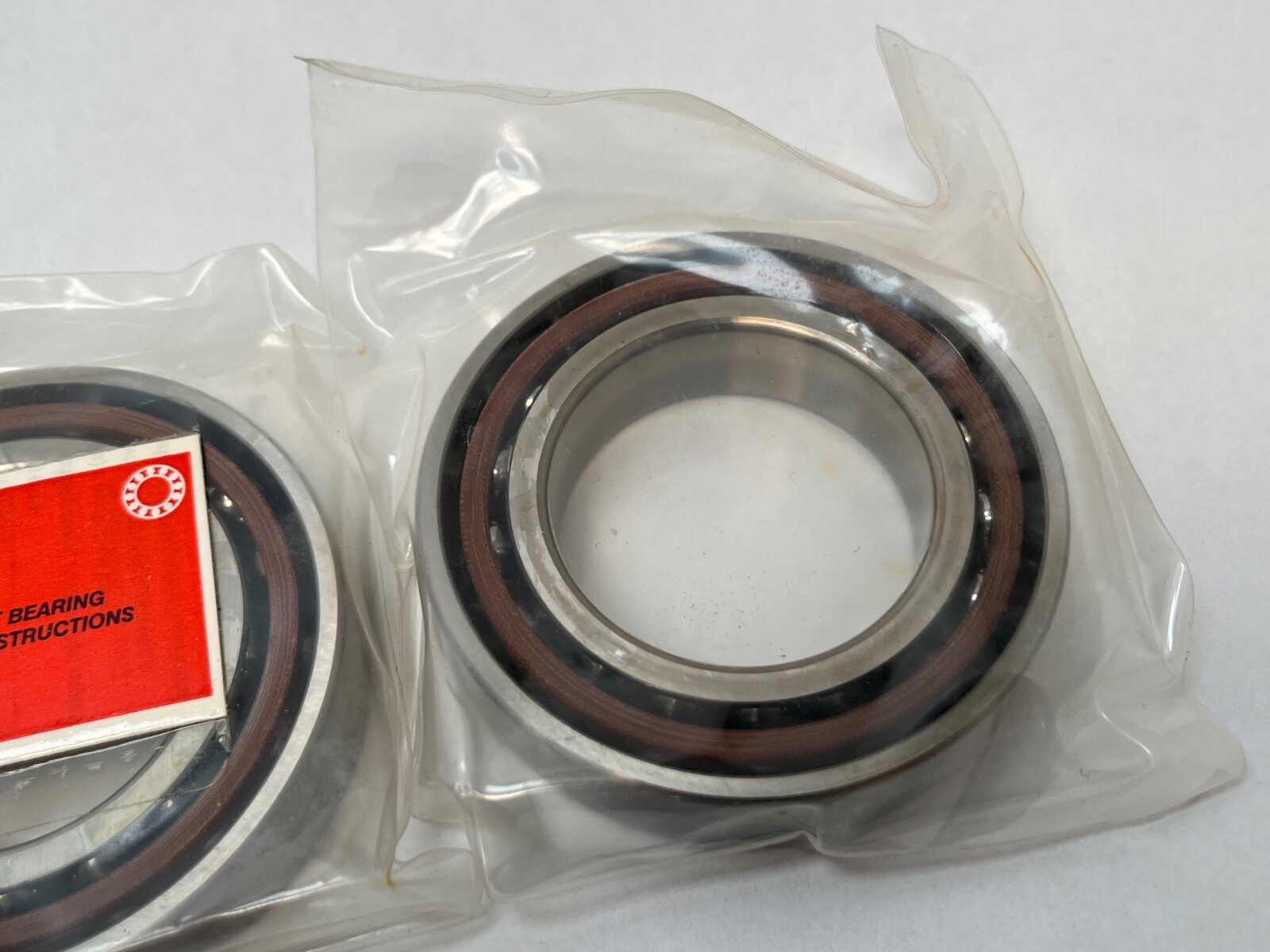

FAG B7008-E-B-T-P4S-DUL is a matched pair of super-precision angular contact spindle bearings from the Schaeffler B70 series, 40 mm bore, 68 mm outside diameter, 15 mm width per bearing. Open construction, straight bore, phenolic cage, light preload. Unit Quantity: 2 Pcs, one universally ground matched pair.

Decoding the designation:

B7008 — FAG spindle bearing, ISO 7008 envelope, 40 x 68 x 15 mm.

E — 25° contact angle.

T — machined phenolic (fabric-reinforced laminate) cage.

P4S — Schaeffler restricted-tolerance class: P4 dimensional accuracy with tighter running accuracy.

DUL — two universally matched bearings with light preload, mountable back-to-back, face-to-face or in tandem.

Specifications:

Bearing Type: Spindle Angular Contact Ball Bearing. Contact Angle: 25°. Precision Class: ABEC 7 / P4S. Cage Material: Phenolic. Preload: Light (141 N). Mounting Arrangement: Universal matched pair (DUL). Dynamic Load Rating: 19,900 N per bearing. Static Load Rating: 10,600 N per bearing. Operating Temperature: -30 to 100 °C. Number of Rows: 1. Closure Type: Open. Material: High Carbon Chrome Steel. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm per bearing. Total Width: 30 mm for the pair. Shaft Shoulder Diameter: 46 mm. Housing Shoulder Diameter: 62 mm. Item Weight: 0.19 kg (0.42 lb) per bearing.

Compatibility and replacement:

Cross-references: NSK 7008A5TYNDULP4 (polyamide cage), Fafnir 3MM9108WI CR DUL (P4 class), SKF 7008 ACD/P4ADGA (extra light preload). Single-bearing part: FAG B7008-E-T-P4S-UL. MPN variants: B7008EBTP4SDUL, B7008EB.T.P4S.DUL, B-7008-EB-T-P4S-DUL, B7008E, 7008E.

Frequently asked questions:

What are the dimensions of the FAG B7008-E-B-T-P4S-DUL?

Bore 40 mm, outside diameter 68 mm, width 15 mm per bearing; the pair stacks to 30 mm.

What contact angle and preload does the FAG B7008-E-B-T-P4S-DUL have?

25° contact angle (E) and light preload (DUL), 141 N.

What is in the FAG B7008-E-B-T-P4S-DUL set?

Two universally ground matched bearings with a phenolic cage in each.
