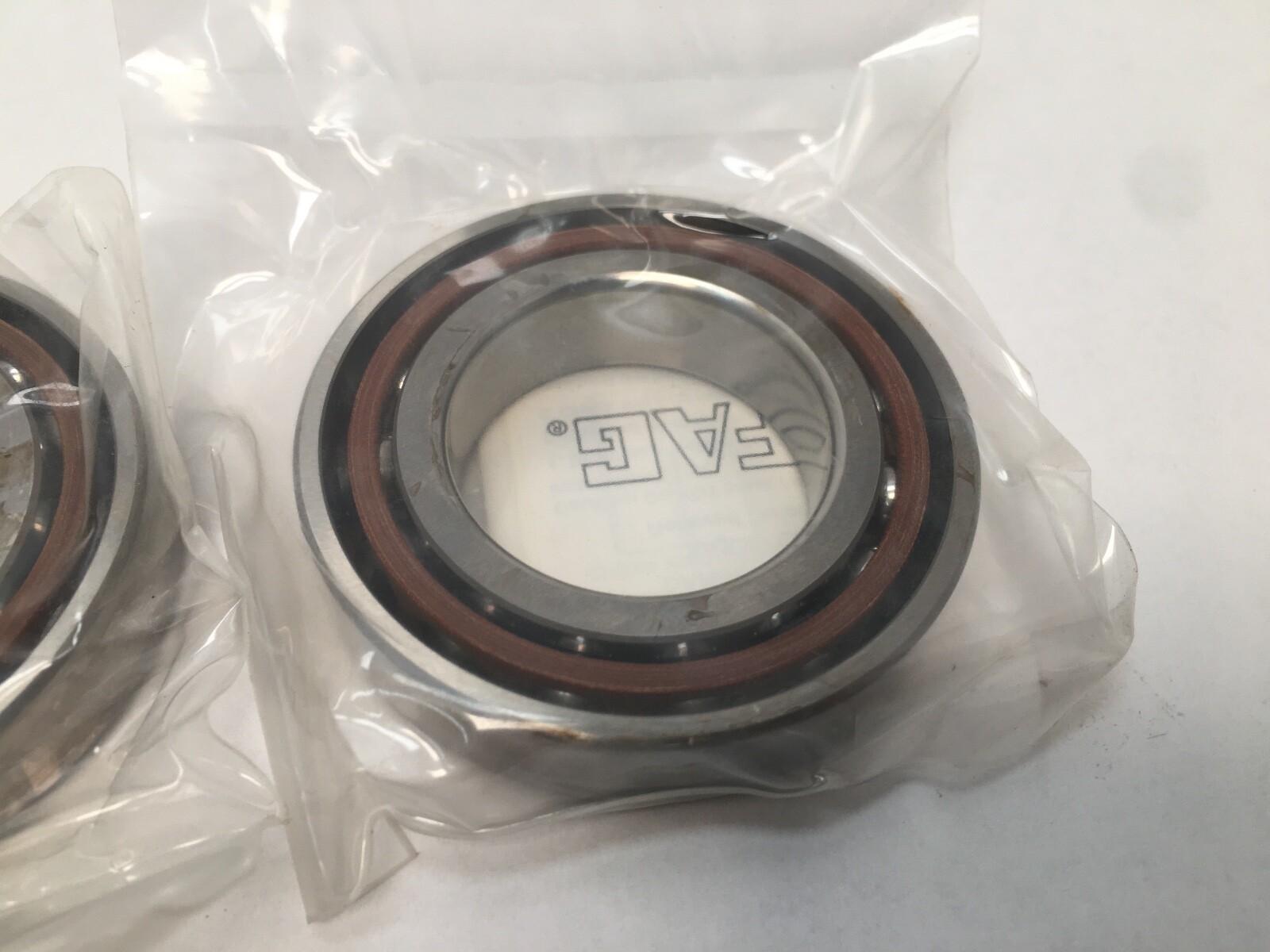

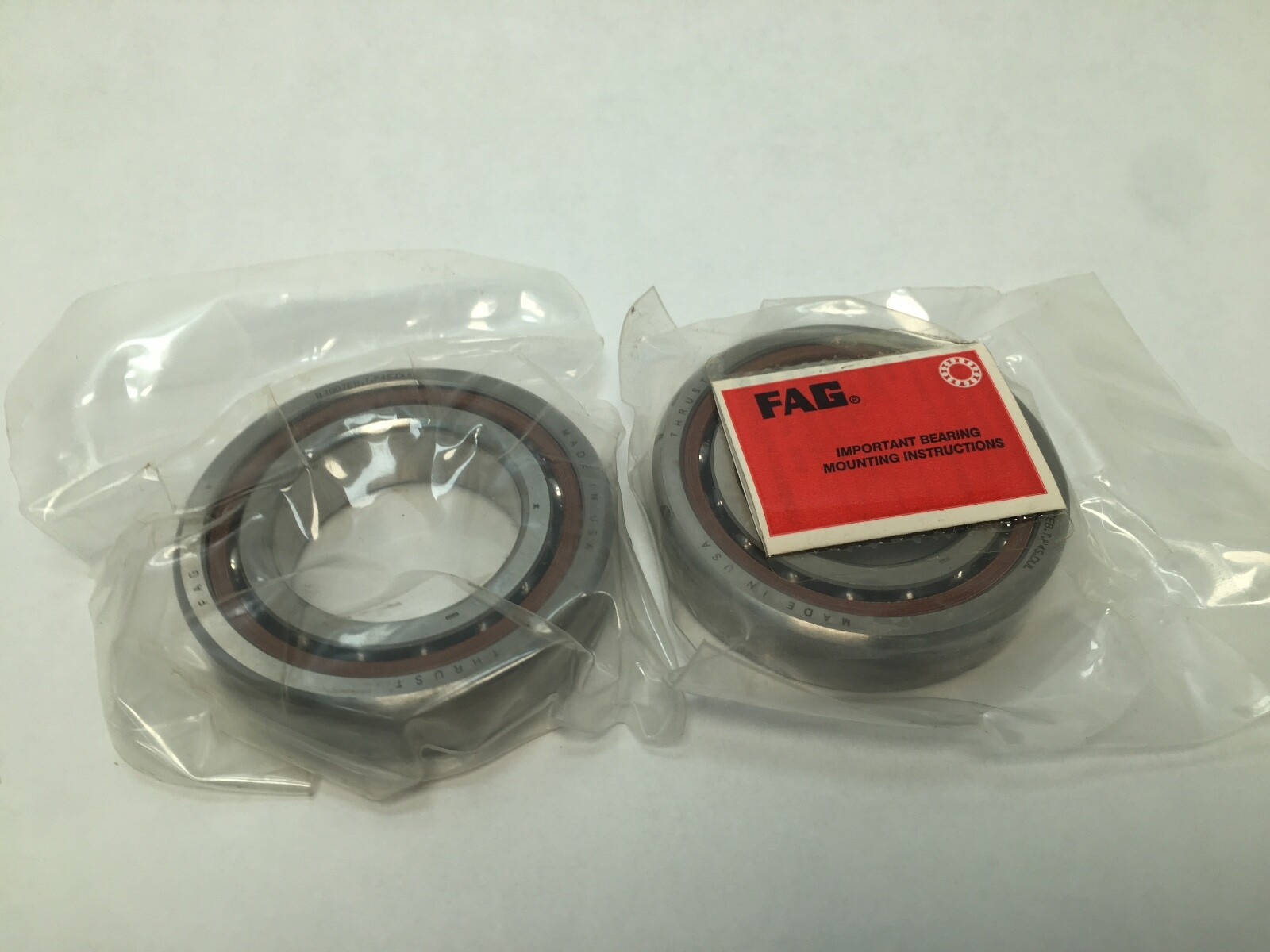

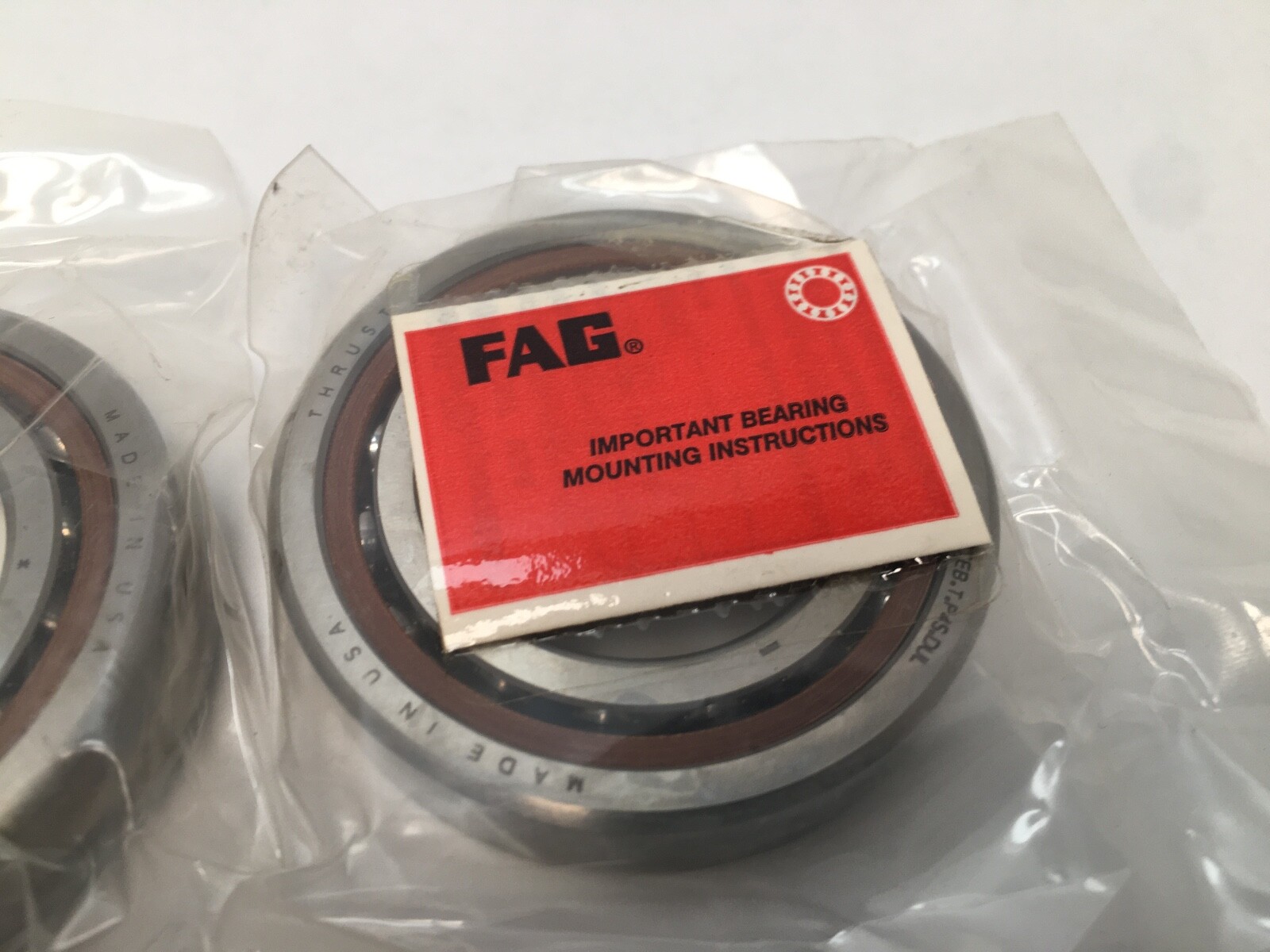

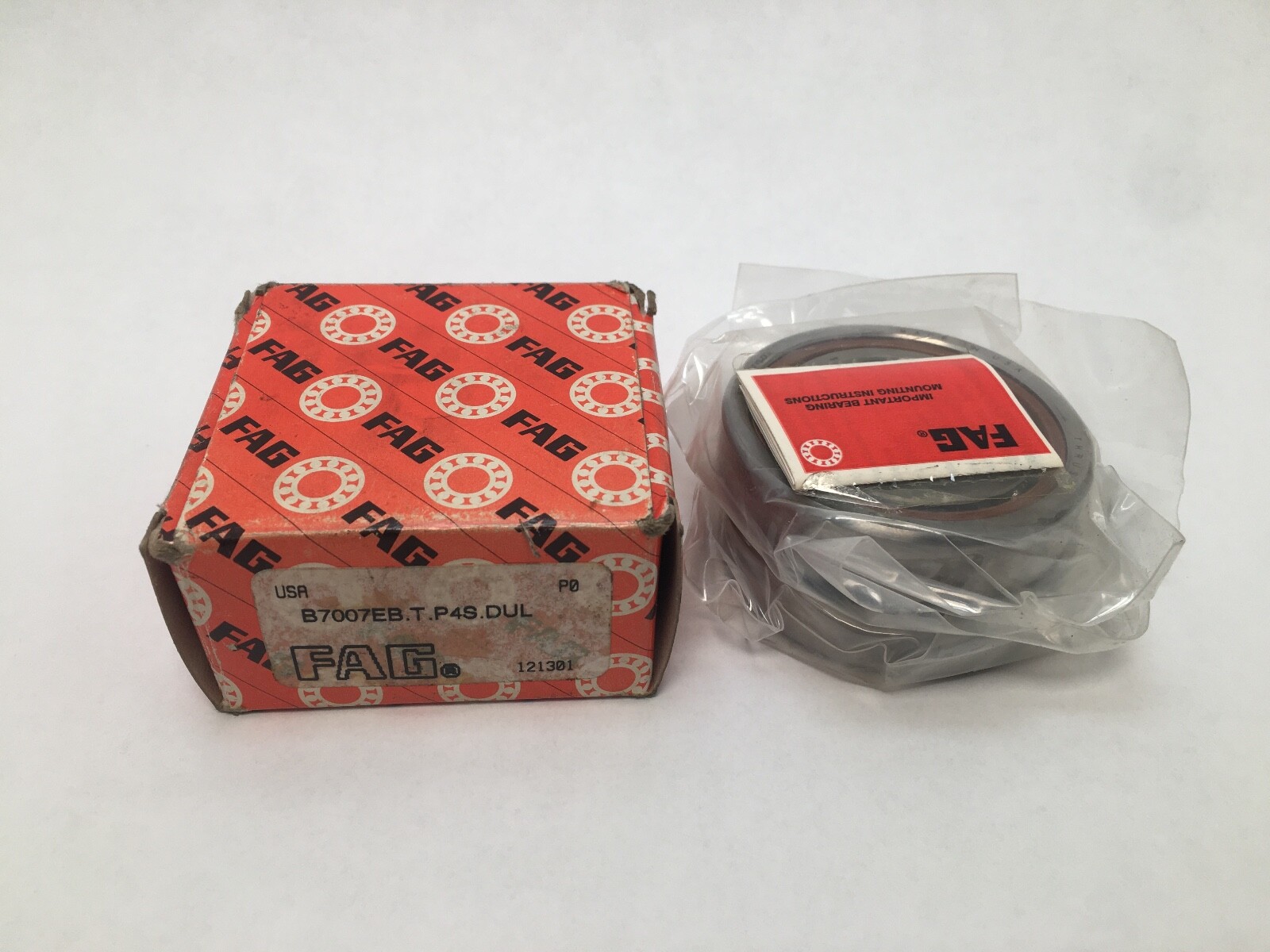

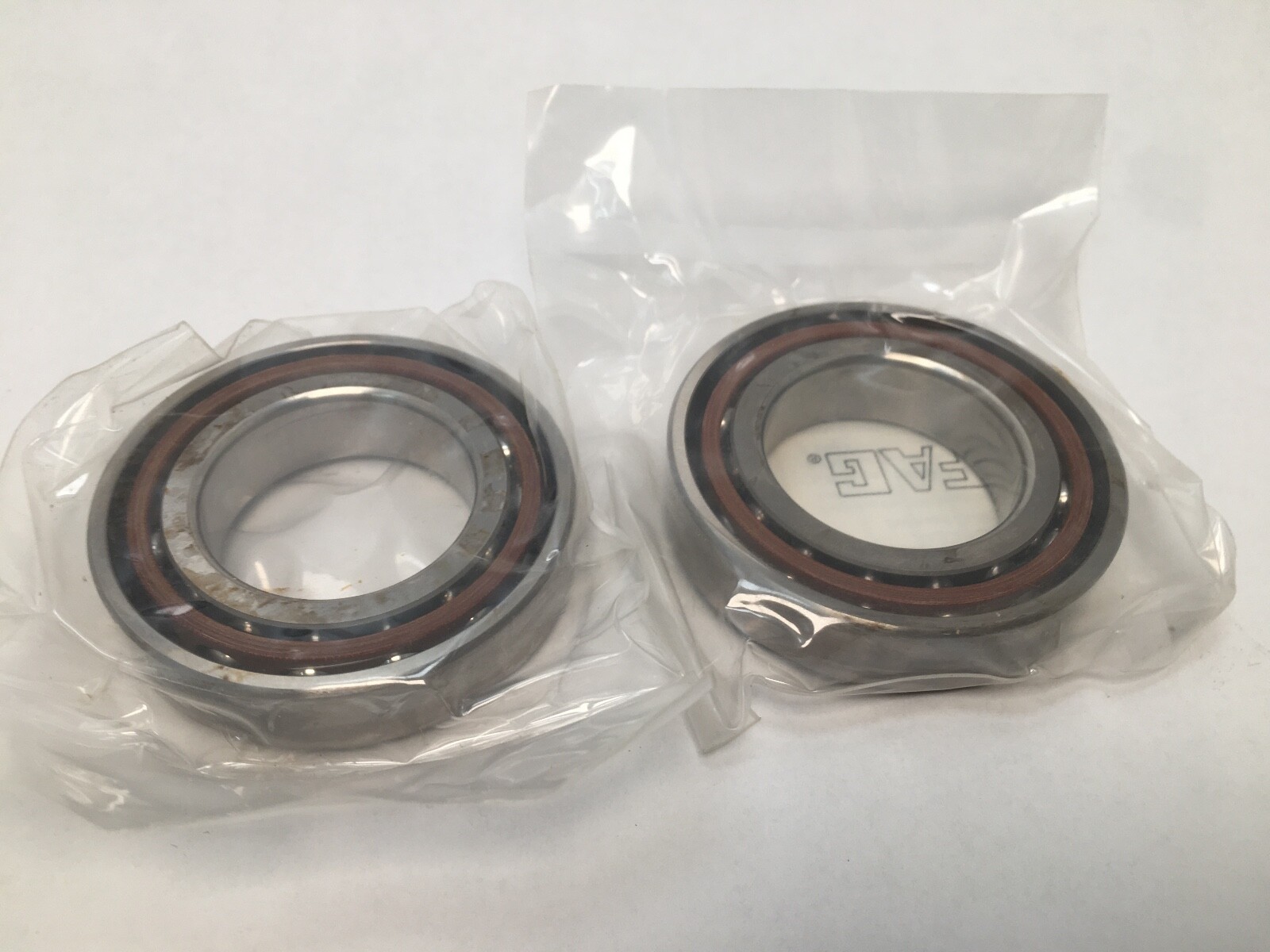

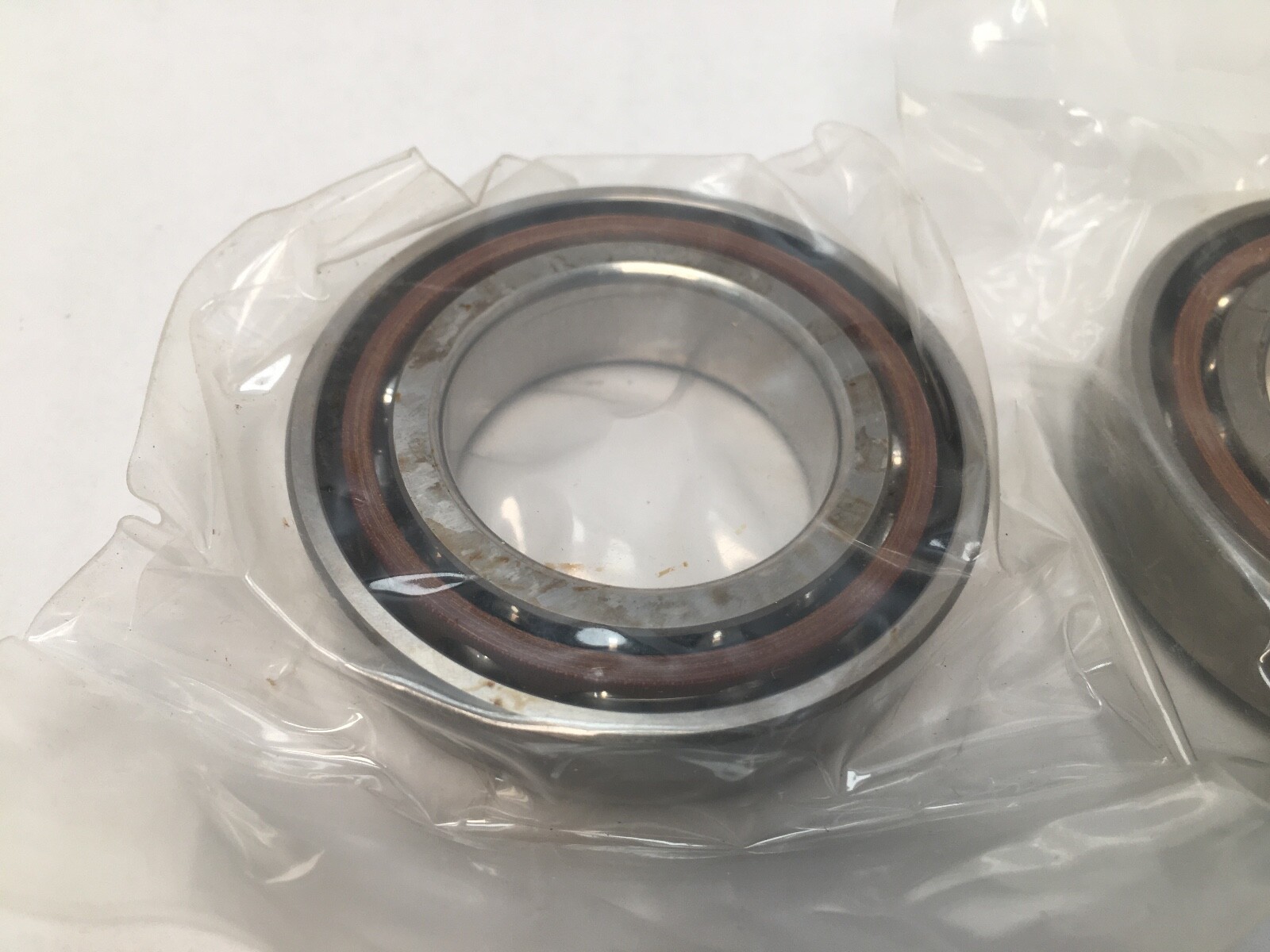

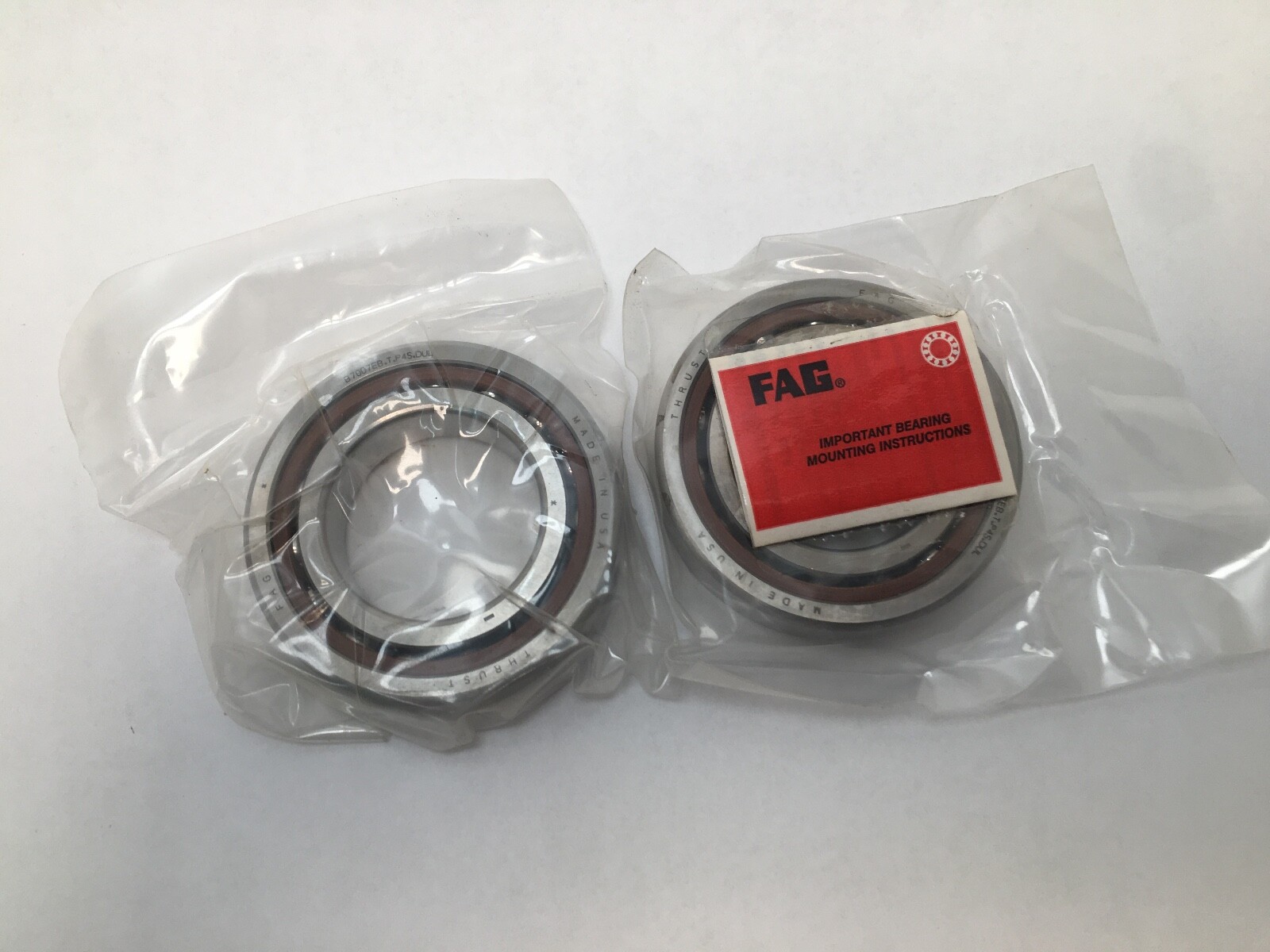

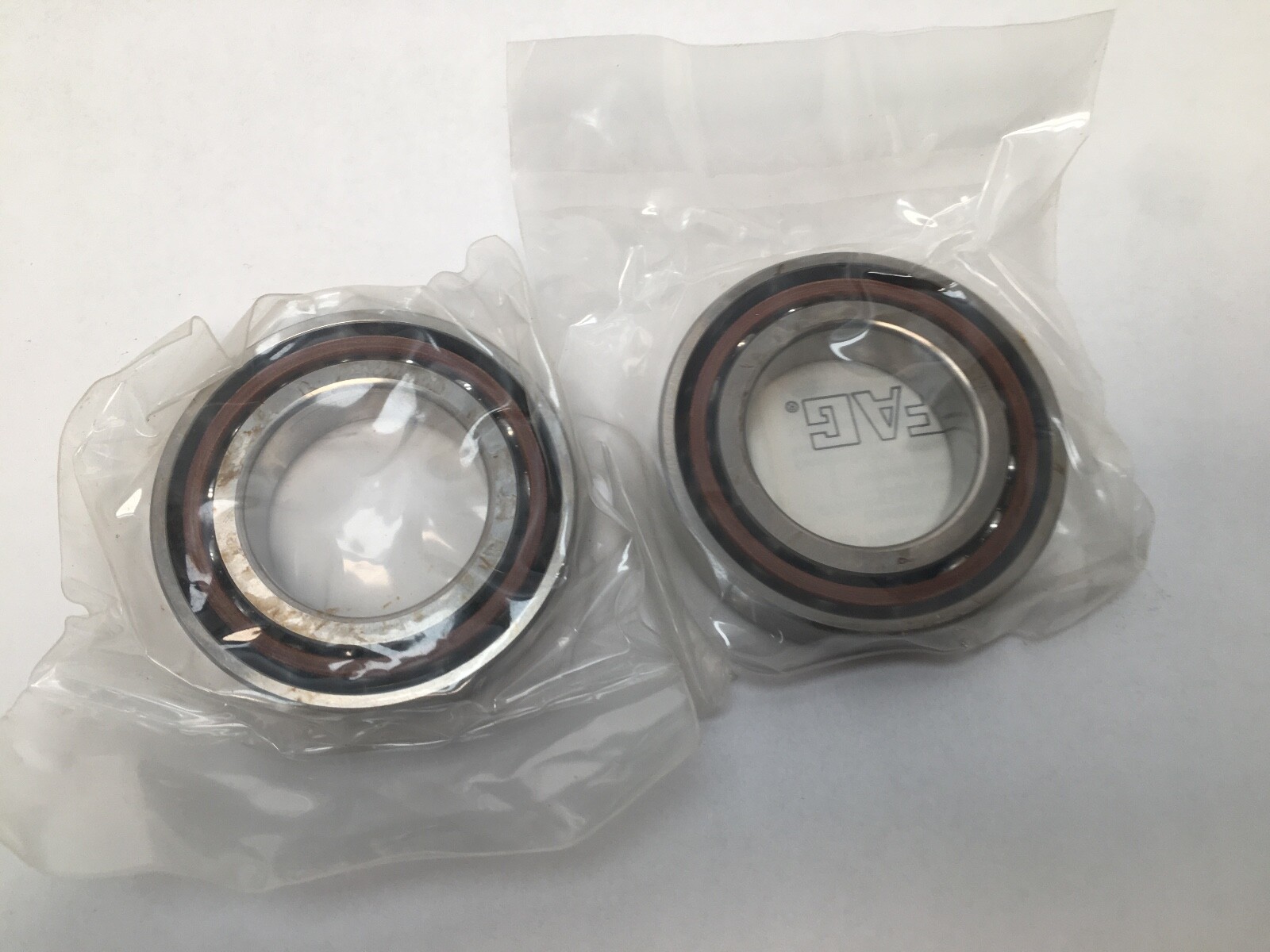

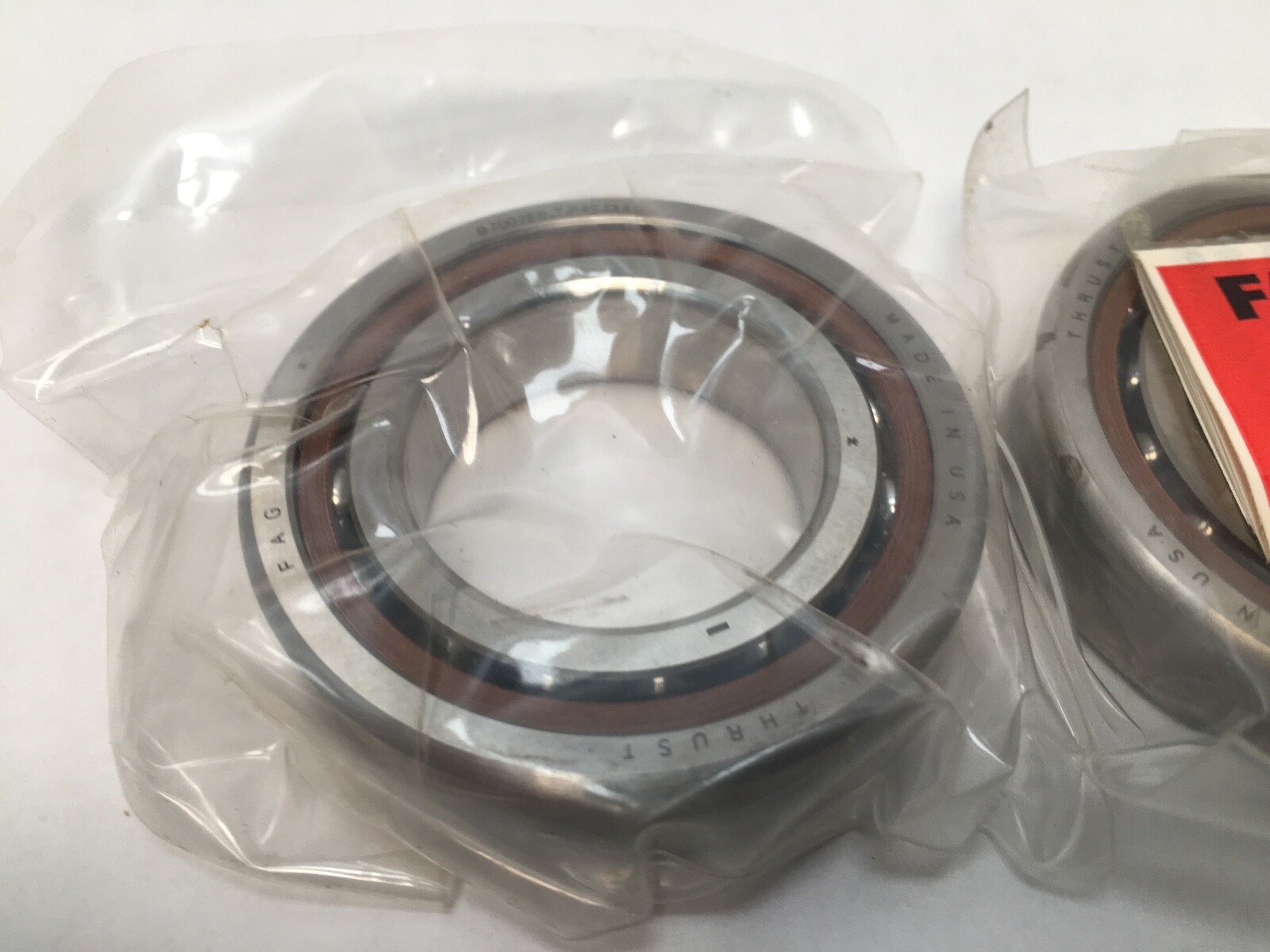

Matched pair of FAG B7007EB super-precision spindle bearings, 35 x 62 x 14 mm each, 25° contact angle, light preload, P4S class, phenolic cage.
List Price
$187.02
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7007-E-B-T-P4S-DUL |
| Model | B7007E B T P4S DUL / 3MM9107WIDUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Base Number | B7007 |
| Industry Terms | spindle bearing pair, matched duplex set, 25 deg spindle bearing |
| Application Types | Machine tool spindles, drilling and boring heads, rotary tables |
| Bore Shaft Size | 35 mm |
| Mpn Variants | B7007EB.T.P4S.DUL, B7007-E-B-T-P4S-DUL, B7007ETP4SDUL, B7007E |
| Manufacturer Status | FAG is part of Schaeffler |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing, 2 bearings supplied |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Part Number | B7007-E-B-T-P4S-DUL |
| Cross Reference 1 | Fafnir 3MM9107WIDUL - P4 vs P4S |
|---|---|
| Cross Reference 2 | NSK 7007A5TYNDULP4 - polyamide cage |
| Cross Reference 3 | SKF 7007 ACDGA/P4A |

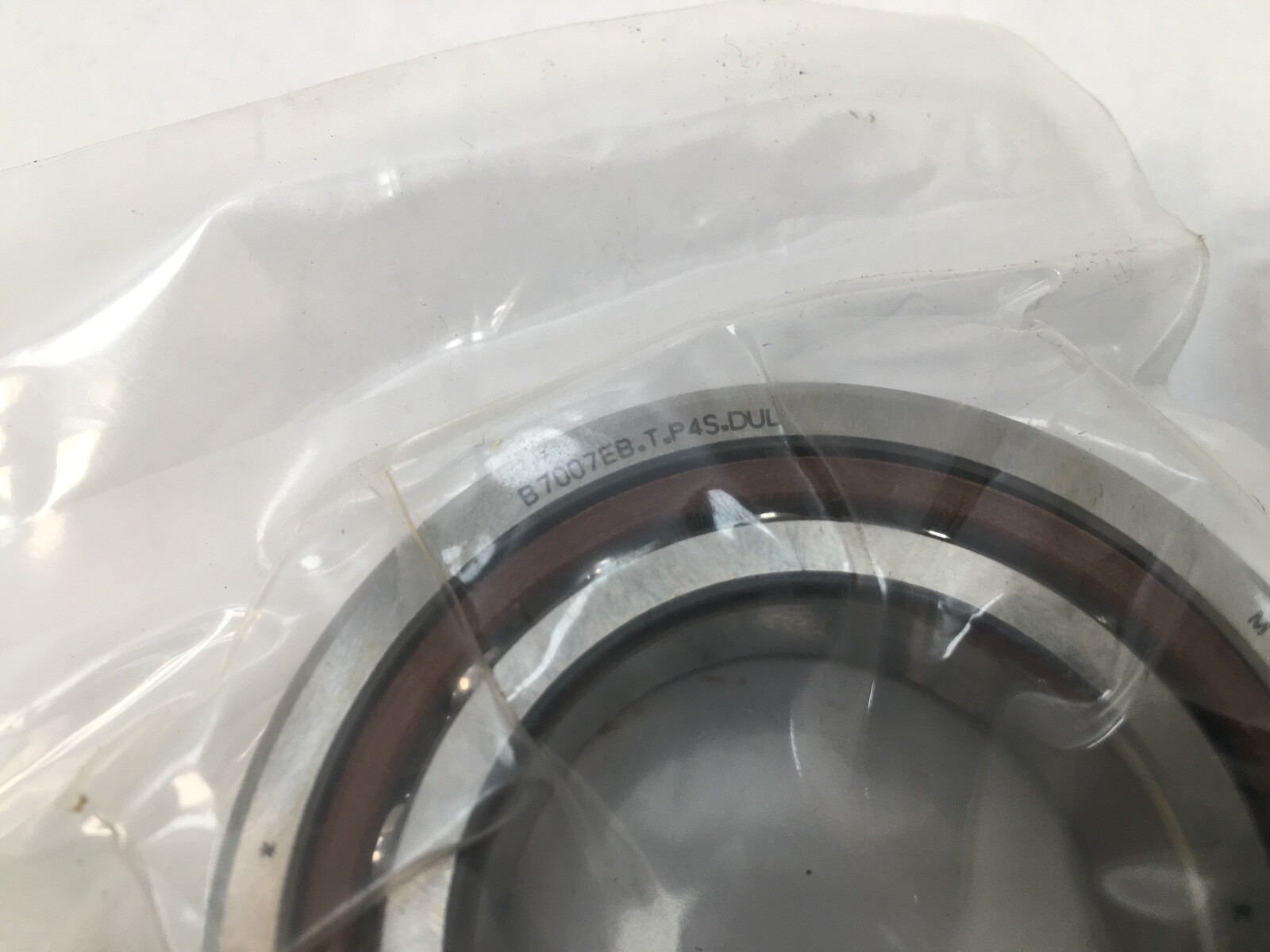

A duplex, universally ground matched pair of FAG B7007EB.T.P4S.DUL super-precision spindle bearings, 35 mm bore by 62 mm outside diameter by 14 mm wide per bearing. The B-prefix range is FAG’s dedicated high-speed spindle bearing family, with tighter tolerances, controlled preload and a phenolic cage built for speed.
B7007 — FAG spindle bearing, 70 dimension series, 35 mm bore.
E — 25° contact angle in FAG’s spindle-bearing scheme (C would be 15°).
B — both-side shoulder / spindle-bearing execution.
T — machined fabric-reinforced phenolic cage.
P4S — FAG super-precision class, tighter running accuracy than plain P4.
DUL — duplex, universally ground, light preload; mountable DF, DB or DT with no shimming.
3MM9107WIDUL — Fafnir/Timken carton marking; the 3MM prefix is a 25° contact angle.
Bearing Type: Angular contact ball bearing, matched duplex pair. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Contact Angle: 25°. Precision Class: P4S. Cage Material: Phenolic. Preload: Light. Seal Type: Open. Bore Type: Straight. Series: B70. Unit Quantity: 2 Pc, one matched pair.
Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm per bearing, 28 mm for the pair. Mounting Arrangement: DF, DB or DT, universally ground.
Closest 25° light-preload parts from other makers: Fafnir/Timken 3MM9107WIDUL (P4 class, this carton’s own number), NSK 7007A5TYNDULP4 (A5 = 25° in NSK’s scheme; NSK’s plain A means 30°, so 7007A is not a match) and SKF 7007 ACDGA/P4A (SKF AC = 25°).
35 mm bore, 62 mm outside diameter and 14 mm width per bearing.
25°, set by the E in the designation. A 25° angle carries more axial load than 15° and gives up some top speed.
Yes. DUL means duplex, universally ground with light preload, so DF, DB or DT mounting needs no shimming.
