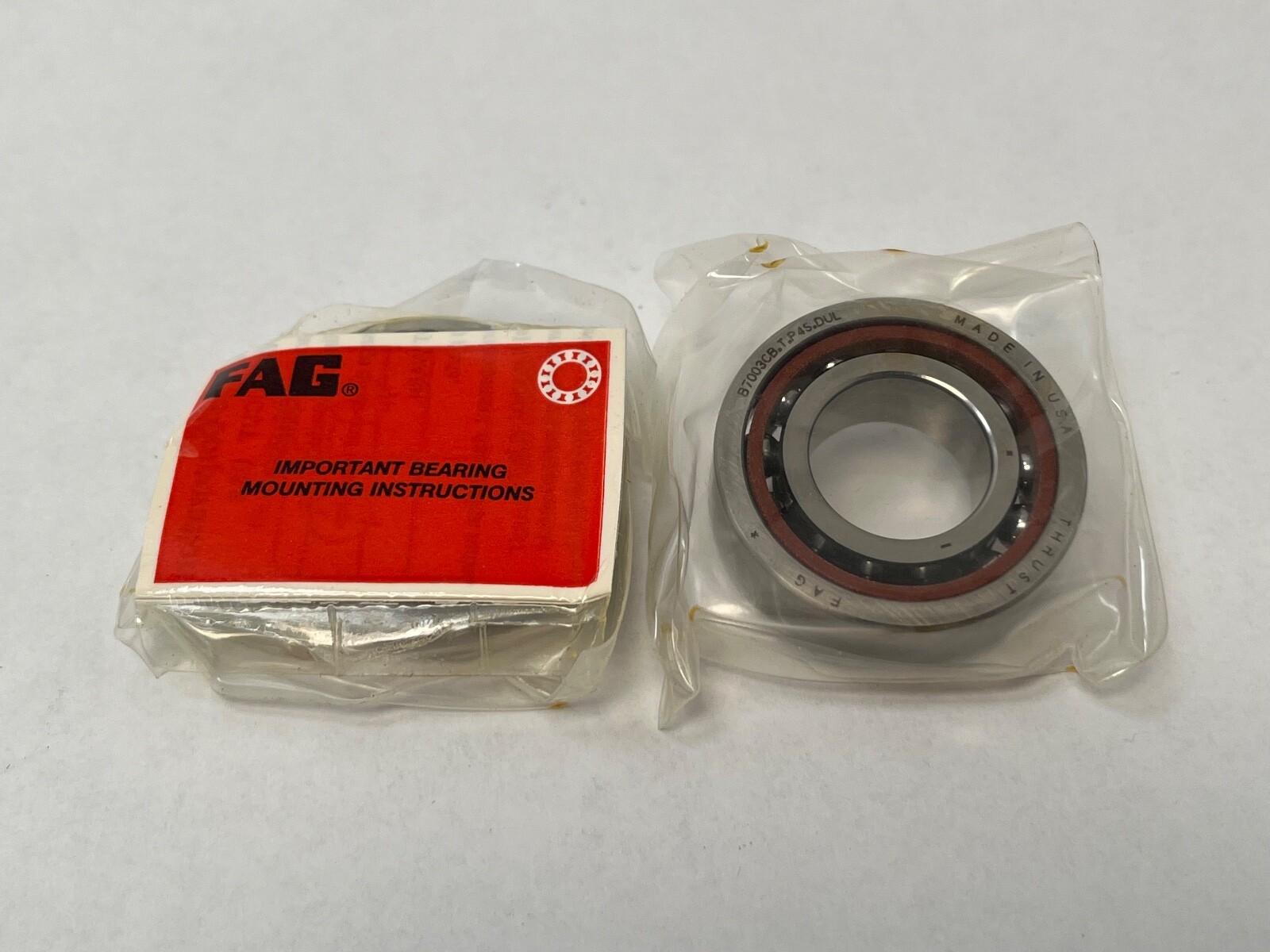

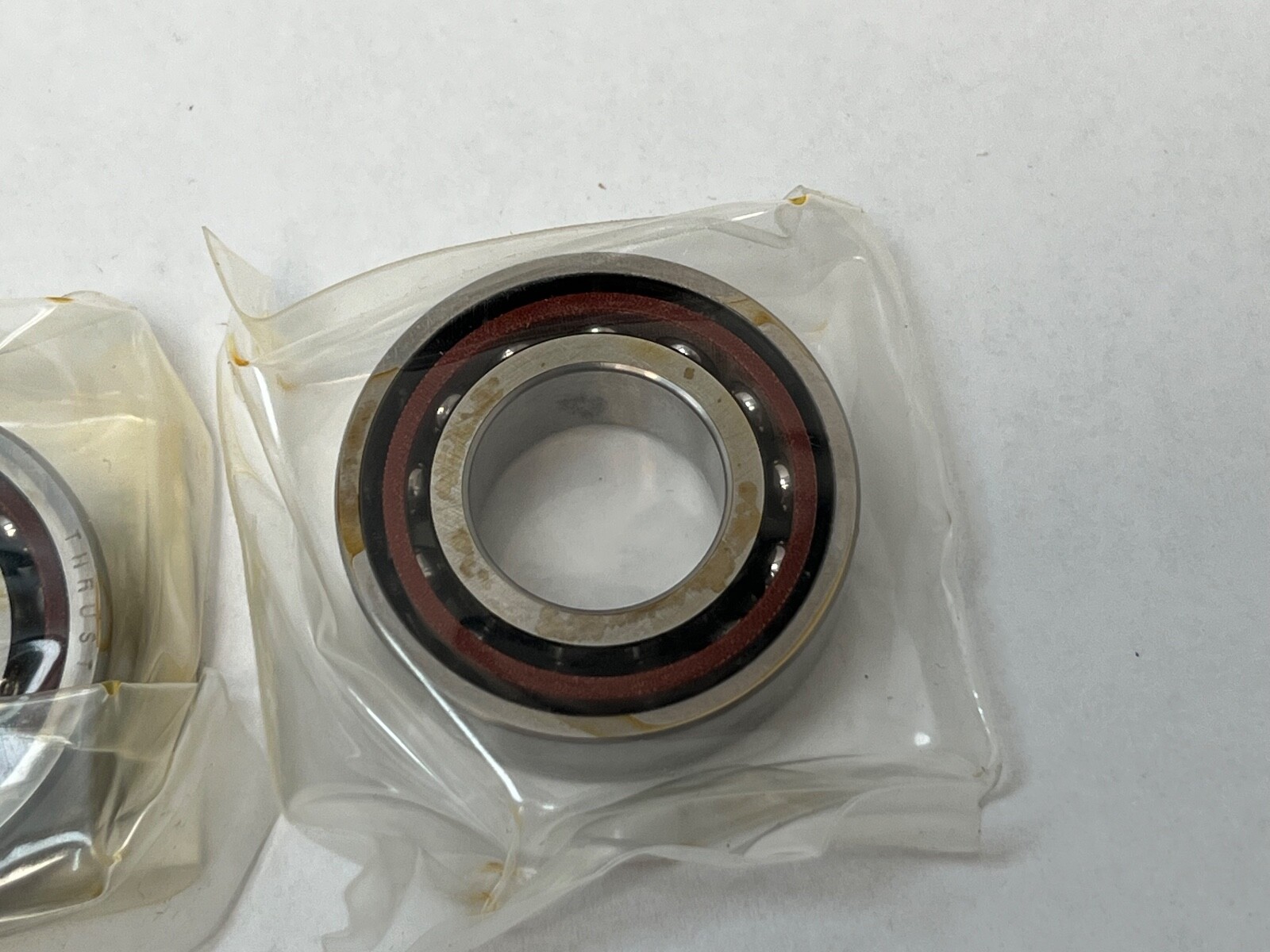

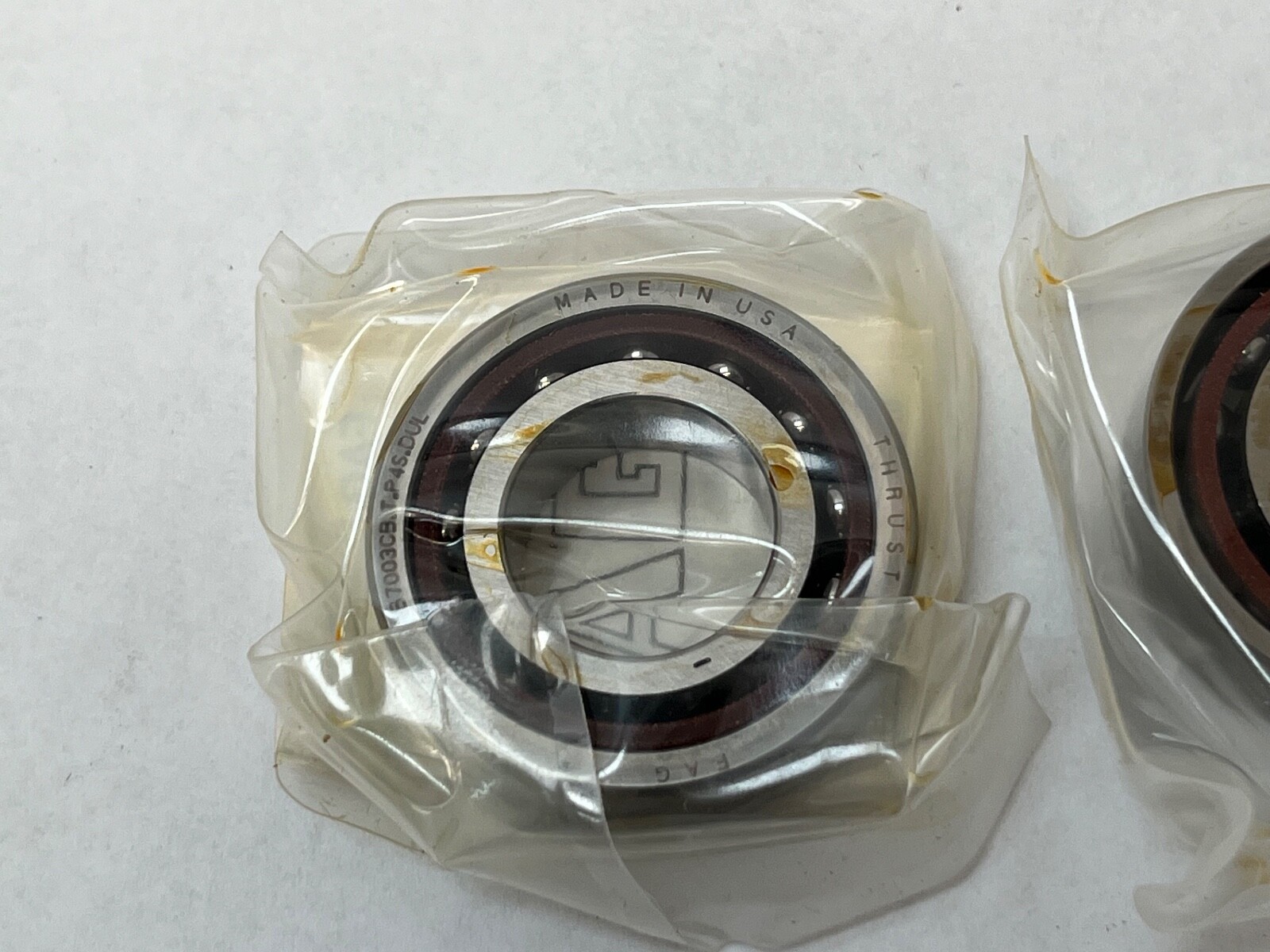

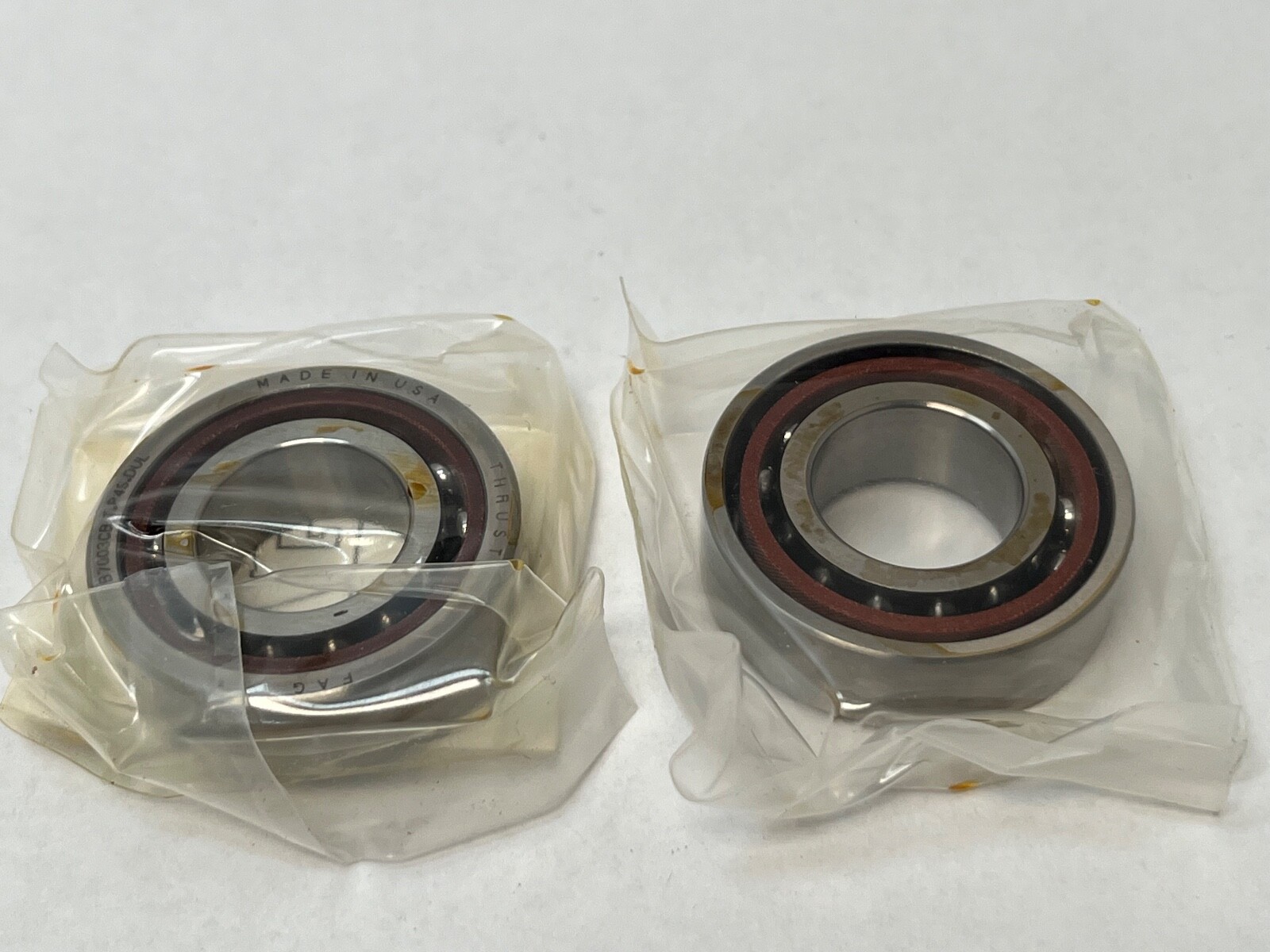

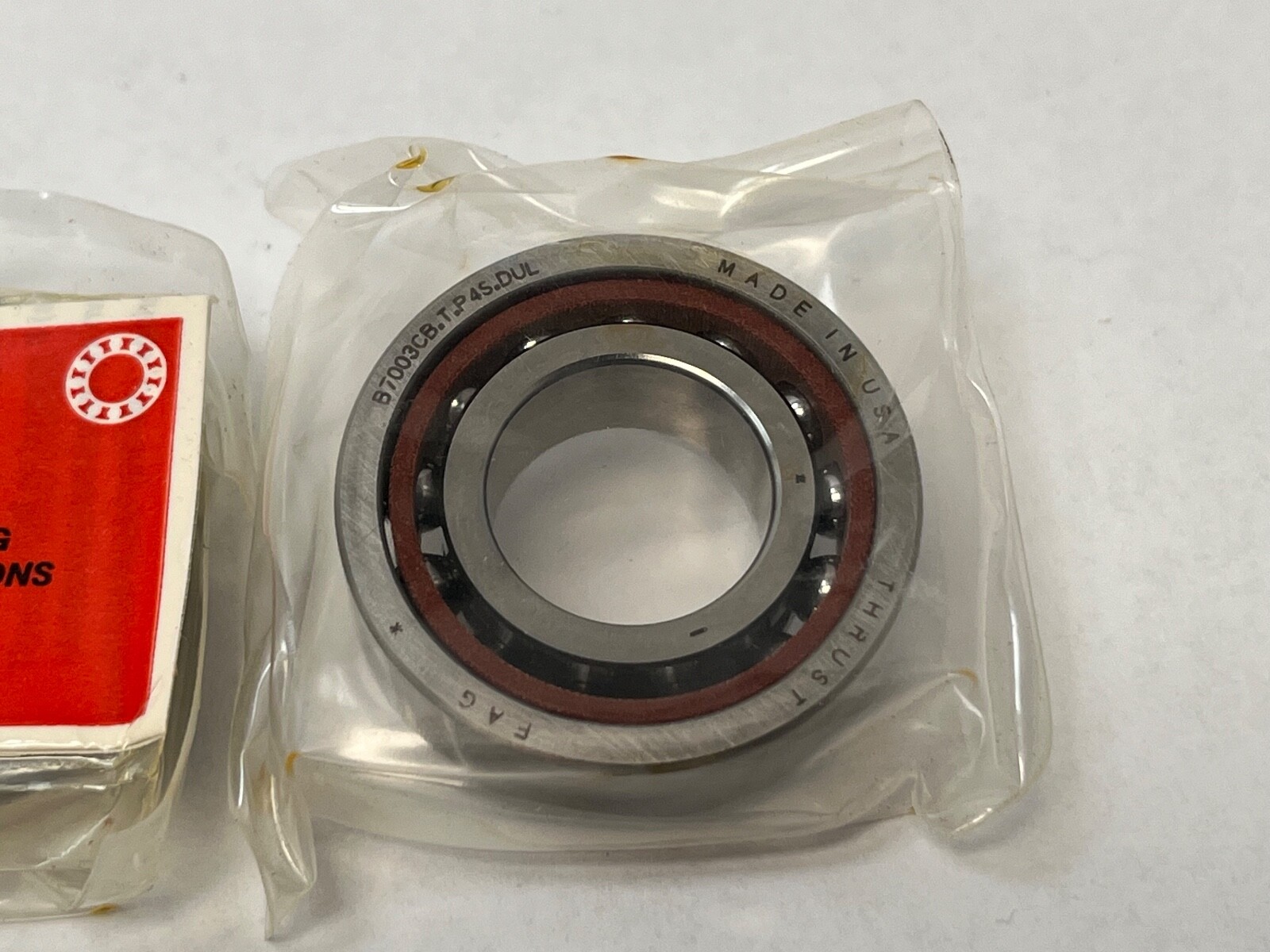

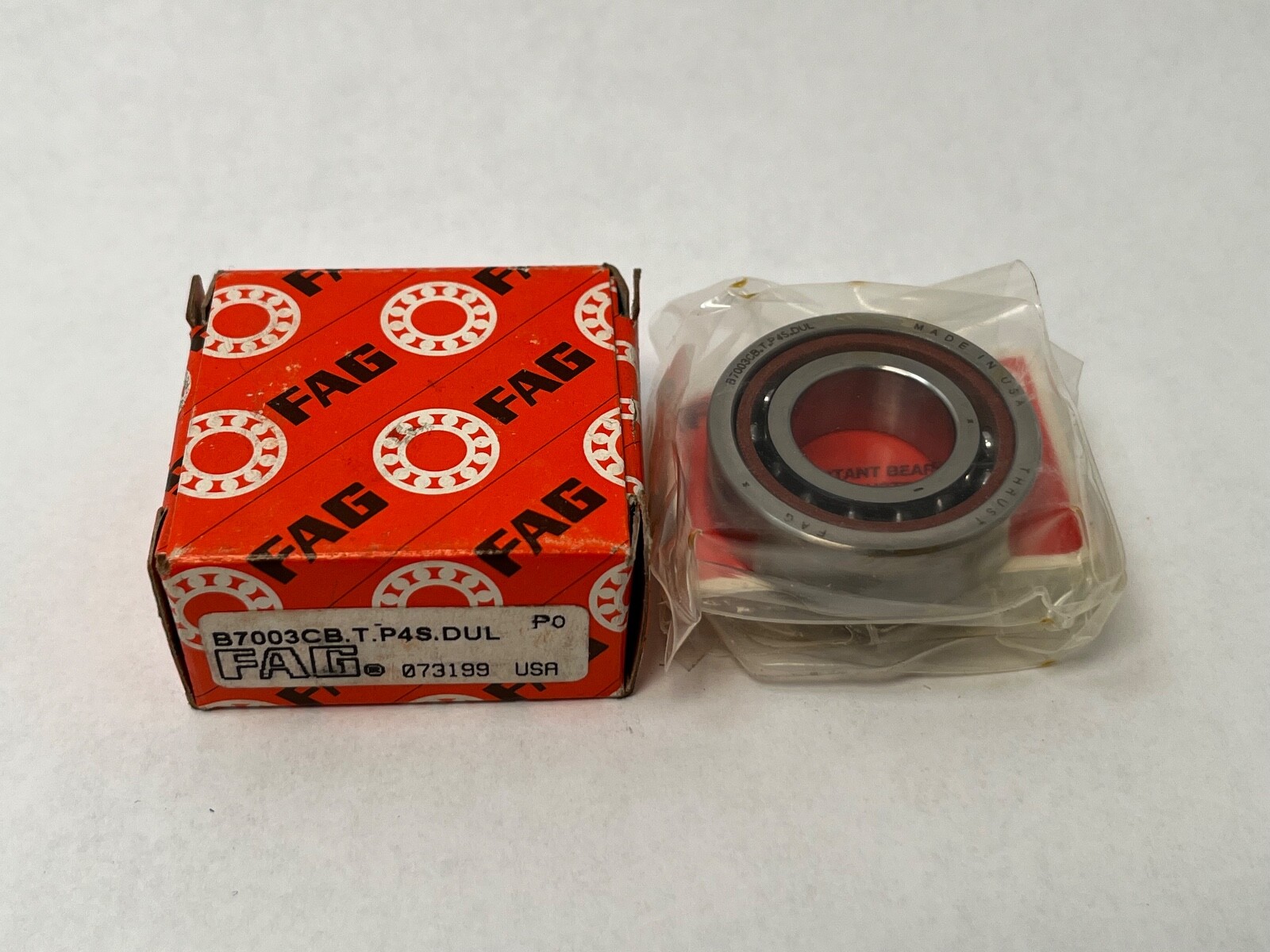

Matched duplex pair of 15° super-precision spindle bearings, 17 x 35 x 10 mm each, P4S, phenolic cage, light preload, 8,650 N dynamic. 2 Pcs.
List Price
$112.24
18 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7003-C-T-P4S-DUL |
| Model | B 7003 CB T P4S DUL / 2MM9103WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Preload | Universal light (UL) |
| Base Number | B7003 |
| Industry Terms | Spindle bearing, super-precision angular contact bearing, machine tool spindle bearing, duplex matched pair |
| Total Width | 20 mm for the pair |
| Bore Shaft Size | 17 mm |
| Mpn Variants | B7003CB.T.P4S.DUL, B7003-C-T-P4S-DUL, B-7003-CB-T-P4S-DUL, B7003CBTP4SDUL, B7003C.T.P4S.DUL, 7003C |
| Arrangement Configuration | Matched duplex set, universally ground |
| Precision Class | P4S (ABEC 7 dimensional / ABEC 9 running accuracy) |
| Cage Type | Machined, outer-ring land-riding |
| Dynamic Load Rating | 8,650 N |
| Static Load Rating | 4,900 N |
| Precision Rating | P4S |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Cage Material | Fabric-base laminate phenolic |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 15° |
| Design Units | Metric |
| Part Number | B7003-C-T-P4S-DUL |
| Common Misspellings | FAG B7003 C T P4S DUL; FAG B7003CTP4SDUL; FAG B 7003 C T P4S DUL; FAG B7003-C-T-P4S-UL |
| Application Types | Machine tool spindles; grinding spindles; high-speed precision rotary tables |
| Closure Type | Open |
| Cross Reference 1 | Fafnir 2MM9103WI CR DUL - P4 class, phenolic cage |
|---|
FAG B7003-C-T-P4S-DUL, a matched duplex pair of super-precision single-row angular contact spindle bearings. Unit Quantity: 2 Pcs. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Width: 10 mm per bearing. Contact Angle: 15°. Preload: universal light. Closure Type: open.
B — FAG spindle bearing range.
7003 — ISO 70 dimension series, 17 mm bore, 17 x 35 x 10 mm envelope.
C — 15° contact angle.
T — fabric-base laminate phenolic cage.
P4S — FAG spindle-bearing accuracy class: ISO 4 / ABEC 7 boundary dimensions with ISO 2 / ABEC 9 running accuracy.
DUL — two universally ground bearings supplied as a matched pair at light preload.
Dynamic Load Rating: 8,650 N. Static Load Rating: 4,900 N. Precision Class: P4S (ABEC 7 dimensional / ABEC 9 running accuracy). Cage Material: Fabric-base laminate phenolic. Cage Type: Machined, outer-ring land-riding. Rolling Elements: Ball. Preload: Universal light (UL). Maximum Temperature: 100 °C. Bearing Material: High Carbon Chrome Steel.
Bore Diameter: 17 mm. Outside Diameter: 35 mm. Width: 10 mm per bearing; 20 mm for the pair. Number Of Rows: 1 per bearing. Straight bore.
Cross-reference: Fafnir 2MM9103WI CR DUL (P4 class, phenolic cage). Also written as B7003CB.T.P4S.DUL, B7003-C-T-P4S-DUL, B-7003-CB-T-P4S-DUL, B7003CBTP4SDUL, B7003C.T.P4S.DUL and 7003C.
A matched duplex pair, 2 Pcs, of universally ground angular contact spindle bearings.
15° contact angle (C), phenolic cage (T), light preload (UL).
17 mm bore, 35 mm outside diameter, 10 mm width per bearing. Dynamic load rating 8,650 N and static load rating 4,900 N.
