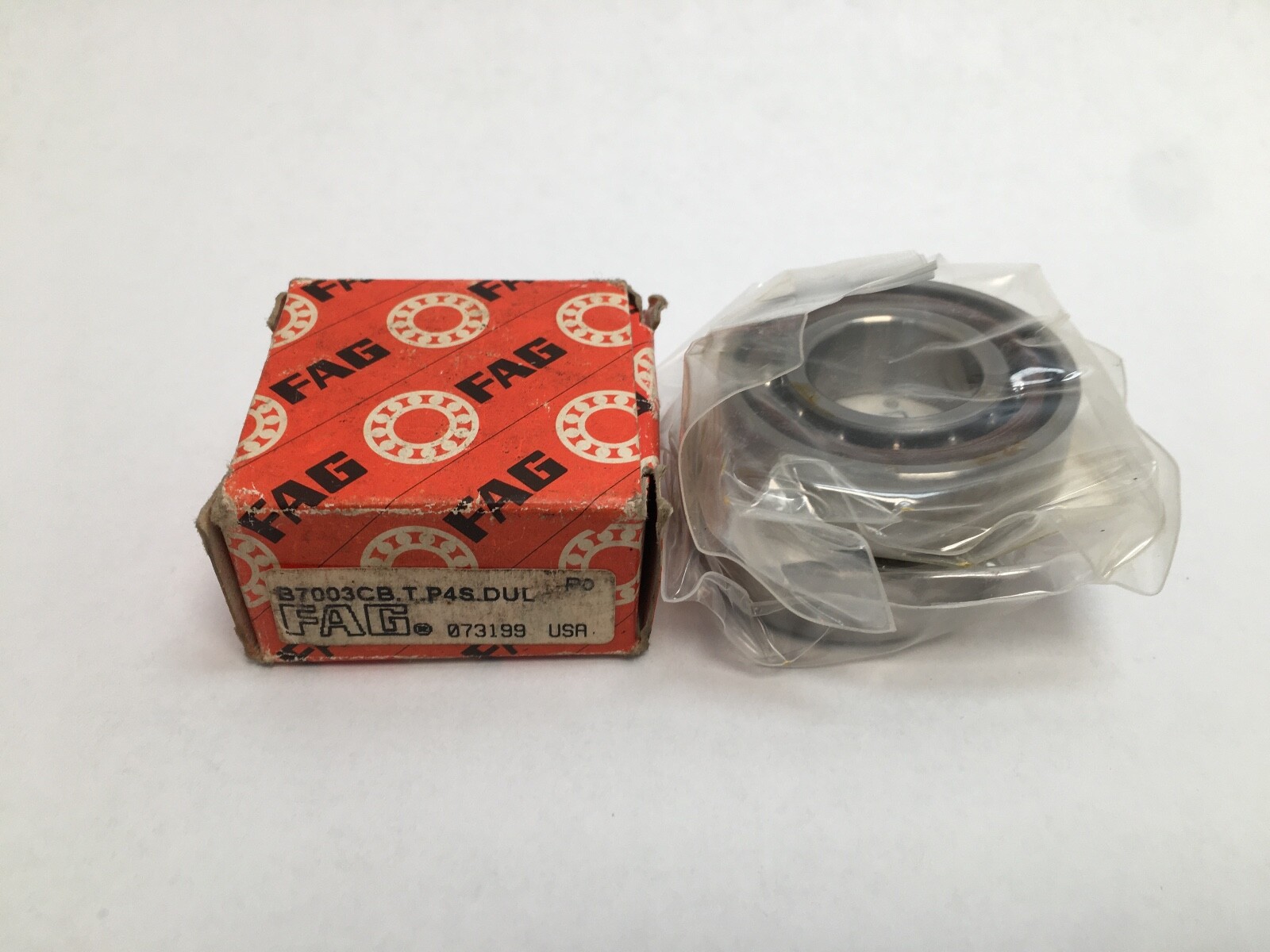

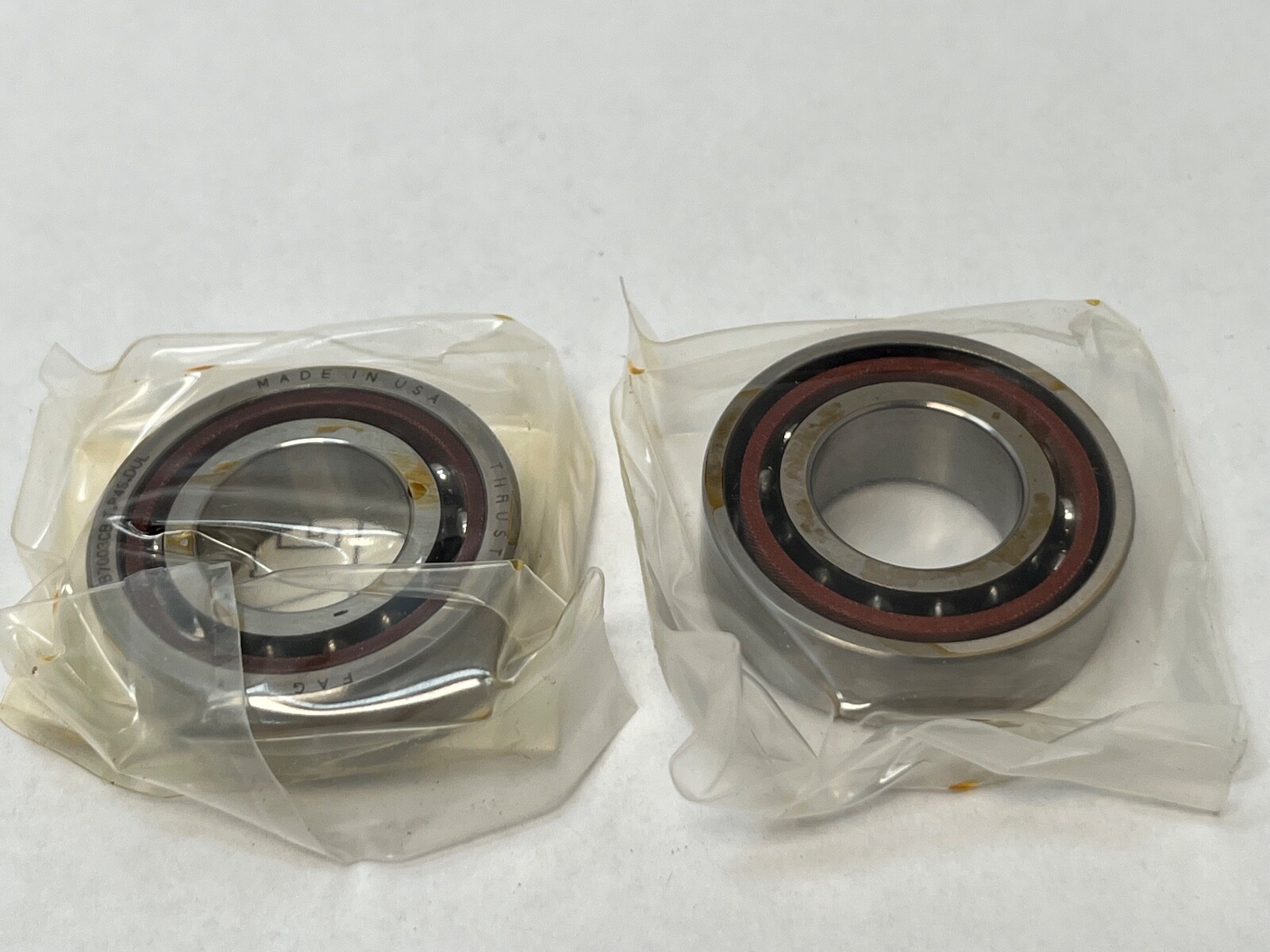

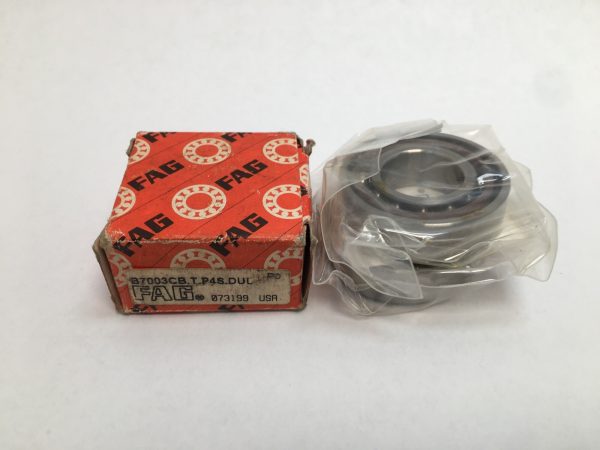

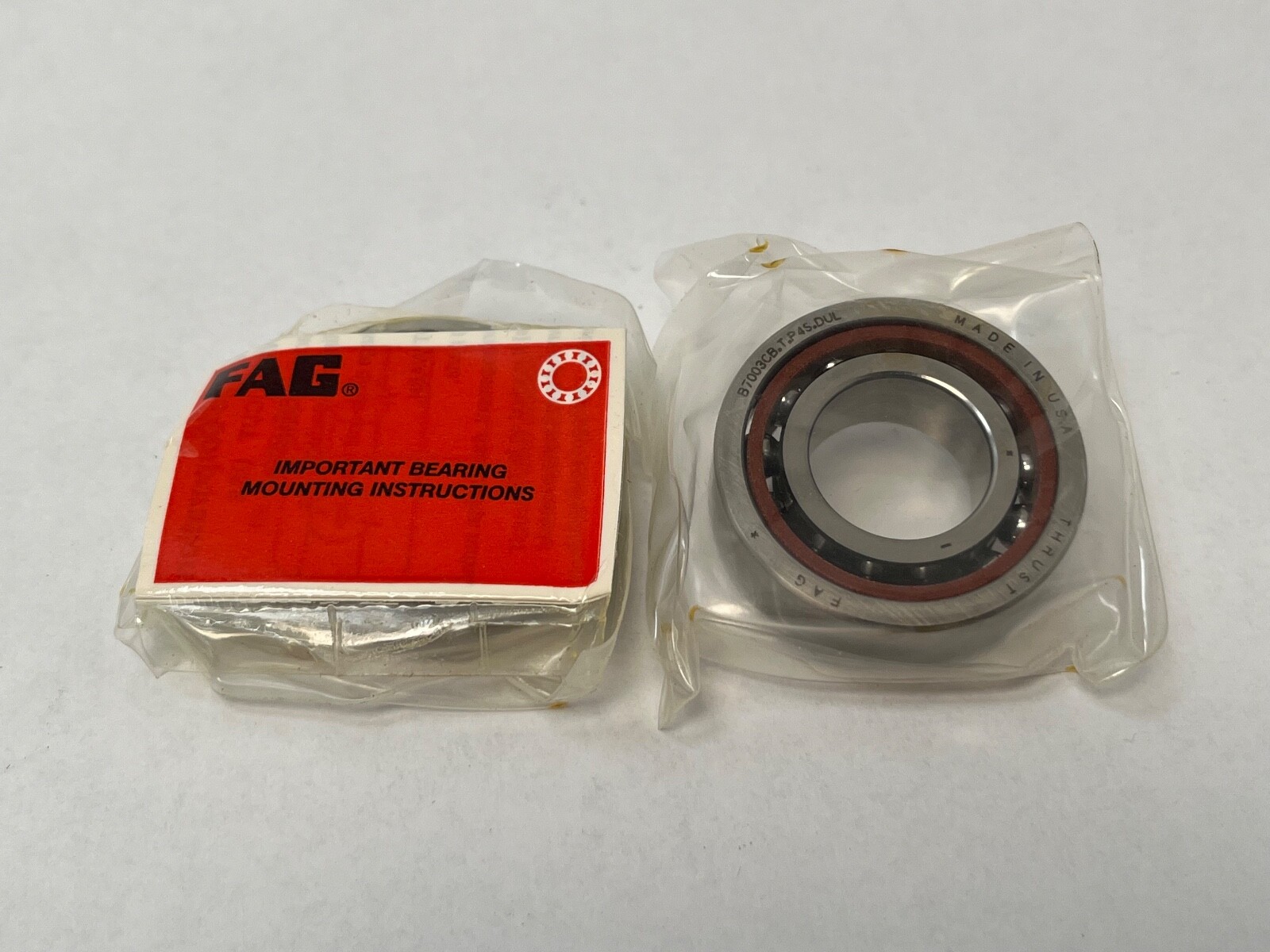

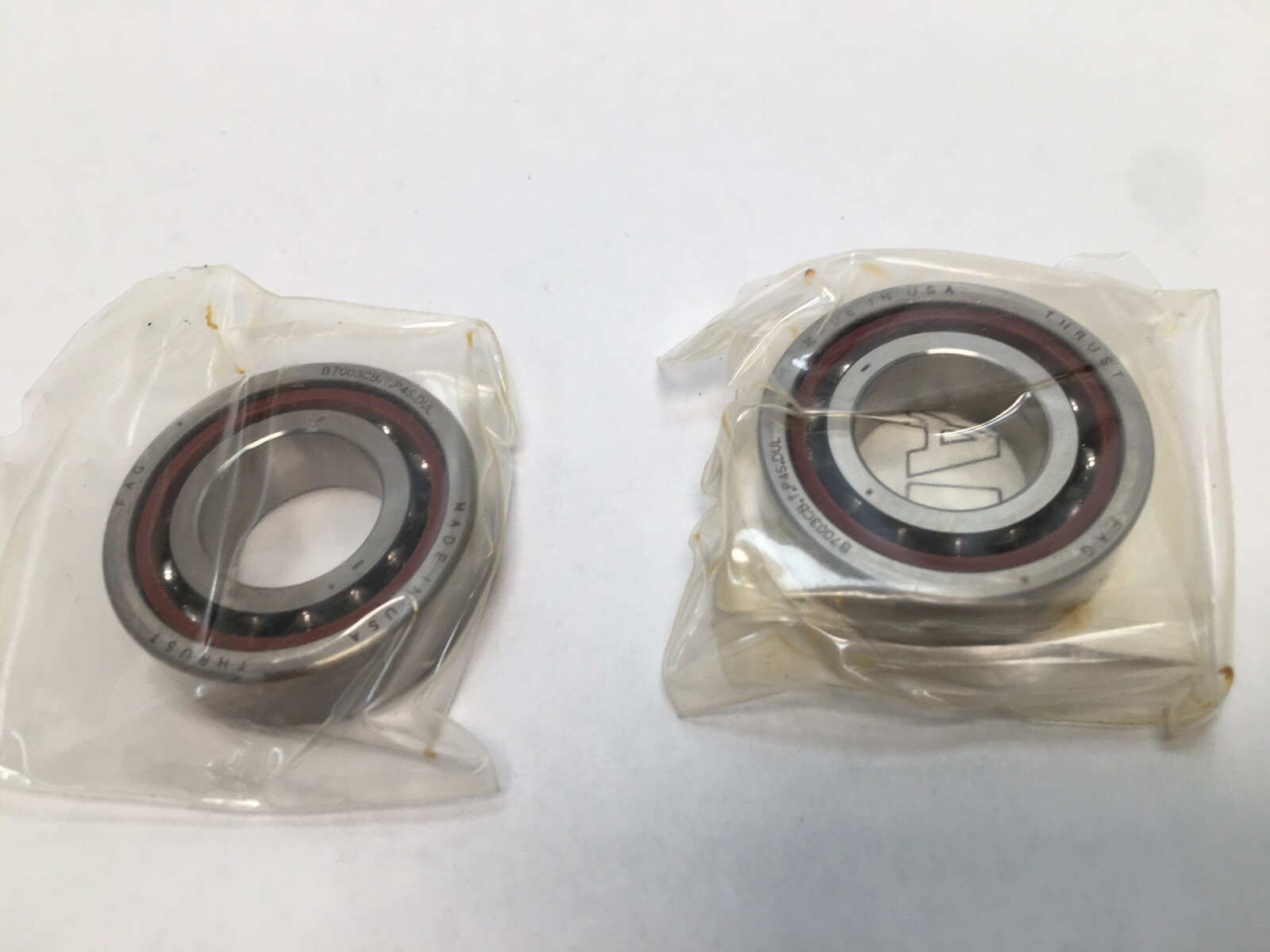

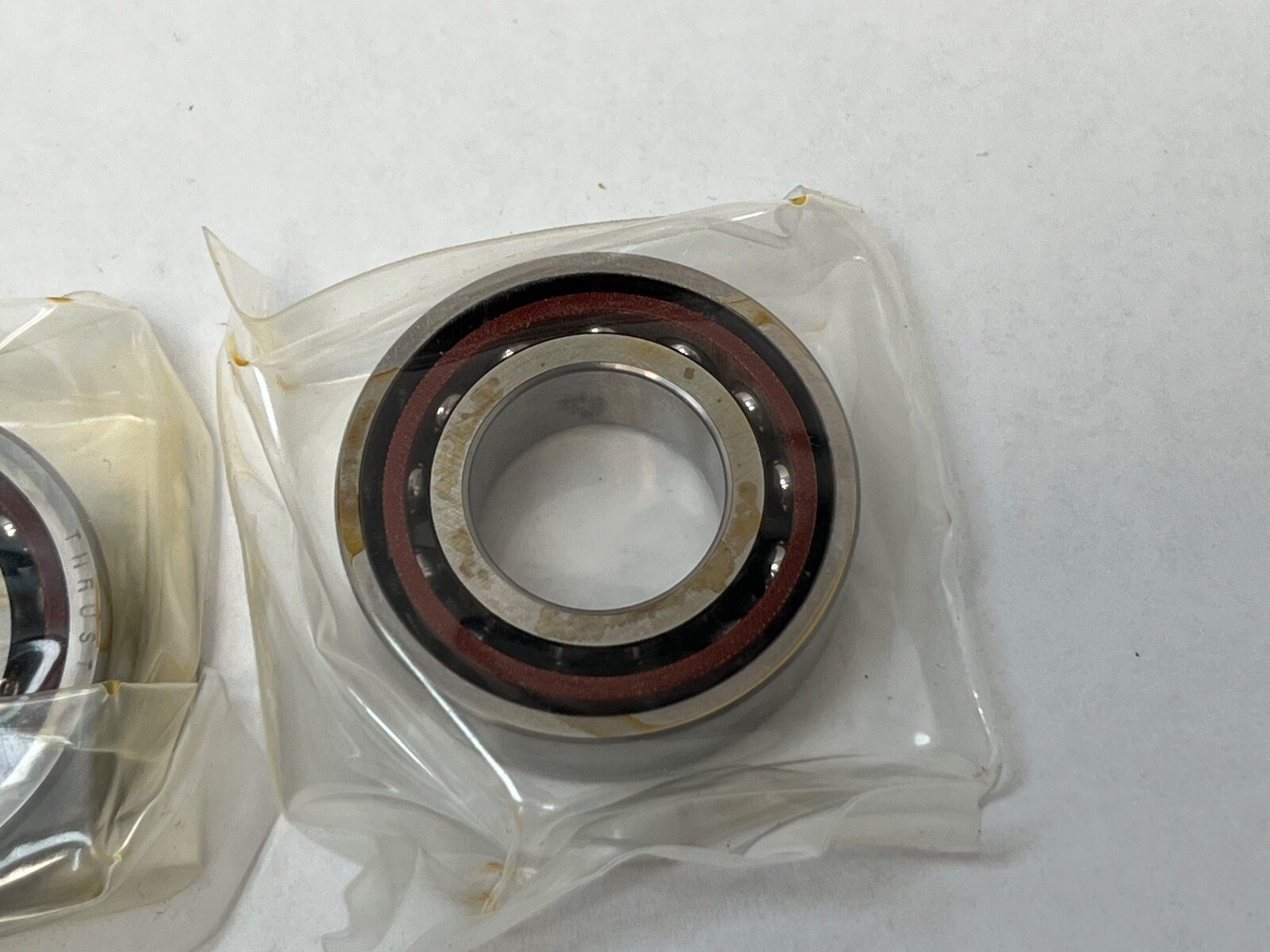

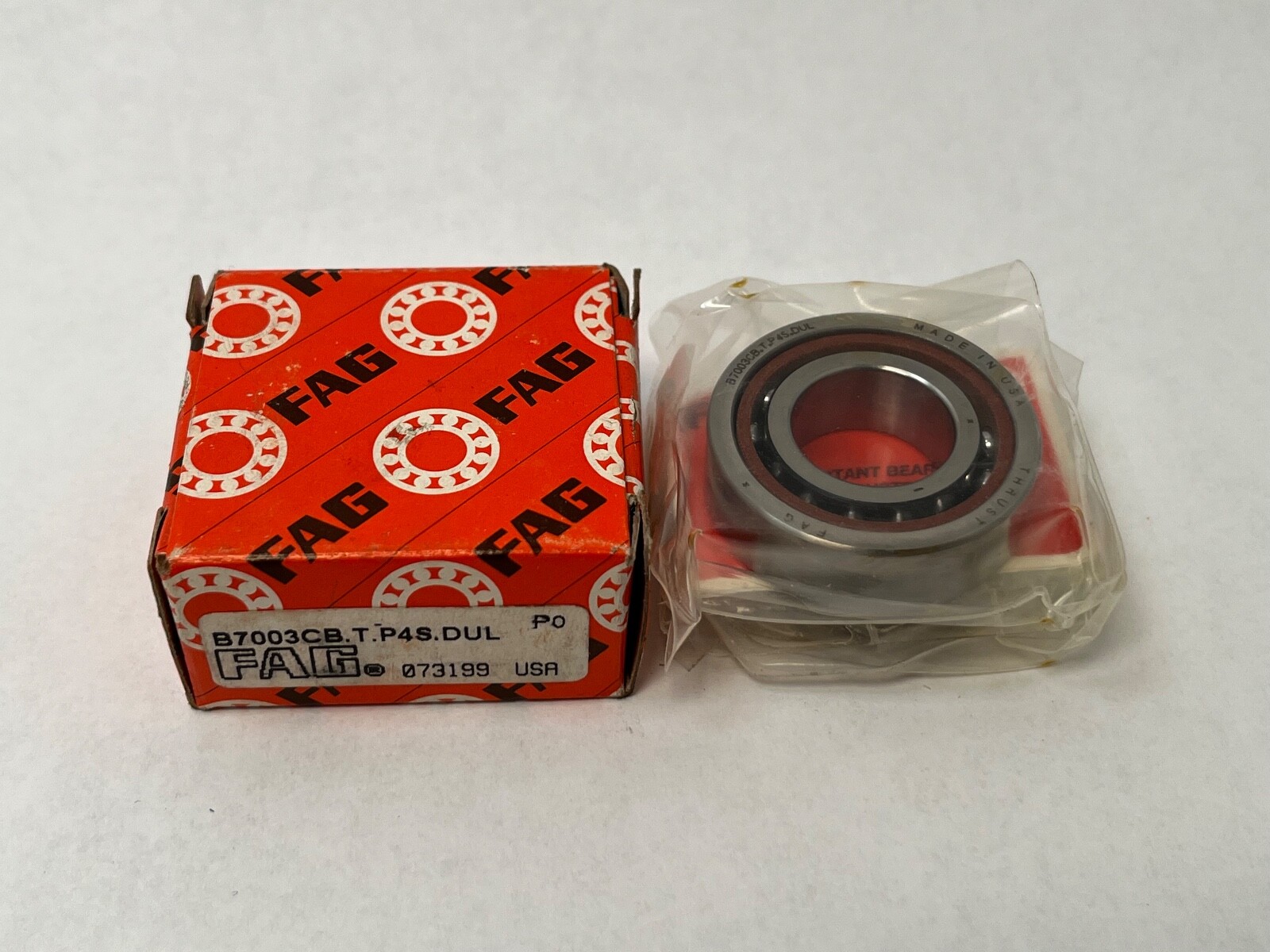

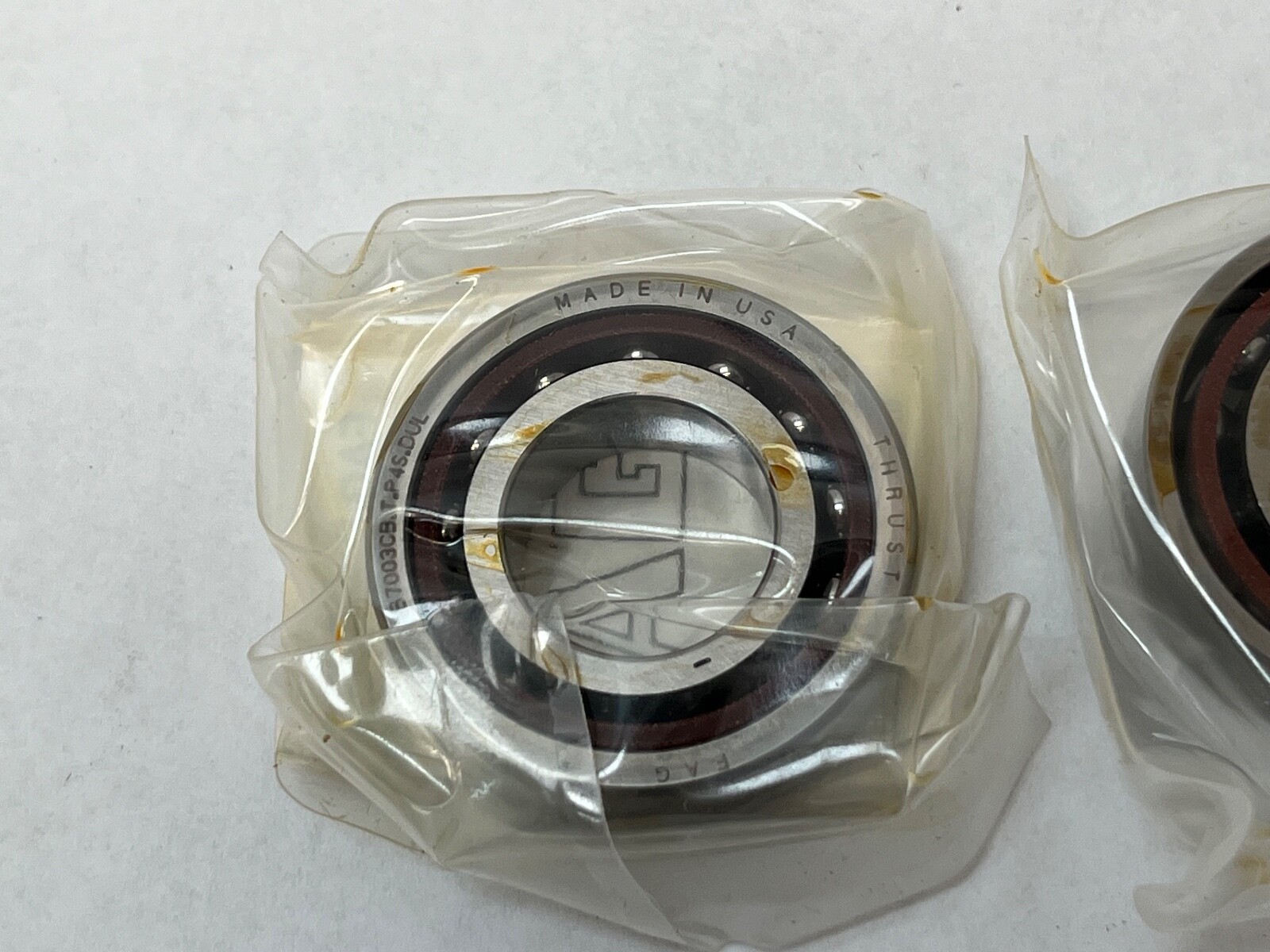

FAGB7003CBTPAP4DULSuper Precision Angular Contact Ball Bearing Matched Duplex Pair – 17 mm ID, 35 mm OD, 10 mm Width, 15 Degree Contact Angle, Phenolic Cage, Light Preload

Product Description

What this part is

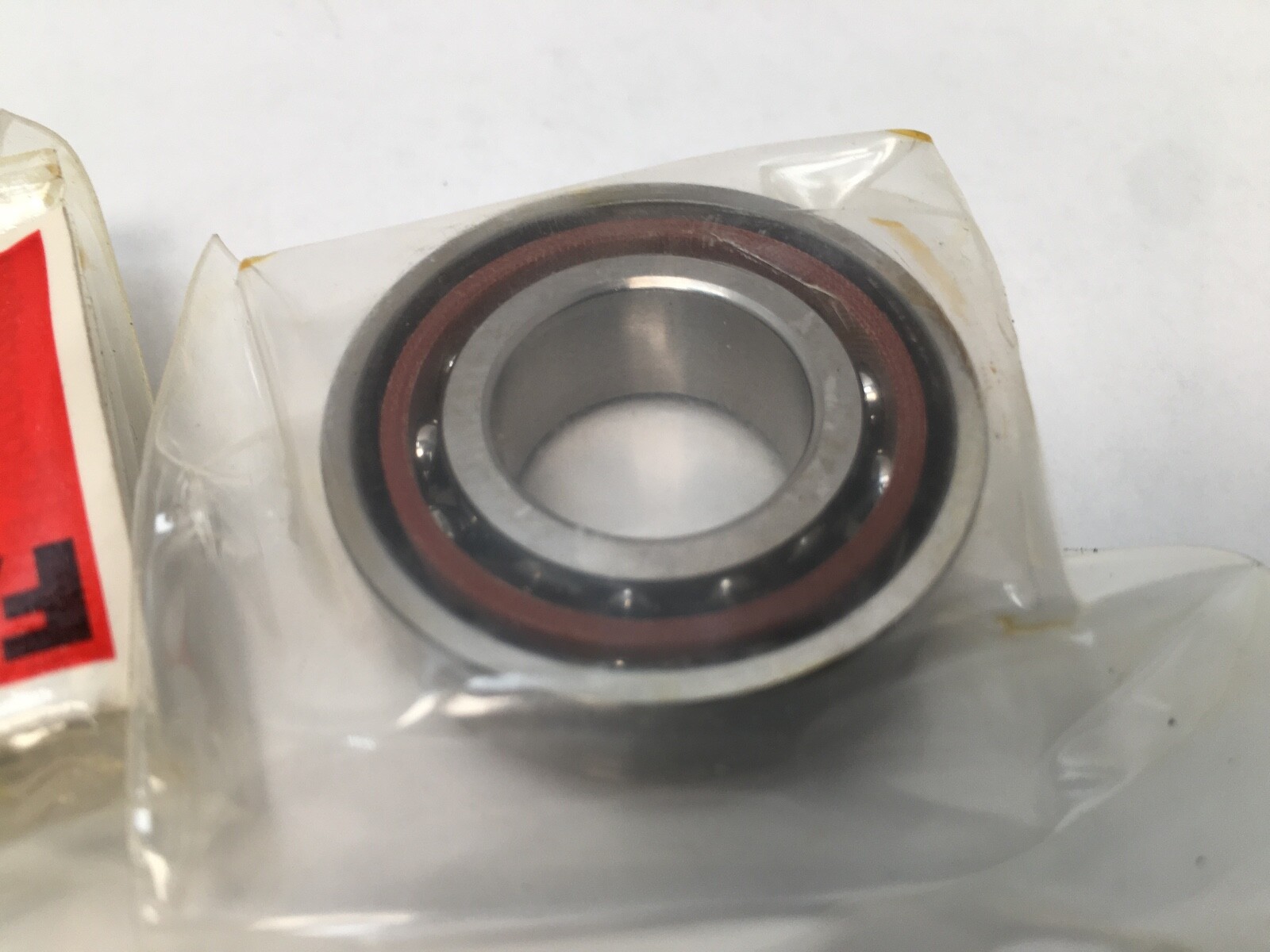

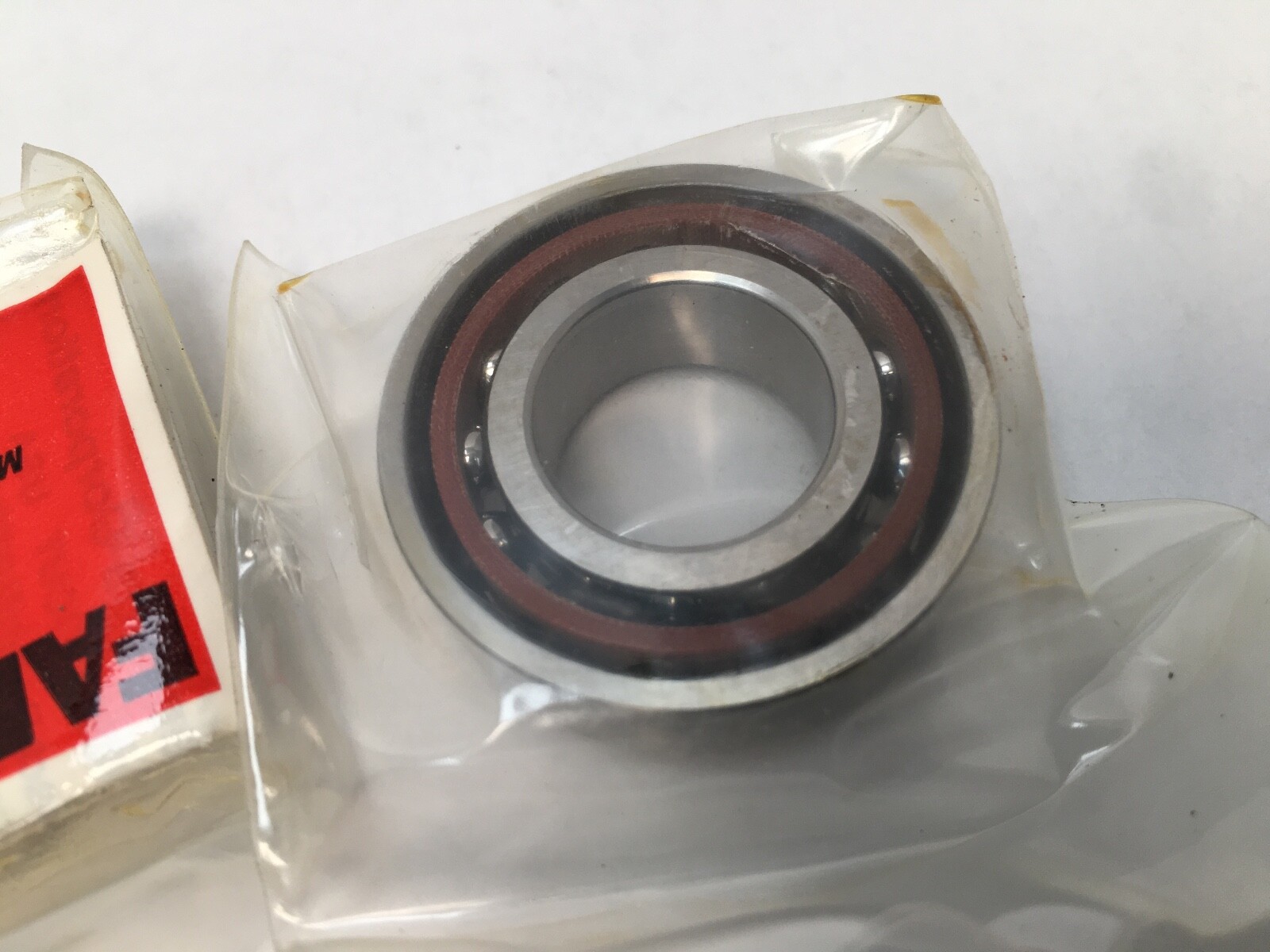

A matched pair of FAG super-precision angular contact ball bearings, each 17 mm bore by 35 mm outside diameter by 10 mm wide. Bearings in the Schaeffler B7 block are spindle bearings, ground to super-precision running accuracy with the cage and internal geometry chosen for speed. This pair is supplied universally ground with light preload built into the ring faces.

Decoding the designation

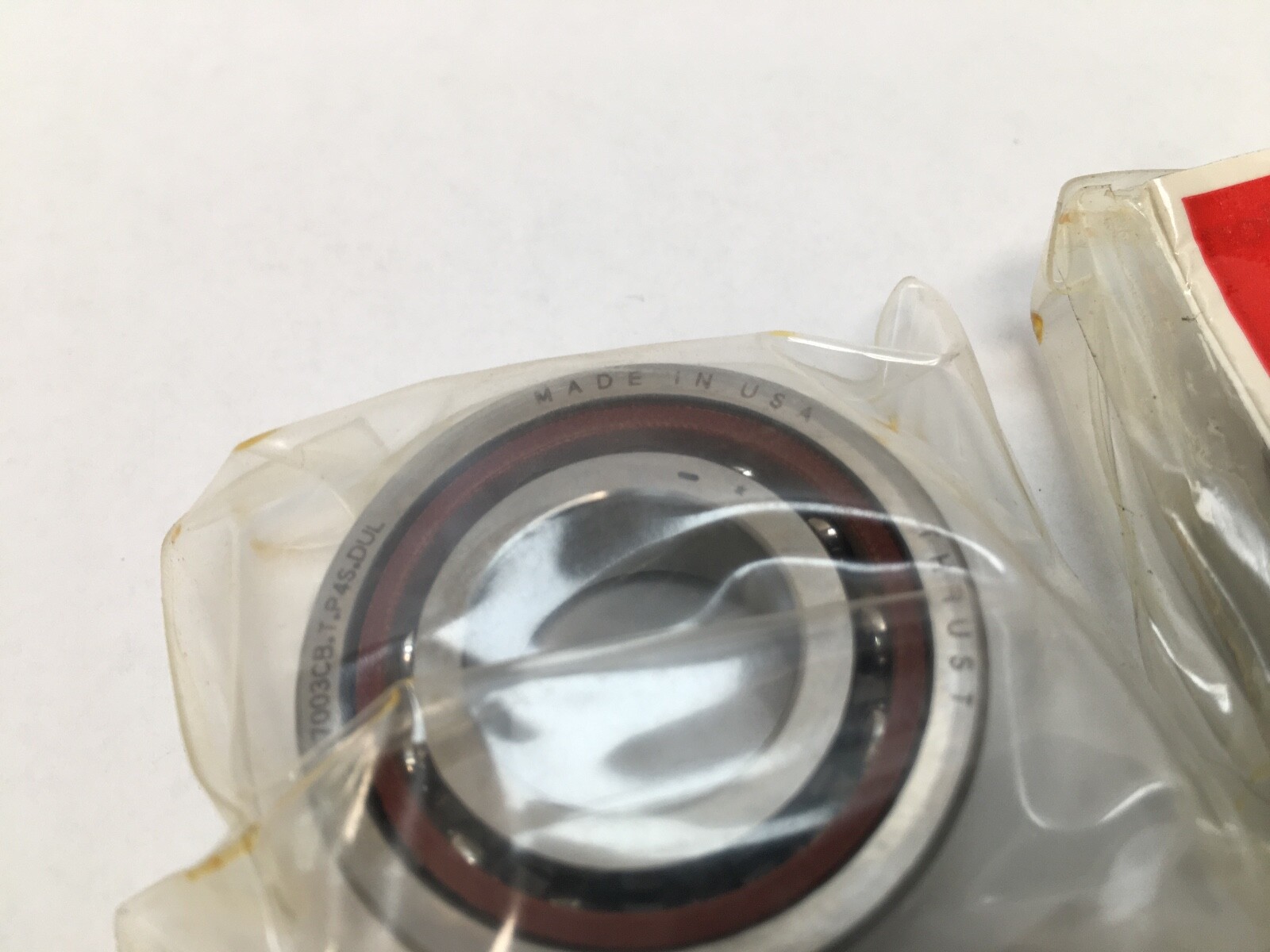

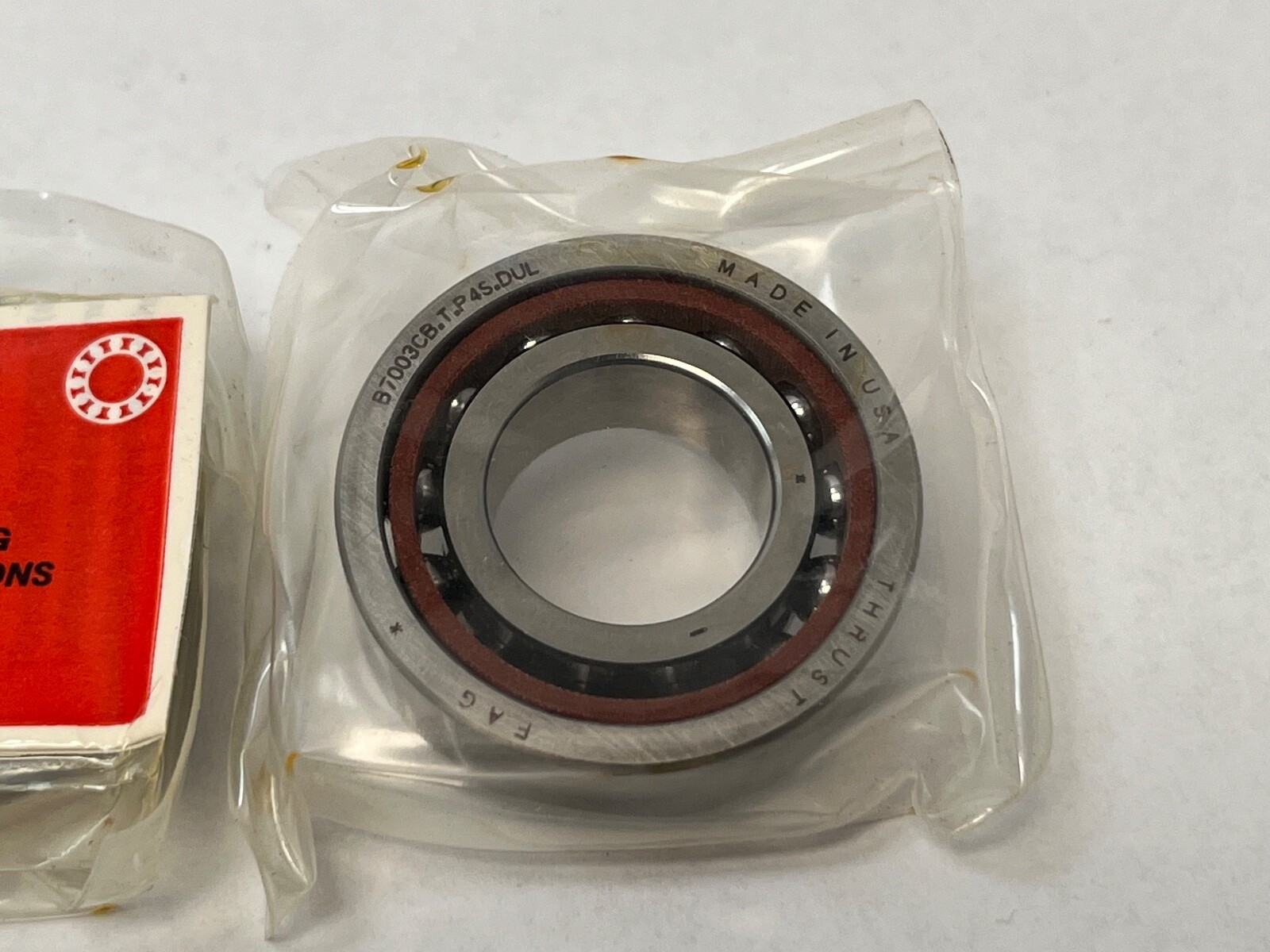

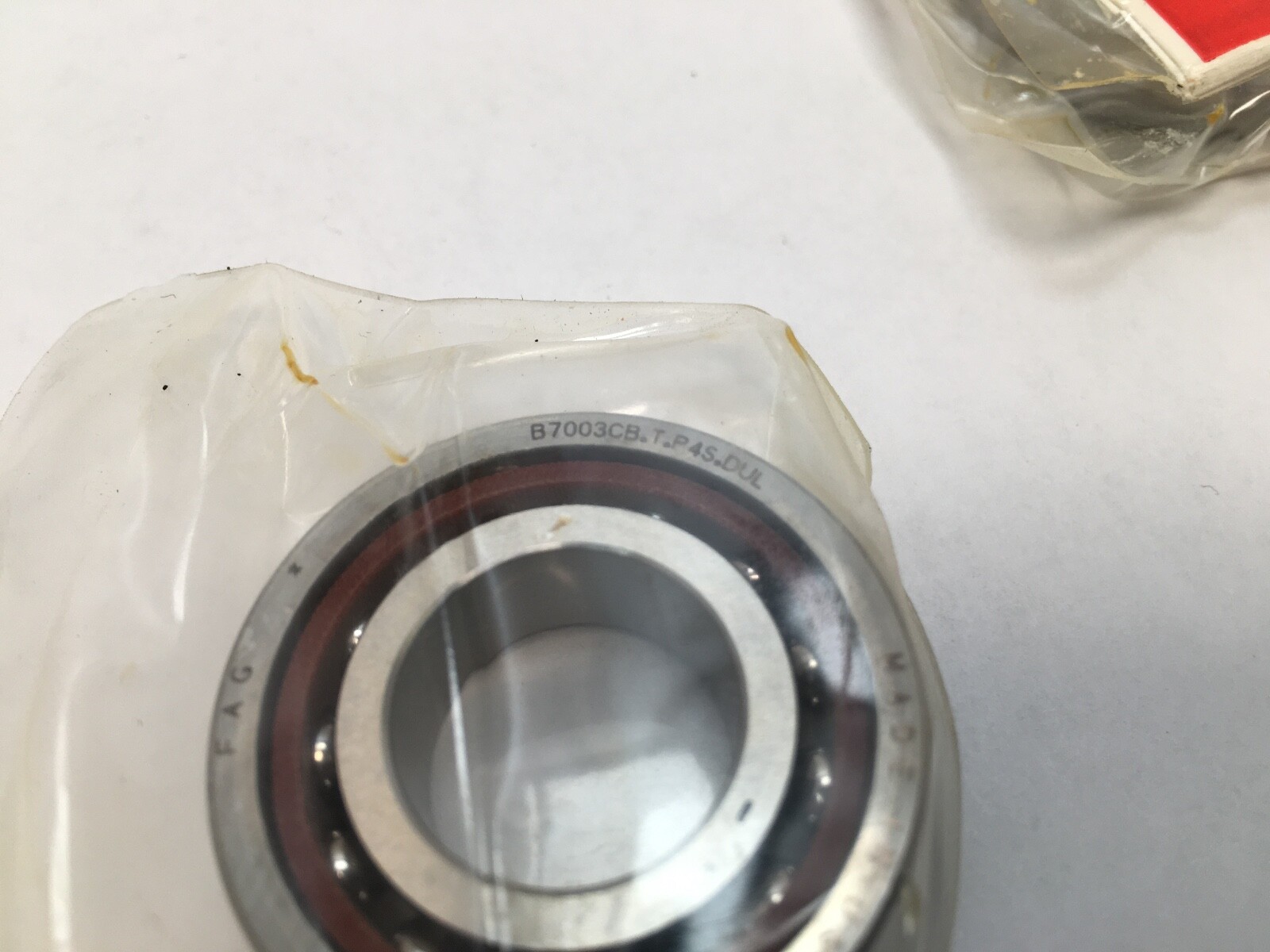

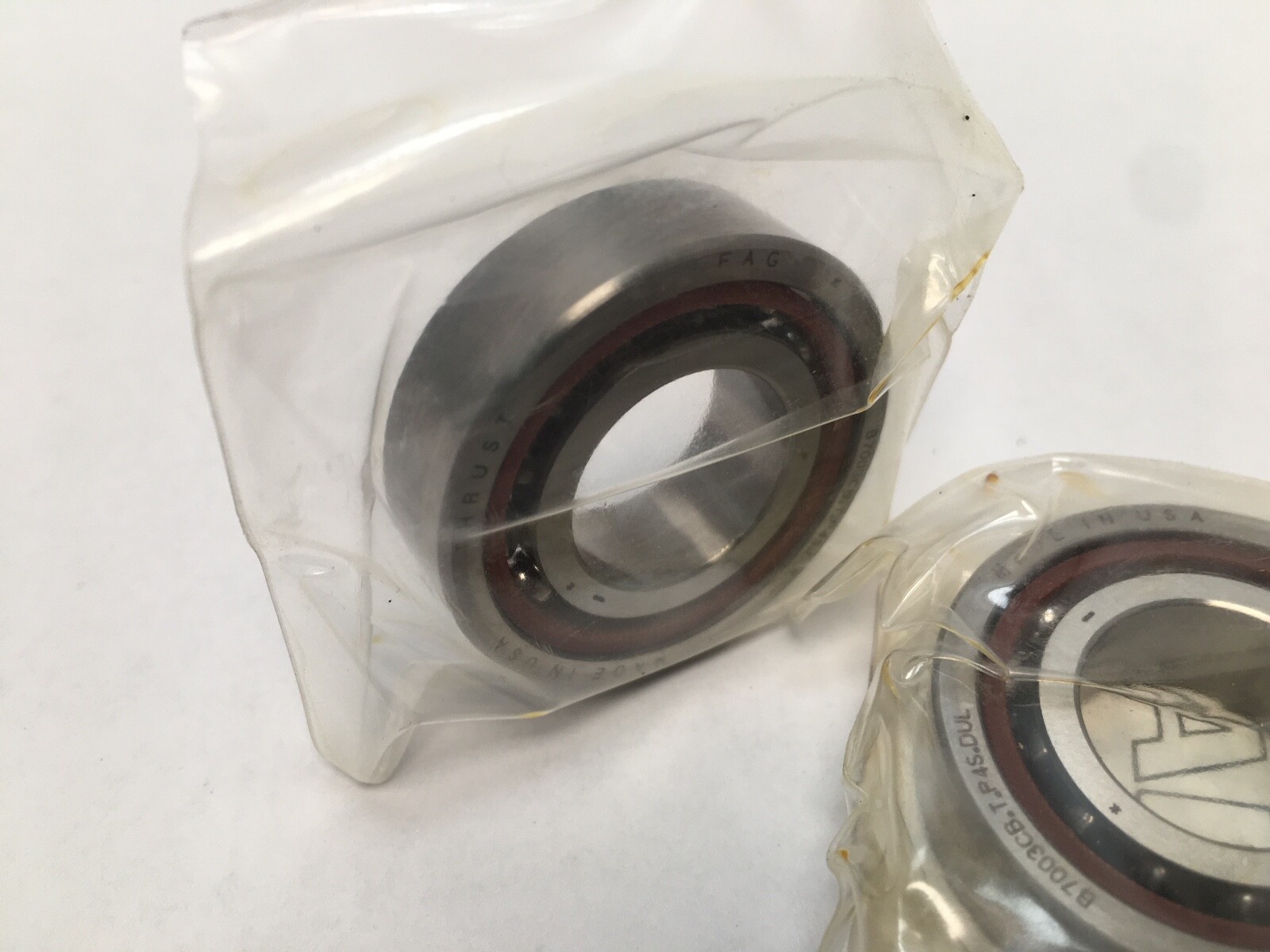

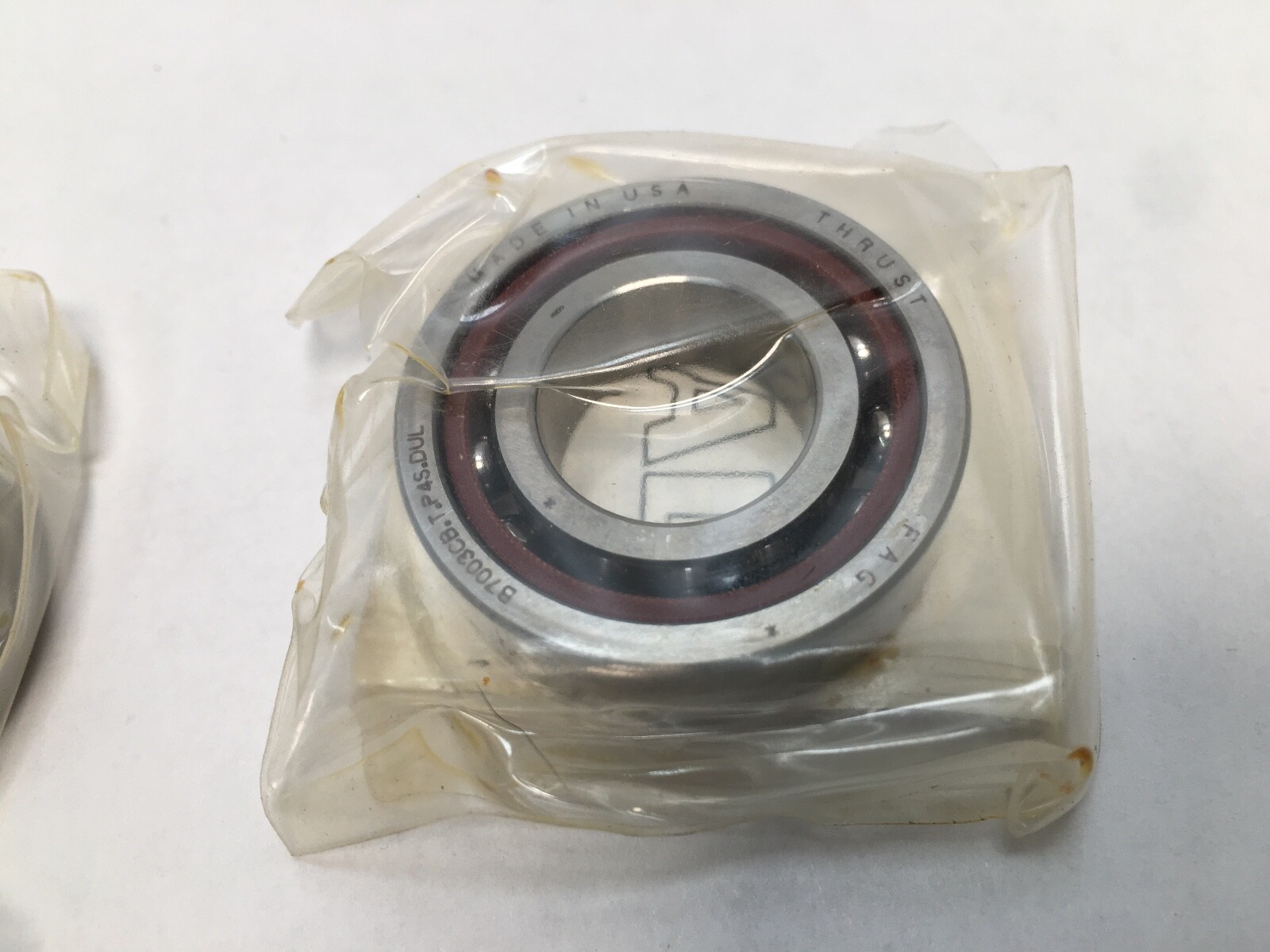

B7003CB.TPA.P4.DUL reads as follows. B7 is the super-precision spindle series and 003 the ISO 70-series size, giving the 17 x 35 x 10 mm envelope. C is a 15° contact angle. TPA is a fabric-base laminate cage located on the outer ring. P4 is the tolerance class, equivalent to ABEC 7. DUL is the arrangement code: D for duplex, U for universally ground, L for light preload.

What these specs mean in practice

A 15° contact angle favours speed over thrust. It carries less axial load than a 25° bearing of the same envelope and runs faster and cooler, which is why it is the standard angle for high-rpm machine tool and motor spindles. The laminate cage is light, quiet and self-lubricating with a working ceiling near 100 °C. Light preload gives defined ball contact for stiffness and low runout at modest frictional heat. The 70,000 rpm limiting speed is an oil-lubricated figure; grease lubrication runs lower.

Quantity and configuration

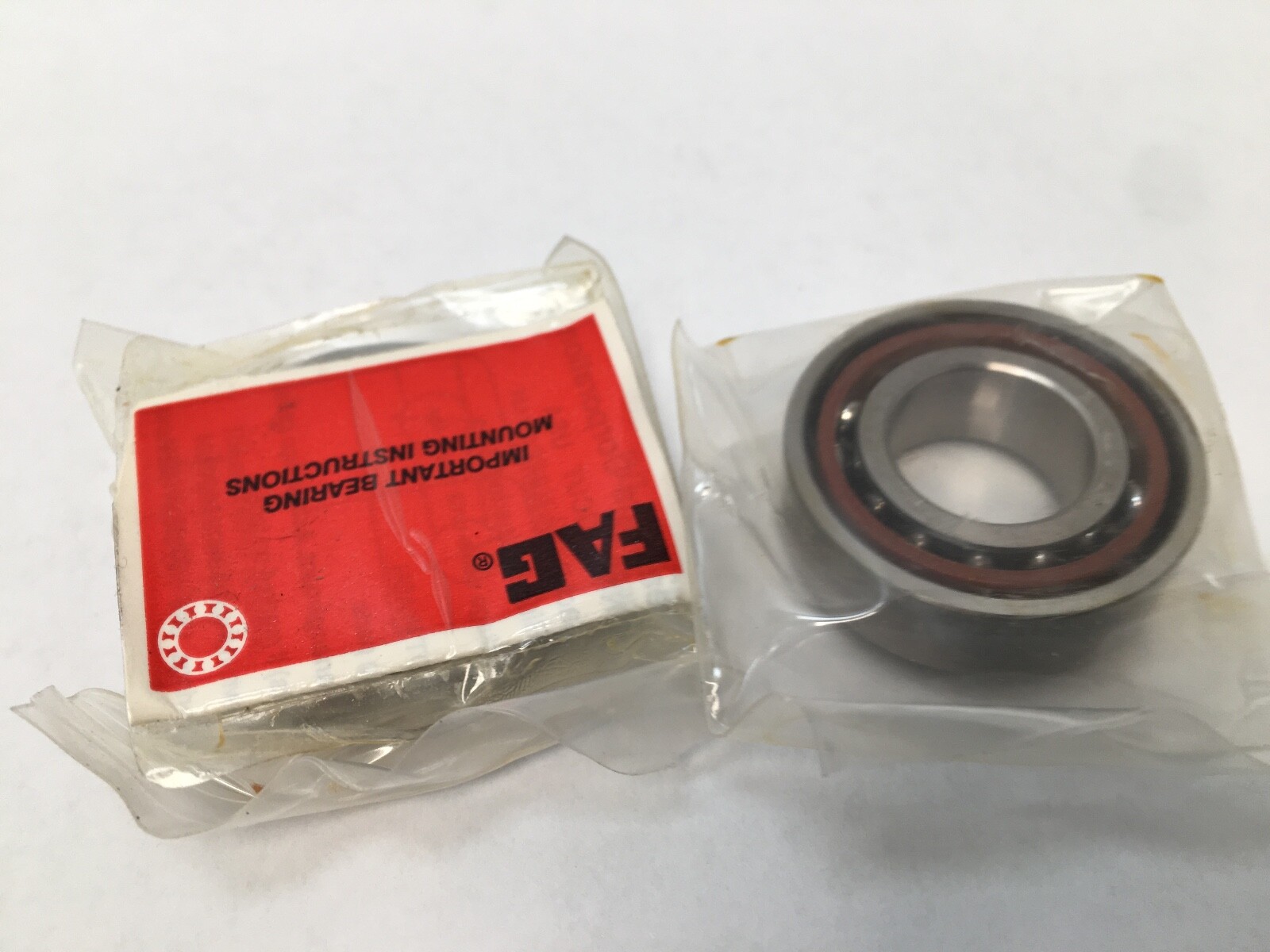

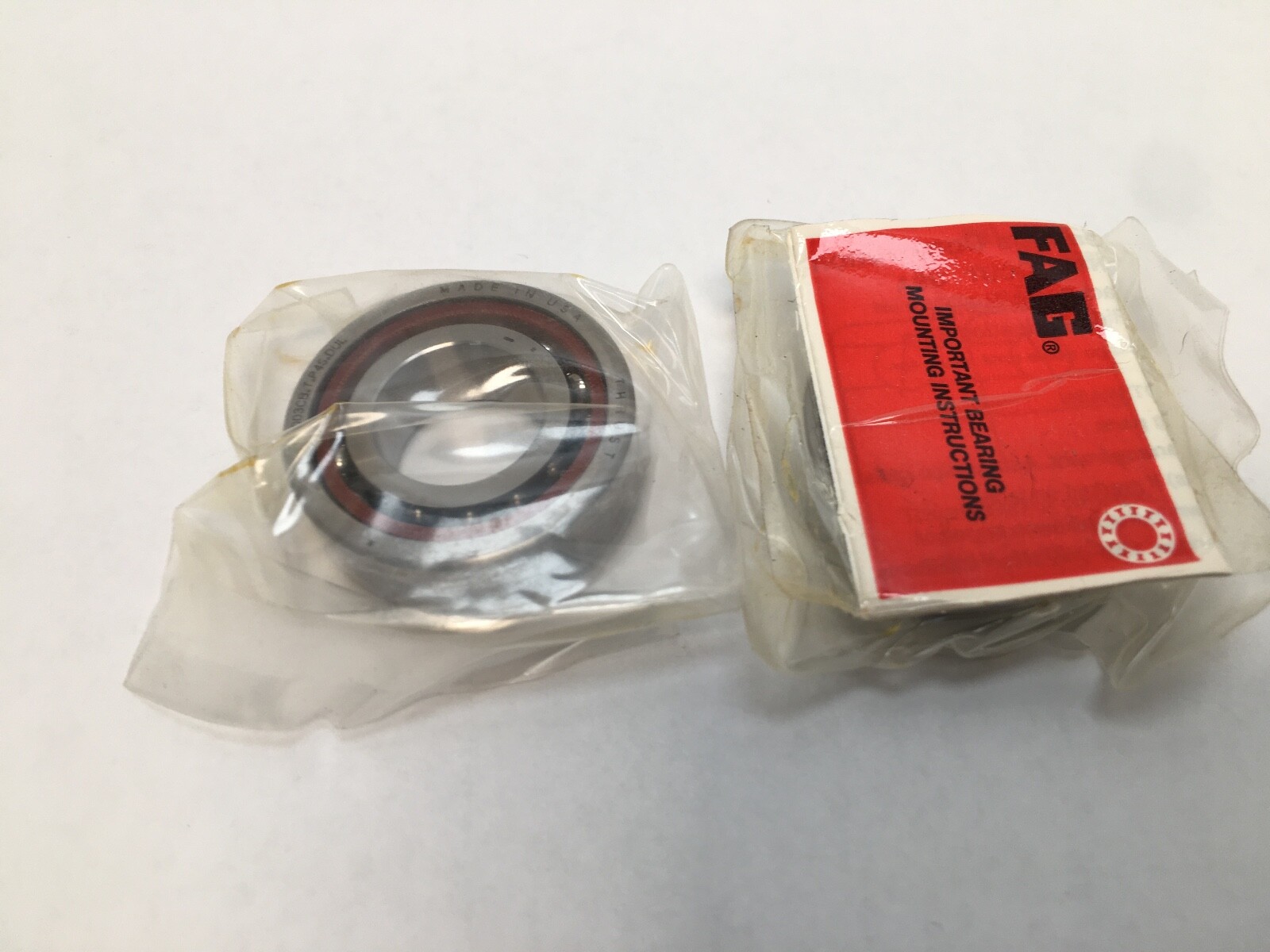

2 Pcs, supplied as a matched duplex pair. Open faces, no seals or shields. No spacers, shims, locknuts or housing.

Fitting notes

Universal grinding means the pair can be arranged back-to-back, face-to-face or in tandem and the light preload comes out as designed once the rings are clamped. Back-to-back gives the stiffest arrangement against moment load, face-to-face is more tolerant of misalignment, and tandem shares thrust in one direction only. Preload is developed by clamping the inner and outer rings solid against their seats.

Interchange guidance

The same-spec equivalents are NSK 7003CTYDULP4, SKF 7003 CD/P4A DGA and Timken/Fafnir 2MM9103WI CR DUL, all at 15° with light preload as a universally ground pair. A 7003 at the same envelope with an A or E suffix, a steel cage, or medium or heavy preload is a related size rather than an interchange, because angle, cage and preload each change the speed and thrust ratings.
