Super-precision angular contact ball bearing, 35 x 62 x 14 mm, 15° contact angle, open, phenolic land-riding cage, light preload, 24,000 rpm.
List Price
$90.21
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7007TGP4 |
| Model | B-7007-CA 7007-TG-P/4 B7007C TPA P4 UL 2MM9107 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Series | 70 |
| Lubricant | Oil |
| Preload | Light |
| Base Number | 7007 |
| Industry Terms | Spindle bearing, machine tool bearing, super precision angular contact, phenolic cage bearing |
| Application Types | Machine tool spindles, grinding spindles, high-speed precision rotating equipment |
| Bore Shaft Size | 35 mm |
| Mpn Variants | 7007TGP4, 7007-TG-P4, 7007 TG P/4, B7007C TPA P4 UL, B7007-C-TPA-P4S-UL, B-7007-CA |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, outer-ring land-riding |
| Dynamic Load Rating | 20,000 N |
| Static Load Rating | 14,300 N |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 24,000 rpm |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |

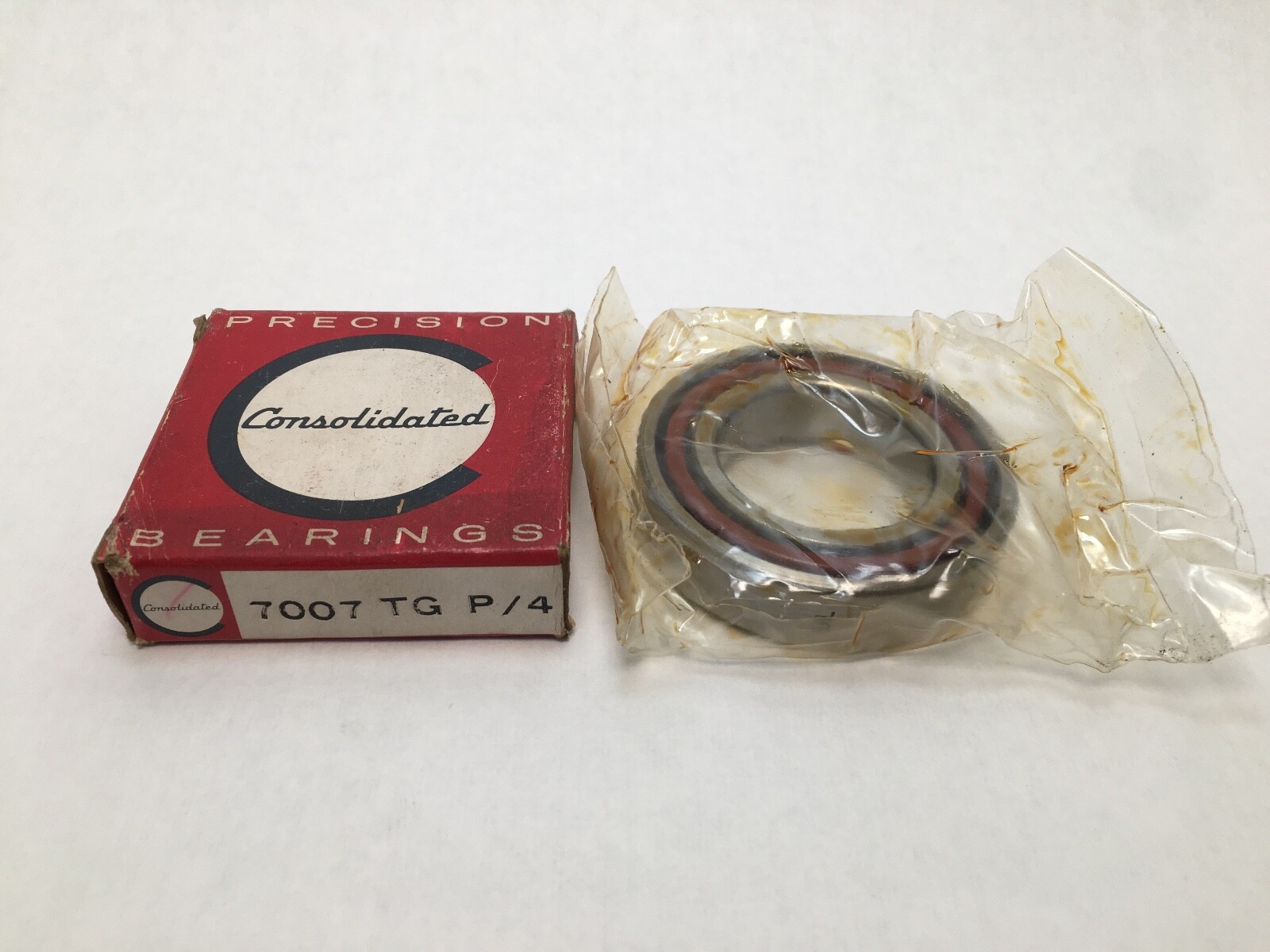

| Part Number | 7007 TG P/4 |
| Cross Reference 1 | SKF 7007 CDGA/P4A |
|---|---|
| Cross Reference 2 | Fafnir 2MM9107WI |
| Cross Reference 3 | FAG B7007-C-TPA-P4S-UL (current form) |
| Cross Reference 4 | FAG B7007-E-T-P4S - 25 deg vs 15 deg |

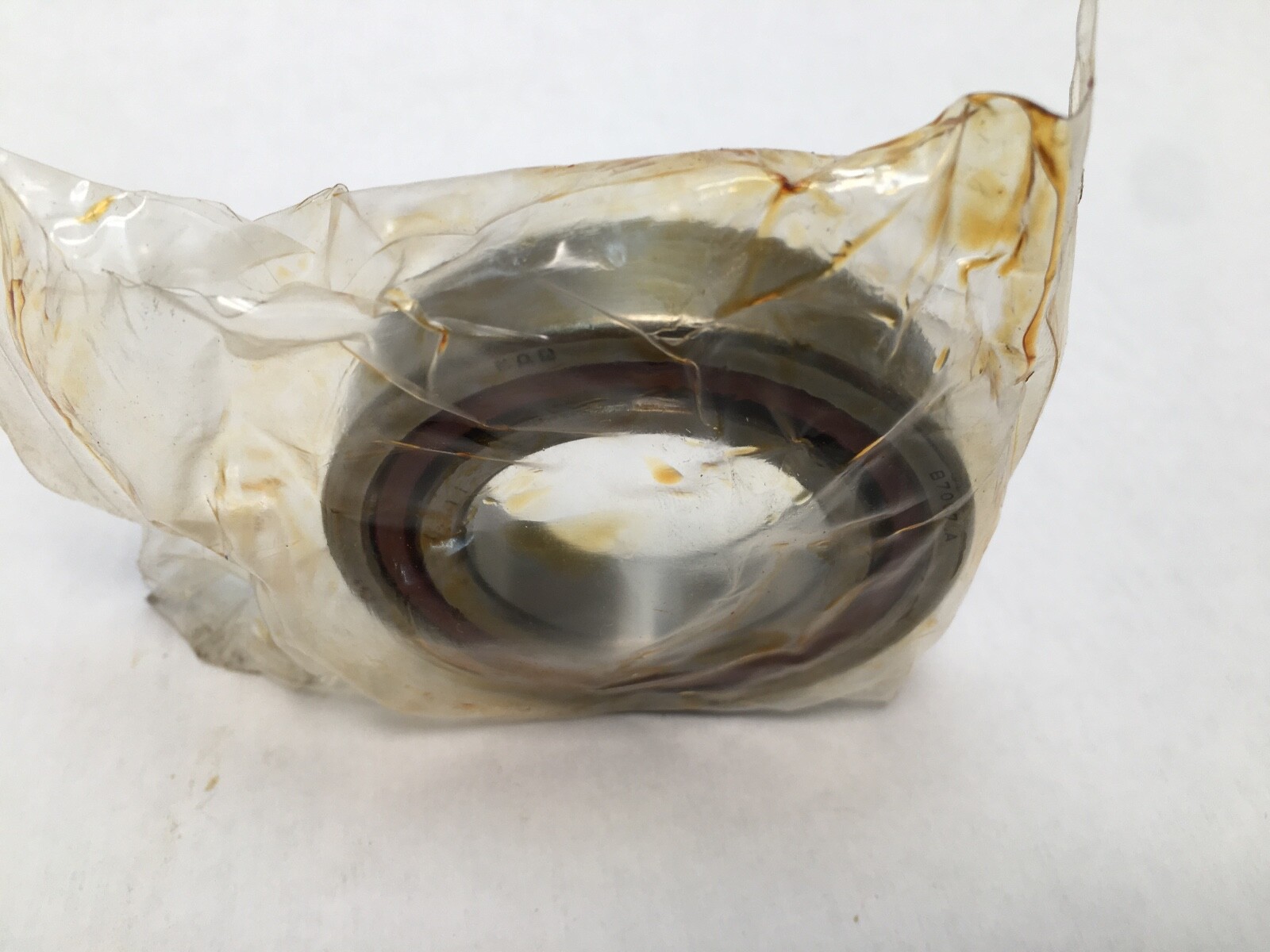

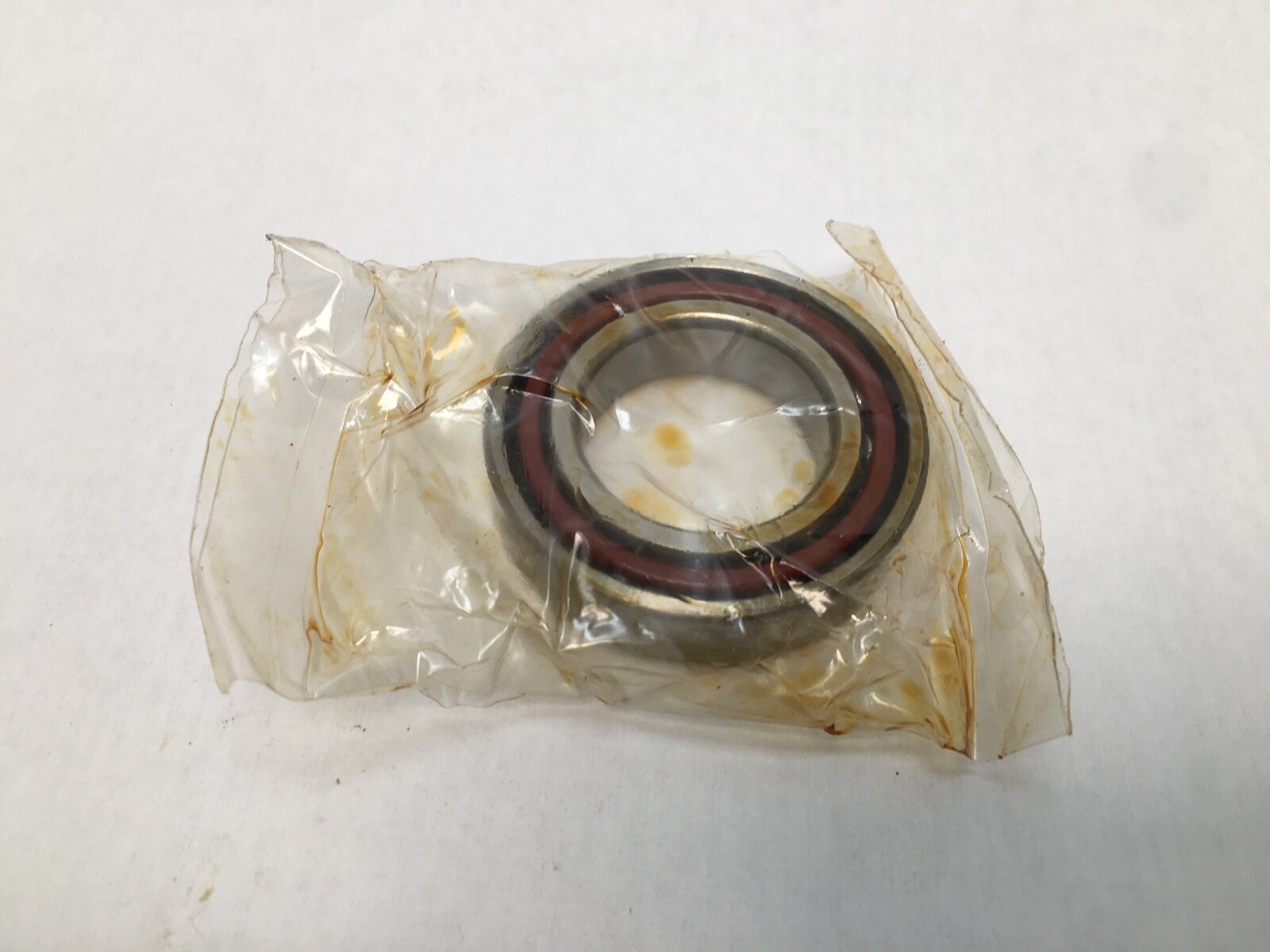

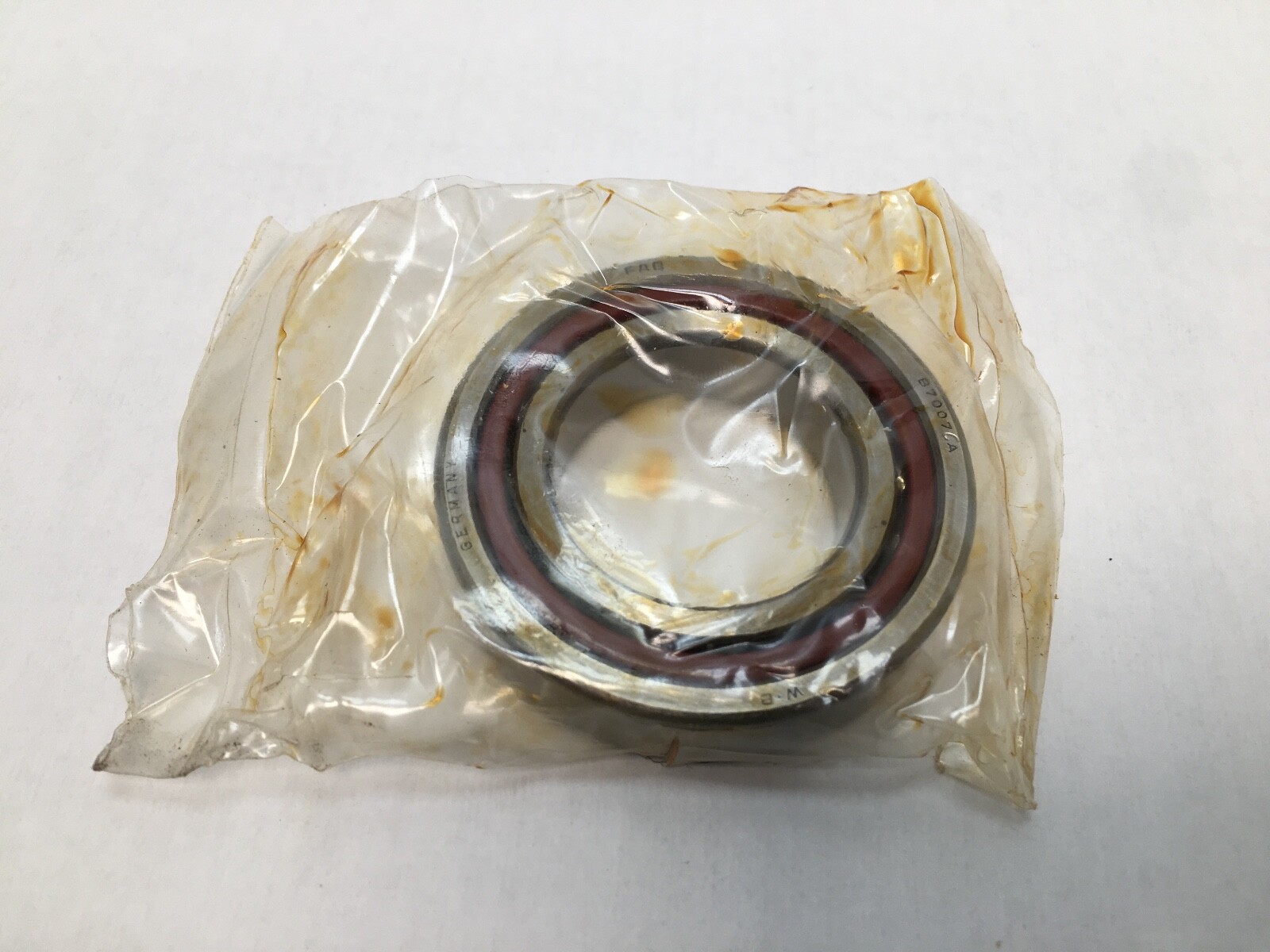

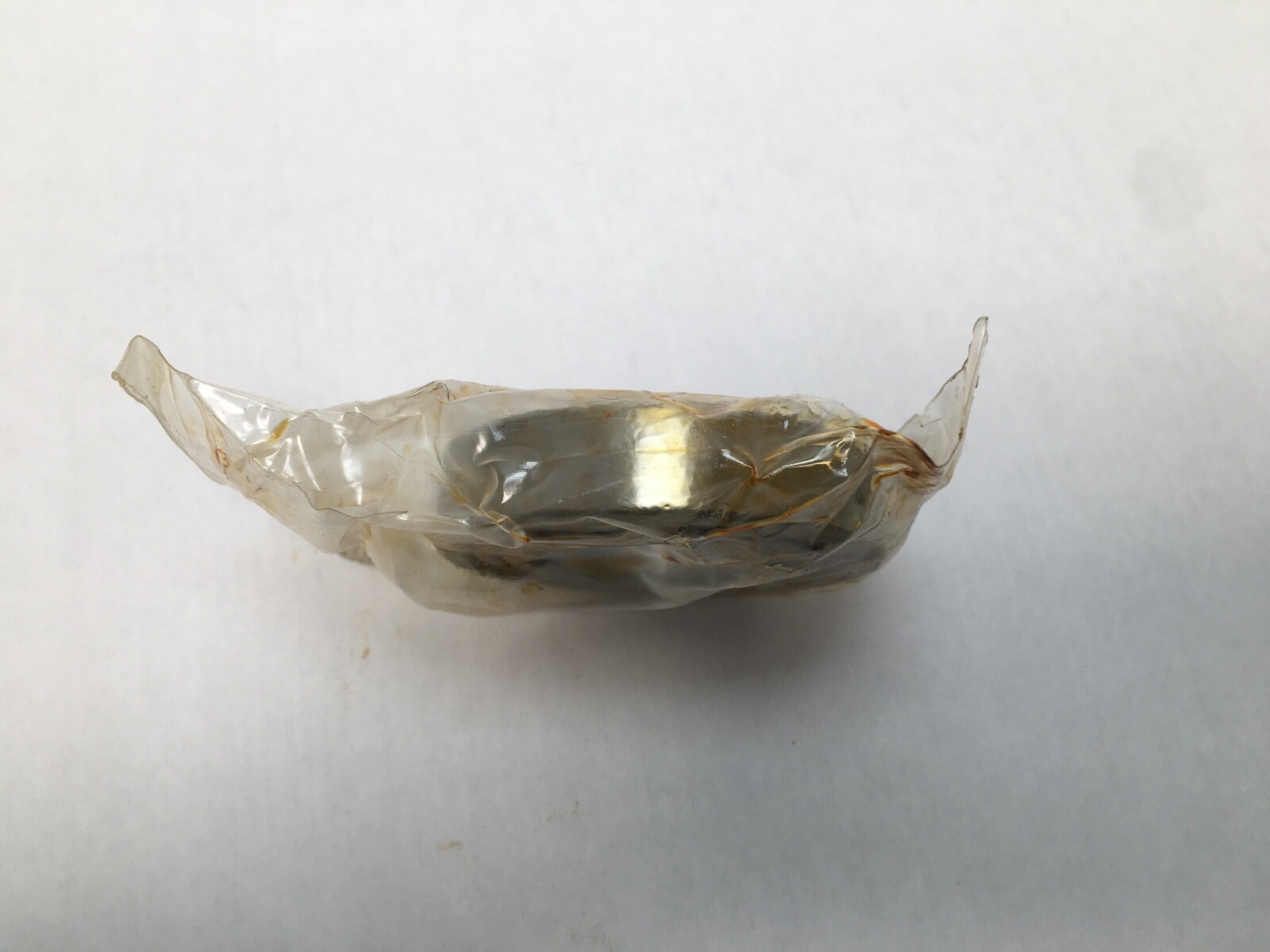

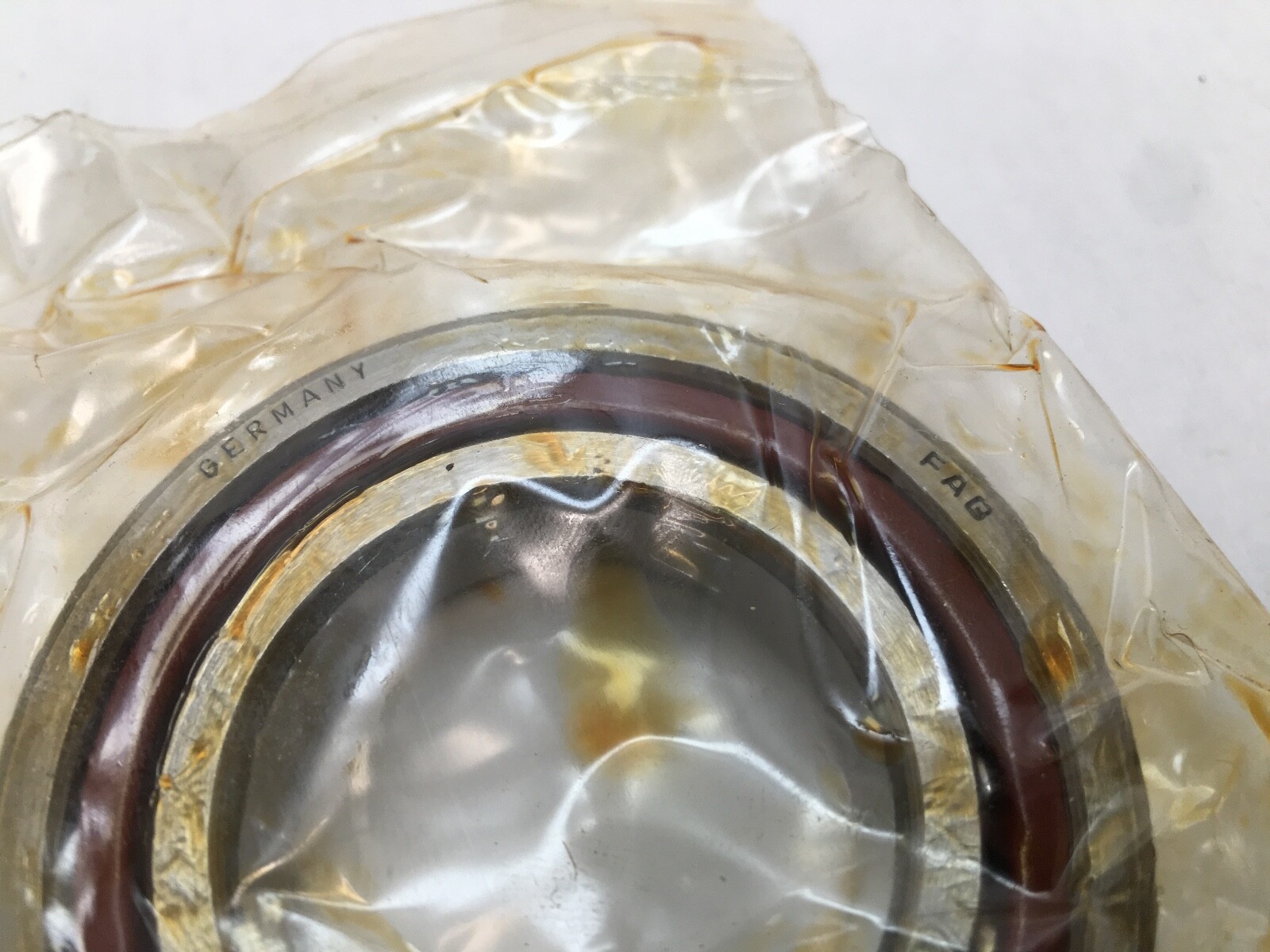

FAG 7007 TG P/4 single-row super-precision angular contact ball bearing. Series: 70. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm. Contact Angle: 15°. Open on both faces. Straight bore. Unit Quantity: 1 Pc. Country of origin: Germany.
7007 — ISO 70 series, bore code 07, 35 mm bore.
TG — machined phenolic cage, land-riding on the outer ring, with universally flush-ground faces for back-to-back, face-to-face or tandem mounting.
P4 — ABEC 7 precision.
UL (carton marking) — universal, light preload.
C (in B7007C) — 15° contact angle.
Bearing Type: Super-Precision Angular Contact Ball Bearing. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. Preload: Light. Dynamic Load Rating: 20,000 N. Static Load Rating: 14,300 N. Limiting Speed: 24,000 rpm. Rolling Elements: Ball. Closure Type: Open.
Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm. Straight bore. Universally flush-ground faces.
Cross-references: SKF 7007 CDGA/P4A; Fafnir 2MM9107WI; FAG B7007-C-TPA-P4S-UL (current designation form); FAG B7007-E-T-P4S (same size, 25° contact angle). Also written 7007TGP4, 7007-TG-P4, 7007 TG P/4, B7007C TPA P4 UL and B-7007-CA.
Bore 35 mm, outside diameter 62 mm, width 14 mm.
15°, shown by the C in the carton form B7007C TPA P4 UL and the Fafnir 2MM9107 cross.
TG is a machined phenolic cage, outer-ring land-riding, with flush-ground faces. P4 is ABEC 7 precision.
