SNRSuper Precision Angular Contact Ball Bearing – Straight Bore, 35 mm ID, 62 mm OD, 14 mm Width, Open, 15° Contact Angle, Universal Light Preload

Product Description

What this part is

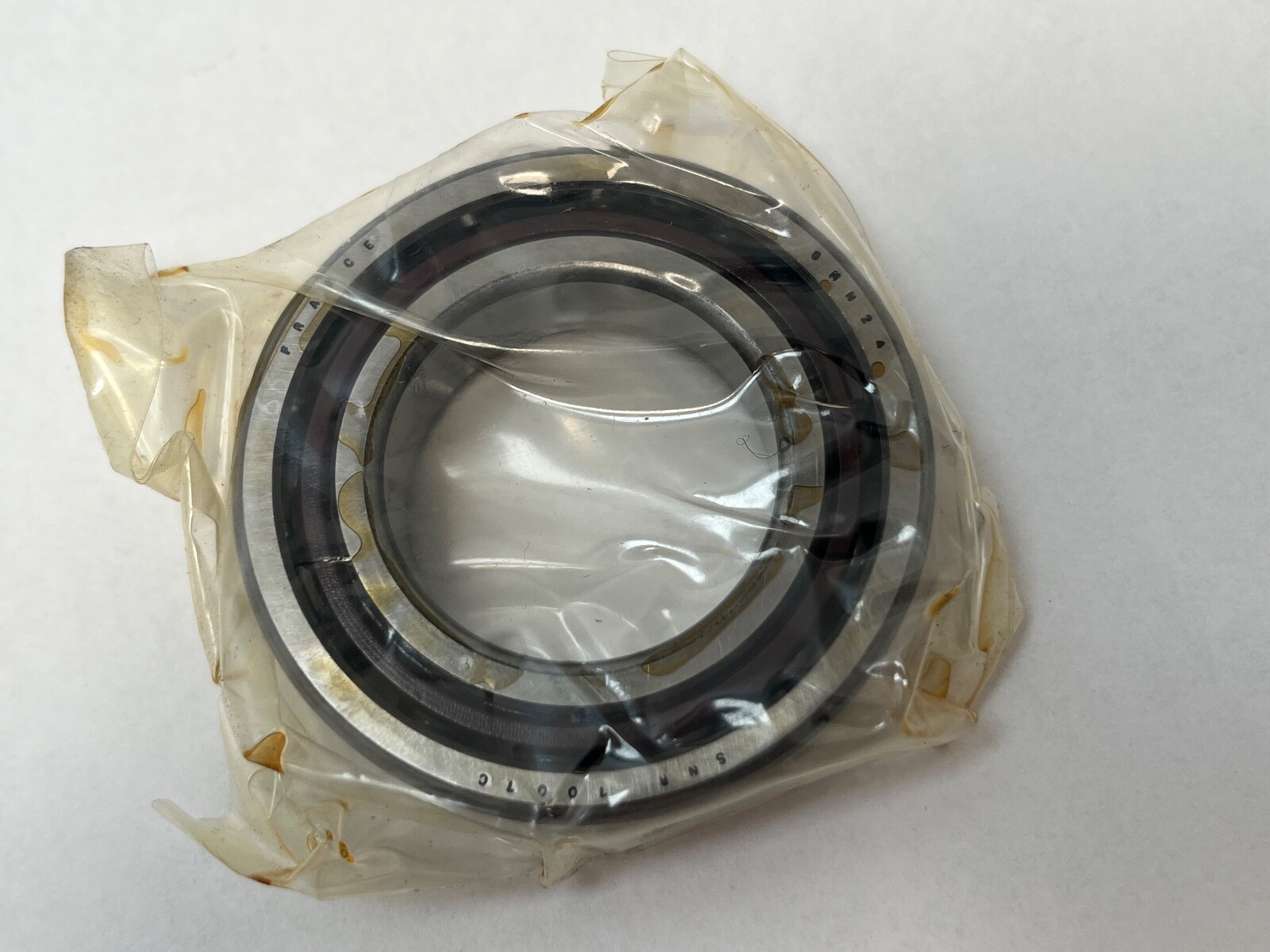

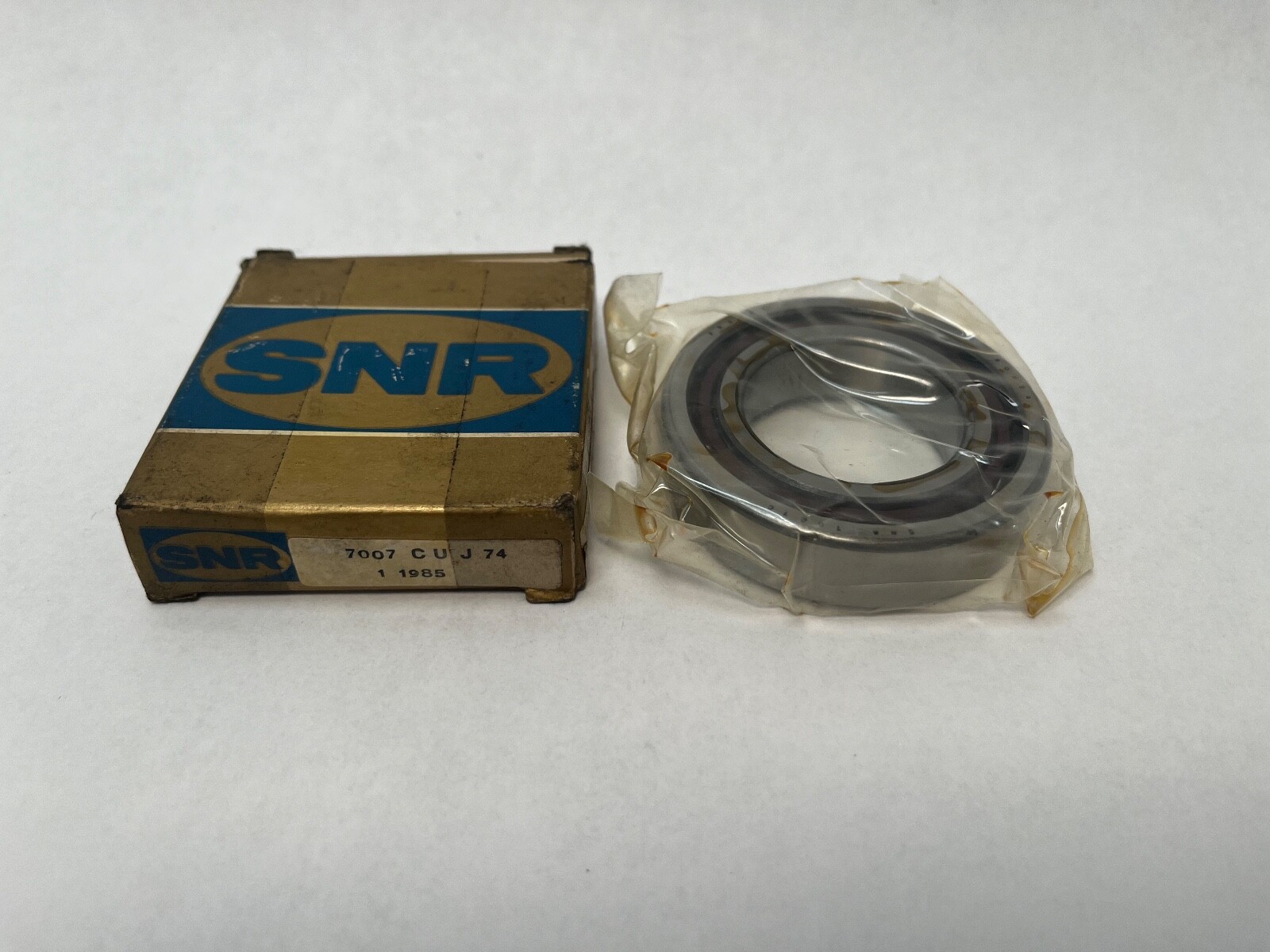

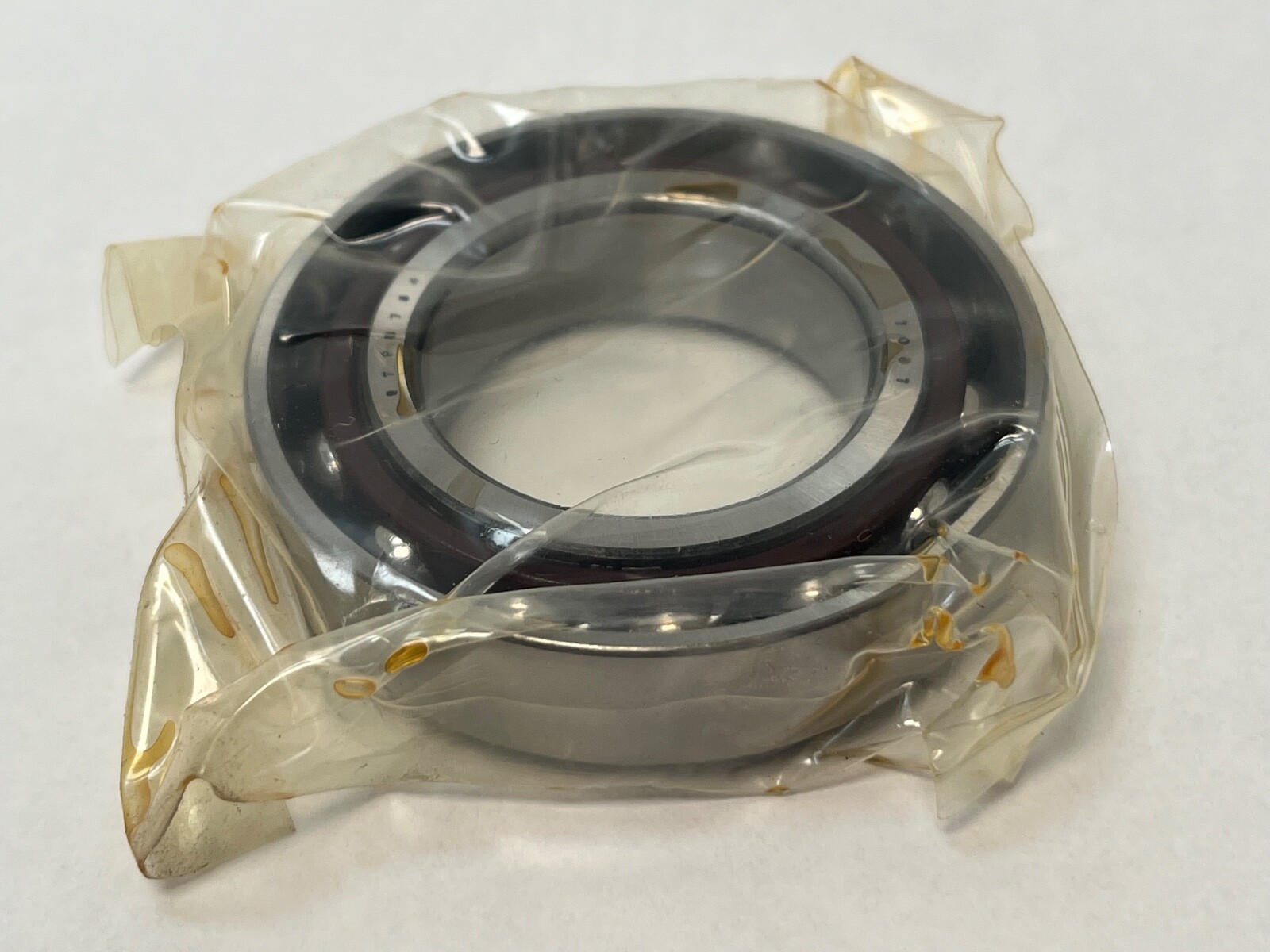

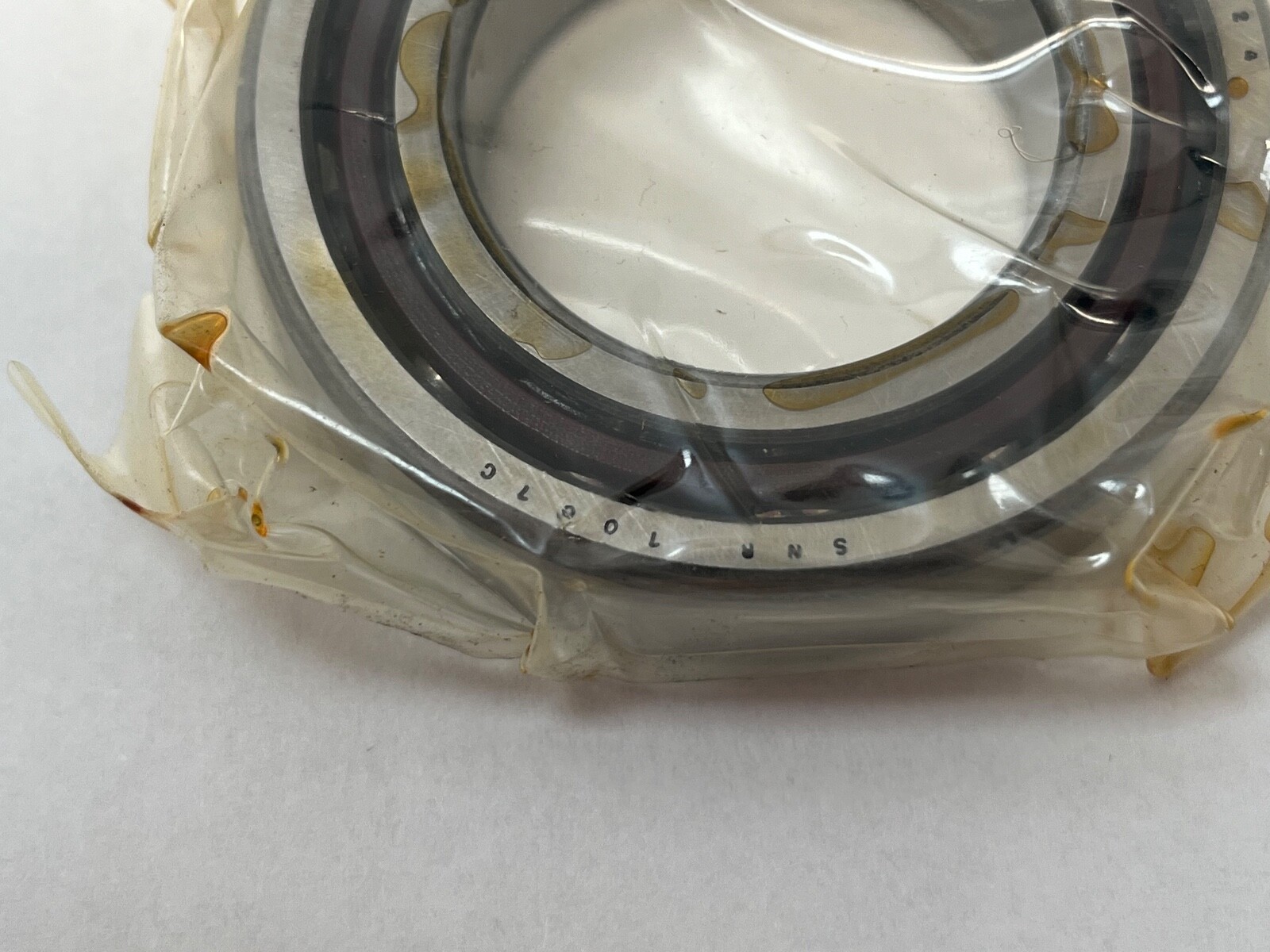

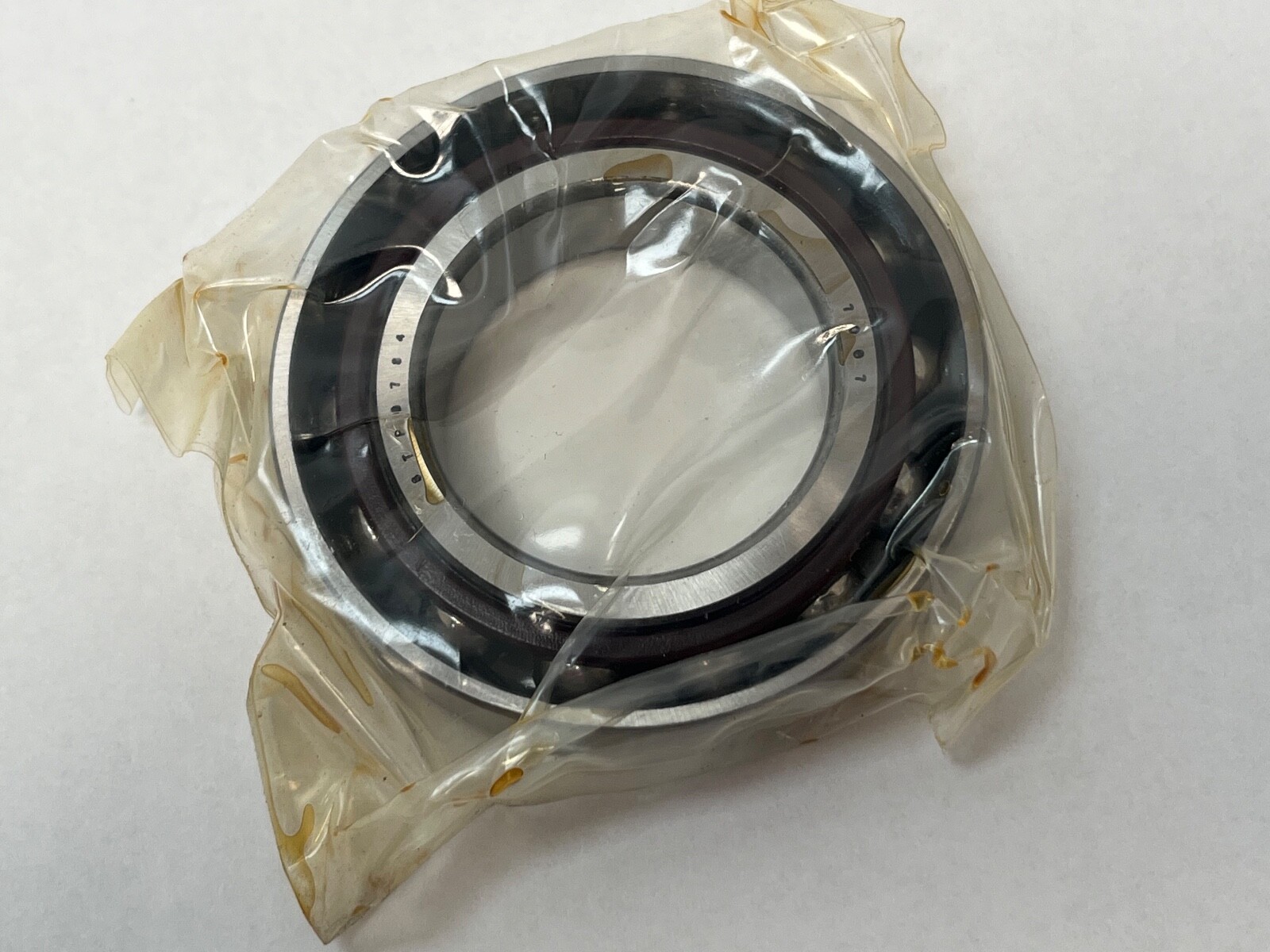

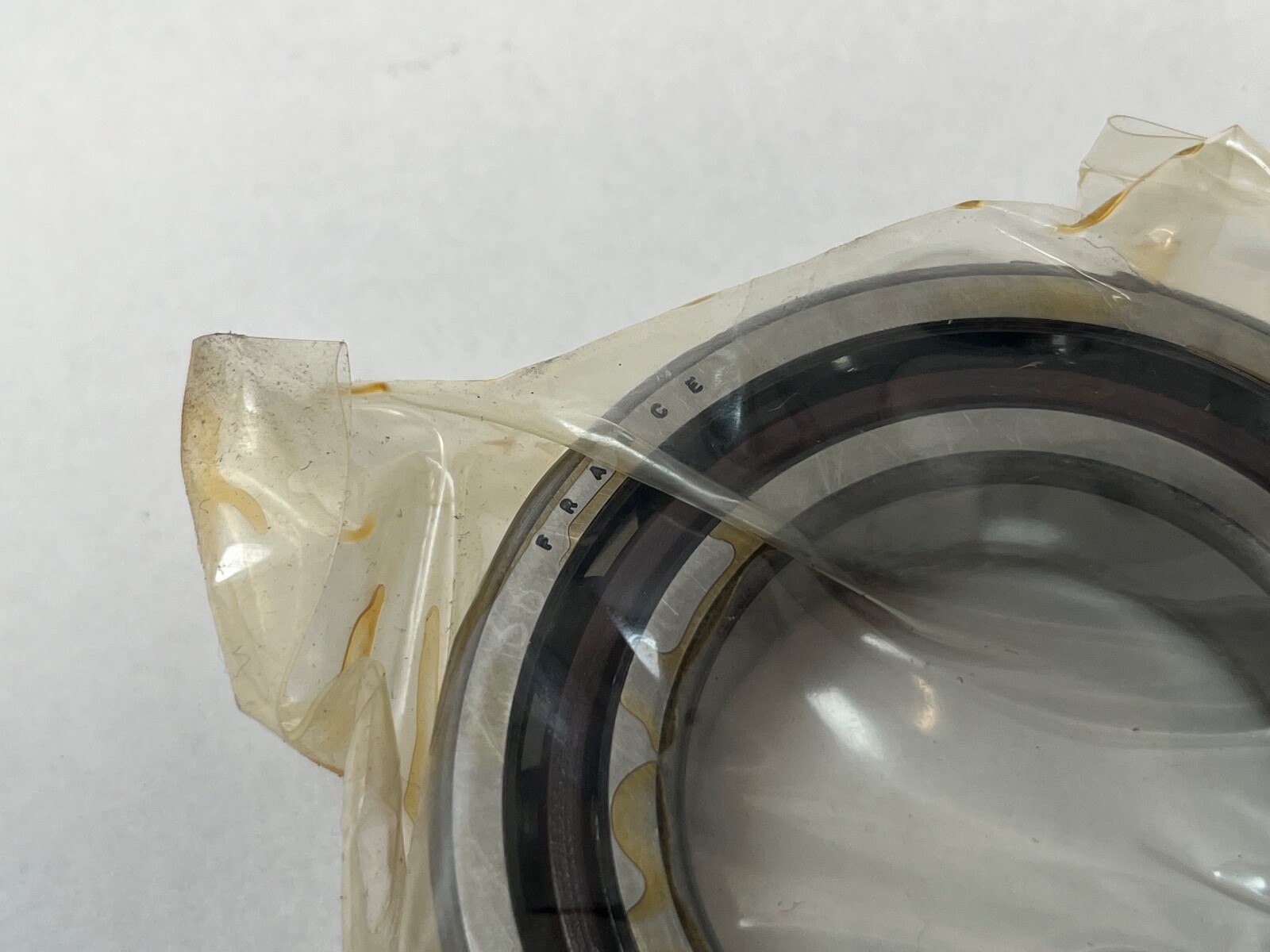

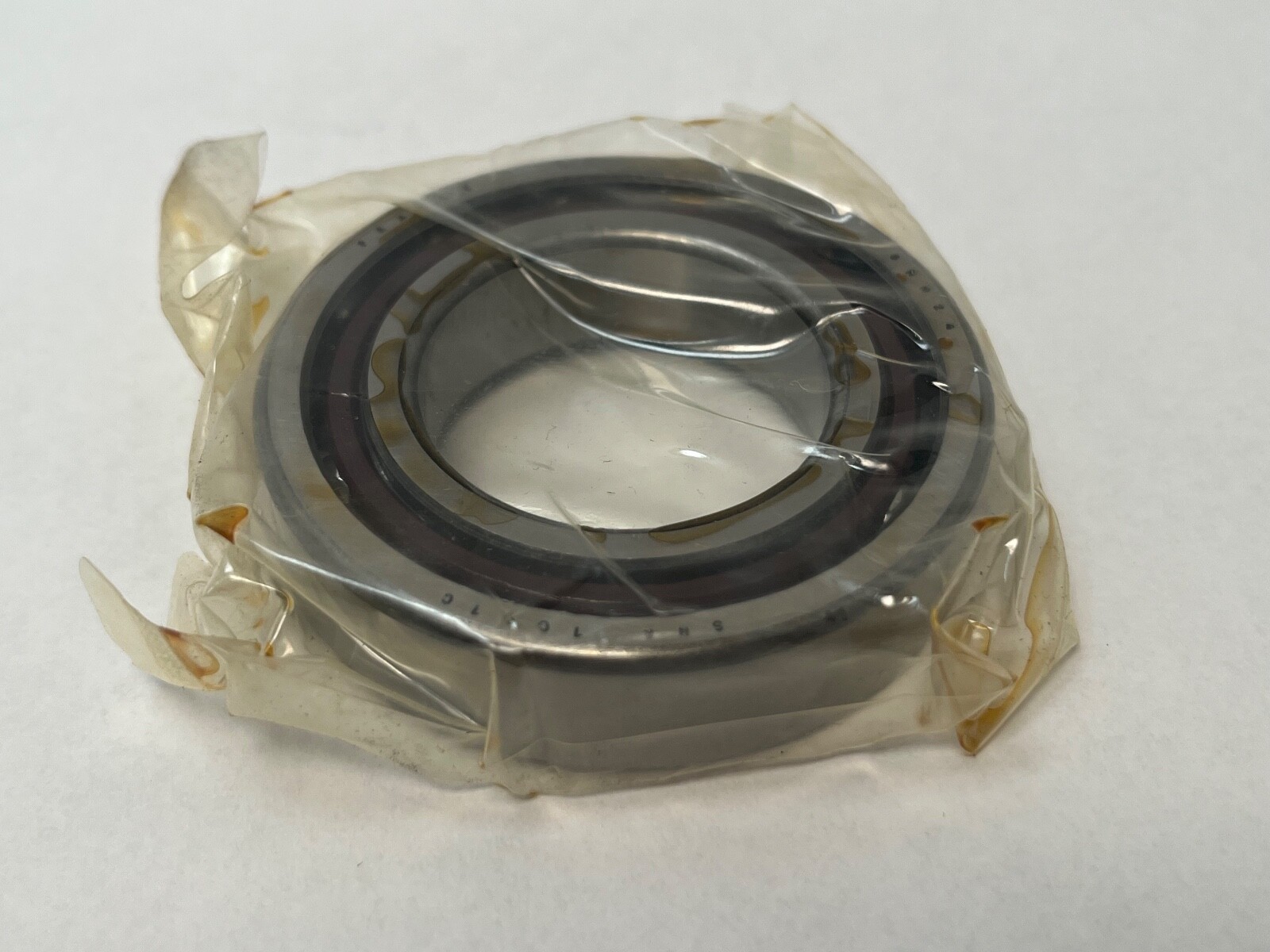

SNR 7007CUJ74 super-precision angular contact ball bearing. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm. Series: 7000. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing steel. Closure Type: Open. Bore Type: Straight. Base Number: 7007. Part Number: 7007CUJ74.

Decoding the designation

7007 — ISO 7007 size, 35 x 62 x 14 mm.

C — 15° contact angle.

U — single universally ground bearing.

J74 — light preload, ISO precision class 4 (ABEC 7 / P4).

What these specs mean in practice

Contact Angle: 15°. Preload: Light. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. Mounting Arrangement: Universal. Dynamic Load Rating: 19.3 kN. Static Load Rating: 12.9 kN. Limiting Speed: 24000 rpm. A 15° contact angle favours speed and radial rigidity over thrust capacity, which suits a high-speed spindle position. Light preload holds the rings in defined contact for running accuracy while keeping heat generation low.

Cage and lubrication: the machined phenolic cage is guided on the outer-ring land, which keeps it stable at high speed and gives it low mass. Lubricant: grease or oil. Item Weight: 0.35 lbs.

Quantity and configuration

Unit Quantity: 1 Pc. A single universally ground bearing, which can run alone or be set against another universally ground 7007C in back-to-back, face-to-face or tandem.

Interchange guidance

Cross-Reference 1: SKF 7007 CD/P4ADGA. Cross-Reference 2: NSK 7007CTYNSULP4. Both are 15° super-precision single universally matchable bearings on the same 35 x 62 x 14 mm envelope at light preload. MPN Variants: 7007-C-T-SUL-P4, 7007-C-U-J74, 2MM9107WI CR SUL. Harmonization Code: 8482.10.50.28.
