Matched duplex pair of angular contact ball bearings, 35 x 62 x 14 mm each, 15° contact angle, heavy preload, phenolic cage, P4 precision. Sold as 2 Pcs.
List Price
$177.55
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7007CTDUHP4 |
| Model | 7007 C T DUH P4 / B 7007 2X TA DUH EP7 / 2MM9107WI CR DUH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Lubricant | None |
| Preload | Heavy Preload |
| Base Number | 7007 |
| Industry Terms | super precision angular contact bearing, spindle bearing, matched duplex pair, ABEC 7 bearing, heavy preload bearing, phenolic cage bearing, machine tool spindle bearing |
| Common Misspellings | 7007 CTDUH P4, 7007CTDHUP4, 7007CTDUP4, 7007C TDUH P4, RHP 7007CTDUH4P, 7007CTDUHP4 DUH |
| Application Types | machine tool spindles, grinding spindles, milling heads, high-speed gearboxes, precision rotary tables, ball screw support |
| Total Width | 28 mm (1.1024 in) for the duplex pair |
| Bore Shaft Size | 35 mm (1.3780 in) |
| Mpn Variants | 7007CTDUHP4, 7007-C-T-DUH-P4, 7007 C T DUH P4, 7007CTDUH P4, BSB7007CTDUHP4 |
| Arrangement Configuration | Matched duplex pair (DU), heavy preload |
| Precision Class | ISO P4 (ABEC 7) |
| Cage Type | Machined |
| Dynamic Load Rating | 17.6 kN / 3957 lbf |
| Static Load Rating | 11.2 kN / 2518 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 100°C |
| Item Weight | 0.38 lbs |
| Cage Material | Phenolic laminated fabric |
| Limiting Speed | 24000 rpm |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15 degrees |
| Mounting Arrangement | Universal |
| Design Units | Metric |
| Running Accuracy | High Precision |
| Part Number | 7007CTDUHP4 |
| Running Accuracy Radial And Axial Runout | High Precision |
| Cross Reference 1 | 7007X2TADUHEP7 |
|---|---|
| Cross Reference 2 | 2MM9107WI CR DUH |
| Cross Reference 3 | NSK 7007CTRDUHP4 |
| Cross Reference 4 | B7007-C-T-P4S-DUH |
| Cross Reference 6 | 7007 |
A matched duplex set of two single-row super-precision angular contact ball bearings, 35 mm bore, 62 mm outside diameter, 14 mm width each, 28 mm total stack width. The two rings are ground as a pair to a specified heavy preload and mount together as one unit.
7007 — ISO 70-series angular contact ball bearing, bore code 07 = 35 mm boreC — 15° contact angle in the RHP / Timken schemeT — phenolic (laminated fabric) cageDU — duplex, a matched pair ground for mounting togetherH — heavy preload classP4 — ISO P4 precision, equivalent to ABEC 7
A 15° contact angle favours speed and radial stiffness over thrust capacity: it runs faster and carries less axial load than a 25° or 40° bearing of the same envelope. Heavy preload raises axial and radial stiffness and reduces deflection under cutting or reversing load, at the cost of higher running friction and heat generation, so the mount benefits from steady lubrication and controlled housing temperature.
The phenolic cage is light, self-lubricating and quiet at high speed, which is why it is standard on grease- and oil-lubricated machine tool spindle bearings. P4 accuracy holds tight bore, outside diameter and runout tolerances suited to spindle work.

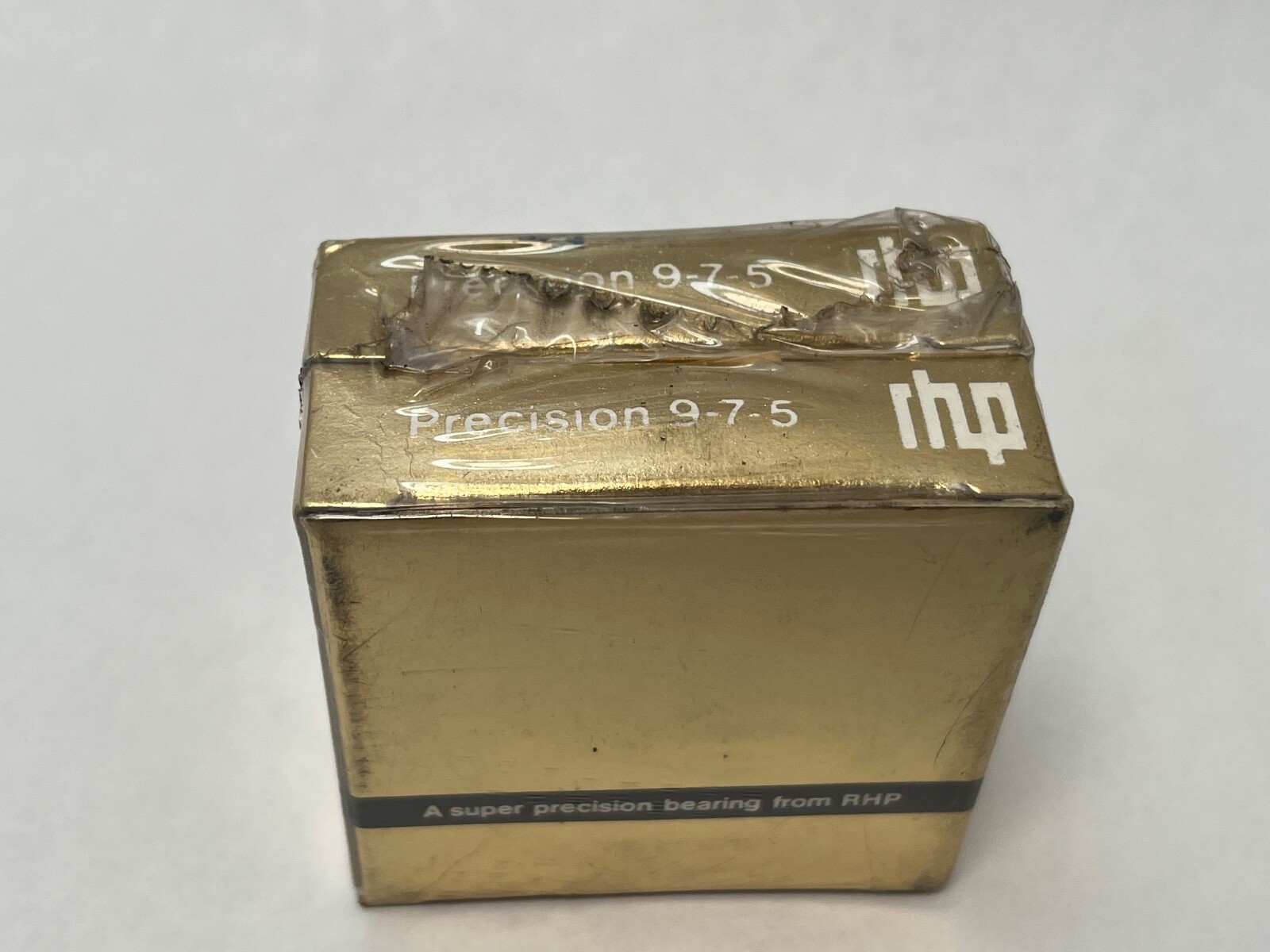

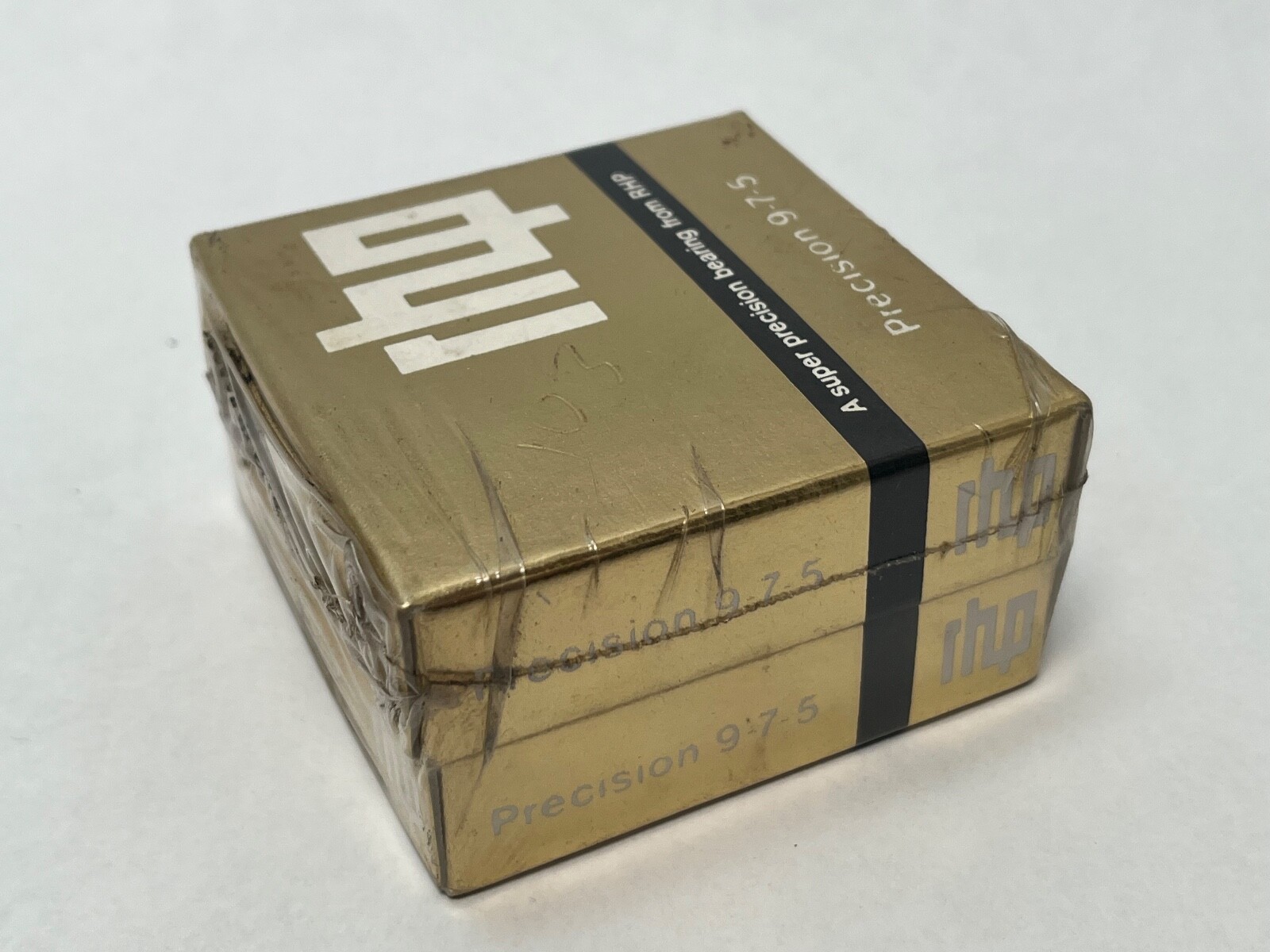

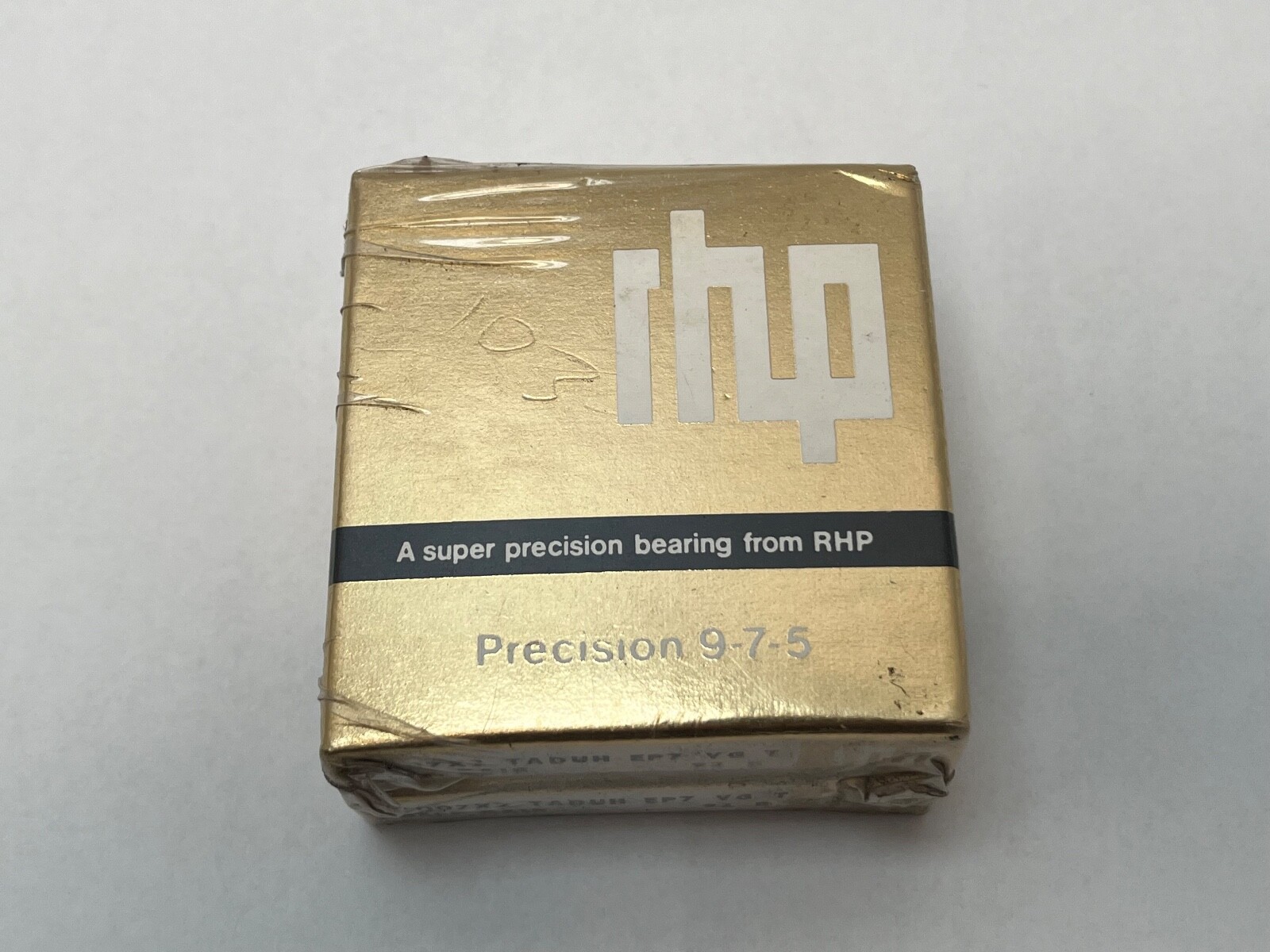

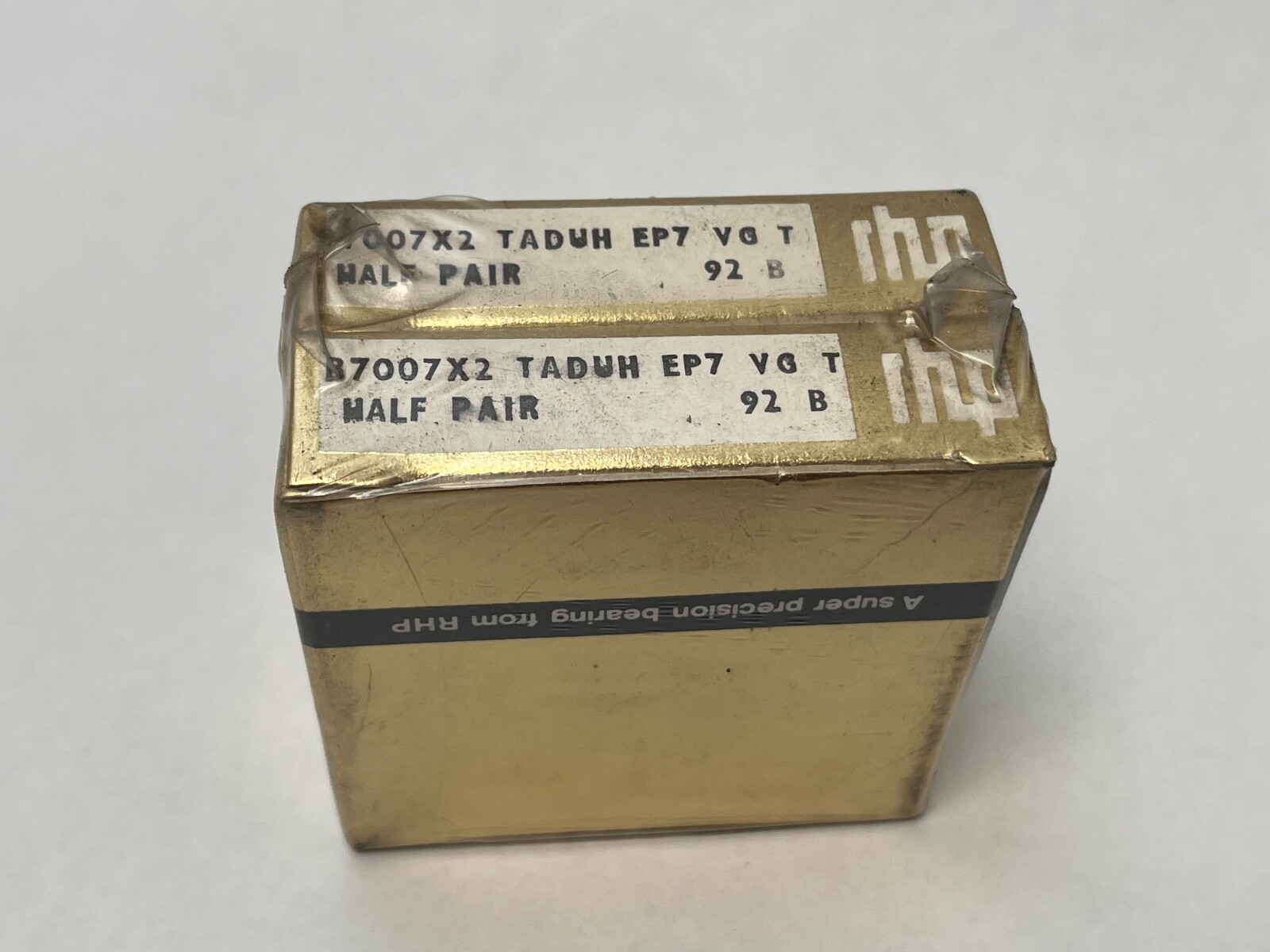

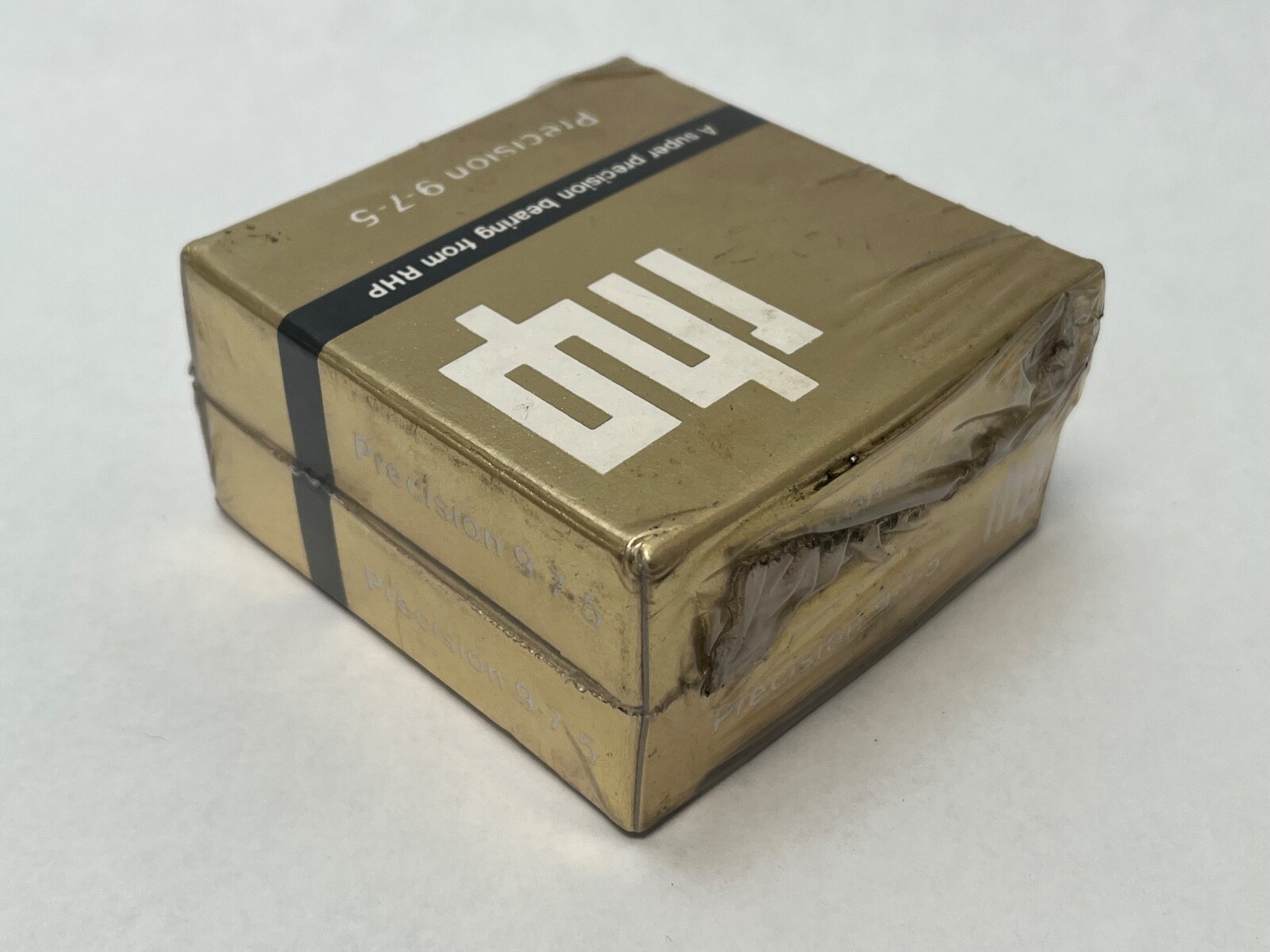

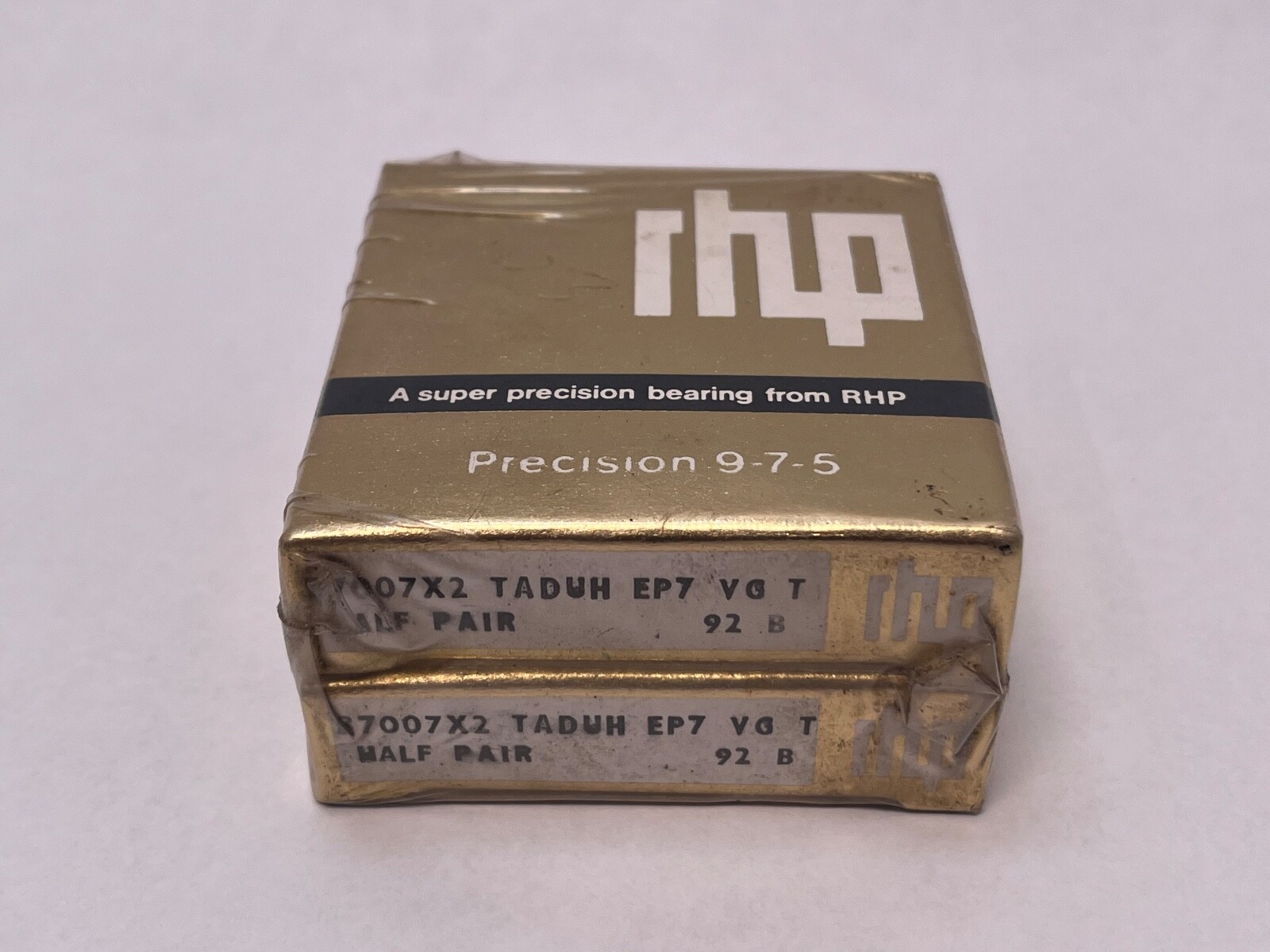

Matched duplex pair, 2 Pcs, supplied as one preload-matched set. The set is a single unit for fitting purposes.
Duplex sets carry etched or marked V-lines across the outer ring faces that define the arrangement; assembling with the marks aligned reproduces the ground preload. The pair goes onto the shaft as a stack, clamped between a square shaft shoulder and a lock nut, with the housing bore and shaft seat within the accuracy the bearing class assumes.
Genuine interchanges are 15° duplex heavy-preload P4 sets in the same envelope: NSK 7007CTRDUHP4, Fafnir / Timken 2MM9107WI CR DUH, and the RHP 7007X2TADUHEP7 designation. A 7007 in E / A5 / 25° form, or the same envelope at light or medium preload, is a related size rather than an interchange, because contact angle and preload class both change spindle stiffness and speed.
