FAG7210BTVPP5ULAngular Contact Ball Bearing – 50 mm ID, 90 mm OD, 20 mm Width, 40° Contact Angle, ABEC 5 / P5, Universally Matchable

Product Description

What this part is

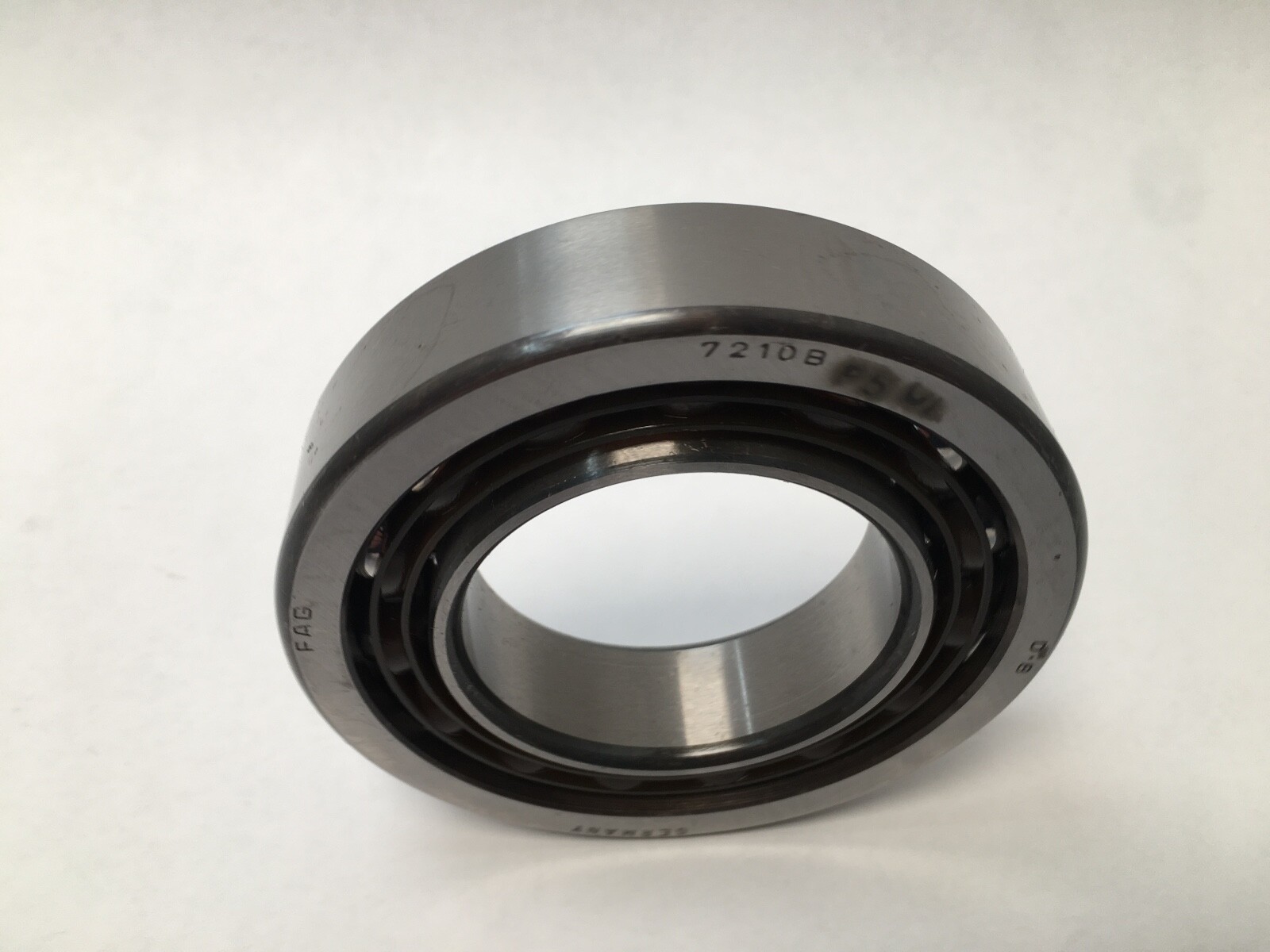

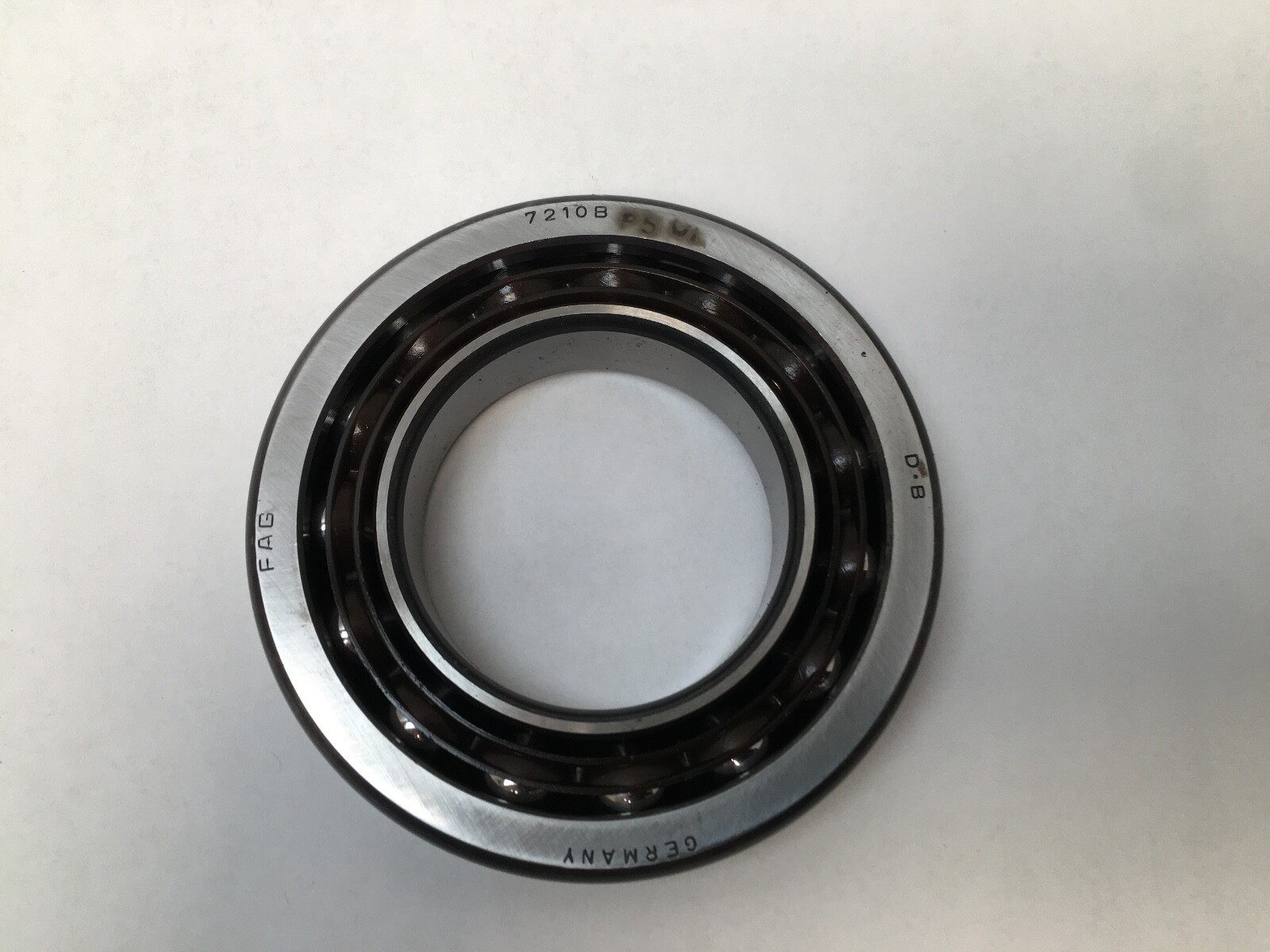

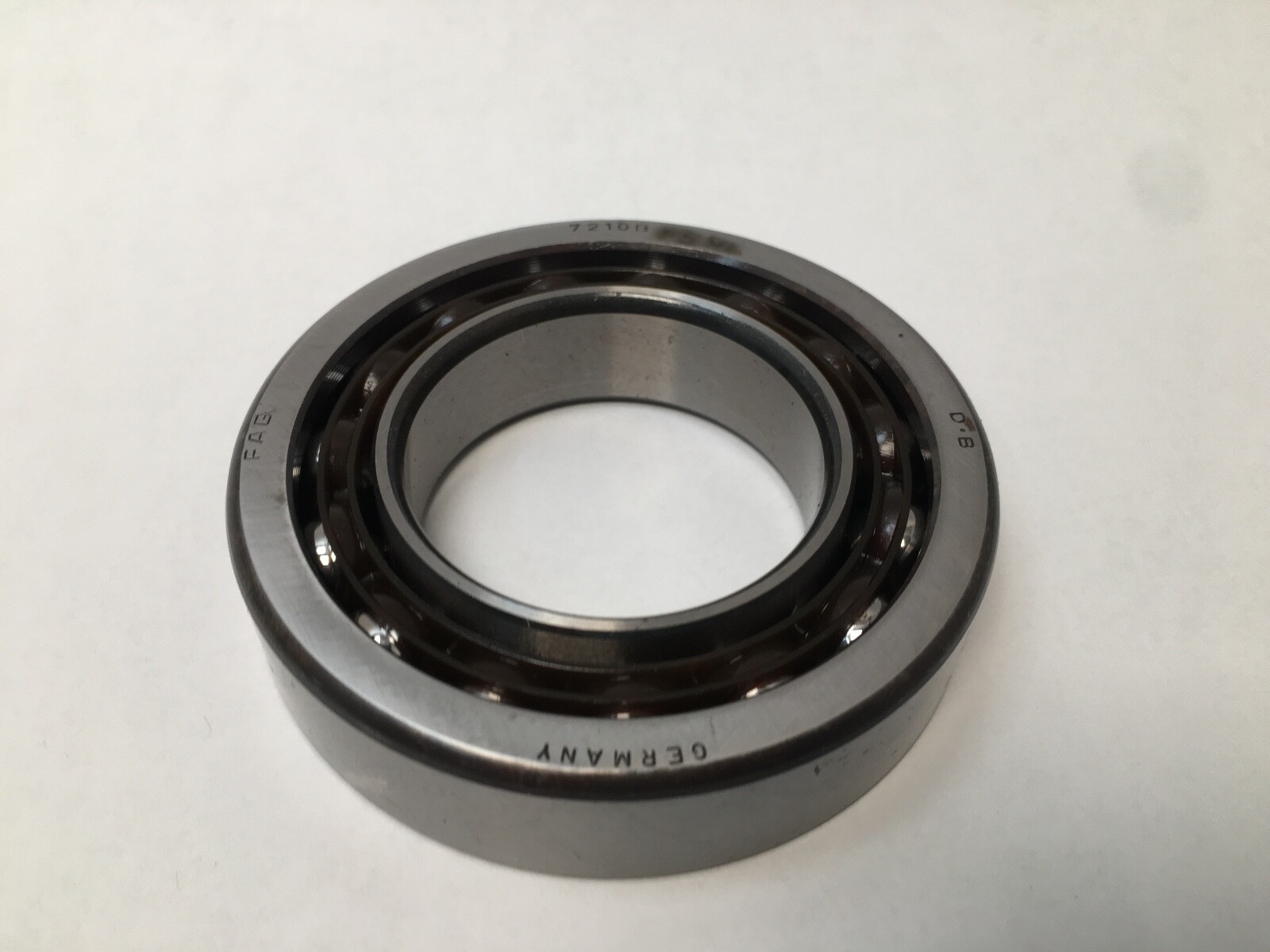

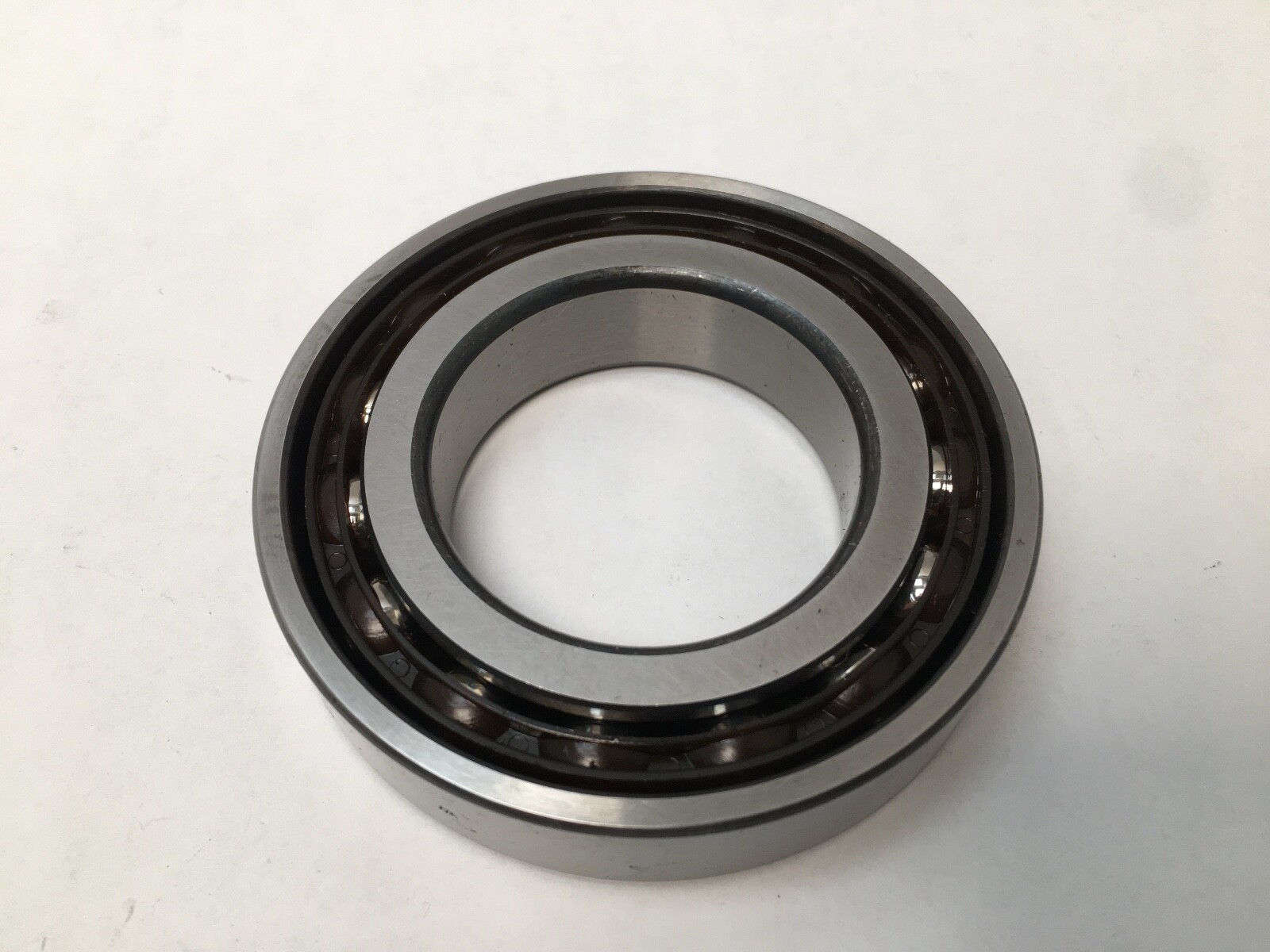

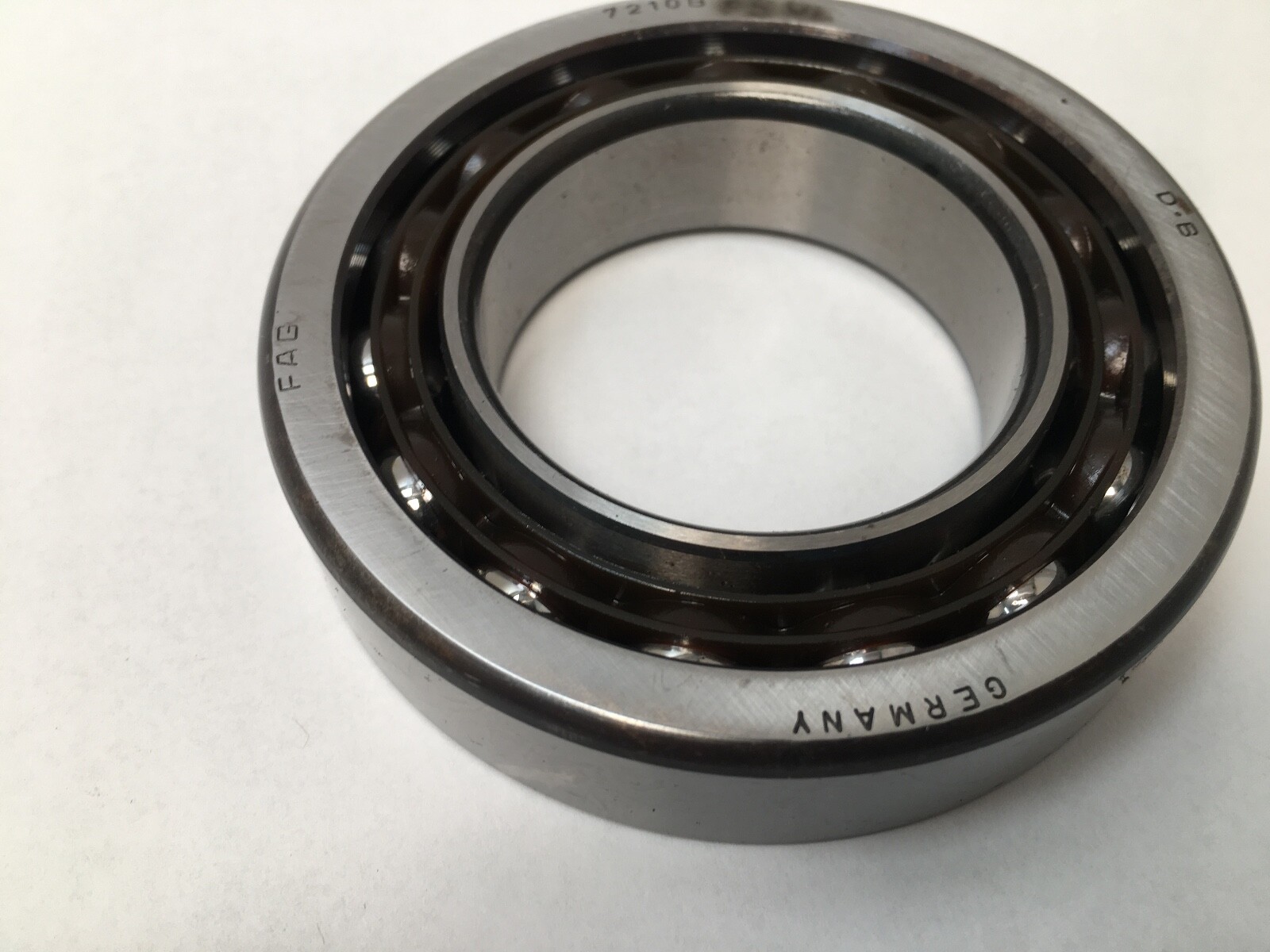

FAG 7210-B-TVP-P5-UL single-row angular contact ball bearing. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 20 mm. Contact Angle: 40°. Dynamic Load Rating: 41,500 N. Static Load Rating: 28,500 N. Limiting Speed: 10,300 rpm. Reference Speed: 7,600 rpm. Precision Class: ABEC 5 / P5. Cage Material: Polyamide. Cage Type: Ball-guided window cage. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Preload: Light, universally matchable, 288 N maximum per set. Item Weight: 0.46 kg (1.01 lb). Bearing Material: Chrome steel. Series: 7200. Base Number: 7210. Unit Quantity: 1 Pc.

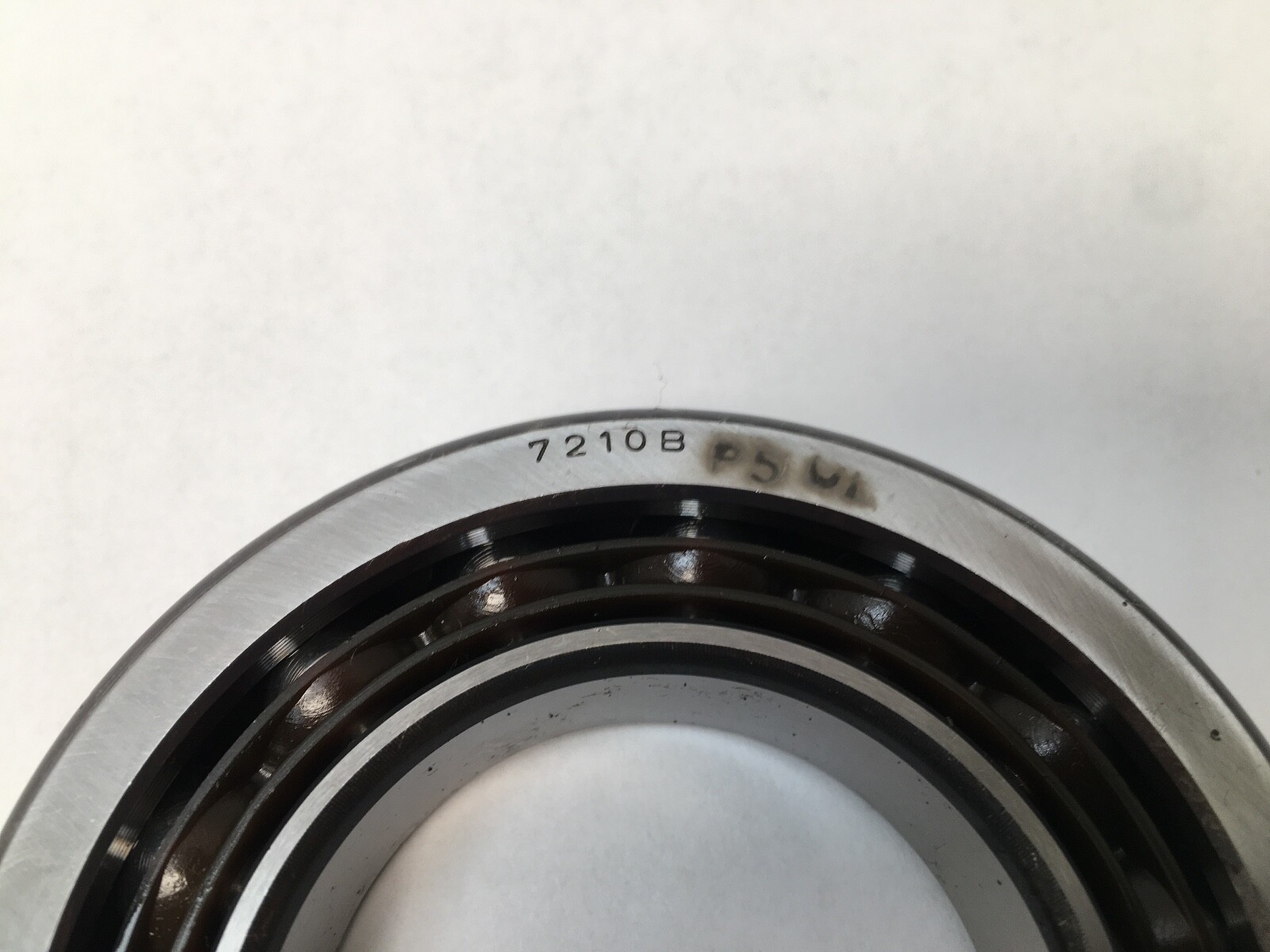

Decoding the designation

72 — single-row angular contact ball bearing, ISO 02 heavy dimension series.

10 — bore code. Bore Diameter: 50 mm.

B — 40° contact angle.

TVP — glass-fibre reinforced polyamide window cage, ball-guided.

P5 — tolerance class P5, equivalent to ABEC 5.

UL — universally matchable, light preload. Any two bearings of this designation come up to the published preload back-to-back, face-to-face or in tandem without shims or grinding.

Searchable forms of the designation: 7210B.TVP.P5.UL, 7210-B-TVP-P5-UL, 7210BTVPP5UL, 7210-B-XL-TVP-P5-UL, 7210B.

What these specs mean in practice

Contact Angle: 40°. A steep angle moves the load line toward the axis and gives this bearing roughly twice the thrust capacity of a 15° bearing on the same envelope, at the cost of speed. It is the angle chosen for pump shafts, gearbox input shafts and screw drives carrying a heavy one-way thrust.

Dynamic Load Rating: 41,500 N. Static Load Rating: 28,500 N. Fatigue load limit: 1,970 N.

Limiting Speed: 10,300 rpm. Reference Speed: 7,600 rpm. The reference figure is the thermally-referenced speed used to size a lubrication system; the limiting figure is the mechanical ceiling of the cage and ball set.

Preload: Light. Maximum preload force per set 288 N, with an axial tolerance band of 6 µm. Operating temperature range published by Schaeffler: −30 °C to +120 °C.

A single-row angular contact ball bearing carries thrust in one direction only. Two of them locate a shaft in both directions and set the working preload.

Mounting data

Bore Diameter: 50 mm, straight. Outside Diameter: 90 mm. Overall Width: 20 mm. Shaft shoulder diameter da 57 mm minimum. Housing shoulder diameter Da 83 mm maximum, Db 85.8 mm maximum. Maximum shaft fillet radius ra 1 mm, maximum housing fillet radius ra1 0.6 mm. Minimum chamfer dimension r 1.1 mm, r1 0.6 mm. Outer ring shoulder diameter on the wide side face D1 74.78 mm, inner ring shoulder diameter on the wide side face d1 66.26 mm. Distance between the apexes of the pressure cones a 39.4 mm.

Quantity and configuration

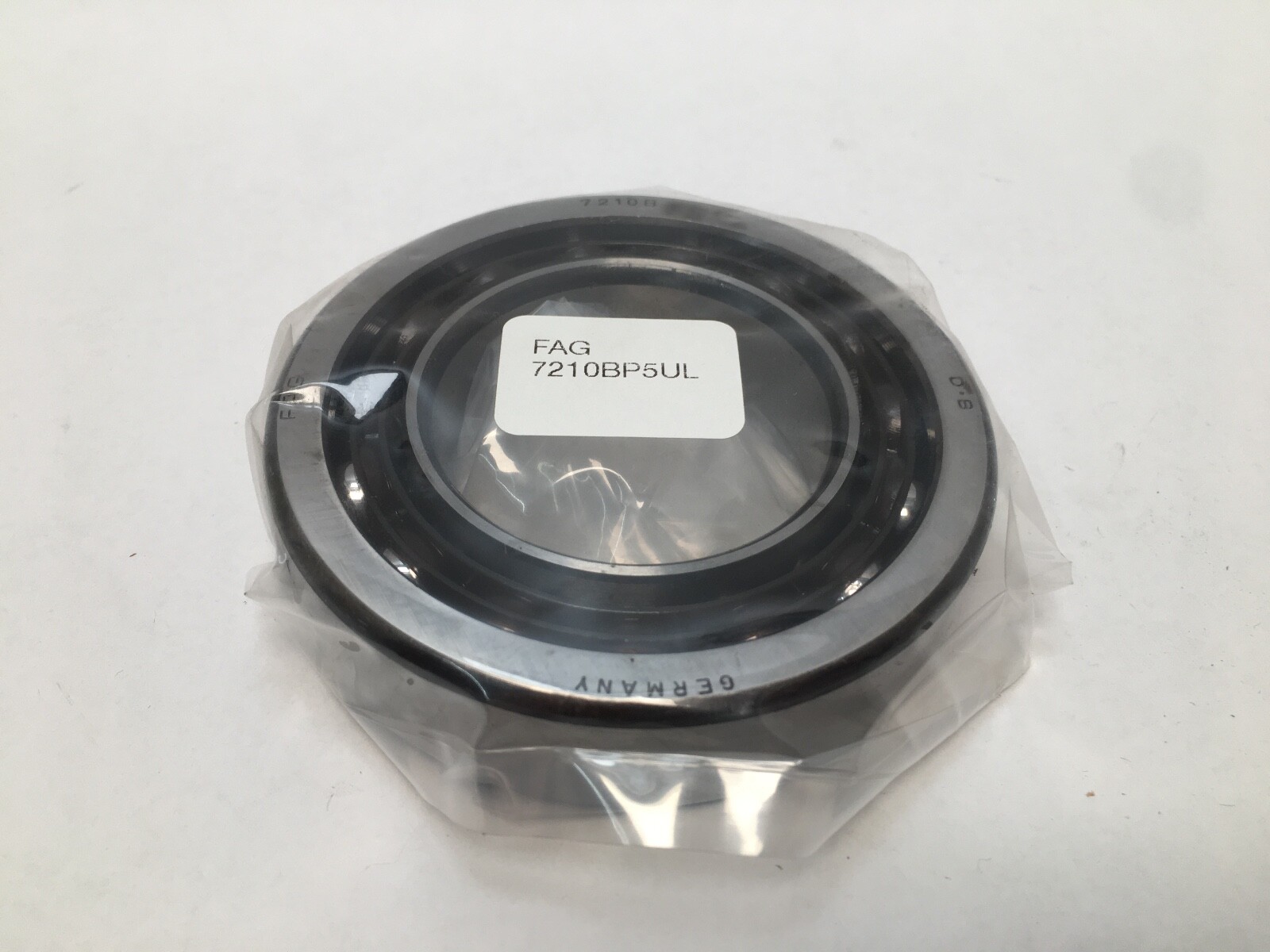

Unit Quantity: 1 Pc. One universally matchable single bearing, open on both faces.

Interchange guidance

Cross-Reference 1: FAG 7210-B-XL-TVP-P5-UL. Cross-Reference 2: SKF 7210 BEP. Cross-Reference 3: NSK 7210B. Cross-Reference 4: NTN 7210B. Cross-Reference 5: Timken / Fafnir 7210WN (related, standard precision). Cross-Reference 6: RHP 7210B. Cross-Reference 7: Koyo 7210B. Cross-Reference 8: Nachi 7210B. Cross-Reference 9: SNR 7210B.

All nine share the 50 x 90 x 20 mm envelope and the 40° contact angle. The Fafnir 7210WN is a standard-precision build, so it matches the geometry and angle but not the ABEC 5 class.
