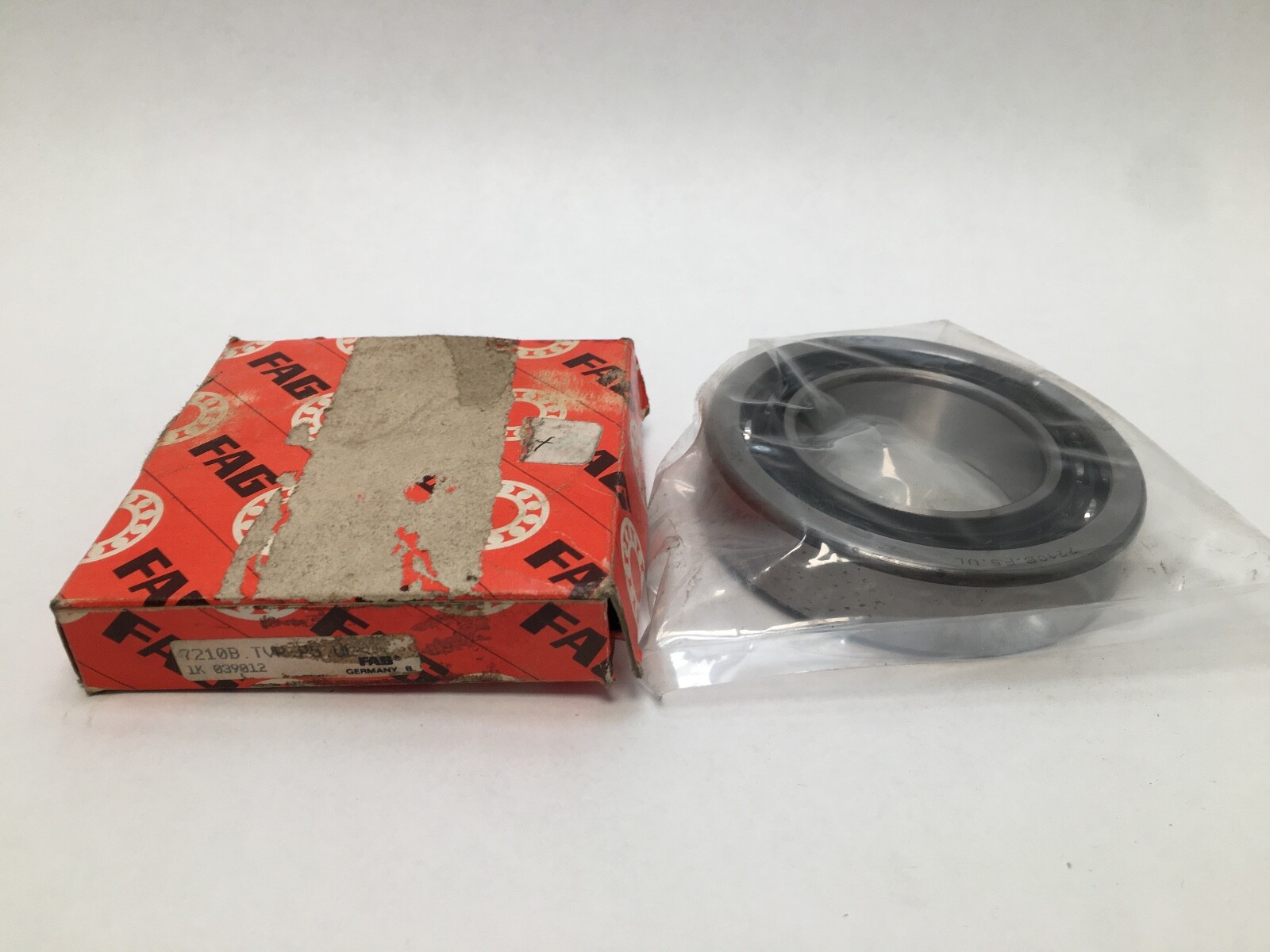

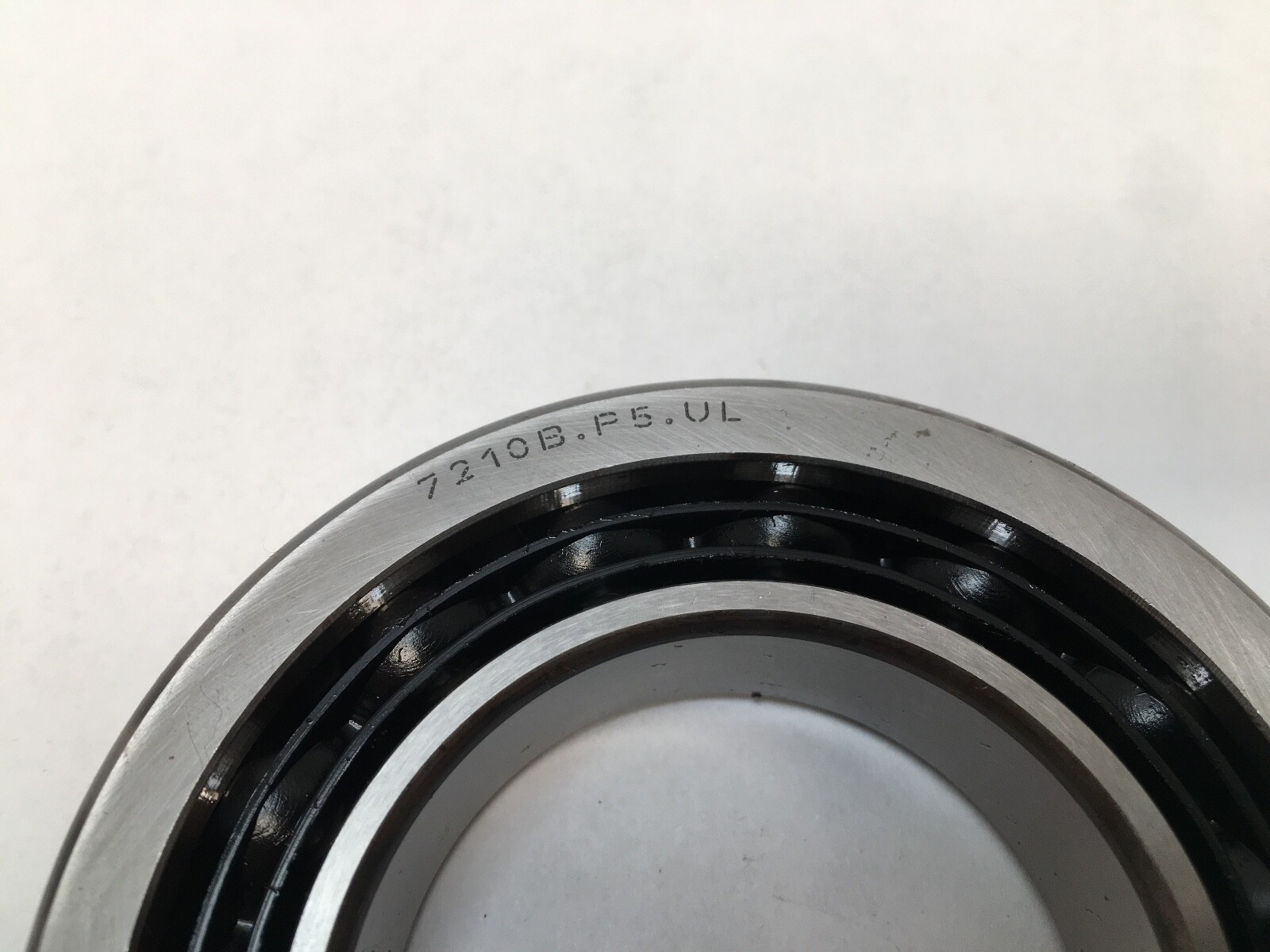

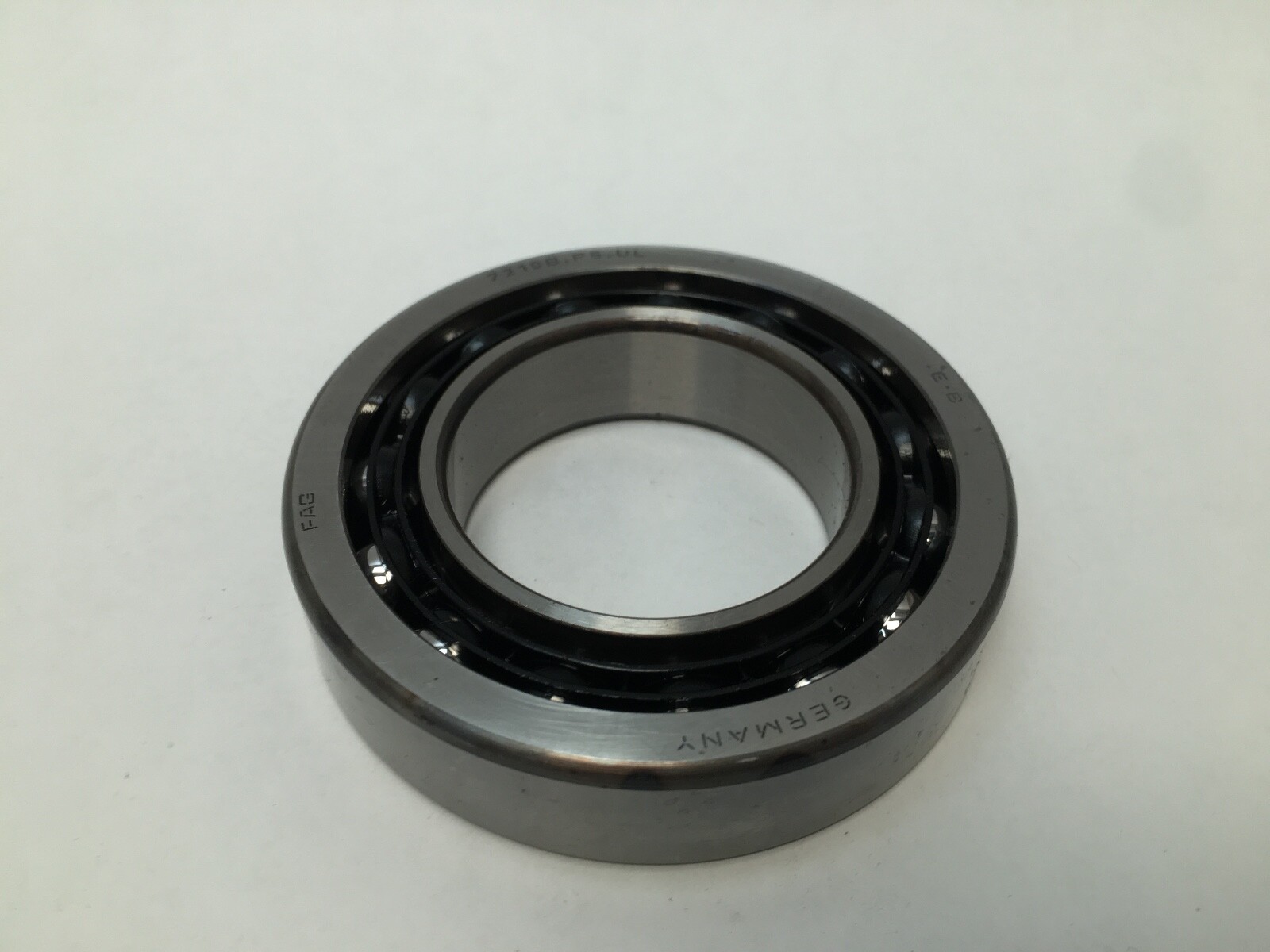

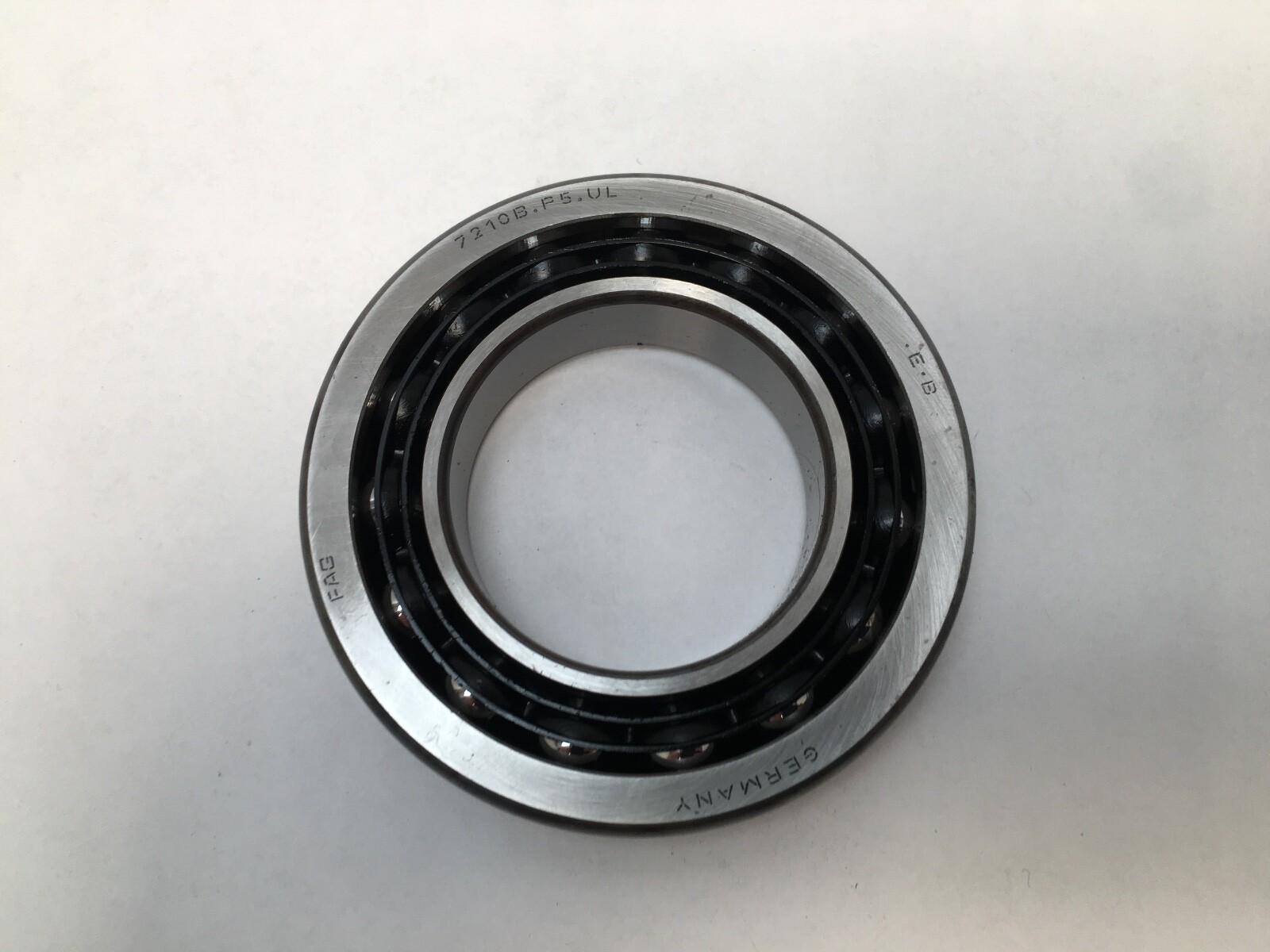

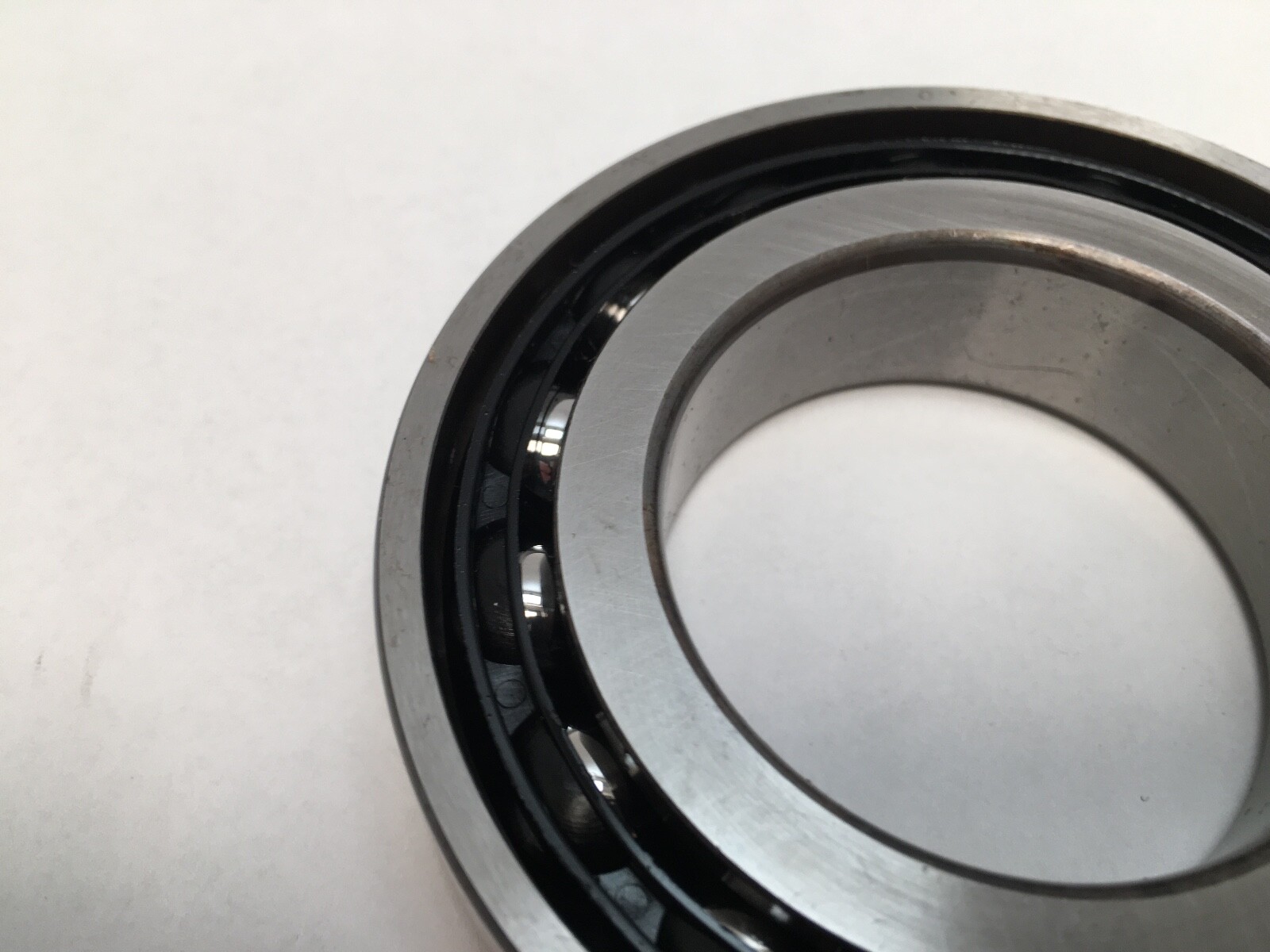

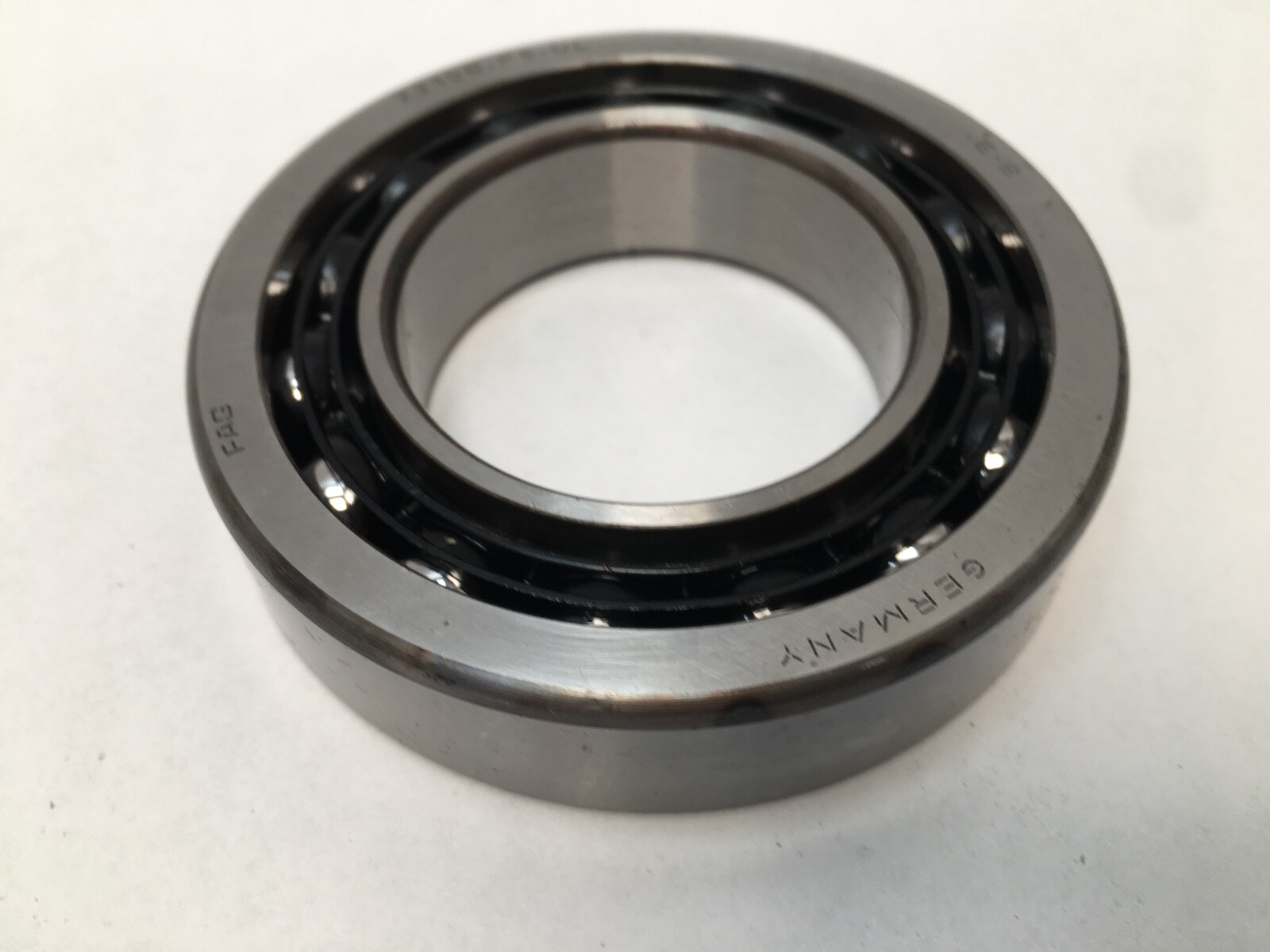

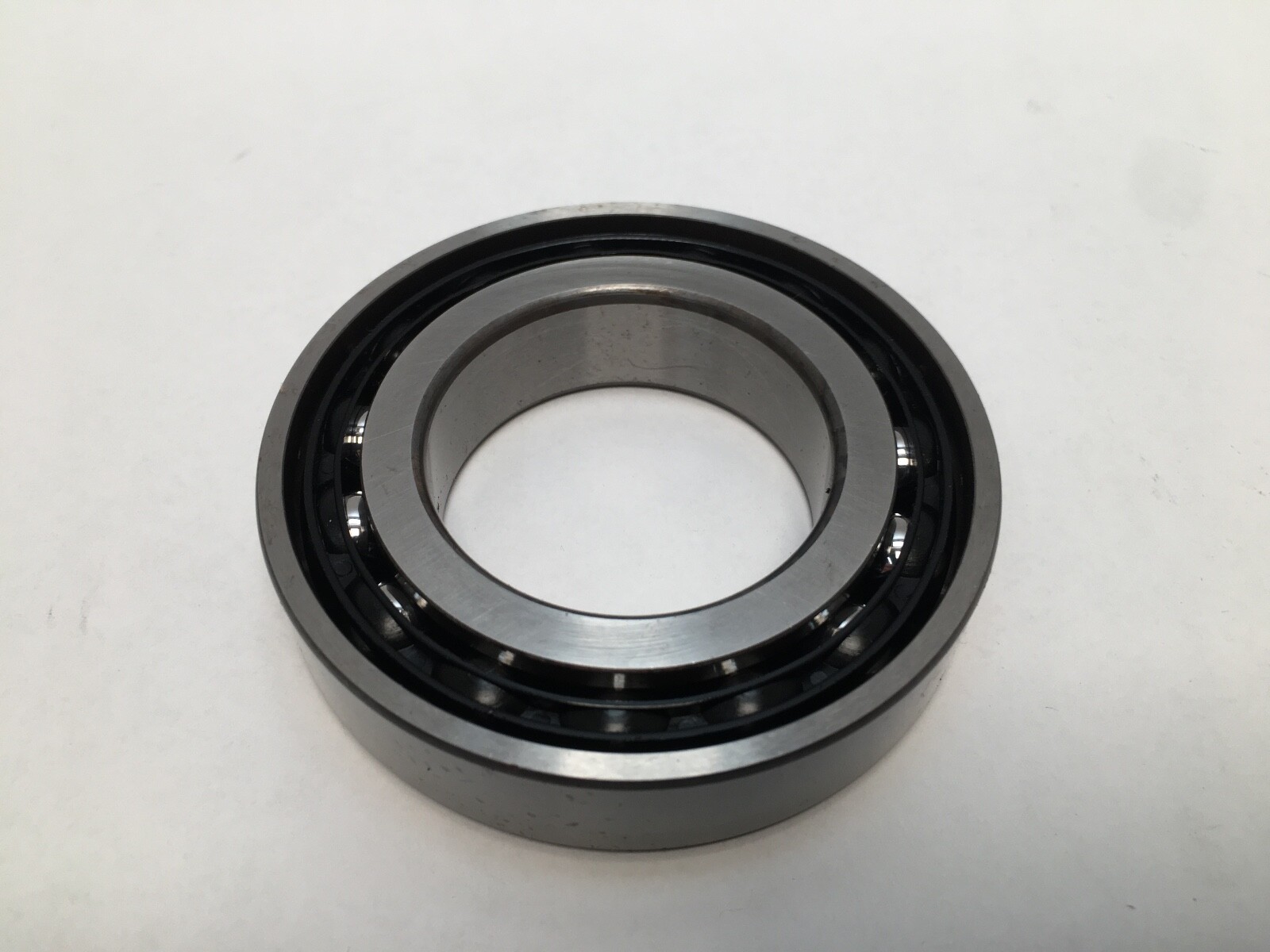

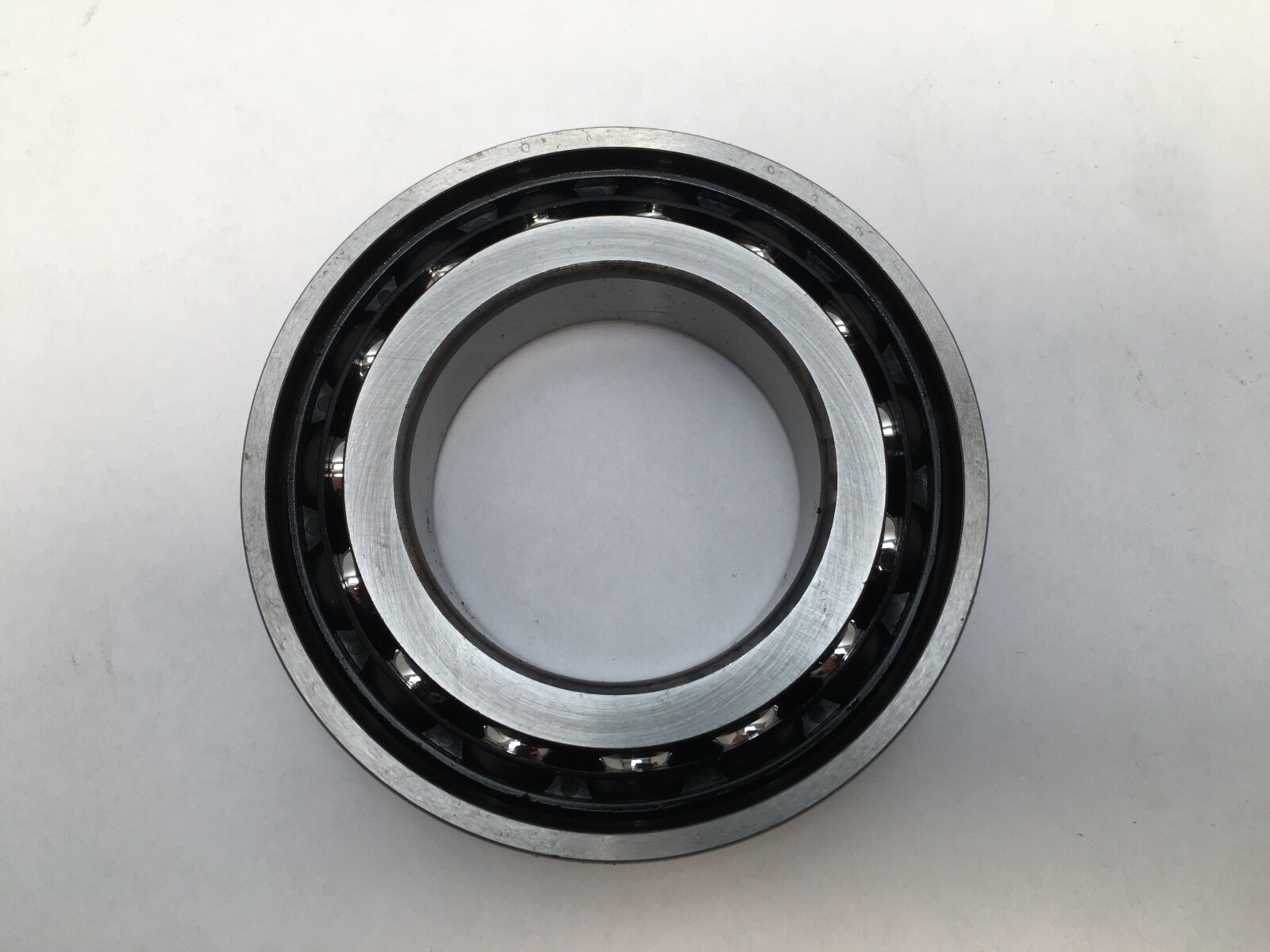

Single-row angular contact ball bearing, 50 x 90 x 20 mm, 40° contact angle, P5 precision, open, glass-fibre reinforced polyamide cage, universal matching.
List Price
$122.33
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7210-B-TVP-P5-UL |
| Model | 7210B.TVP.P5.UL / 7210 BE/BEA/BECBM/BEAGM/BEAY |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Base Number | 7210 |
| Industry Terms | angular contact ball bearing, precision spindle bearing, 40 degree contact angle bearing, universally matchable bearing, machine tool bearing |
| Common Misspellings | 7210B TVP P-5 UL, 7210 BTVPP5UL, 7210B.TPV.P5.UL, angular contact ball bearig, anglular contact bearing |
| Application Types | Machine tool feed spindles, gearbox and pump thrust positions, geared drive heads, screw drives |
| Bore Shaft Size | 50 mm |
| Mpn Variants | 7210BTVPP5UL, 7210B.TVP.P5.UL, 7210-B-TVP-P5-UL, 7210 B TVP P5 UL, 7210BTVPP5, 7210B, 7210 |
| Compatible With Replaces | ISO 7210 B angular contact envelope, 50 x 90 x 20 mm, 40° contact angle, class 5 |
| Precision Class | P5 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 40° |
| Part Number | 7210-B-TVP-P5-UL |
| Cross Reference 1 | SKF 7210 BEP - 40 deg, polyamide cage |
|---|
FAG 7210-B-TVP-P5-UL is a single-row angular contact ball bearing. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Width: 20 mm. Contact Angle: 40°. Precision Class: P5. Seal Type: open on both faces. Rolling Elements: steel balls. Cage Material: glass-fibre reinforced polyamide. Preload: light, universal execution. Unit Quantity: 1 Pc.
7210 — ISO base number in the 72 dimension series, bore code 10 for 50 mm.
B — FAG 40° contact angle.
TVP — glass-fibre reinforced polyamide cage.
P5 — dimensional and running accuracy to ISO class 5, equal to ABEC 5.
UL — universal execution: ring faces are ground so any two bearings from the family mount back-to-back, face-to-face or in tandem at light preload.
Dynamic Load Rating: 41.5 kN. Static Load Rating: 28.5 kN. Limiting Speed: 10,300 rpm. Maximum temperature with polyamide cage: 120 °C. Minimum temperature: -30 °C. Material: bearing steel. Series: 7200. Base Number: 7210. Harmonization Code: 8482.10.50.68.
Bore: 50 mm. Outside Diameter: 90 mm. Width: 20 mm. A single row takes thrust in one direction; axial location in both directions comes from pairing with a second bearing of the same execution.
SKF 7210 BEP: 40° contact angle, polyamide cage, 50 x 90 x 20 mm. Related contact angles in the same size: 7210 C at 15° and 7210 A at 30°.
40°. B is the FAG code for the 40° angle.
Universal execution with light preload: the ring faces are ground for matching in any arrangement.
A glass-fibre reinforced polyamide cage, TVP.
