Availability:
4 in stock

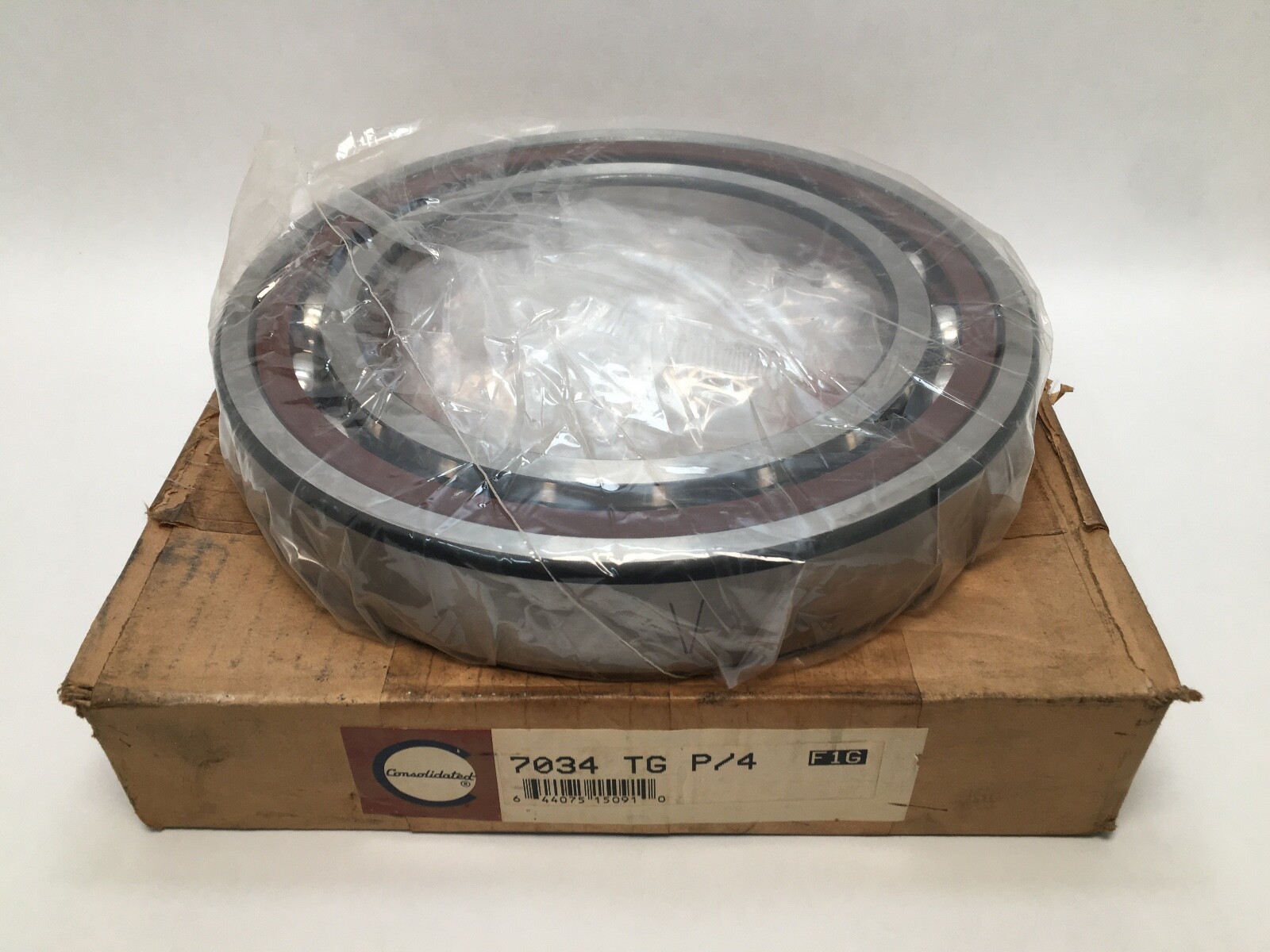

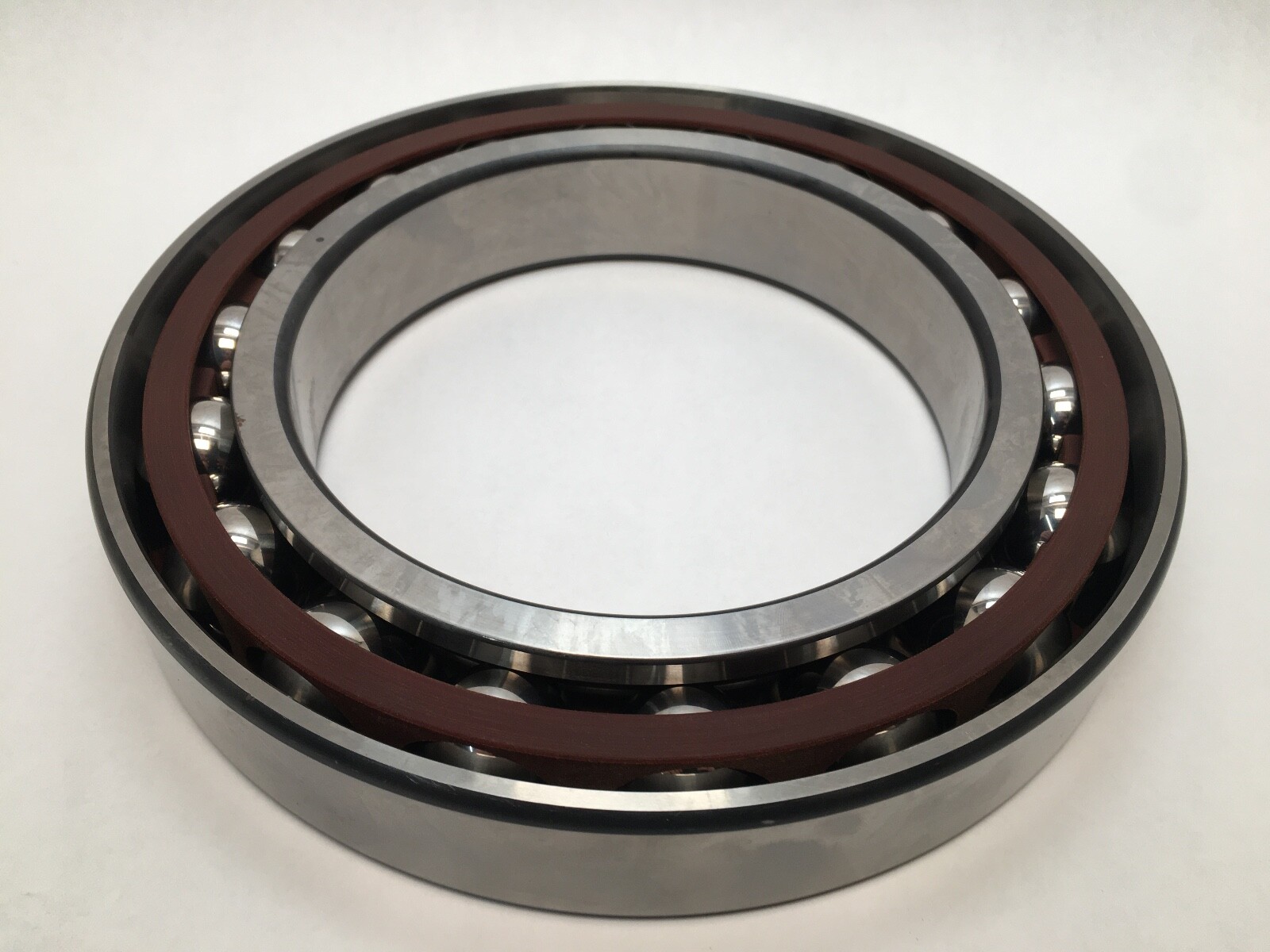

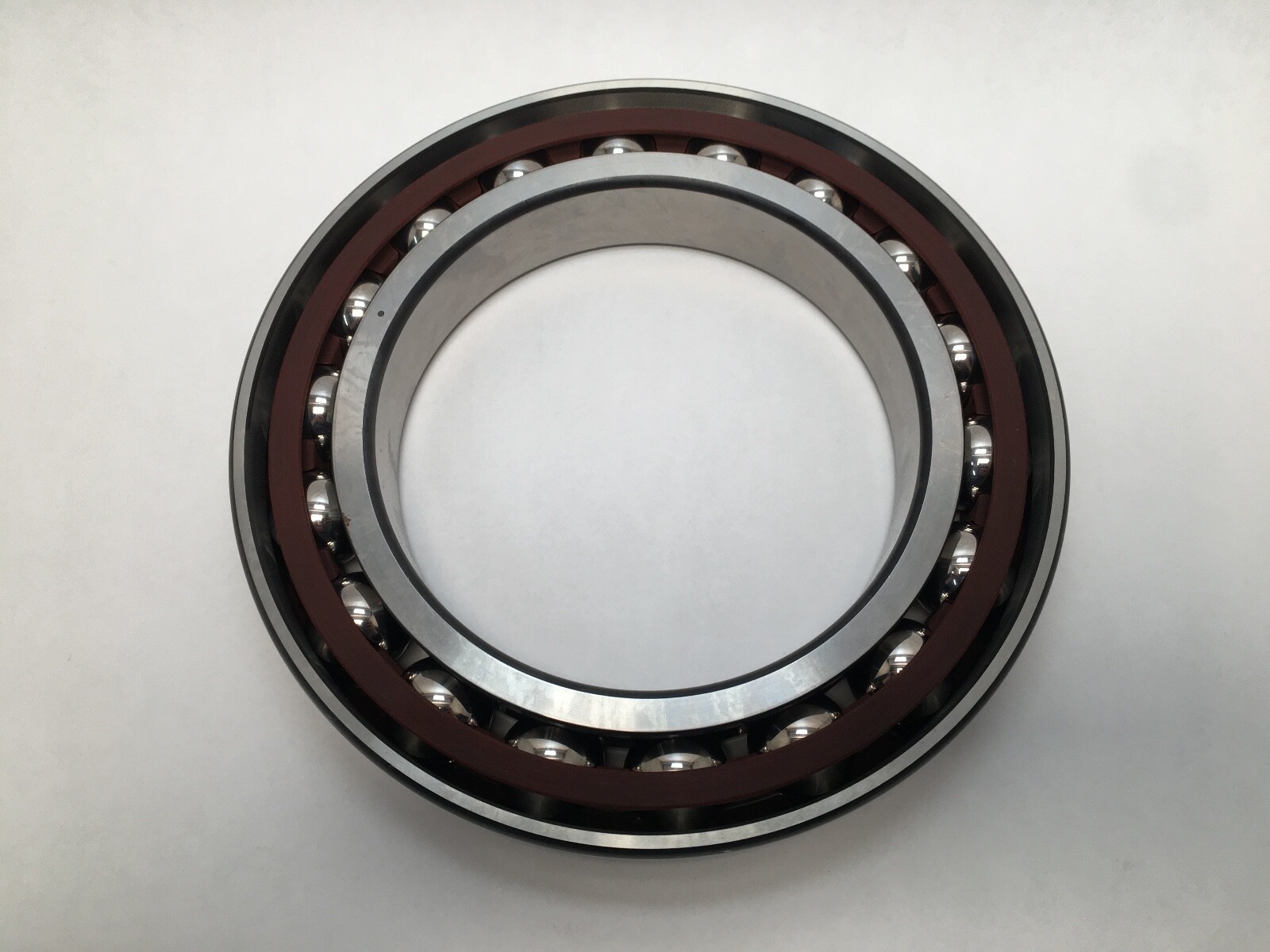

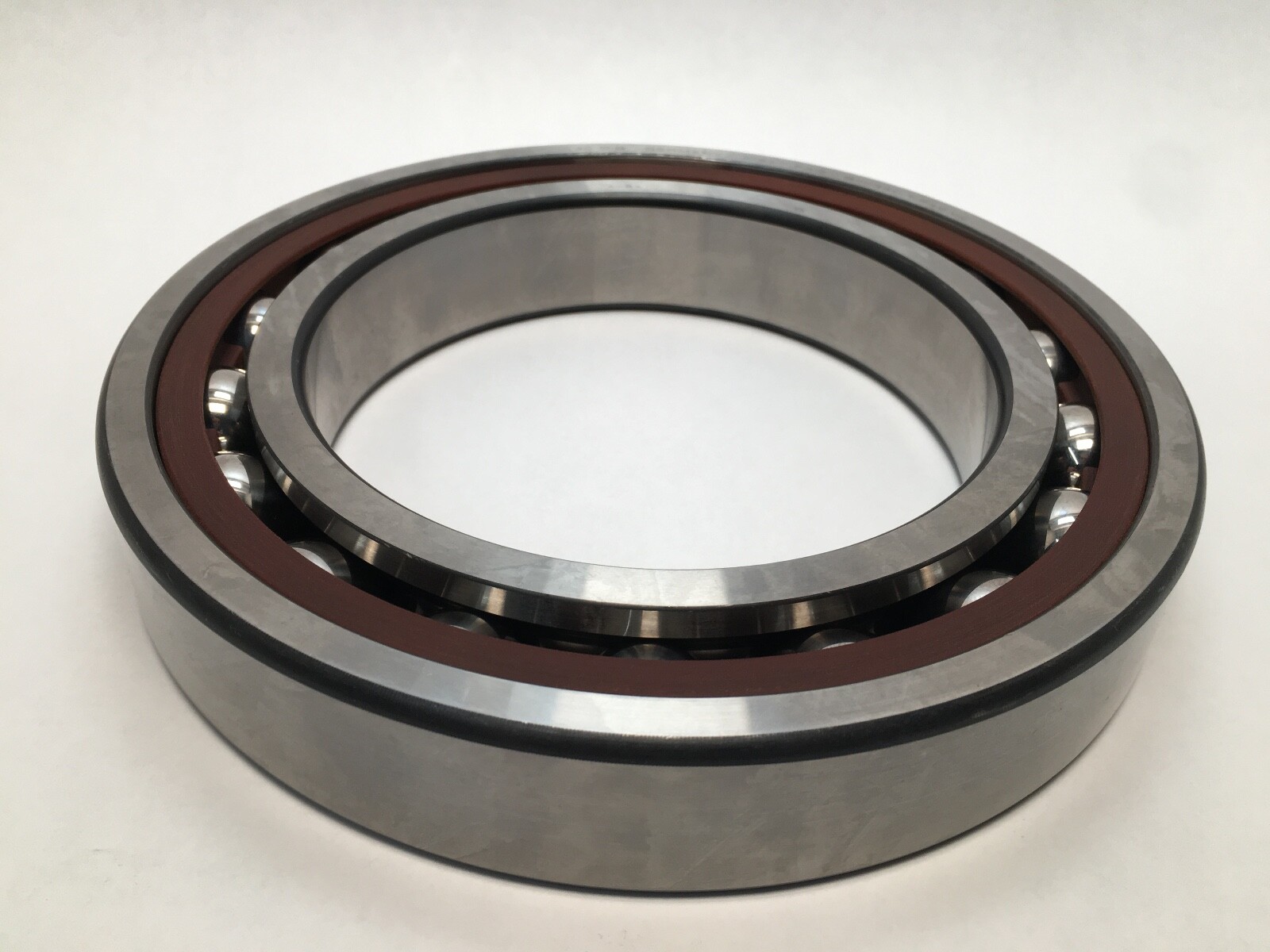

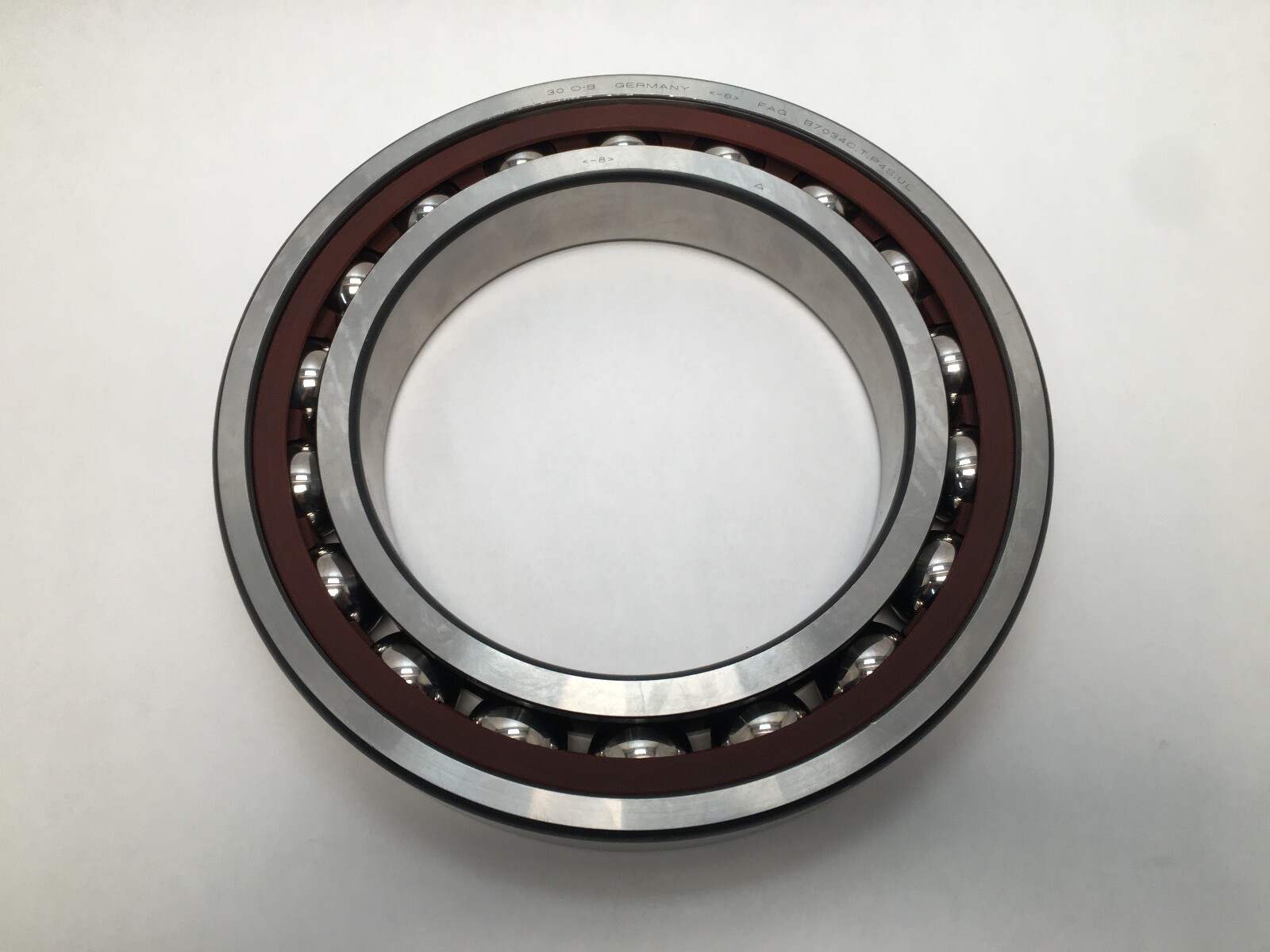

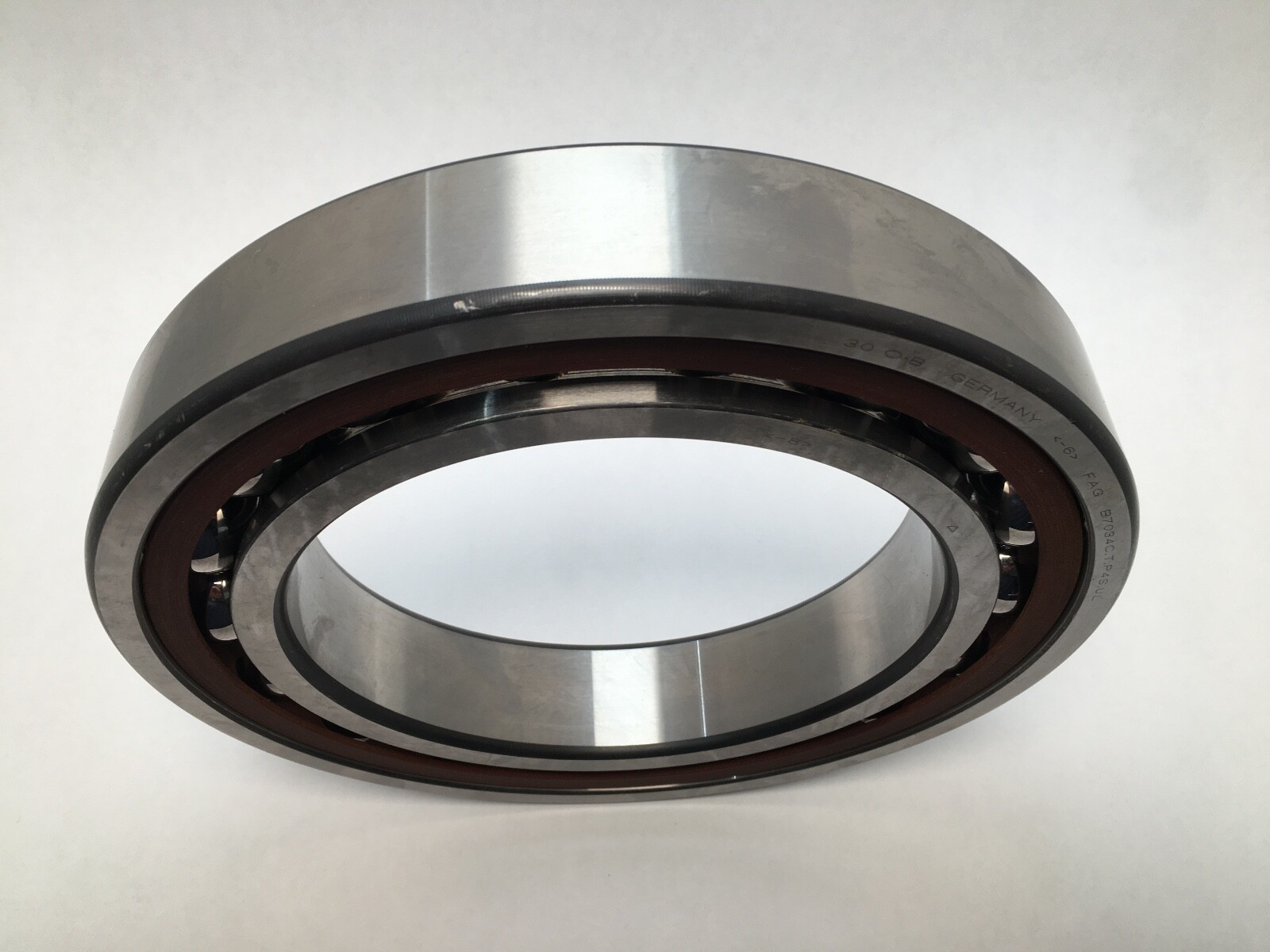

Super-precision angular contact ball bearing, 170 x 260 x 42 mm, 15° contact angle, machined phenolic cage, ABEC 7 / P4. Consolidated 7034TGP4, open.
List Price
$1,376.20
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7034TGP4 |
| Model | 7034-TG-P4 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 170 mm |
| OD | 260 mm |
| Width | 42 mm |
| Mpn Variants | 7034TGP4; 7034-TG-P4; 7034 TG P4; B7034-C-T-P4S; B7034C; Consolidated 7034TGP4 |
|---|---|
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined |
| Series | B70 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 15° |
| Cross Reference 1 | SKF 7034 CD/P4A |
|---|---|
| Cross Reference 2 | NSK 7034C P4 |
| Cross Reference 3 | NTN 7034UCG/GNP4 |
| Cross Reference 4 | Timken Fafnir 2MM9134WI |
| Cross Reference 5 | Koyo 7034C P4 |

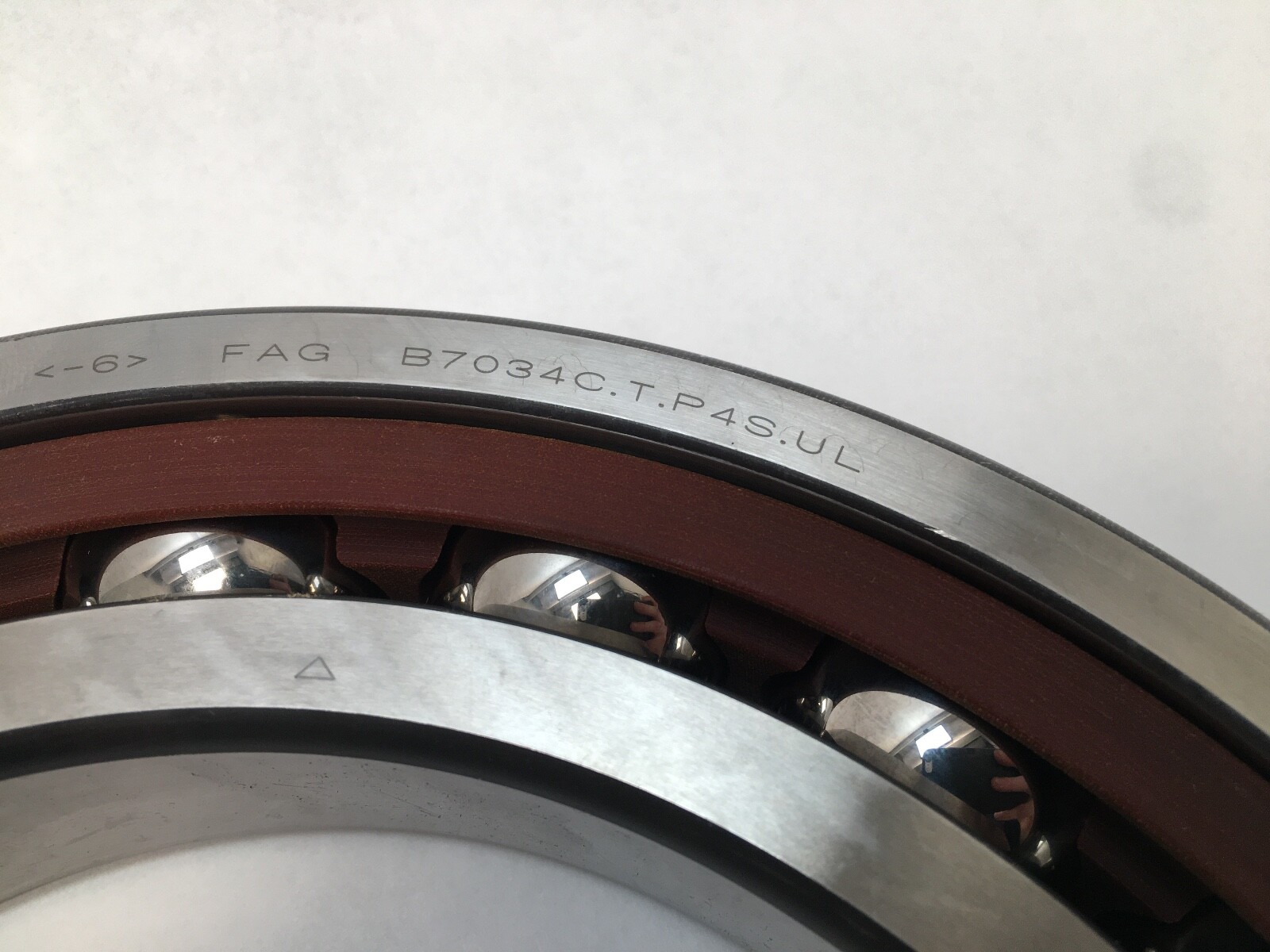

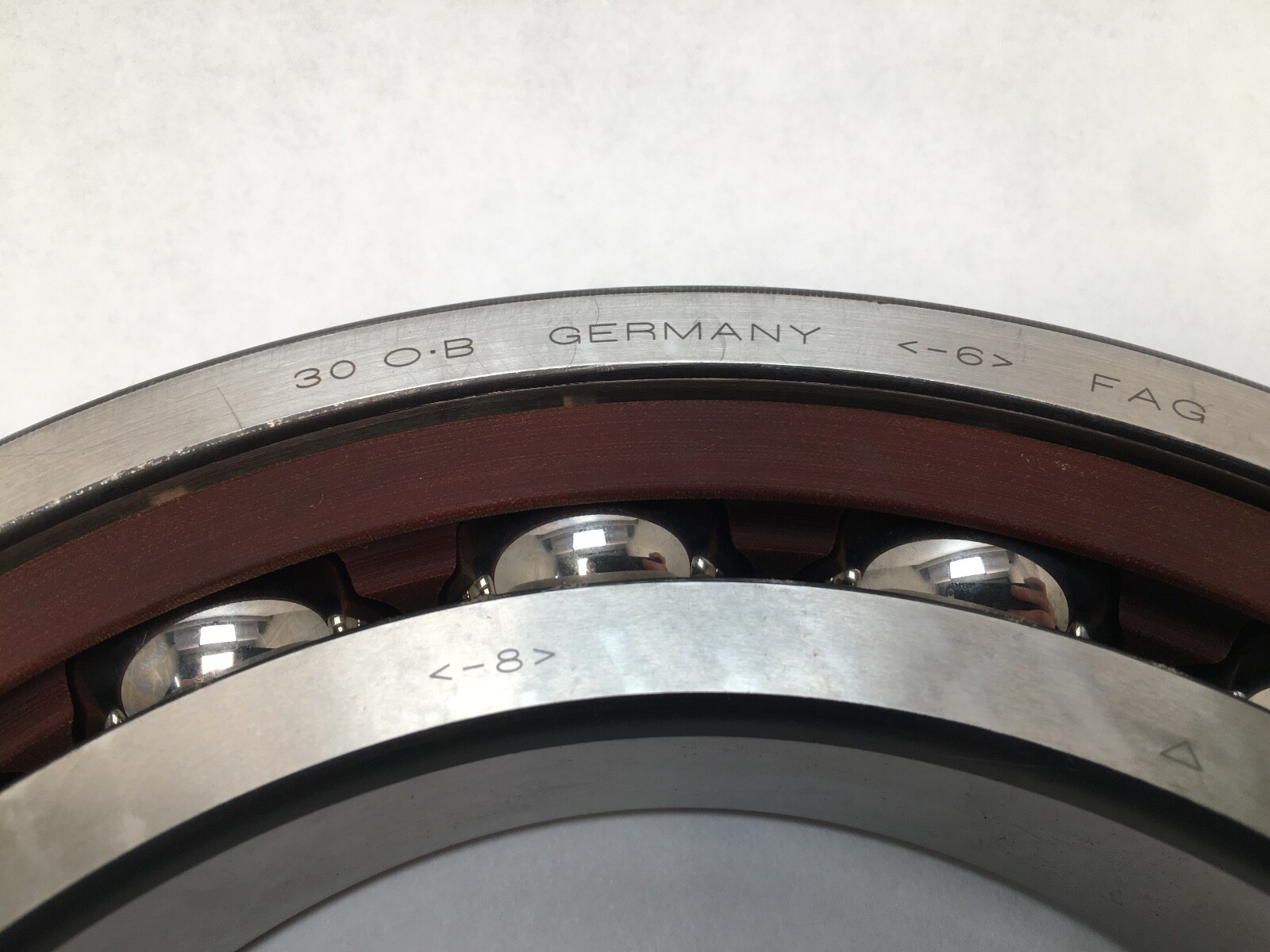

Consolidated (FAG designation) 7034TGP4 single-row super-precision angular contact ball bearing. Current FAG form: B7034-C-T-P4S. Bore Diameter: 170 mm. Outside Diameter: 260 mm. Overall Width: 42 mm. Contact Angle: 15°. Cage Material: Phenolic. Cage Type: Machined. Precision Class: ABEC 7 / P4. Closure Type: Open. Bore Type: Straight. Series: B70.
7034 — ISO dimension series 10 angular contact (B70 range), bore code 34, 170 x 260 x 42 mm.

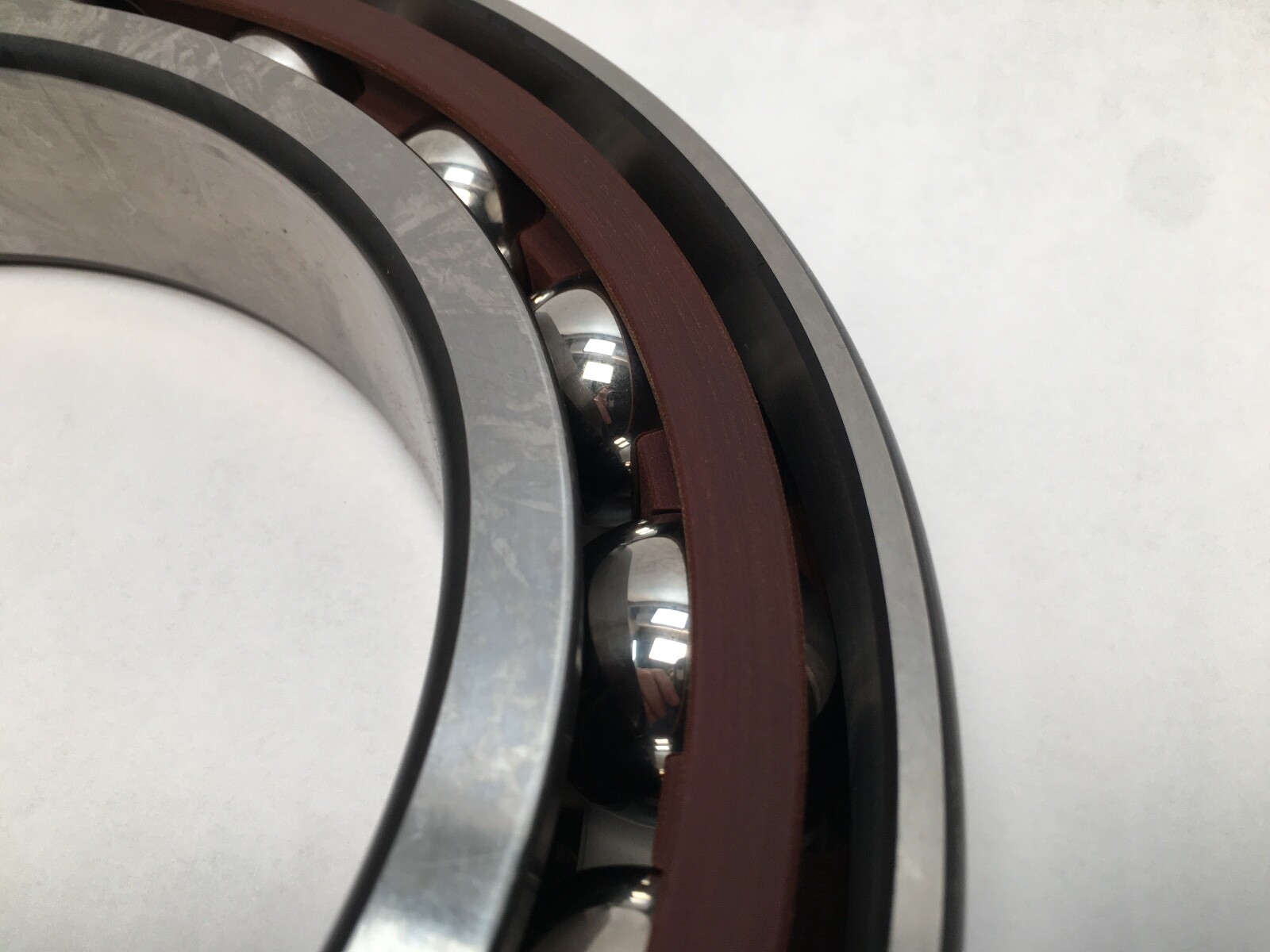

TG — machined phenolic cage, outer-ring guided.
P4 — ISO tolerance class P4, equivalent to ABEC 7.
C — in the current form B7034-C, a 15° contact angle.
A 15° contact angle gives high radial stiffness and high speed capability with moderate axial capacity, the standard geometry for machine tool spindles. The machined phenolic cage is light and runs with low friction at speed. P4 tolerances hold bore, outside diameter and running accuracy to spindle grade.
Minimum Chamfer Dimension (r min): 2.1 mm. Maximum Fillet Radius (ra max): 2.1 mm. Shaft Shoulder Diameter (da): 185 mm. Housing Shoulder Diameter (Da): 246 mm. Pressure Centre Distance (a): 49.8 mm.
Unit Quantity: 1 Pc. Single open bearing with a straight bore.
Same-envelope 15° ABEC 7 equivalents: SKF 7034 CD/P4A, NSK 7034C P4, NTN 7034UCG/GNP4, Timken Fafnir 2MM9134WI, Koyo 7034C P4. Searchable forms: 7034TGP4, 7034-TG-P4, 7034 TG P4, B7034-C-T-P4S, B7034C, Consolidated 7034TGP4.
