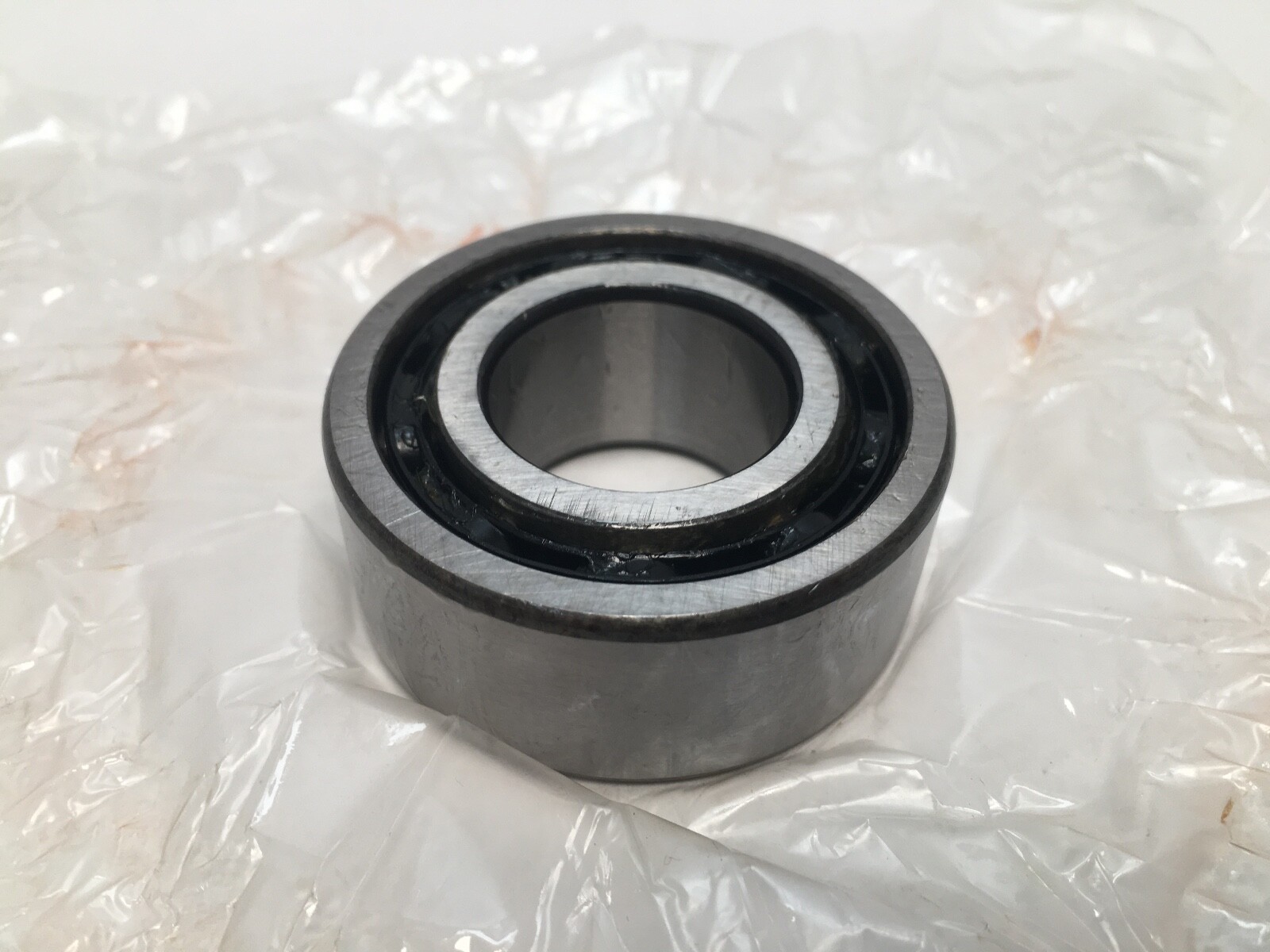

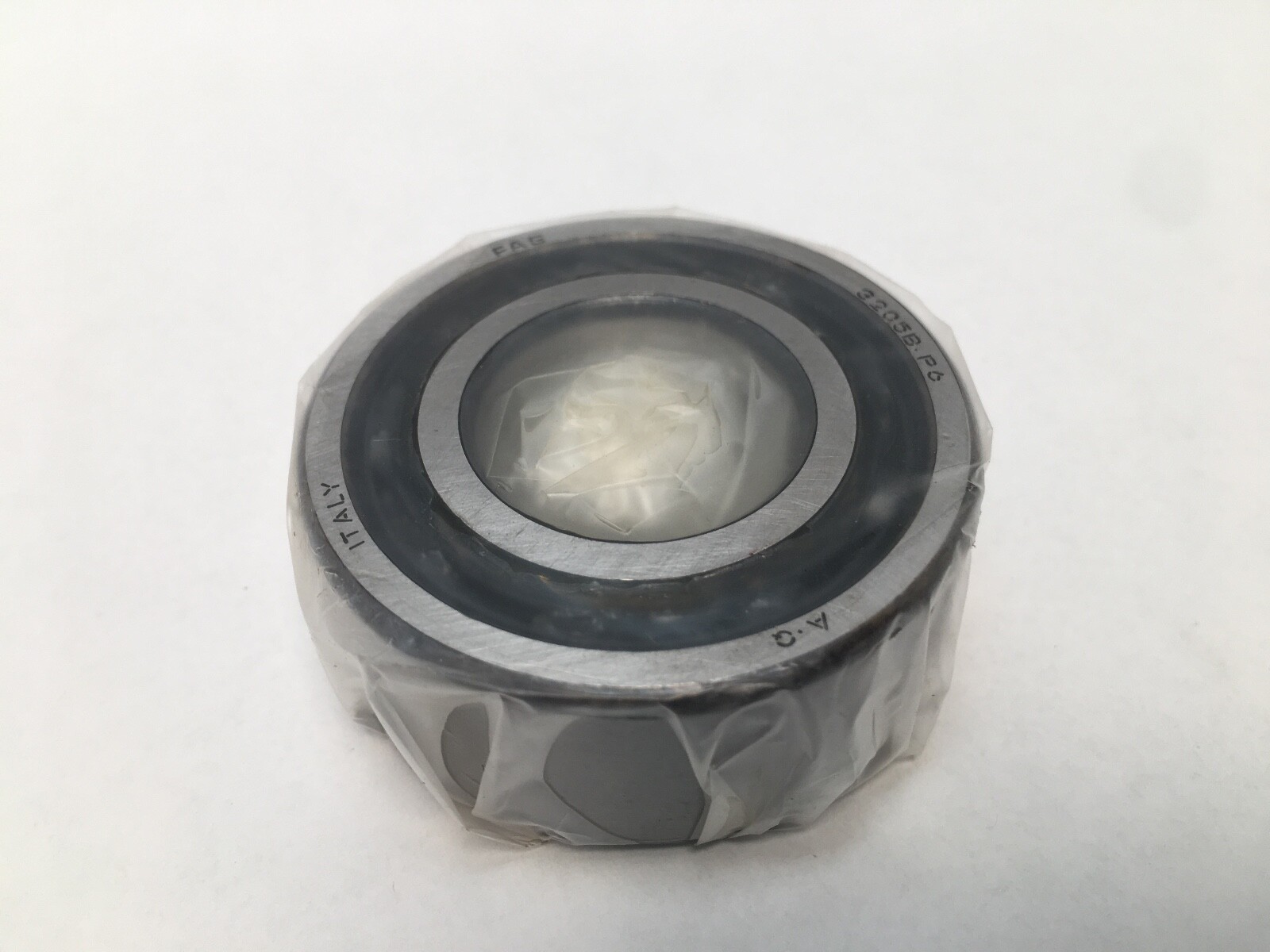

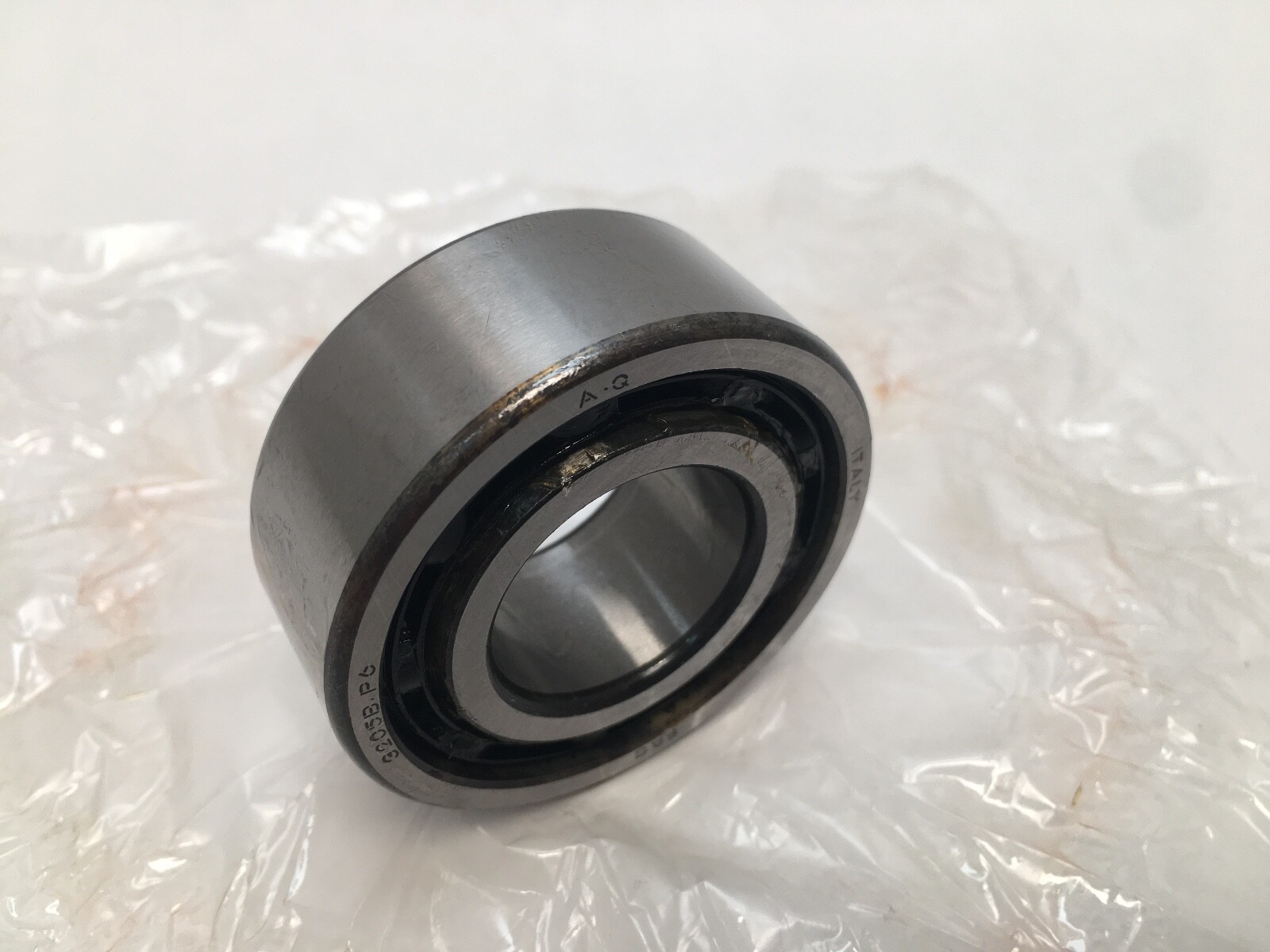

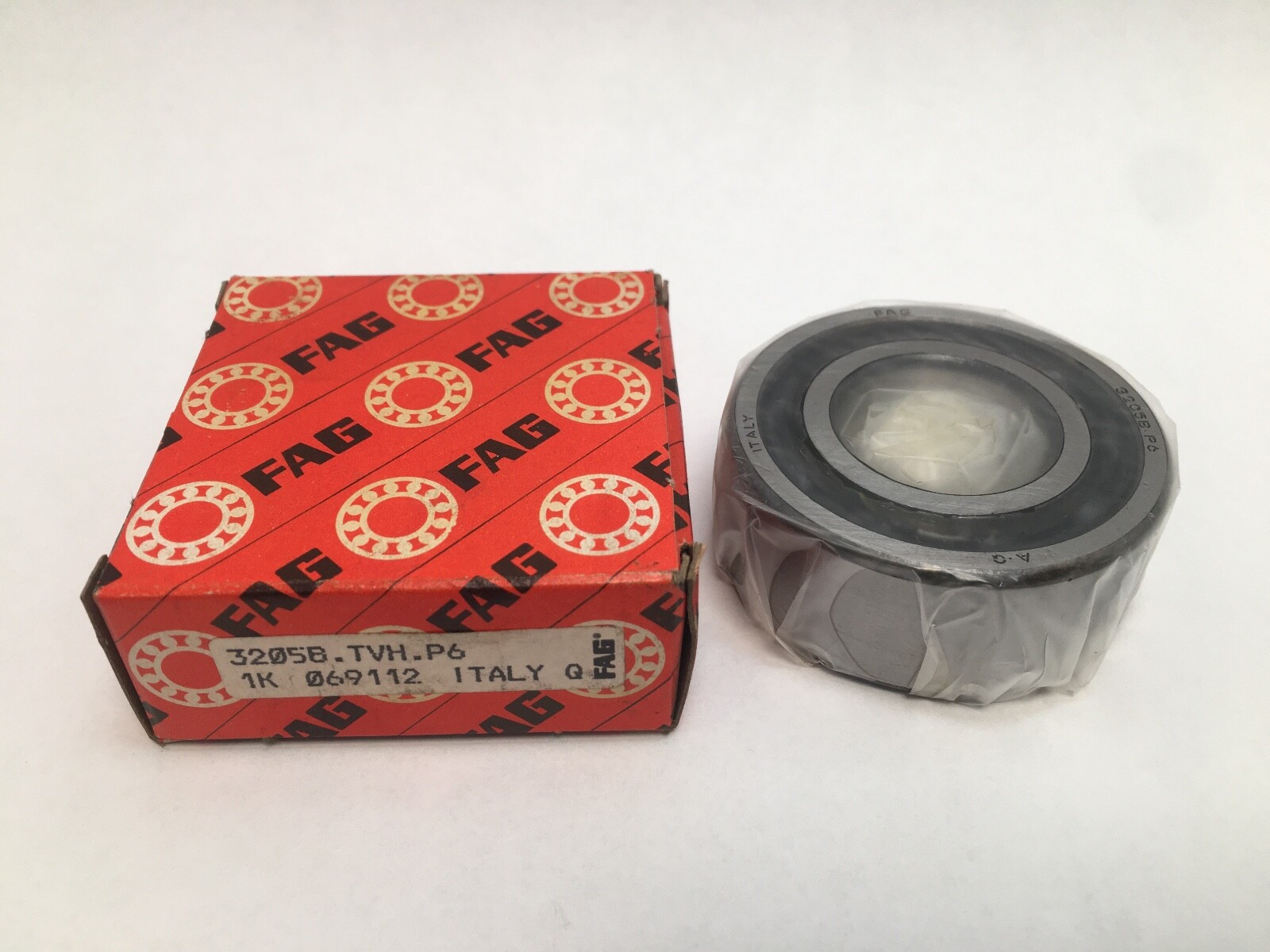

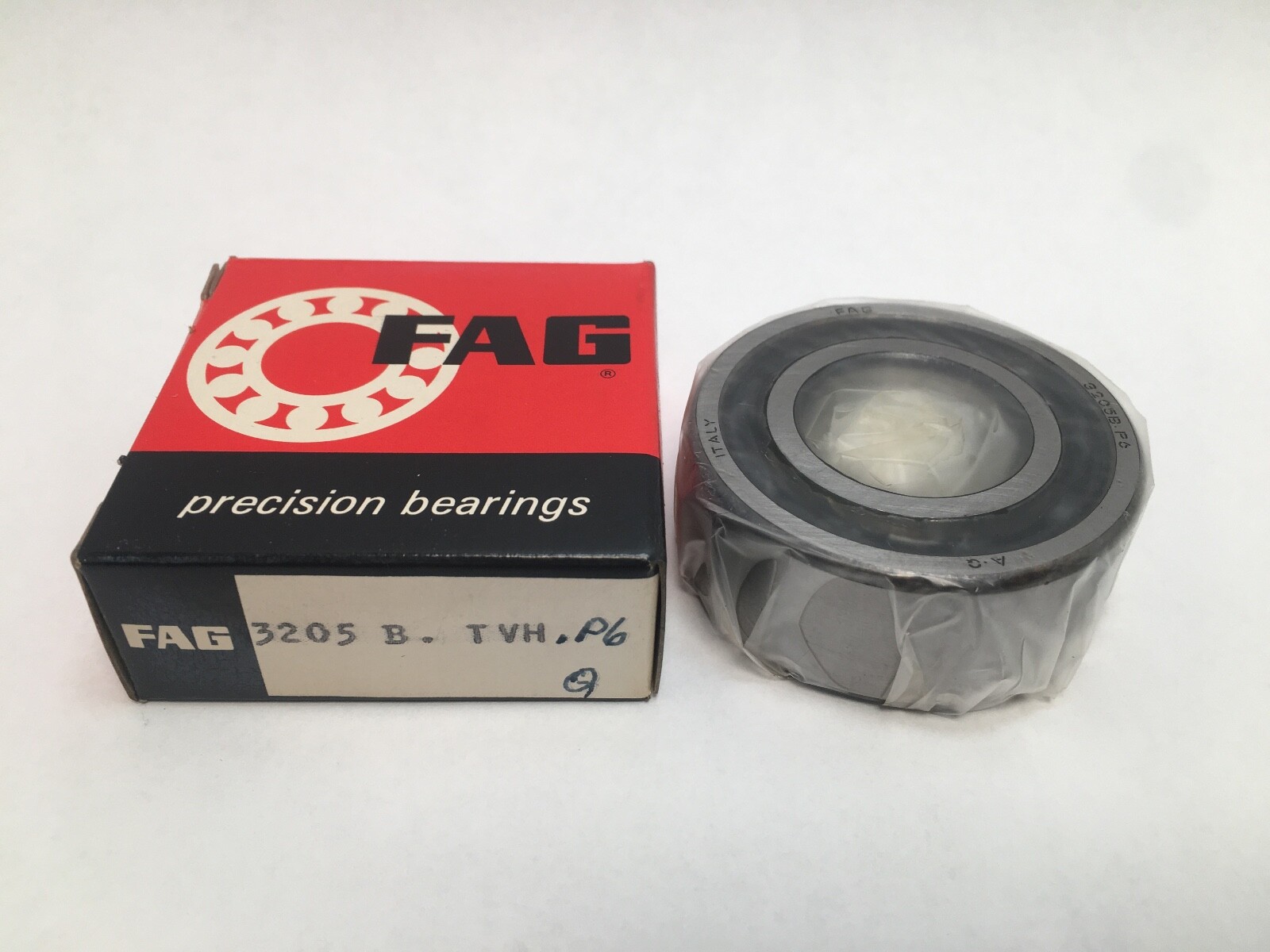

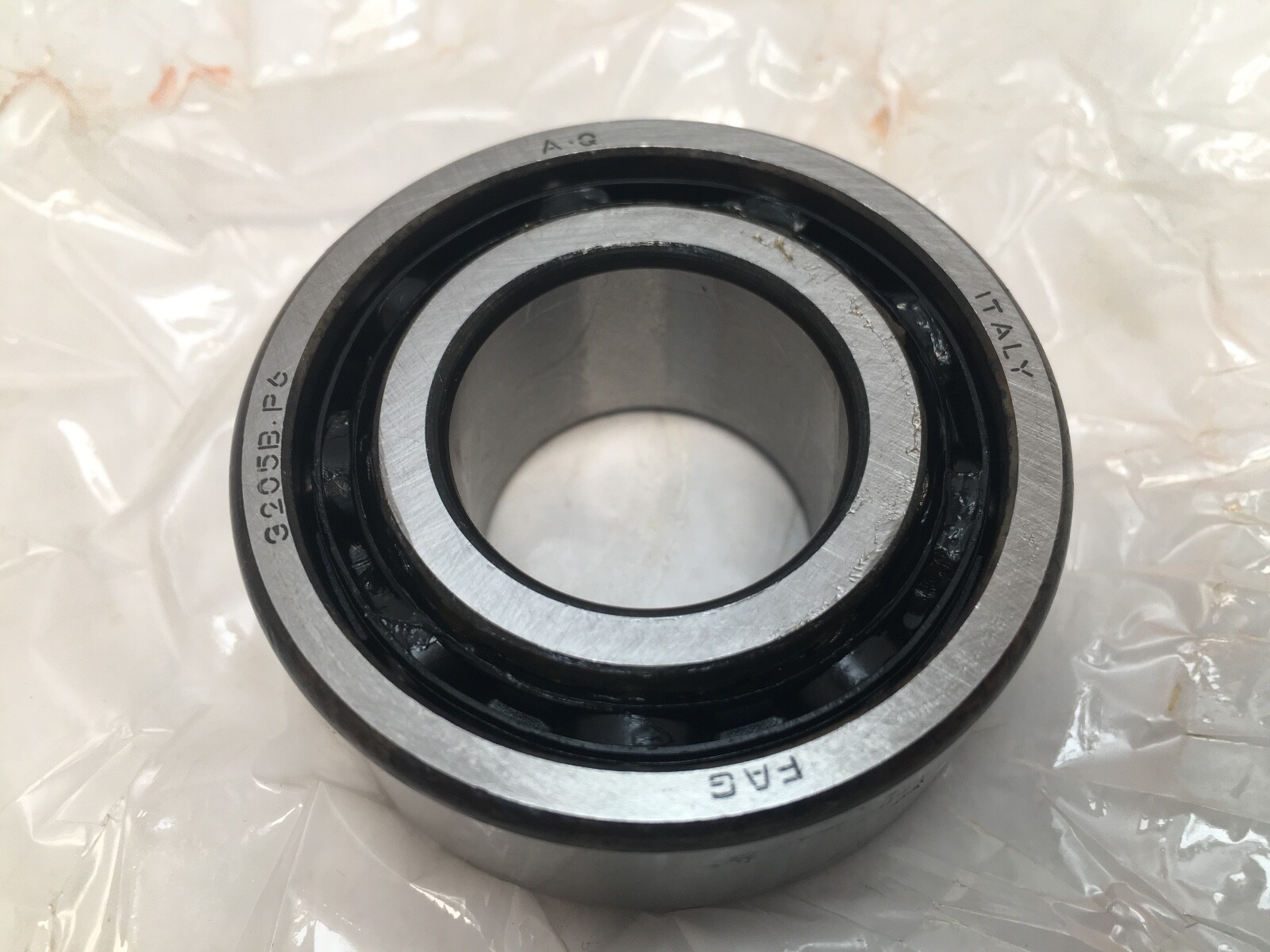

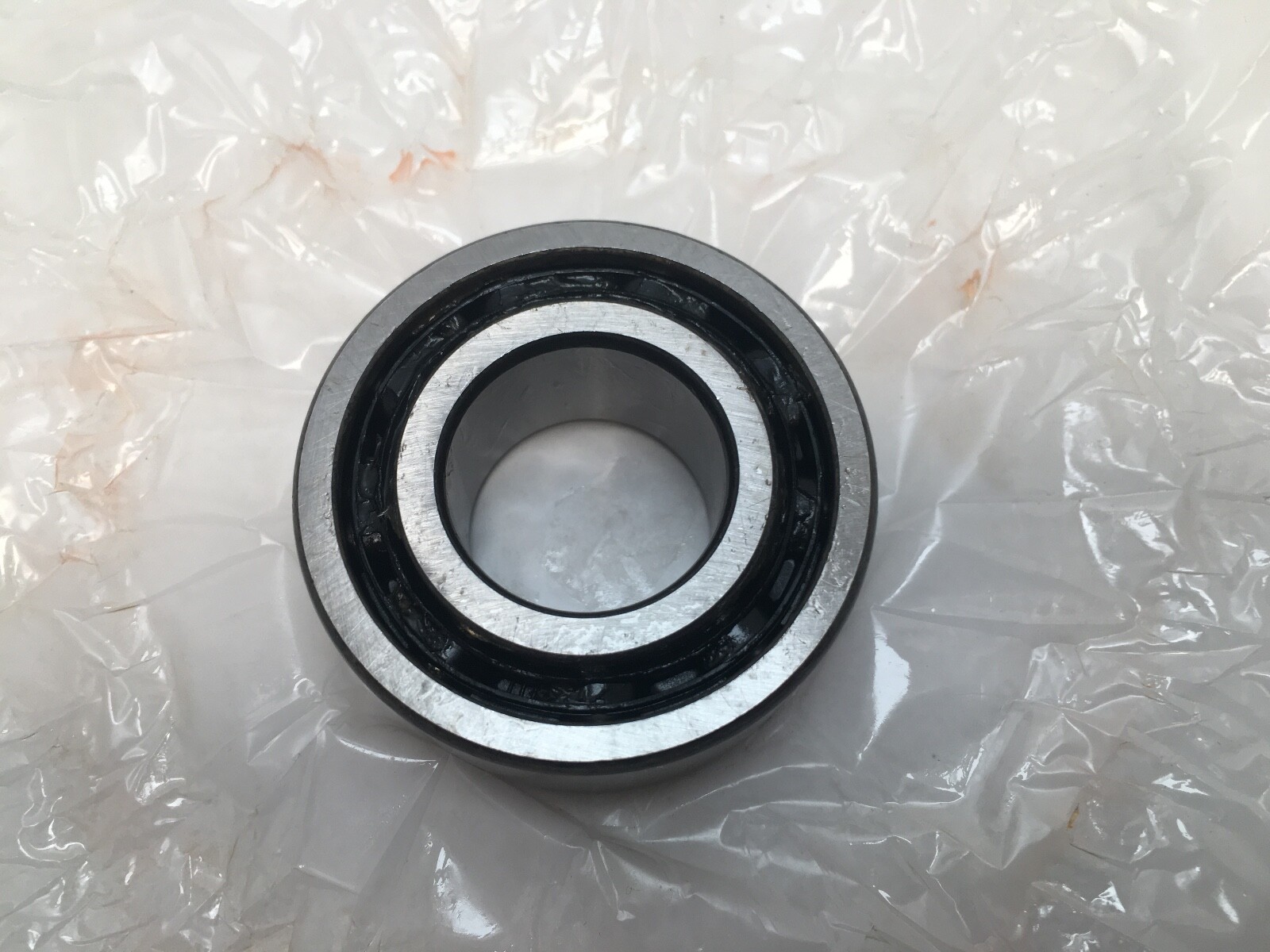

FAG 3205B.TVH.P6 double row angular contact ball bearing, 25 x 52 x 20.6 mm, 30° contact angle, polyamide cage, P6 tolerance. Open, O arrangement.
List Price
$29.28
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3205BTVHP6 |
| Model | 3205-B-TVH-P6 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 20.6 mm (13/16 in) |
| Series | 32 |
|---|---|
| Min Temp | -20 °C |
| Dynamic Load Rating | 22,000 N |
| Static Load Rating | 15,200 N |
| Precision Rating | ABEC 3 / P6 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.169 kg (0.37 lb) |
| Cage Material | Glass-fibre reinforced polyamide |
| Limiting Speed | 14,300 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 30° |
| Base Number | 3205 |
| Industry Terms | double row angular contact ball bearing, 3200 series, 30 degree, polyamide cage, P6 |
| Common Misspellings | 3205 B TVH P6, 3205BTVH-P6, 3205-BTVH |
| Application Types | Pumps, compressors, gearboxes, electric motors, machine tool drives |
| Overall Width | 20.6 mm (13/16 in) |
| Mpn Variants | 3205-B-TVH-P6, 3205B.TVH.P6, 3205BTVHP6, 3205B, 3205-B-TVH, 5205B |
| Compatible With Replaces | Successor: FAG 3205-BD-XL-TVH-L285 |
| Precision Class | ABEC 3 / P6 |
| Additional Attributes | Successor 3205-BD-XL-TVH-L285 / 3205-BD-XL-TVH data (load ratings, speed, weight, temperature and mounting rows): min shaft shoulder 30.6 mm; max housing shoulder 46.4 mm; max fillet radius 1 mm; pressure cone apex distance 30.8 mm |
| Cage Type | Solid window cage |
| Internal Clearance | CN |
| Mounting Arrangement | O arrangement (two rows, back-to-back) |
| Cross Reference 1 | SKF 3205 A |
|---|---|
| Cross Reference 2 | NTN 3205B |
| Cross Reference 3 | Koyo 3205B |
| Cross Reference 4 | 5205 (related, 5200-series double row) |
FAG 3205B.TVH.P6 (3205-B-TVH-P6) is a double-row angular contact ball bearing with a glass-fibre reinforced polyamide cage and P6 tolerance. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 20.6 mm (13/16 in). Contact Angle: 30°. Closure Type: Open. The two rows are set in an O arrangement, so a single bearing carries radial load, axial load in both directions and tilting moment.
3205 — double-row angular contact ball bearing, series 32, bore code 05 = 25 mm.
B — FAG internal design with 30° contact angle, no filling slots.
TVH — solid window cage of glass-fibre reinforced polyamide.
P6 — ISO tolerance class P6, tighter than normal (ABEC 3).
Successor 3205-BD-XL-TVH-L285 data: Dynamic Load Rating: 22,000 N. Static Load Rating: 15,200 N. Limiting Speed: 14,300 rpm. Item Weight: 0.169 kg (0.37 lb). Operating temperature range: −20 to 120 °C. Precision Class: ABEC 3 / P6. The polyamide cage runs light and quiet at moderate temperature.
Successor 3205-BD-XL-TVH data: Minimum shaft shoulder diameter: 30.6 mm. Maximum housing shoulder diameter: 46.4 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1 mm. Pressure cone apex distance: 30.8 mm.
Unit Quantity: 1 Pc. Single double-row bearing.
Current Schaeffler equivalent: FAG 3205-BD-XL-TVH-L285. Same-envelope equivalents: SKF 3205 A, NTN 3205B, Koyo 3205B. The 5205 is a related 5200-series double-row bearing on the same 25 x 52 x 20.6 mm envelope.
