Fafnir7216WNSUAngular Contact Ball Bearing – 80 mm ID, 140 mm OD, 26 mm Width, Open, 40° Contact Angle, Machined Brass Cage, Universal Matching

Product Description

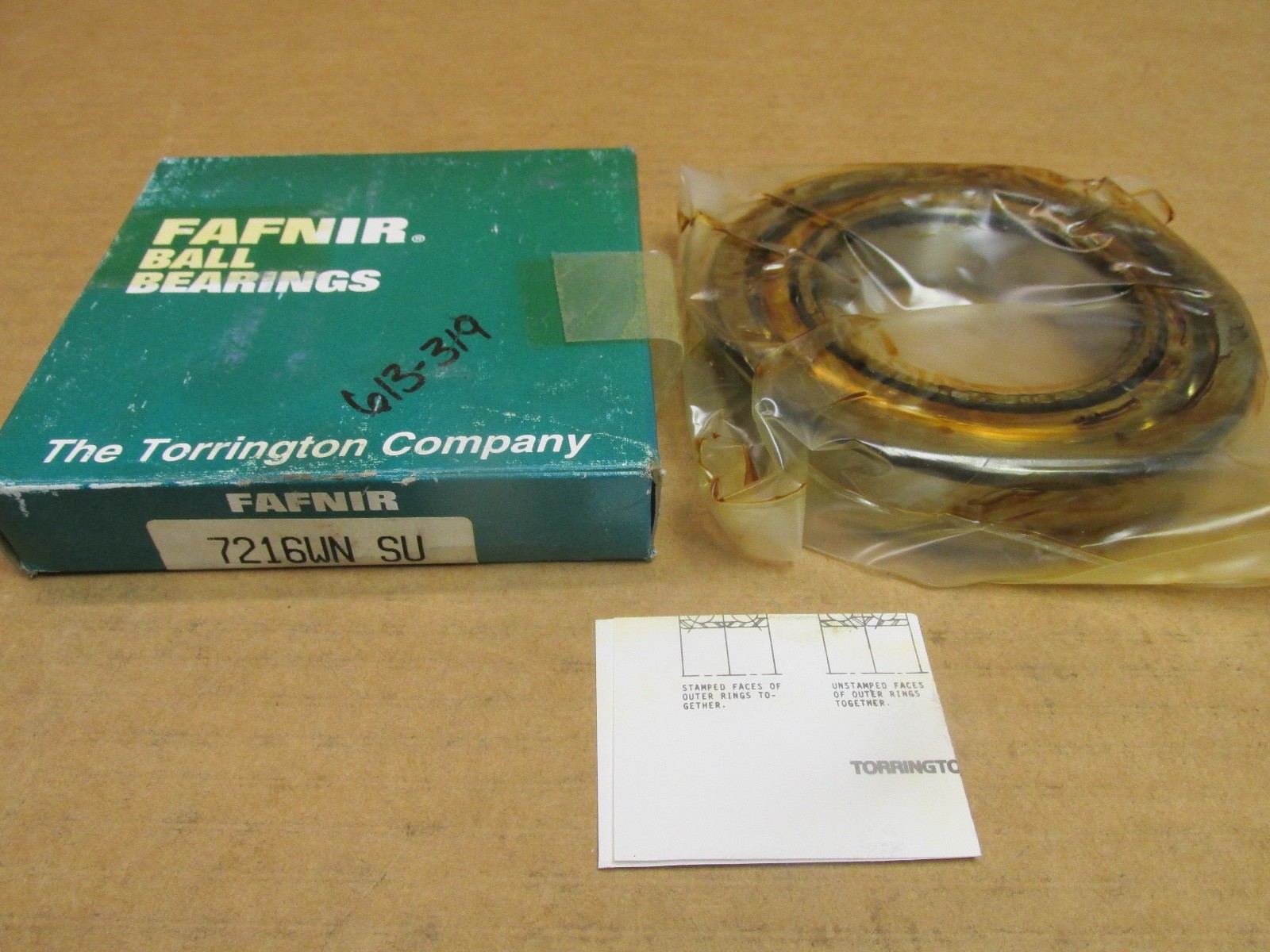

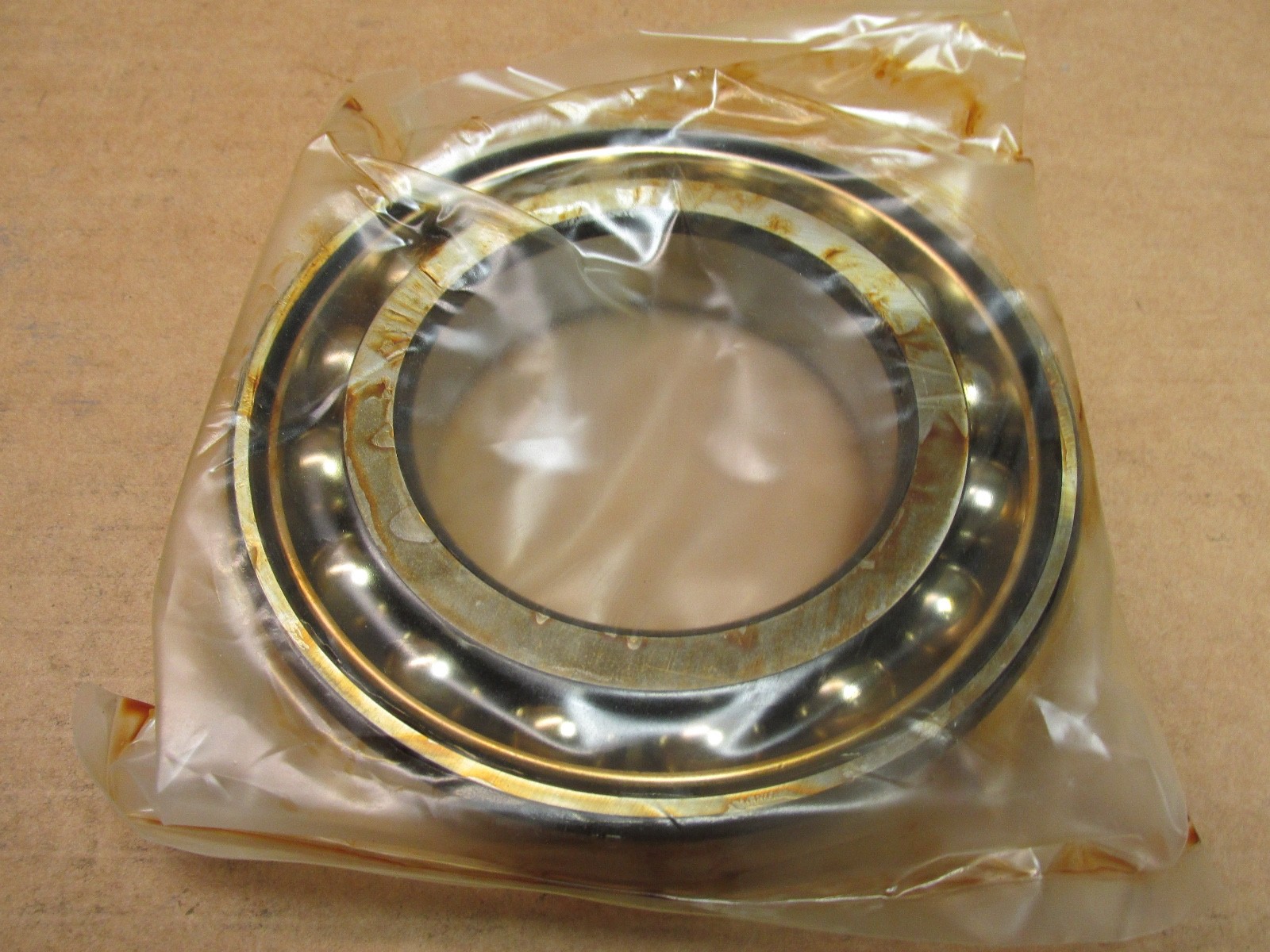

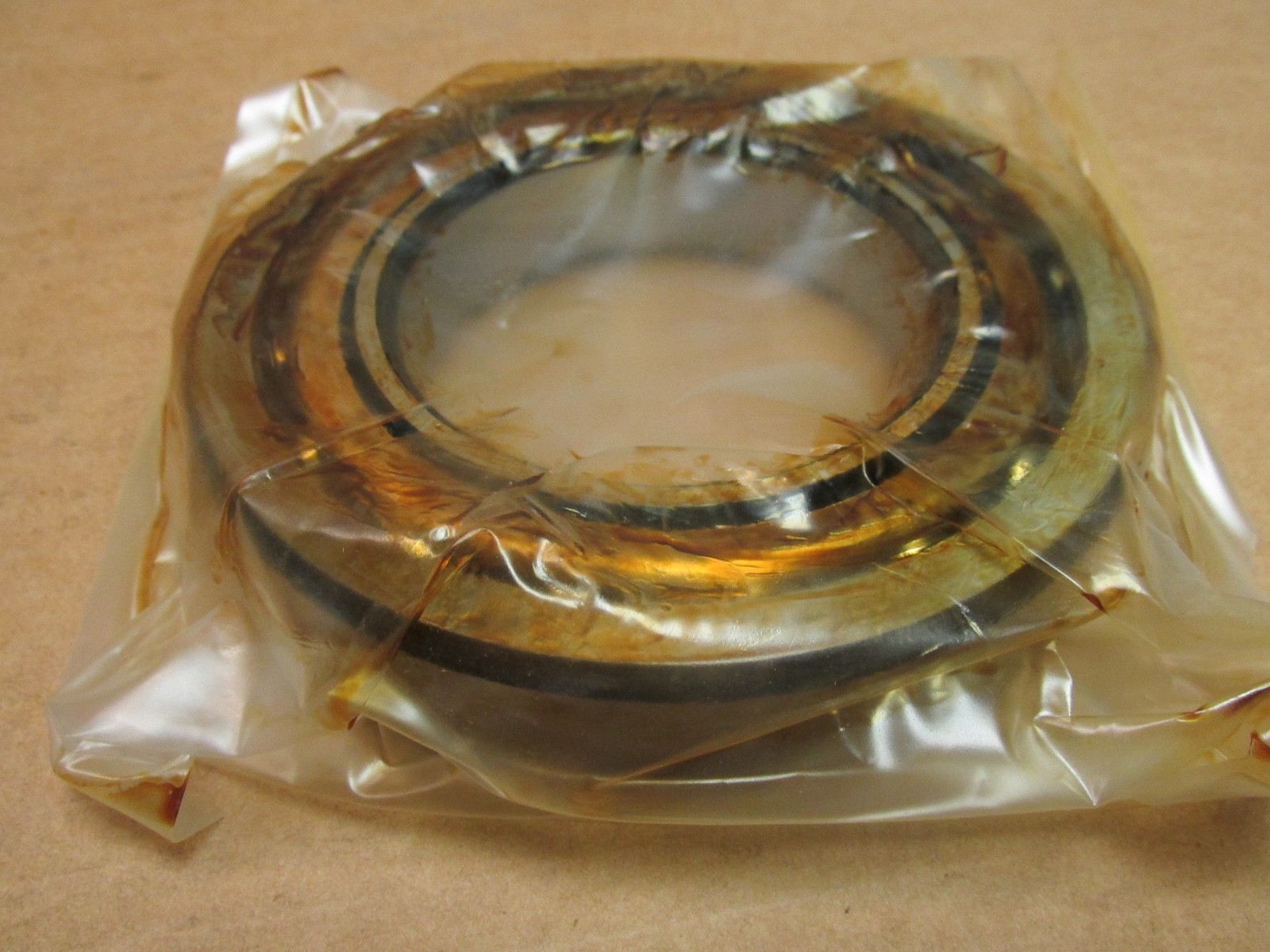

What this part is: Fafnir 7216WNSU single-row angular contact ball bearing, built by The Timken Company. Bore: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Contact Angle: 40°. Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Closure Type: Open. Cage Material: Brass. Cage Type: Machined. Precision Class: ABEC 3 / P6. Mounting Arrangement: Universal. Series: 72 medium section. Bearing Material: Bearing steel. Dynamic Load Rating: 90.7 kN / 20,400 lbf. Static Load Rating: 69.4 kN / 15,600 lbf. Limiting Speed: 3,640 rpm. Item Weight: 3.20 lbs. GTIN: 087796068391. Unit Quantity: 1 Pc. Decoding the designation: 7216: 80 mm bore, ISO 72 medium section, angular contact. WN: 40° contact angle in Fafnir’s lettering system. SU: a single bearing, universally ground, so any two will pair back-to-back, face-to-face or in tandem without shims. Searchable variants: 7216WNSU, 7216WN SU, 7216WN-SU, 7216 WN SU. What these specs mean in practice: A 40° contact angle is the steepest in the standard angular contact range: it carries the highest thrust load of any single-row execution on this envelope, and it trades speed for that capacity. Universal grinding means the faces are held to a common width so a second bearing of the same designation mounts against it and sets its own preload. ABEC 3 / P6 tolerances are the standard commercial range. Operating temperature range: -30 °C to 120 °C. Quantity and configuration: Unit Quantity: 1 Pc. One single bearing, universally ground, open on both faces. Fitting notes: Straight bore, so the inner ring seats on a cylindrical shaft journal. A 40° bearing takes thrust in one direction only, and the high shoulder sits on the side that carries it. Interchange guidance: Same envelope and same 40° angle: SKF 7216 BEP and MRC 7216DU. A 7216 in a 15° or 25° execution shares the envelope but not the thrust capacity, which makes it a related size rather than a substitute.
