Super-precision angular contact ball bearing, 80 x 125 x 22 mm, 25° contact angle, phenolic outer-land-riding cage, ABEC 7/9 for spindle service.
List Price
$145.32
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Spindle Angular Contact Ball Bearing 80 mm Bore, 15 Degree Contact Angle, ISO P4S - Outside Diameter and Width To Be Confirmed$145.32
Angular Contact Ball Bearing – 80 mm ID, 125 mm OD, 22 mm Width, 15° Contact Angle, Heavy Preload, Phenolic Cage, ABEC 7/9$221.84
Angular Contact Ball Bearing - 80 mm ID, 125 mm OD, 22 mm Width, Open, 15° Contact Angle, Phenolic Cage, Heavy Preload, ABEC 7/9 P4S$445.22
Super-Precision Angular Contact Ball Bearing, 80 x 125 x 22 mm, ABEC 7 / P4, Phenolic Cage, Universally Ground Duplex, Light Preload - 1 Pc (Half Pair)$76.47| MFR / Brand | Fafnir |
|---|---|
| Model | 3MM 9116 WI 7016A ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Chrome Steel |
|---|---|
| Series | 9100 |
| Total Width | 22 mm |
| Base Number | 3MM9116WI |
| Industry Terms | Spindle bearing, machine tool bearing, super precision angular contact, 7016, 3MM9116WI |
| Common Misspellings | Fafner, Faffnir, 3MM9116W1, 3MM 9116 WL, 7016 vs 71916, 9116 vs 9316 |
| Bore Shaft Size | 80 mm |
| Mpn Variants | 3MM9116WI, 3MM-9116-WI, 3MM 9116 WI, 3MM9116WICR, 7016E-T-P4S, 7016A, 7016A5, 7016ACD |
| Rolling Elements | Steel ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 3MM9116WI |

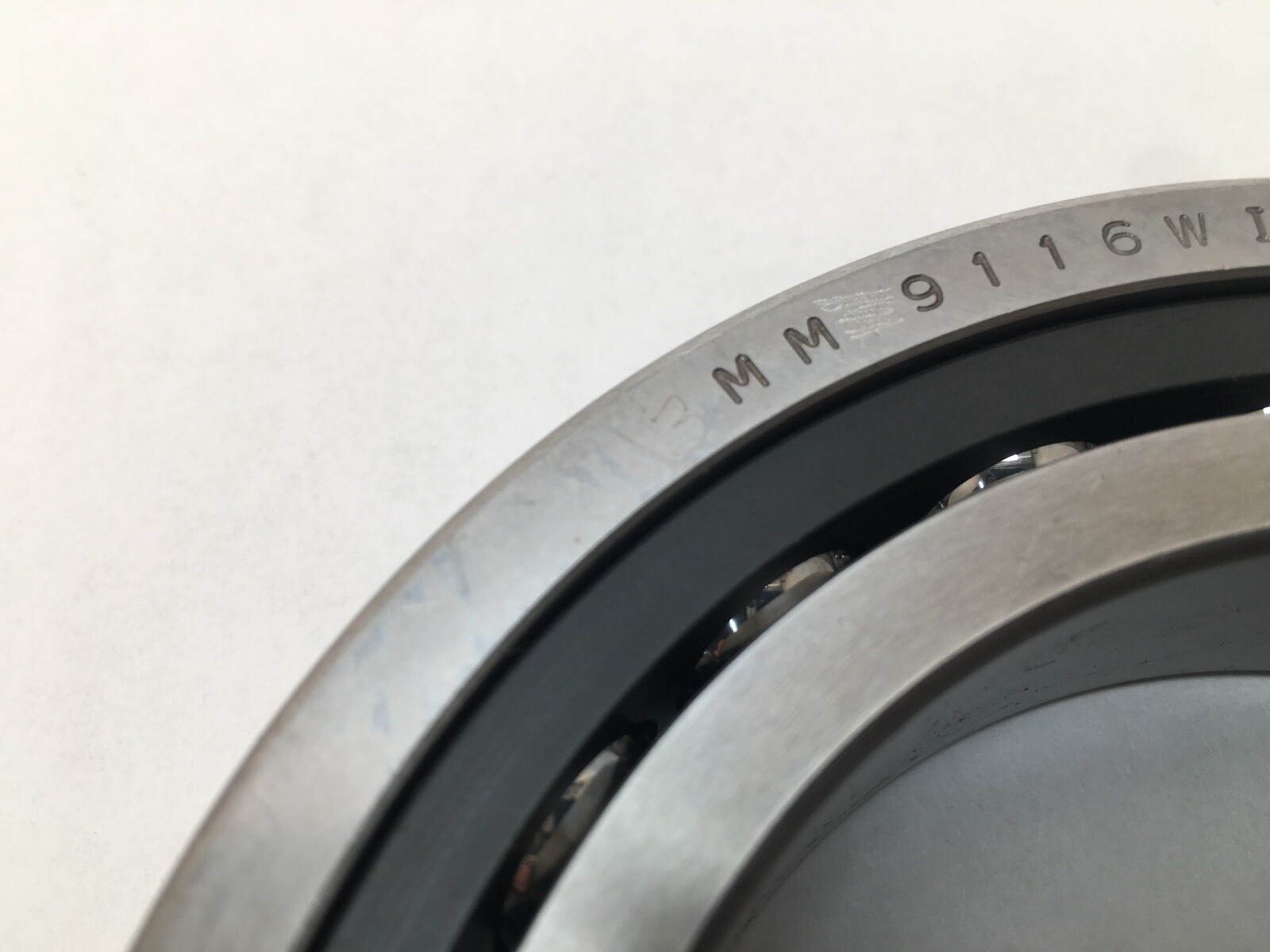

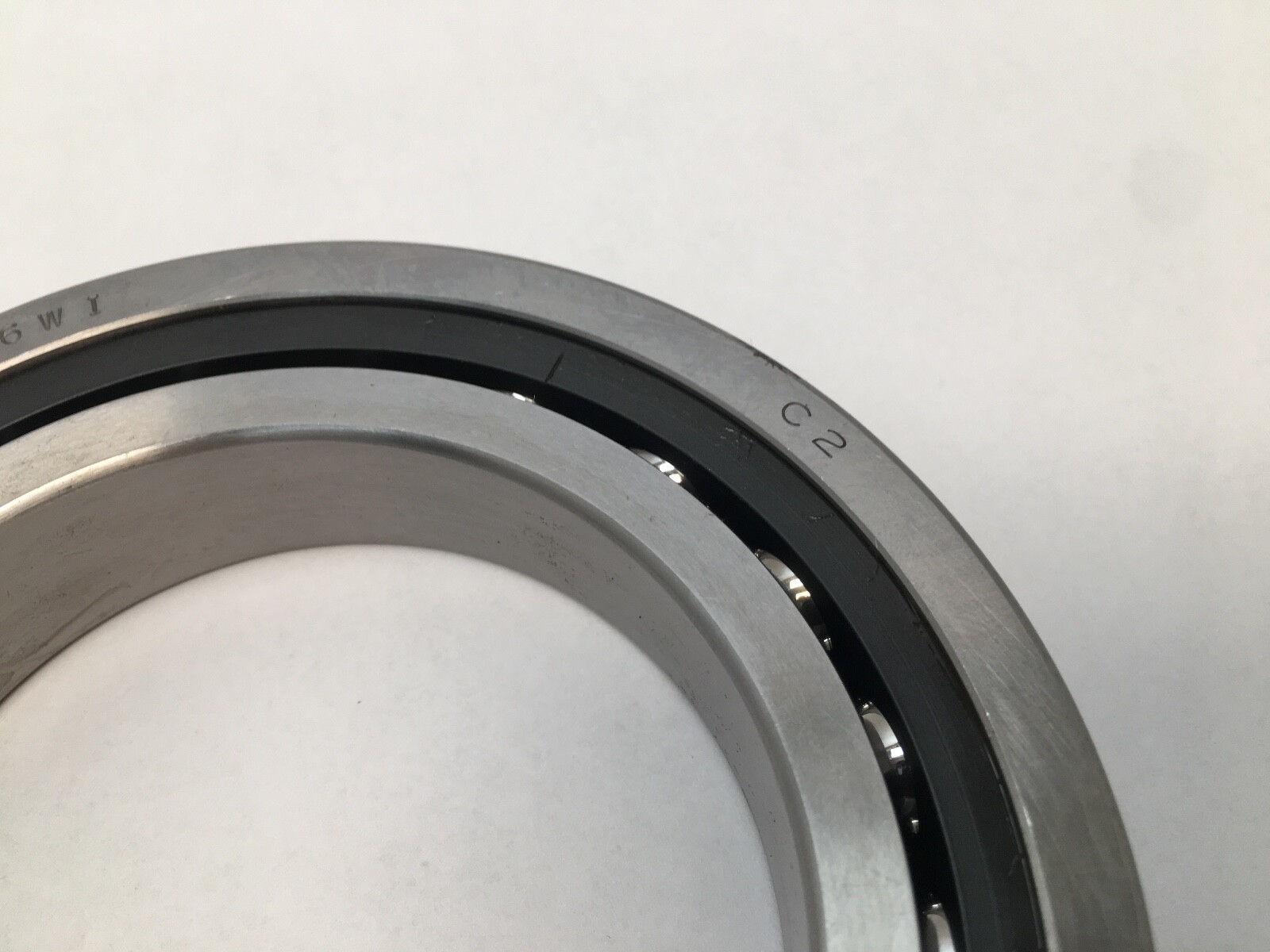

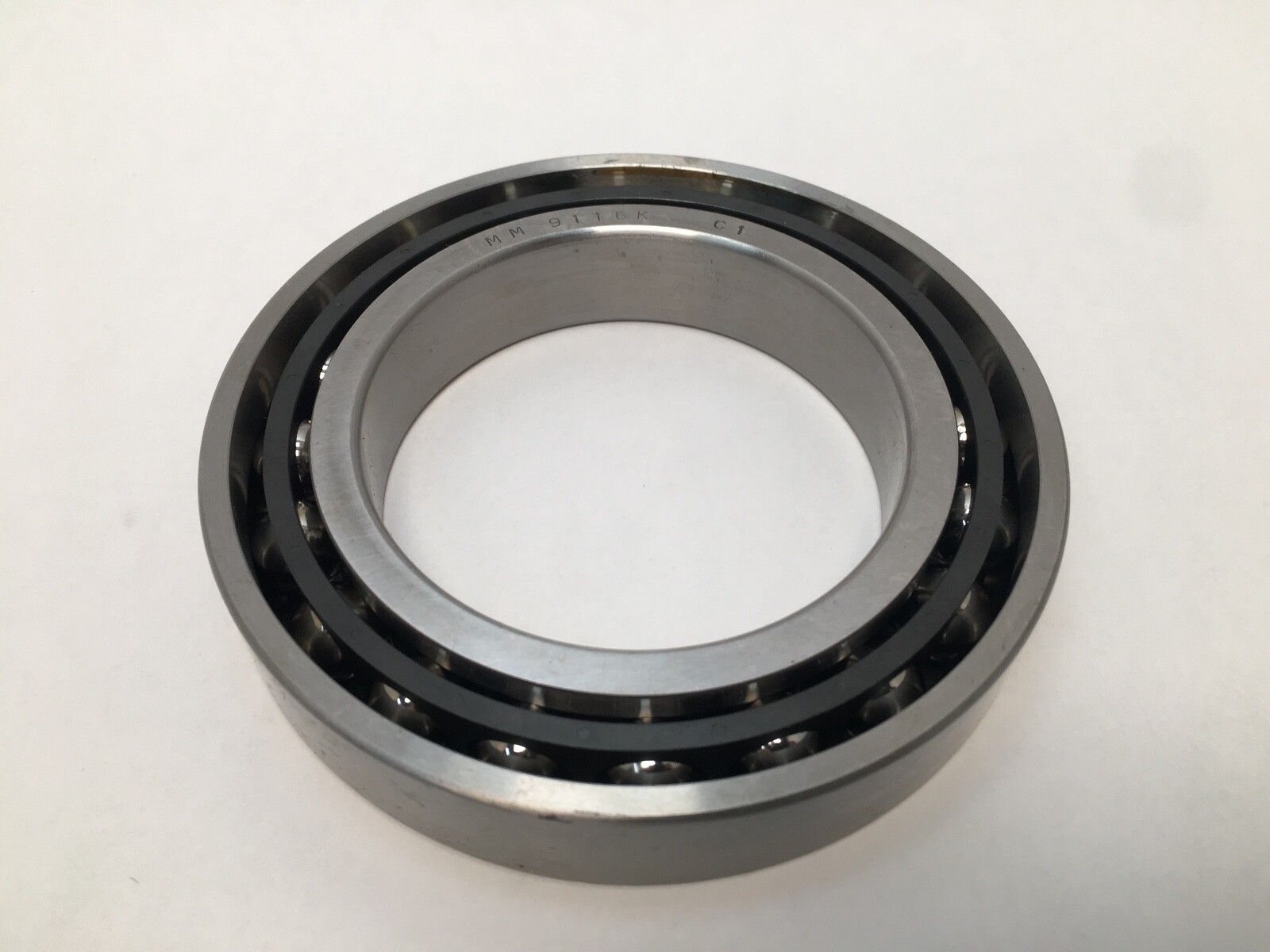

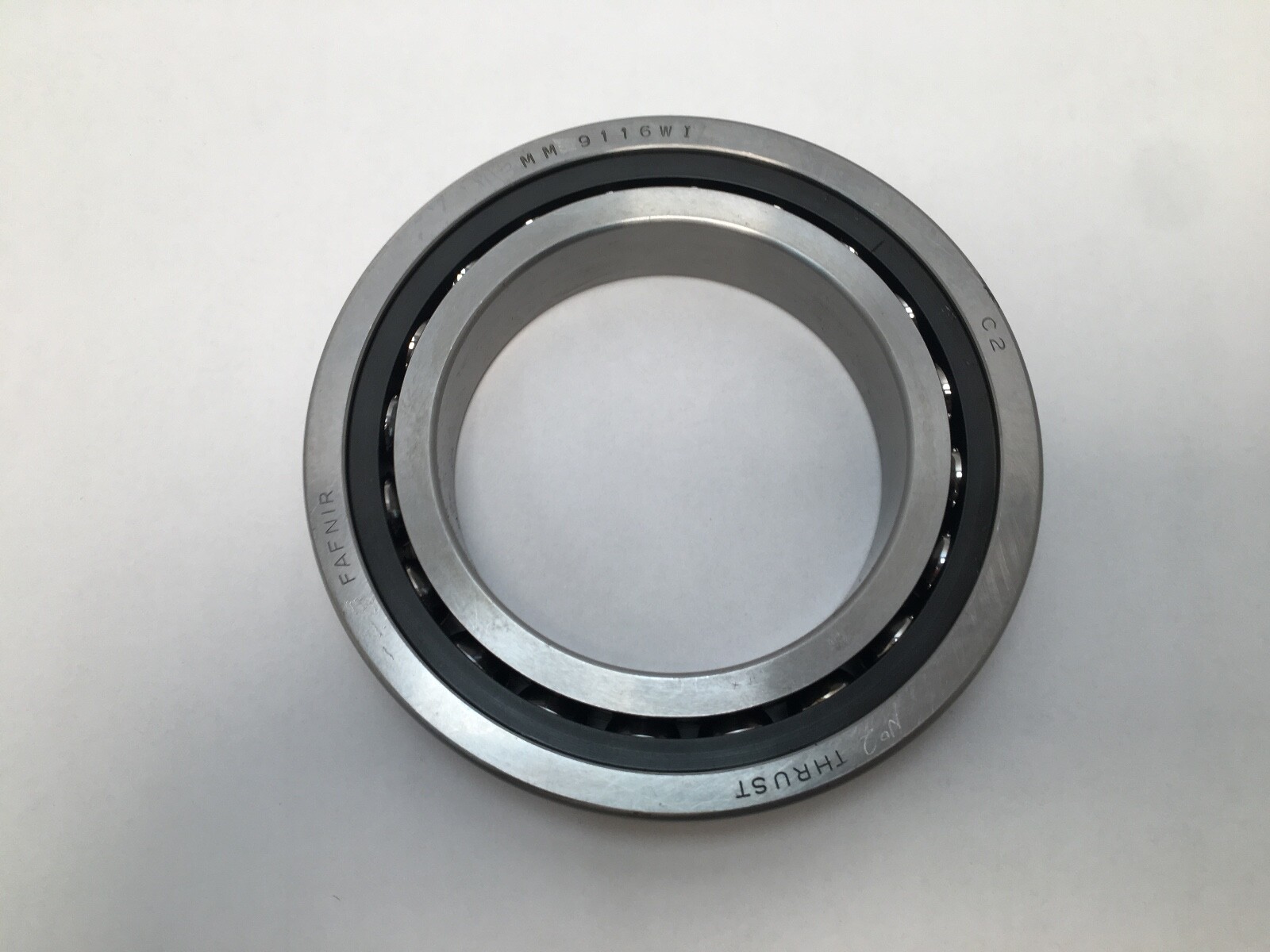

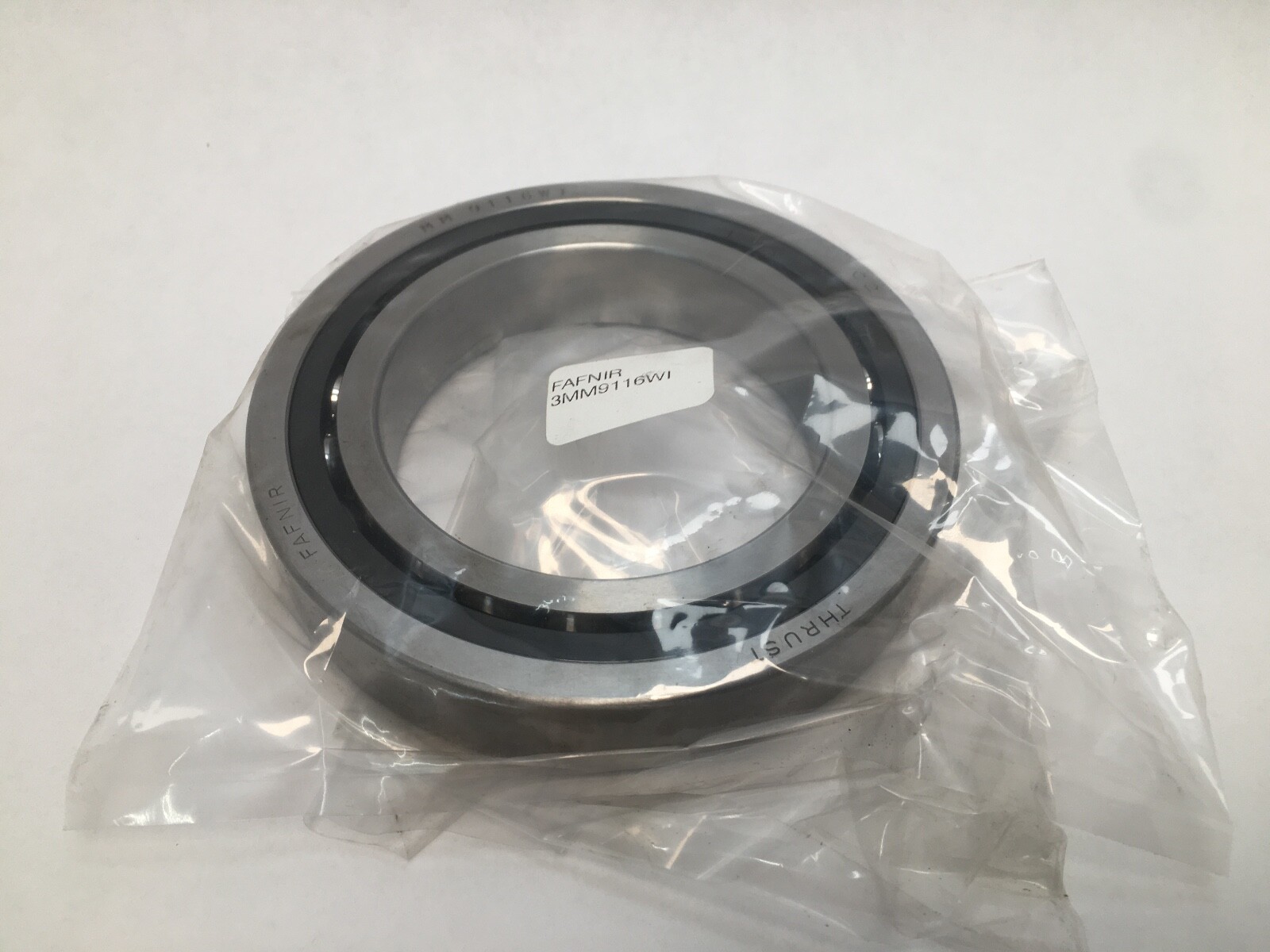

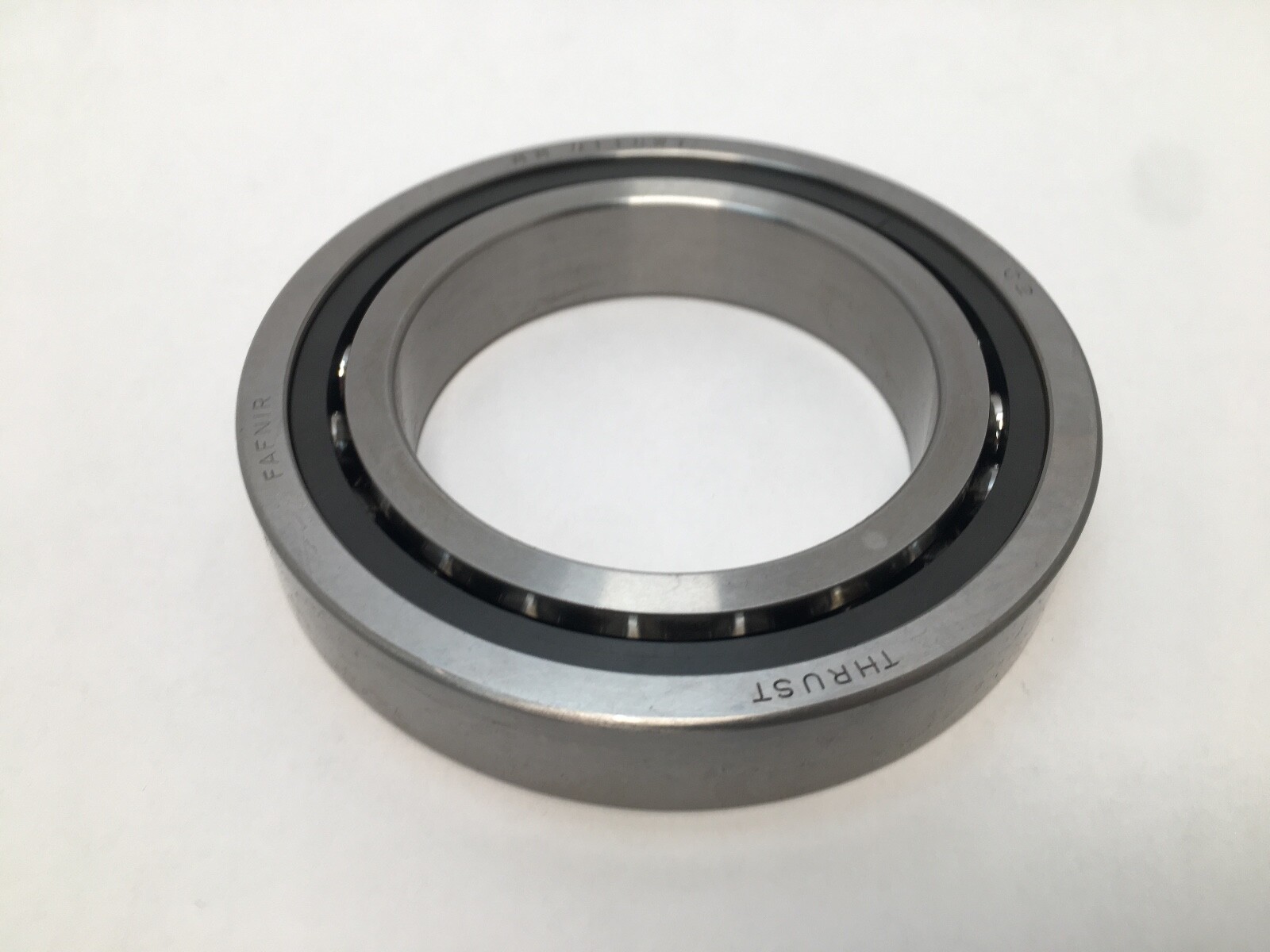

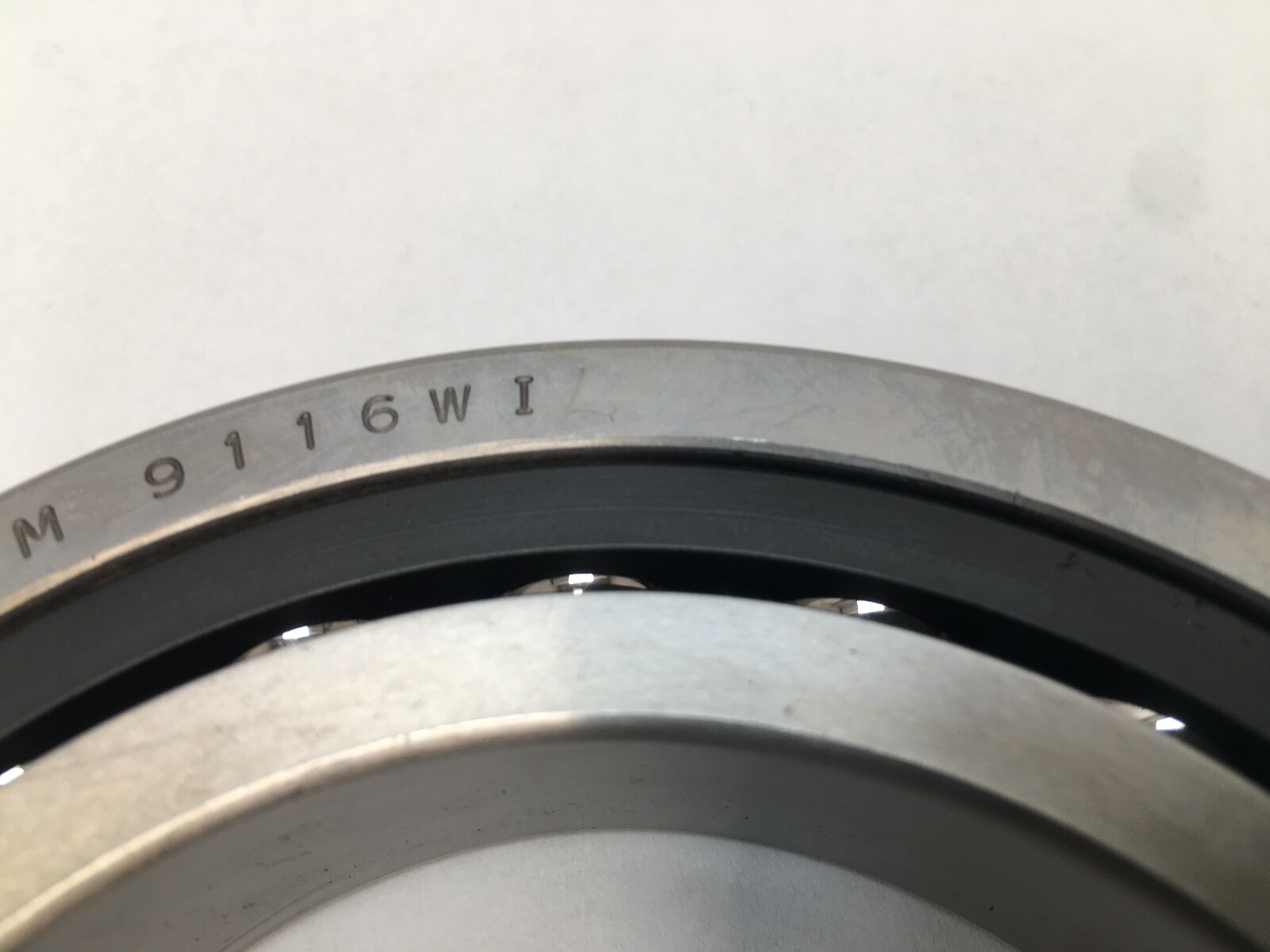

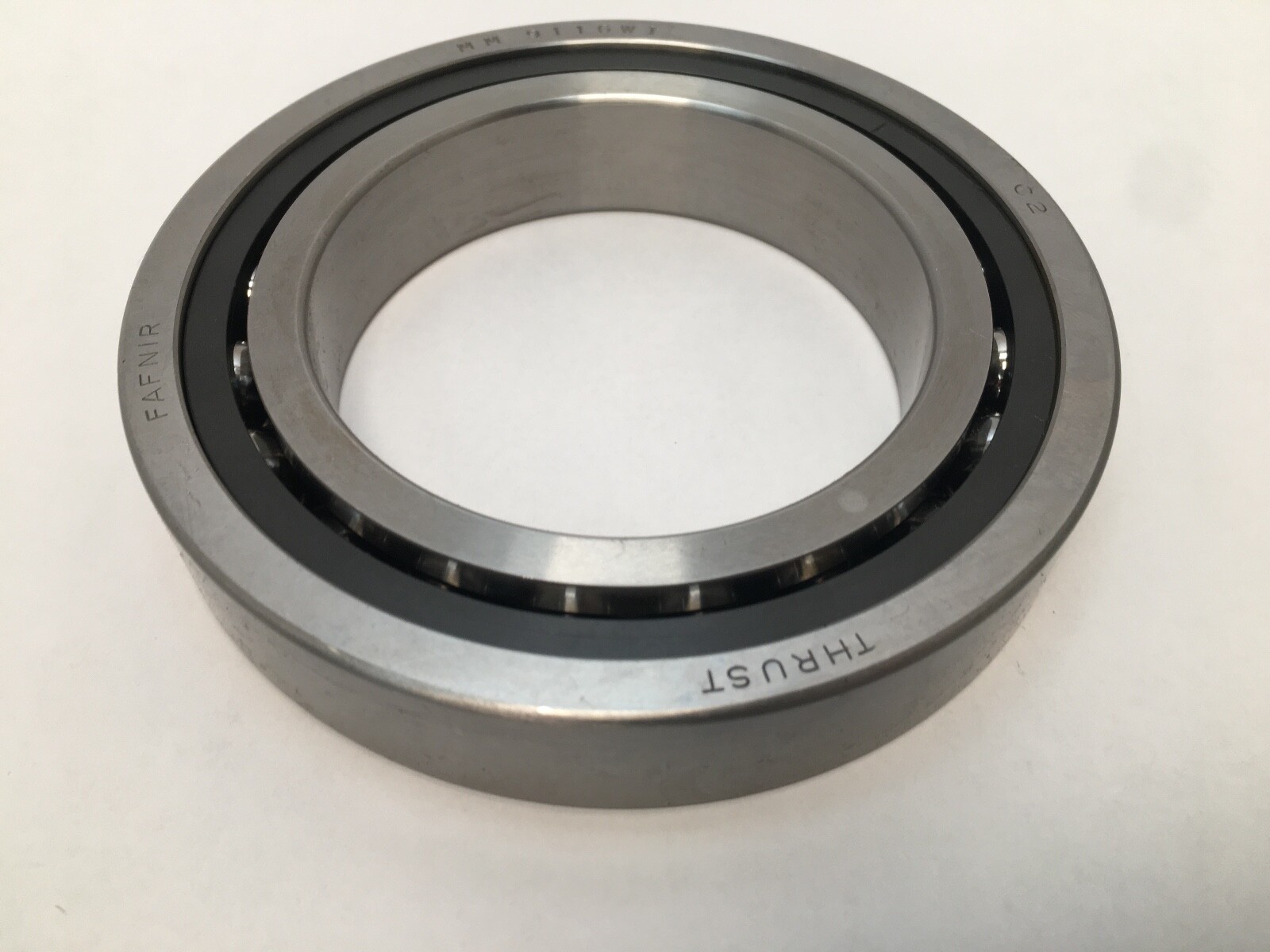

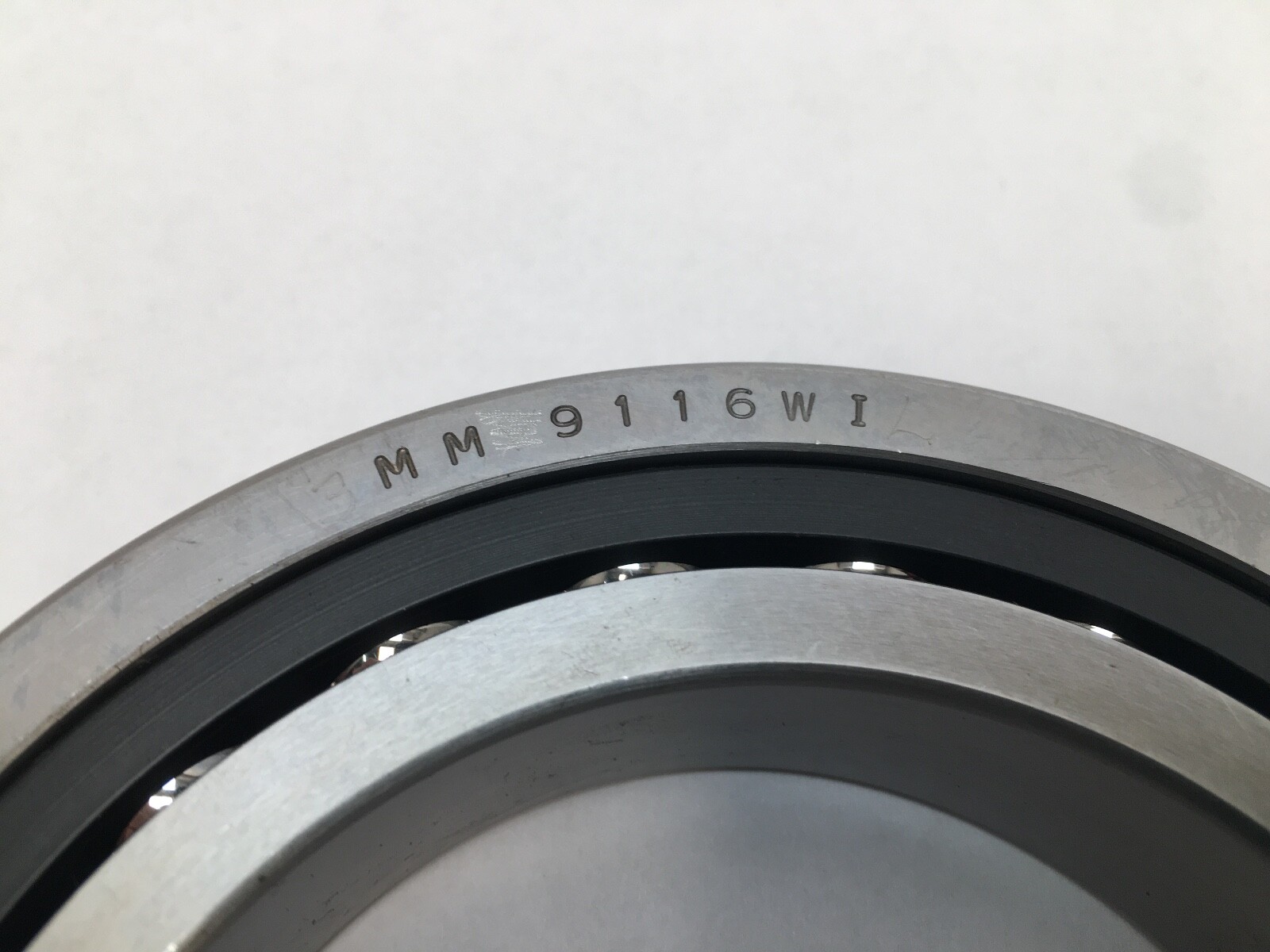

Fafnir 3MM9116WI super-precision angular contact ball bearing, 9100 series. Brand: Fafnir (Timken). Part Number: 3MM9116WI. Bore: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Total Width: 22 mm. Design Units: Metric. Number Of Rows: 1. Rolling Elements: Steel ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome bearing steel. Item Weight: 3.90 lbs.
Contact Angle: 25°. Precision Class: P4S. Precision Rating: ABEC 7/9. Cage Material: Phenolic. Cage Type: CR – phenolic outer land riding. Series: 9100, Fafnir’s designation for the ISO 70xx series — a 9116 carries the 7016 envelope. Timken World Part Number: 7016E-T-P4S.
Dynamic Radial Load Rating (C1), per bearing: 61,400 N (13,800 lbf). Dynamic Radial Load Rating (C1 ISO, per row): 56,000 N (12,500 lbf). Static Radial Load Rating (C0), per bearing: 52,500 N (11,800 lbf). Limiting Speed, grease: 10,200 rpm. Limiting Speed, oil: 18,600 rpm.
A 25° contact angle carries more thrust load and holds the shaft more stiffly along its axis than a 15° bearing on the same envelope. The 70-series section fits an 80 mm shaft inside a 125 mm housing bore. The phenolic cage rides on the outer ring land, staying centred at speed and holding lubricant against the ball pockets. Oil feed lifts the speed ceiling from 10,200 to 18,600 rpm.
Shaft Backing Shoulder Diameter: 88.5 mm (3.490 in). Housing Backing Shoulder Diameter: 116.5 mm (4.590 in). Maximum Shaft Fillet Radius: 1 mm (0.039 in). Outer Ring “To Clear” Radius: 1 mm (0.039 in).
Unit Quantity: 1 Pc. Mounting Arrangement: Universal.
Cross-References: SKF 7016 ACD/P4A, FAG B7016-E-T-P4S, NSK 7016A5, Timken 7016E. Each shares the 80 x 125 x 22 mm envelope and the 25° contact angle. Harmonization Code: 8482.10.50.
MPN Variants: 3MM9116WI, 3MM-9116-WI, 3MM 9116 WI, 3MM9116WICR, 7016E-T-P4S, 7016A, 7016A5, 7016ACD.
