This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing – 30 mm Bore, 72 mm OD, 19 mm Width, 40° Contact Angle, Open$52.96
Angular Contact Ball Bearing - 30 mm ID, 72 mm OD, 19 mm Width, 40° Contact Angle, Polyamide Cage$30.74
Angular Contact Ball Bearing - 30 mm ID, 72 mm OD, 19 mm Width, 15° Contact Angle, Polyamide Cage$33.99
Angular Contact Ball Bearing 30x72x19 mm, Single Row, 29° Contact Angle, Machined Bronze Cage, 7306 Envelope$36.52| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MM306WICR |
| Model | 3 MM 306 WI CR / 7306E 7306A 7306A5 7306ACD T P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 72 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 37.8 kN |
| Static Load Rating | 19.1 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120°C |
| Item Weight | 0.75 lbs |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Contact Angle | 25° |
| Mounting Arrangement | Universal |
| Running Accuracy | P4 |
| Running Accuracy Radial And Axial Runout | P4 |
| Limiting Speed | 19900 rpm |

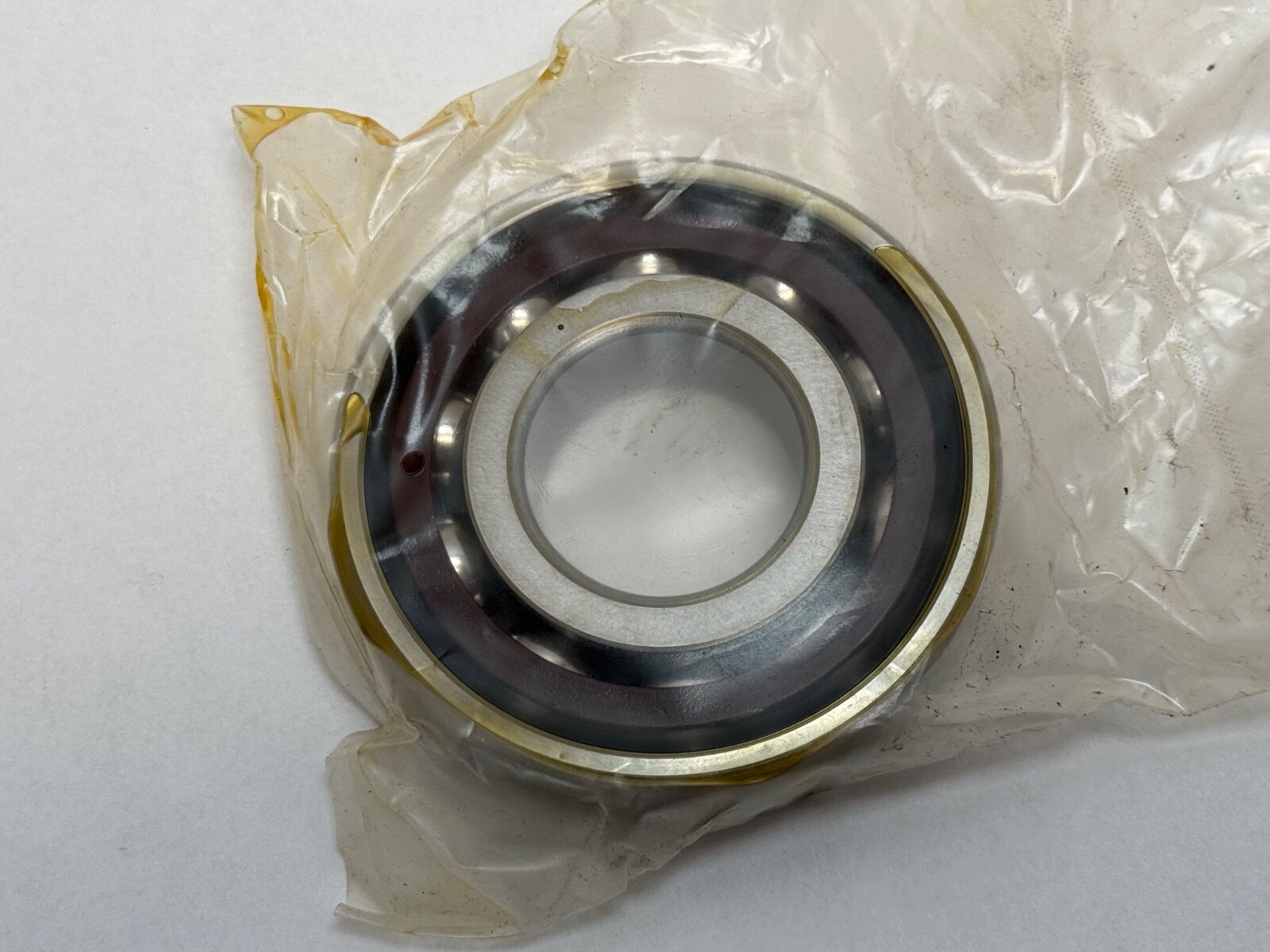

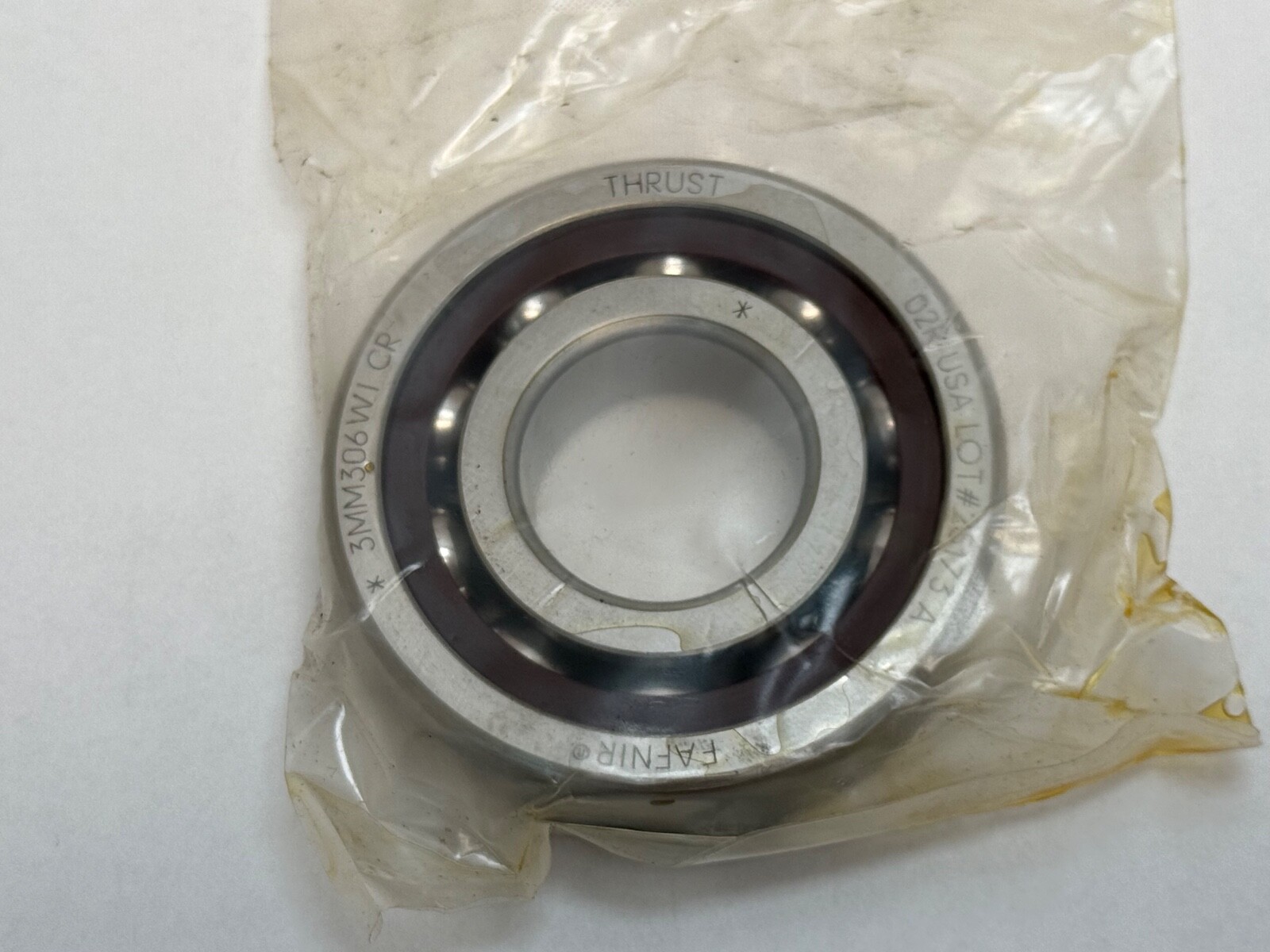

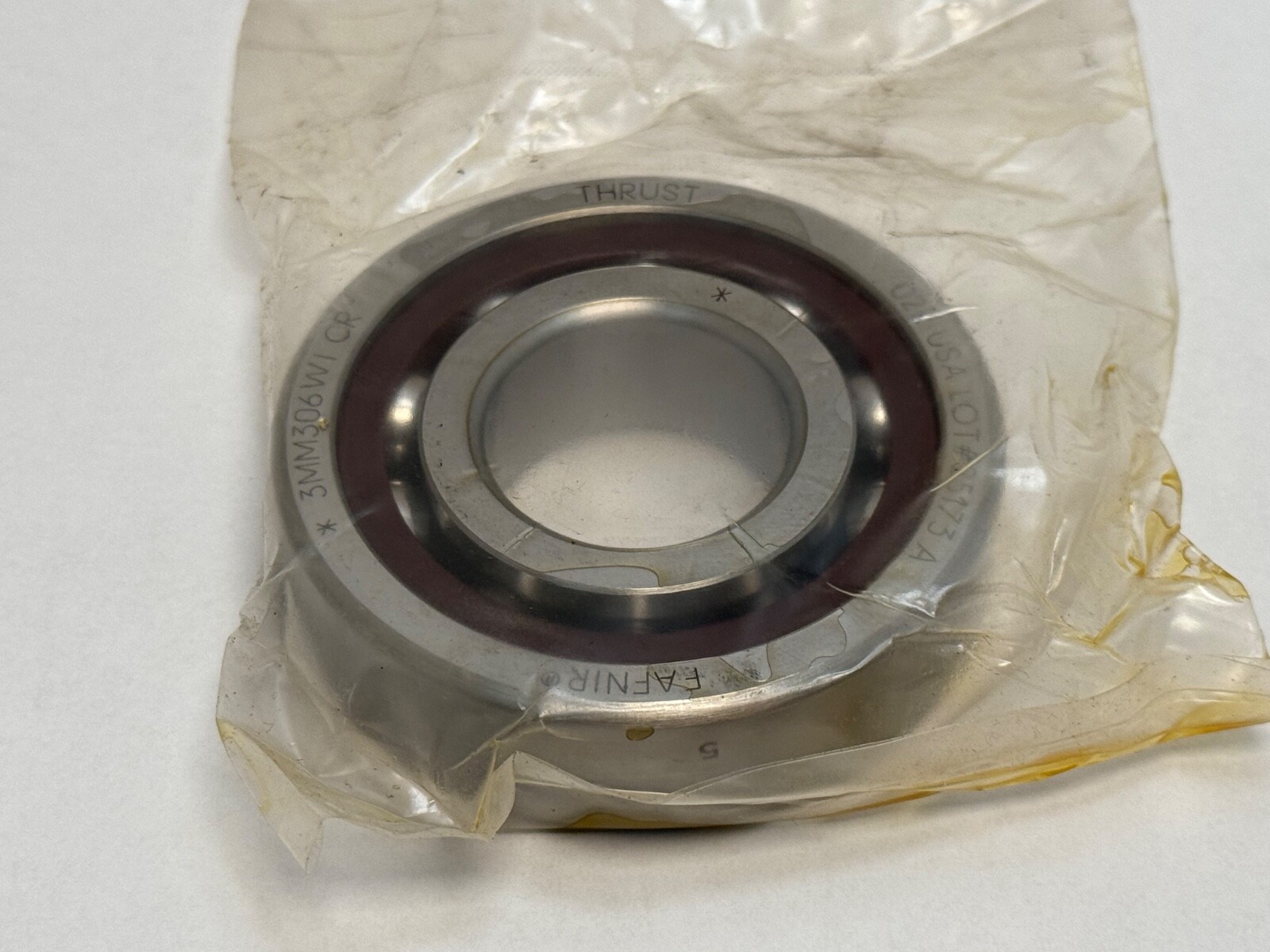

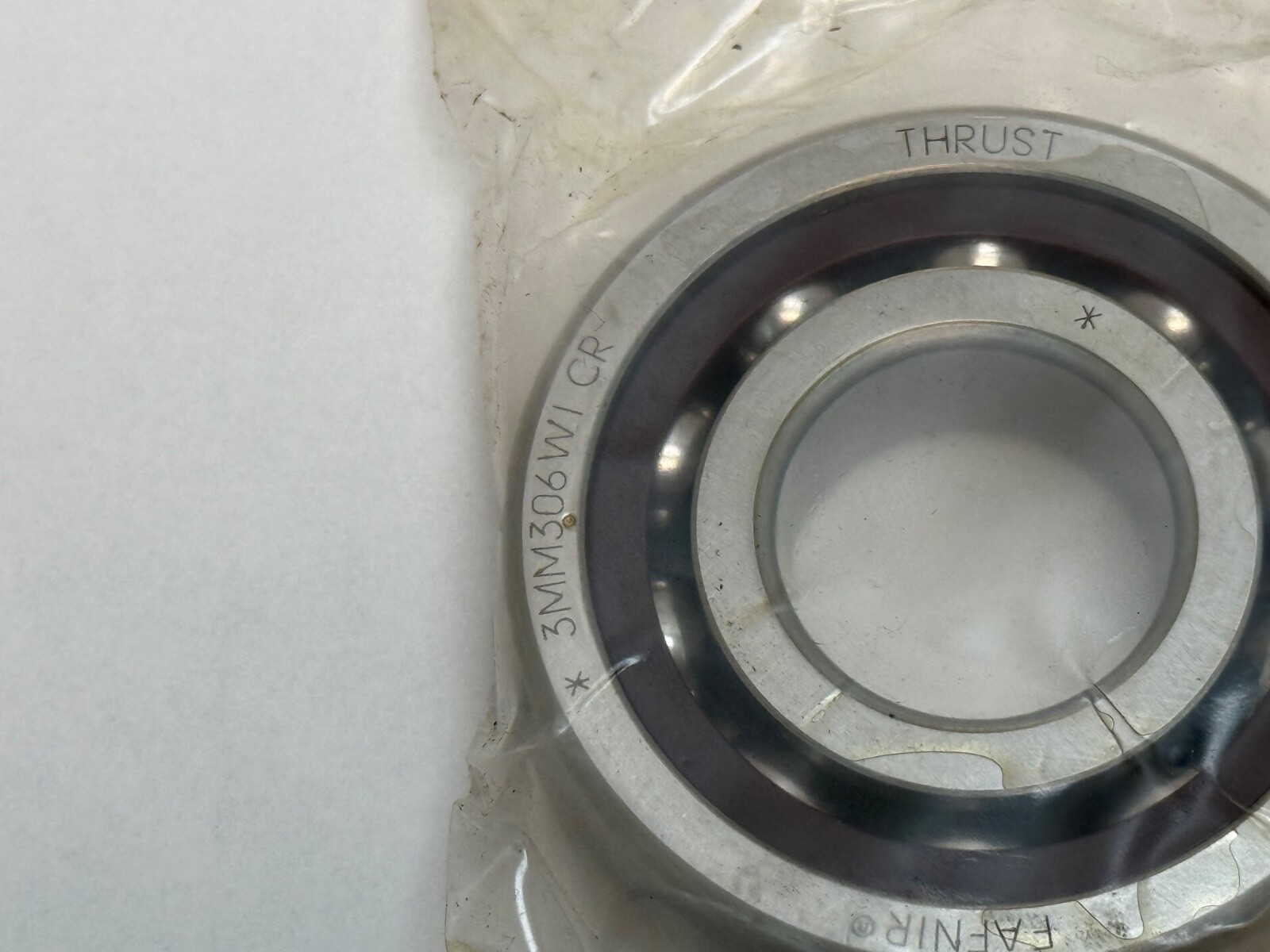

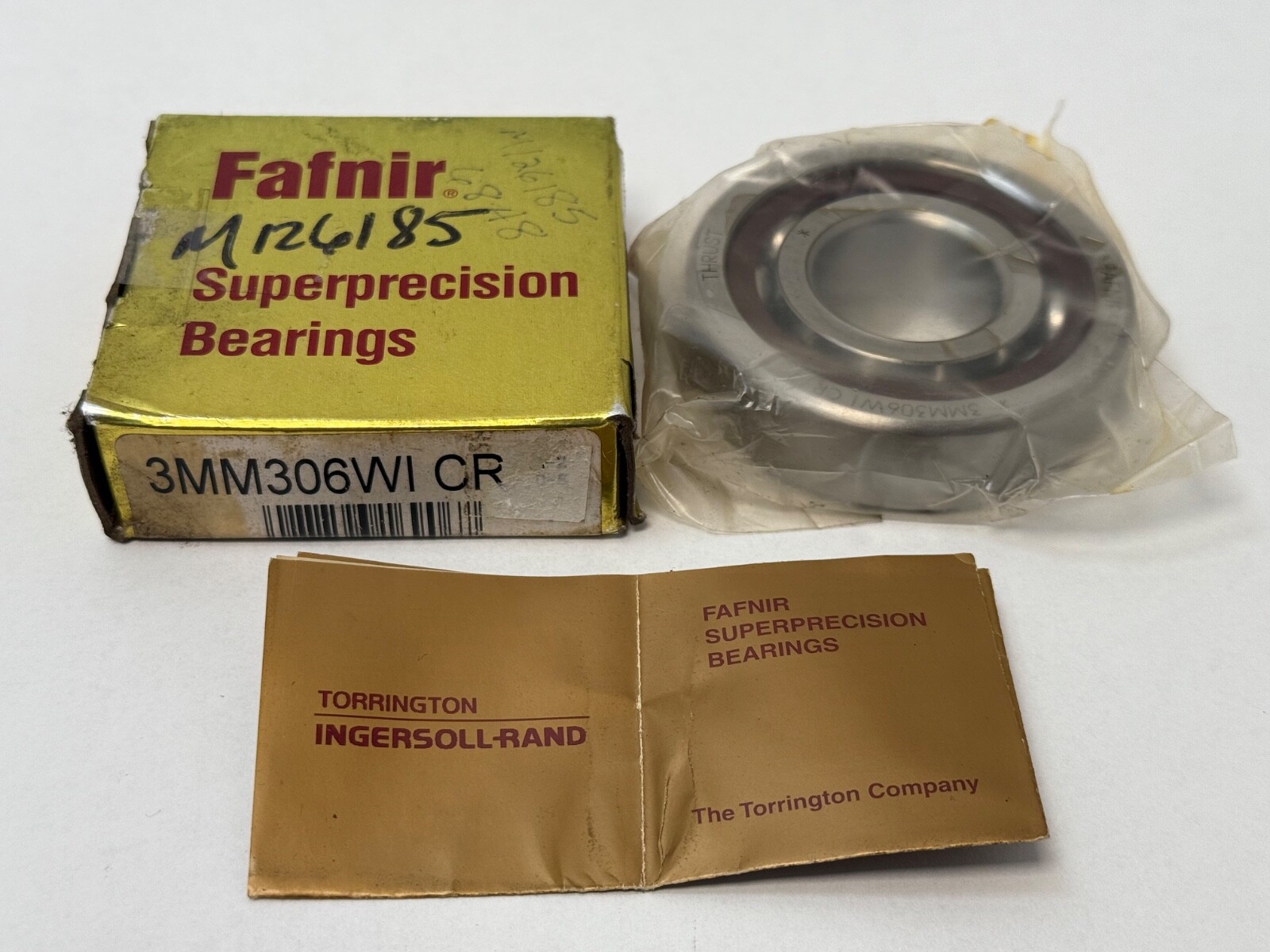

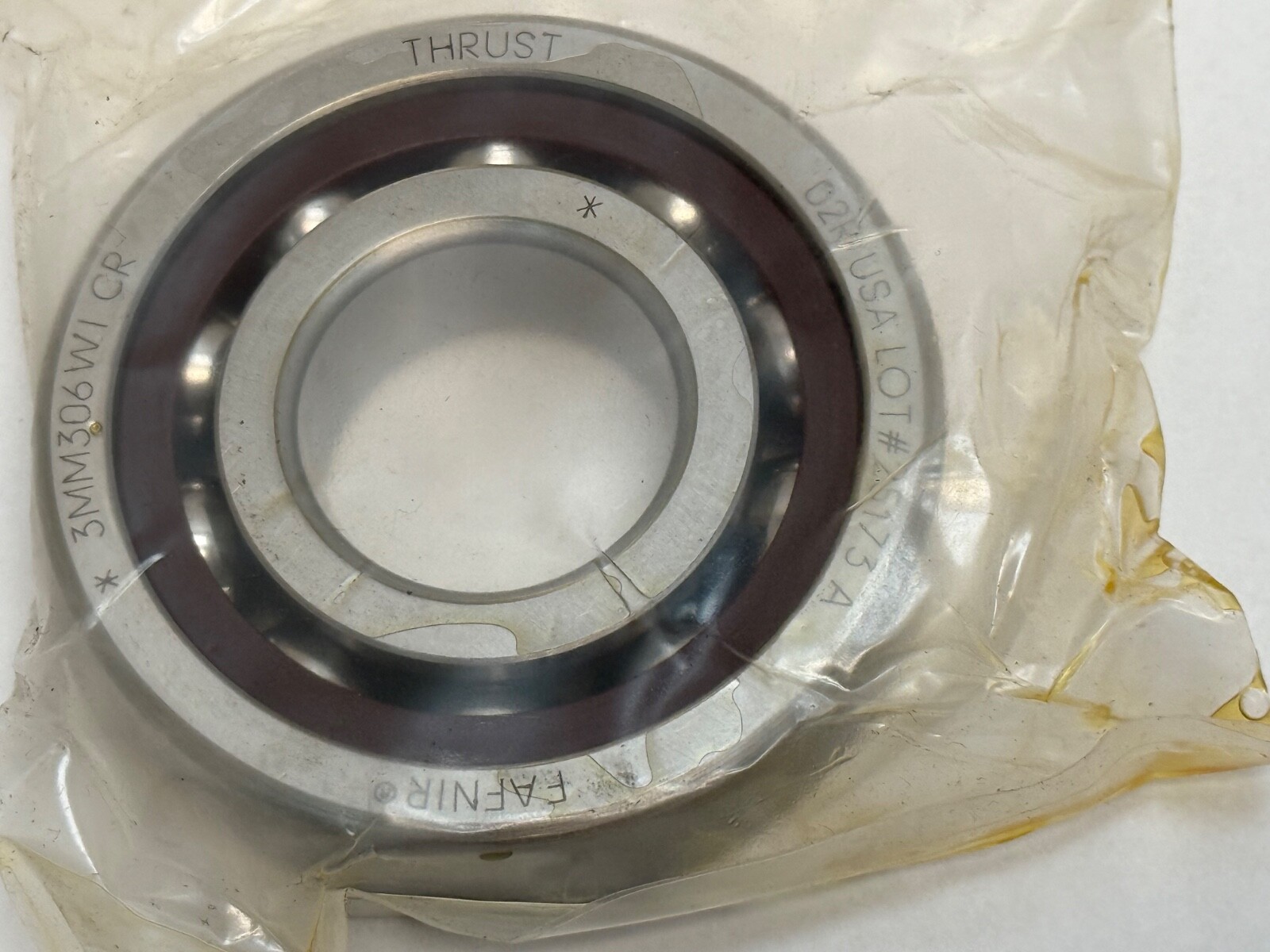

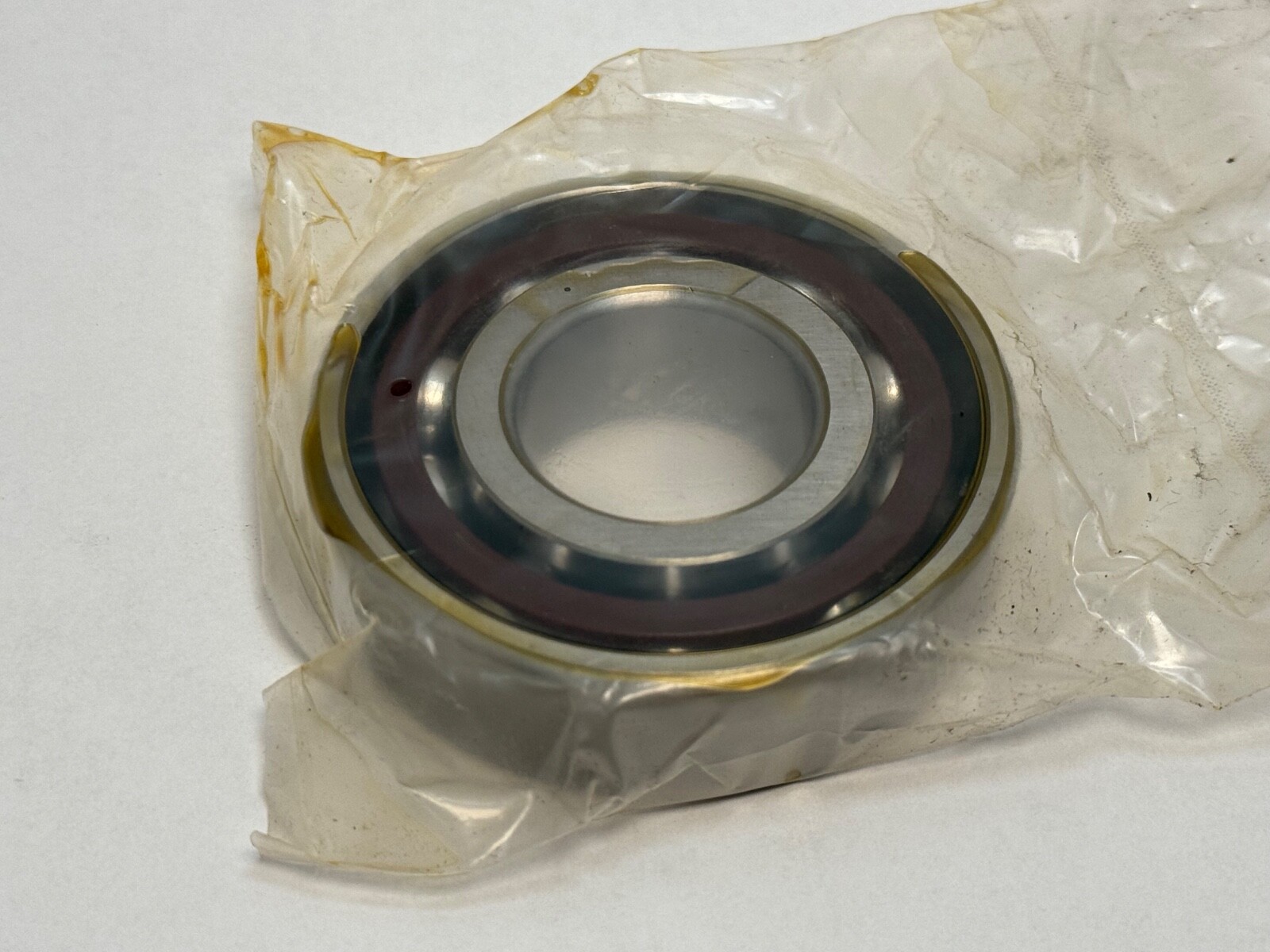

Fafnir 3MM306WI Angular Bearing – Precision Engineering at Its Best! Introducing the Fafnir 3MM306WI Angular Bearing, an exceptional solution tailored to meet your industrial demands. This high-performance bearing boasts a bore diameter of 30 mm, an outside diameter of 72 mm, and a width of 19 mm, ensuring seamless operations across various applications. The 3MM306WI model, also known as 7306, stands as a benchmark for precision and durability. Crafted by the prestigious brand FAFNIR in the United States, this angular contact ball bearing delivers remarkable load capacity and efficiency, making it the ideal choice for both professionals and DIY enthusiasts. Its advanced design minimizes friction, significantly enhancing performance and extending the bearing’s life span. Key Features: Brand: FAFNIR Type: Angular Contact Ball Bearing Model Numbers: 3 MM 306 WI CR / 7306E 7306A 7306A5 7306ACD T P4 Condition: New – Open box We are committed to offering competitive prices and providing international shipping on all orders. Enjoy combined shipping options across multiple purchases for the best value. We also ensure same-day shipping on all items, with next-day delivery options available at checkout. Upgrade your equipment with the Fafnir 3MM306WI Angular Bearing today and experience unparalleled performance!
$231.30
29 in stock
$152.21
35 in stock
