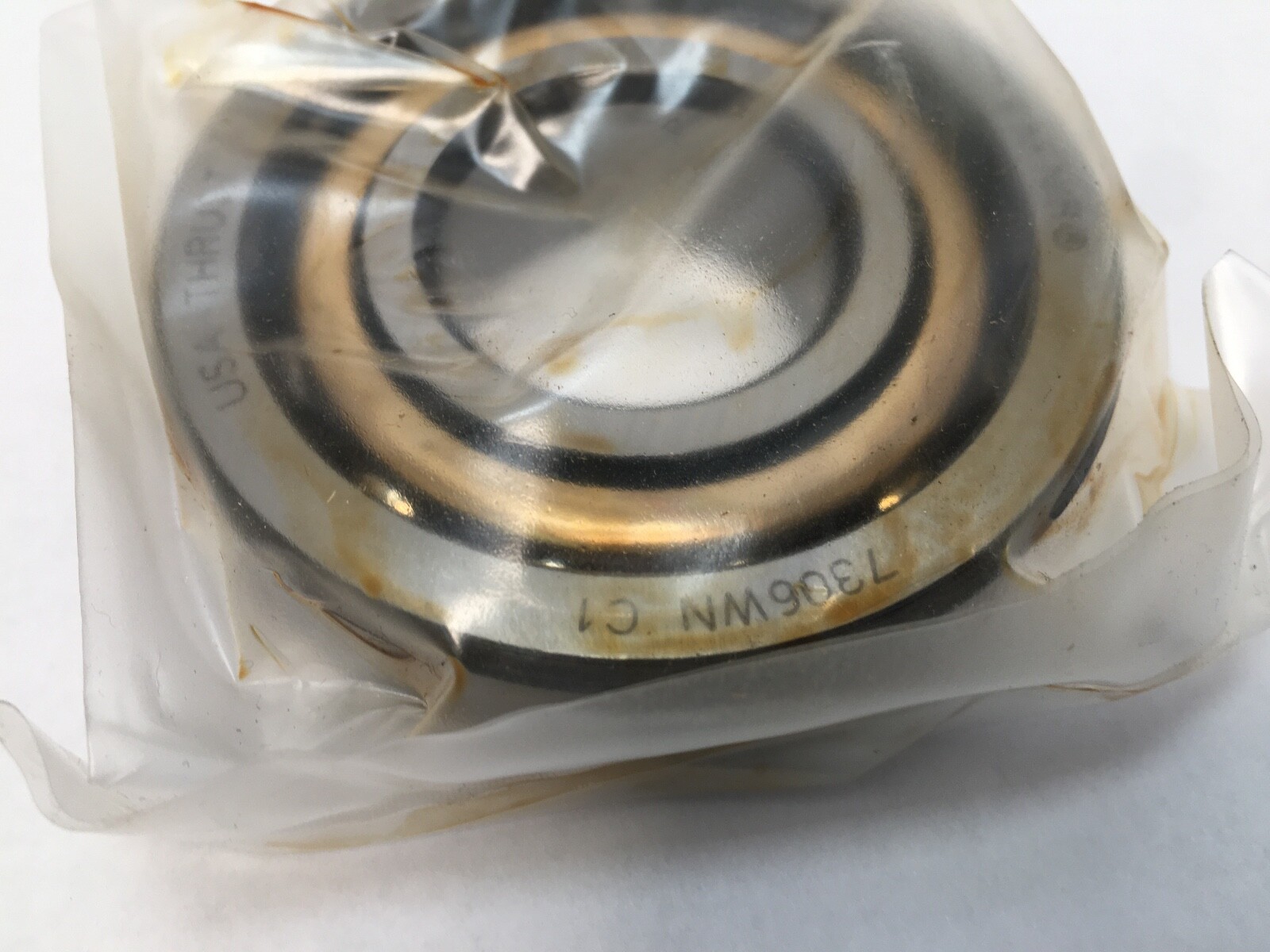

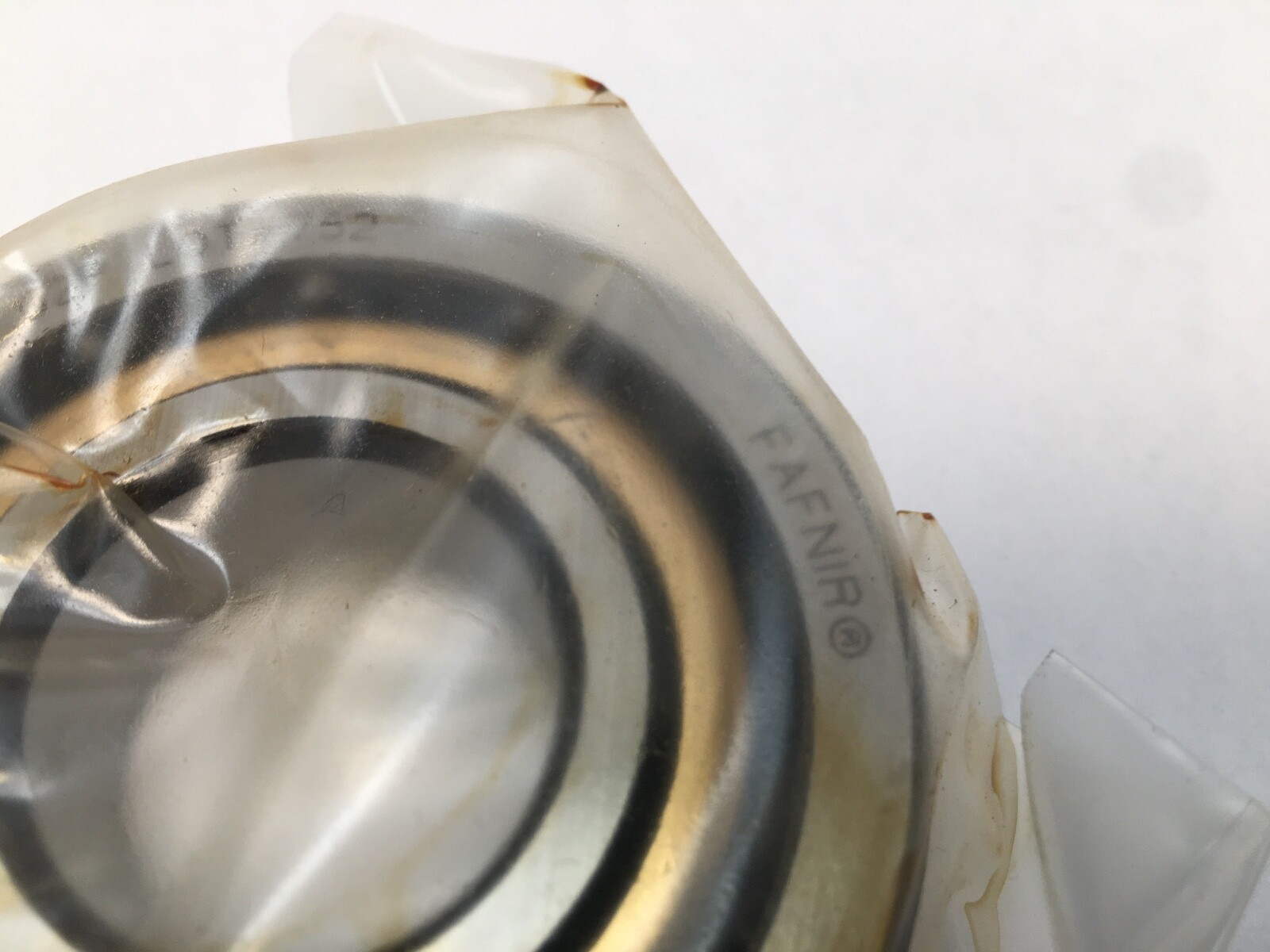

Single-row angular contact ball bearing, 30 x 72 x 19 mm, 40° contact angle, open, straight bore, ISO 7306 B envelope.
List Price
$52.96
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 7306WN |
| GTIN | 087796046832 |
| Model | 7306-WN |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 72 mm |
| Width | 19 mm |
| Series | 7300 |
|---|---|
| Condition | New |
| Material | Bearing Steel |
| Base Number | 7306W |
| Overall Width | 19 mm |
| Mpn Variants | 7306WN; 7306 WN; 7306-WN; 7306W |
| Precision Class | Not specified |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Cross Reference 1 | SKF 7306 BEP |
|---|---|
| Cross Reference 2 | FAG 7306-B-XL-TVP |
| Cross Reference 3 | NSK 7306B |
| Cross Reference 4 | NTN 7306B |
| Cross Reference 5 | Koyo 7306B |
| Cross Reference 6 | Nachi 7306B |
| Cross Reference 7 | 7306 C (related size, 15° contact angle) |

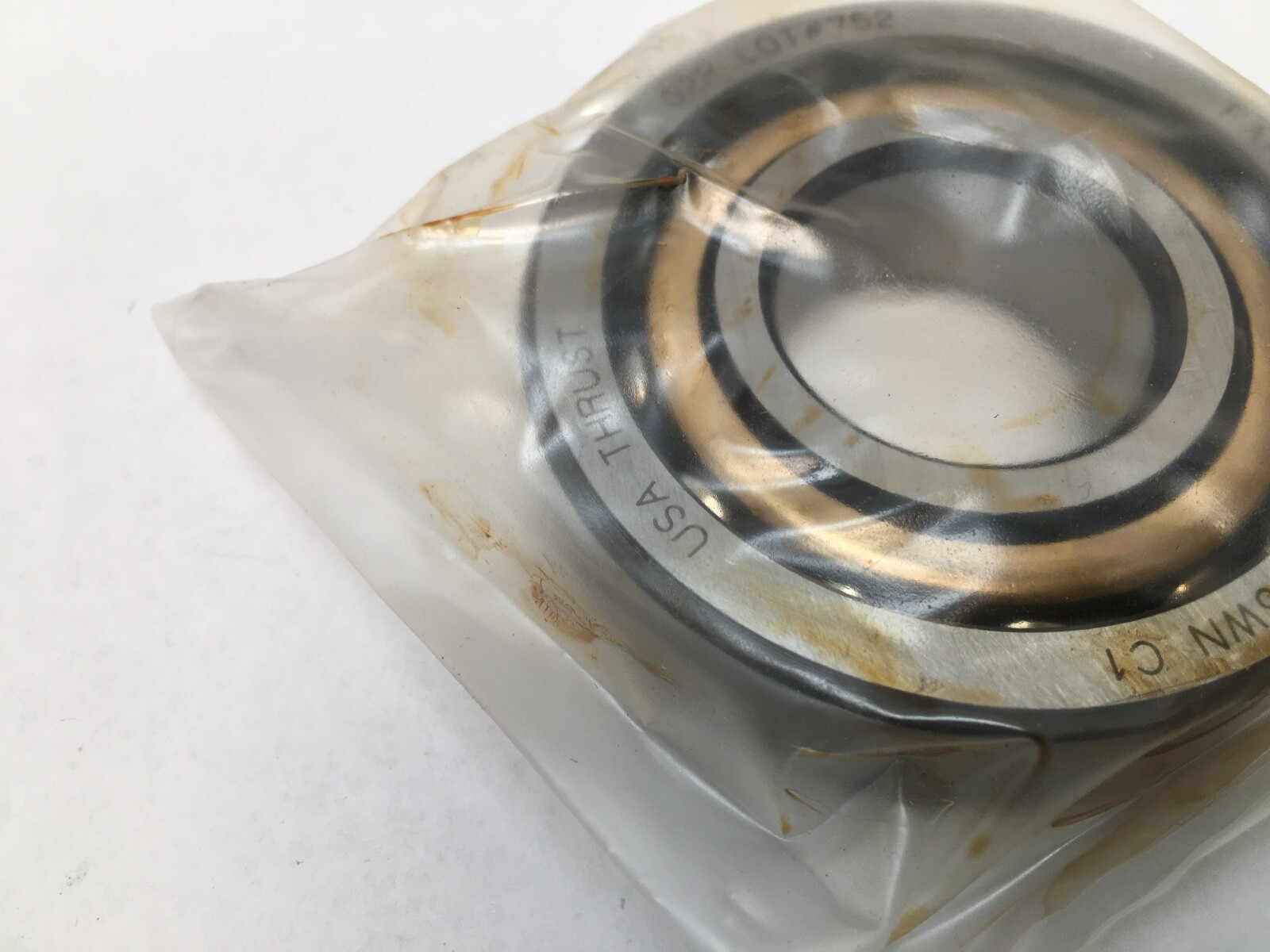

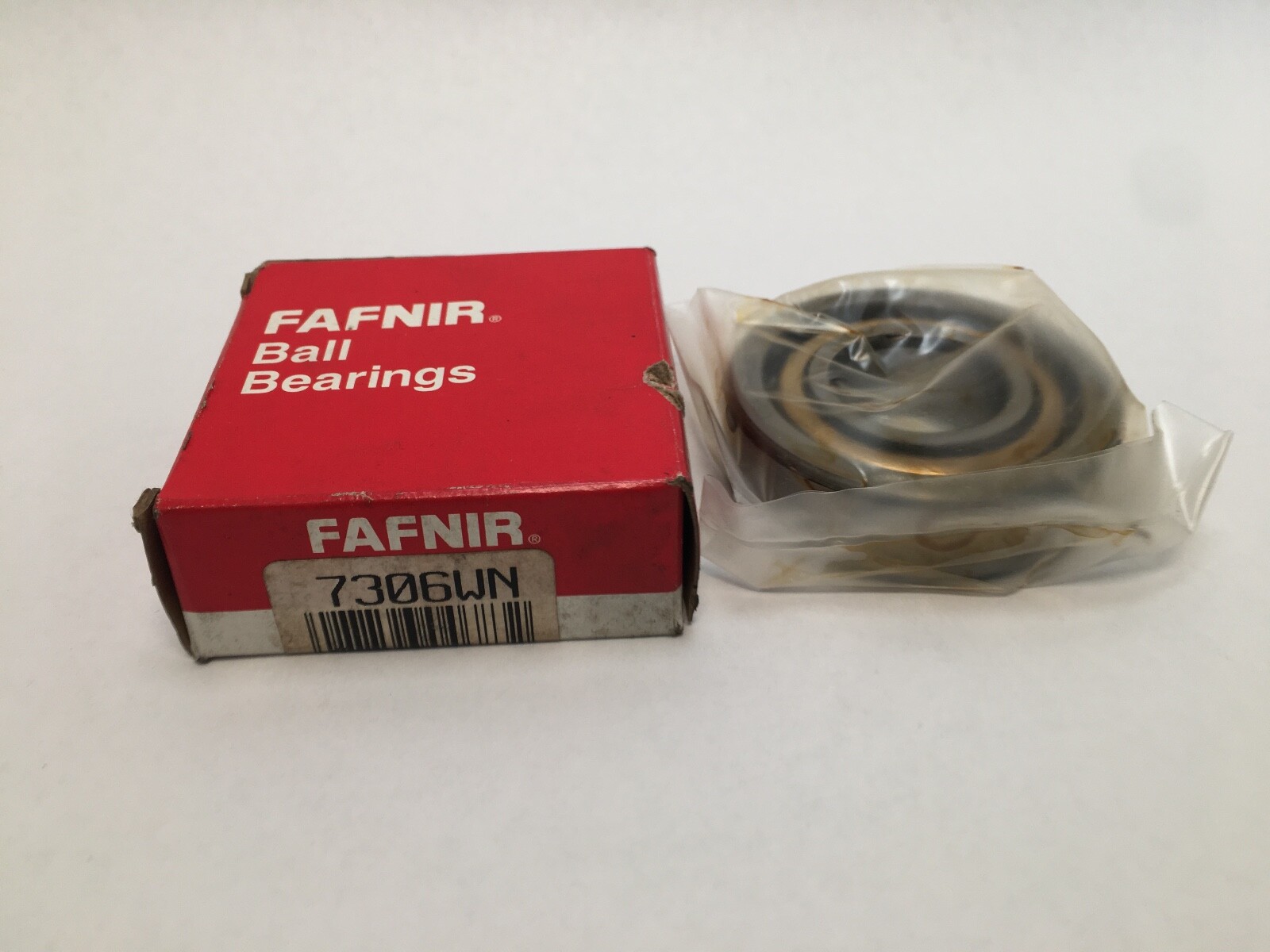

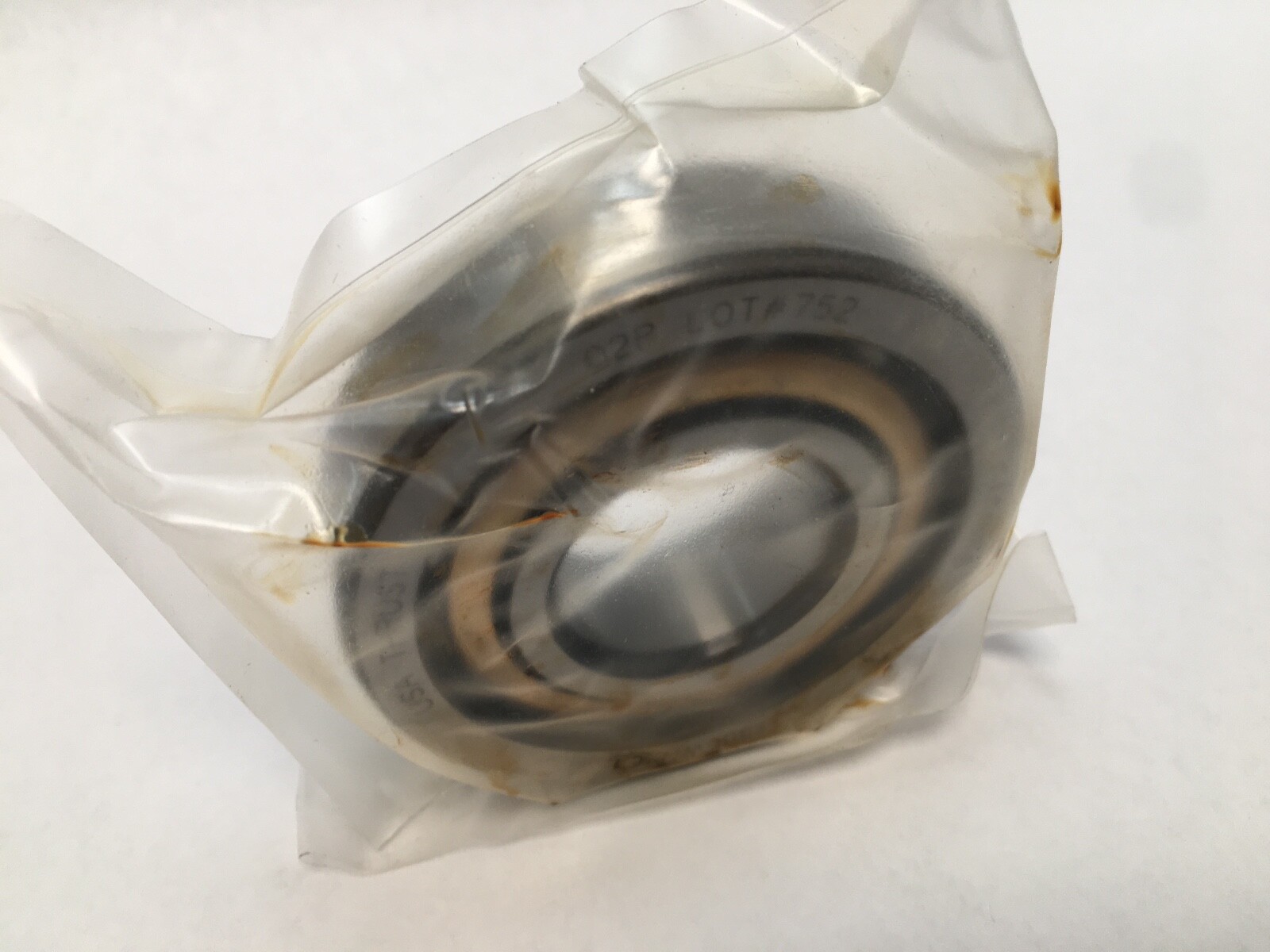

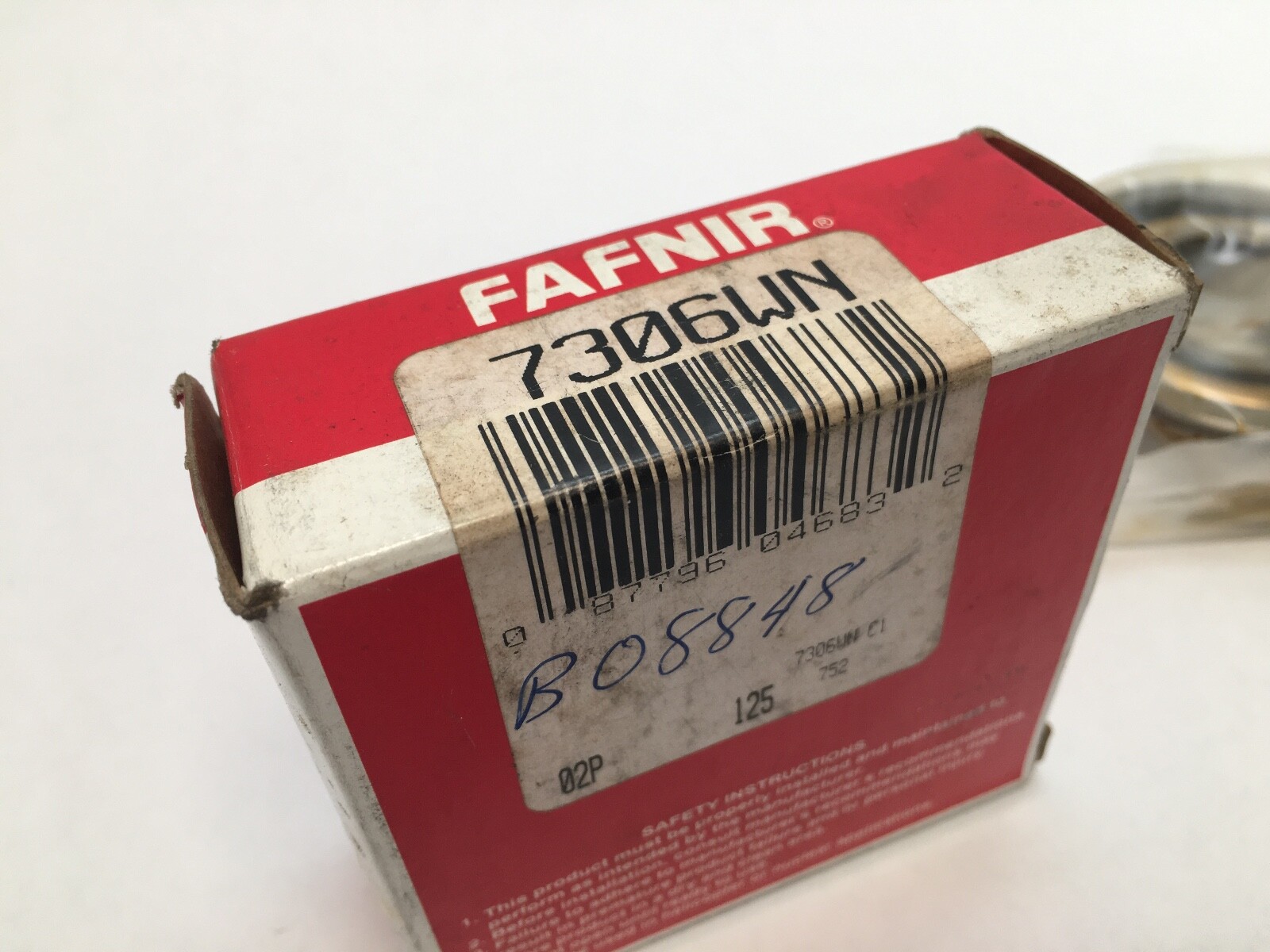

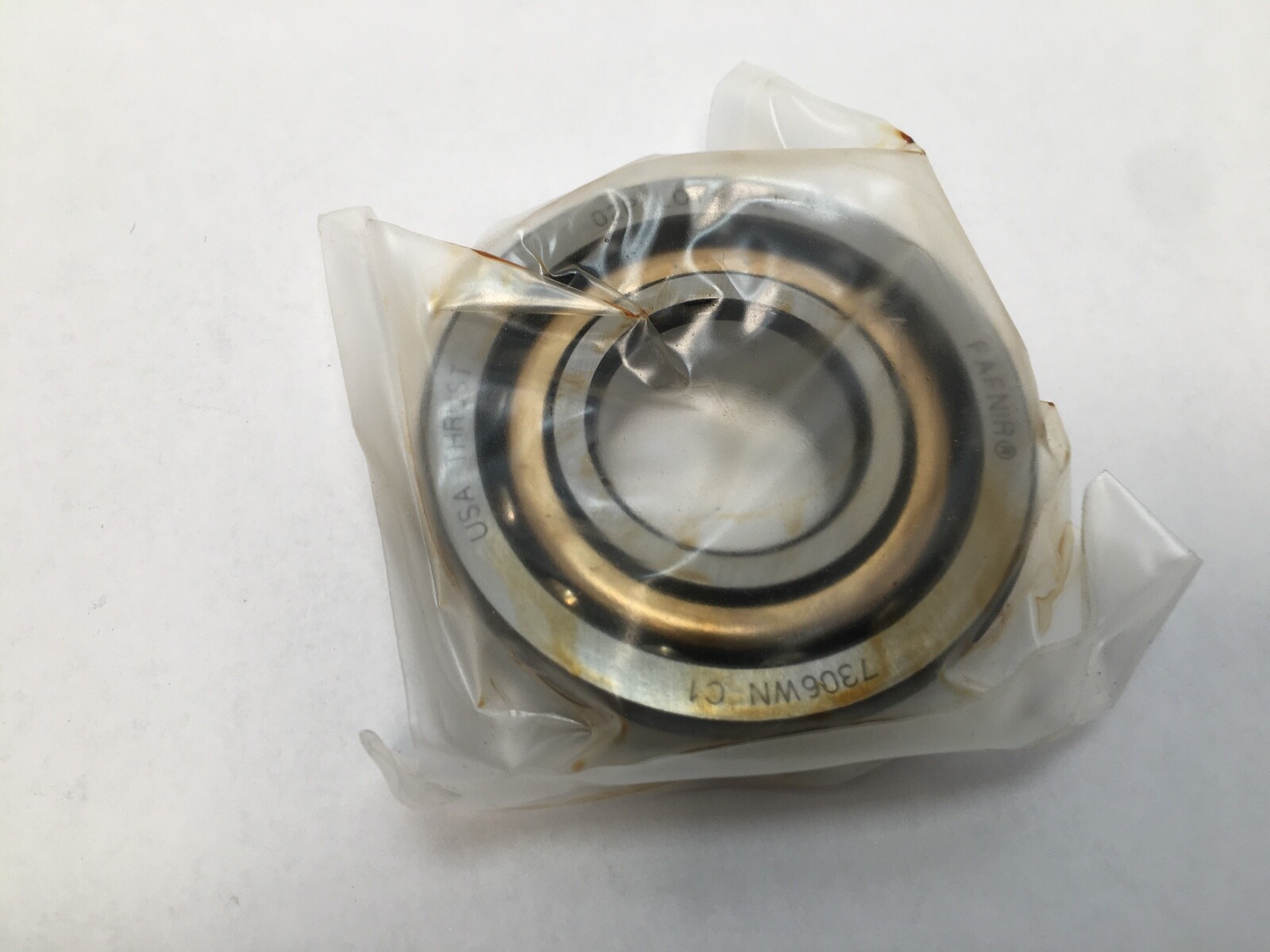

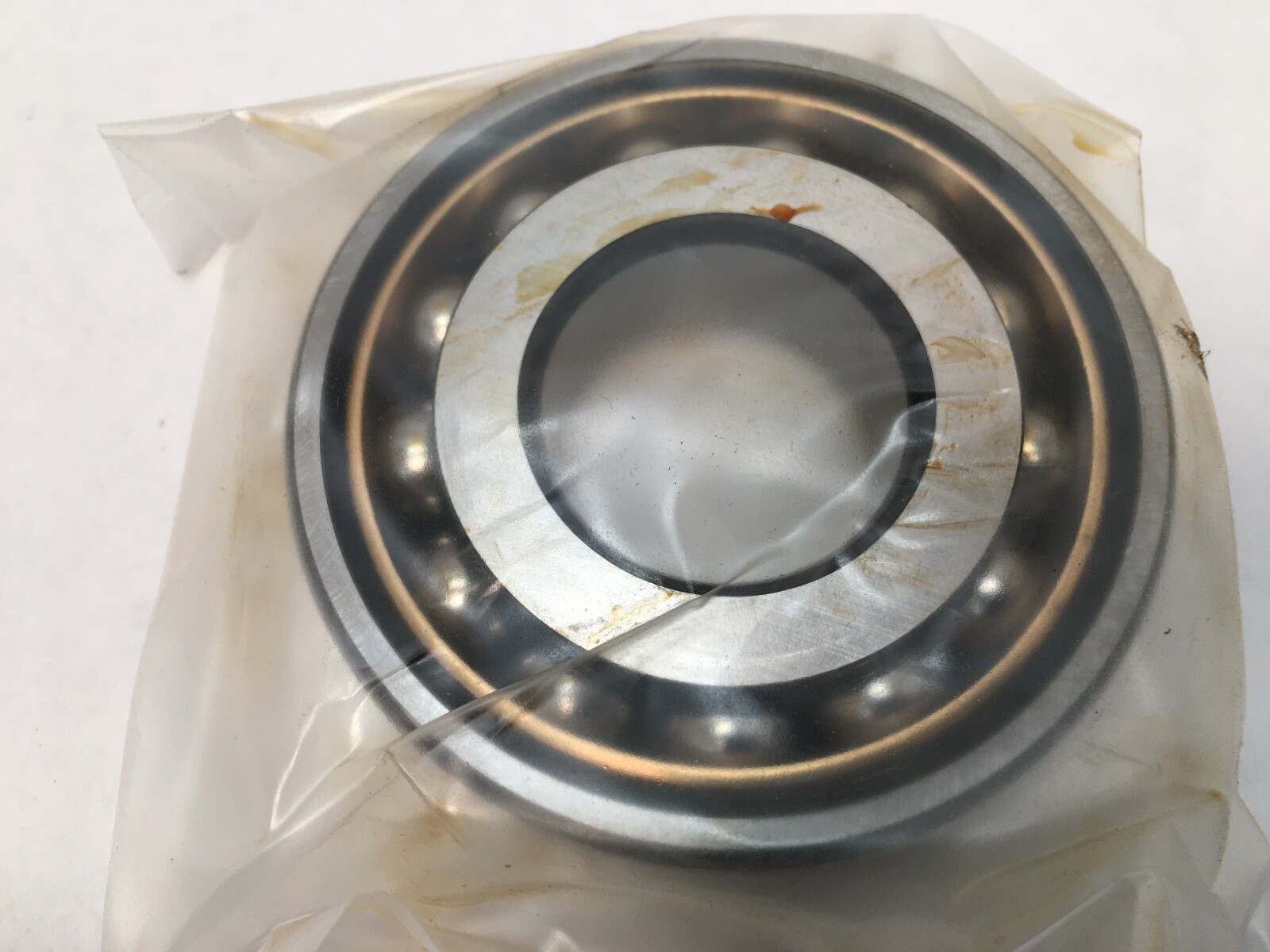

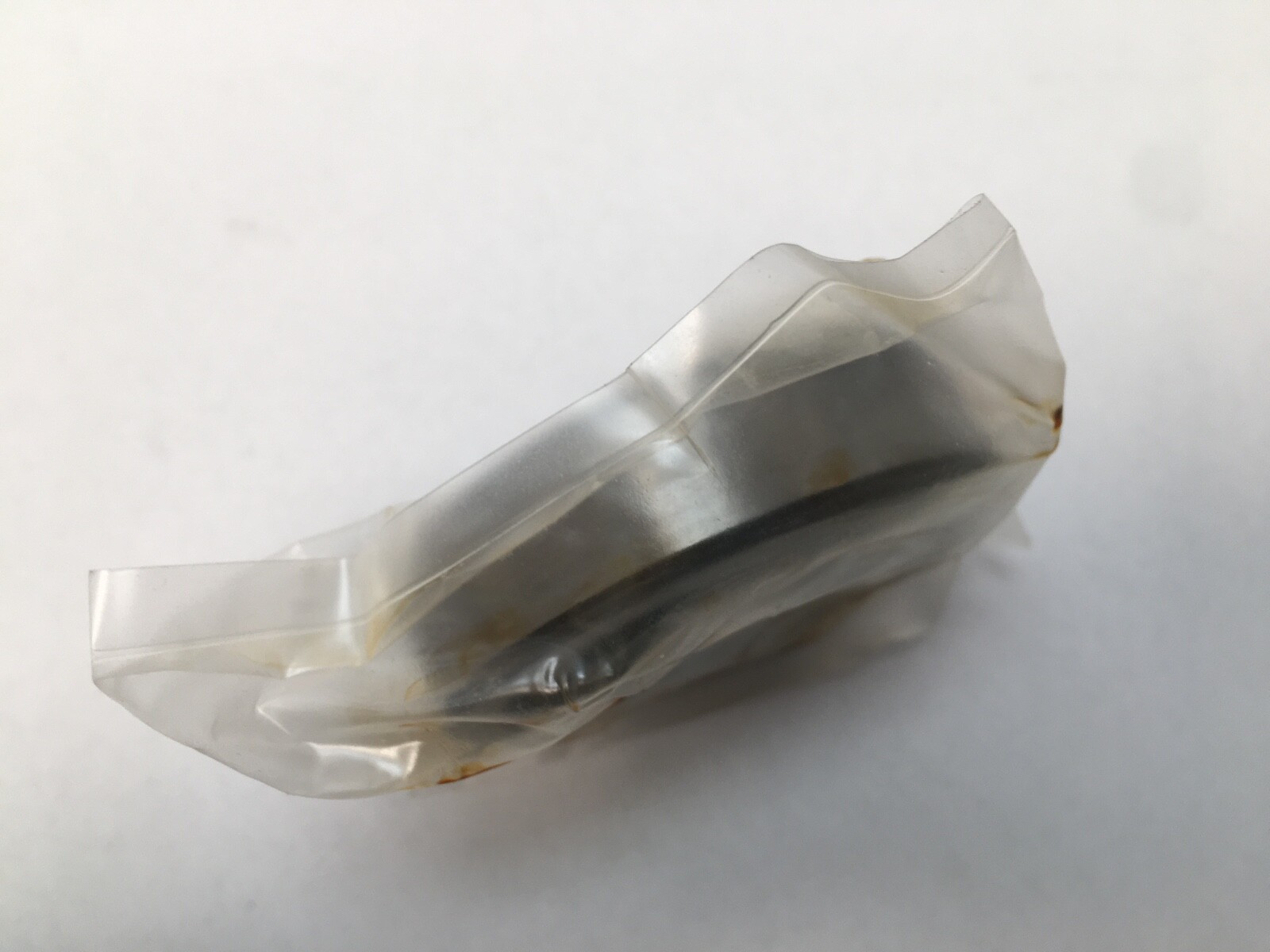

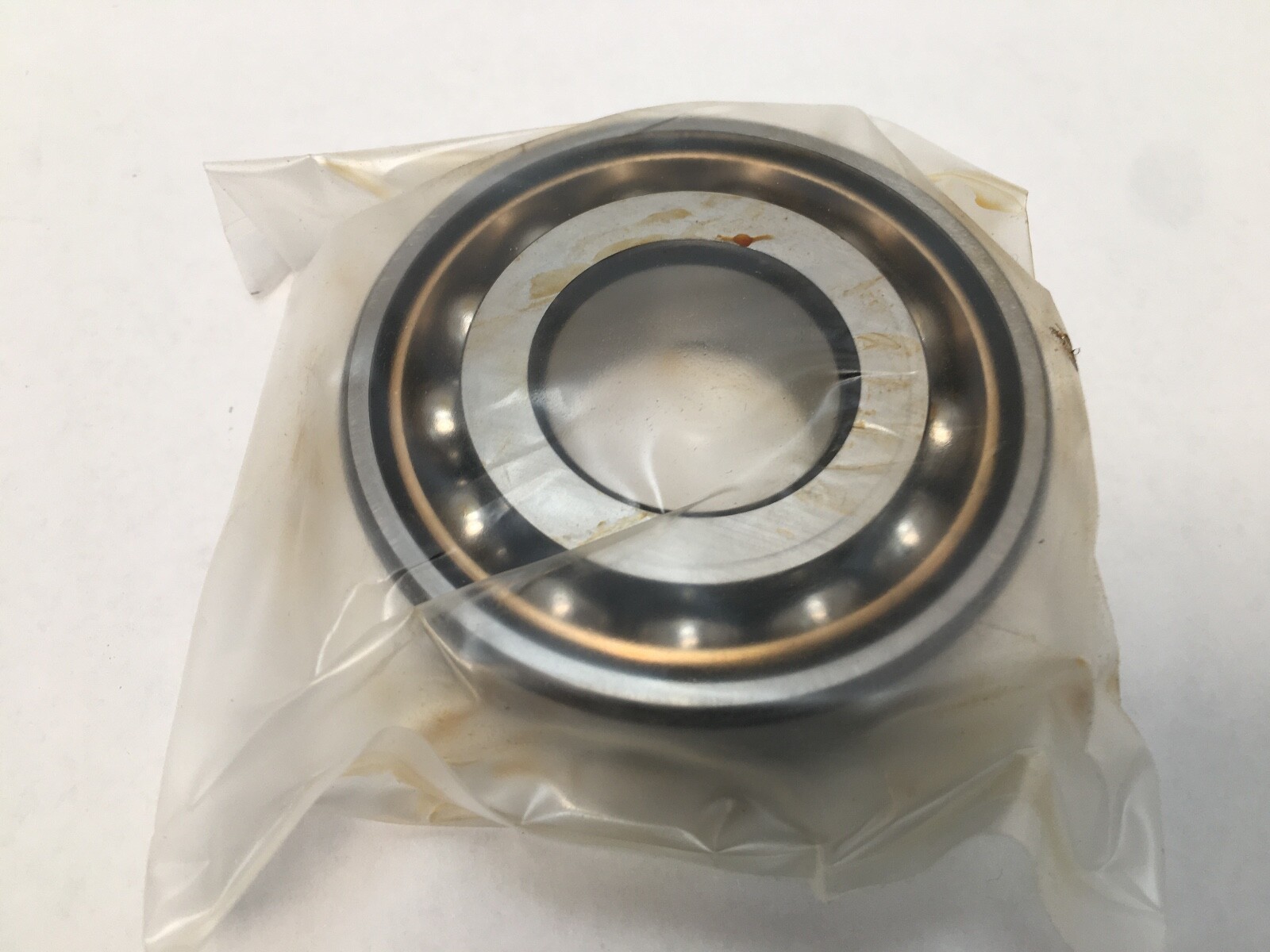

Fafnir 7306WN, a single-row angular contact ball bearing. Bore Diameter: 30 mm. Outside Diameter: 72 mm. Overall Width: 19 mm. Contact Angle: 40°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 7300W. Base Number: 7306W. GTIN: 087796046832.
7306 — the 7300 heavy angular contact series, bore code 06: a 30 mm bore in a 72 mm outside diameter, 19 mm wide.
WN — 40° contact angle in Timken’s Fafnir lettering system. This is the plain 72xxW commercial range, not the MM super-precision range.
Contact Angle: 40° is the steepest of the standard angular contact angles. It carries the highest thrust load of the three common angles on a given envelope and turns slower than a 15° or 25° execution, which suits screw-down, worm and vertical-shaft duty where axial load dominates. Precision Class: Not specified — the plain 72xxW range is a standard-tolerance product, and no precision suffix appears on the designation.
Unit Quantity: 1 Pc. One single-row bearing, which takes thrust in one direction. A second bearing opposed to it carries thrust the other way.
The envelope is the ISO 7306 B envelope, 30 x 72 x 19 mm at 40°. SKF 7306 BEP, FAG 7306-B-XL-TVP, NSK 7306B, NTN 7306B, Koyo 7306B and Nachi 7306B are direct interchanges at the same angle. A 7306 C or 7306 A on the same envelope runs 15° or 25° and is a related size at a different angle, not a substitution. Searchable variants include 7306WN, 7306 WN, 7306-WN and 7306W.
