Angular contact ball bearing, 30 x 72 x 19 mm, 25 degree contact angle. ABEC 3 / P6 class, one-piece inner-ring centred phenolic cage, universally ground.
List Price
$60.42
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7306ETBSULP6 |
| Model | 7306 E TB SUL P4 / 3MM306 WI CR |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 30 mm |
| OD | 72 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7300 |
| Lubricant | Grease or oil |
| Base Number | 7306 |
| Industry Terms | Angular contact ball bearing; heavy series angular contact; 25 degree angular contact; ABEC 3 bearing; phenolic cage bearing |
| Common Misspellings | 7306 E TB SUL P6; 7306ETBSULP-6; 7306 ETB SUL; RHP 7306TBSUL P6; 7306 E TB SUL P-6 |
| Application Types | Machine tool spindles; gearboxes; pumps; electric motors; heavy duty shaft supports |
| Overall Width | 19 mm |
| Mpn Variants | 7306ETBSULP6; 7306-E-TB-SUL-P6; 7306E; 7306ETB; 7306X3 |
| Precision Class | ABEC 3 / P6 |
| Cage Type | Machined, one-piece, inner-ring centred |
| Precision Rating | ABEC 3 / P6 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Mounting Arrangement | Universally ground for pairing |
| Bearing Material | Bearing steel |
| Closure Type | Open |
| Cross Reference 1 | NSK 7306A - 30 deg angle vs 25 deg |
|---|---|
| Cross Reference 2 | SKF 7306 BECBP - 40 deg angle vs 25 deg |
| Cross Reference 3 | FAG 7306-B-TVP - 40 deg angle vs 25 deg |

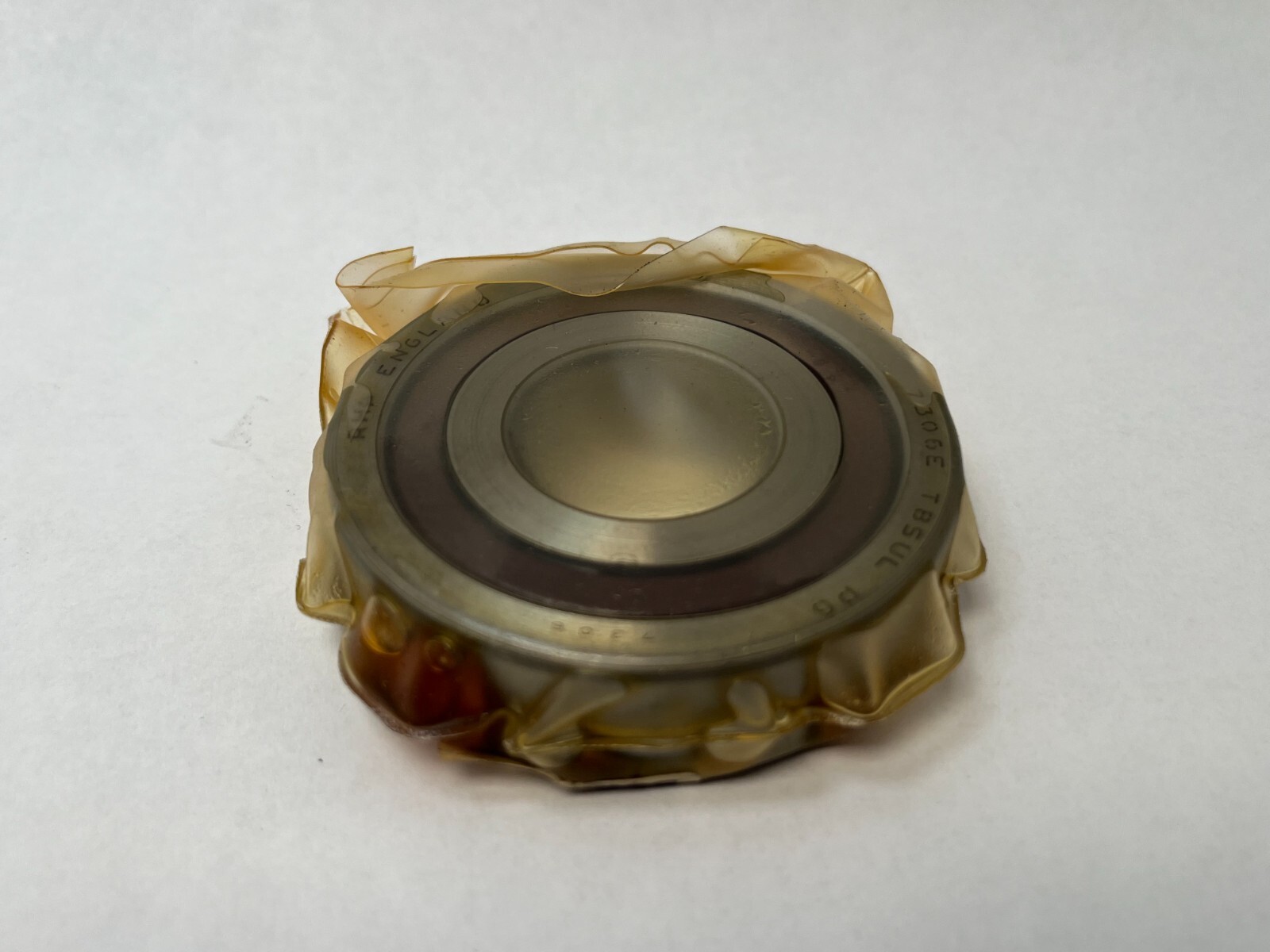

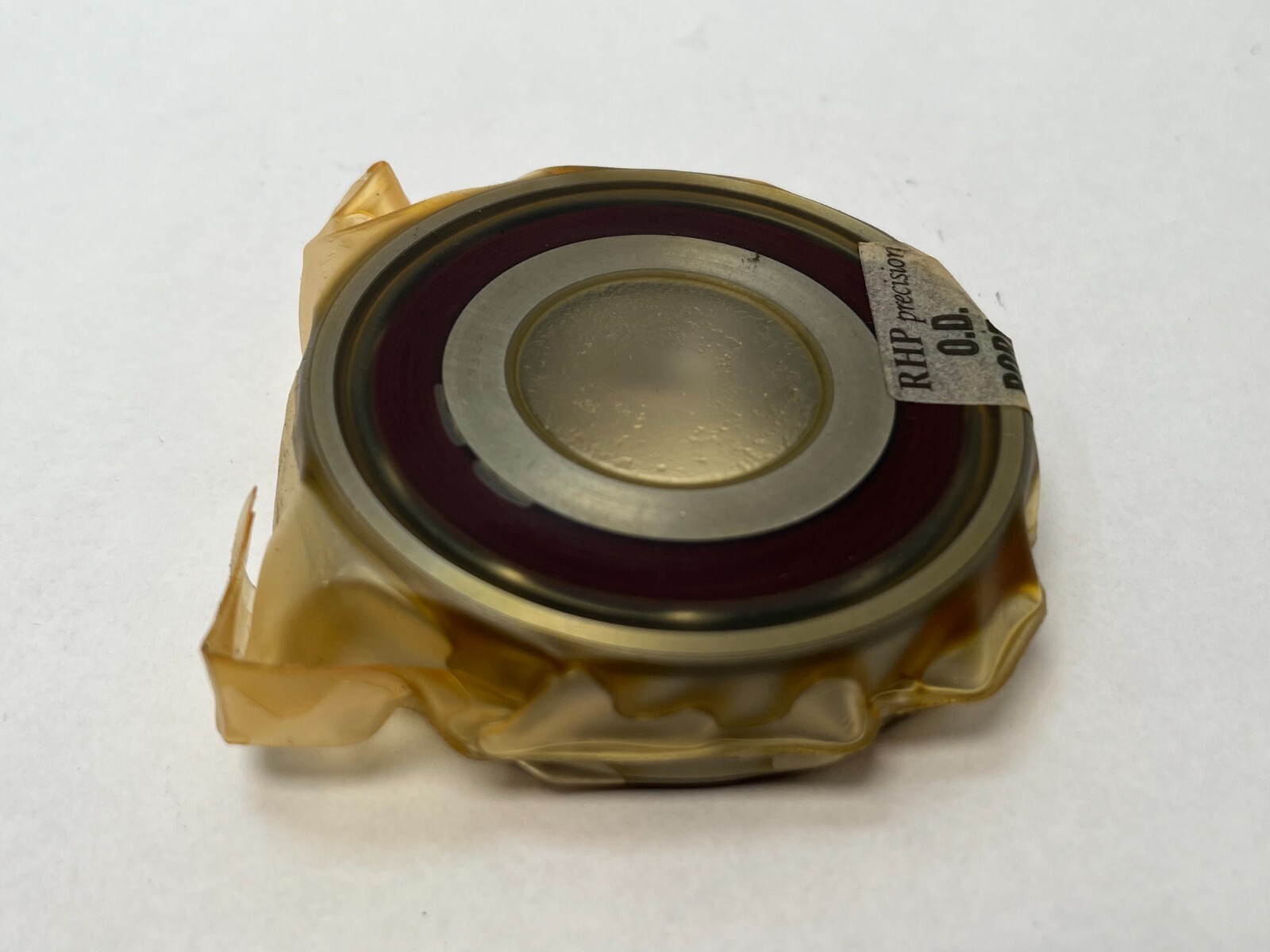

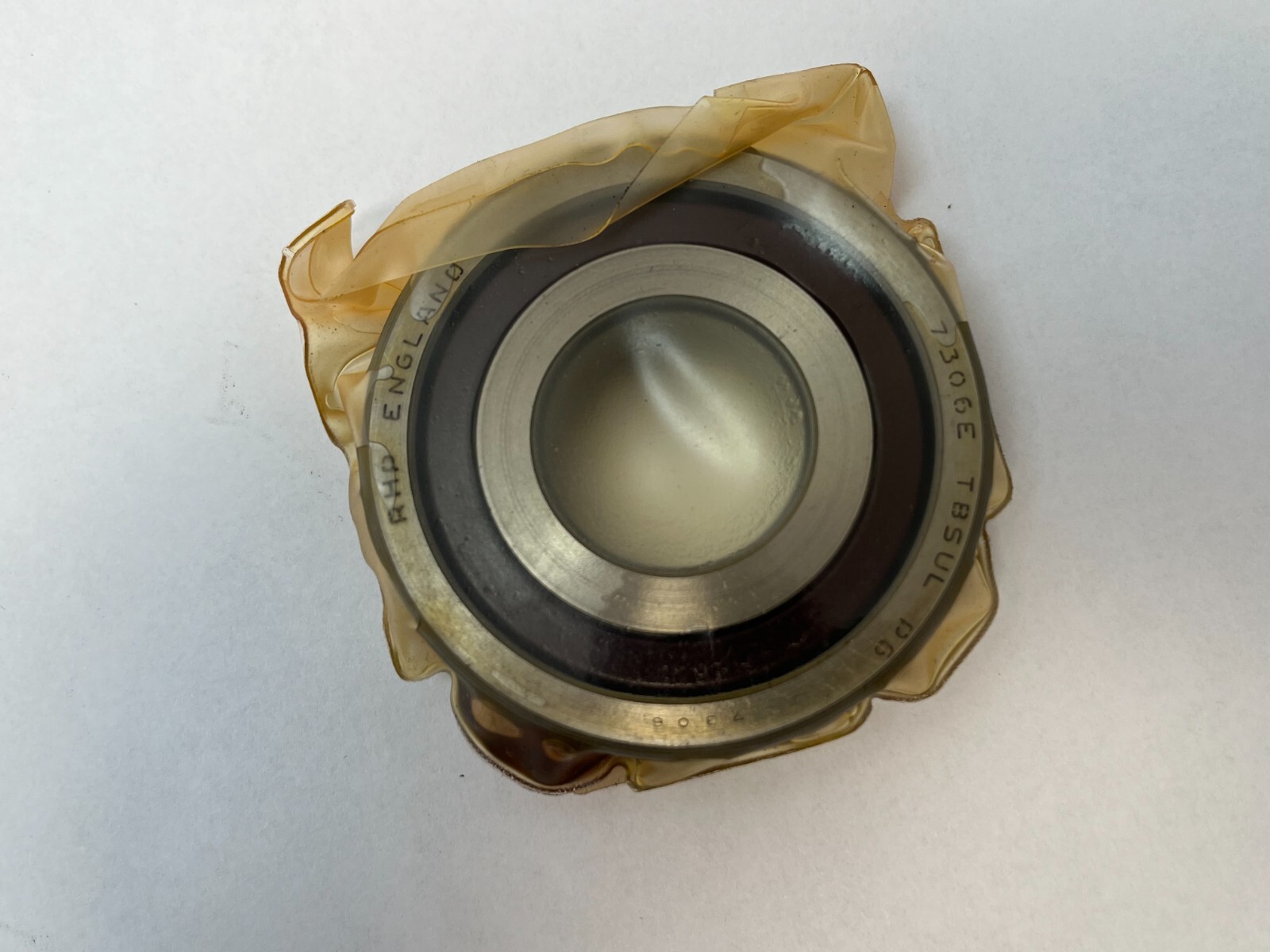

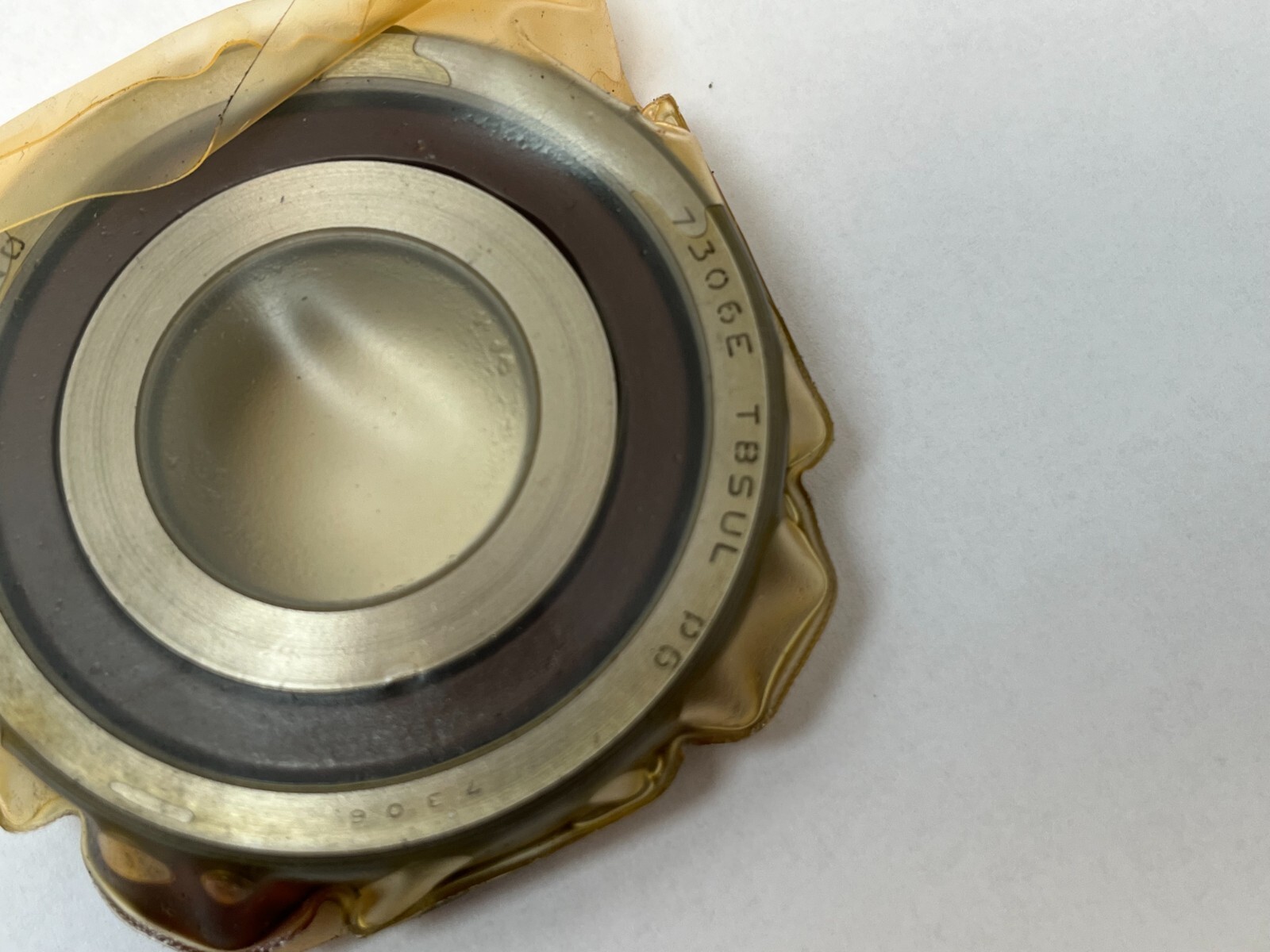

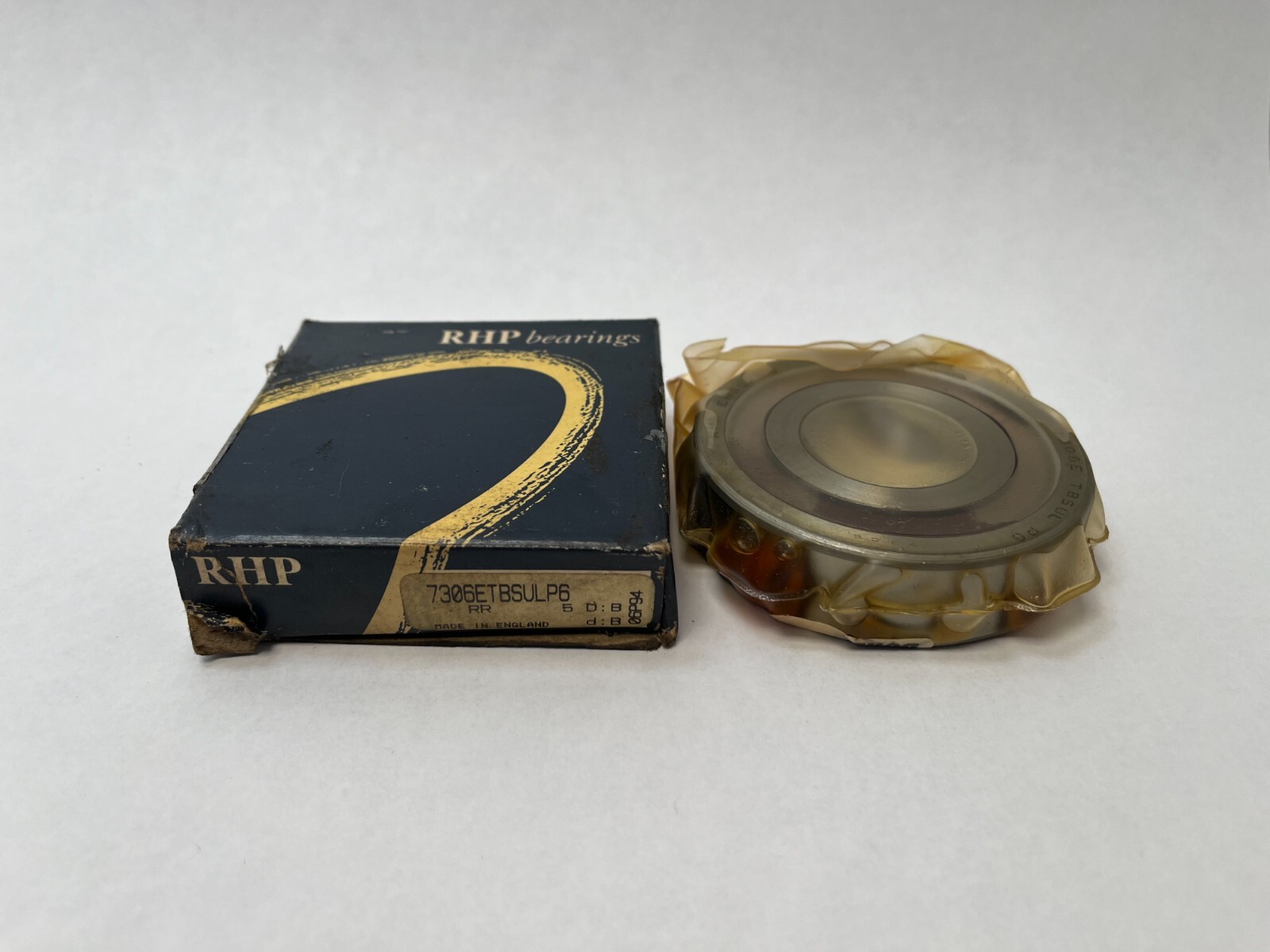

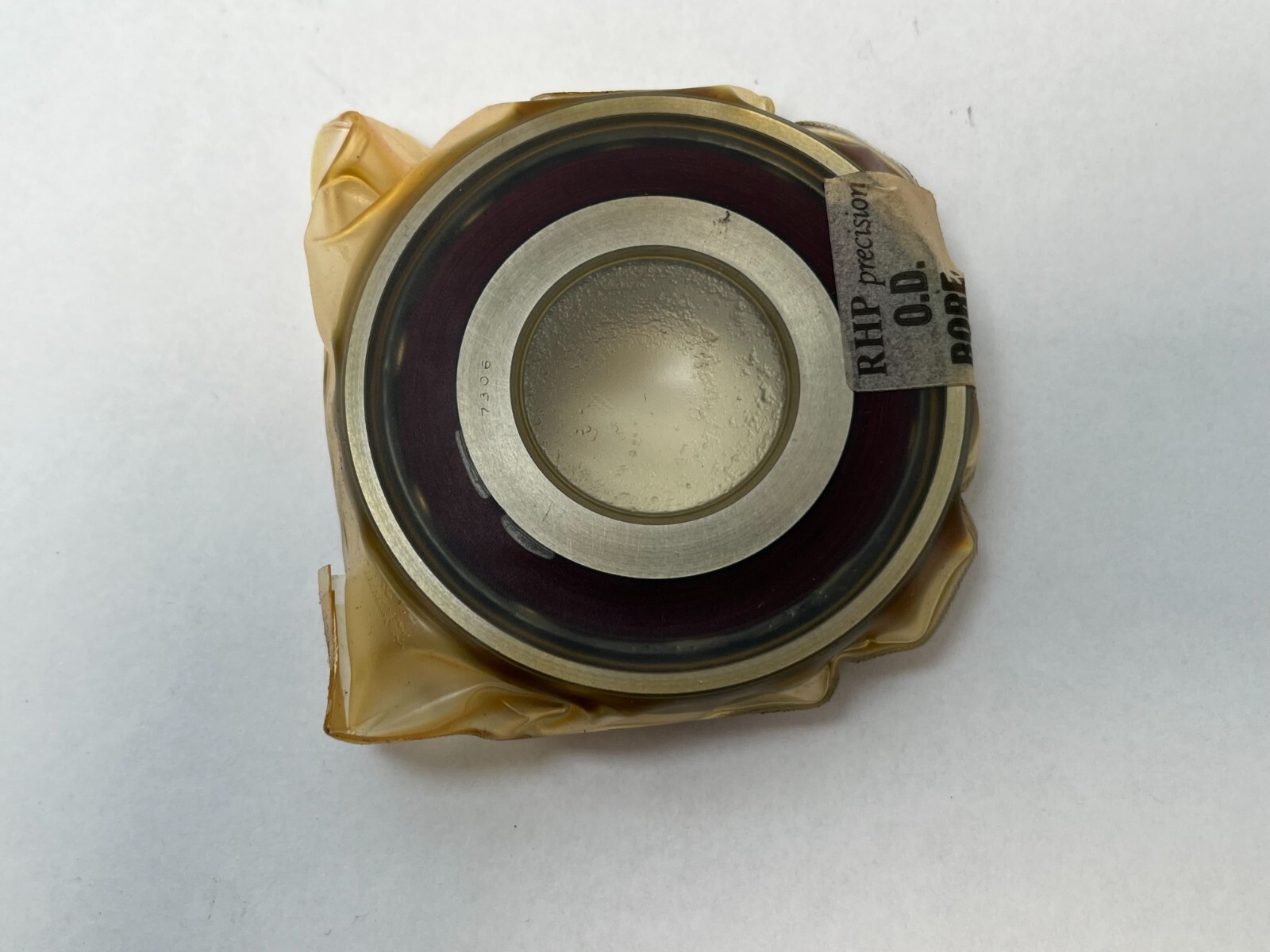

RHP 7306-E-TB-SUL-P6 single-row angular contact ball bearing. Bore Diameter: 30 mm. Outside Diameter: 72 mm. Overall Width: 19 mm. Contact Angle: 25°. Precision Class: ABEC 3 / P6. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Bearing Material: Bearing steel. Lubricant: grease or oil. Unit Quantity: 1 Pc.
73 — ISO dimension series 03, the heavy section. At a given bore it has the largest outside diameter and the greatest section height of the angular contact series.
06 — bore code. Bore Diameter: 30 mm.
E — 25° contact angle, the legacy RHP code for the execution now designated A5.
TB — one-piece machined laminated phenolic cage, centred on the inner ring.
SU — universal face control. Faces are ground so that any two bearings stack back-to-back, face-to-face or in tandem without shims or ground spacers.
P6 — RHP tolerance class P6, ABEC 3 (BS 292 EP3).
Series: 7300. Base Number: 7306. Cage Type: machined, one-piece, inner-ring centred. Harmonization Code: 8482.10.50.28. Snap Ring Included: No.
Bore Diameter: 30 mm. Outside Diameter: 72 mm. Overall Width: 19 mm. Mounting Arrangement: universally ground for pairing.
Other makers’ 30 x 72 x 19 mm angular contact bearings at a different contact angle: NSK 7306A (30°), SKF 7306 BECBP (40°), FAG 7306-B-TVP (40°). MPN variants: 7306ETBSULP6, 7306-E-TB-SUL-P6, 7306E, 7306ETB, 7306X3.
25°, from the E code.
A one-piece machined laminated phenolic cage, centred on the inner ring (TB).
Universal face control, for pairing in any arrangement.
