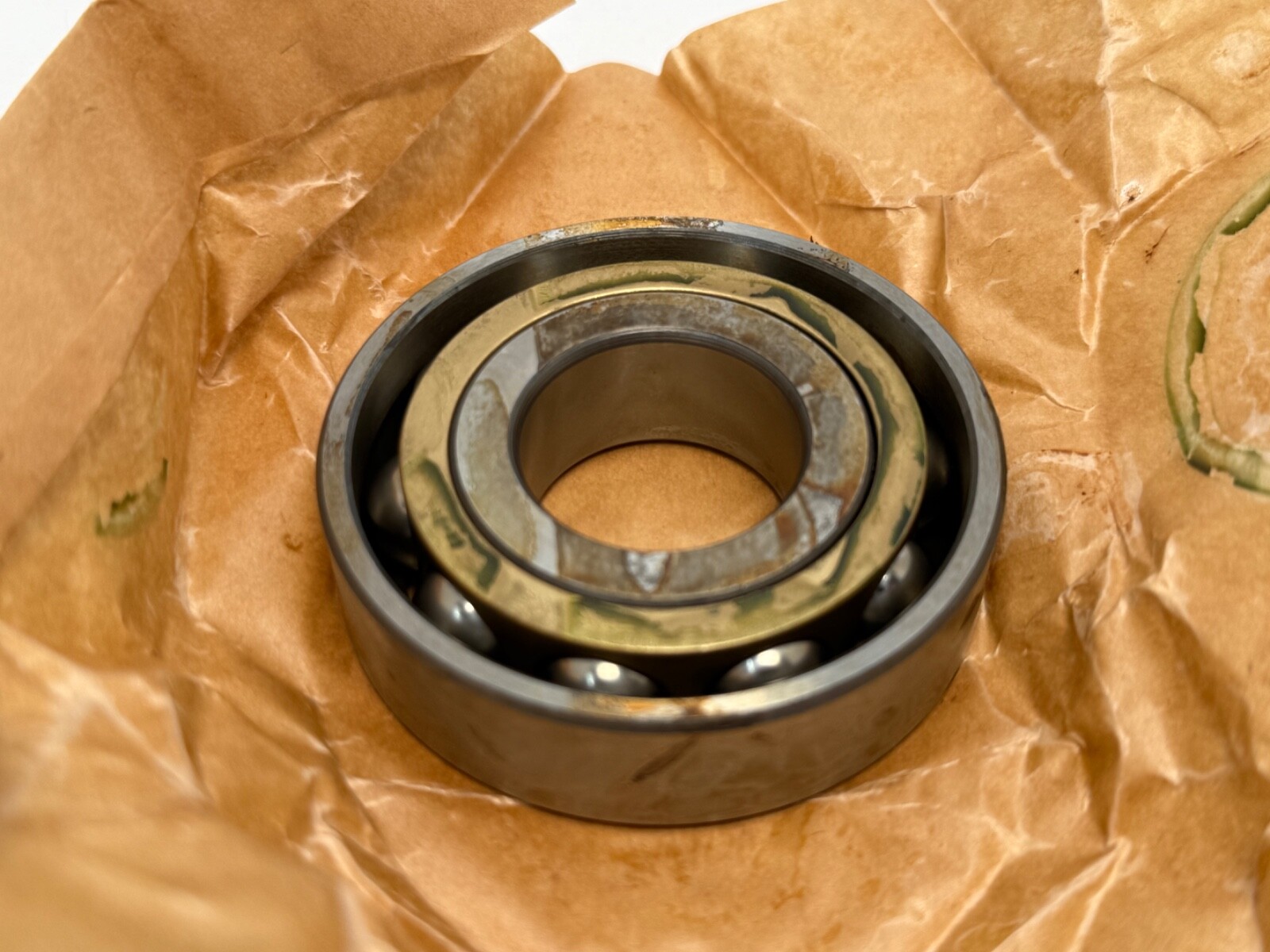

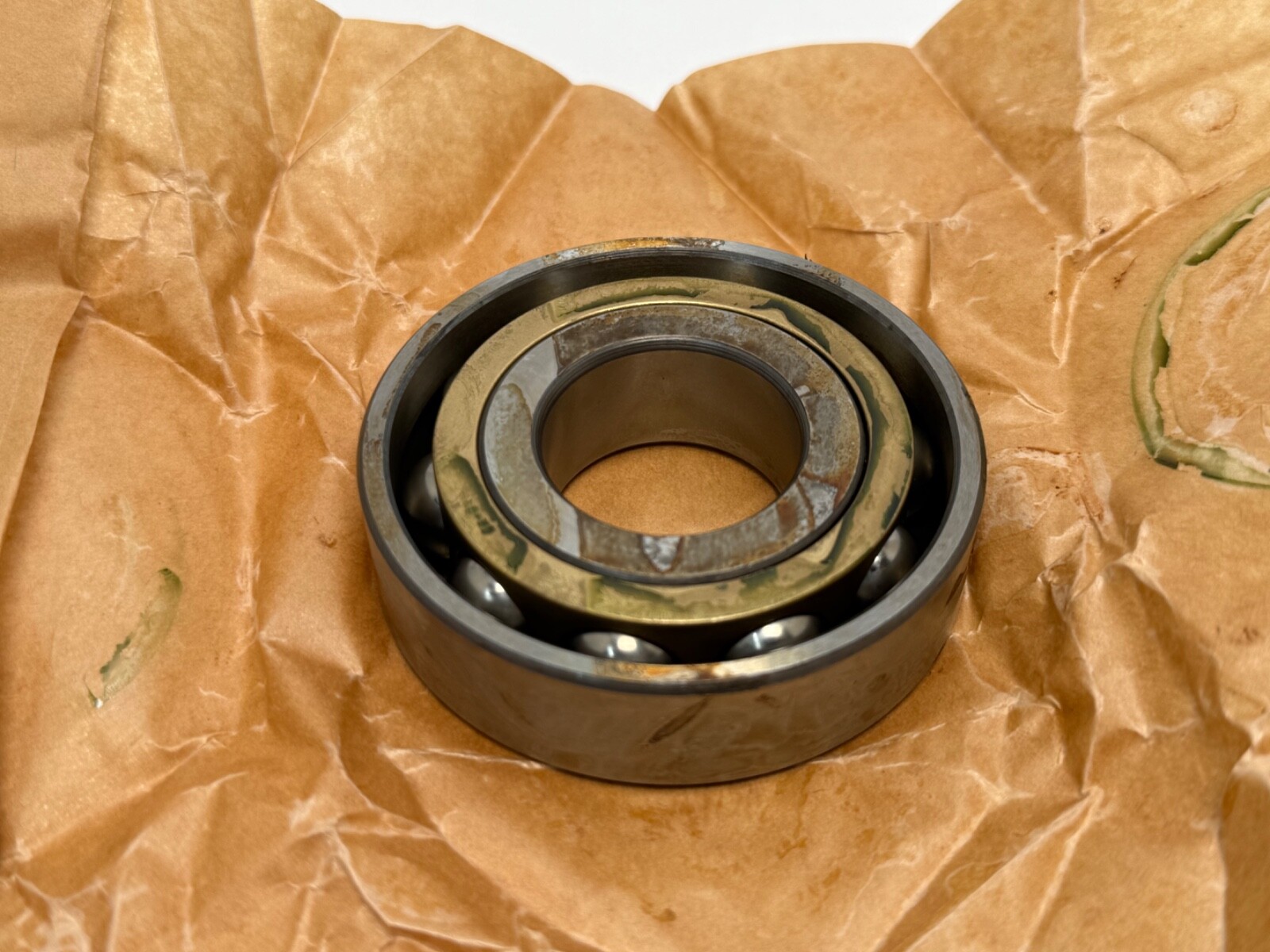

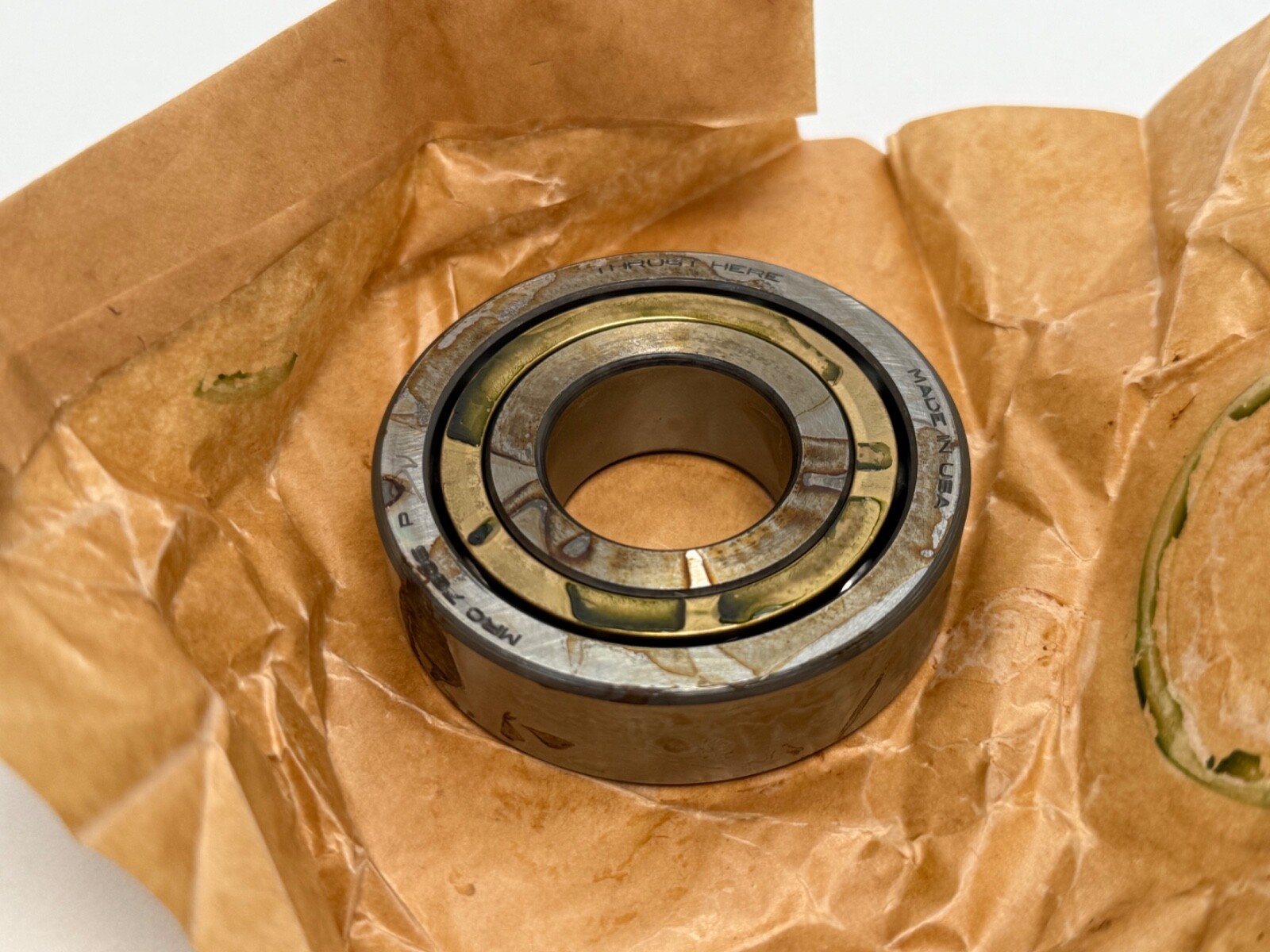

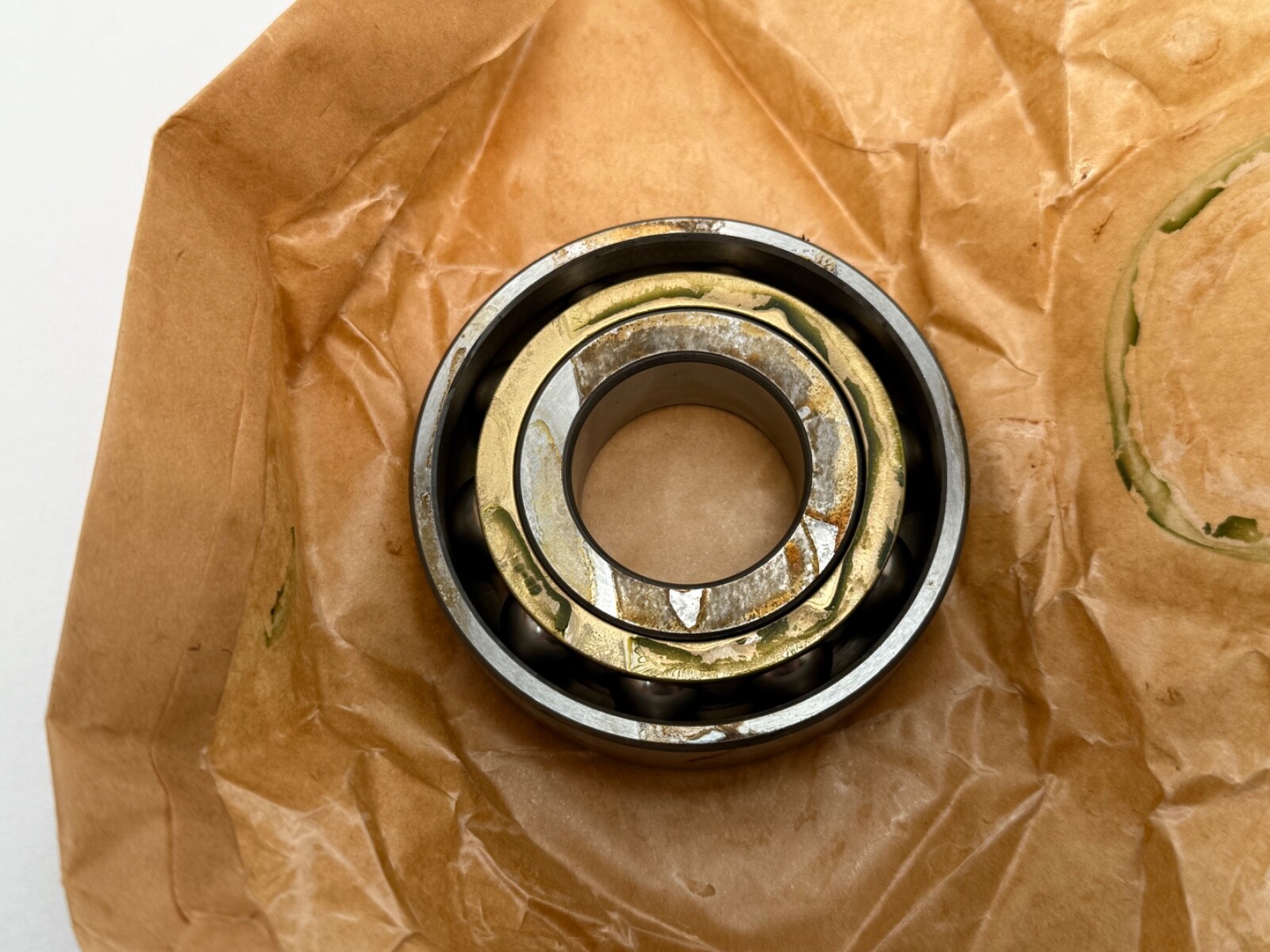

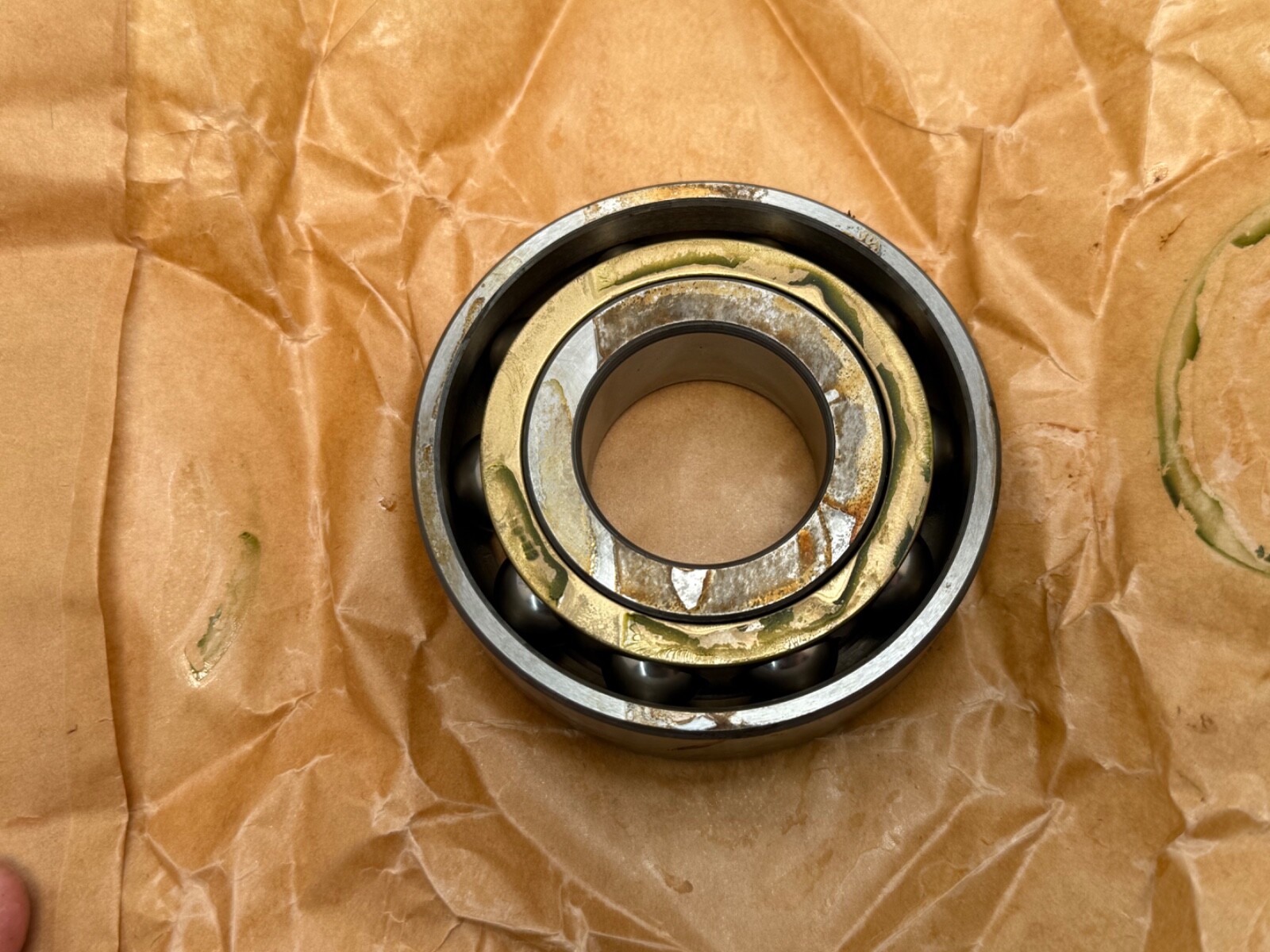

MRC 7306PDU angular contact ball bearing, 30 x 72 x 19 mm, 40° contact angle, 32,500 N dynamic rating. Single universally ground bearing, counterbored ring.
List Price
$40.19
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 7306PDU |
| Model | 7306PDU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 72 mm |
| Width | 19 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7300-P |
| Dynamic Load Rating | 32,500 N |
| Static Load Rating | 19,600 N |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 8,000 rpm grease |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Base Number | 7306 |
| Industry Terms | Angular contact ball bearing; counterbored outer ring bearing; universally ground bearing; matched pair half; spindle bearing |
| Common Misspellings | 7306 PDU; 7306PUD; 7306-PDU; MCR 7306PDU; anglular contact bearing; angular contact bearring |
| Total Width | 19 mm |
| Overall Width | 19 mm |
| Bore Shaft Size | 30 mm |
| Mpn Variants | 7306PDU; 7306-P-DU; 7306 P DU; 7306PD |
| Arrangement Configuration | Single universally ground bearing, one half of a matched pair |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Design Units | Metric |
| Part Number | 7306PDU |
| Closure Type | Open |
| Cross Reference 1 | NTN 7306B - 40 deg angle, no DU grinding |
|---|---|
| Cross Reference 2 | NSK 7306BW - 40 deg angle, no DU grinding |
| Cross Reference 3 | Koyo 7306B - 40 deg angle, no DU grinding |
| Cross Reference 4 | SKF 7306 BECBP - 40 deg angle, no DU grinding |

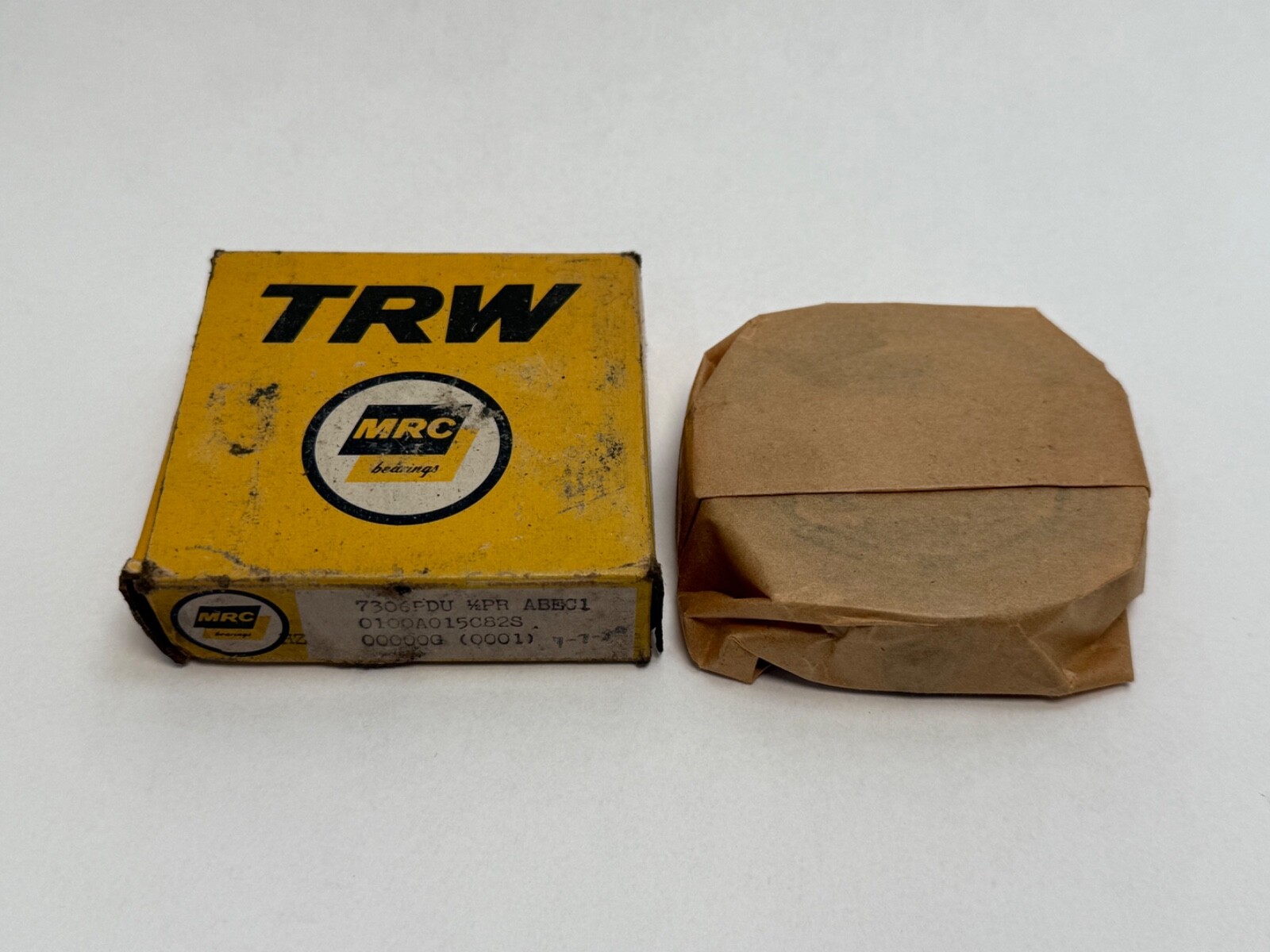

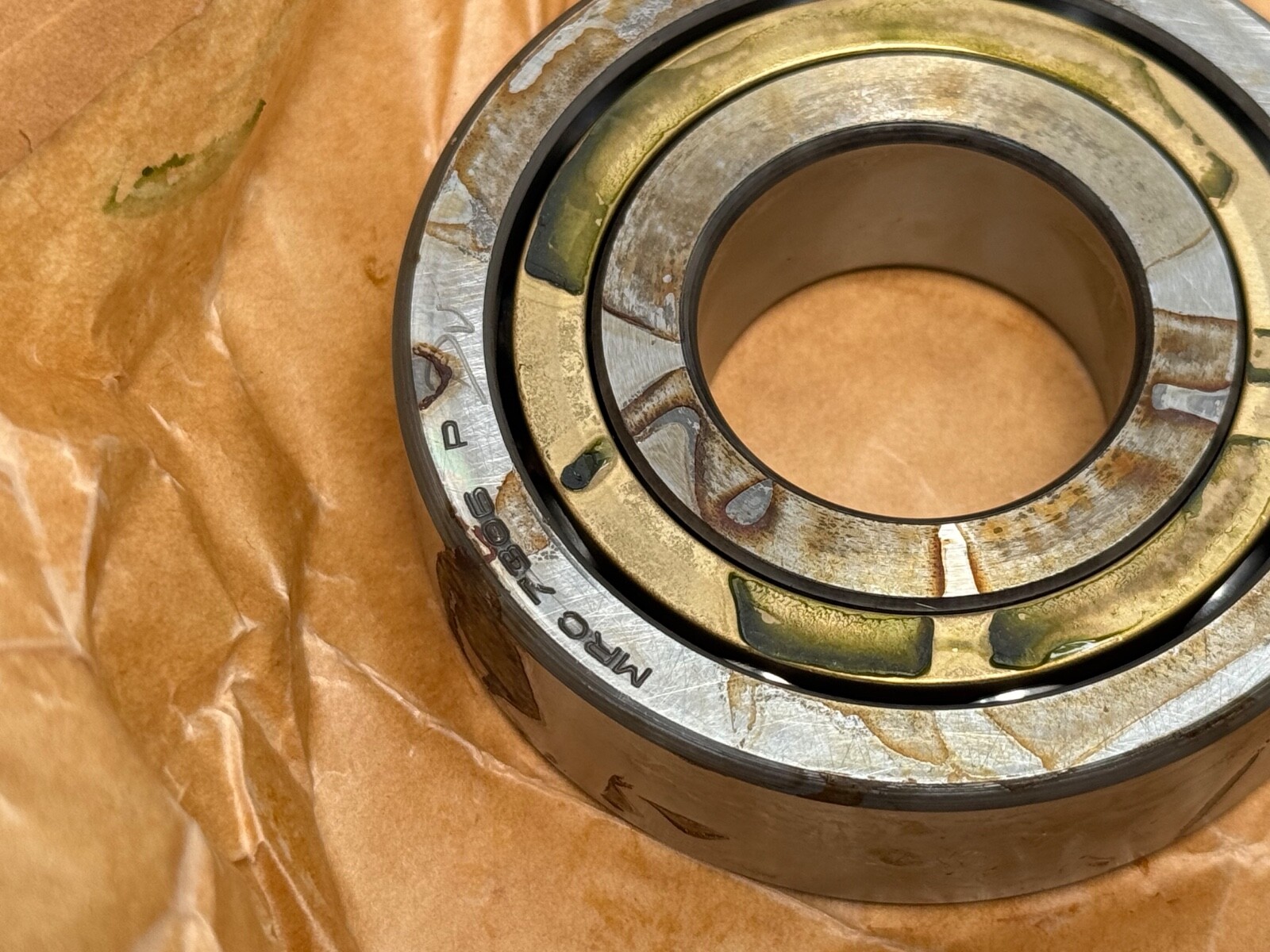

MRC 7306PDU is a single-row angular contact ball bearing from the MRC 7300-P medium series. Bore Diameter: 30 mm. Outside Diameter: 72 mm. Overall Width: 19 mm. Contact Angle: 40°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Unit Quantity: 1 Pc. Condition: new old stock, open box. It carries heavy one-direction thrust or combined loads where thrust predominates.
7306 — MRC 7300 medium angular contact series, 06 bore code, 30 x 72 x 19 mm.

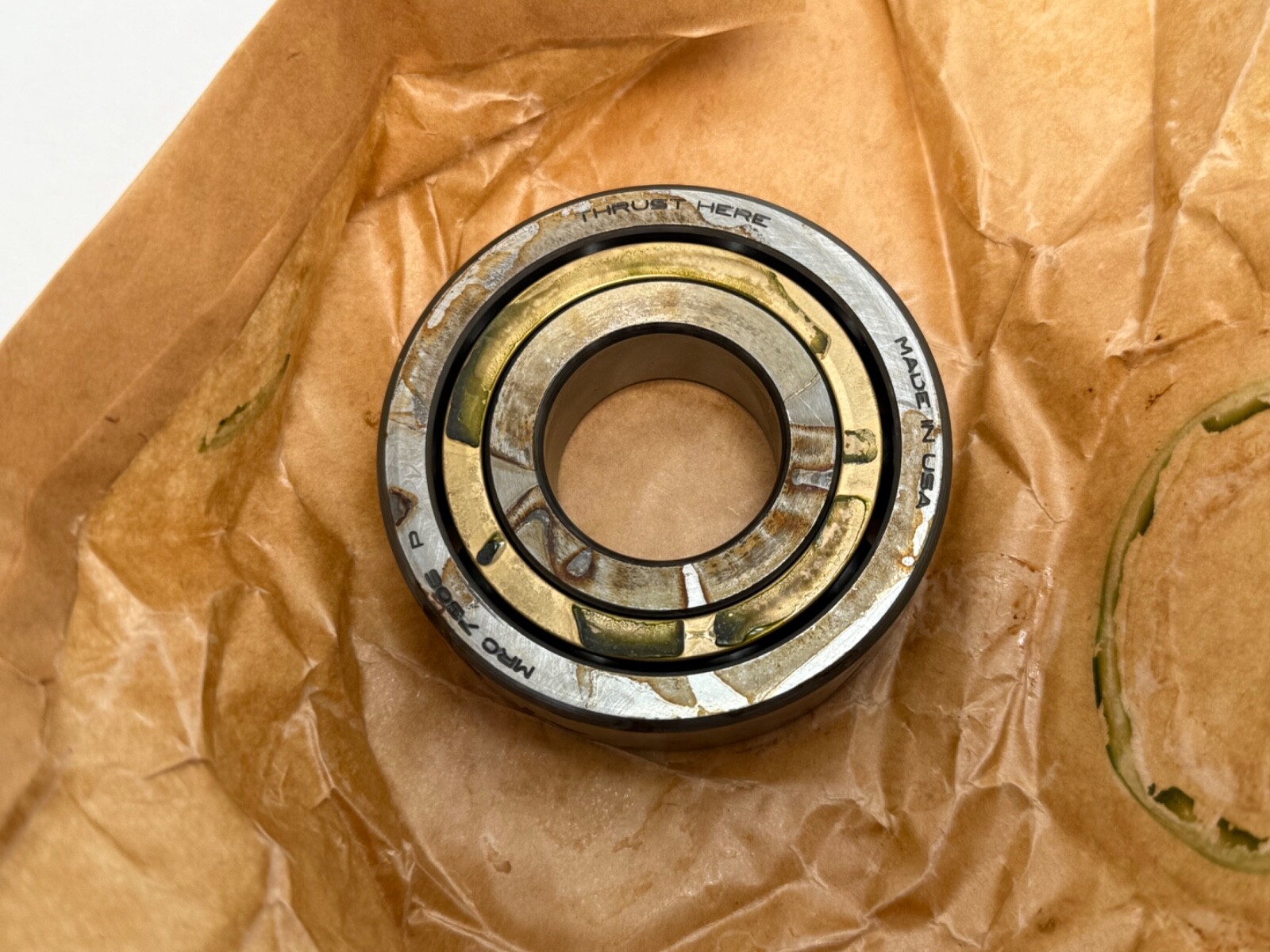

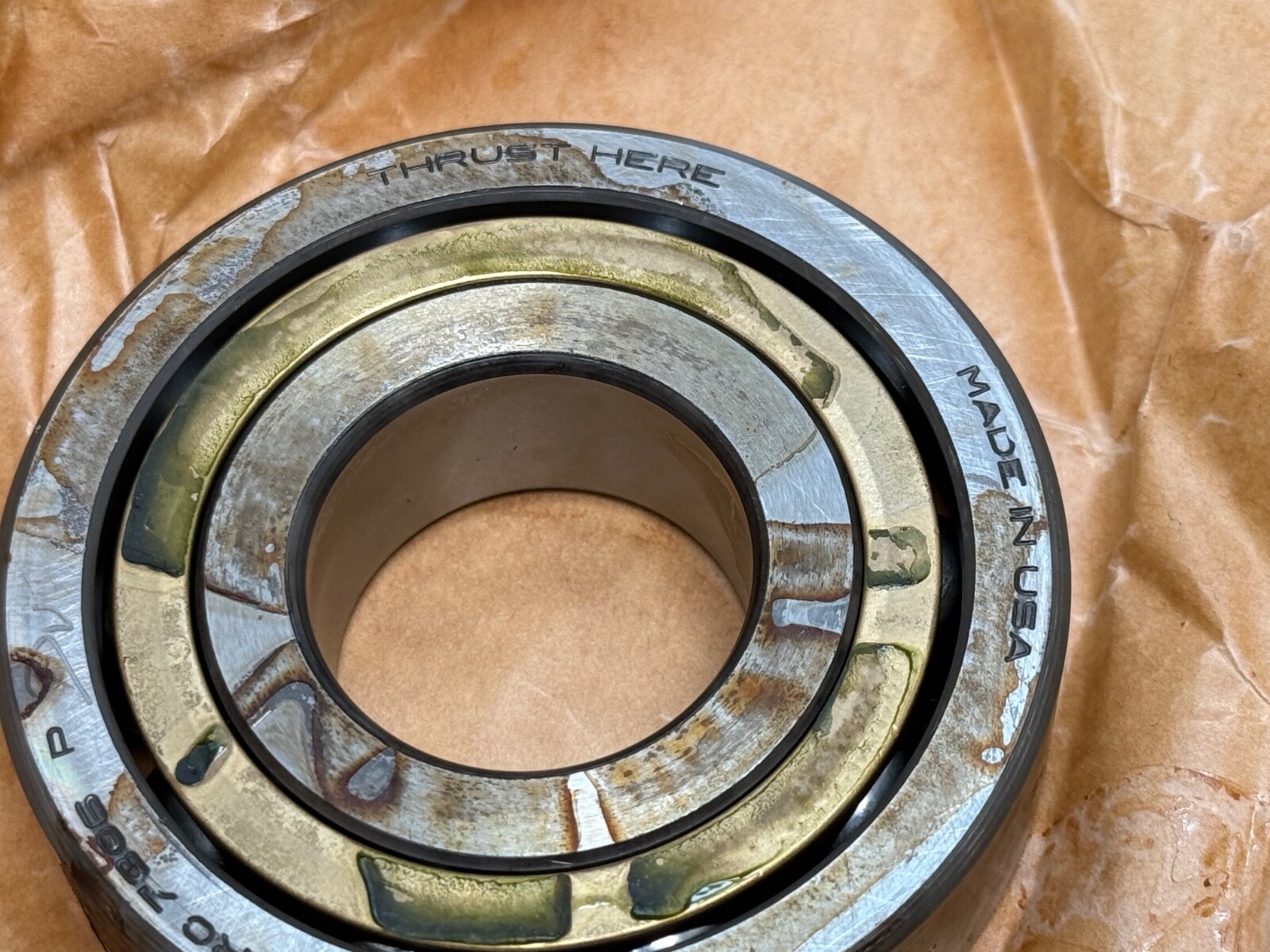

P — 40° contact angle with a counterbored outer ring.
DU — single bearing, universally ground for duplex mounting back-to-back, face-to-face or tandem. One bearing, half of a pair.
Dynamic Load Rating: 32,500 N. Static Load Rating: 19,600 N. Limiting Speed: 8,000 rpm grease. Series: 7300-P. Base Number: 7306. Harmonization Code: 8482.10.50.28. The 7300 medium section carries a larger ball set than the 7200 light series in the same bore, giving higher radial and thrust capacity.
Bore Diameter: 30 mm. Outside Diameter: 72 mm. Overall Width: 19 mm. Mounting Arrangement: Universal (DB, DF or DT), pairs with a second 7306PDU.
40° angular contact bearings in 30 x 72 x 19 mm: NTN 7306B, NSK 7306BW, Koyo 7306B, SKF 7306 BECBP. MPN variants: 7306PDU, 7306-P-DU, 7306 P DU, 7306PD.
40°, code P, with a counterbored outer ring.
32,500 N.
A single bearing universally ground for duplex mounting in DB, DF or DT arrangement.
