Super-precision angular contact spindle bearing, 35 x 55 x 10 mm, 15° contact angle, ISO P4S, light preload, phenolic cage, 25,400 rpm on grease.
List Price
$98.74
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9307WI-SUL |
| GTIN | 090515511597 |
| Model | 2MM9307WI-CR-SUL / 71907C-T-P4S-SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 55 mm |
| Width | 10 mm |
| Material | Bearing Steel |
|---|---|
| Preload | Light |
| Series | 9300WI |
| Lubricant | Grease or oil |
| Base Number | 2MM9307WI |
| Total Width | 10 mm |
| Bore Shaft Size | 35 mm |
| Mpn Variants | 2MM9307WI-SUL; 2MM9307WICRSUL; 2MM 9307 WI CR SUL; 71907C-T-P4S-SUL |
| Arrangement Configuration | Single universally ground |
| Precision Class | ABEC 7/9 |
| Dynamic Load Rating C1 | 12600 N (2830 lbf) per bearing |
| Additional Attributes | Maximum shaft fillet radius 0.6 mm (0.024 in); maximum housing fillet radius 0.6 mm (0.024 in); shaft backing shoulder diameter 39.5 mm (1.550 in); housing backing shoulder diameter 51.1 mm (2.010 in); C1 ISO dynamic radial rating per row 11500 N (2570 lbf) per bearing; World Part Number 71907C-T-P4S-SUL |
| Closure Type | Open |
| Cage Type | CR – Phenolic Outer Land Riding Cage |
| Dynamic Load Rating | 12600 N (2830 lbf) per bearing |
| Static Load Rating | 9020 N (2030 lbf) per bearing |
| Precision Rating | ISO P4S (ABEC 7/9) |
| Rolling Elements | Steel ball |
| Cage Material | Phenolic |
| Limiting Speed | 25400 grease / 50800 oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal single |
| Design Units | Metric |
| Bearing Class | P4S |
| Bearing Material | Bearing steel |
| Part Number | 2MM9307WICRSUL |
| Cross Reference 1 | SKF 71907 CDGA/P4A |
|---|---|
| Cross Reference 2 | FAG B71907-C-T-P4S-UL |
| Cross Reference 3 | NSK 7907CTYNSULP4 |
| Cross Reference 4 | 71907C-T-P4S-SUL |

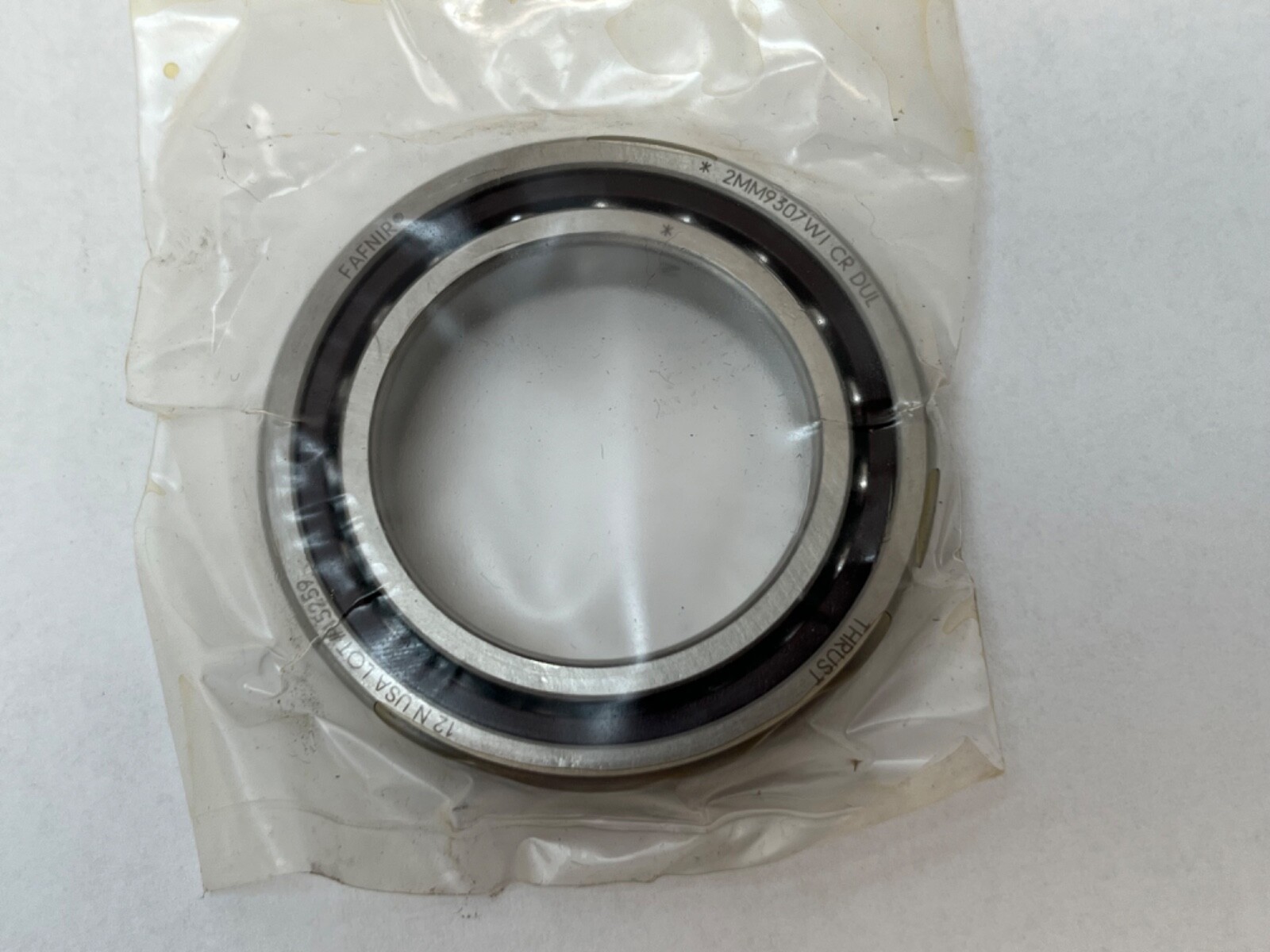

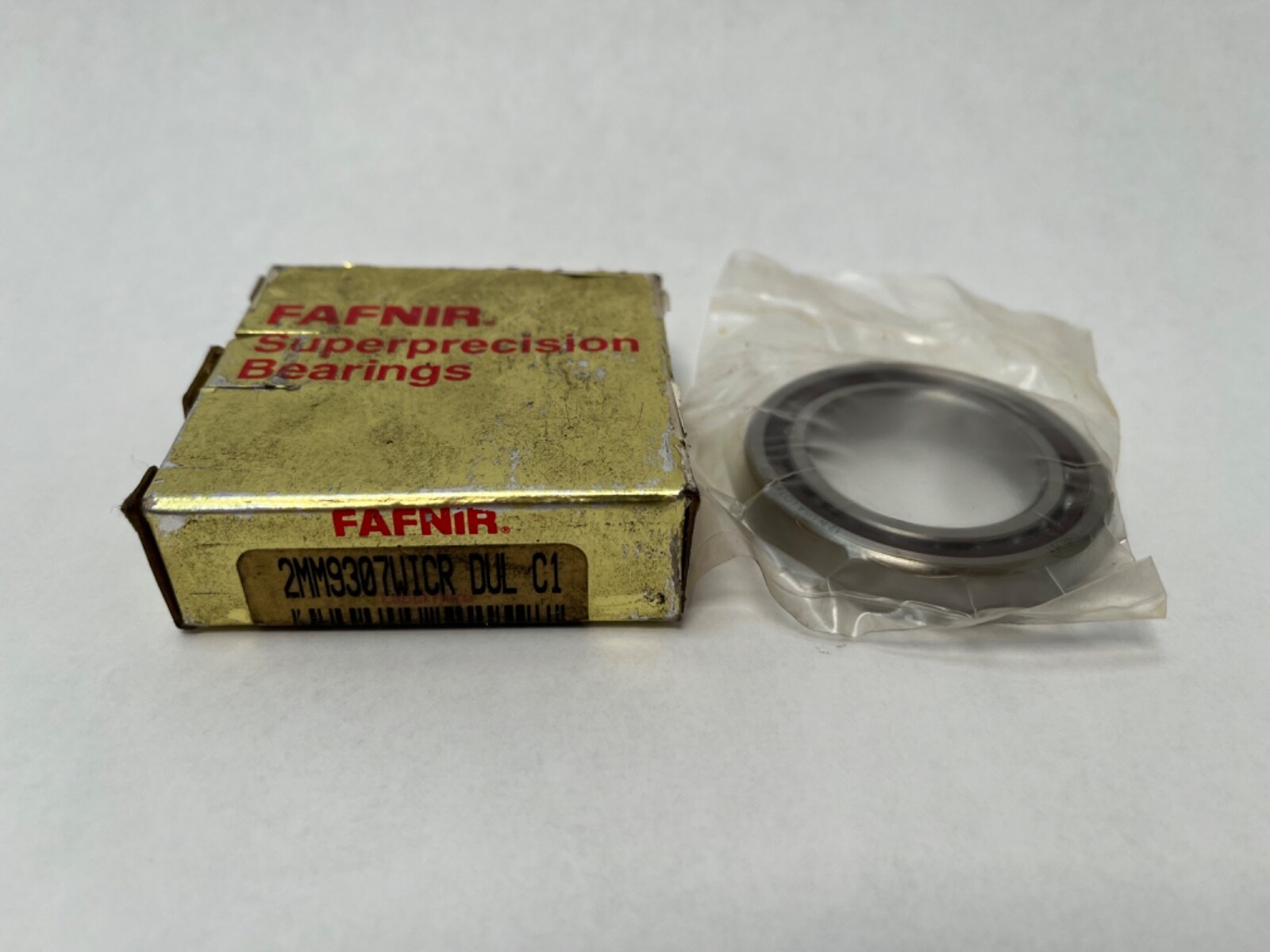

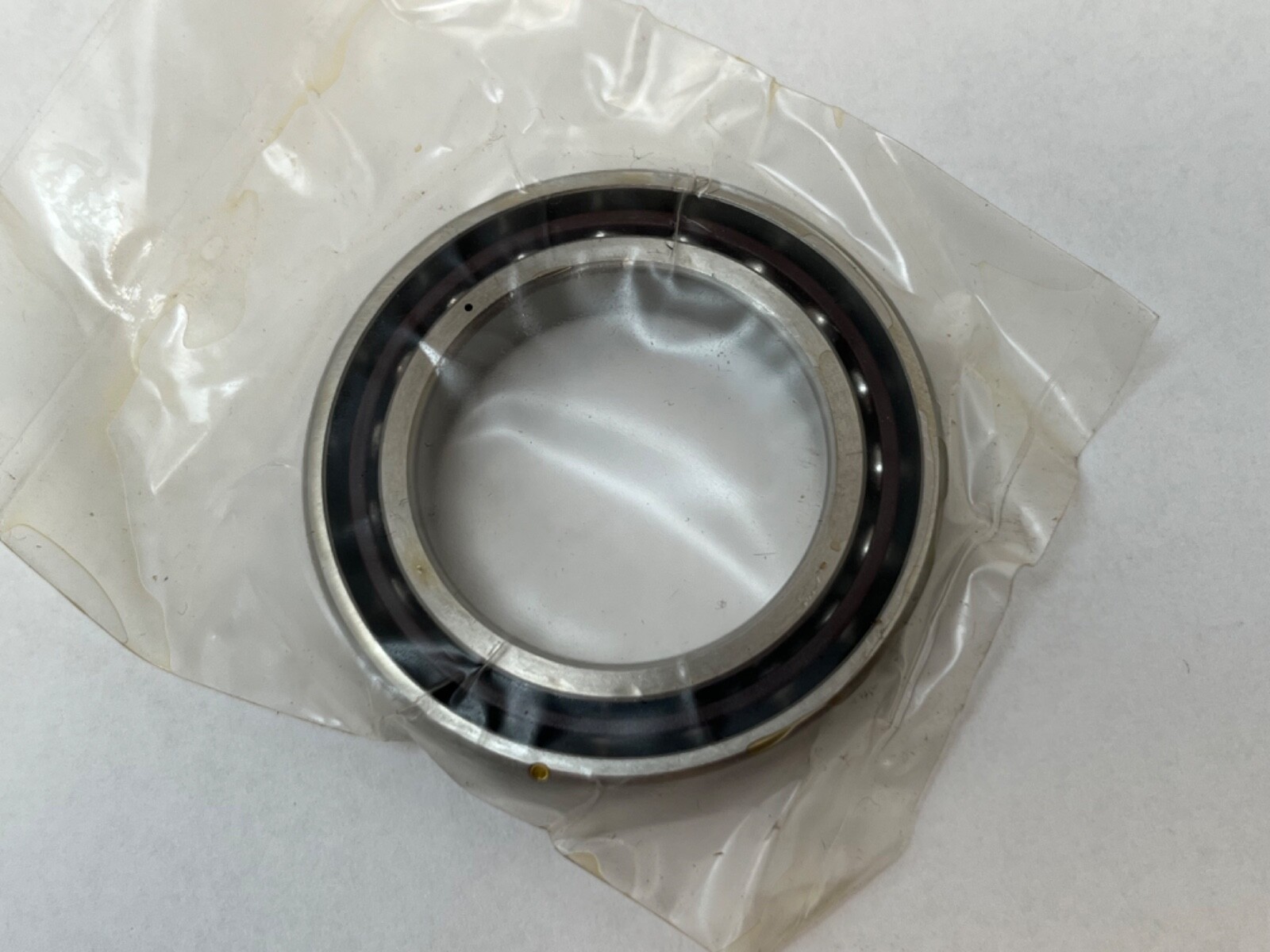

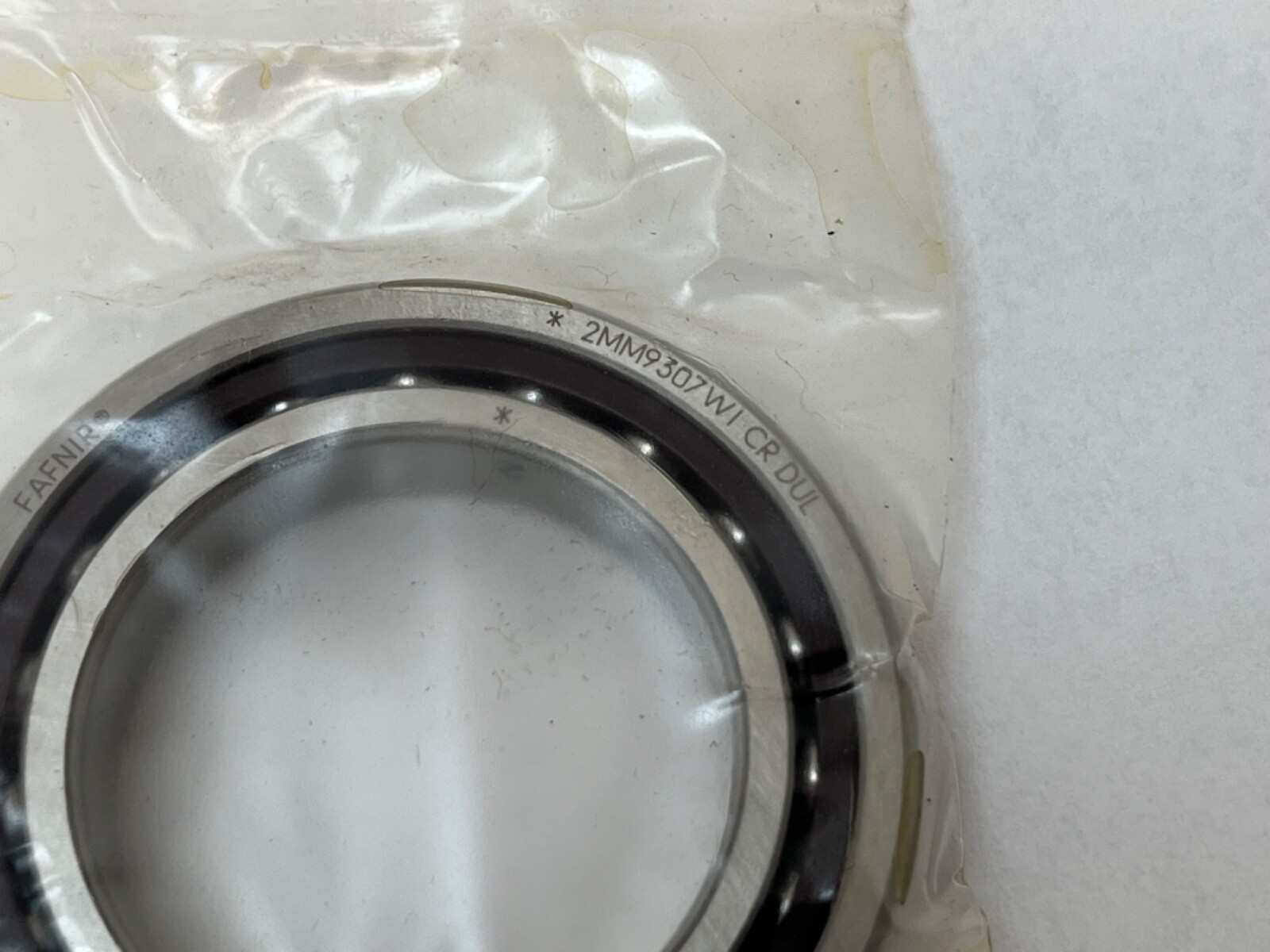

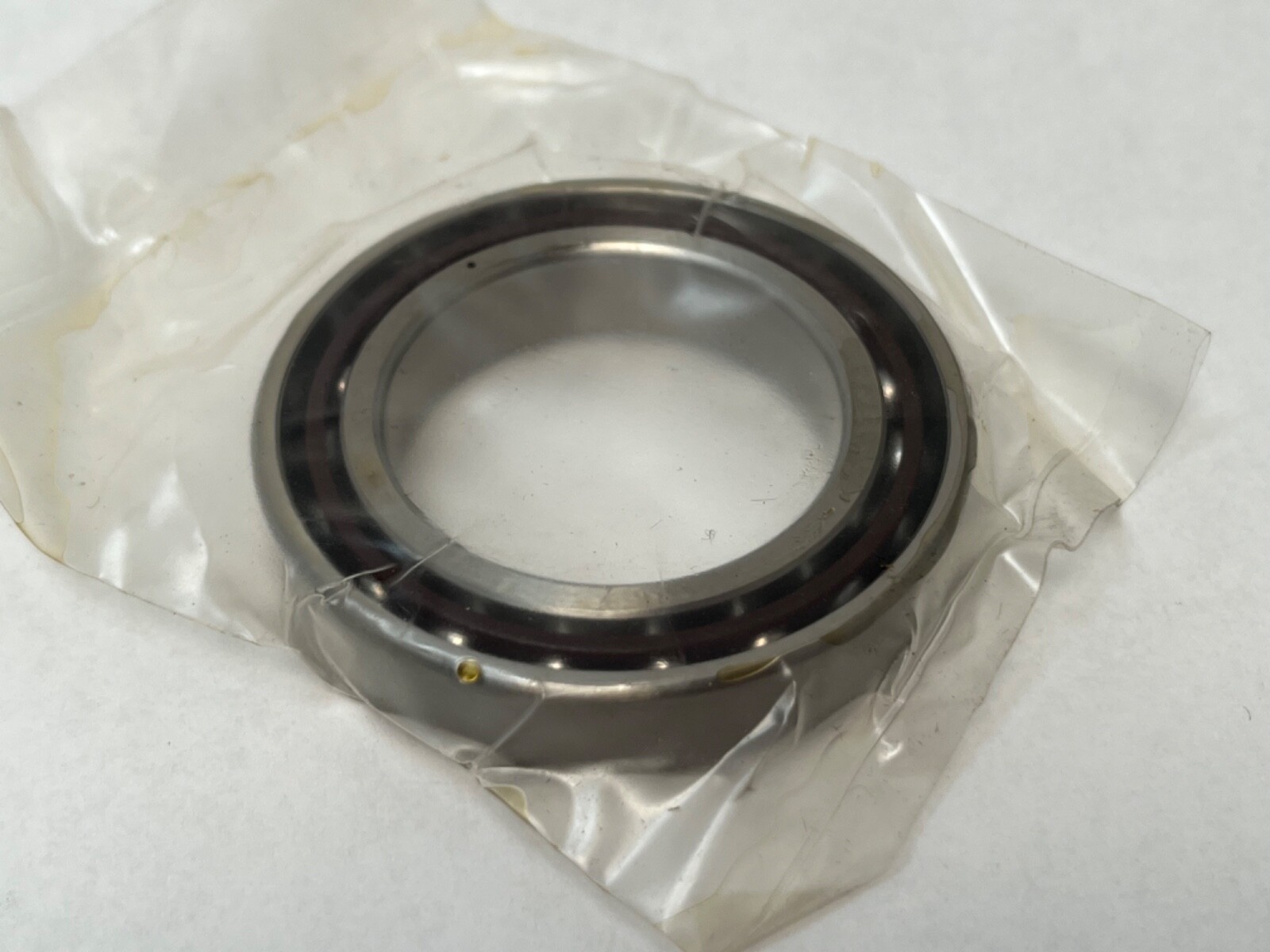

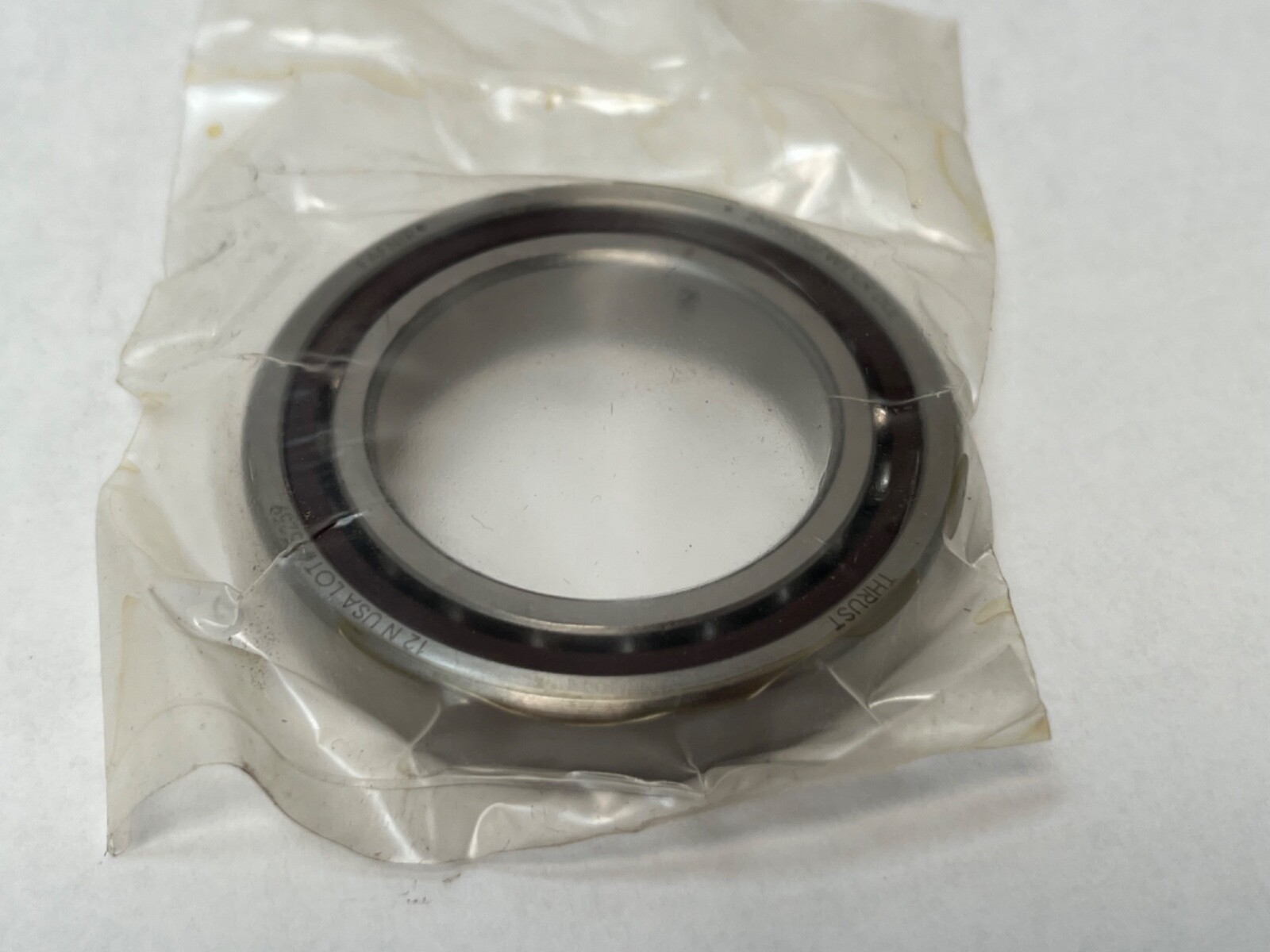

Fafnir 2MM9307WI-SUL super-precision angular contact spindle ball bearing, built by The Timken Company. Part Number: 2MM9307WICRSUL. Base Number: 2MM9307WI. Bearing Type: Angular Contact Ball Bearing. Series: 9300WI. Bore: 35 mm. Bore / Shaft Size: 35 mm. Outside Diameter: 55 mm. Bearing Width: 10 mm. Overall Width: 10 mm. Total Width: 10 mm. Contact Angle: 15°. Precision Rating: ISO P4S (ABEC 7/9). Precision Class: ABEC 7/9. Bearing Class: P4S. Preload: Light. Cage Type: CR – Phenolic Outer Land Riding Cage. Cage Material: Phenolic. Rolling Elements: Steel ball. Material: Bearing Steel. Bearing Material: Bearing steel. Bore Type: Straight. Closure Type: Open. Seal Type: Open. Snap Ring Included: No. Number Of Rows: 1. Design Units: Metric. Lubricant: grease or oil. Relubrication Feature: No. World Part Number: 71907C-T-P4S-SUL. Country of Origin: United States.
The 2MM prefix gives a 15° contact angle and ISO P4S accuracy. 9307 in the 9300WI series is the ISO 71907 envelope. WI denotes a low shoulder on both rings. CR is the phenolic outer-land-riding cage. SU marks a single universally ground bearing, and the trailing L sets light preload when it is mounted against a mate.
Dynamic Radial Load Rating (C1): 12,600 N (2,830 lbf) per bearing. C1 ISO Dynamic Radial Rating per row: 11,500 N (2,570 lbf) per bearing. Static Radial Load Rating (C0): 9,020 N (2,030 lbf) per bearing. Limiting Speed – Grease: 25,400 rpm. Limiting Speed – Oil: 50,800 rpm.
Unit Quantity: 1 Pc. Arrangement / Configuration: Single universally ground. Mounting Arrangement: Universal single. Rows per Set: Single.
Maximum shaft fillet radius: 0.6 mm (0.024 in). Maximum housing fillet radius: 0.6 mm (0.024 in). Shaft Backing Shoulder Diameter: 39.5 mm (1.550 in). Housing Backing Shoulder Diameter: 51.1 mm (2.010 in).
Cross-references: 71907C-T-P4S-SUL, SKF 71907 CDGA/P4A, FAG B71907-C-T-P4S-UL, NSK 7907CTYNSULP4. Harmonization Code: 8482.10.50.68. MPN Variants: 2MM9307WI-SUL, 2MM9307WICRSUL, 2MM 9307 WI CR SUL, 71907C-T-P4S-SUL, 7907C.
