Fafnir 2MM3MM9126WI-TRI angular contact ball bearing, 130mm bore, 200mm OD, 33mm width. Combination triplet set, 15°/25° contact angles, ABEC 7 precision.
List Price
$2,262.34
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearing - 130 mm Bore, 200 mm OD, 33 mm Width, 15° Contact Angle, Open, Phenolic Machined Cage, Heavy Preload Duplex$606.52
Angular Contact Ball Bearing — 130 mm Bore, 200 mm OD, 33 mm Width, 15° Contact Angle, ABEC 7 / P4, Phenolic Cage, Light Preload$1,516.77
Super-Precision Angular Contact Ball Bearing 130x200x33 mm, 15 Degree Contact Angle, Duplex Light Preload, Phenolic Cage, Matched Pair$1,516.77
Angular Contact Ball Bearing - 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Open$290.56| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM3MM9126WITRI |
| GTIN | 087796092372 |

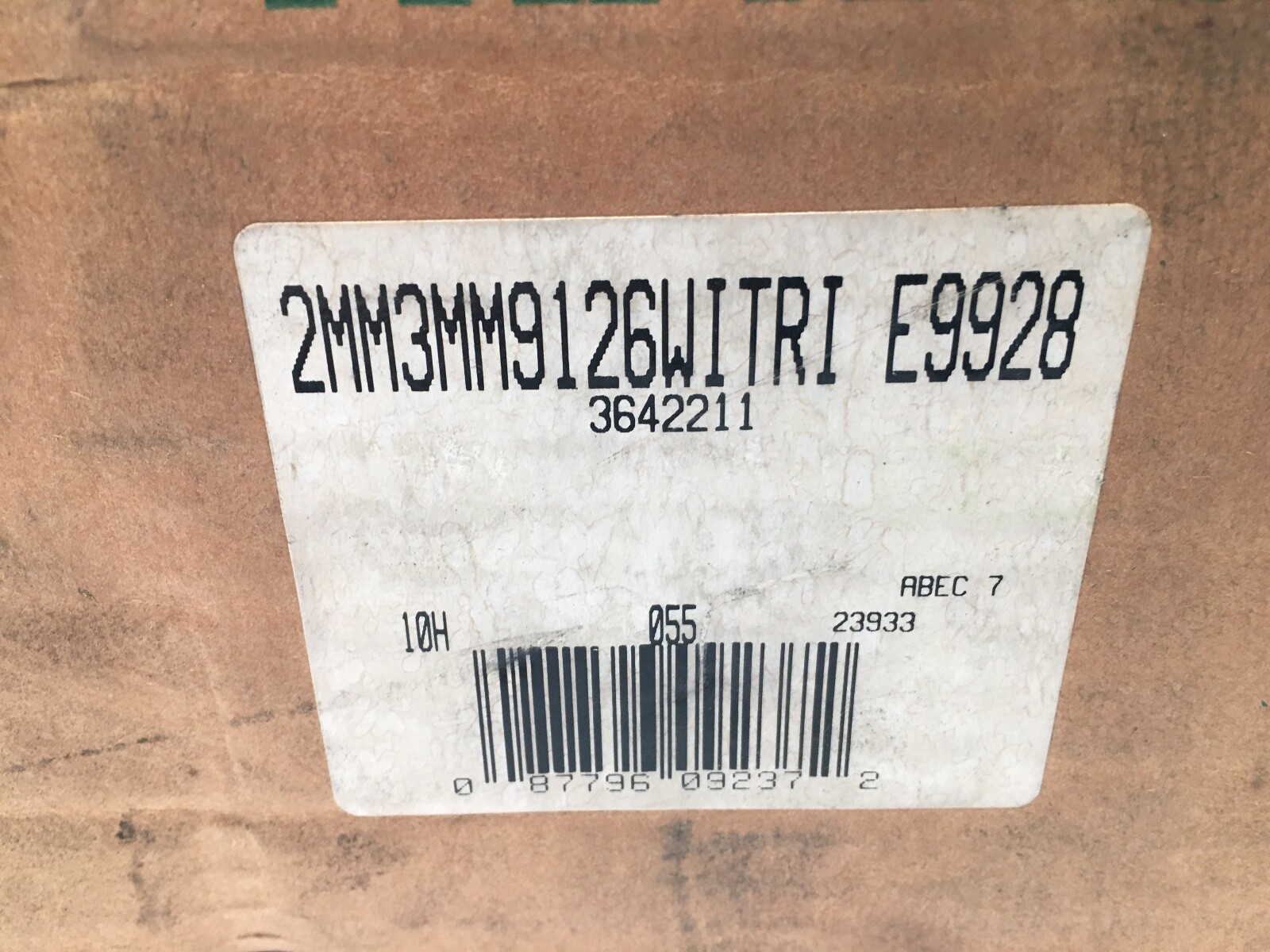

| Model | (2MM 3MM 9126 WI CR TRI) (2/3MM 9126 WI CR TRI) E9928 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Precision Class | ABEC 7 / P4 |
|---|---|
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Bore Type | Straight |
| Contact Angle | 15° / 25° |

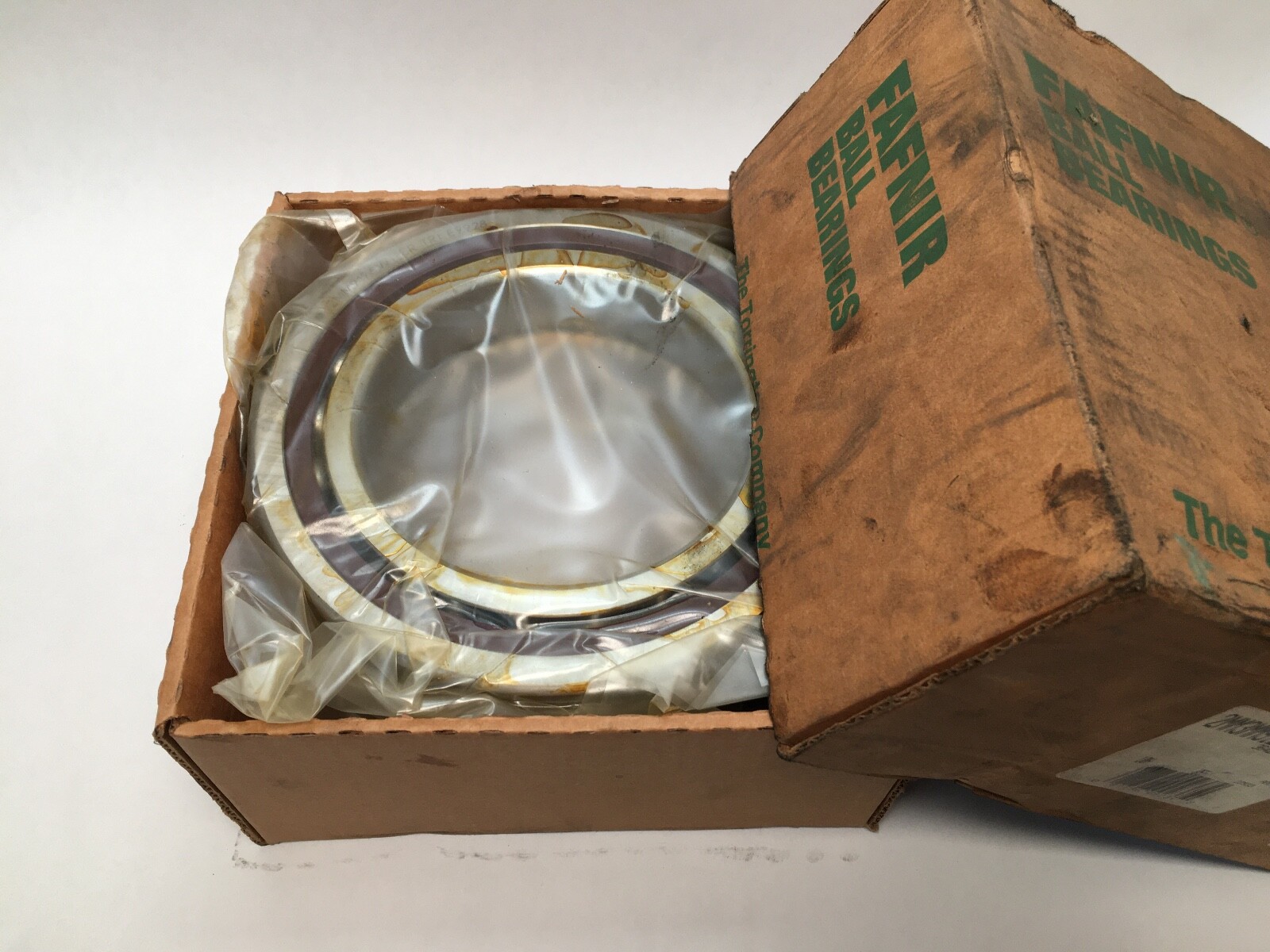

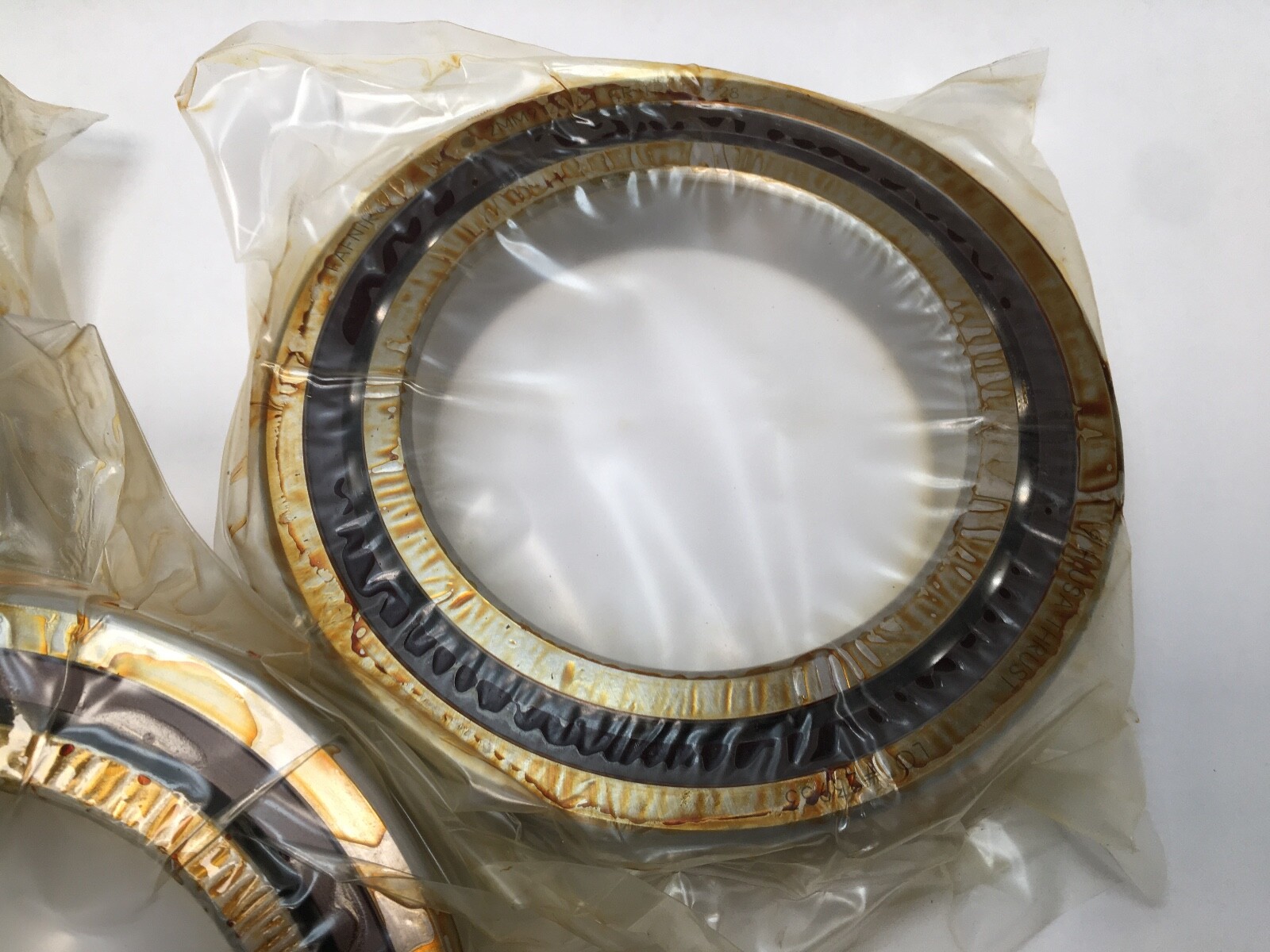

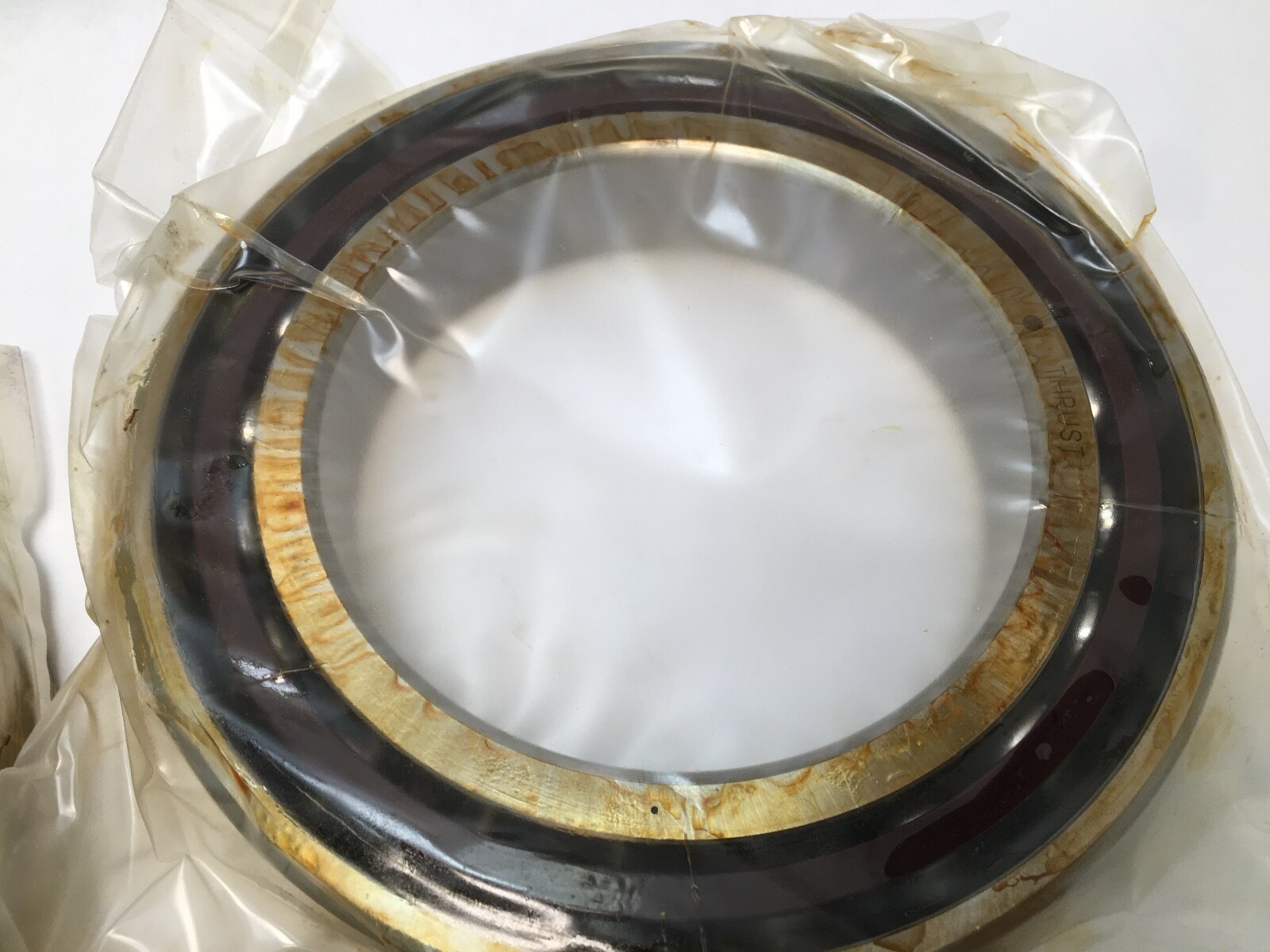

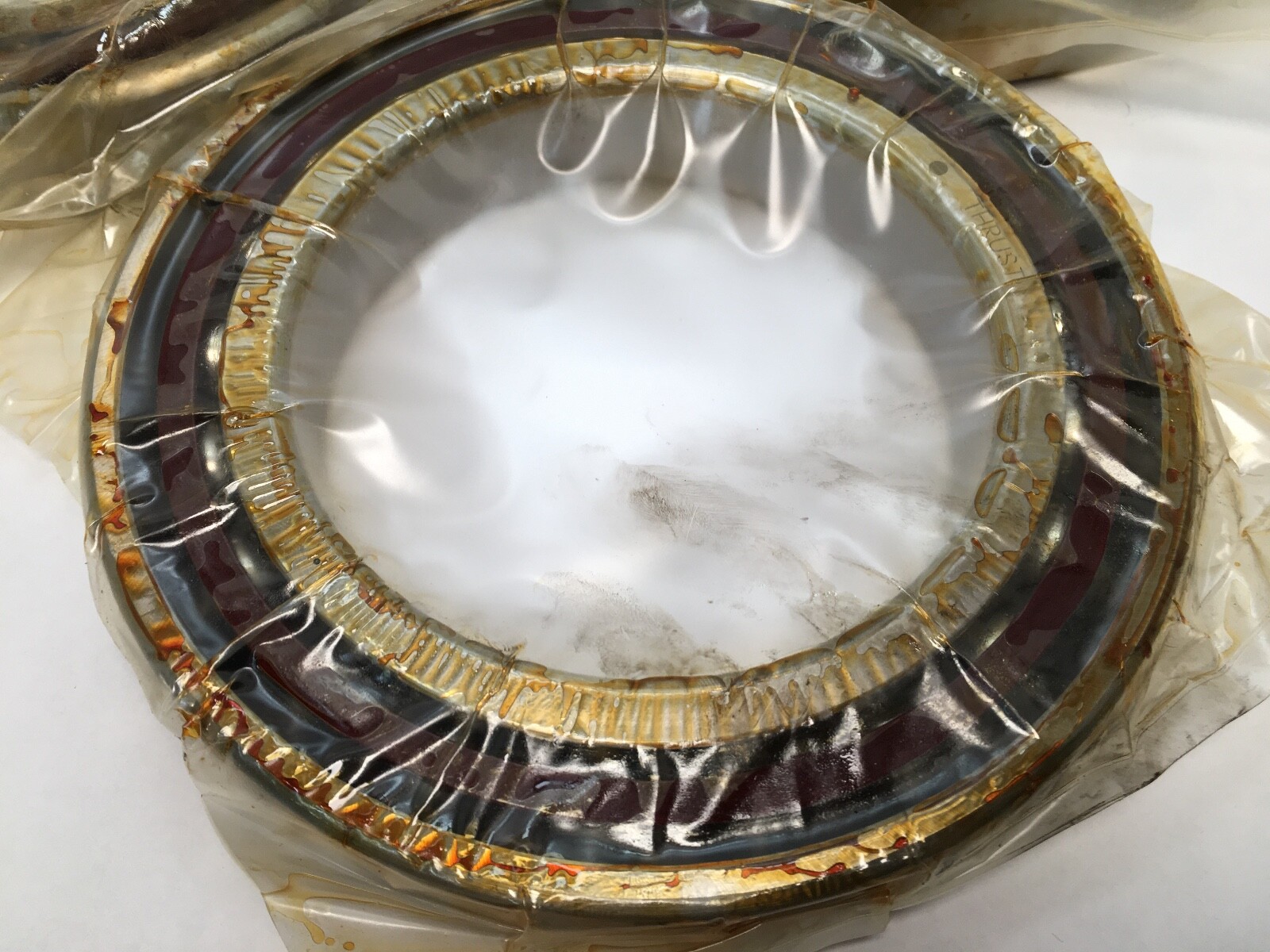

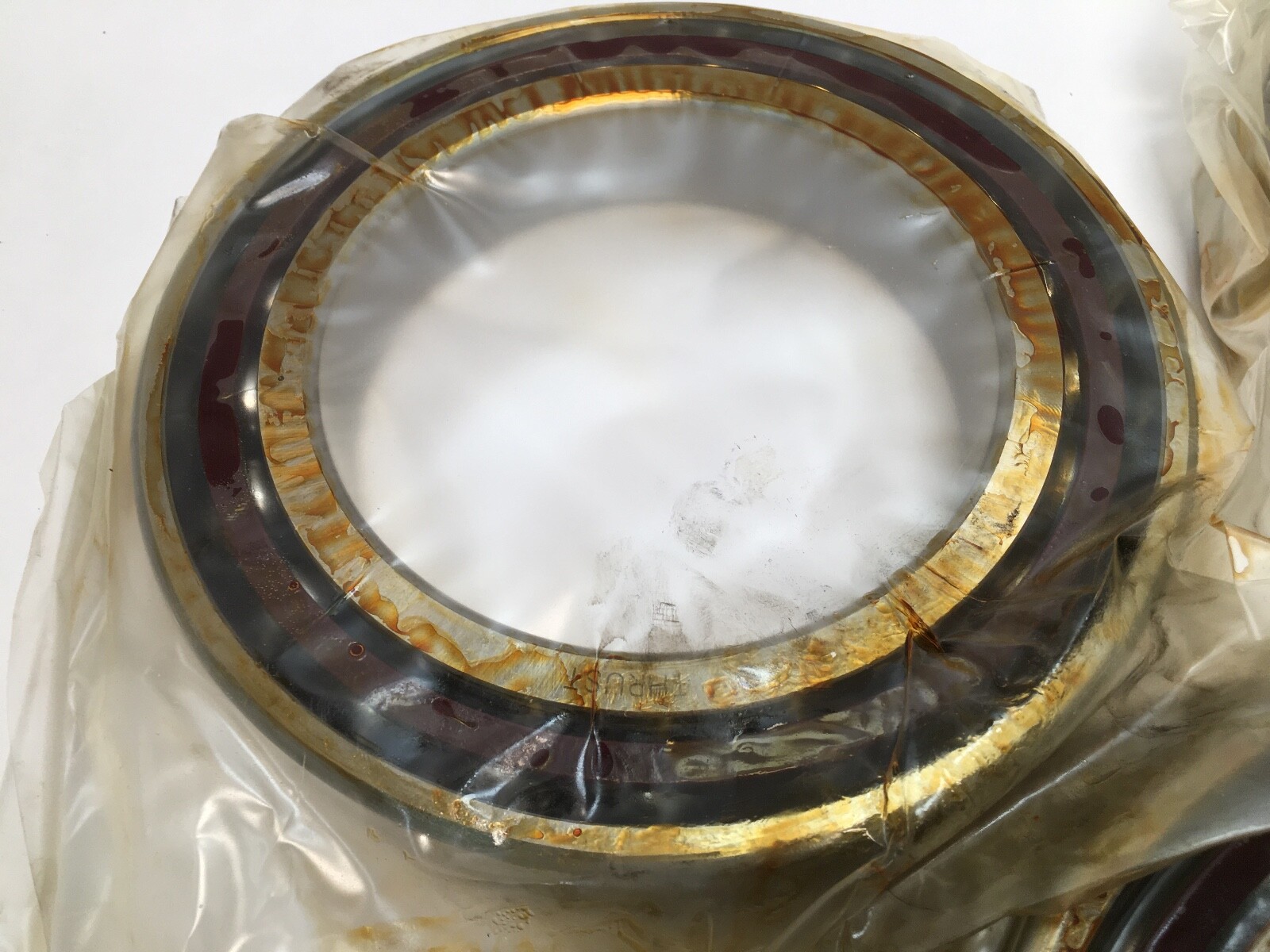

Angular contact ball bearing, 130 mm bore, 200 mm outside diameter, 33 mm width. Combination triplet set ground for spindle mounting.

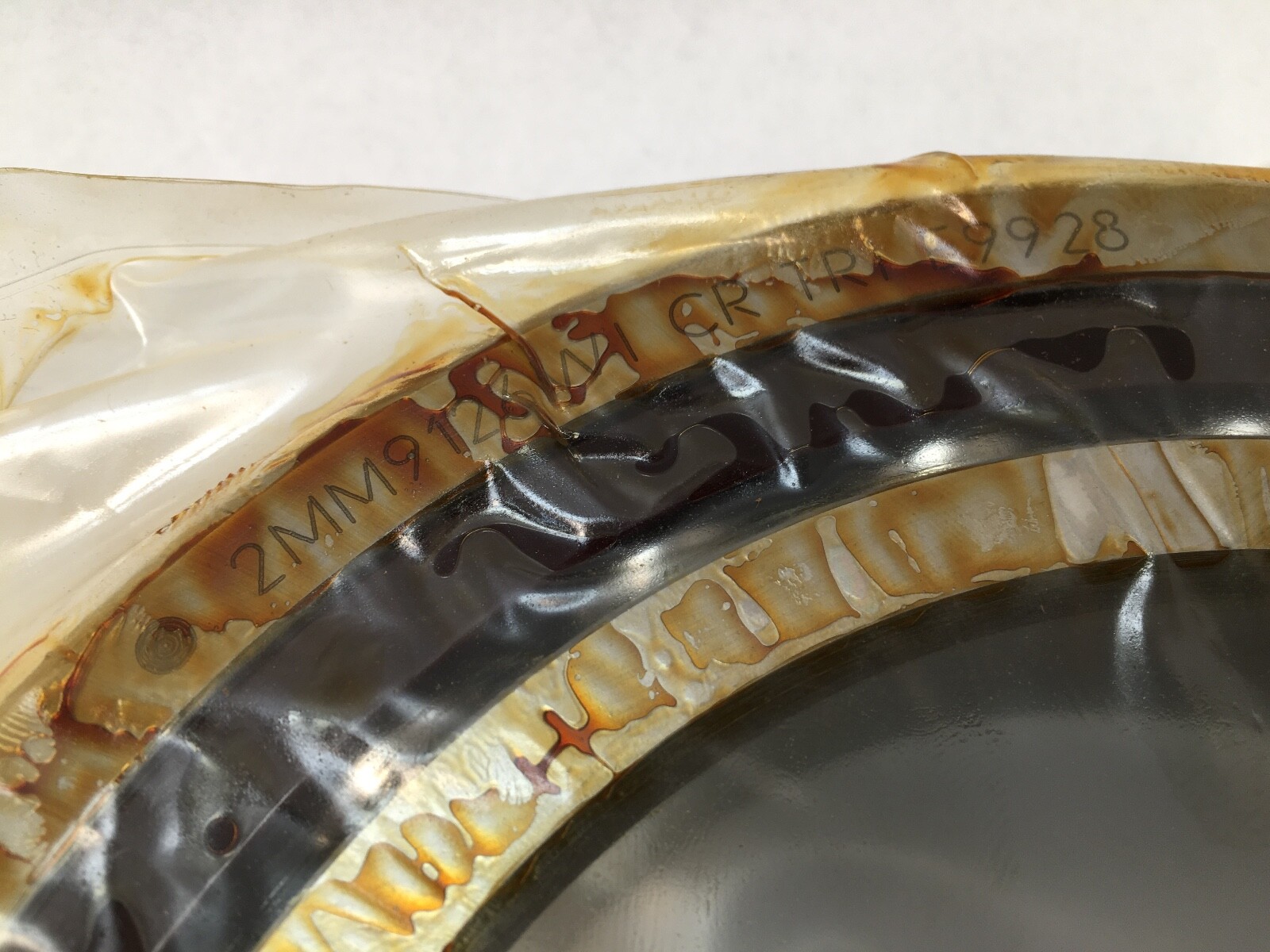

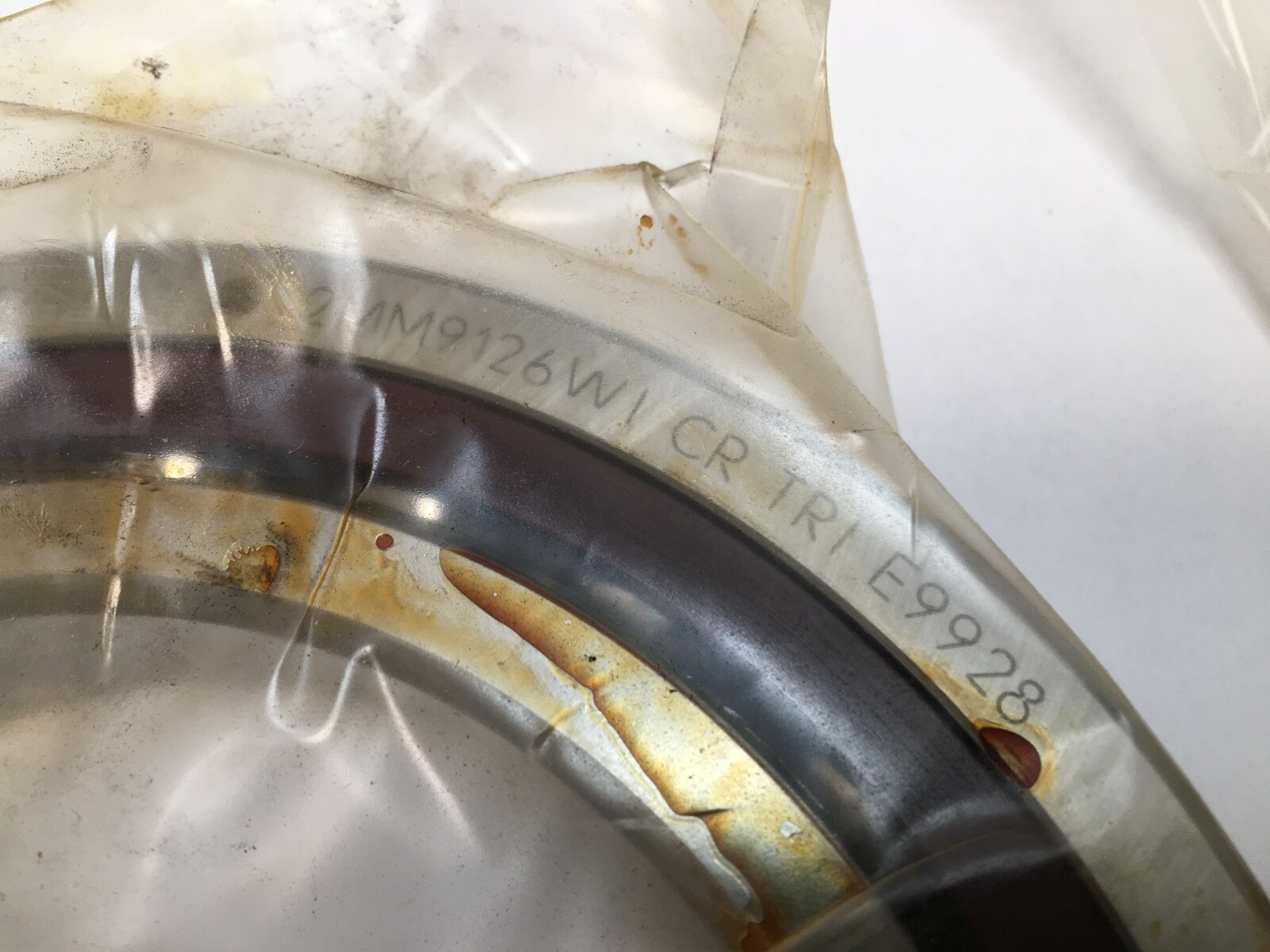

2MM — Fafnir 15° contact angle series, ABEC 7 / ISO P4 precision.

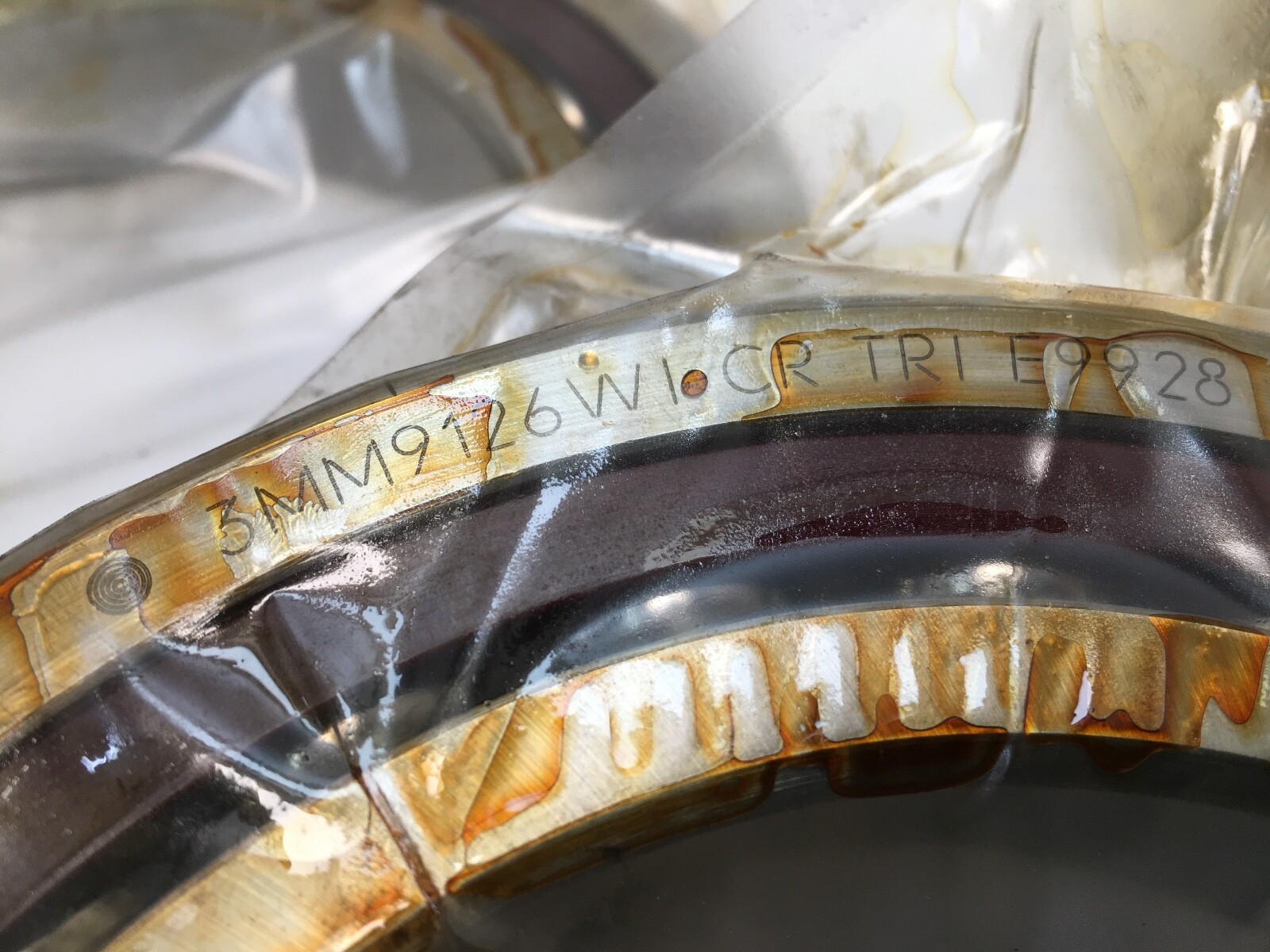

3MM — Fafnir 25° contact angle series, ABEC 7 / ISO P4 precision.

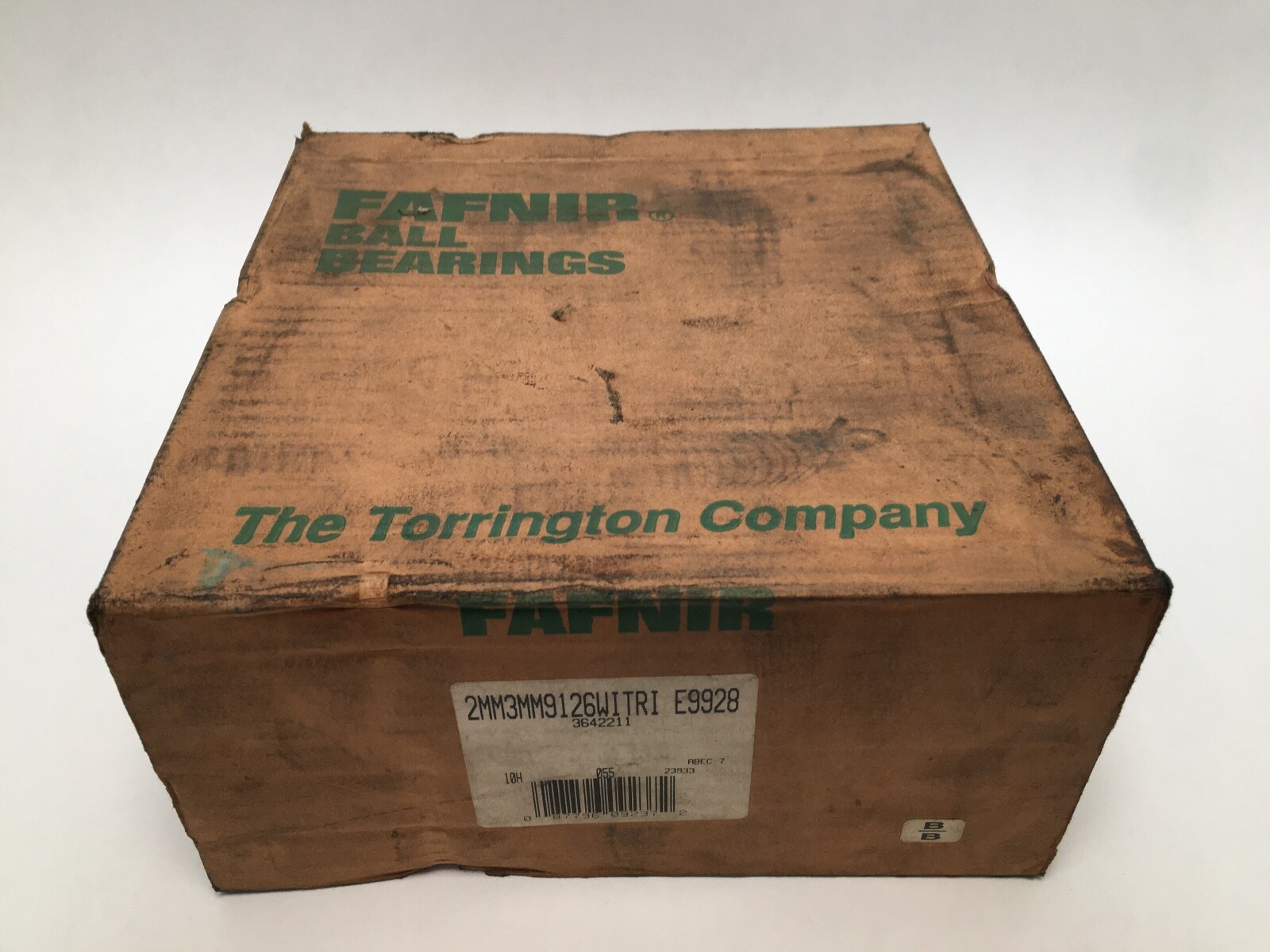

9126 — Fafnir’s size code for the 130 x 200 x 33 mm envelope, cross-referenced on the carton as 7026.
WI — low-shoulder form, ground for set mounting.
CR — phenolic cage.
TRI — triplet set, three bearings ground together as a matched combination.
Bore Diameter: 130 mm. Outside Diameter: 200 mm. Overall Width: 33 mm. Contact Angle: 15° / 25°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Closure Type: Open.
The set combines a 15° pair with a 25° bearing, giving mixed axial capacity in a single spindle-mount triplet.

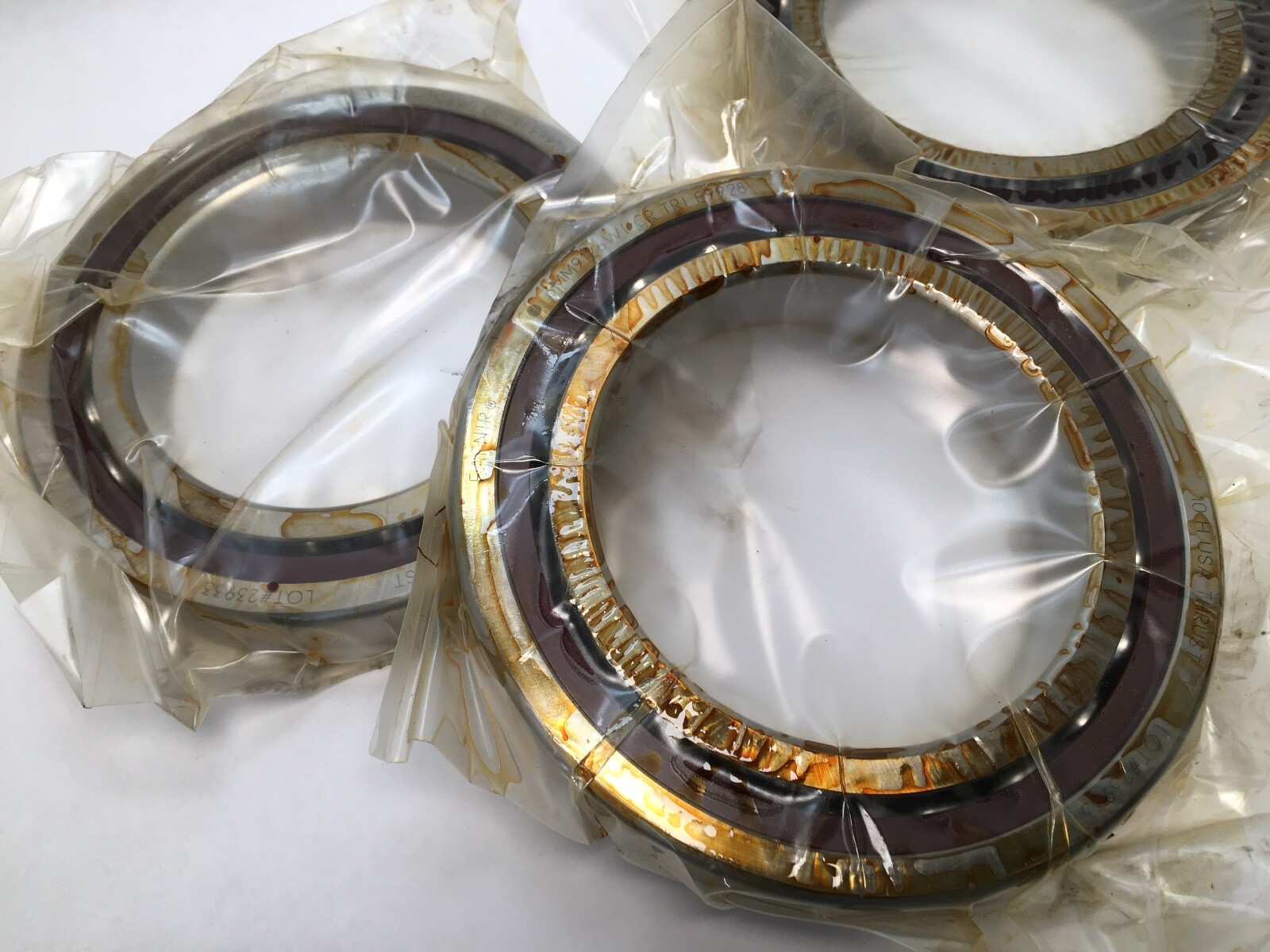

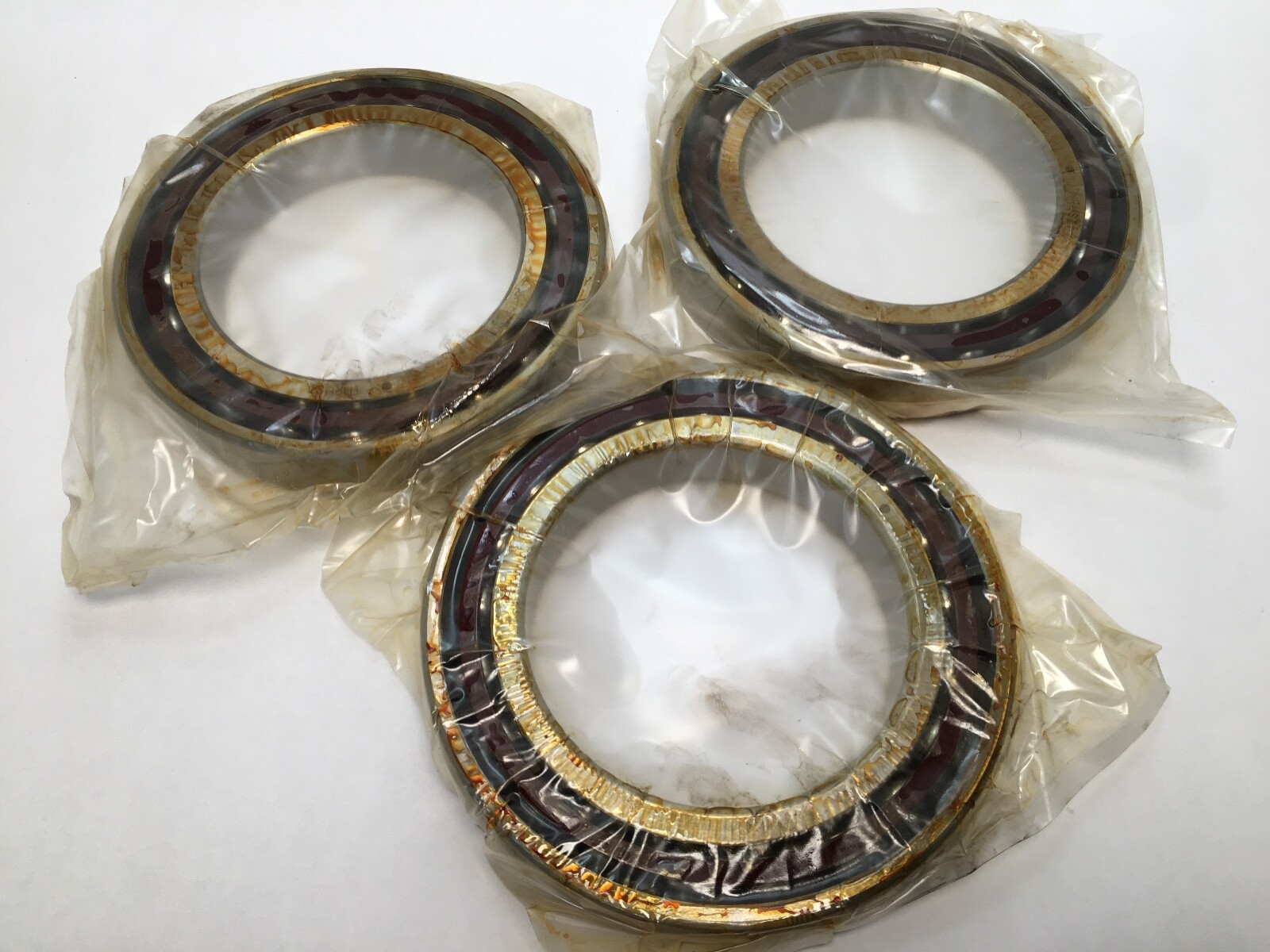

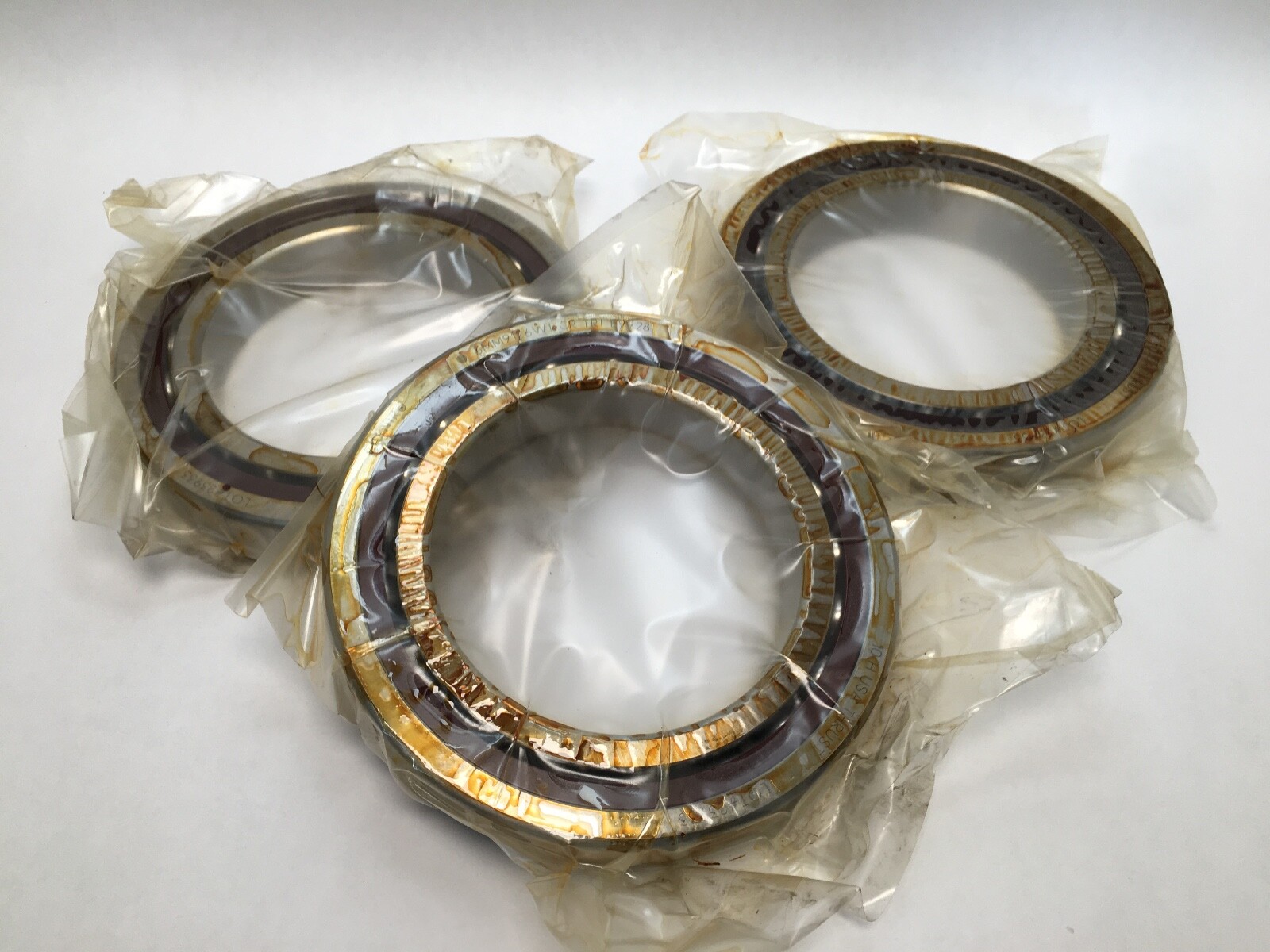

Unit Quantity: 3 Pcs. Sold as one matched triplet set.
