Availability:
Out of stock
List Price
$87.64
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing 85x150x28 mm, 15° Contact Angle, Phenolic Cage, ABEC 7, Light Preload, Single Universally Ground, Medium 72-Series Section$275.20
Angular Contact Ball Bearing - 85 mm ID, 150 mm OD, 28 mm Width, Open, 15° Contact Angle, Medium Preload.$91.77
Angular Contact Ball Bearing 85 x 150 x 28 mm, 29° Contact Angle, Universally Matchable, Open$73.20

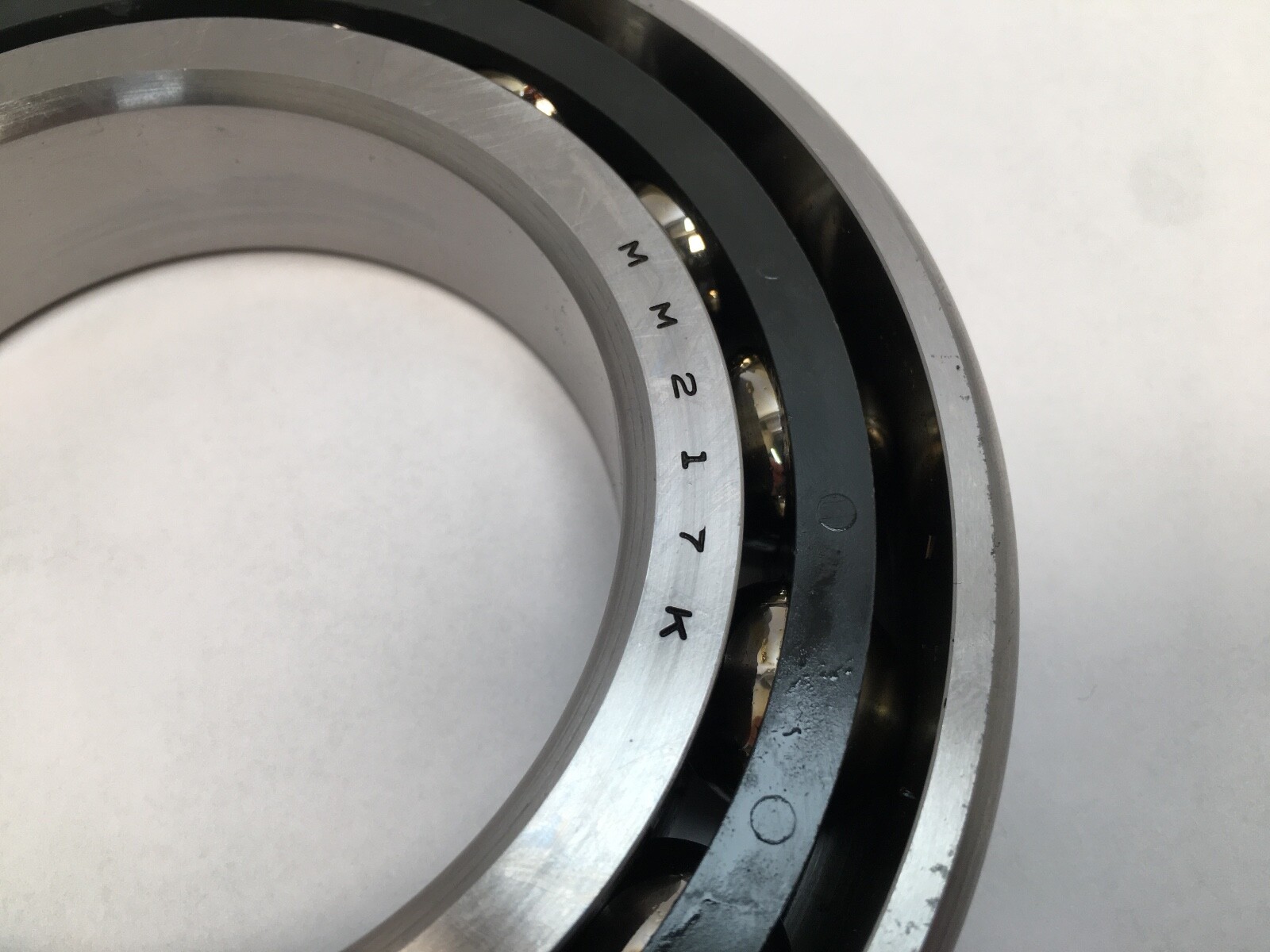

Single-Row Angular Contact Ball Bearing - 85 mm Bore, 150 mm OD, 28 mm Width, Open, 40° Contact Angle, Machined Brass Cage$74.70| MFR / Brand | Fafnir |
|---|---|

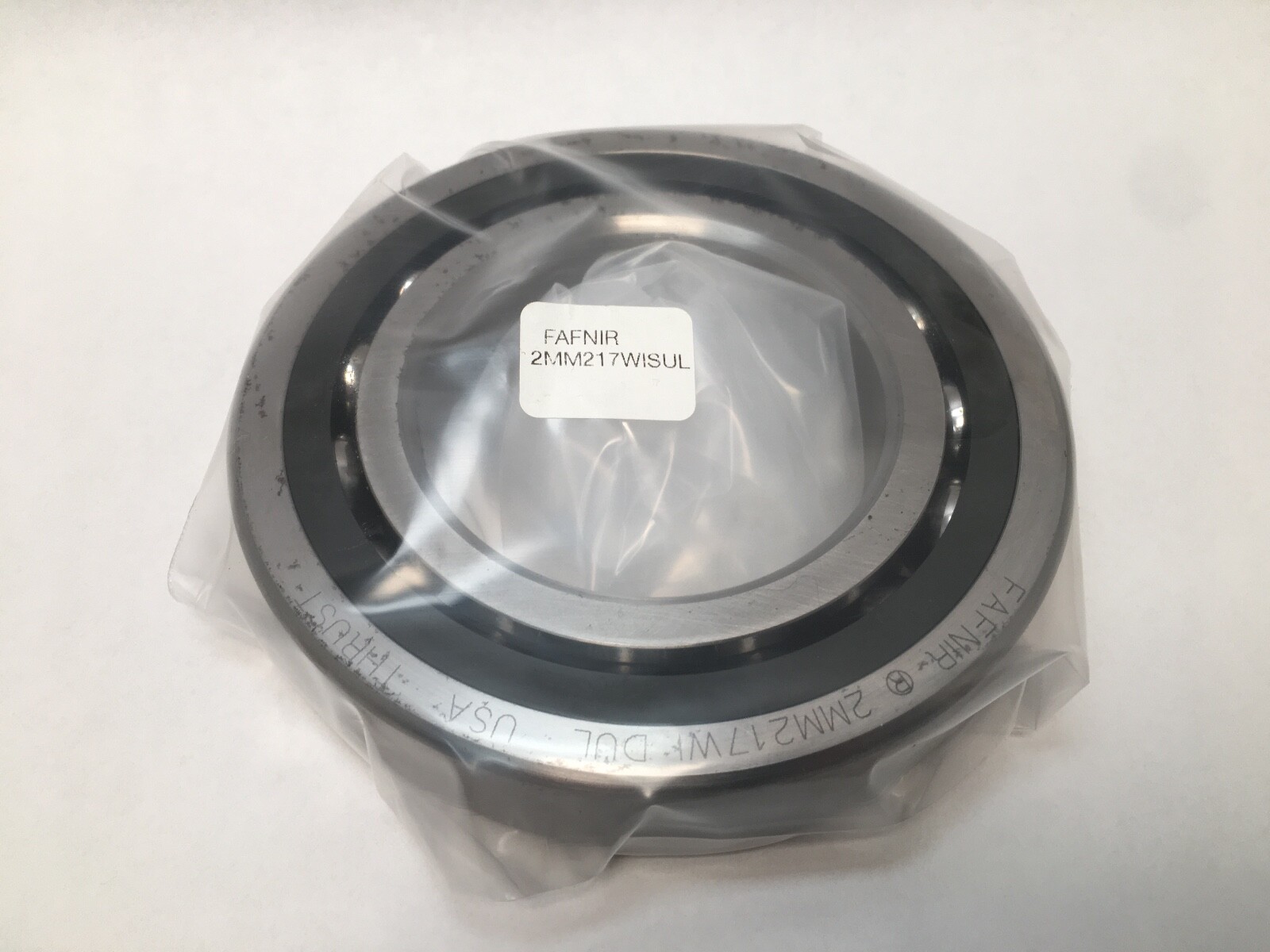

| MPN | 2MM217WISUL |
| Model | 7217-C 2MM 217 WI SUL ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | 200WI |
| Lubricant | Oil |
| Preload | Light Preload |
| Min Temp | -30 °C |
| Dynamic Load Rating | 108 kN / 24280 lbf |
| Static Load Rating | 96 kN / 21580 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 121 °C |
| Item Weight | 3.90 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 7500 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7217 CDGA/P4A |
|---|---|
| Cross Reference 2 | FAG B7217-C-T-P4S-UL |
Angular Contact Ball Bearing – 85 mm ID, 150 mm OD, 28 mm Width, Open, 15°, Light preload
$231.30
29 in stock
