Matched triple set of super-precision angular contact ball bearings, 75 mm bore, 130 mm OD, 25 mm wide, ABEC 7 / P4. Two at 15°, one at 25°, light preload.
List Price
$672.09
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearing Pair - 75 mm Bore, 130 mm OD, 25 mm Width, 15° Contact Angle, Light Preload, Open$224.05
Angular Contact Ball Bearing — 75 mm ID, 130 mm OD, 25 mm Width, 15° Contact Angle, Light Preload, Phenolic Cage, ABEC 7/9$224.05
Super-Precision Angular Contact Bearing Matched Pair 75x130x25 mm 15° Light Preload Phenolic Cage ABEC 7/9$448.10
Angular Contact Ball Bearing - 75 mm ID, 130 mm OD, 25 mm Width, 15° Contact Angle, Medium Preload Duplex Pair, ABEC 7/9$448.10| MFR / Brand | Fafnir |
|---|---|
| MPN | 2/3MM215WITUL |
| Model | 2/3MM 215 WI TUL / (2) 15° (1) 25° |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Steel |
|---|---|
| Base Number | 2MM/3MM215WI |
| Industry Terms | Super-precision angular contact bearing, Machine tool spindle bearing set, Matched triple set, Precision spindle bearing |
| Application Types | Machine tool spindles, High-speed precision spindles, Grinding spindles |
| Overall Width | 25 mm |
| Mpn Variants | 2/3MM215WI-TUL, 2MM/3MM-215-WI-TUL, 2/3MM215WITUL, 2MM215WI, 3MM215WI, 2/3MM 215 WI TUL, 7215 |
| Arrangement Configuration | Matched triple set, two bearings at 15° and one at 25° |
| Precision Class | ABEC 7 / P4 |
| Series | 7200 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Contact Angle | 15° and 25° |
| Preload | Light |
| Mounting Arrangement | Universal |
| Bearing Material | Steel |
| Cross Reference 1 | SKF 7215 |
|---|---|
| Cross Reference 2 | FAG 7215 |
| Cross Reference 3 | NSK 7215 |
| Cross Reference 4 | NTN 7215 |
| Cross Reference 5 | RHP 7215 |
| Cross Reference 6 | Koyo 7215 |
| Cross Reference 7 | MRC 7215 |
| Cross Reference 8 | SNR 7215 |

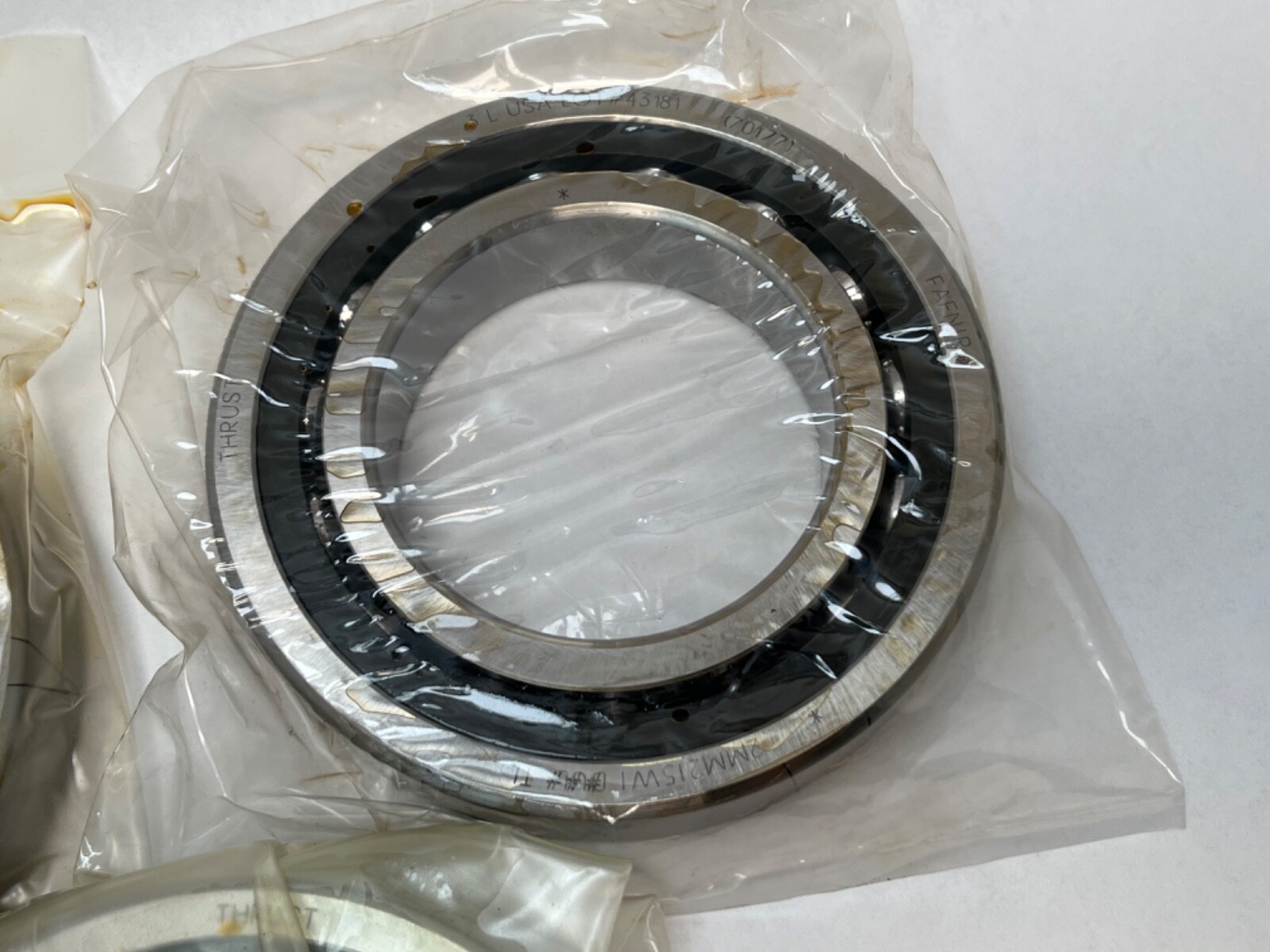

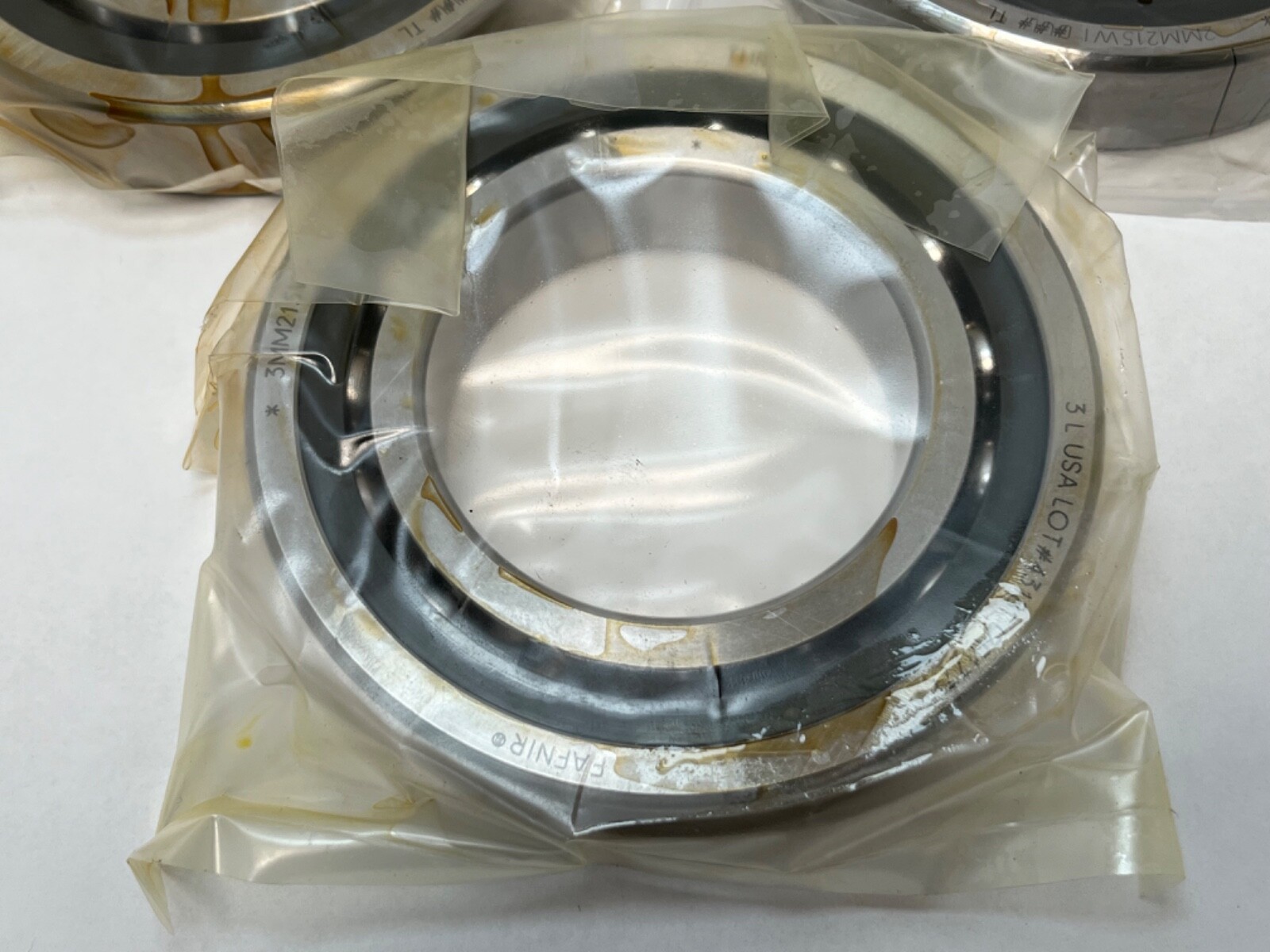

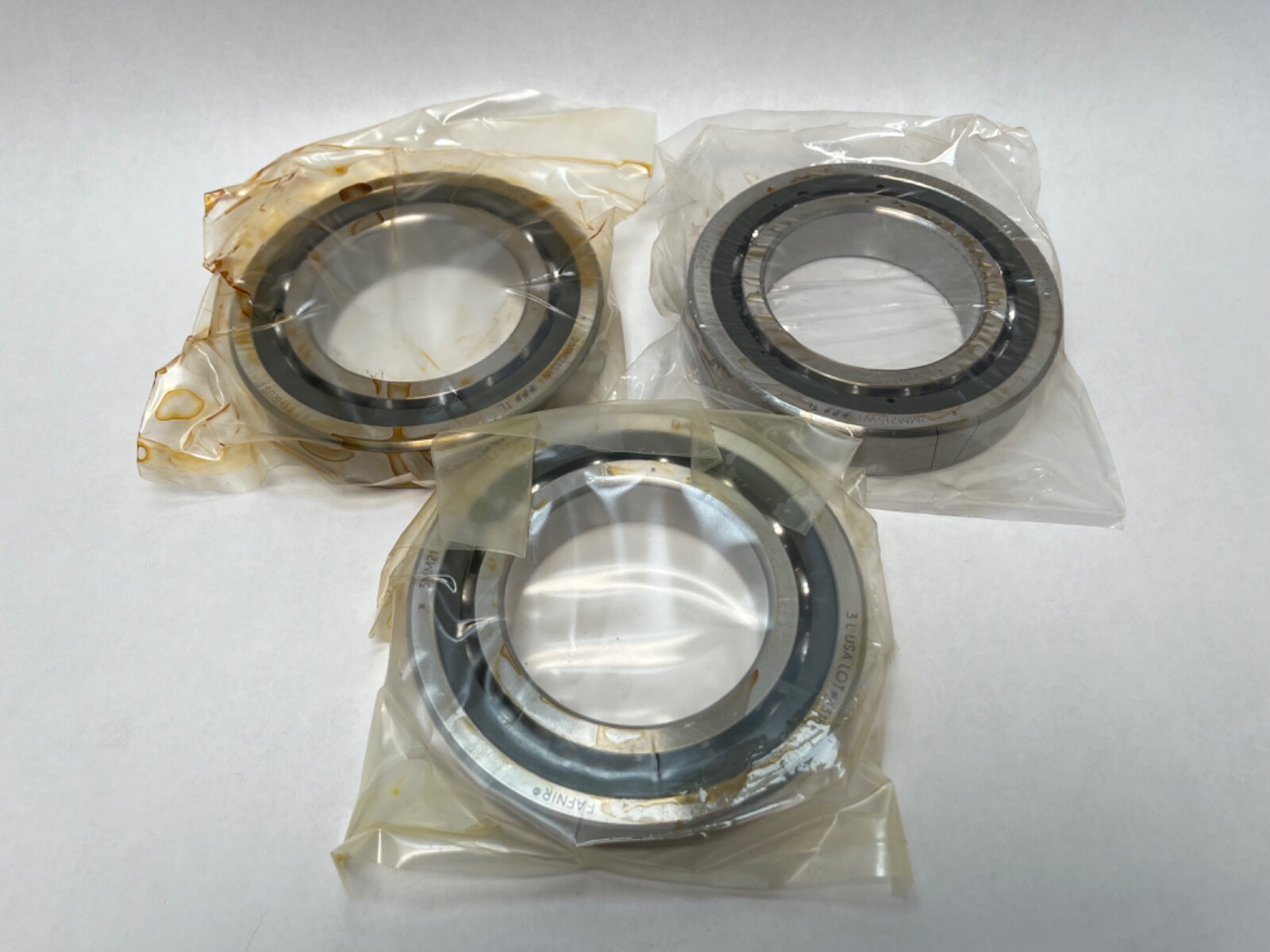

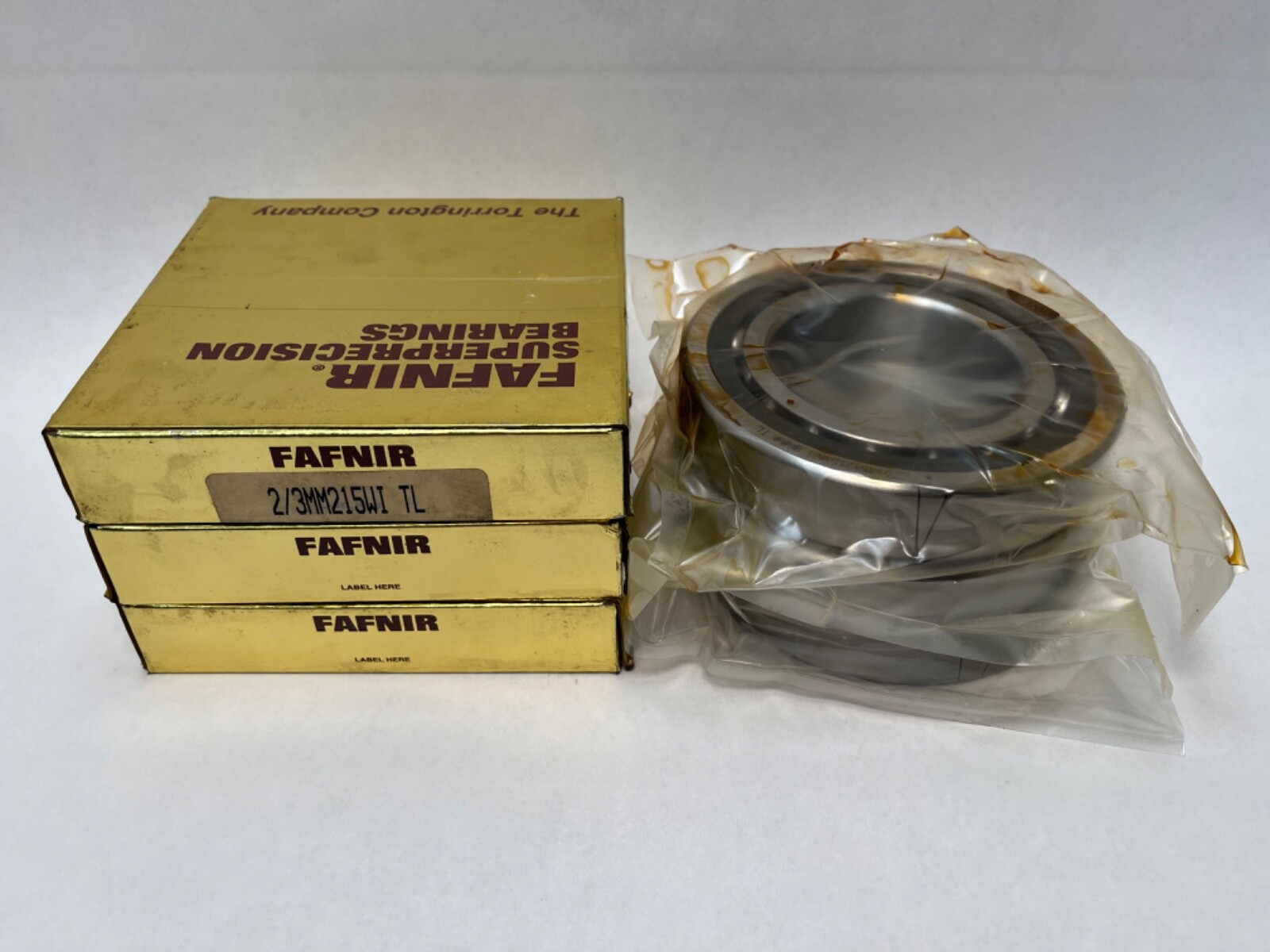

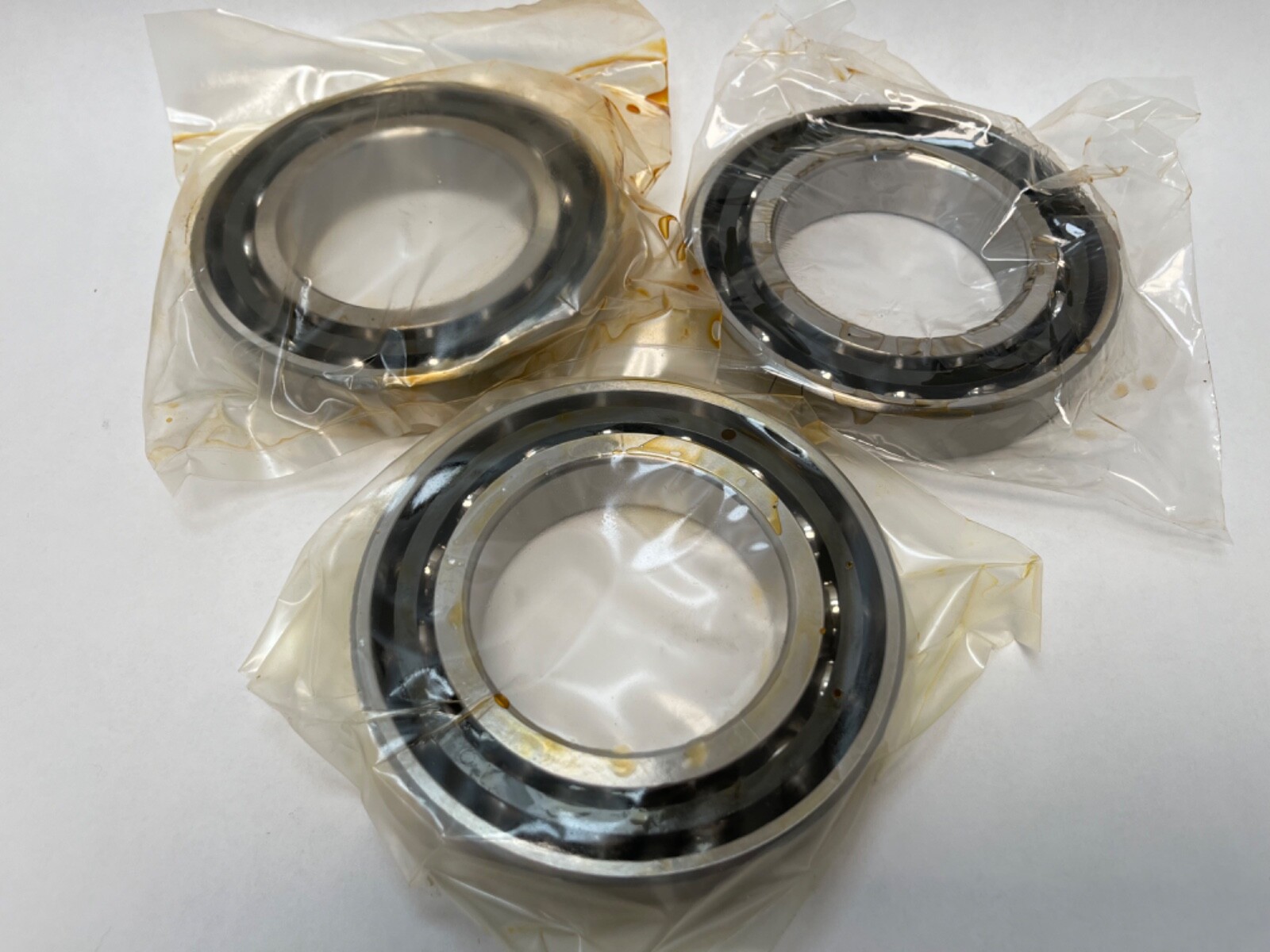

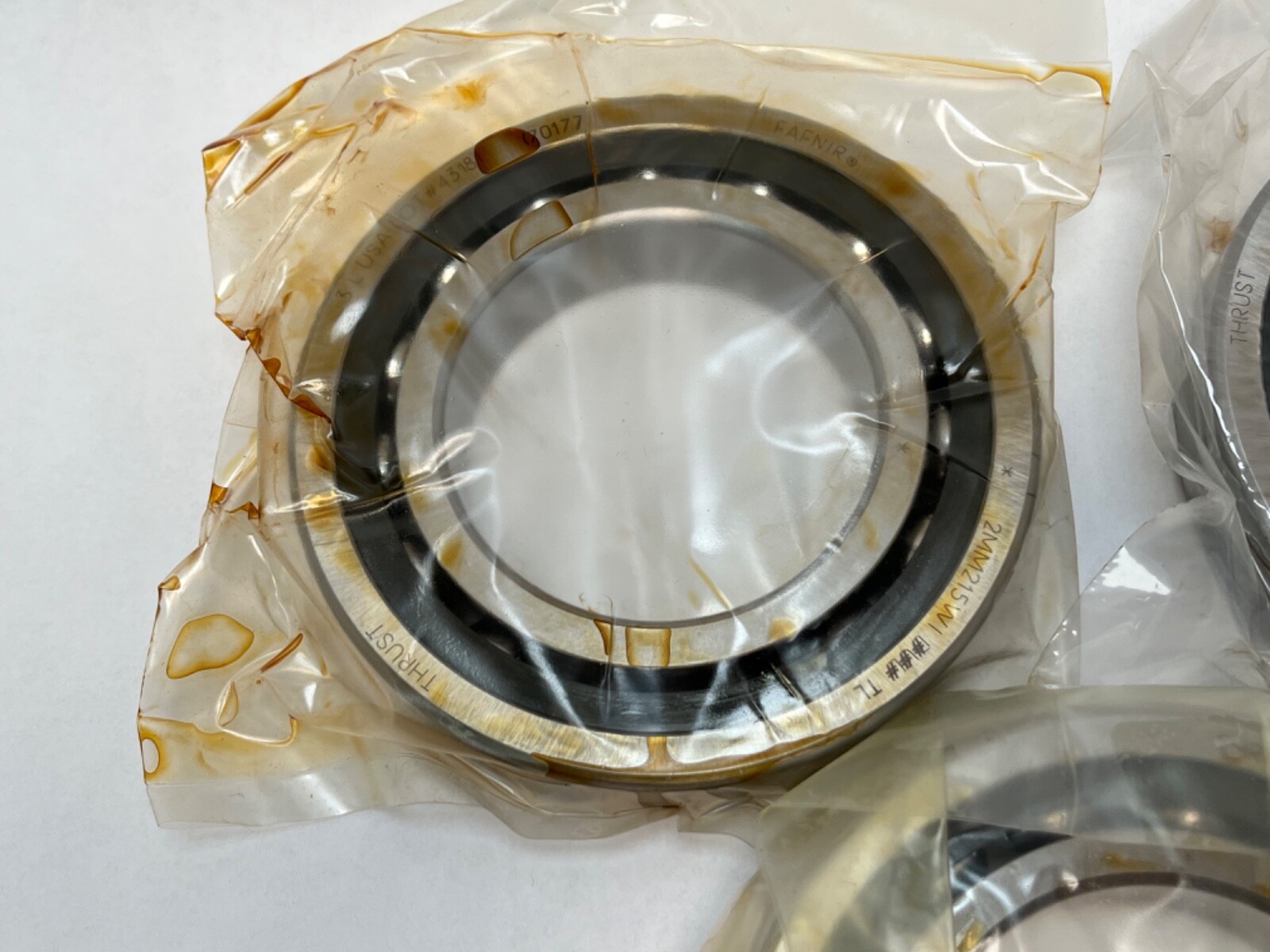

Fafnir 2MM/3MM215WI TUL matched triple set of super-precision angular contact ball bearings. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm per bearing. Precision Class: ABEC 7 / P4. Unit Quantity: 3 Pcs. The envelope is the ISO 7215 size.
2MM — Timken/Fafnir super-precision class at a 15° contact angle, ISO P4 / ABEC 7.
3MM — the same super-precision class at a 25° contact angle.
215 — the ISO 7215 size: 75 mm bore, 130 mm outside diameter, 25 mm width.
WI — low shoulder on both rings, the ground duplex form.
TUL — triple universally ground, light preload. The three bearings are ground as one matched stack.
Contact Angle: 15° and 25°. Two bearings carry the 15° angle and one carries 25°. A 15° angle favours speed and radial stiffness; 25° carries more axial load.
Preload: Light. Mounting Arrangement: Universal. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Bearing Material: Steel. Series: 7200.
Unit Quantity: 3 Pcs. Arrangement / Configuration: matched triple set, two bearings at 15° and one at 25°, ground for light preload.
The 75 x 130 x 25 mm envelope is the ISO 7215 size, carried by SKF, FAG, NSK, NTN, RHP, Koyo, MRC and SNR under the same 7215 base number. Those crosses are on the single-bearing envelope; this listing is a factory-matched three-bearing stack.
