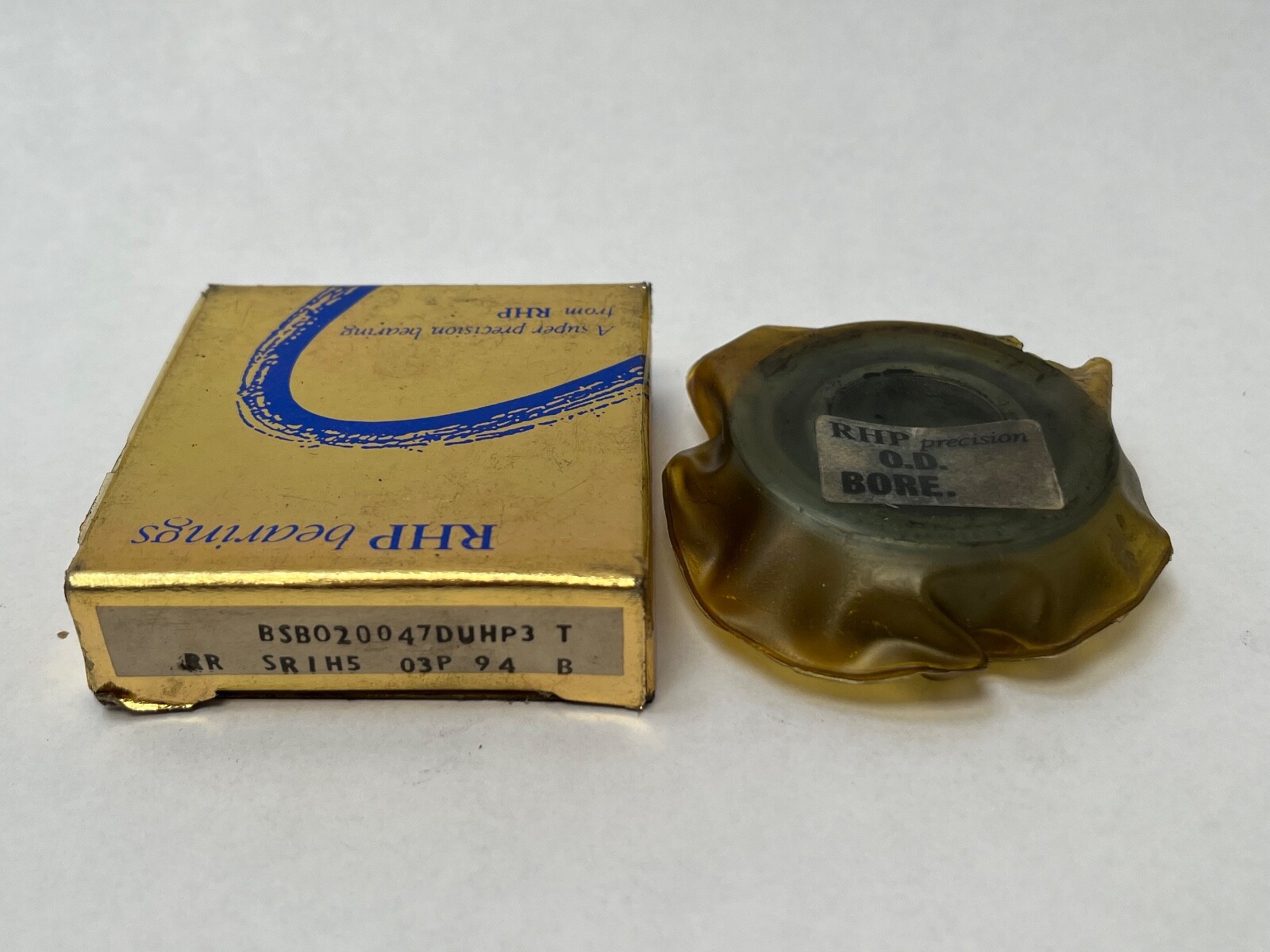

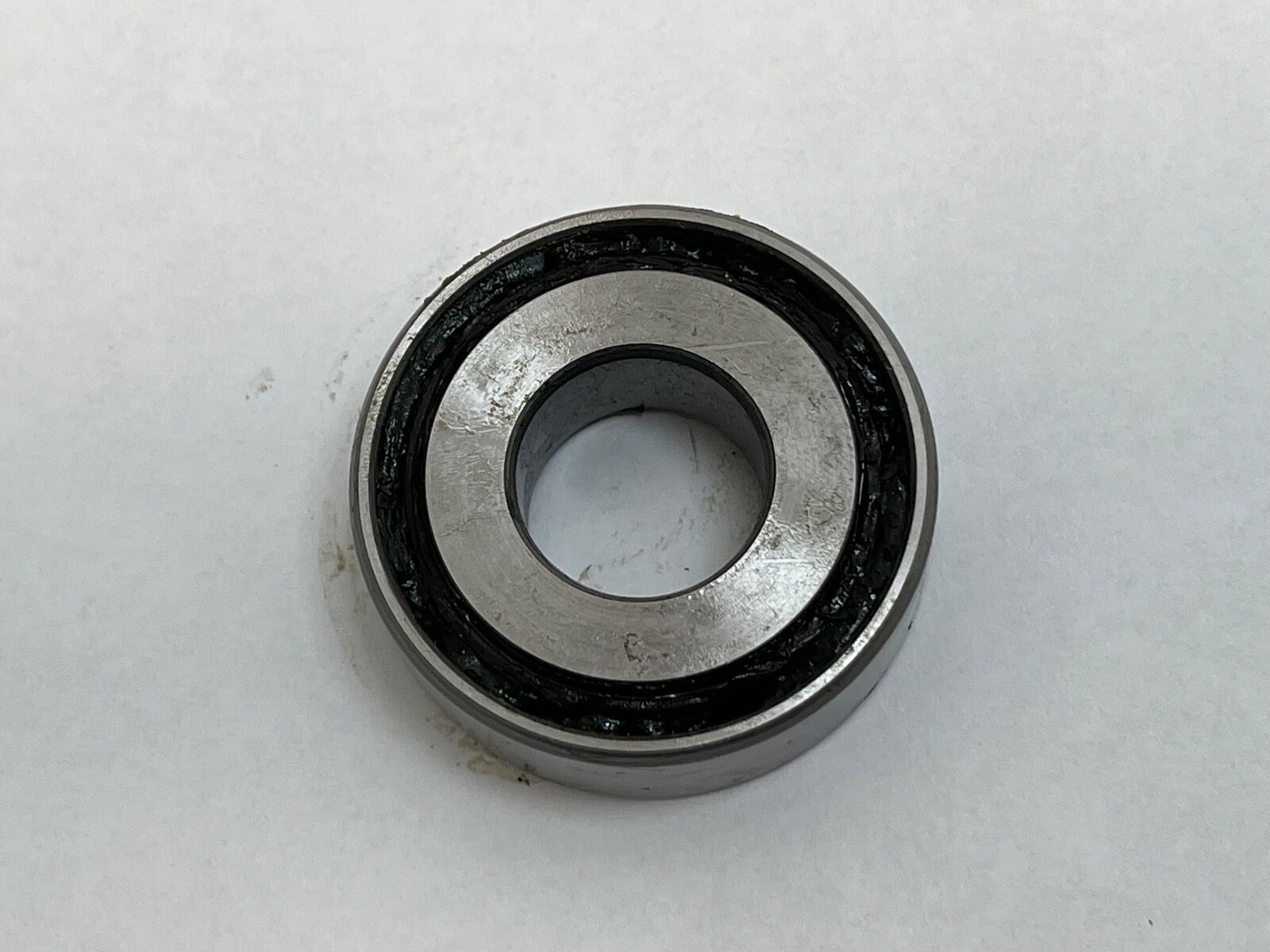

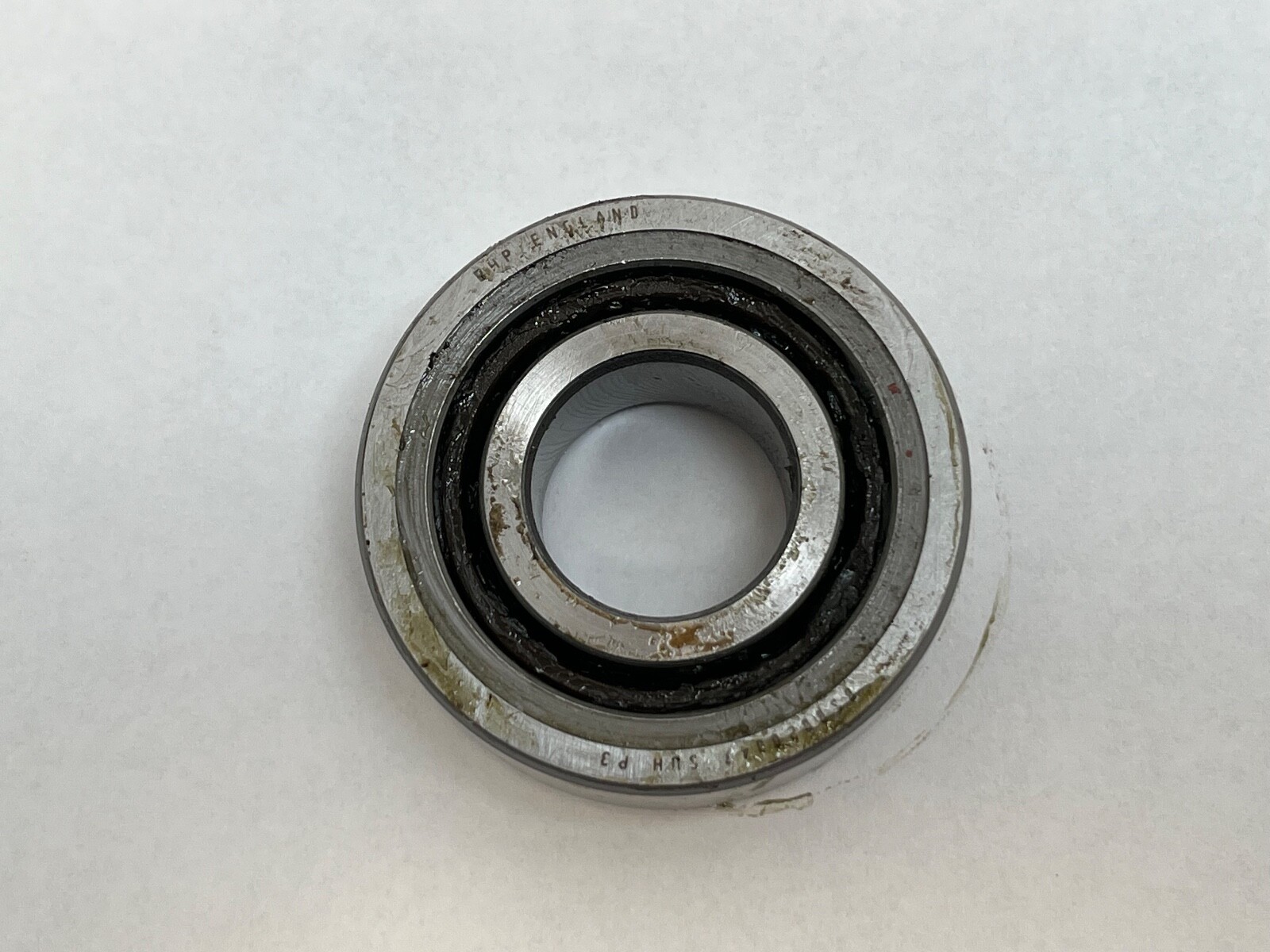

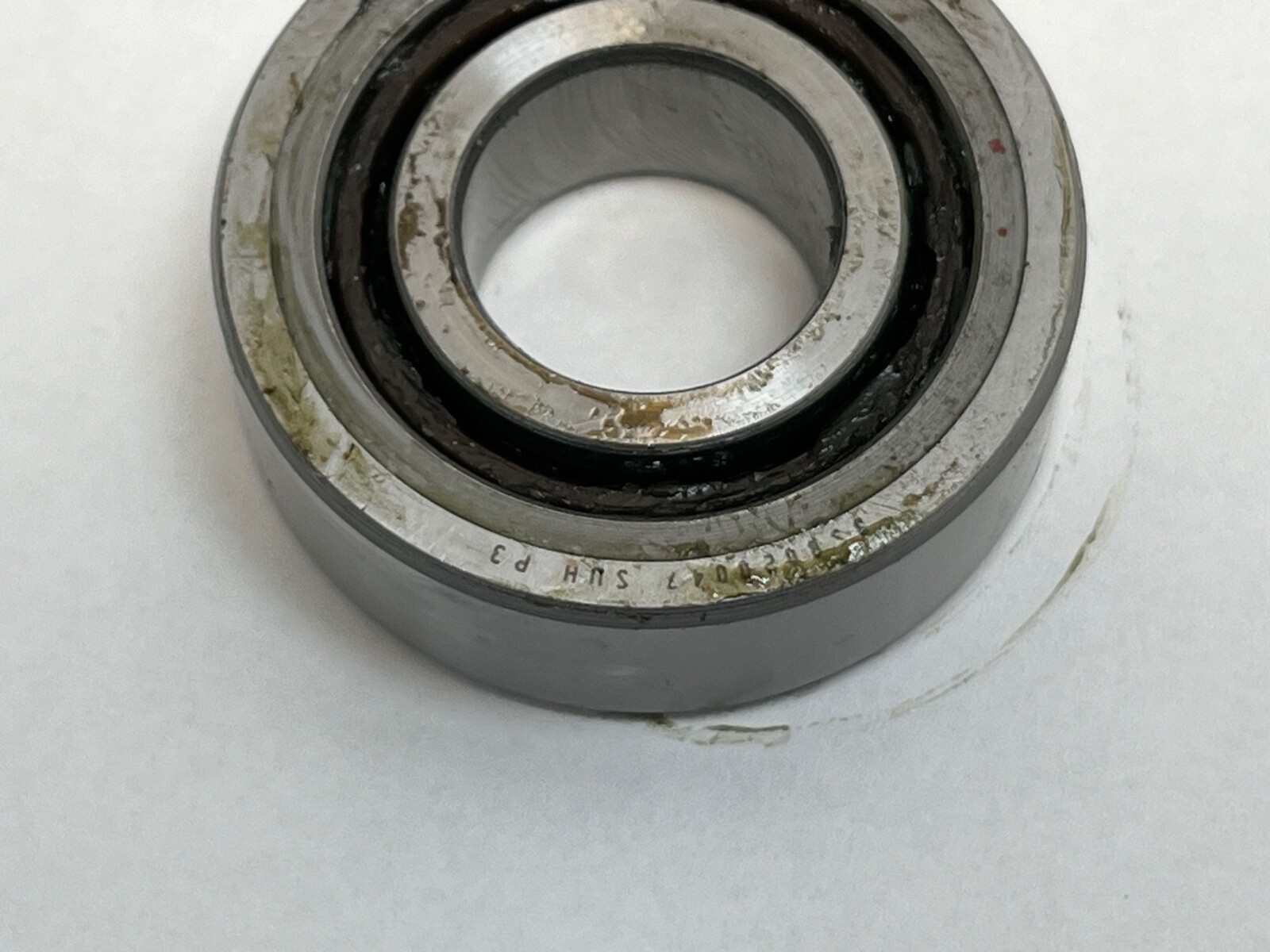

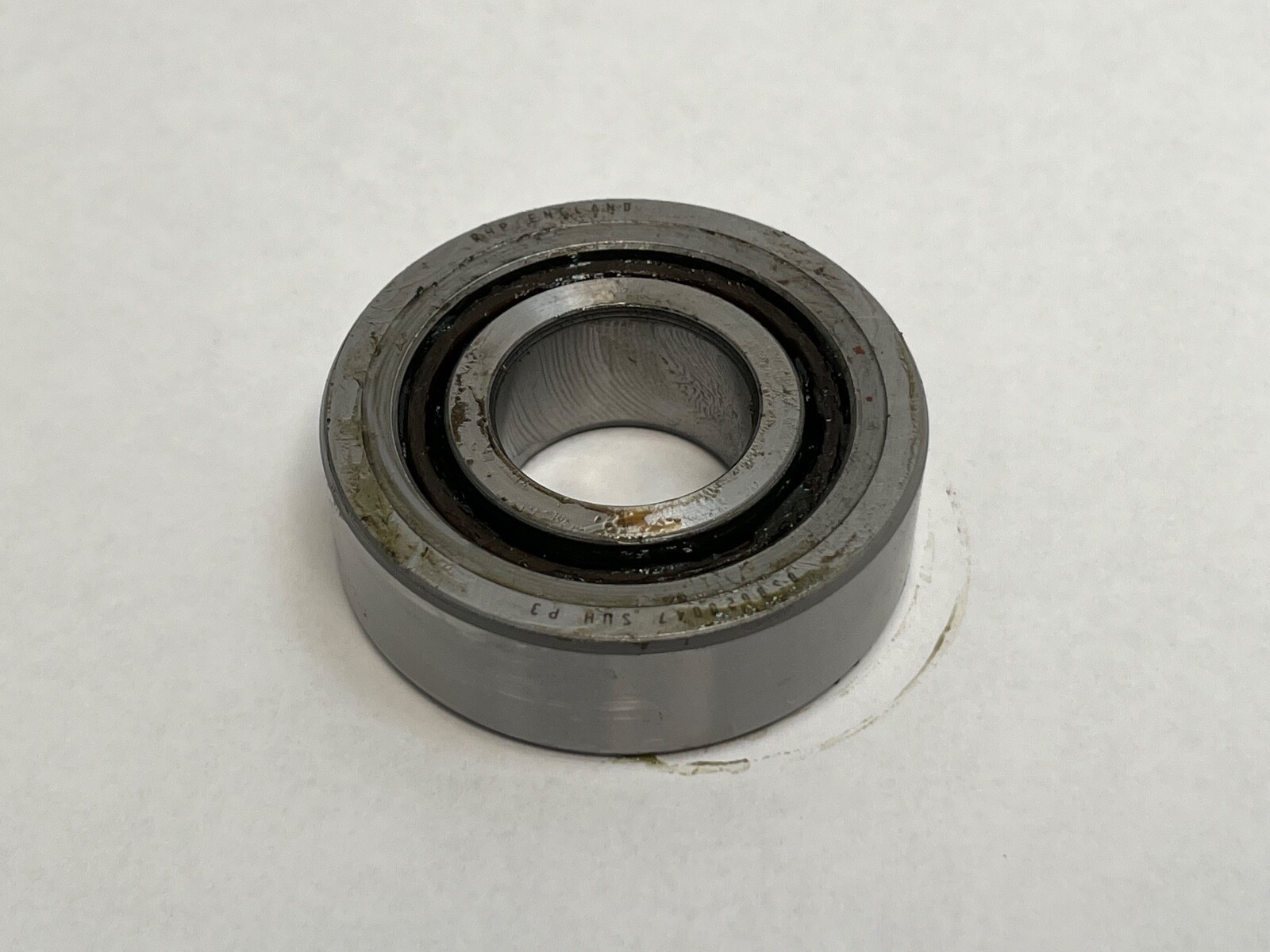

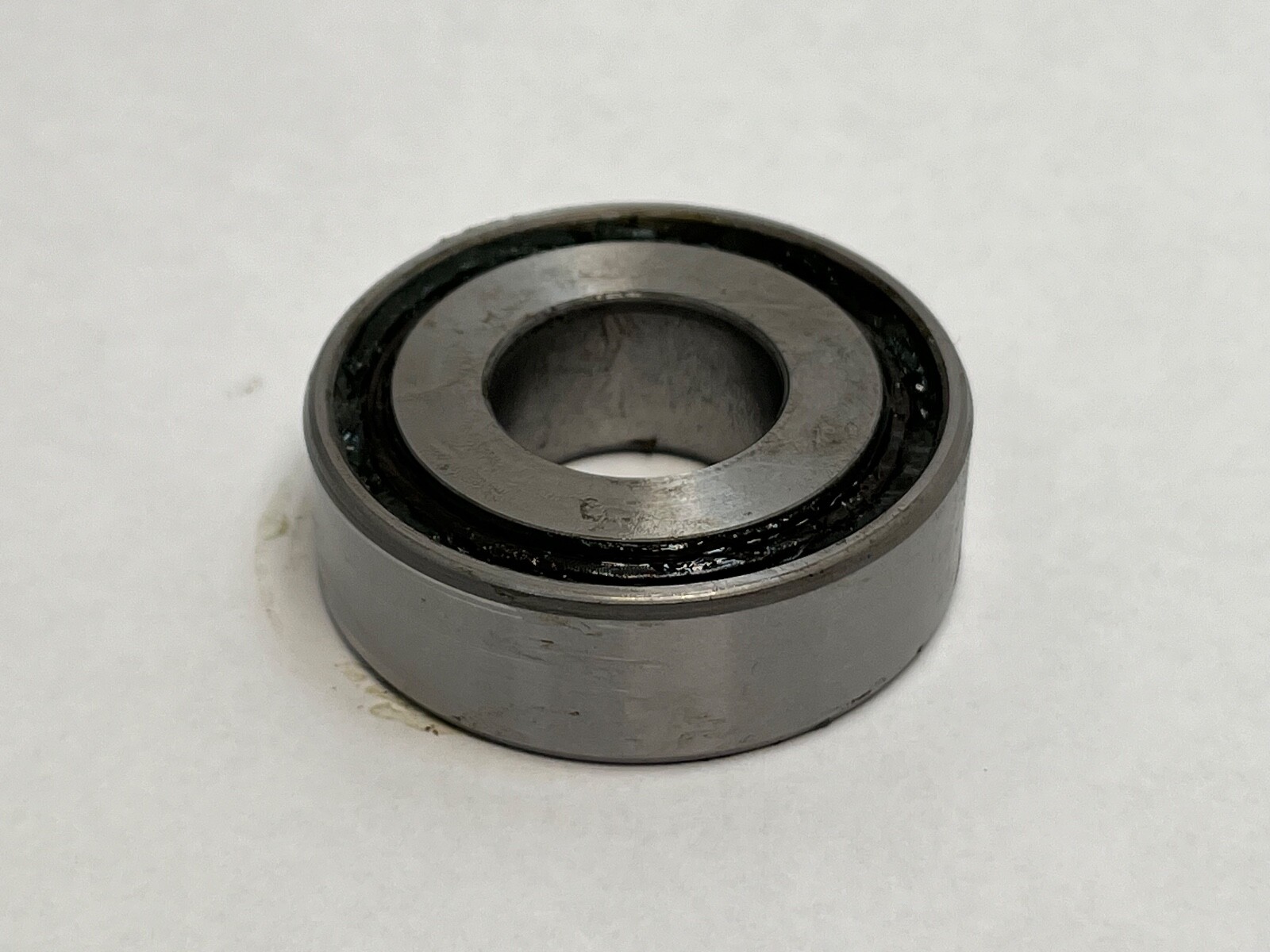

Ball screw support bearing, 20 mm bore, 47 mm OD, 15 mm wide, 60° contact angle, single universal, heavy preload, RHP P3. Dynamic Load Rating 23,000 N.
List Price
$41.45
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | BSB020047SUHP3 |
| Model | BSB 020047 SUH P3 / MM 20BS47 SUH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 15 mm |
| Series | BSB |
|---|---|
| Preload | Heavy |
| Mpn Variants | BSB020047SUHP3; BSB-020047-SUH-P3; BSB 020047 SUH P3; 20TAC47 |
| Precision Class | P3 |
| Dynamic Load Rating | 23,000 N |
| Static Load Rating | 34,200 N |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 3,300 rpm grease |
| Contact Angle | 60° |
| Mounting Arrangement | Single universal |
| Industry Terms | ball screw support bearing; angular contact thrust bearing; 60 degree angular contact bearing; universal matched bearing; 20TAC47 equivalent size |
| Common Misspellings | RHP BSB 020047 SUH P3; RHP BSB020047 SUHP3; RHP BSB-020047-SUHP3; R.H.P. BSB020047SUHP3 |
| Application Types | Ball screw end supports; CNC machine tools; linear actuators; precision positioning axes |
| Closure Type | Open |
| Cross Reference 1 | NSK 20TAC47C |
|---|---|
| Cross Reference 2 | Fafnir MM20BS47 |
| Cross Reference 3 | SKF BSD 2047 C |
| Cross Reference 4 | NTN BST20X47-1B |
| Cross Reference 5 | GMN BSB 2047 |
RHP BSB020047SUHP3 is a single-row angular contact thrust ball bearing for ball screw support, ground for universal matching into duplex, triplex or quad sets. One single universal bearing. Unit Quantity: 1 Pc.
BSB — RHP ball screw support bearing series, 60° contact angle.
020047 — 20 mm bore, 47 mm outside diameter.
SU — single bearing with universal face control, for matching in any arrangement with other SU bearings of the same designation.
H — Heavy preload.
P3 — RHP P3 precision: P4 dimensional tolerances with P2 running accuracy.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Overall Width: 15 mm. Contact Angle: 60°. Preload: Heavy. Precision Class: P3. Closure Type: Open. Rolling Elements: Ball. Dynamic Load Rating: 23,000 N. Static Load Rating: 34,200 N. Limiting Speed: 3,300 rpm grease. Mounting Arrangement: Single universal. Series: BSB. Unit Quantity: 1 Pc.
Envelope: 20 x 47 x 15 mm. The 60° contact angle gives high axial stiffness for ball screw end support.
Crosses: NSK 20TAC47C (60°, 20 x 47 x 15 mm), Fafnir MM20BS47, SKF BSD 2047 C, NTN BST20X47-1B and GMN BSB 2047. Also written BSB-020047-SUH-P3, BSB 020047 SUH P3 and 20TAC47.
Contact Angle: 60°. It is a ball screw support bearing.
SU is a single bearing with universal face control for matching in any arrangement. H is heavy preload.
Dynamic Load Rating: 23,000 N. Static Load Rating: 34,200 N.
