Nachi 7003CYDU/GLP4 precision angular contact ball bearings, 17 x 35 x 10 mm, 15° contact angle, P4 (ABEC 7), polyamide cage, universal pair, light preload.
List Price
$152.15
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Nachi |
|---|---|
| MPN | 7003CYDU/GLP4 |
| Model | 7003CY-DU-GL-P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Rolling Elements | Ball |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal pair (DU) |
| Mpn Variants | 7003CYDU/GLP4, 7003CY-DU-GL-P4, 7003-C-Y DU GL P4, 7003CYDUGLP4 |
| Precision Class | ABEC 7 / P4 |
| Cross Reference 1 | Fafnir 2MM9103WI DUL |
|---|---|
| Cross Reference 2 | SKF 7003 CD/P4ADGA |
| Cross Reference 3 | NSK 7003CTYNDULP4 |
| Cross Reference 4 | FAG B7003-C-T-P4S-UL - P4S class |

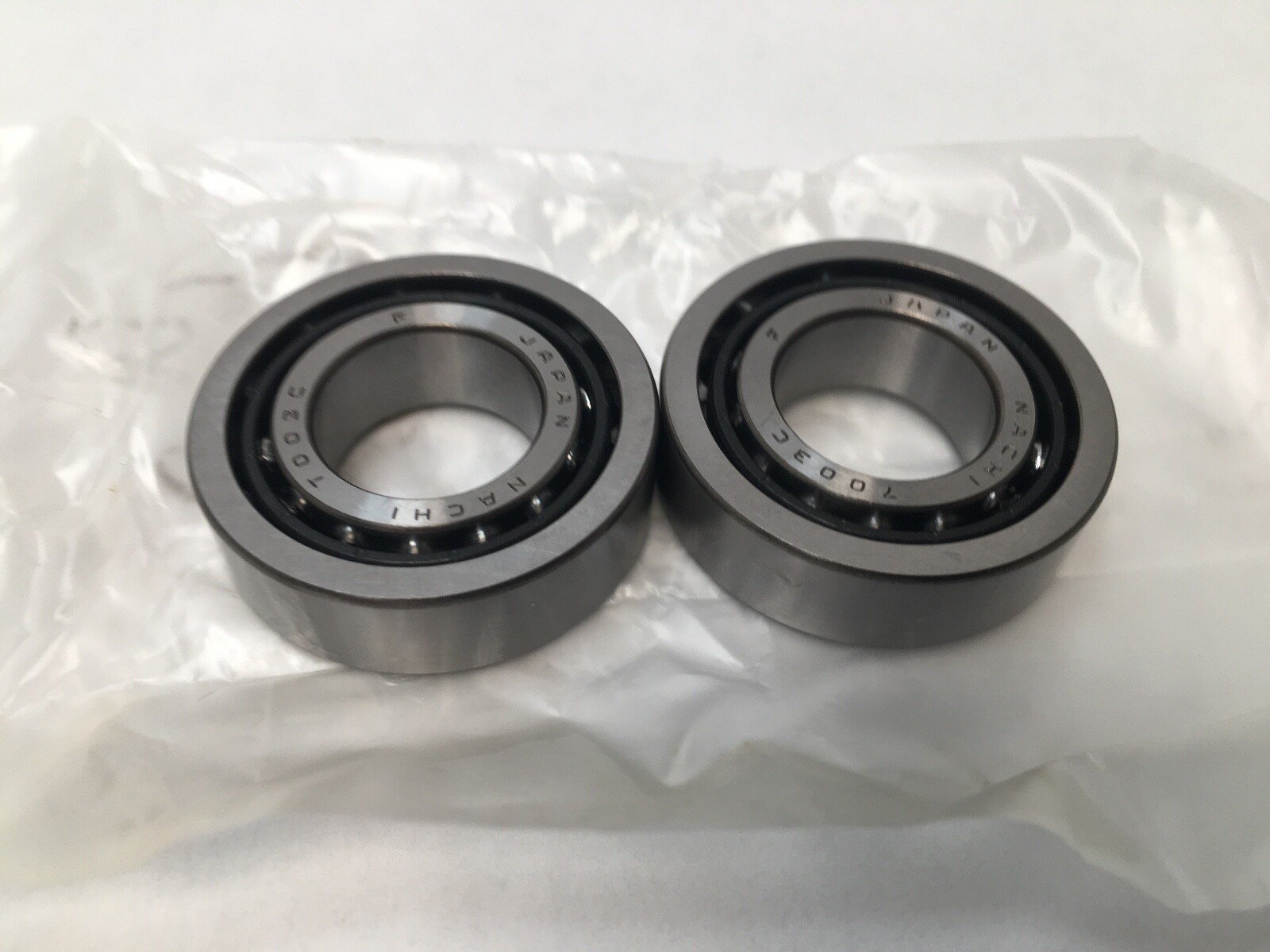

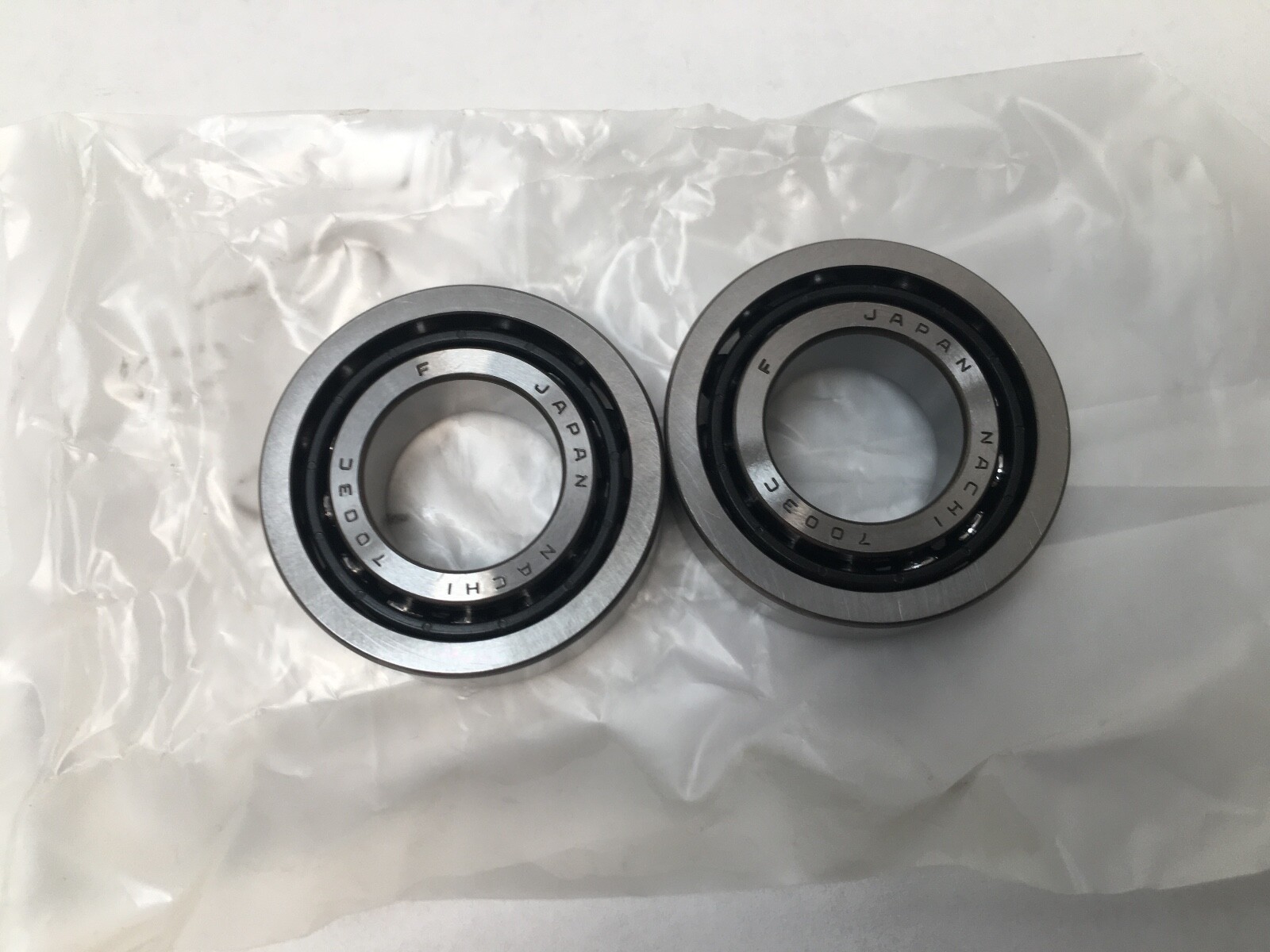

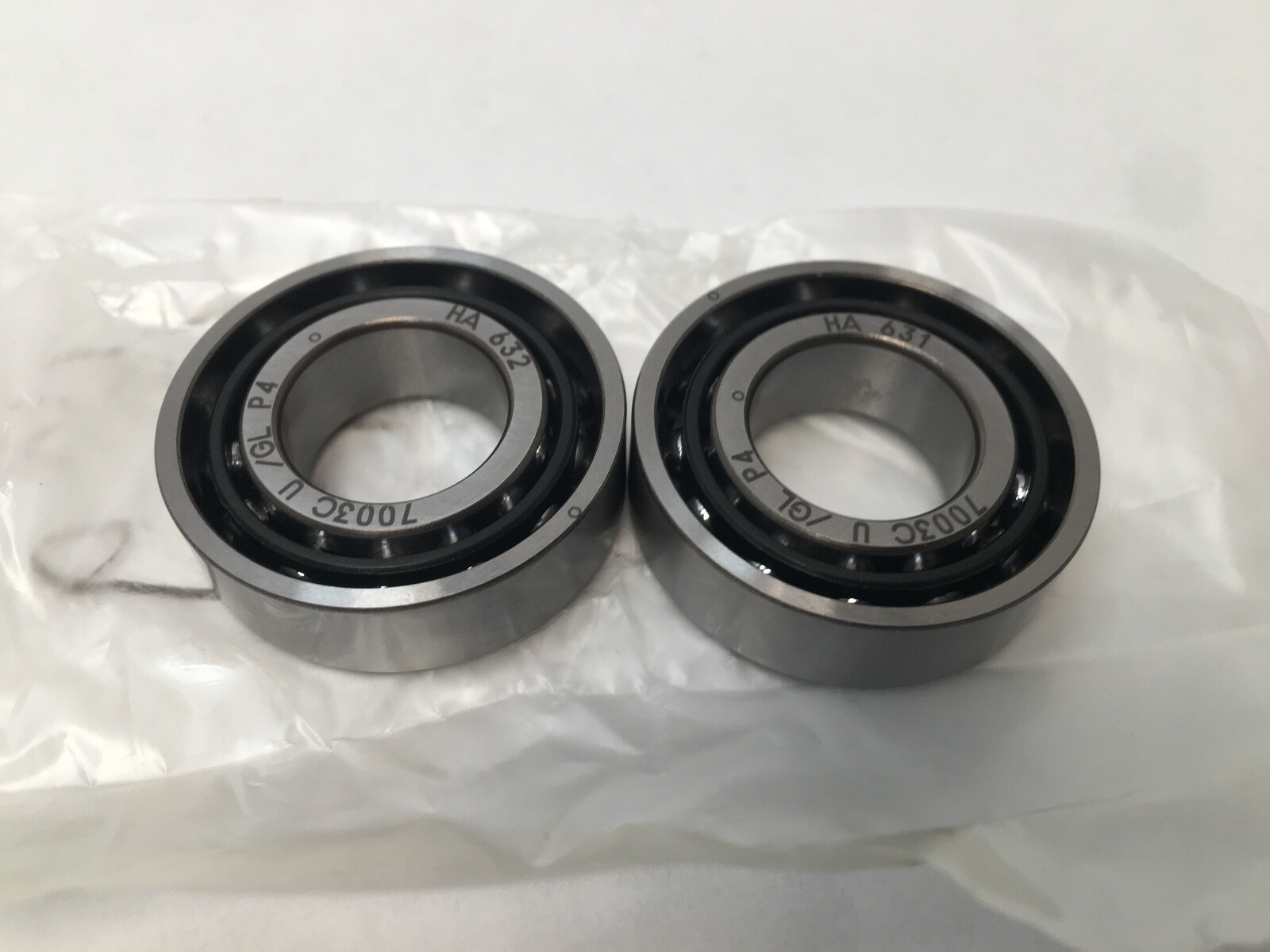

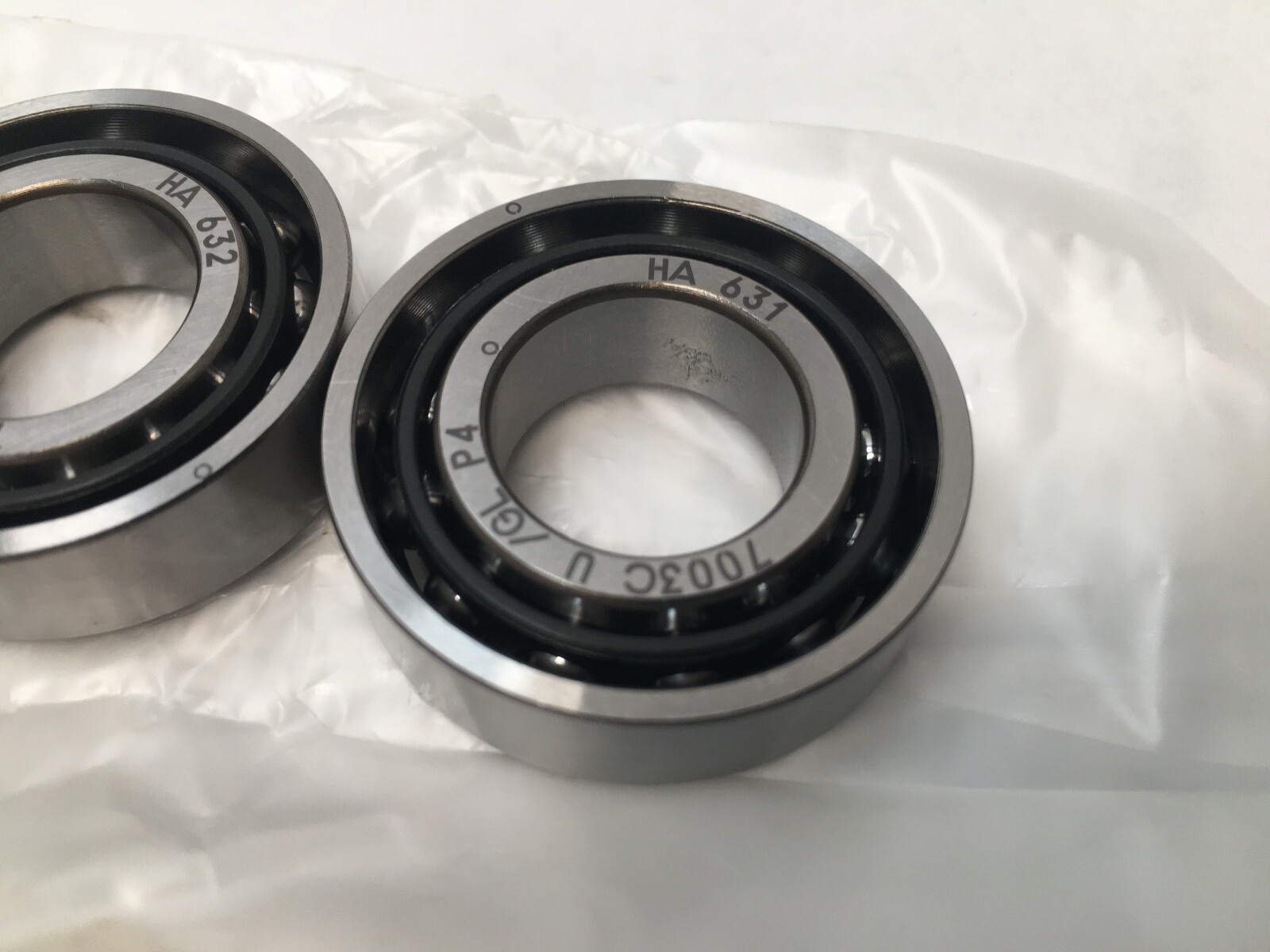

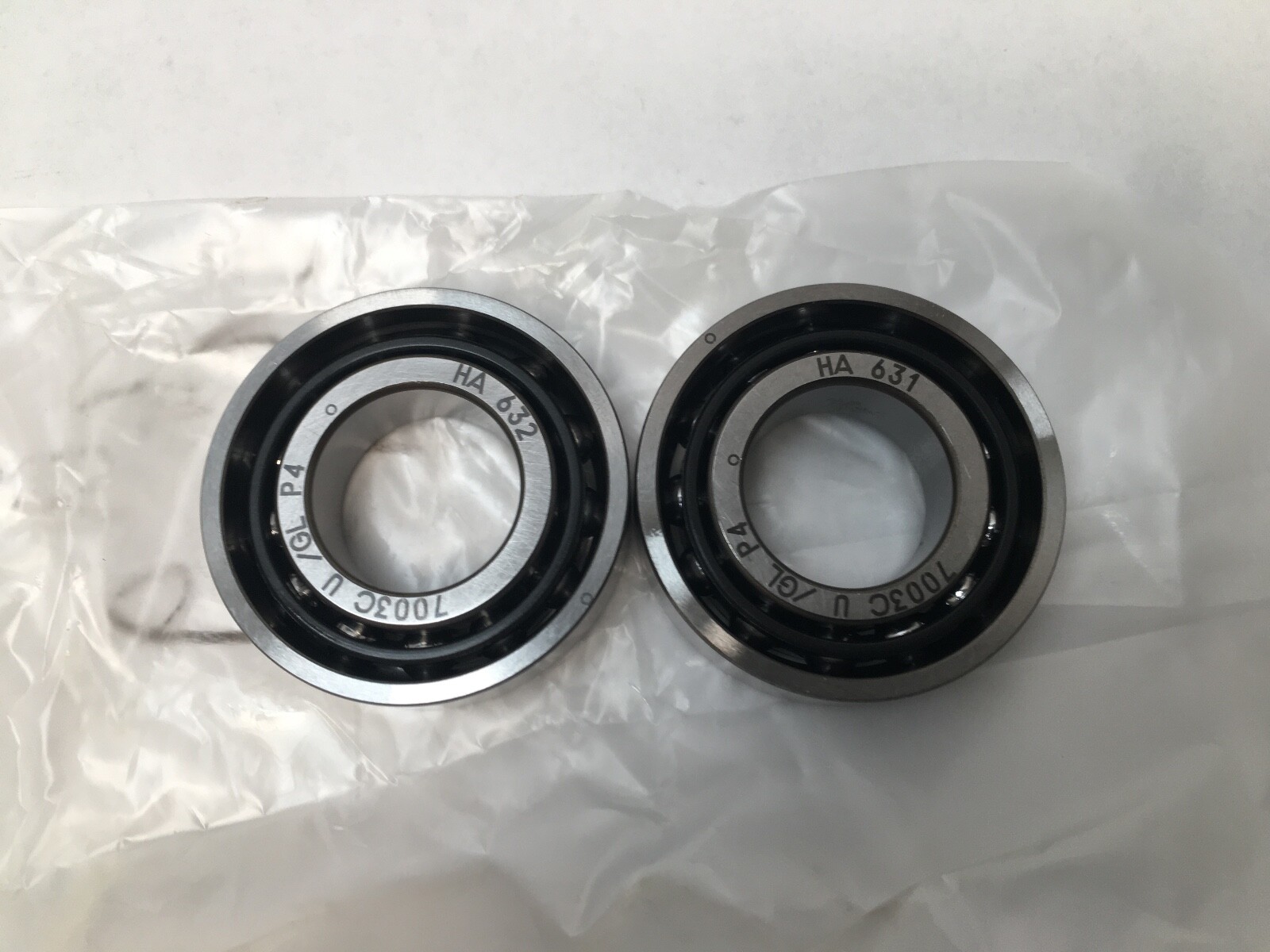

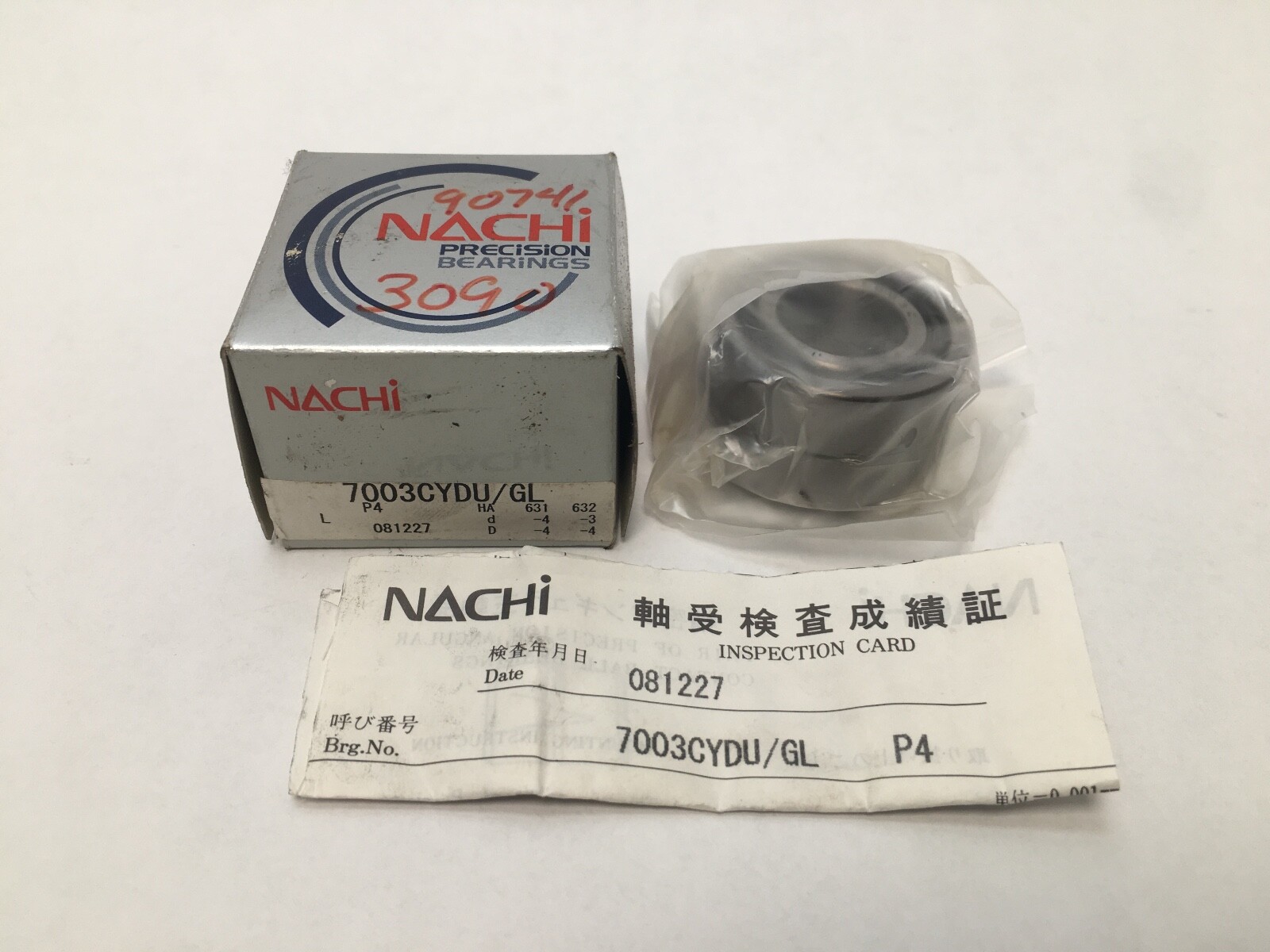

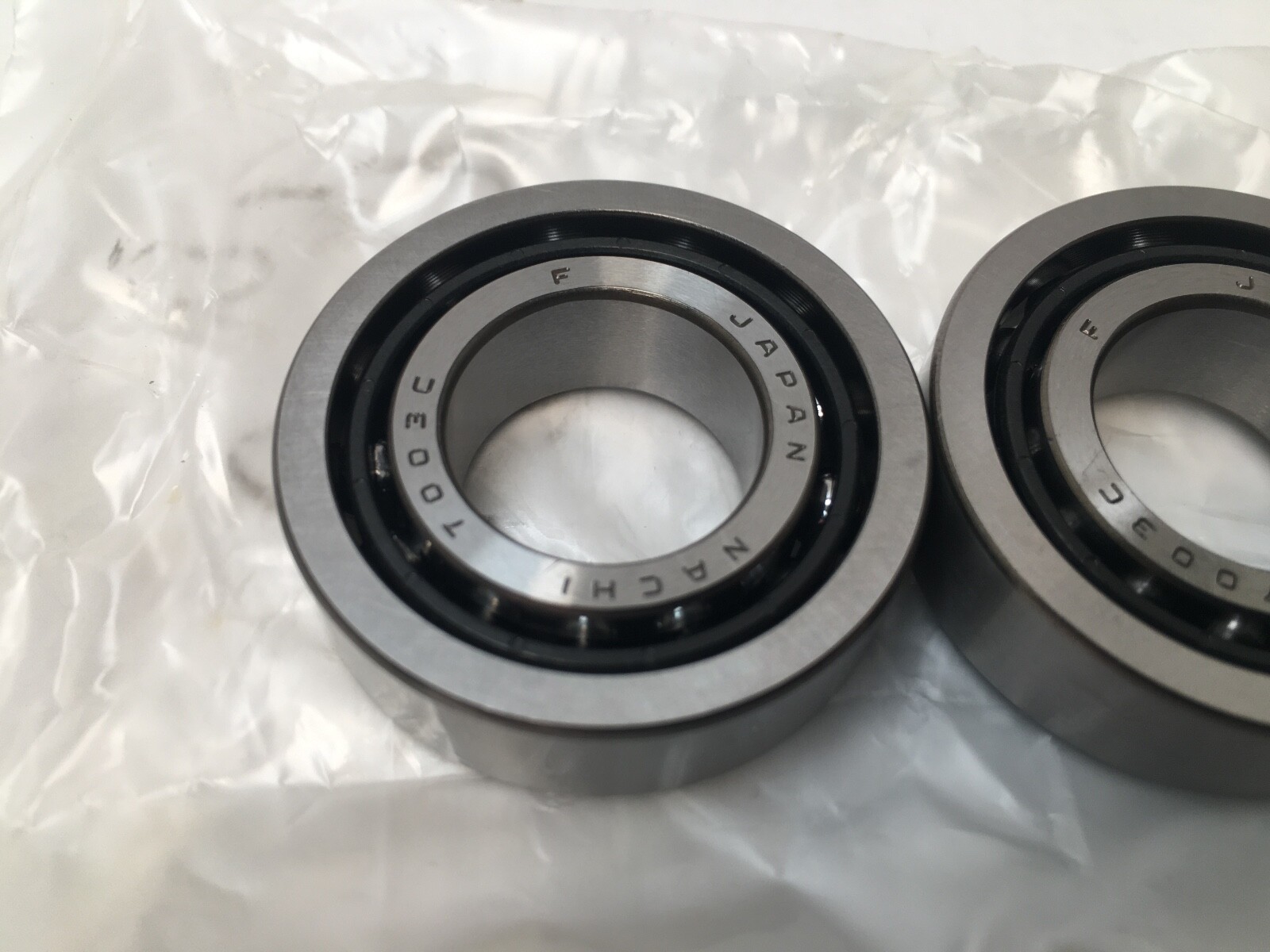

The Nachi 7003CYDU/GLP4 is a universally matched pair of single-row precision angular contact ball bearings in the ISO 7003 envelope. This listing is two bearings.
7003 — ISO 7000 series, bore code 03, 17 mm bore.
C — 15° contact angle.
Y — polyamide resin cage.
DU — universal matched pair. Mounts back-to-back, face-to-face or tandem. Not a double-row bearing.
GL — light preload.
P4 — ISO precision class 4, equivalent to ABEC 7.
Bearing Type: Angular contact ball bearing. Rolling Elements: Ball. Number Of Rows: 1. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Polyamide. Preload: Light. Mounting Arrangement: Universal pair (DU). Closure Type: Open. Bore Type: Straight.
Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm per bearing. Unit Quantity: 2 Pcs.
Same 17 x 35 x 10 mm size, 15° angle and class: Fafnir 2MM9103WI DUL, SKF 7003 CD/P4ADGA, NSK 7003CTYNDULP4, FAG B7003-C-T-P4S-UL. Also marked 7003-C-Y DU GL P4 and 2MM9103.
