Timken 15101/15244 tapered roller bearing set, 1.0000 in (25.400 mm) bore, 2.4409 in (61.999 mm) OD, 0.8125 in wide, 59,900 N C1. Cone 15101 with cup 15244.
List Price
$23.33
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 15101/15244 |
| GTIN | 0053893920689 |
| Model | 15101 / 15244 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 1.0000 in (25.400 mm) |
| OD | 2.4409 in (61.999 mm) |
| Series | 15100 |
|---|---|
| Total Width | 0.8125 in (20.638 mm) |
| Mpn Variants | 15101/15244, 15101-15244, 15101 15244 |
| Compatible With Replaces | Timken cone 15101 pairs with cups 15243, 15244, 15245, 15250; cup 15244 pairs with cones 15101, 15115 |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 59,900 N |
| Additional Attributes | C90 (90 million revs): 15,500 N; Ca90 axial: 9,310 N; e 0.35; K 1.67; Y 1.71; G1 14.6; G2 7.58; Cg 0.0606; Max shaft fillet 0.030 in; Max housing fillet 0.050 in |
| Dynamic Load Rating | 59,900 N |
| Static Load Rating | 53,900 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.3 kg (0.7 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 15244 |
| Design Units | Imperial |
| Cup Width | 0.6250 in (15.875 mm) |
| Cone Part Number | 15101 |
| Cone Width | 0.8125 in (20.638 mm) |
| Effective Center Location | -0.23 in (-5.8 mm) |
| Industry Terms | taper bearing cone and cup set; tapered roller bearing assembly; TS single-row tapered roller bearing; inch taper bearing set |
| Common Misspellings | Timkin 15101/15244; Timken 15101 15244; Timken 15101-15244; tapper bearing set 15101 |
| Application Types | Industrial gearboxes; wheel hubs; agricultural equipment; general machinery |

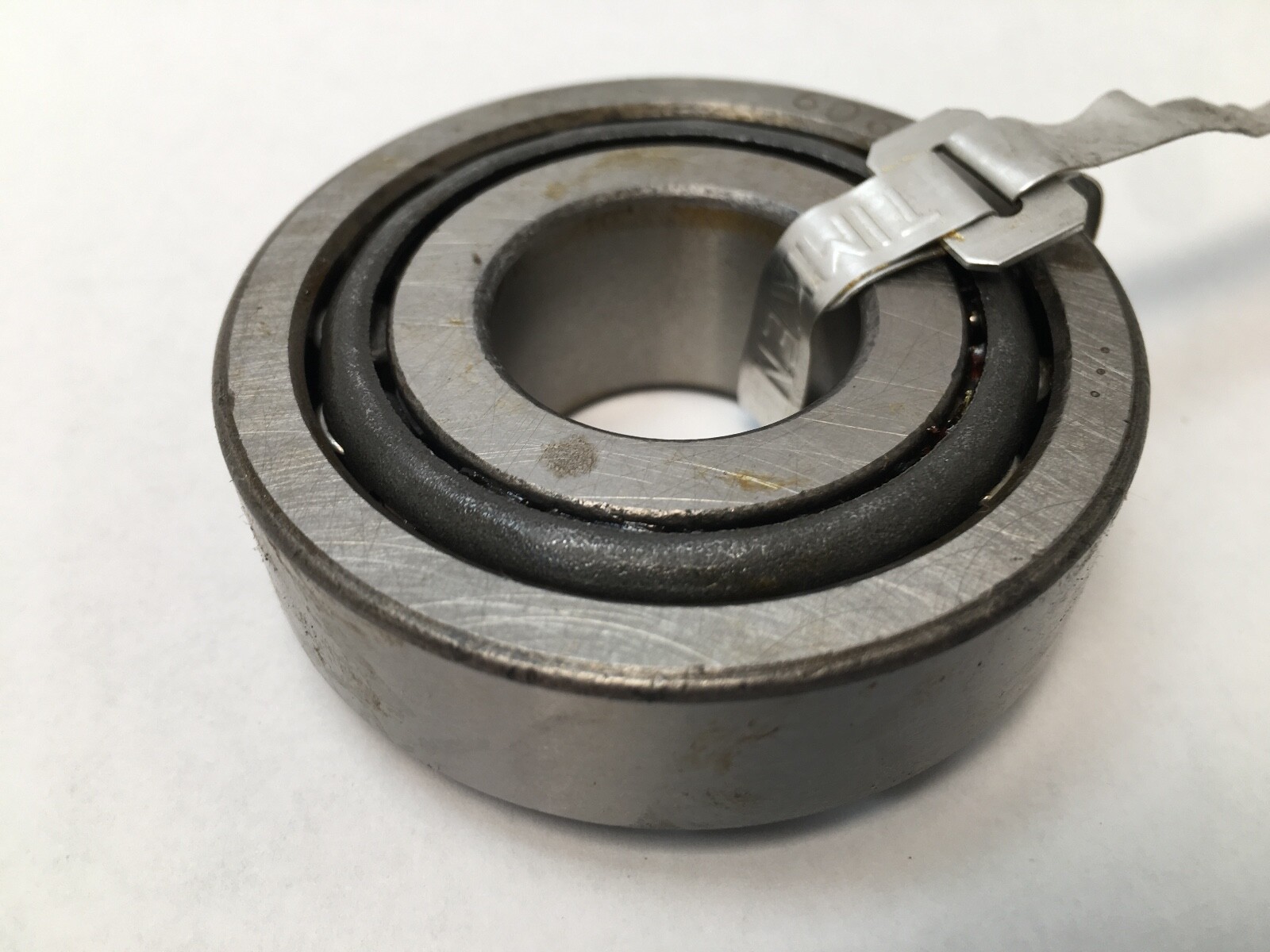

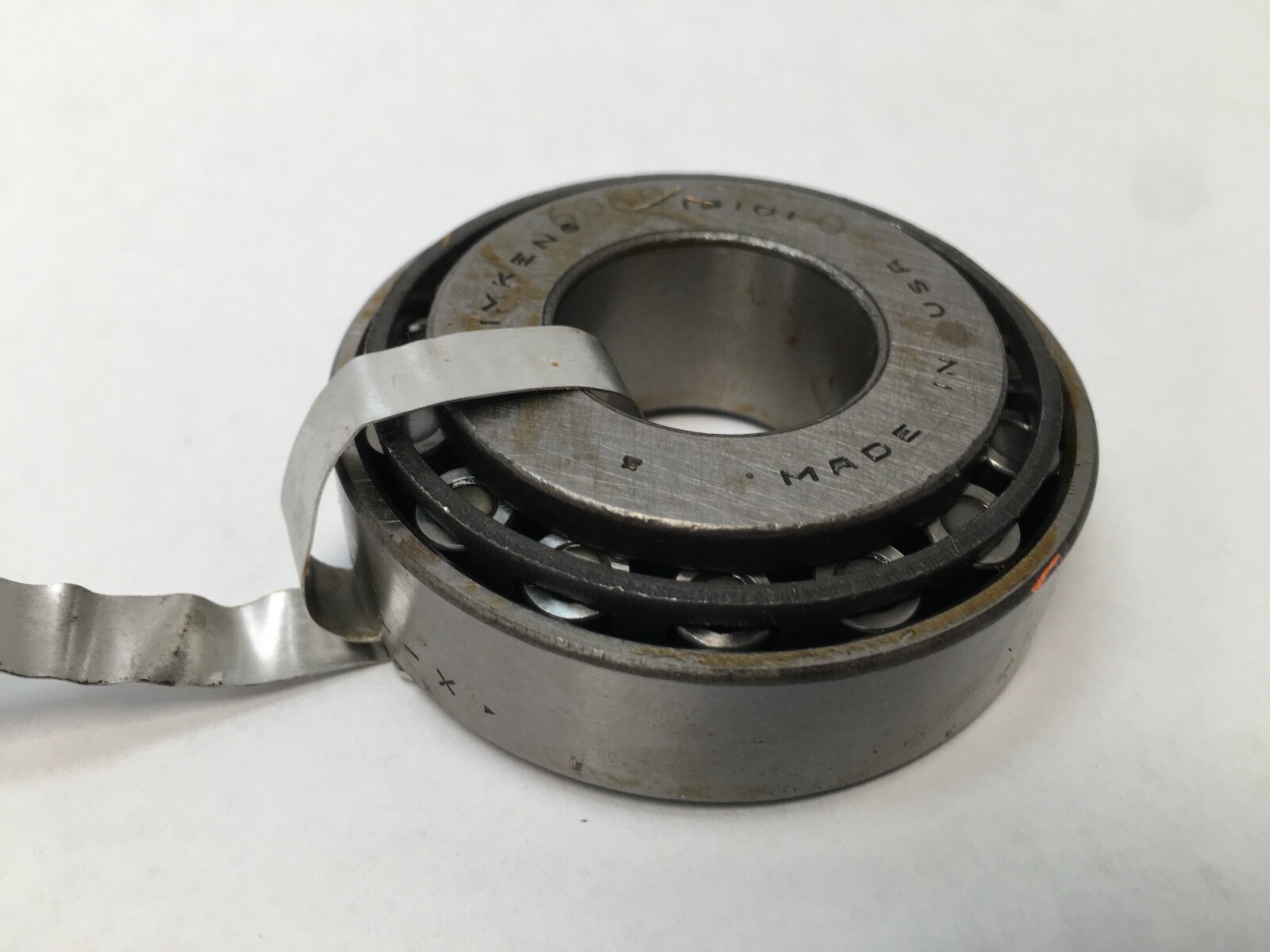

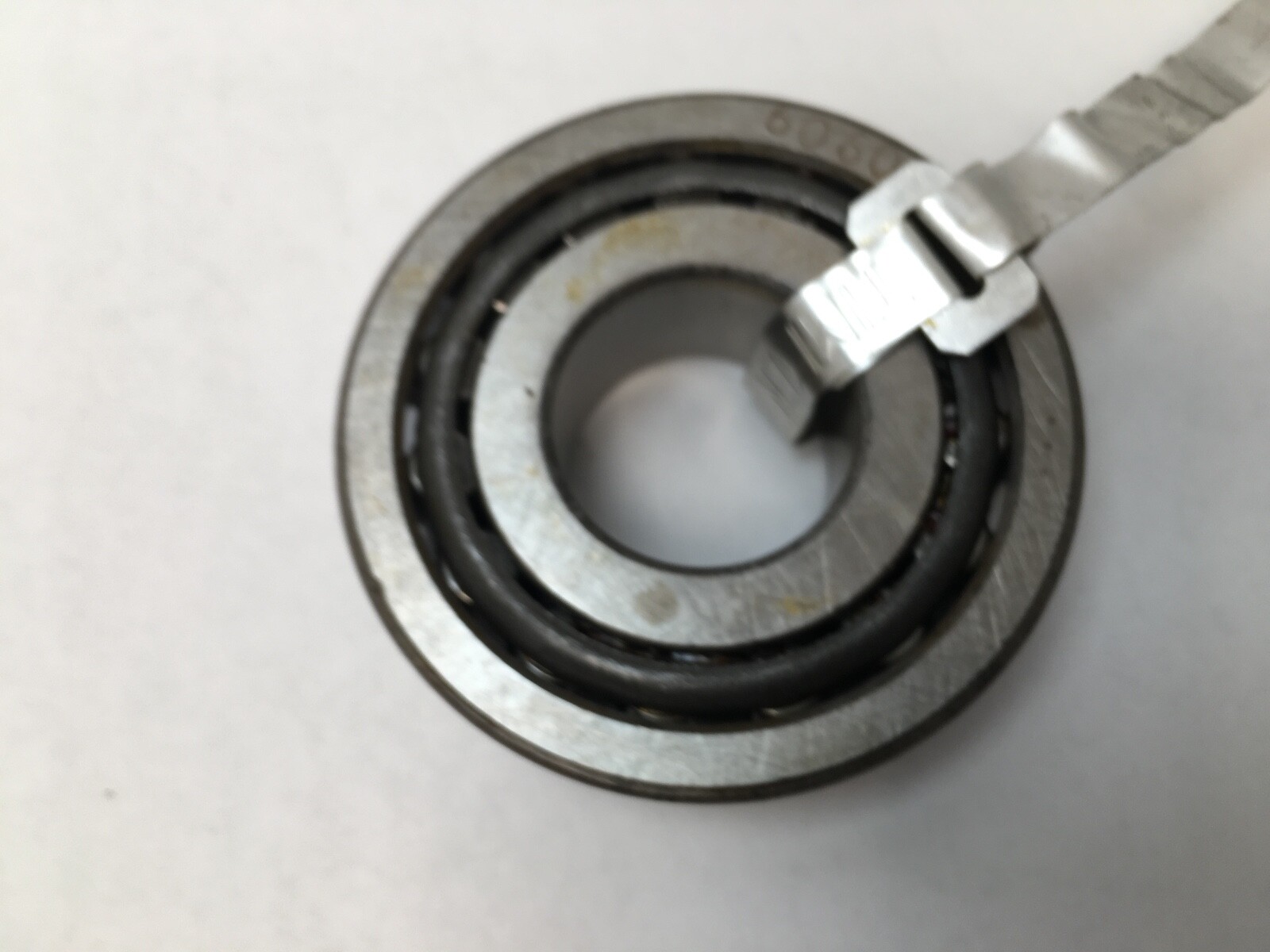

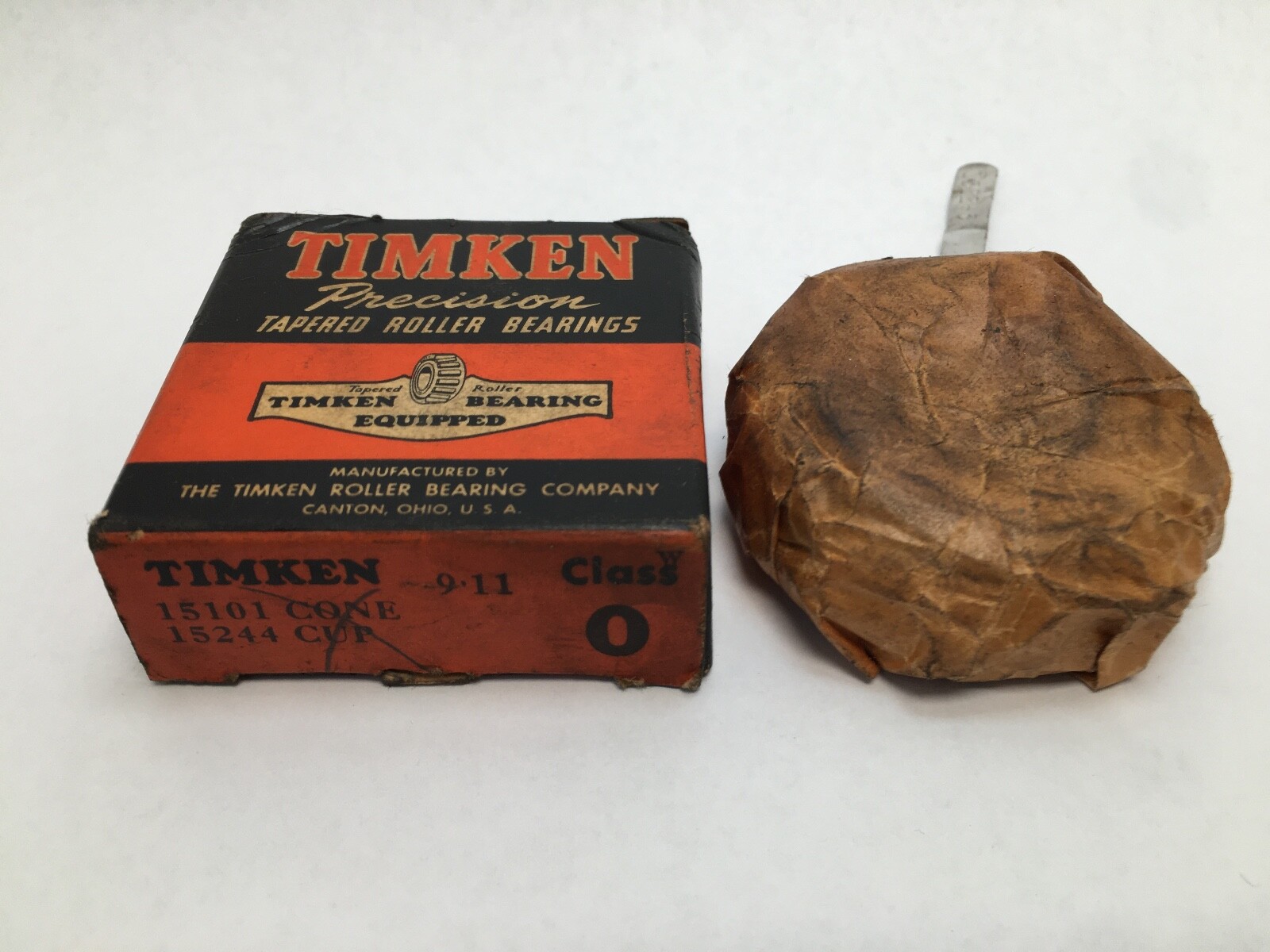

Timken 15101/15244 single-row tapered roller bearing: cone 15101 (inner ring, rollers and cage) with its matching cup 15244 (outer ring). A complete single-row TS assembly. Unit Quantity: 1 Pc. One cone and one cup, together one complete single-row bearing.

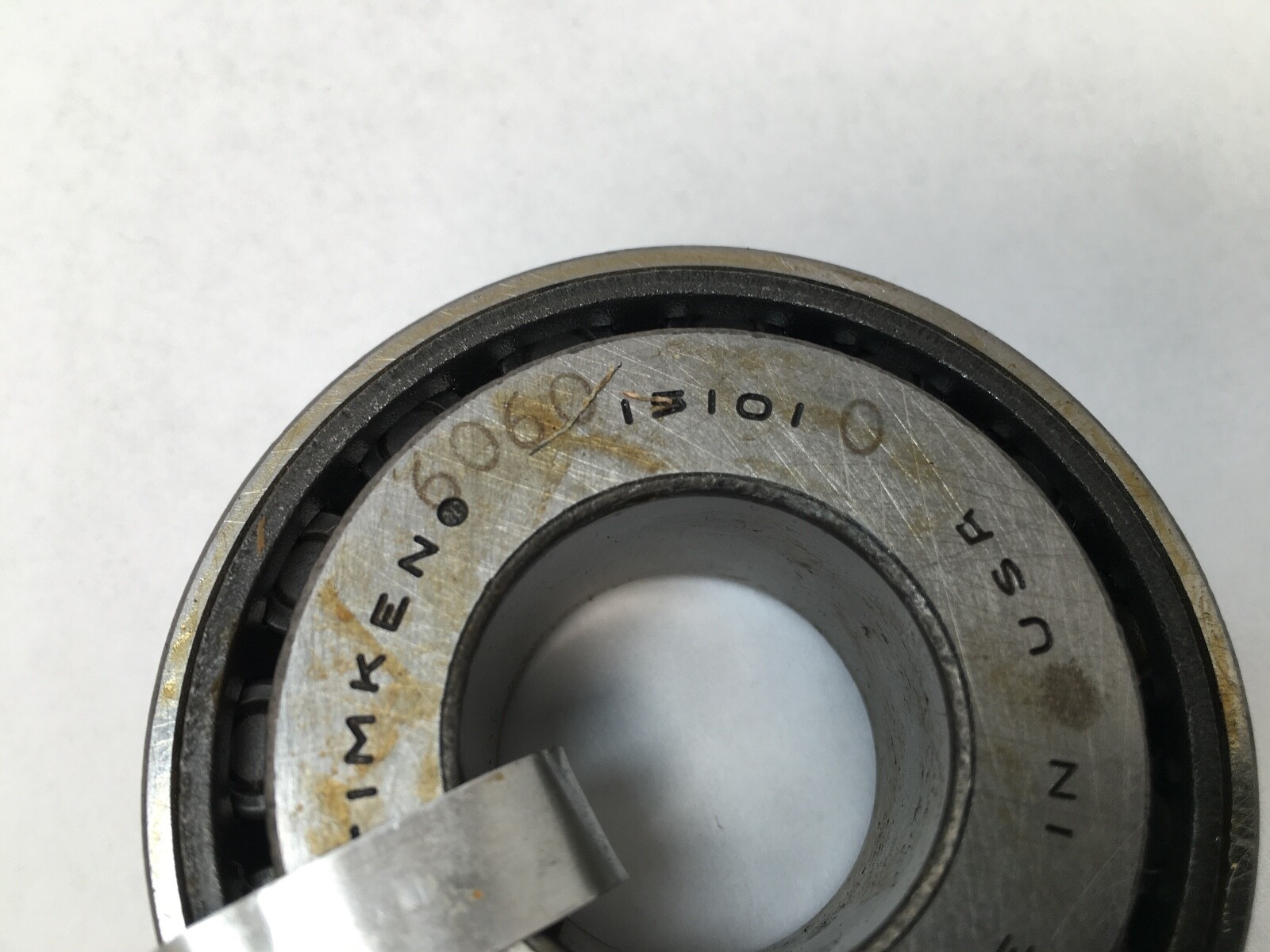

15101 — Timken cone part number, 1 in bore.

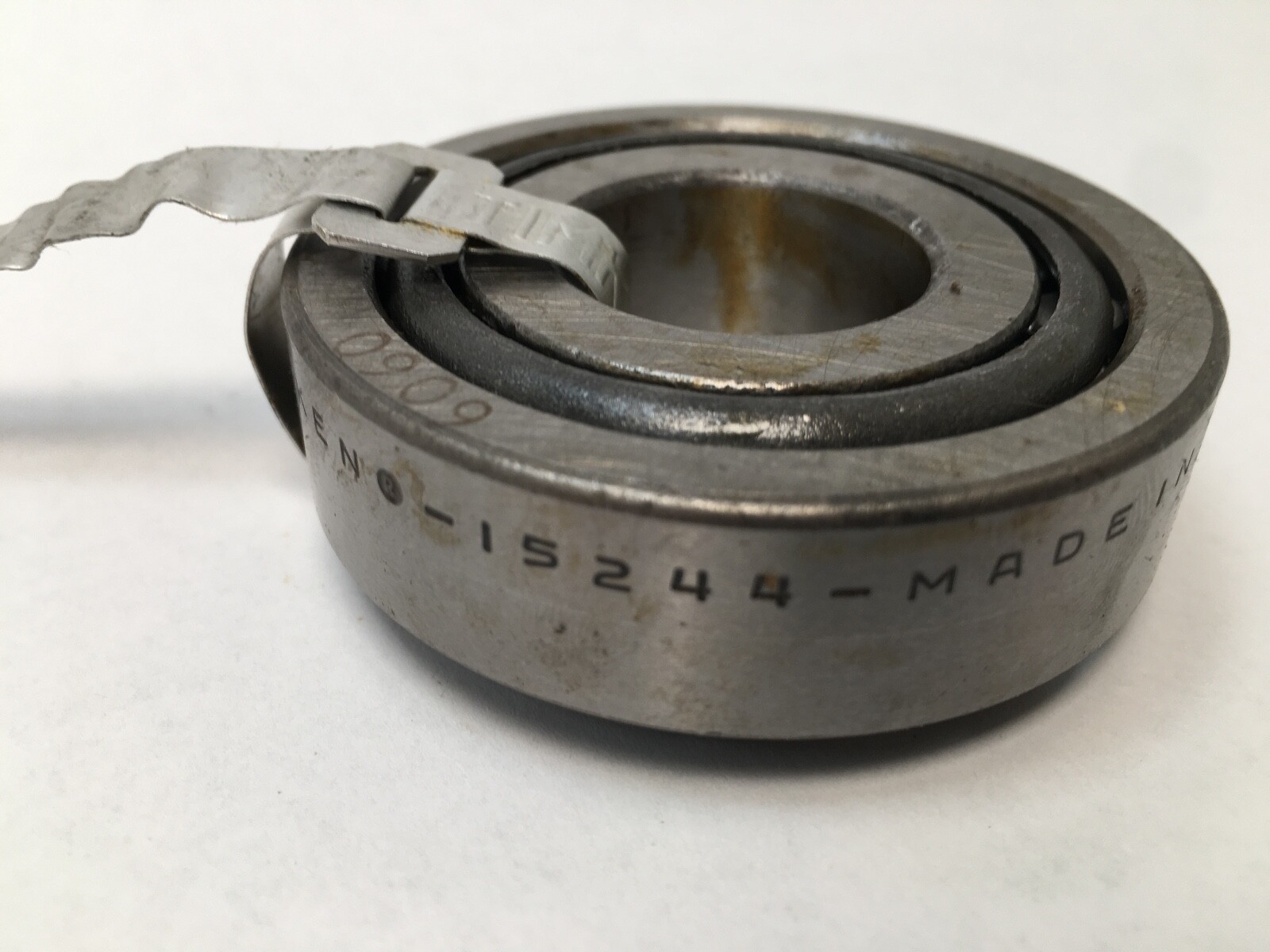

15244 — Timken cup part number, 2.4409 in (61.999 mm) OD.
Bore Diameter: 1.0000 in (25.400 mm). Outside Diameter: 2.4409 in (61.999 mm). Total Width: 0.8125 in (20.638 mm). Cone Width: 0.8125 in (20.638 mm). Cup Width: 0.6250 in (15.875 mm). Item Weight: 0.3 kg (0.7 lb). Bore Type: Straight. Rolling Elements: Tapered Roller. Number Of Rows: 1. Dynamic Load Rating (C1, 1 million revolutions): 59,900 N (13,500 lbf). Dynamic Load Rating (C90, 90 million revolutions): 15,500 N (3,490 lbf). Dynamic Axial Rating (Ca90): 9,310 N (2,090 lbf). Static Load Rating (C0): 53,900 N (12,100 lbf). e Factor: 0.35. K Factor: 1.67. Y Factor: 1.71. G1 Factor: 14.6. G2 Factor: 7.58. Geometry Factor (Cg): 0.0606. GTIN: 0053893920689.
Effective Center Location: −0.23 in (−5.8 mm). Max Shaft Fillet Radius: 0.030 in (0.8 mm). Max Housing Fillet Radius: 0.050 in (1.27 mm). Shaft Backing Shoulder Diameter, Frontface (da): 1.24 in (31.5 mm). Shaft Backing Shoulder Diameter, Backface (db): 1.28 in (32.5 mm). Housing Backing Shoulder Diameter, Frontface (Da): 2.30 in (58.42 mm). Housing Backing Shoulder Diameter, Backface (Db): 2.17 in (55.12 mm). Cage Location relative to Backface (Aa): 0.03 in (0.8 mm). Cage Location relative to Frontface (Ab): 0.07 in (1.8 mm).
The 15101 cone also pairs with Timken cups 15243, 15245 and 15250, and the 15244 cup with cone 15115; each combination is a separate Timken assembly with its own OD or bore.

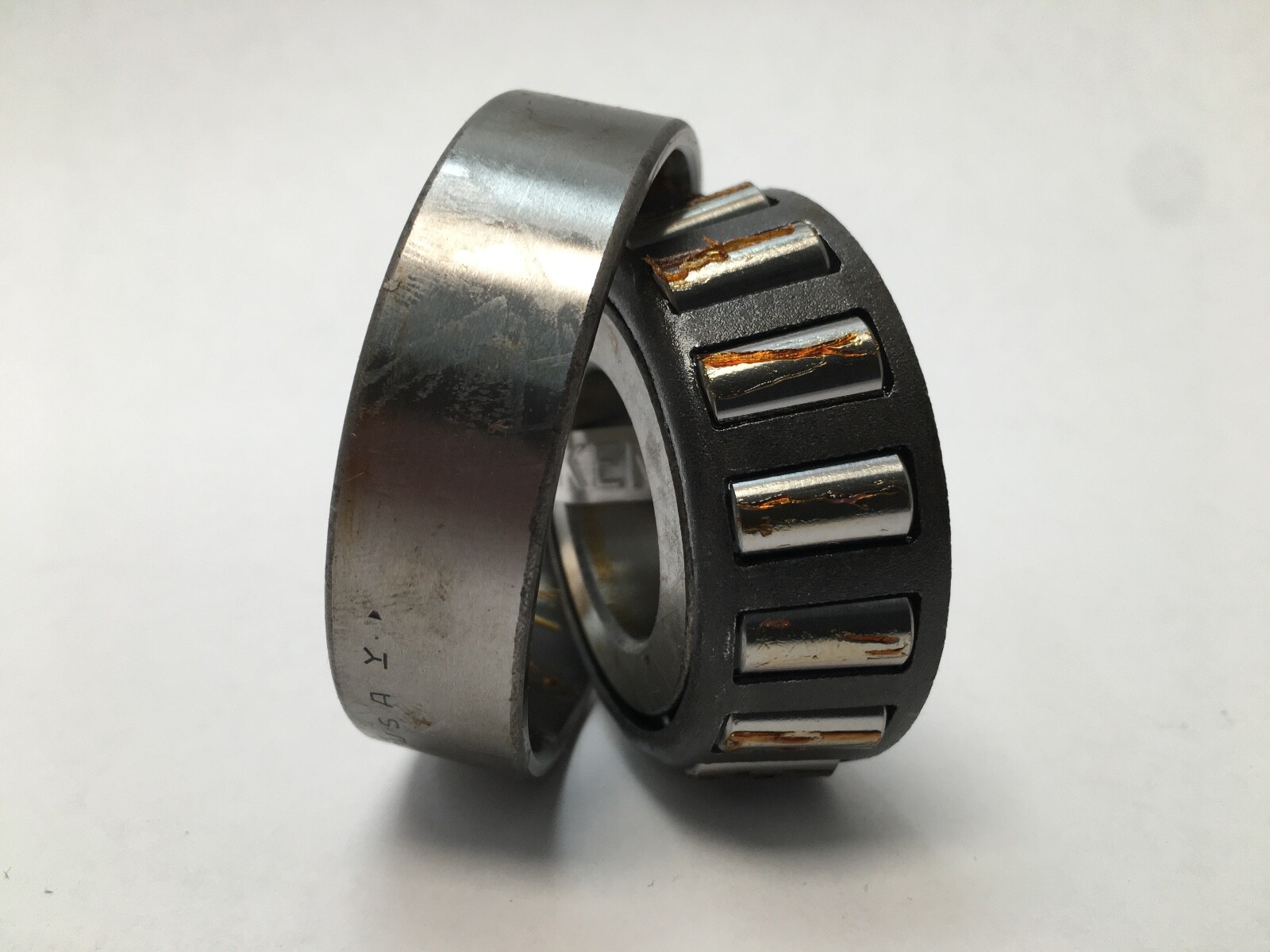

Cone 15101 (inner ring, rollers and cage) with its matching cup 15244, one complete single-row tapered roller bearing.
Bore 1.0000 in (25.400 mm) and outside diameter 2.4409 in (61.999 mm), total width 0.8125 in (20.638 mm).
C1 dynamic rating 59,900 N (13,500 lbf) and static rating C0 53,900 N (12,100 lbf).
