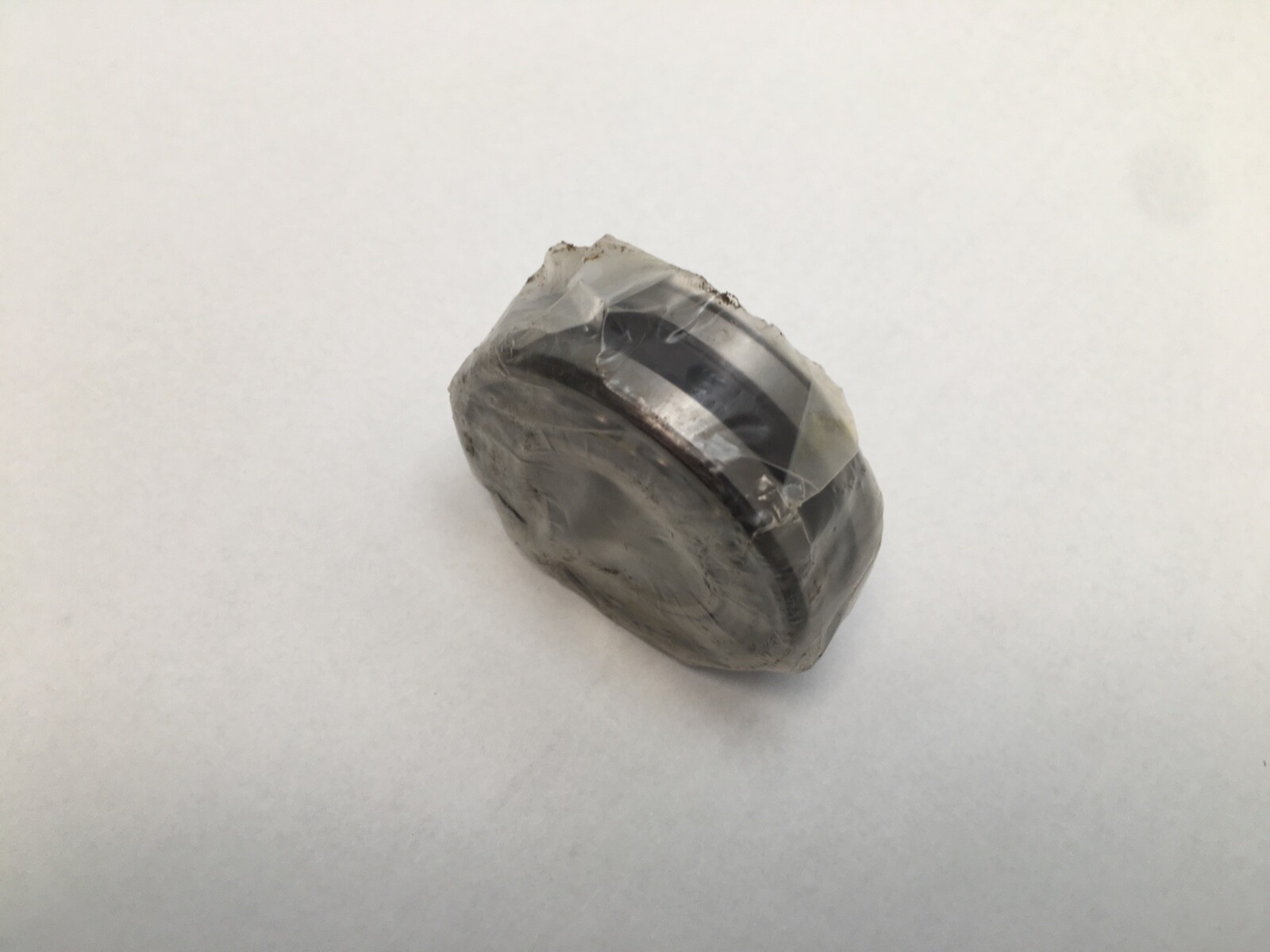

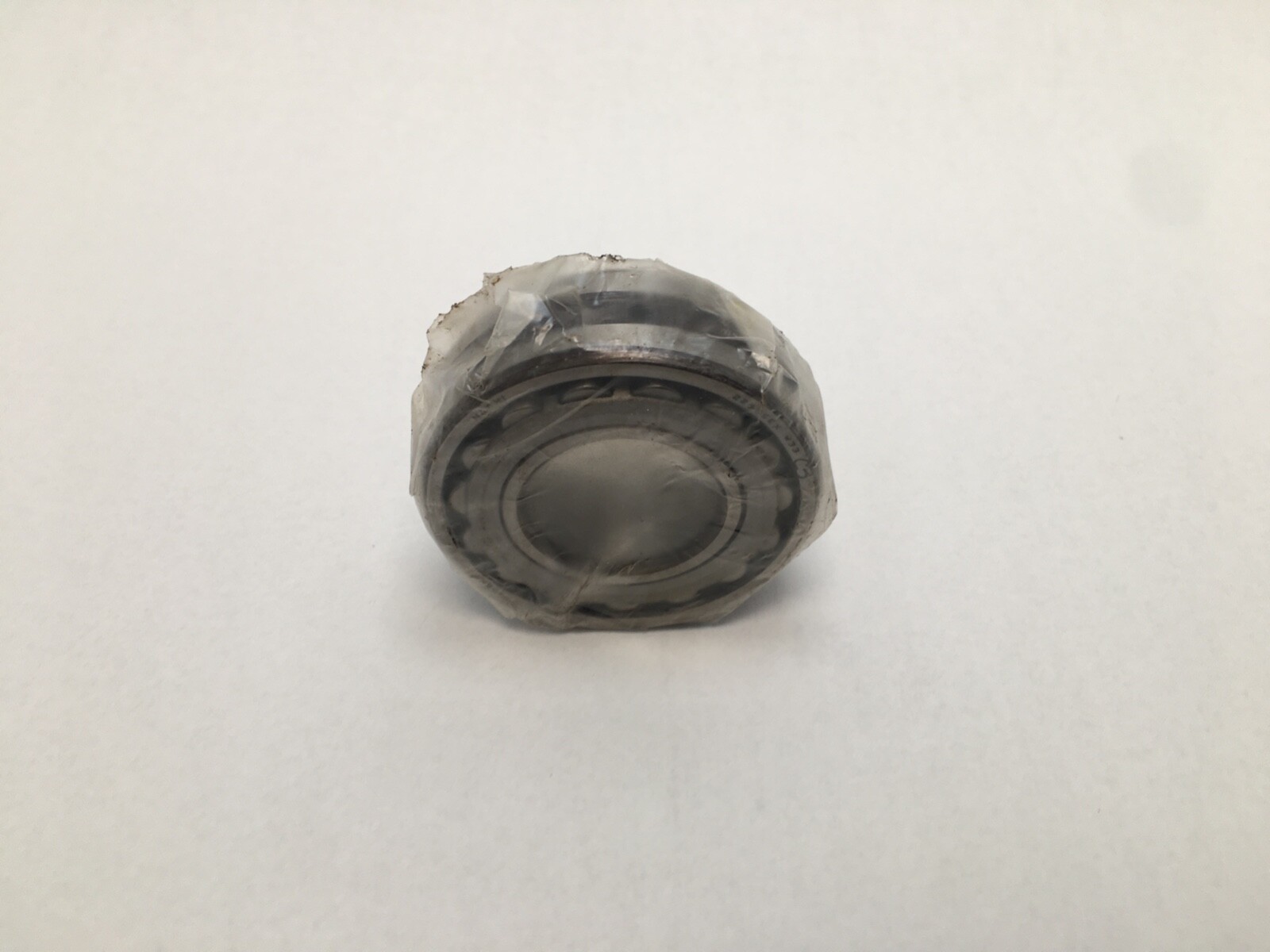

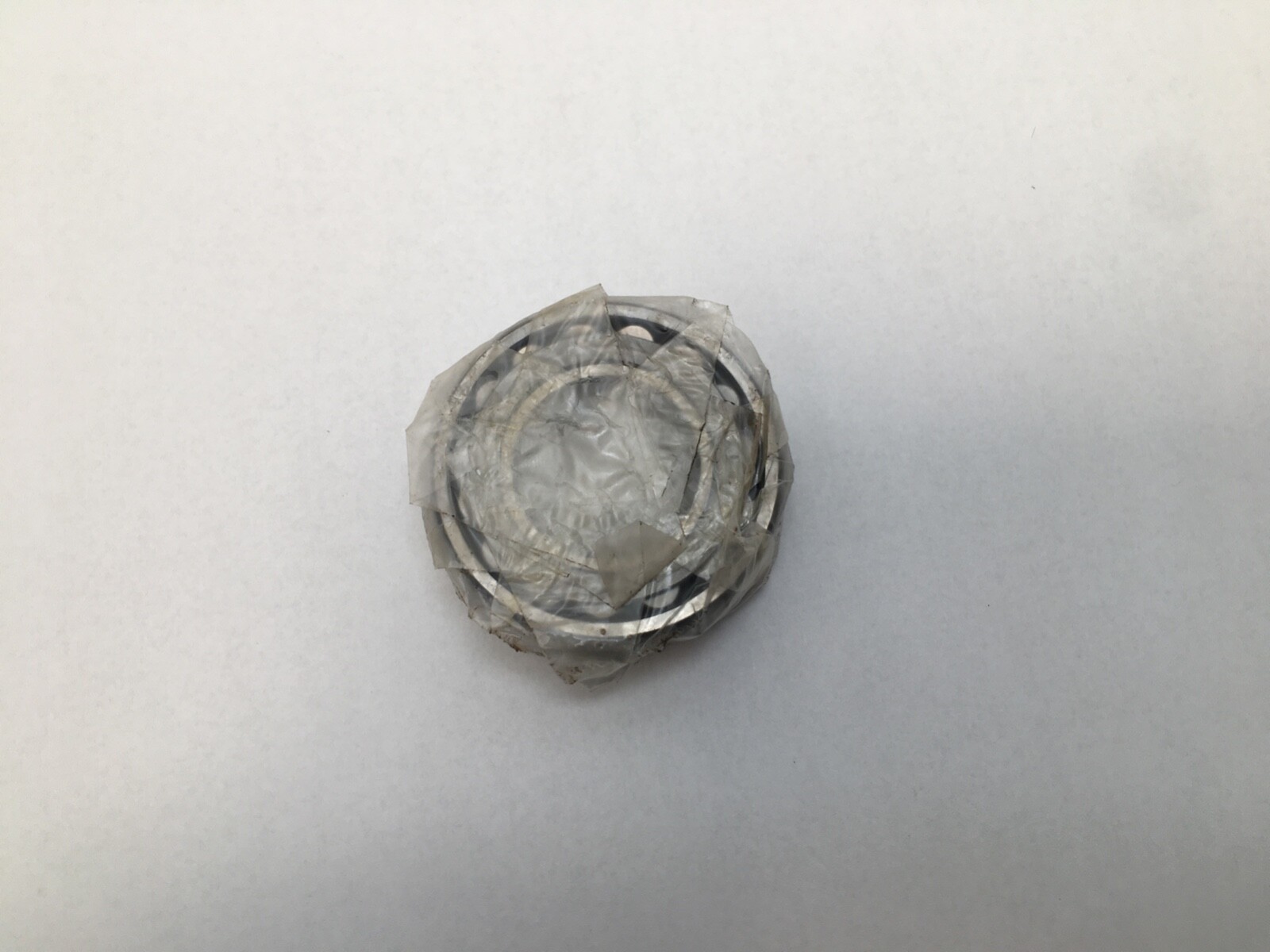

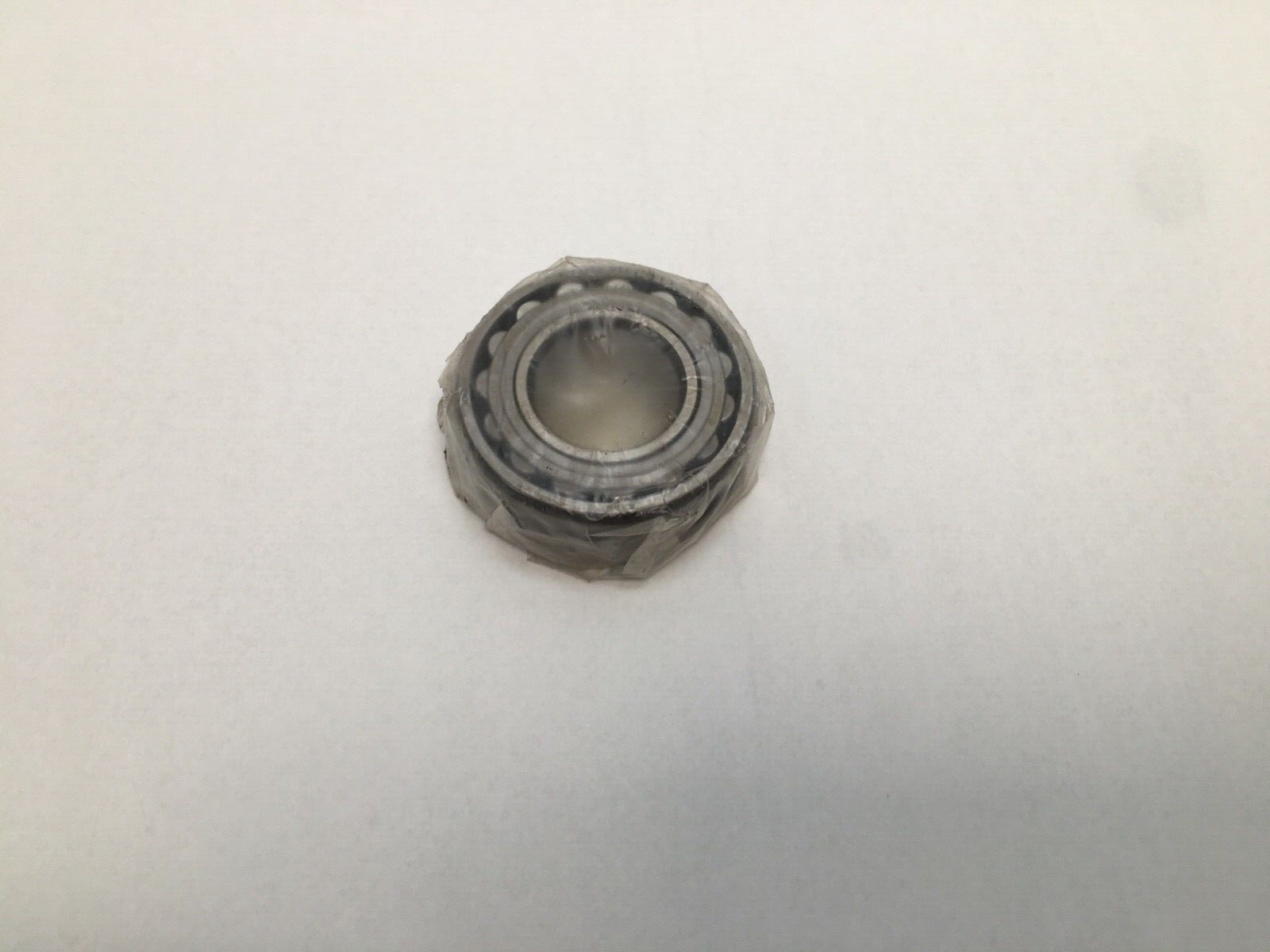

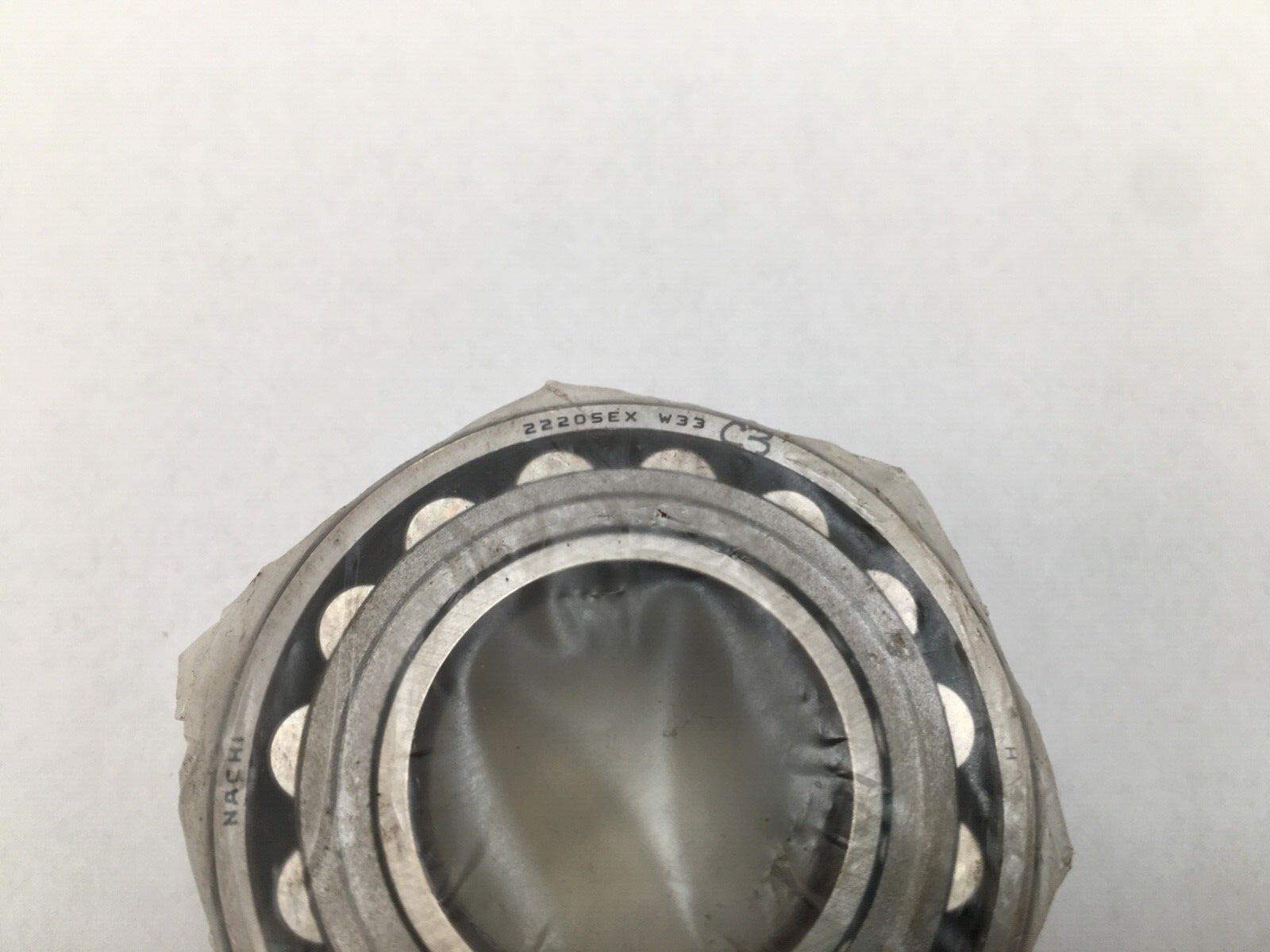

Nachi 22205EXW33C3 spherical roller bearing, 25 mm bore, 52 mm OD, 18 mm wide, straight bore, EX high-capacity design, W33 lube groove, C3 clearance.
List Price
$51.07
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Nachi |
|---|---|
| MPN | 22205EXW33C3 |
| Model | 22205 EX W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 18 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Overall Width | 18 mm |
| Mpn Variants | 22205EXW33C3, 22205 EX W33 C3, 22205EX W33 C3, 22205EXC3W33 |
| Cross Reference 1 | SKF 22205 E/C3 - no W33 lube groove |
|---|---|
| Cross Reference 2 | FAG 22205-E1-C3 - E1 design |
| Cross Reference 3 | NTN 22205EAW33C3 - EA design |
| Cross Reference 4 | Timken 22205EJW33C3 - EJ design |
The Nachi 22205EXW33C3 is a double-row spherical roller bearing in the ISO 222 series, size 05, in Nachi’s EX high-capacity design. It has a straight bore, a W33 lubrication groove with holes in the outer ring and C3 internal clearance.
22205 — ISO 222 series spherical roller bearing, 25 mm bore.
EX — Nachi high-capacity internal design.
W33 — lubrication groove and three holes in the outer ring.
C3 — internal clearance greater than normal.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 18 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Roller. Internal Clearance: C3. Lubricant: grease or oil. Closure Type: Open. Unit Quantity: 1 Pc.
Envelope: 25 x 52 x 18 mm, ISO 22205 size. Straight bore. The W33 groove and outer-ring holes carry grease or oil to the rollers.
The 22205 size, 25 x 52 x 18 mm, is shared by SKF 22205 E/C3 (no W33 lube groove), FAG 22205-E1-C3 (E1 design), NTN 22205EAW33C3 (EA design) and Timken 22205EJW33C3 (EJ design). Cage design and load ratings differ by maker.
W33 is a lubrication groove with three holes in the outer ring.
C3, greater than normal.
25 mm bore, 52 mm outside diameter, 18 mm width, straight bore.
