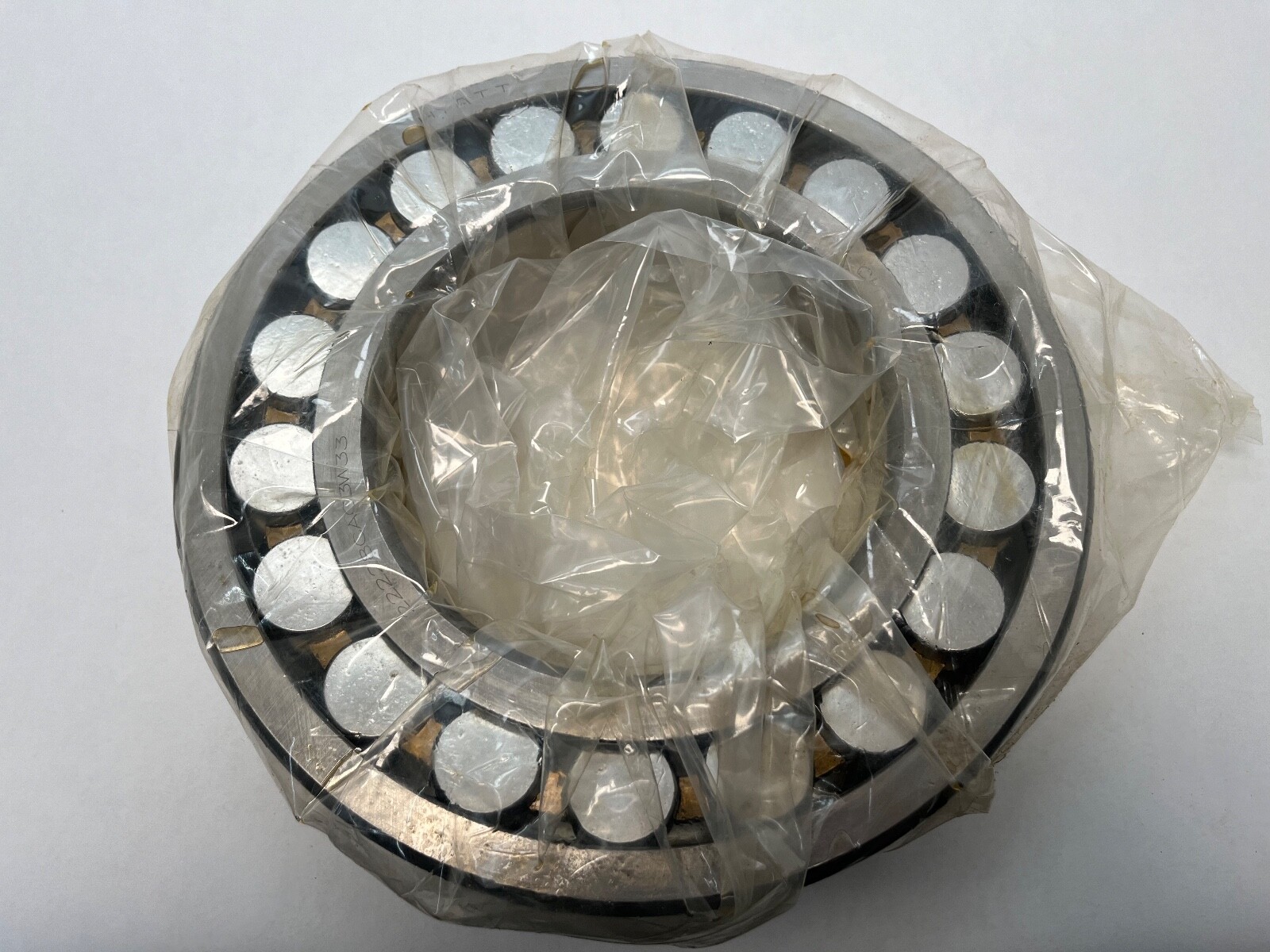

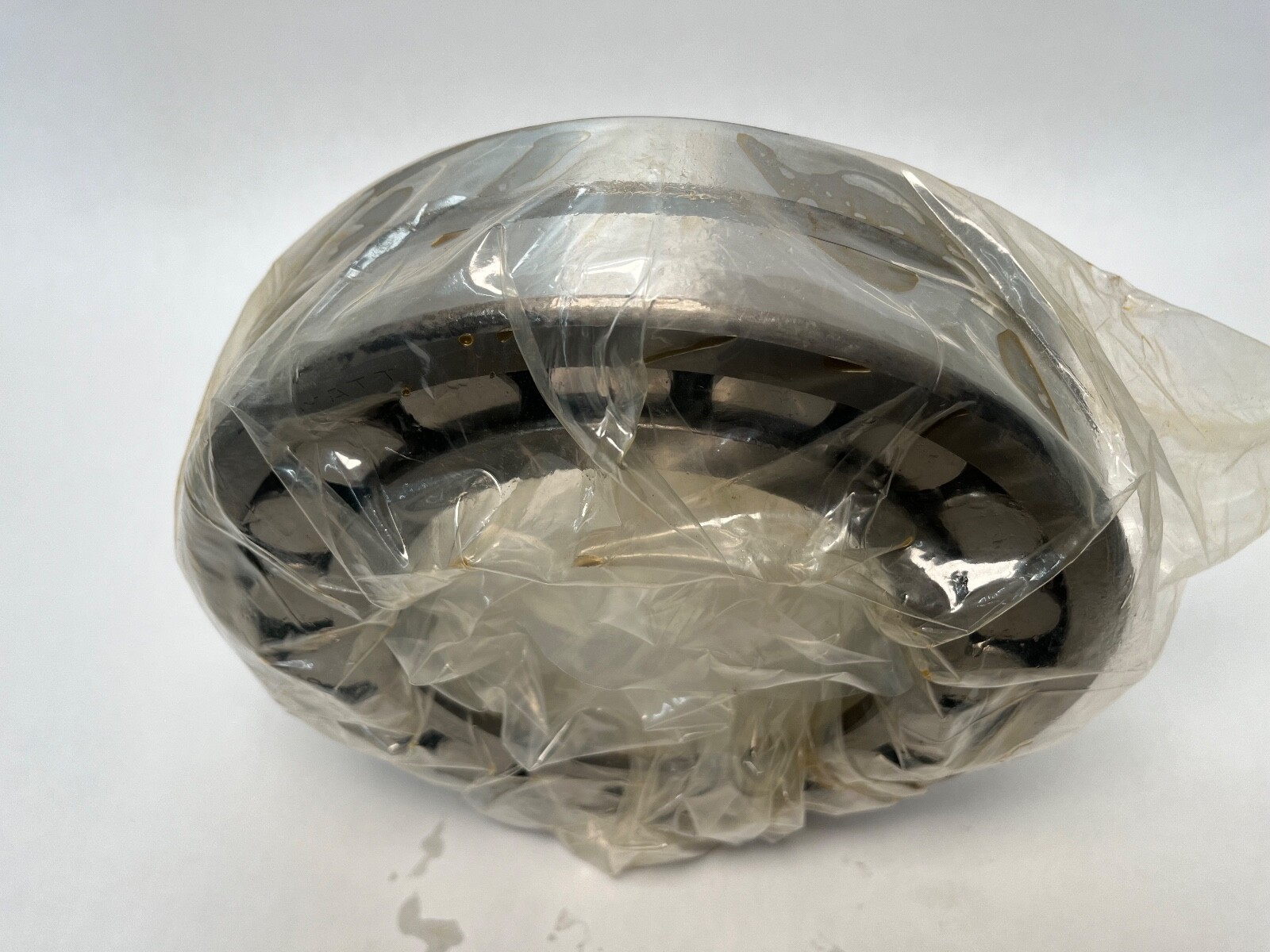

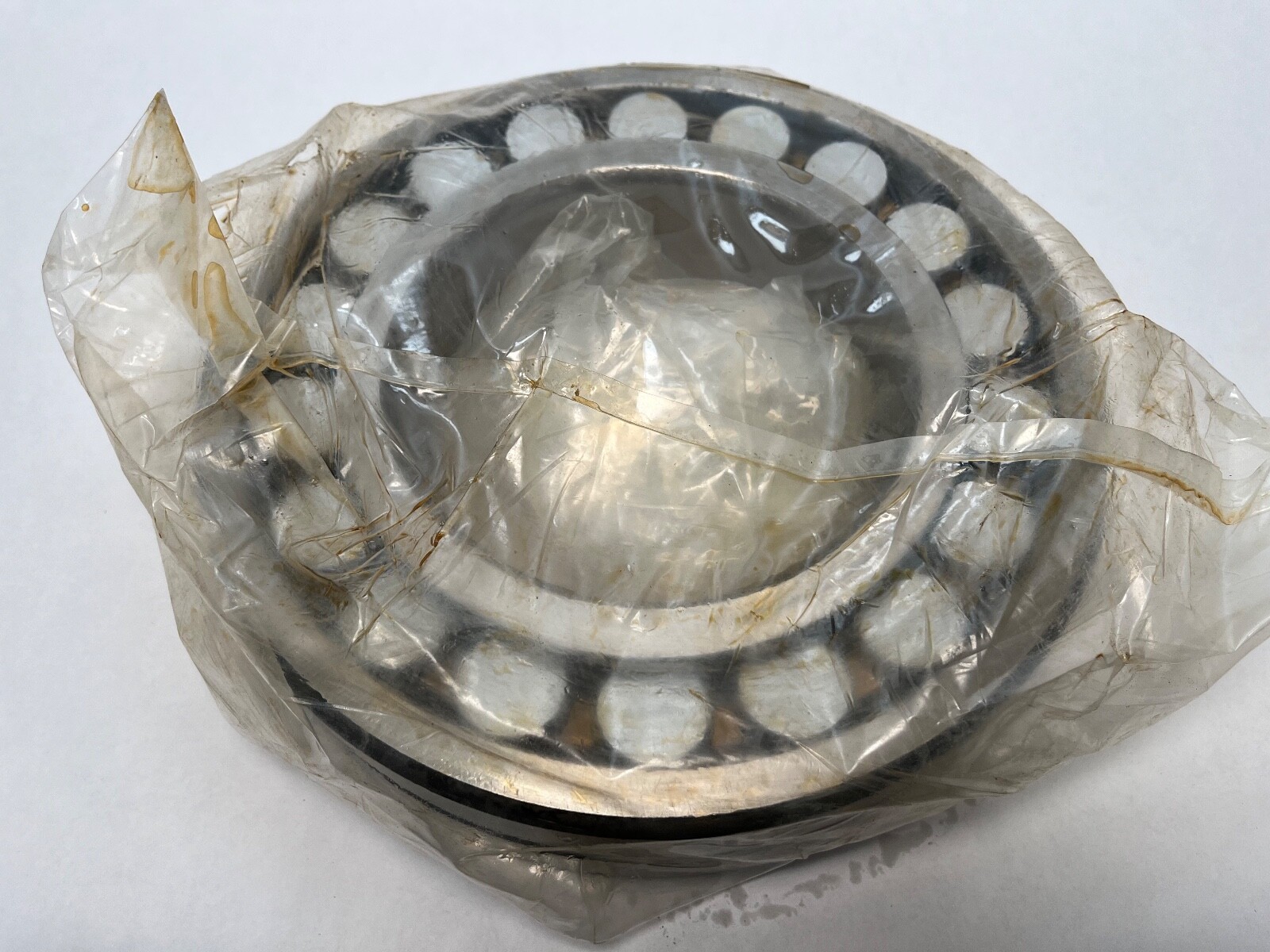

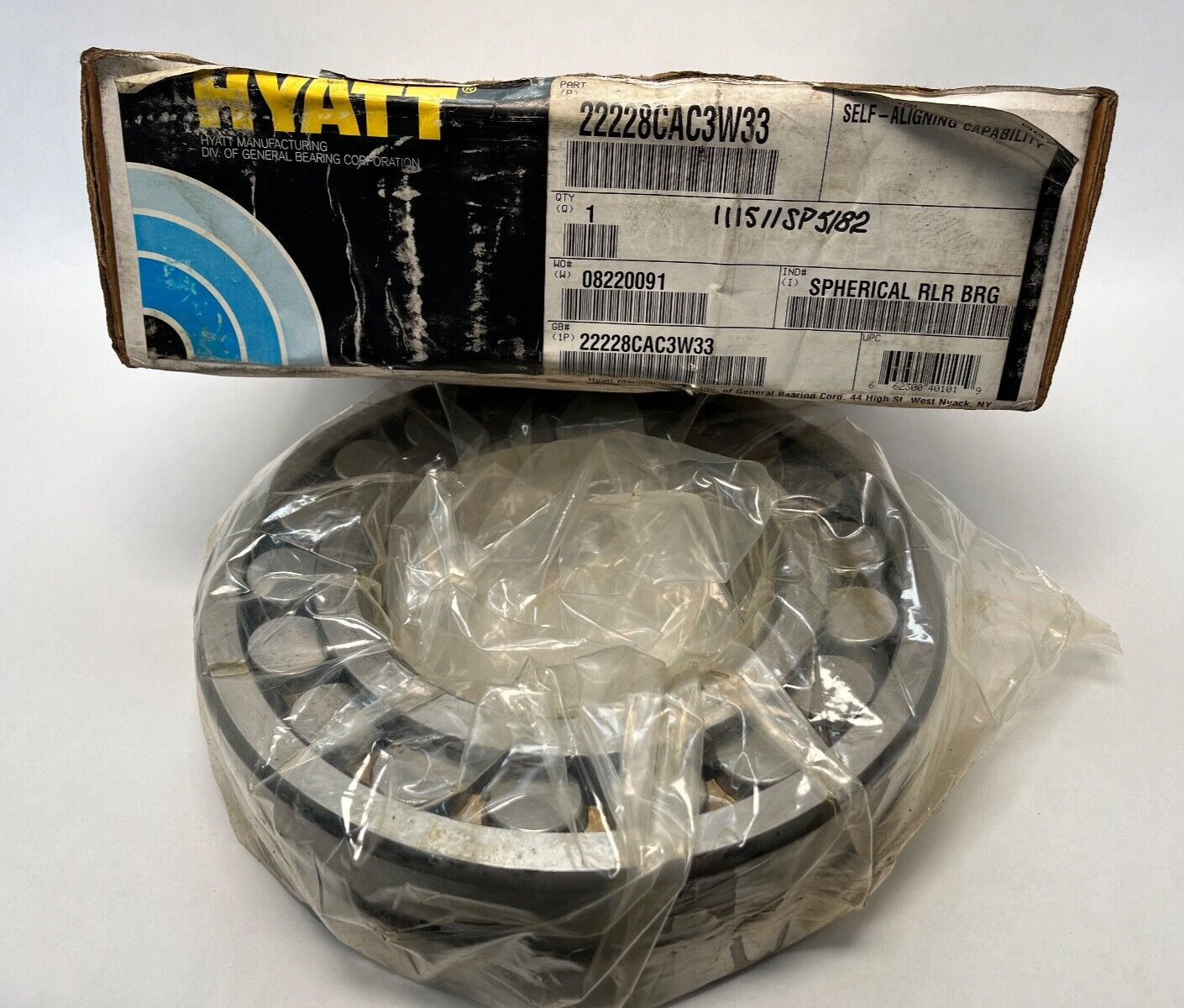

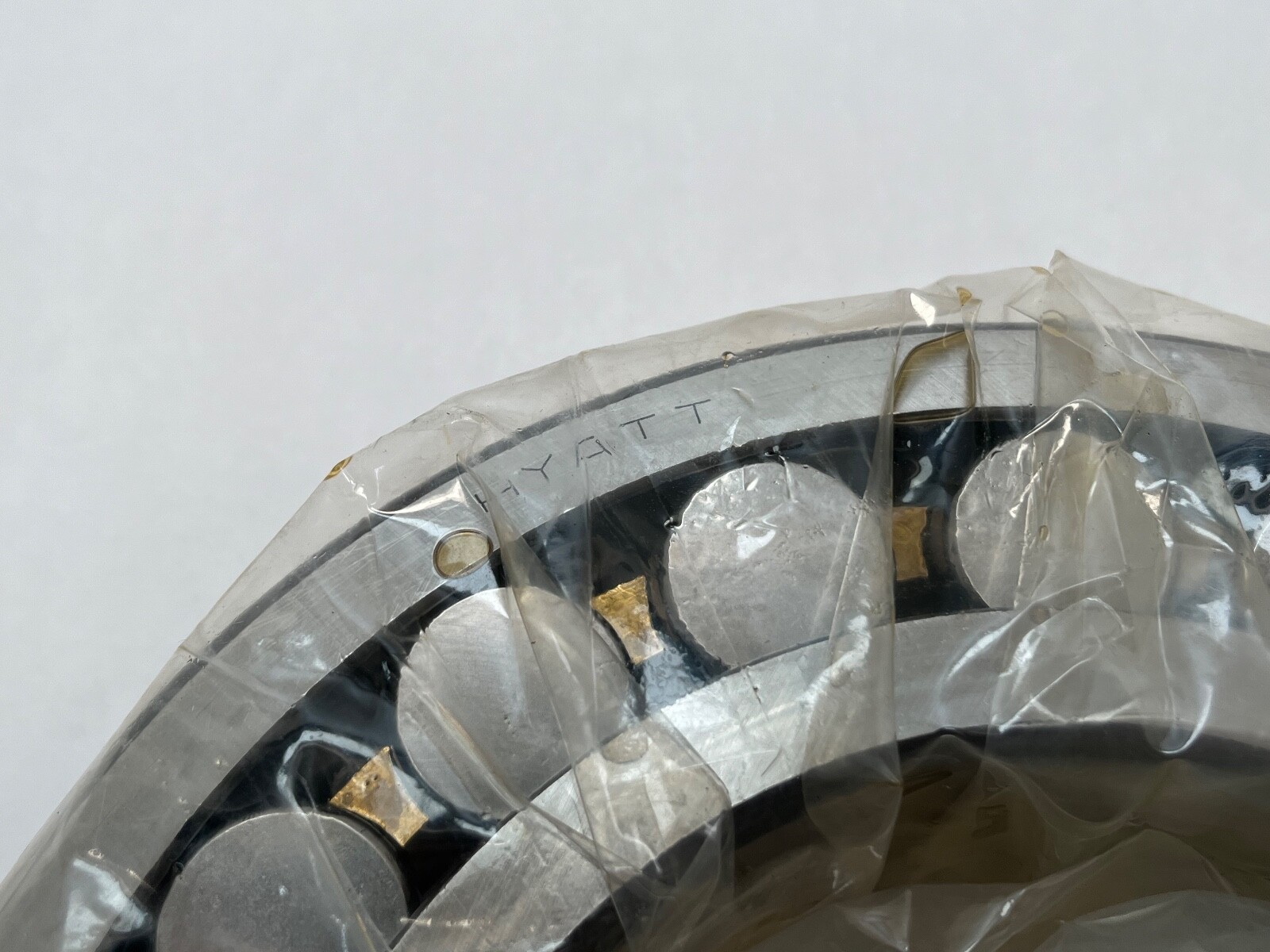

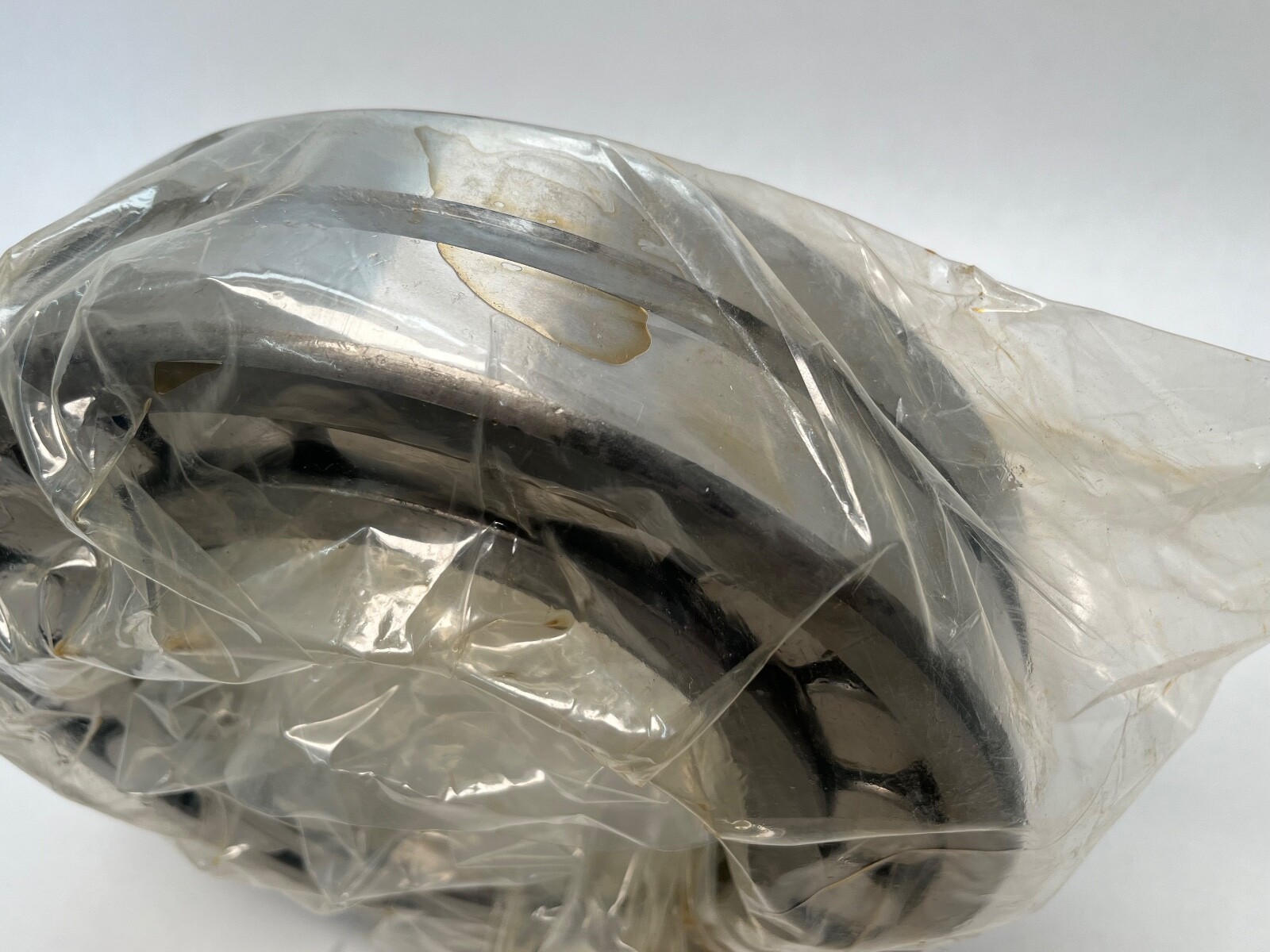

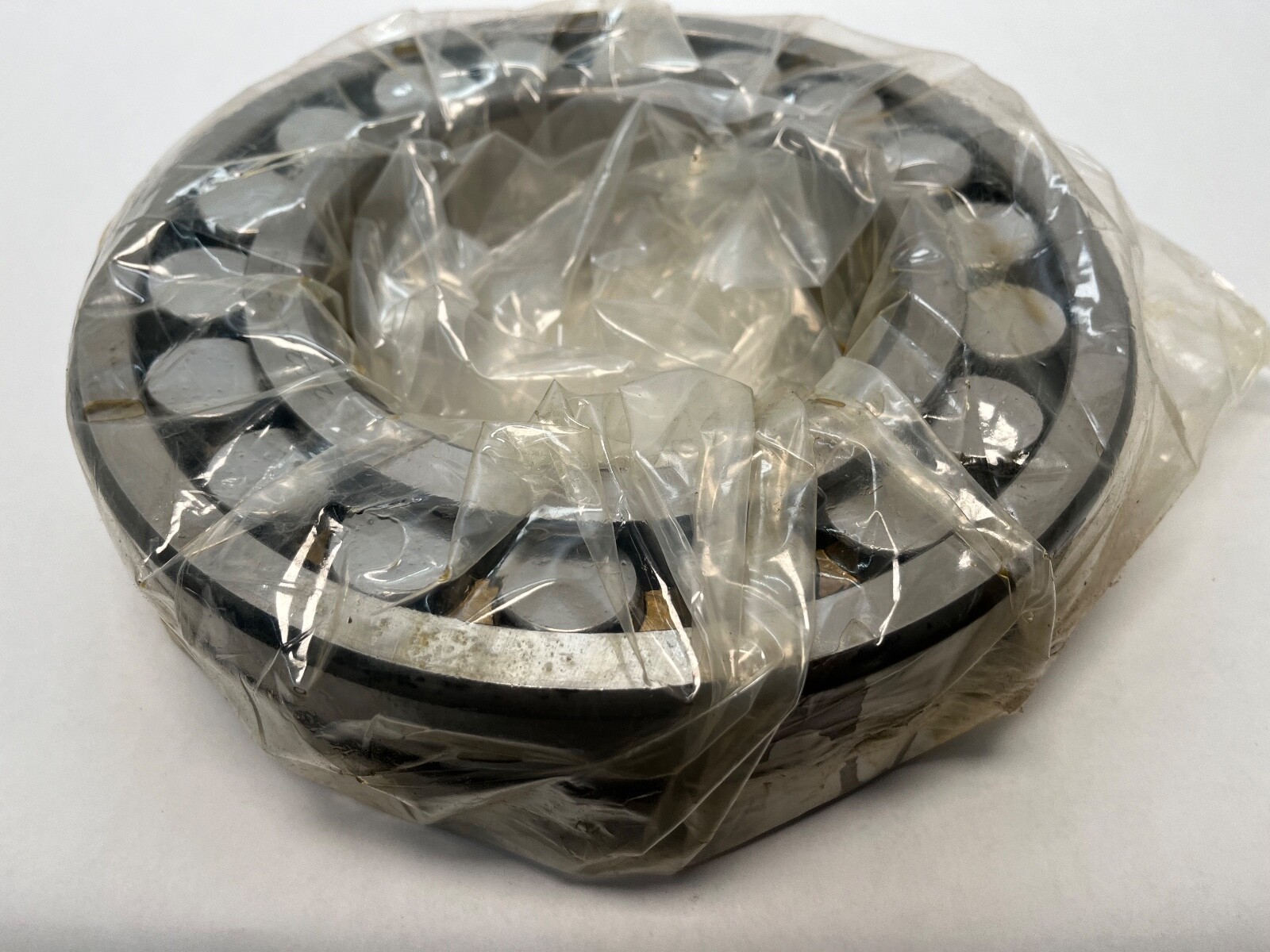

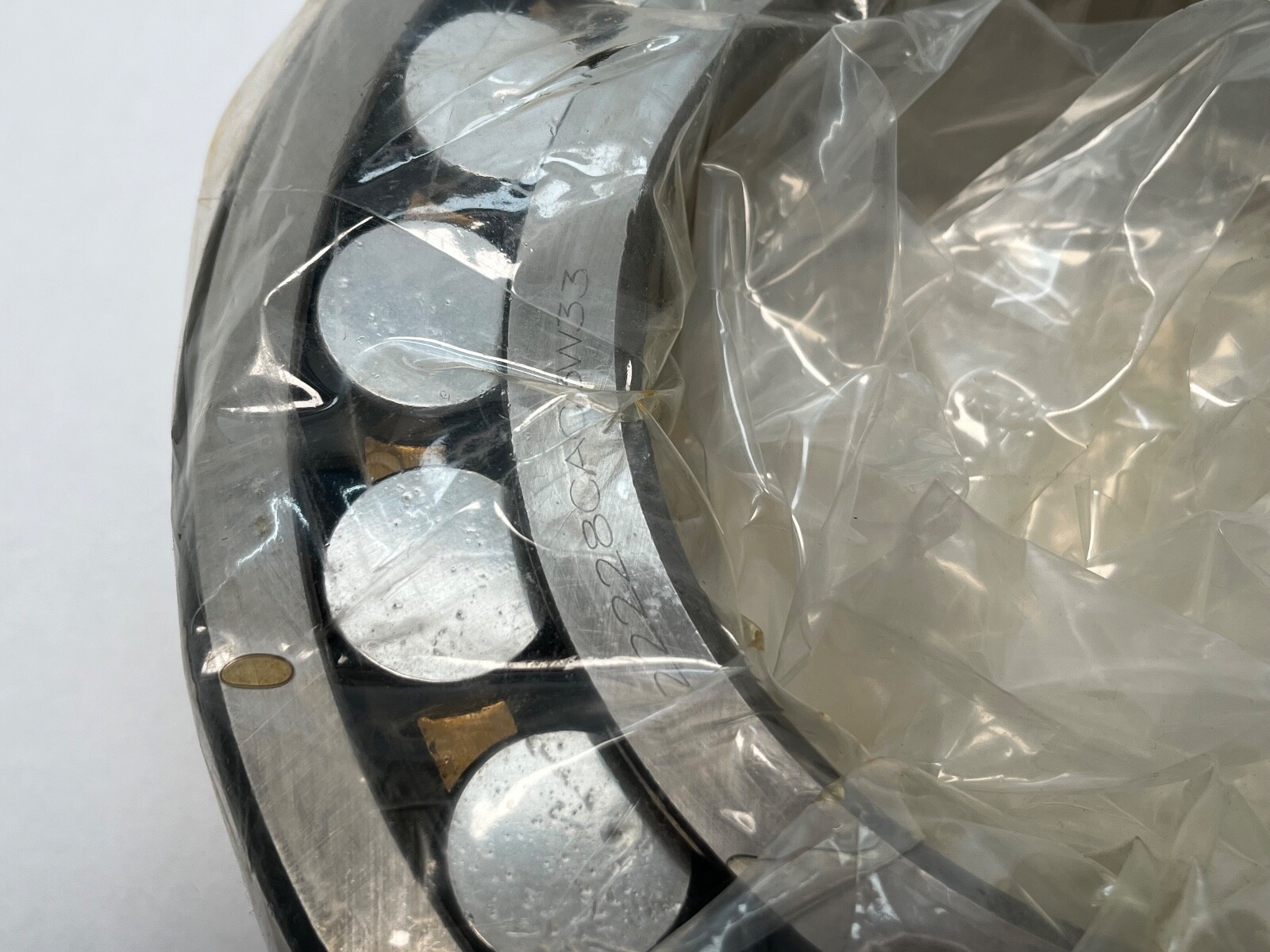

Spherical roller bearing, 140 mm bore x 250 mm OD x 68 mm wide, C3 clearance, W33 lube groove, machined bronze cage. Hyatt 222 Series, straight bore.
List Price
$356.56
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Hyatt |
|---|---|
| MPN | 22228CAC3W33 |
| Model | 22228CAC3W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 140 mm |
| OD | 250 mm |
| Width | 68 mm |
| Material | Bearing Steel |
|---|---|
| Series | 222 Series |
| Lubricant | grease or oil |
| Dynamic Load Rating | 146,900 lbf |
| Static Load Rating | 207,900 lbf |
| Rolling Elements | Spherical Roller |
| Item Weight | 31.97 lb |
| Cage Material | Machined bronze |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Limiting Speed | 1,800 rpm oil |
| Base Number | 22228 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row roller bearing |
| Common Misspellings | 22228CA C3W33, 22228CAW33C3, 2228CAC3W33 |
| Application Types | Vibratory systems, speed reducers, conveyors, heavy process machinery |
| Mpn Variants | 22228CAC3W33, 22228-C-A-C3-W33, 22228 C A C3 W33, 22228C, 22228 MB/M |
| Precision Class | RBEC 1 |
| Cross Reference 1 | SKF 22228 CC/C3W33 – same size, C3, W33; steel cage |
|---|---|
| Cross Reference 2 | FAG 22228-E1-C3 – same size, C3; E1 design, check cage |
| Cross Reference 3 | Timken 22228EMW33C3 – same size, C3, W33; EM brass cage |
| Cross Reference 4 | NSK 22228CAME4C3 – same size, C3; CAM brass cage |
Hyatt 22228CAC3W33 is a double-row spherical roller bearing from the Hyatt 222 Series, straight cylindrical bore. Bore Diameter: 140 mm (5.5118 in). Outside Diameter: 250 mm (9.8425 in). Overall Width: 68 mm (2.6772 in). Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Machined bronze.
22228 — 222 Series spherical roller bearing, bore code 28, 140 mm bore.
C3 — internal clearance greater than normal.
W33 — lubrication groove with three radial holes in the outer ring.
Dynamic Load Rating: 146,900 lbf (1 million revolutions). Static Load Rating: 207,900 lbf. Limiting Speed: 1,800 rpm oil (open, oiled bearing). Item Weight: 31.97 lb. Precision Class: RBEC 1. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil, fed through the W33 groove and holes. The two rows of rollers self-align, carrying high radial load with shaft misalignment or deflection.
Maximum Fillet Radius: 2.5 mm (0.098 in). Bore Type: Straight.
Unit Quantity: 1 Pc.
Other-maker 22228 bearings in the same 140 x 250 x 68 mm size with C3 clearance: SKF 22228 CC/C3W33, FAG 22228-E1-C3, Timken 22228EMW33C3, NSK 22228CAME4C3. Cage design and load ratings differ by maker. Tapered-bore version: 22228K.
