Double-row spherical roller bearing, 100 x 180 x 46 mm, cylindrical bore, W33 lubrication groove and three holes, pressed steel cage, C3 clearance. Self-aligning, thrust both directions. 1 Pc.
List Price
$152.71
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22220 CC/C3W33 |
| GTIN | 7316576652875 |
| Model | 22220CCC3W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 46 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22220 |
| Industry Terms | Spherical roller bearing, self-aligning roller bearing, straight bore spherical roller, W33 spherical roller, double row barrel roller bearing |
| Common Misspellings | 22220 CC C3 W3, 22220CC/C3W3, 2220-CC/C3W33, 22220-CG/C3W33, 22220 CC/3CW33, sperical roller bearing, spherical roler bearing |
| Application Types | Conveyor pulleys, crushers and screens, fans and blowers, gearboxes, pumps, rolling mill auxiliaries, vibrating machinery |
| Bore Shaft Size | 100 mm (3.937 in), cylindrical |
| Mpn Variants | 22220-CC/C3W33, 22220 CC/C3W33, 22220CCC3W33, 22220-CC-C3-W33, 22220 CC C3 W33, 22220CC/C3/W33 |
| Rolling Elements | Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Part Number | 22220 CC/C3W33 |
SKF 22220-CC/C3W33 is a double-row spherical roller bearing with a cylindrical bore. Bore Diameter: 100 mm (3.937 in). Outside Diameter: 180 mm (7.087 in). Width: 46 mm (1.811 in). Number Of Rows: 2. Rolling Elements: Spherical Roller. Two rows of barrel-profile rollers run on a common spherical outer raceway, so the inner ring and roller set swivel within the outer ring. The bearing carries heavy radial load, takes thrust in both axial directions, and accommodates static misalignment and running shaft deflection.
222 — double-row spherical roller dimension series.
20 — bore code, 100 mm.
CC — pressed steel window cage with an inner-ring guide.
C3 — radial internal clearance greater than normal.
W33 — lubrication groove around the outer ring with three radial lubrication holes, feeding lubricant to the centre of the two roller rows.
No K suffix — cylindrical bore.
Dynamic Load Rating: 433 kN. Static Load Rating: 490 kN. Cage Type: Pressed steel, window type. Internal Clearance: C3. Closure Type: Open, both faces. Lubricant: grease or oil. Axial Load Capacity: both directions. C3 clearance leaves running room for a press fit on the shaft or a temperature difference across the bearing.
Bore Type: Straight, cylindrical. Lubrication Feature: W33, outer-ring groove and three radial holes. The groove is continuous around the ring.
Unit Quantity: 1 Pc. Bearing only.

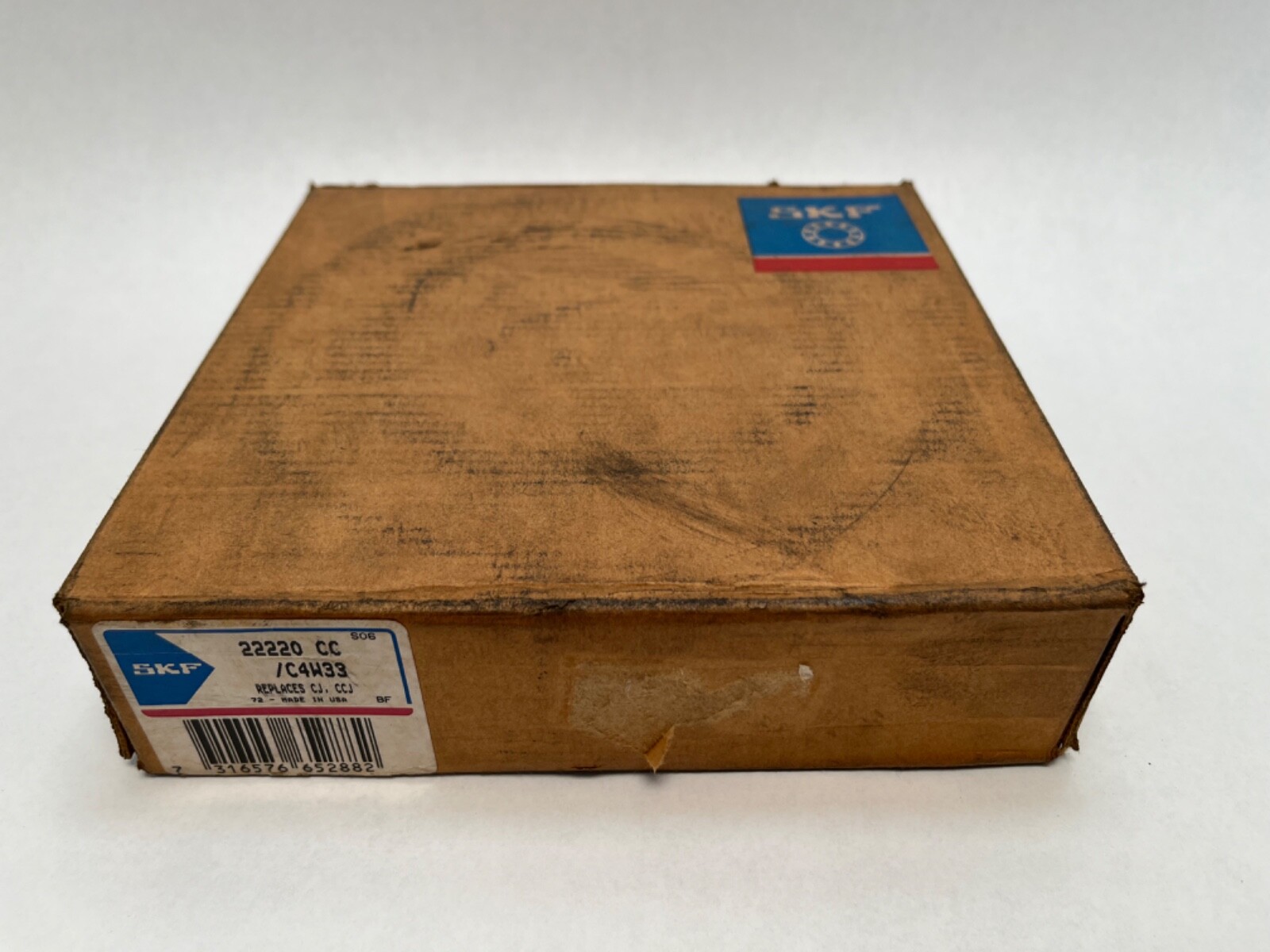

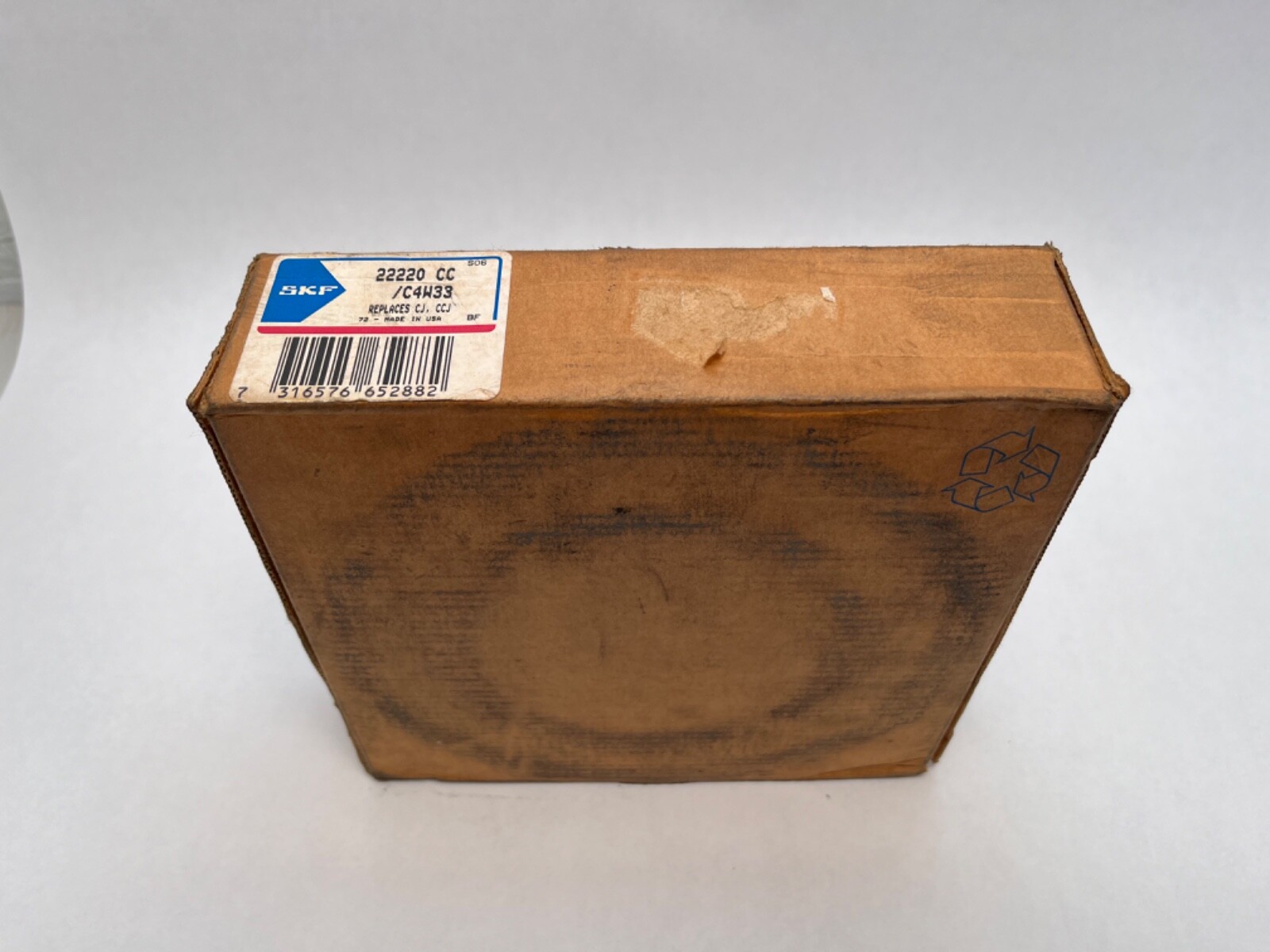

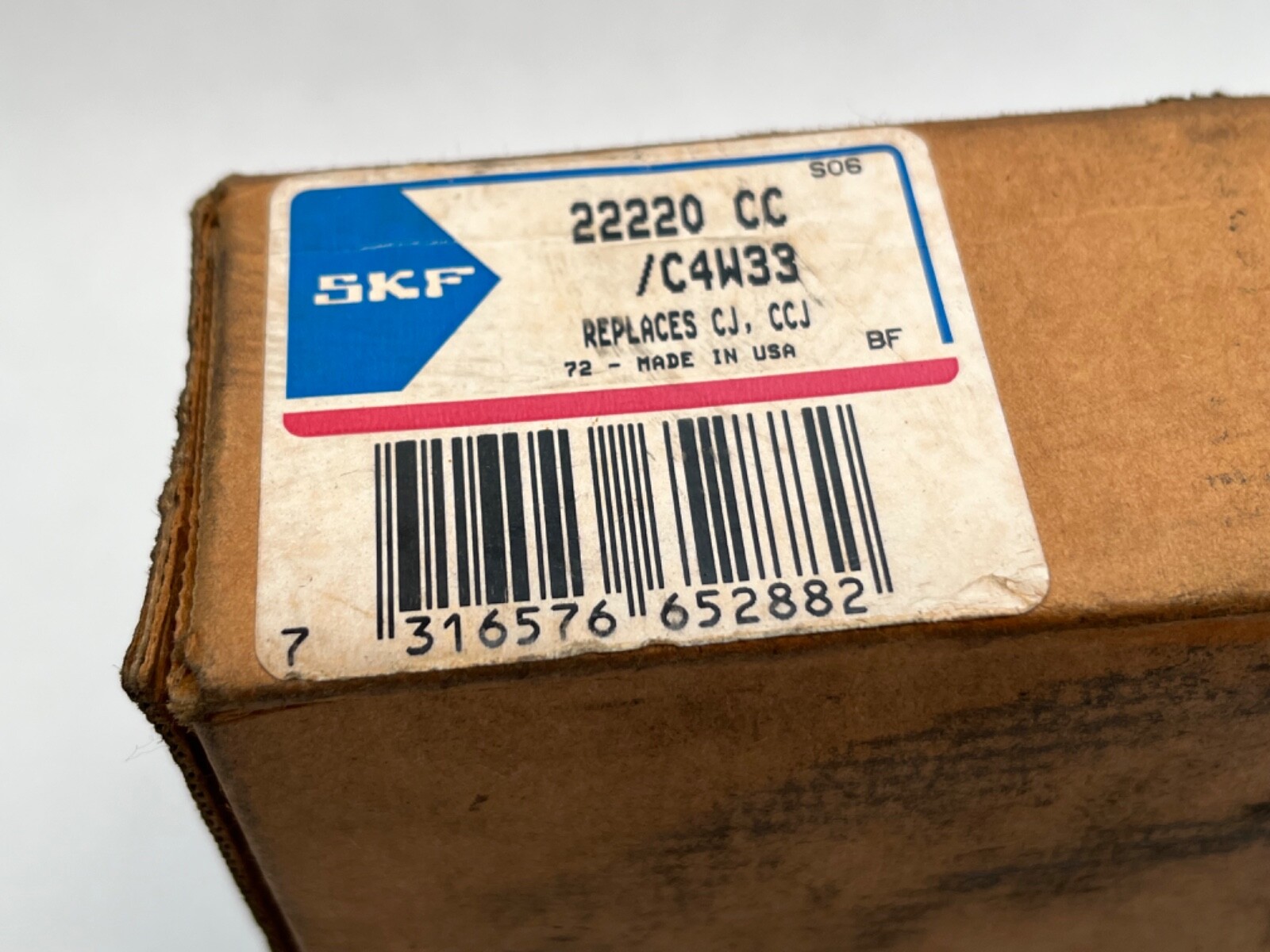

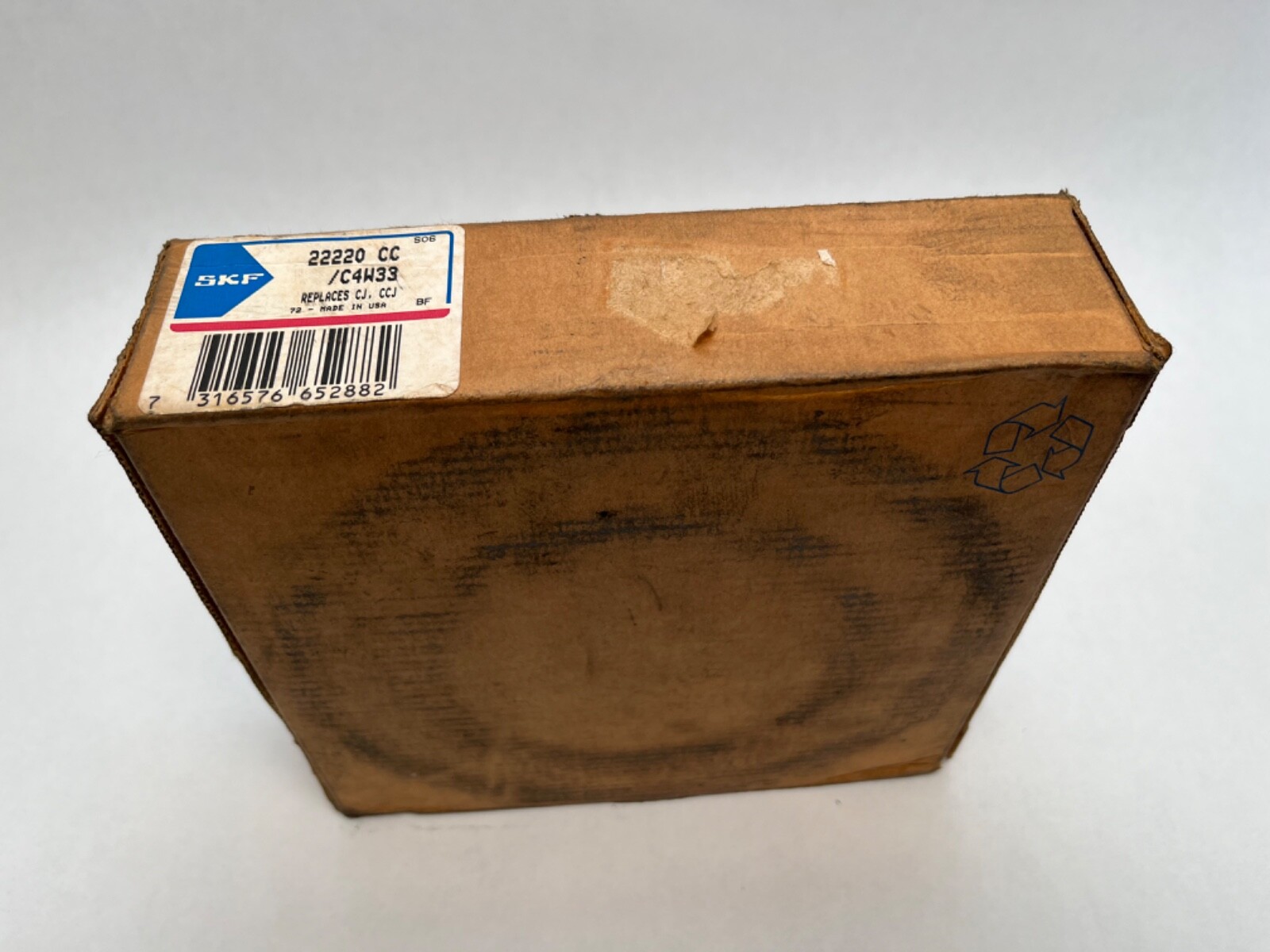

ISO base number: 22220. SKF 22220 CC/C4W33 is the same bearing in C4 clearance. SKF 22220 CCK/W33 is the 1:12 tapered-bore version for a tapered journal or adapter sleeve.
