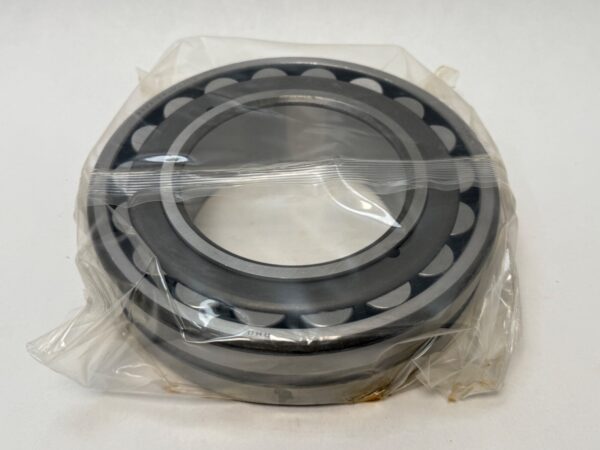

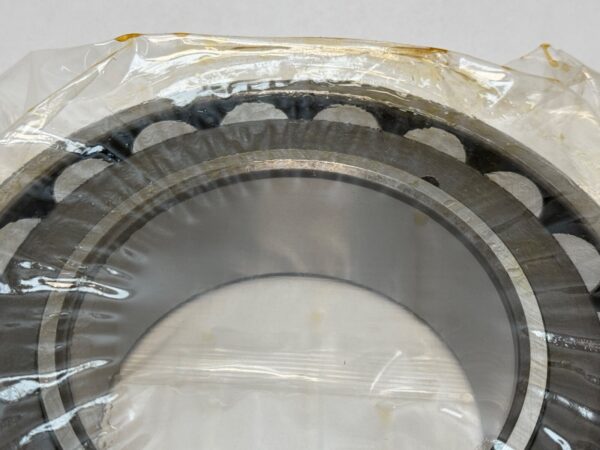

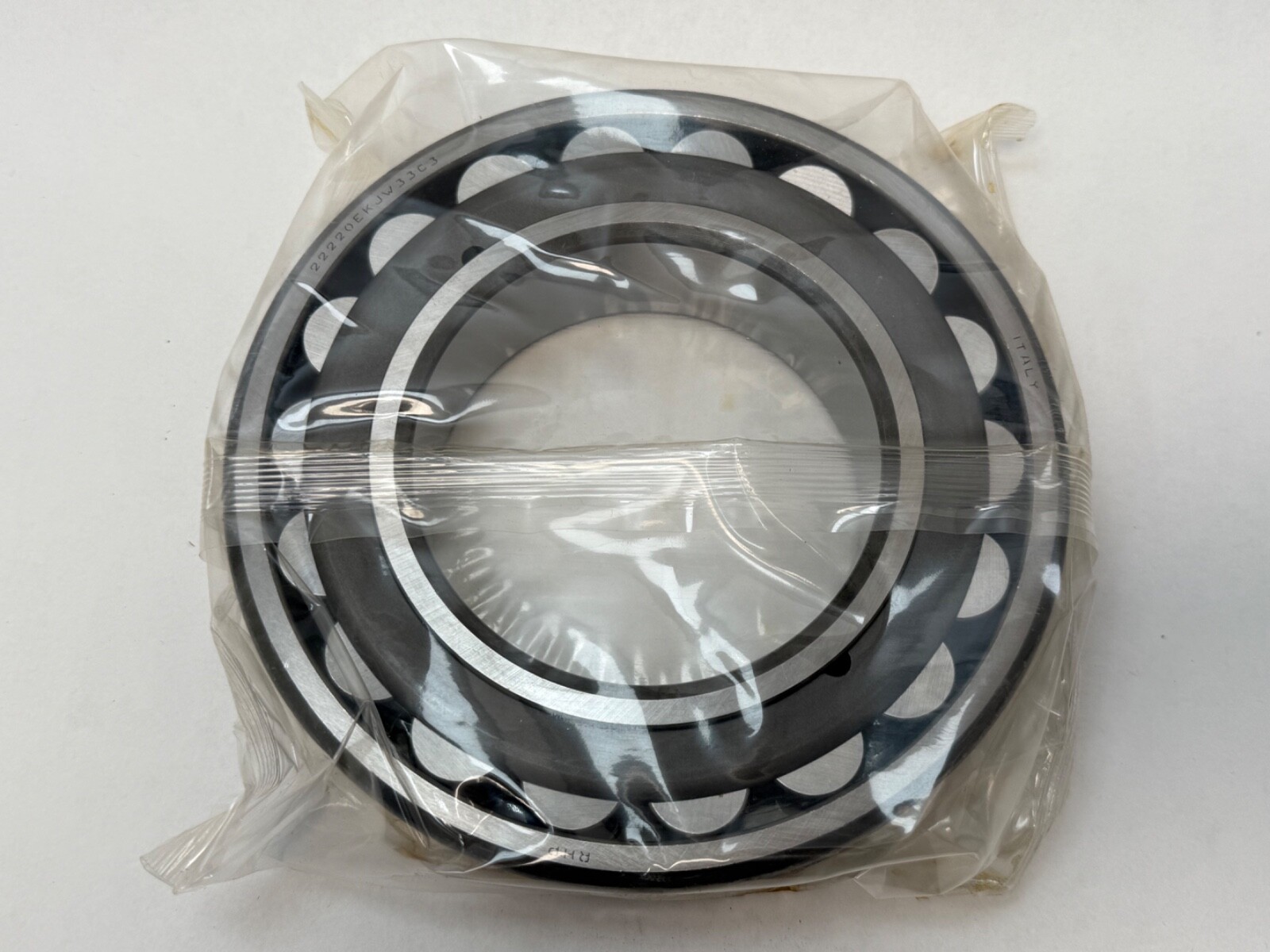

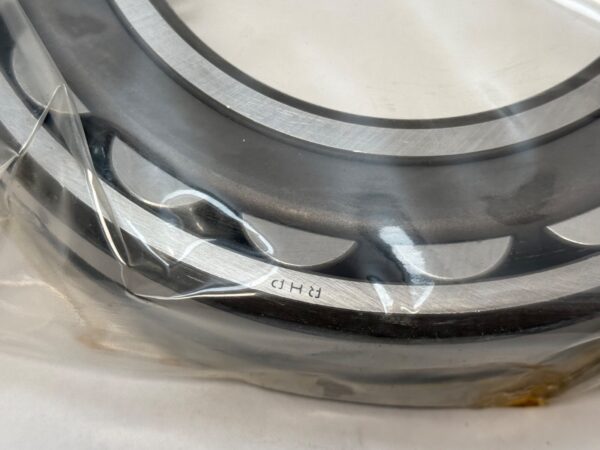

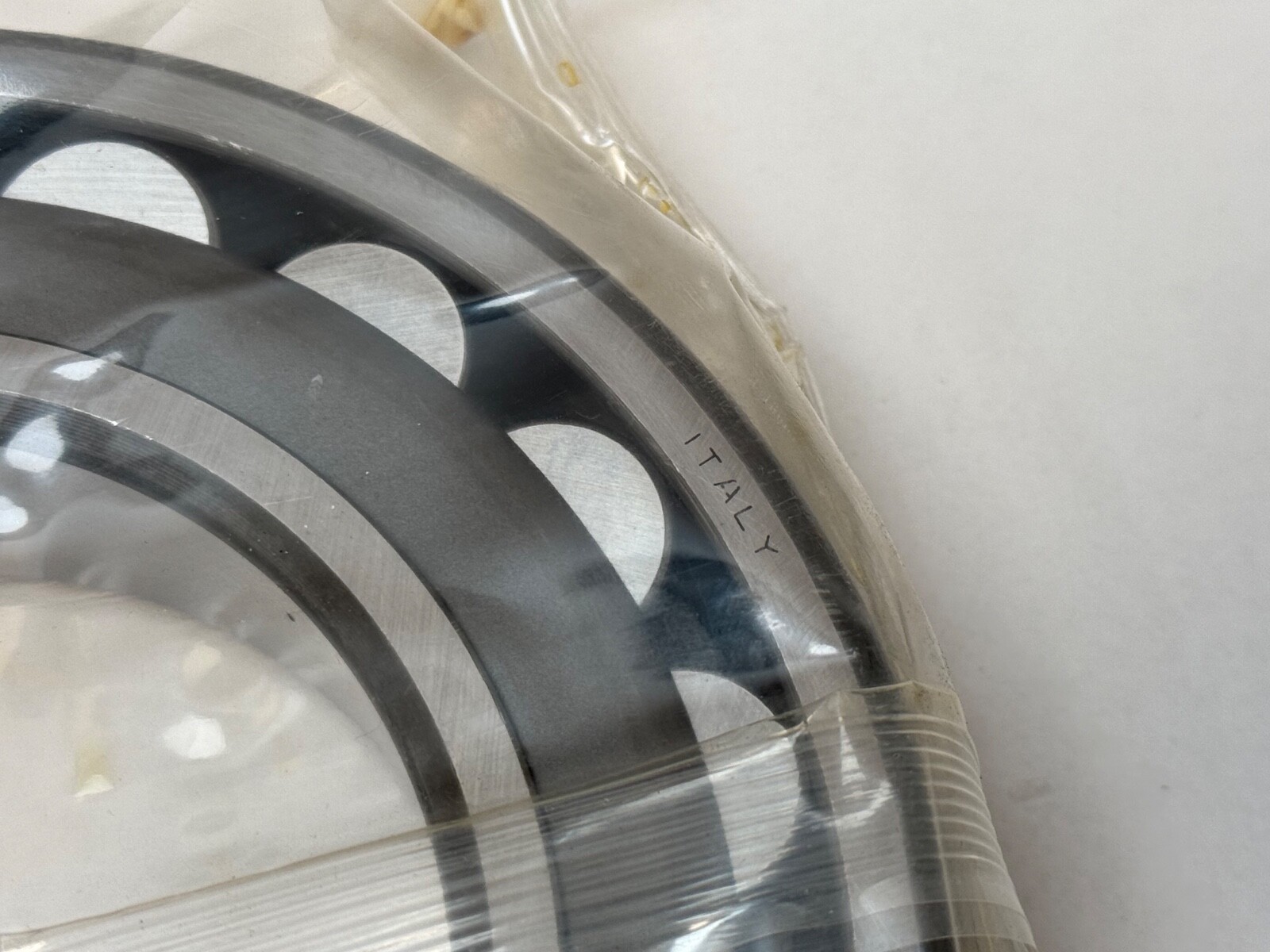

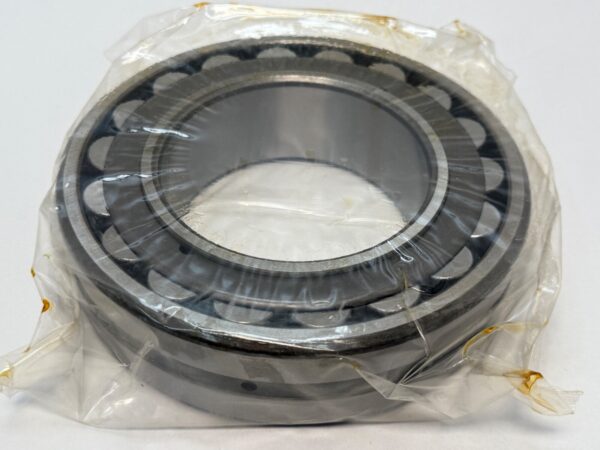

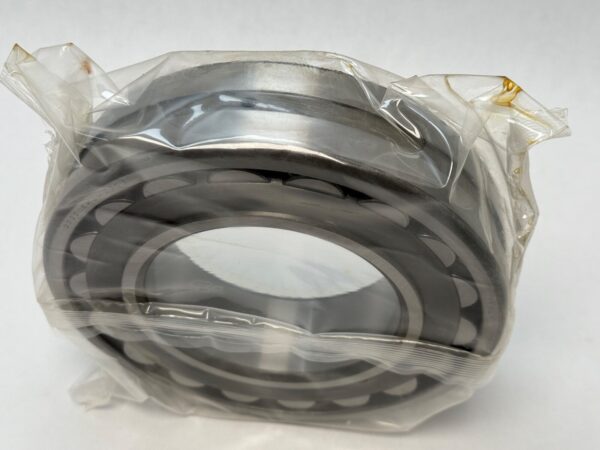

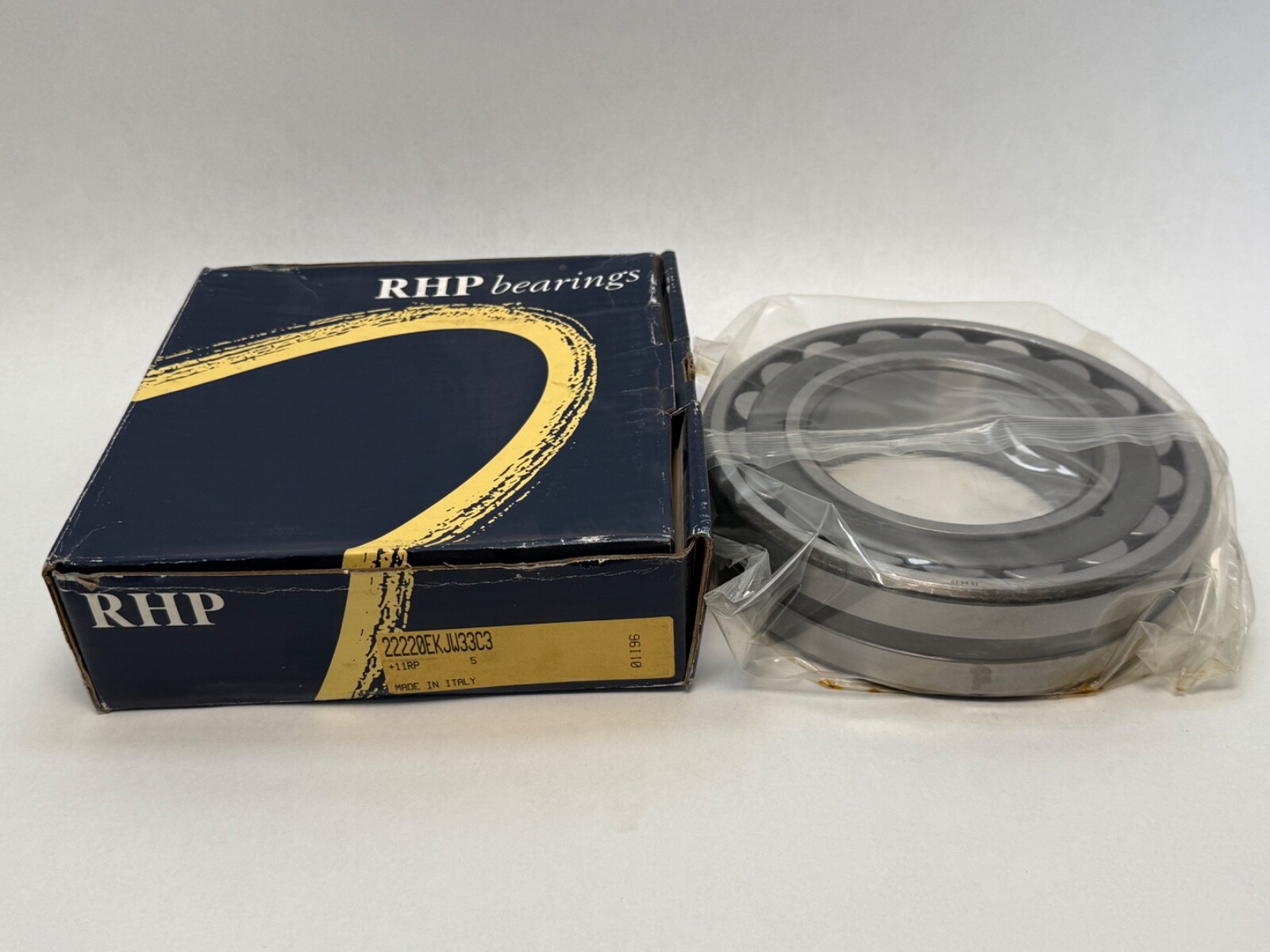

Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
10 in stock
List Price
$143.96
10 in stock
10 in stock
Get Estimated Arrival Date
Spherical Roller Bearing – Tapered Bore, 100 mm ID, 180 mm OD, 46 mm Width, Open, C3 Internal clearance.
| MFR / Brand | FAG |
|---|---|

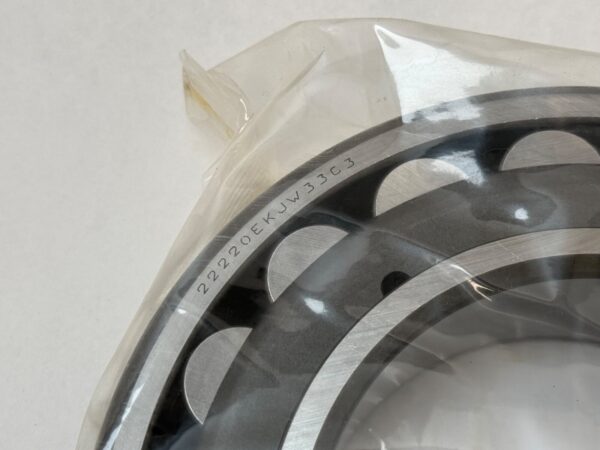

| MPN | 22220EKJW33C3 |
| Model | 22220 EKJ W33 C3 / 22220 E K J W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 46 mm |
| Material | Bearing Steel |
|---|---|
| Min Temp | -30 °C |
| Dynamic Load Rating | 425 kN / 95540 lbf |
| Static Load Rating | 490 kN / 110155 lbf |
| Precision Rating | ABEC 1 / P0 |
| Series | 22200 |
| Rolling Elements | Cylindrical Rollers |
| Max Temp | 200 °C |
| Condition | New |
| Item Weight | 10.1 lbs |
| Cage Material | Steel |
| Limiting Speed | 3200 rpm |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Lubricant | Oil |
| Harmonization Code | 8482.30.00.40 |
| Bore | Taper Bore |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 22220 EK/C3 |
|---|---|
| Cross Reference 2 | FAG 22220-E1-K-C3 |
| Cross Reference 3 | NSK 22220EAKE4C3 |
| Cross Reference 4 | Koyo 22220RKC3 |
