Newport1/8 DIN Digital Panel Meter, Type J Thermocouple Temperature Indicator, Red LED, 115 VAC

Product Description

What this part is

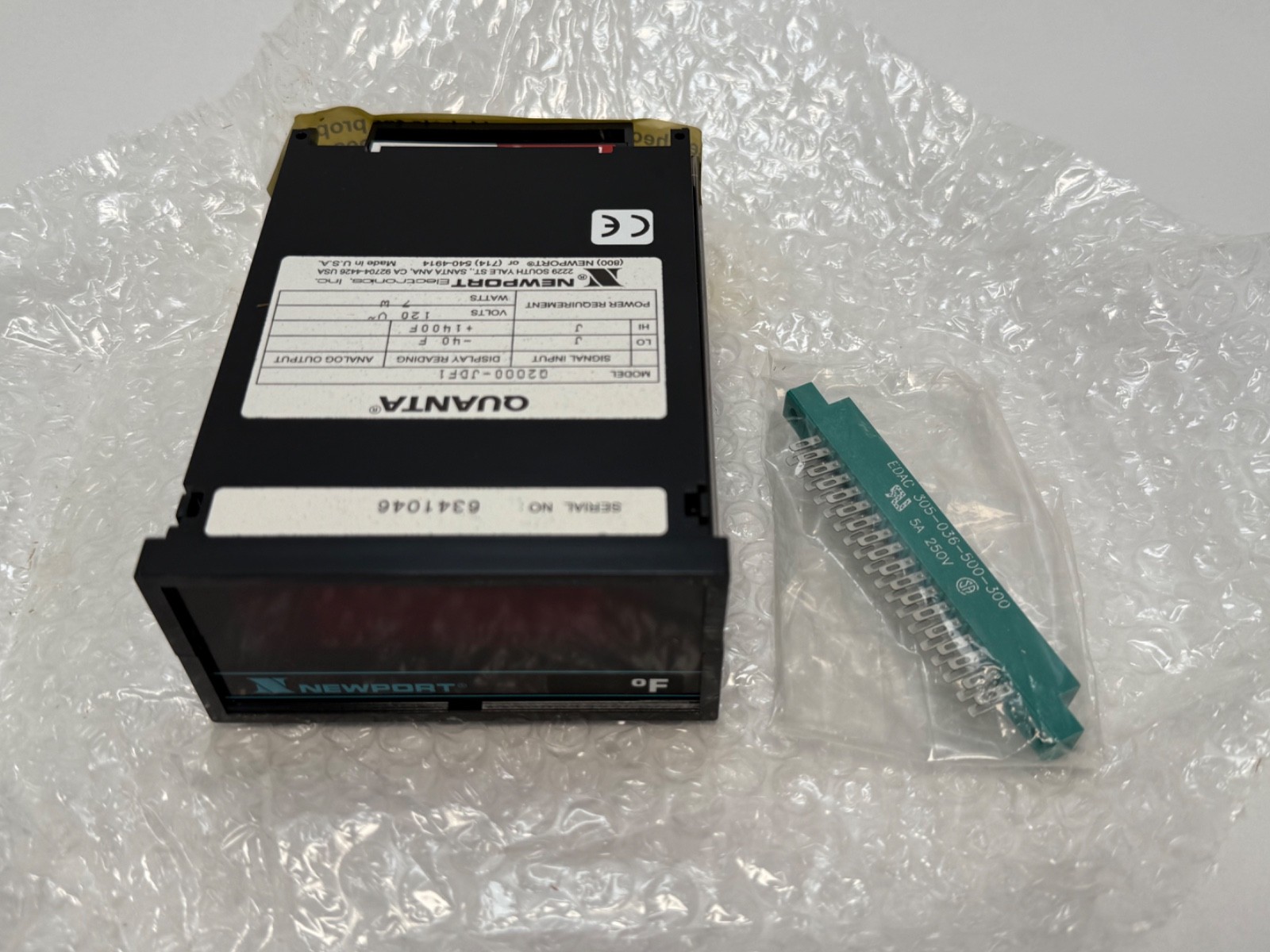

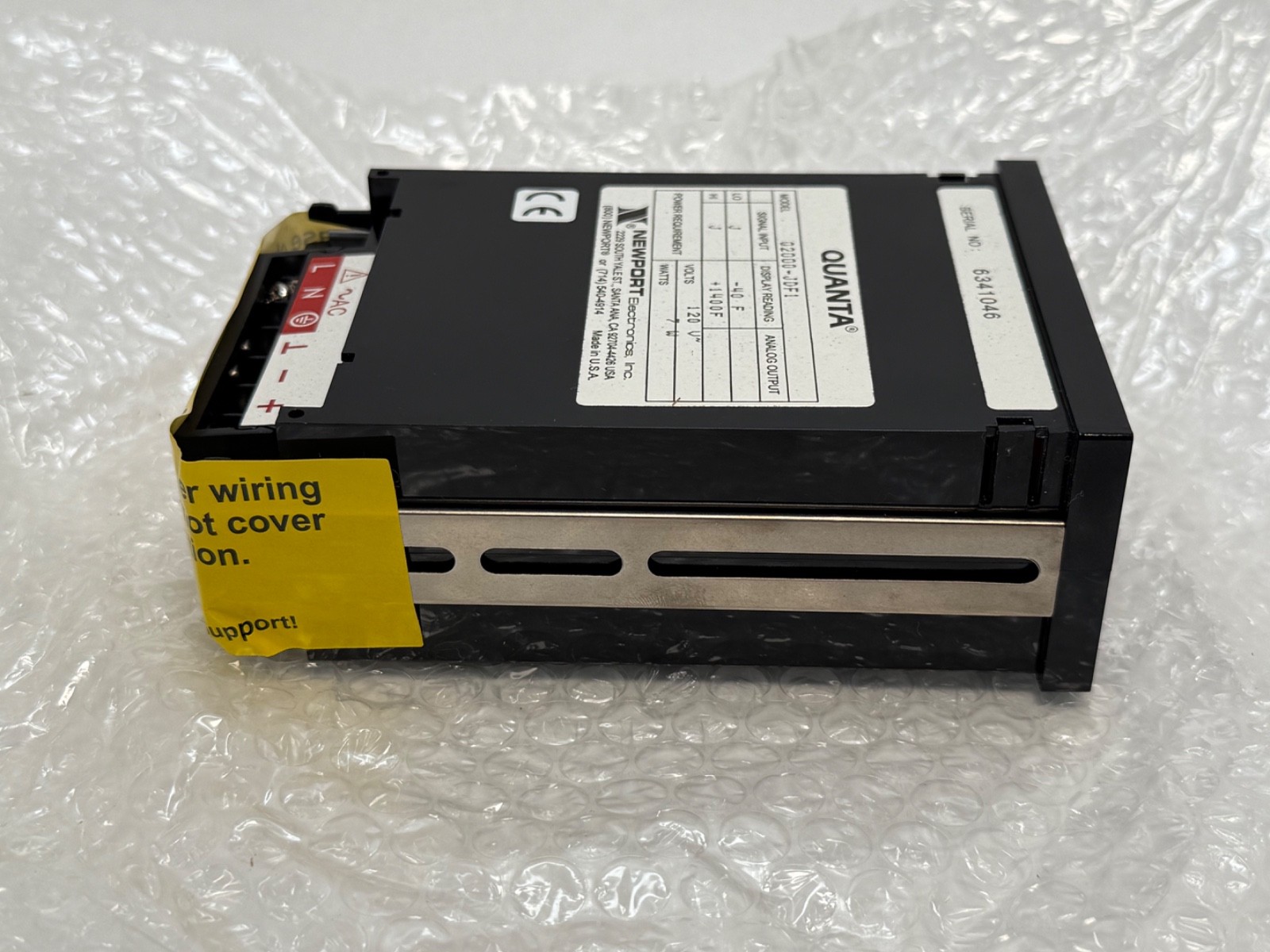

Newport QUANTA Q2000-series digital panel meter configured as a Type J thermocouple temperature indicator. Complete panel instrument in a 1/8 DIN polycarbonate case with a red LED display. A Type J thermocouple wires to the rear terminals and the meter reads temperature directly, with cold-junction compensation and zero and span trimming built in.

Order code decoding

Q2000: the QUANTA Q2000 family, a 1/8 DIN panel-mount digital meter with polycarbonate case, red LED display and screw-terminal rear connection. Panel cutout follows the 1/8 DIN standard, 44.96 mm high.

J: the input, Type J thermocouple, iron / constantan. The linearisation curve and cold-junction compensation are burned in for Type J.

DF1: the Newport display, range and output option group for this build, followed by the power/option digit.

Published specifications

Input: Type J thermocouple, iron/constantan, with cold-junction compensation.

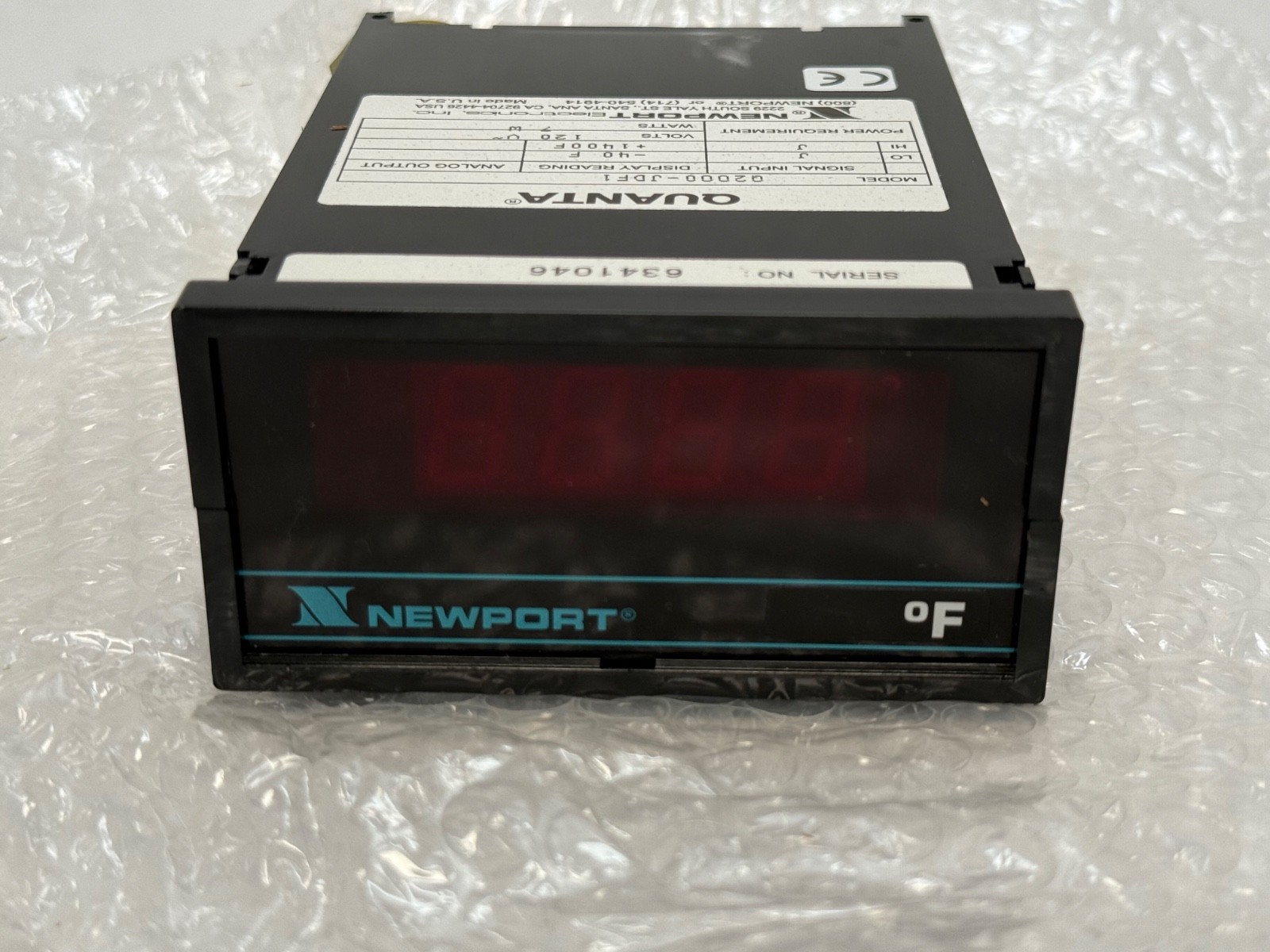

Display: red LED numeric, front-panel readable.

Supply: 115 VAC line power, approximately 7 W.

Nominal Voltage Rating: 120 V

Case Material: polycarbonate.

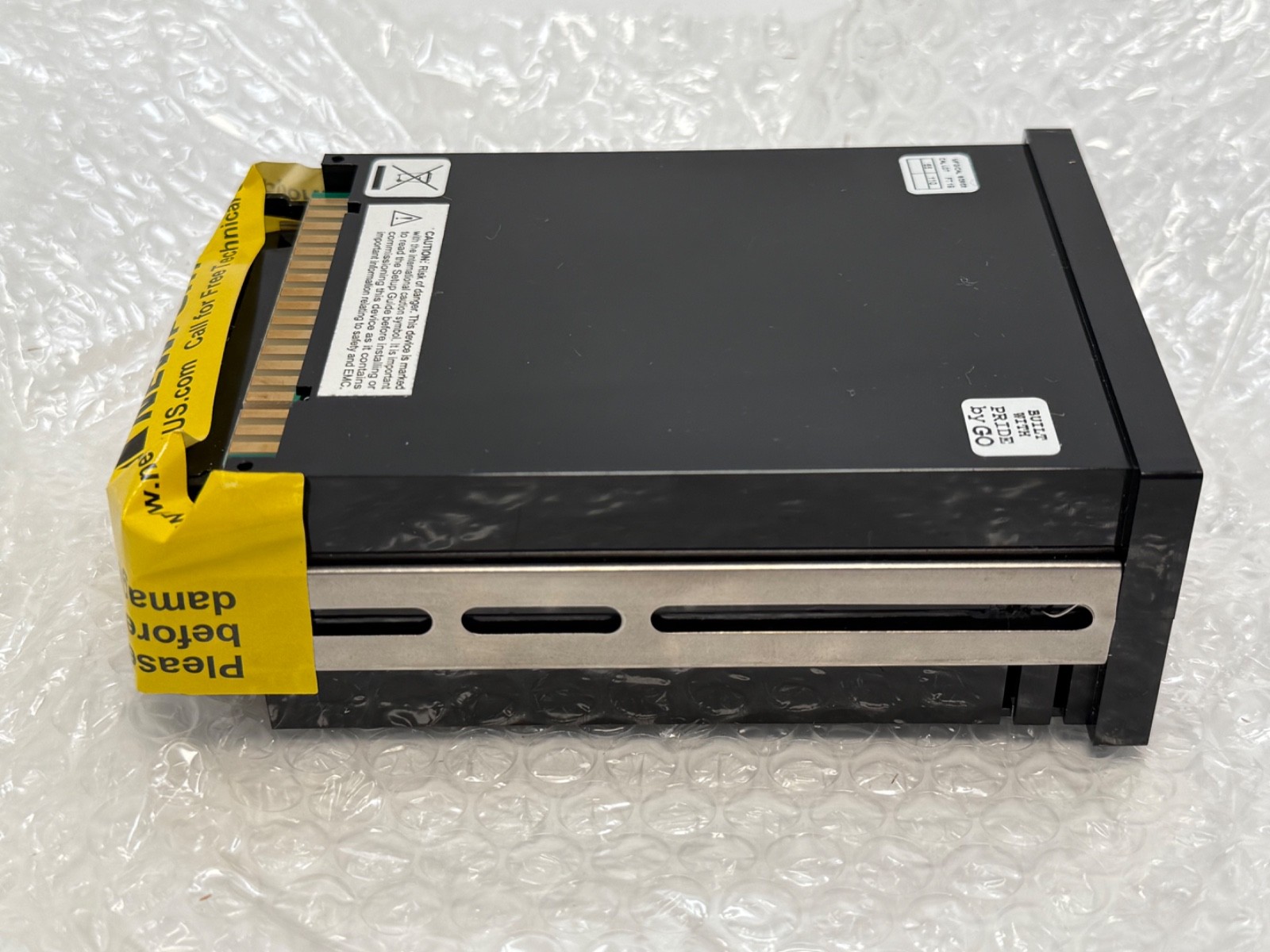

Mounting Type: panel mount, 1/8 DIN cutout, 44.96 mm high.

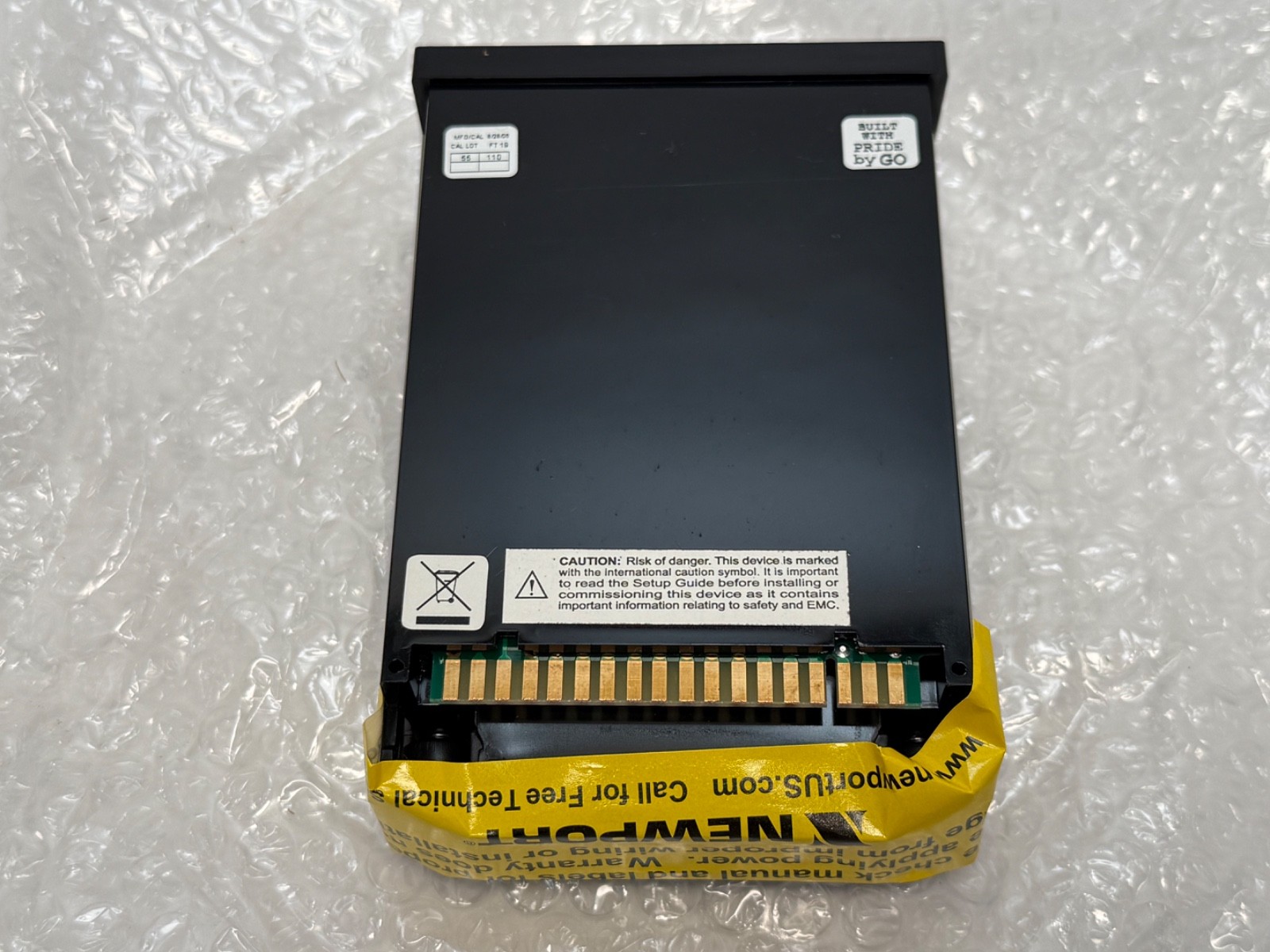

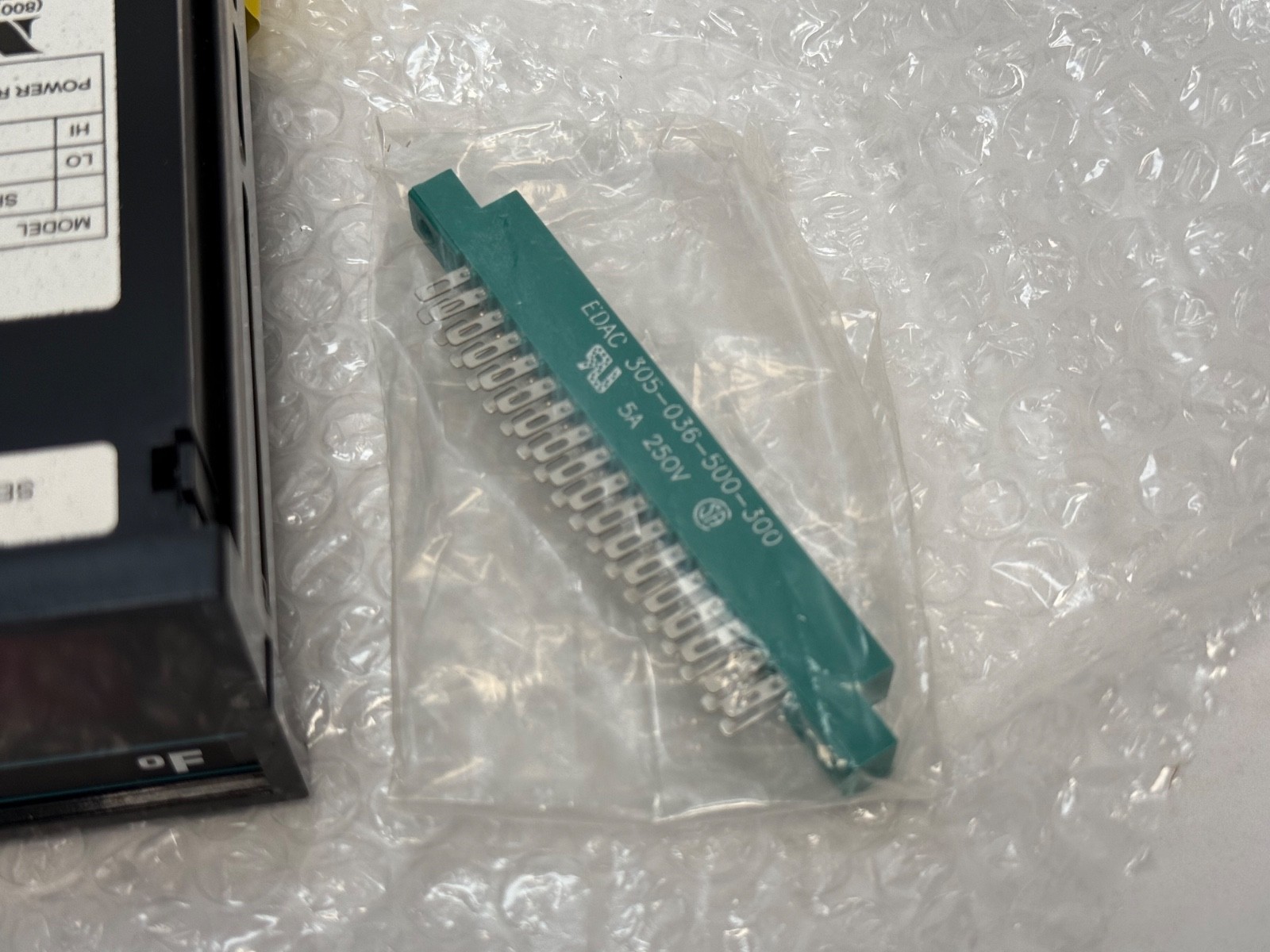

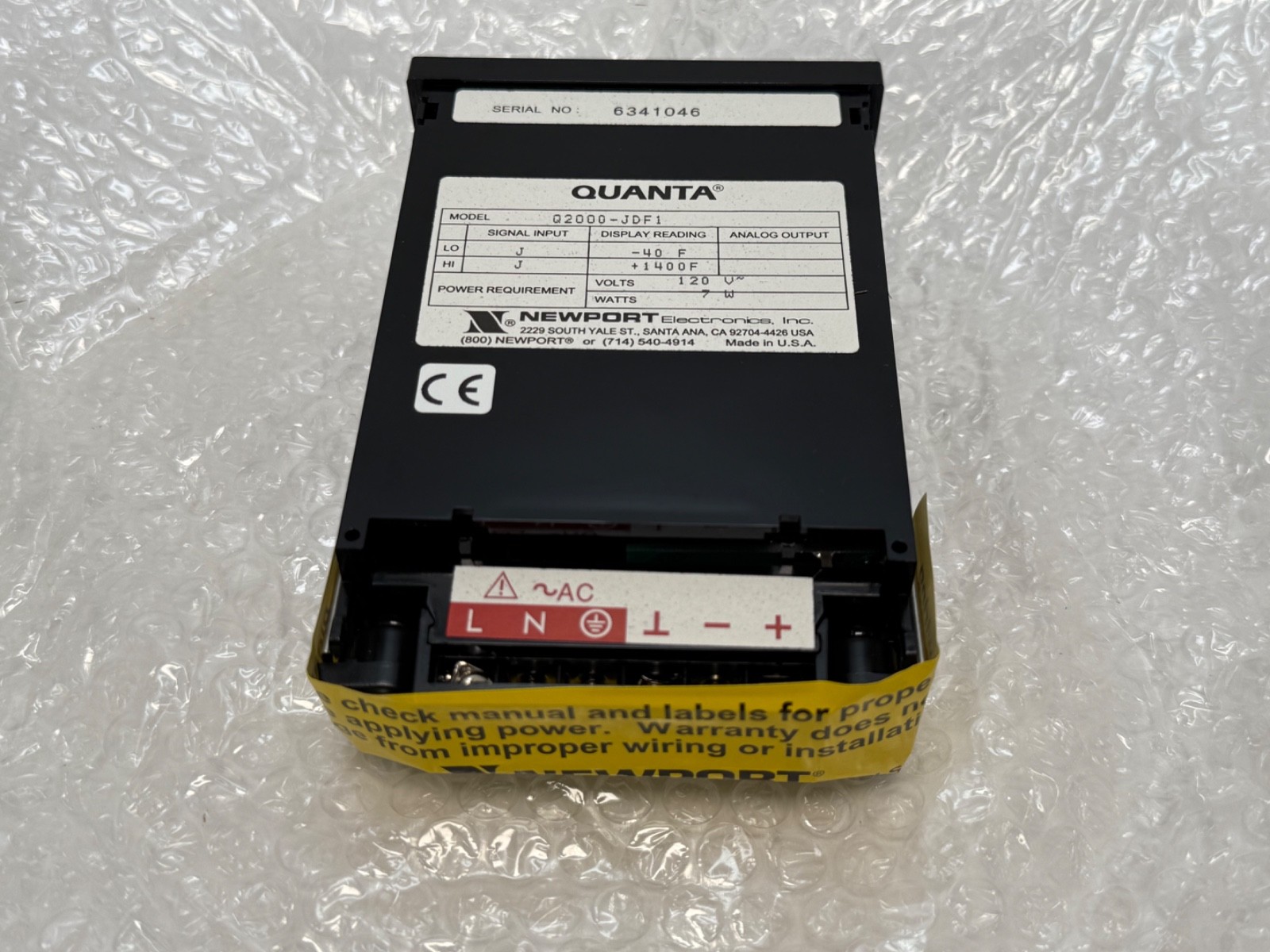

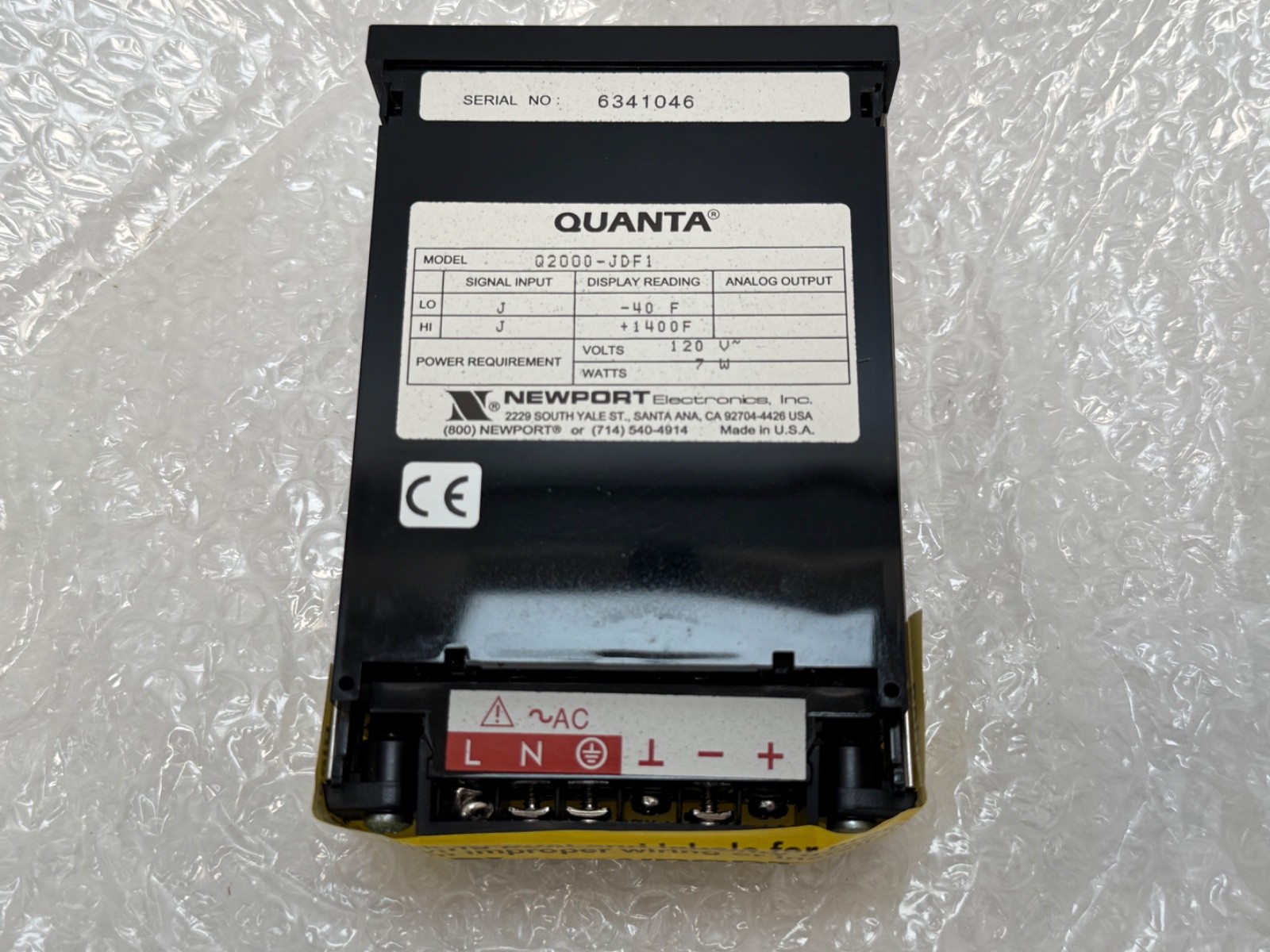

Connector Style: rear screw terminals.

Meter Type: electronic.

Series: QUANTA Q2000

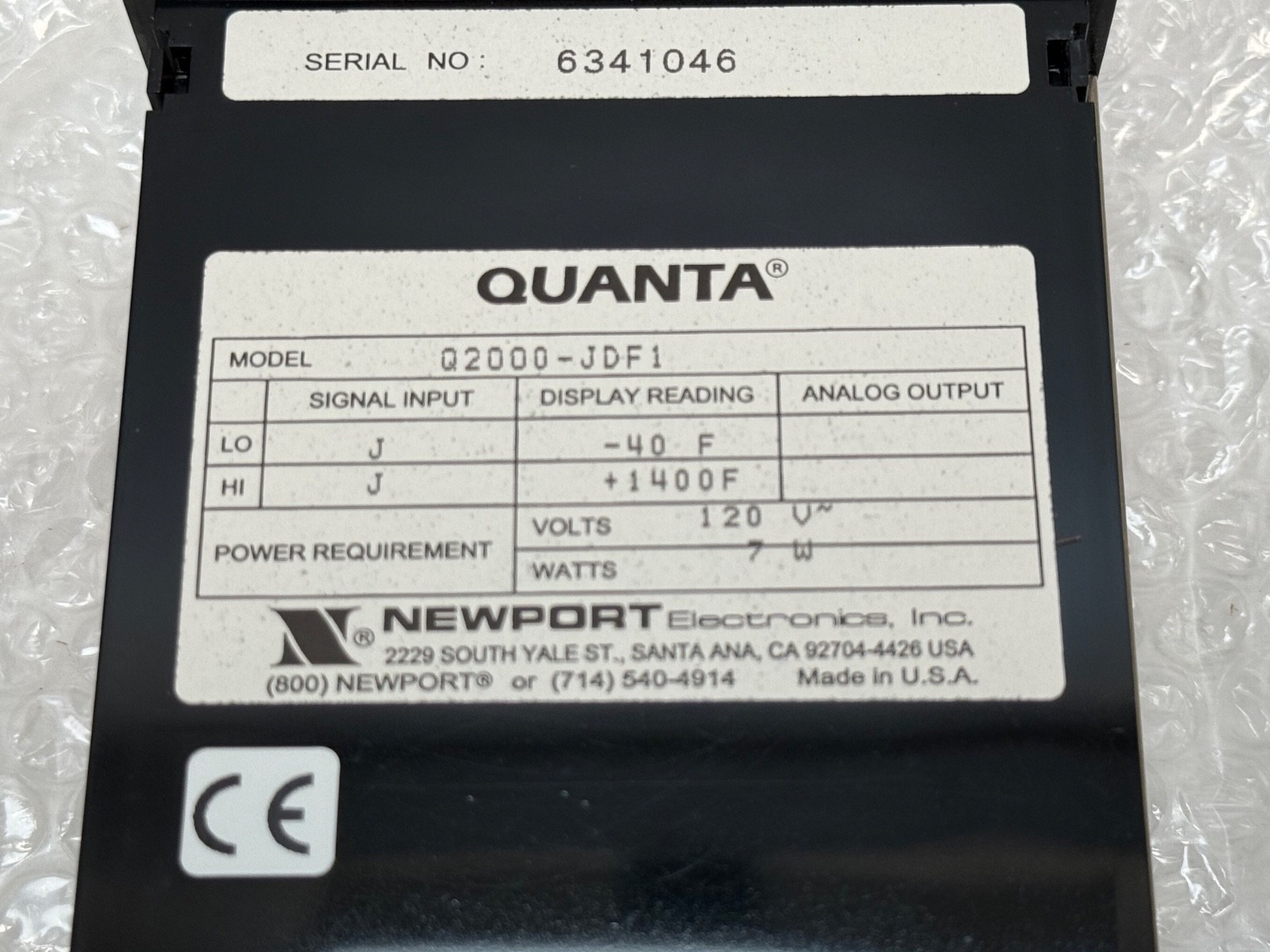

Part Number: Q2000-JDF1

Adjustment: zero and span trims for readout in engineering units.

Application

Type J is used on plastics extrusion, ovens, dryers, platens and older process skids. A line-powered 1/8 DIN panel instrument.

Quantity and configuration

Unit Quantity: one meter.

Interchange and equivalents

MPN Variants: Q2000-JDF1; Q2000JDF1; Q2000 JDF1; Q-2000-JDF1; Q2000JDF-1

Newport Electronics is now part of Omega Engineering, so this instrument is also catalogued under Omega. The Q9000-series QUANTA meters are the same platform in other case and power configurations. Sister builds: Q2000-KDF1 is the same meter with a Type K input, Q2000-JDC1 is the same meter in another option group; both are dimensionally identical 1/8 DIN QUANTA meters. Newport’s later replacements are the INFINITY / iSeries and DP-series panel meters, which use the same 1/8 DIN cutout.

Manufacturer Status: Discontinued – Newport Electronics now Omega Engineering; current equivalents are the Omega/Newport INFINITY, iSeries and DP-series 1/8 DIN panel meters

Compatible With / Replaces: Any 1/8 DIN panel cutout running a Type J iron/constantan thermocouple

Industry terms

Digital panel meter, DPM, temperature indicator, thermocouple readout, 1/8 DIN meter, panel-mount pyrometer.
